Designation: C1569 − 03 (Reapproved 2016) C1569 − 22
Standard Test Method for
Wind Resistance of Concrete and Clay Roof Tiles (Wind
Tunnel Method)
This standard is issued under the fixed designation C1569; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This test method covers a procedure to determine the resistance of concrete and clay roof tiles to simulated wind effects in
a wind-tunnel apparatus. Simulated wind velocities of 70 mph (31 m/s) to 130 mph (58 m/s) are employed.
1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical
conversions to SI units that are provided for information only and are not considered standard.
1.3 The text of this specification references notes and footnotes which provide explanatory material. These notes and footnotes
(excluding those in tables and figures) shall not be considered as requirements of the standard.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety safety, health, and healthenvironmental practices and determine the
applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
C43 Terminology of Structural Clay Products (Withdrawn 2009)
C67C67/C67M Test Methods for Sampling and Testing Brick and Structural Clay Tile
C140C140/C140M Test Methods for Sampling and Testing Concrete Masonry Units and Related Units
C1167 Specification for Clay Roof Tiles
C1232 Terminology for Masonry
C1492 Specification for Concrete Roof Tile
C1568 Test Method for Wind Resistance of Concrete and Clay Roof Tiles (Mechanical Uplift Resistance Method)
C1570 Test Method for Wind Resistance of Concrete and Clay Roof Tiles (Air Permeability Method)
2.2 SBCCI Standards:
SBCCI SSDT 11 SBCCI Test Standard for Determining Wind Resistance of Concrete or Clay Roof Tiles
This test method is under the jurisdiction of ASTM Committee C15 on Manufactured Masonry Units and is the direct responsibility of Subcommittee C15.06 on Roofing
Tile.
Current edition approved Dec. 1, 2016March 1, 2022. Published December 2016April 2022. Originally approved in 2003. Last previous edition approved in 20092016
as C1569 – 03(2009).(2016). DOI: 10.1520/C1569-03R16.10.1520/C1569-22.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
C1569 − 22
NOTE 1—This standard is based on the International Code Council’s ICC/SBCCI SSTD 11 Test Standard for Determining Wind Resistance of Concrete
or Clay Roof Tiles, and work derived from the tile industry’s testing programs completed in the Redland Wind Tunnel in the UK.
2.3 ASCE Standards:
ASCE 7 Minimum Design Loads for Buildings and Other Structures
3. Terminology
3.1 Definitions—For definitions of terms used in this test method refer to Terminology C43C1232, and Specifications C1167 and
C1492.
4. Significance and Use
4.1 It is known that the observed effects of wind simulated in a wind-tunnel apparatus are related to the effects observed from
natural wind. The resistance of tiles to simulated wind in this test relates to the resistance of the tiles to the effects of natural wind
when they are applied to a roof. One factor in the resistance of the tiles to the effects of both natural and simulated wind is the
method of attachment specified in the manufacturer’s instructions. This test method determines the uplift forces acting as a result
of the simulated wind when tile are attached to a section of roof deck in accordance with the manufacturer’s instructions. Natural
wind conditions differ with respect to intensity, duration, and turbulence; these conditions are beyond the means of this test method
to simulate.
5. Apparatus
5.1 The test assembly of tiles attached to a section of roof deck is identical to that used in Test Method C1568 (Mechanical Uplift
Method) except that tile are not fitted with a load-transfer device.

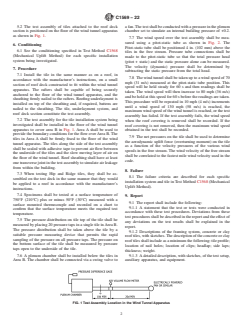

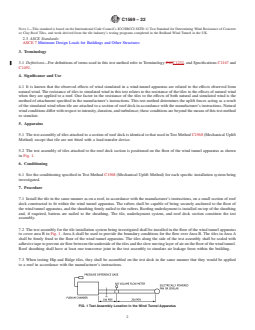

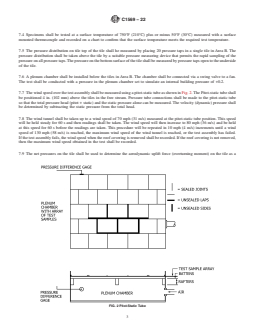

5.2 The test assembly of tiles attached to the roof deck section is positioned on the floor of the wind tunnel apparatus as shown
in Fig. 1.
6. Conditioning
6.1 See the conditioning specified in Test Method C1568 (Mechanical Uplift Method) for each specific installation system being
investigated.
7. Procedure
7.1 Install the tile in the same manner as on a roof, in accordance with the manufacturer’s instructions, on a small section of roof
deck constructed to fit within the wind tunnel apparatus. The rafters shall be capable of being securely anchored to the floor of
the wind tunnel apparatus, and the sheathing firmly nailed to the rafters. Roofing underlayment is installed on top of the sheathing
and, if required, battens are nailed to the sheathing. The tile, underlayment system, and roof deck section constitute the test
assembly.
7.2 The test assembly for the tile installation system being investigated shall be installed in the floor of the wind tunnel apparatus
to cover area B in Fig. 1. Area A shall be used to provide the boundary conditions for the flow over Area B. The tiles in Area A
shall be firmly fixed to the floor of the wind tunnel apparatus. The tiles along the side of the test assembly shall be sealed with
adhesive tape to prevent air flow between the underside of the tiles and the slow moving layer of air on the floor of the wind tunnel.
Roof sheathing shall have at least one transverse joint in the test assembly to simulate air leakage from within the building.
7.3 When testing Hip and Ridge tiles, they shall be assembled on the test deck in the same manner that they would be applied
to a roof in accordance with the manufacturer’s instructi
...
