ASTM D6754/D6754M-23

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: D6754/D6754M − 15 (Reapproved 2022) D6754/D6754M − 23
Standard Specification for
Ketone Ethylene Ester Based Sheet Roofing
This standard is issued under the fixed designation D6754/D6754M; the number immediately following the designation indicates the
year of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last
reapproval. A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This specification covers flexible sheet made from ketone ethylene ester (KEE) as the primary polymer intended for use in
single-ply roofing membrane exposed to the weather. The sheet shall be reinforced with fabric.
1.2 In-place roof system design criteria, such as fire resistance, field-seaming strength, material compatibility, uplift resistance,
in-situ shrinkage, among others, are factors that must be considered but are beyond the scope of this specification.
1.3 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each
system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the
two systems may result in nonconformance with the standard.
1.4 The following precautionary caveat pertains to the test methods portion only, Section 8, of this specification: This standard
does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this
standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory
limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
D471 Test Method for Rubber Property—Effect of Liquids
D751 Test Methods for Coated Fabrics
D1079 Terminology Relating to Roofing and Waterproofing
D1204 Test Method for Linear Dimensional Changes of Nonrigid Thermoplastic Sheeting or Film at Elevated Temperature
D2136 Test Method for Coated Fabrics—Low-Temperature Bend Test
D3045 Practice for Heat Aging of Plastics Without Load
D3389 Test Method for Coated Fabrics Abrasion Resistance (Rotary Platform Abrader)
D5602/D5602M Test Method for Static Puncture Resistance of Roofing Membrane Specimens
D5635/D5635M Test Method for Dynamic Puncture Resistance of Roofing Membrane Specimens
D7635/D7635M Test Method for Measurement of Thickness of Coatings Over Fabric Reinforcement
G21 Practice for Determining Resistance of Synthetic Polymeric Materials to Fungi
This specification is under the jurisdiction of ASTM Committee D08 on Roofing and Waterproofing and is the direct responsibility of Subcommittee D08.18 on
Nonbituminous Organic Roof Coverings.
Current edition approved June 15, 2022Sept. 1, 2023. Published June 2022September 2023. Originally approved in 2002. Last previous edition approved in 20152022 as
D6754/D6754M – 15.D6754/D6754M – 15 (2022). DOI: 10.1520/D6754_D6754M-15R22.10.1520/D6754_D6754M-23.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
D6754/D6754M − 23
G151 Practice for Exposing Nonmetallic Materials in Accelerated Test Devices that Use Laboratory Light Sources
G154 Practice for Operating Fluorescent Ultraviolet (UV) Lamp Apparatus for Exposure of Materials
G155 Practice for Operating Xenon Arc Lamp Apparatus for Exposure of Materials
3. Terminology
3.1 Definitions—Terminology D1079 shall apply to this specification.
3.2 ketone ethylene ester (KEE), n—a high molecular weight thermoplastic copolymer of ethylene, containing carbon monoxide
and either vinyl acetate or acrylate monomer which are incorporated to provide softness and polarity.
3.2.1 Discussion—
Ester groups of the vinyl acetate or acrylate are pendant from the ethylene backbone and reduce crystallinity, which provides
flexibility. Carbon monoxide groups within the polymer backbone provide polarity. The KEE polymer is therefore a flexible
polymer, which is miscible with other polymers of similar polarity.
3.3 polymer content, n—in this specification, polymer content shall be defined as polymeric materials which are in the solid state
at room temperature, and are high (greater than 50 000 Mw) in molecular weight. Other ingredients, known to the art of polymer
compounding, such as certain waxes, stabilizers, and other additives, while polymeric in nature are not considered to be part of
the base polymer system.
4. Materials and Manufacture
4.1 The sheet shall be formulated from the appropriate polymers and other compounding ingredients. The KEE polymer shall be
a minimum of 50 % by weight of the polymer content of the sheet.
4.2 The sheet shall be reinforced internally with a fabric.
4.3 To make seam and repairs, the sheet shall be capable of being bonded watertight to itself during the design service life of the
sheets. The manufacturer shall recommend a suitable method. Design service life is defined as the designated time period of
intended system performance.
5. Physical Properties
5.1 The sheet shall conform to the physical requirements prescribed in Table 1.
5.2 The tolerance for time conditions (aging, weathering, and so forth) is 615 min or 61 % of the period, whichever is greater,
unless specified.
5.3 The tolerance for temperature conditions (aging, weathering, and so forth) is 62 °C [4 °F] of the specified temperature, unless
otherwise specified.
6. Dimensions and Permissible Variations
6.1 The width and length of the sheet shall be agreed upon between the purchaser and the supplier as part of the purchase contract.
The width and length tolerance shall be +3 % –0 % after permitting the sheet to relax 1 h at 23 6 1 °C [73 6 2 °F].
6.2 The thickness and thickness tolerance shall be agreed upon between the purchaser and supplier as part of the purchase contract,
subject to the minimum requirement in Table 1.
7. Workmanship, Finish, and Appearance
7.1 The sheet, including factory seams if present, shall be watertight and be visually free of pinholes, particles of foreign matter,
undispersed raw materials, protruding reinforcement, and other manufacturing defects that might affect serviceability.
7.2 The sheet shall be visually free of nicks and cuts, voids, thin areas, delaminations, moisture-bound fabric, or other defects.
D6754/D6754M − 23

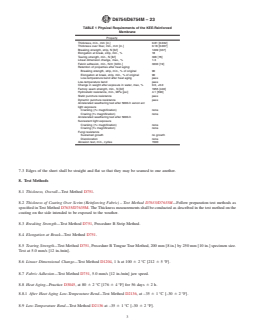

TABLE 1 Physical Requirements of the KEE-Reinforced
Membrane
Property
Thickness, min., mm [in.] 0.81 [0.032]
Thickness over fiber, min., mm [in.] 0.18 [0.007]
Breaking strength, strip, N [lbf] 1499 [337]
Elongation at break, strip, min., % 18
Tearing strength, min., N [lbf] 338 [76]
Lineal dimension change, max., % 1.3
Fabric adhesion, min., N/m [lbf/in.] 3330 [19]
Retention of properties after heat aging:
B
...
