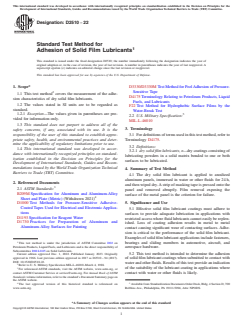

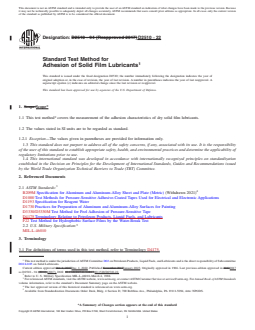

ASTM D2510-22

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: D2510 − 94 (Reapproved 2017) D2510 − 22
Standard Test Method for
Adhesion of Solid Film Lubricants
This standard is issued under the fixed designation D2510; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope Scope*
1.1 This test method covers the measurement of the adhesion characteristics of dry solid film lubricants.
1.2 The values stated in SI units are to be regarded as standard.
1.2.1 Exception—The values given in parentheses are provided for information only.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of
regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
B209M Specification for Aluminum and Aluminum-Alloy Sheet and Plate (Metric) (Withdrawn 2021)
D1000 Test Methods for Pressure-Sensitive Adhesive-Coated Tapes Used for Electrical and Electronic Applications
D1193 Specification for Reagent Water
D1730 Practices for Preparation of Aluminum and Aluminum-Alloy Surfaces for Painting
D3330/D3330M Test Method for Peel Adhesion of Pressure-Sensitive Tape
D4175 Terminology Relating to Petroleum Products, Liquid Fuels, and Lubricants
F22 Test Method for Hydrophobic Surface Films by the Water-Break Test
2.2 U.S. Military Specification:
MIL-L-46010
3. Terminology
3.1 For definitions of terms used in this test method, refer to Terminology D4175.
This test method is under the jurisdiction of ASTM Committee D02 on Petroleum Products, Liquid Fuels, and Lubricants and is the direct responsibility of Subcommittee
D02.L0.05 on Solid Lubricants.
Current edition approved Oct. 1, 2017Dec. 1, 2022. Published November 2017January 2023. Originally approved in 1966. Last previous edition approved in 20122017
as D2510 – 94 (2012).(2017). DOI: 10.1520/D2510-94R17.10.1520/D2510-22.
Refer to U. S. Military Specification MIL-L-46010–March 4, 1988.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
The last approved version of this historical standard is referenced on www.astm.org.
Available from Standardization Documents Order Desk, Bldg. 4 Section D, 700 Robbins Ave., Philadelphia, PA 19111-5094, Attn: NPODS.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

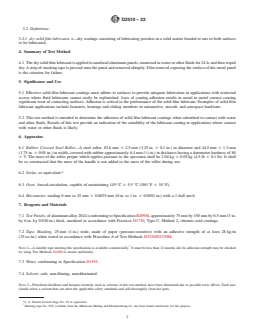

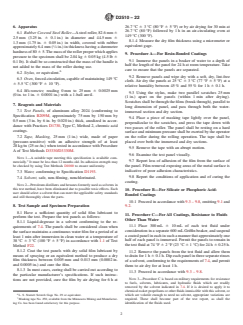

D2510 − 22
3.2 Definitions:
3.2.1 dry solid film lubricants, n—dry coatings consisting of lubricating powders in a solid matrix bonded to one or both surfaces
to be lubricated.
4. Summary of Test Method
4.1 The dry solid film lubricant is applied to anodized aluminum panels, immersed in water or other fluids for 24 h, and then wiped
dry. A strip of masking tape is pressed onto the panel and removed abruptly. Film removal exposing the surface of the metal panel
is the criterion for failure.
5. Significance and Use
5.1 Effective solid film lubricant coatings must adhere to surfaces to provide adequate lubrication in applications with restricted
access where fluid lubricants cannot easily be replenished. Loss of coating adhesion results in metal to metal contact causing
significant wear of contacting surfaces. Adhesion is critical to the performance of the solid film lubricant. Examples of solid film
lubricant applications include fasteners, bearings and sliding members in automotive, aircraft, and aerospace hardware.
5.2 This test method is intended to determine the adhesion of solid film lubricant coatings when submitted to contact with water
and other fluids. Results of this test provide an indication of the suitability of the lubricant coating in applications where contact
with water or other fluids is likely.
6. Apparatus
6.1 Rubber Covered Steel Roller—A steel roller, 82.6 mm 6 2.5 mm (3.25 in. 6 0.1 in.) in diameter and 44.5 mm 6 1.3 mm
(1.75 in. 6 0.05 in.) in width, covered with rubber approximately 6.4 mm ( ⁄4 in.) in thickness having a durometer hardness of 80
6 5. The mass of the roller proper which applies pressure to the specimen shall be 2.04 kg 6 0.05 kg (4.5 lb 6 0.1 lb). It shall
be so constructed that the mass of the handle is not added to the mass of the roller during use.
6.2 Stylus, or equivalent.
6.3 Oven, forced-circulation, capable of maintaining 149 °C 6 5.5 °C (300 °F 6 10 °F).
6.4 Micrometer, reading 0 mm to 25 mm 6 0.0025 mm (0 in. to 1 in. 6 0.0001 in.) with a 1-ball anvil.
7. Reagents and Materials
7.1 Test Panels, of aluminum alloy 2024 (conforming to Specification B209M, approximately 75 mm by 150 mm by 0.5 mm (3 in.
by 6 in. by 0.020 in.) thick, anodized in accordance with Practices D1730, Type C, Method 2, chromic acid coatings.
7.2 Tape, Masking, 25 mm (1 in.) wide, made of paper (pressure-sensitive) with an adhesive strength of at least 28 kg ⁄m
(25 oz ⁄in.) when tested in accordance with Procedure A of Test Methods D3330/D3330M.
NOTE 1—A suitable tape meeting this specification is available commercially. It must be less than 12 months old. Its adhesi
...
