Standard Practice for Preservation of Waterborne Oil Samples

ABSTRACT
This practice establishes the standard method of preserving waterborne oil samples from the time of collection to the time of analysis. Information is provided to ensure sample integrity and to avoid contamination and to minimize microbial degradation. This practice is for controlled field or laboratory conditions and specifies thorough preparation of equipment and precise operation. If, however, these details must be compromised in a field emergency, nonstandard simplifications that will minimize or eliminate consequent errors are recommended. This procedure requires the use of the following apparatuses: sample containers, preferably borosilicate glass (plastic and metal are not acceptable ); closures; an explosion-proof refrigerator; and shipping containers (sturdy cartons or wooden boxes). Samples may be of several types, such as tar balls, collected oil, oil-water mixtures, emulsions, and oil and water on collecting devices such as silanized glass cloth, TFE-fluorocarbon polymer, or other materials. Instructions are given for the care of samples to minimize changes due to autoxidation and microbial attack between the time of sampling and the time of testing. Services available for transportation of samples are described as well.
SCOPE
1.1 This practice covers the preservation of waterborne oil samples from the time of collection to the time of analysis. Information is provided to ensure sample integrity and to avoid contamination and to minimize microbial degradation.
1.2 The practice is for controlled field or laboratory conditions and specifies thorough preparation of equipment and precise operation. Where these details must be compromised in a field emergency, nonstandard simplifications are recommended that will minimize or eliminate consequent errors.
Note 1: Procedures for the analysis of oil spill samples are Practices D3326, D3415, and D4489, and Test Methods D3650, D3327, D3328, and D3414. A guide to the use of ASTM test methods for the analysis of oil spill samples is found in Practice D3415.
1.3 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

Status
Published
Publication Date
31-Dec-2019
Technical Committee
D19 - Water

Relations

Effective Date
01-Jan-2020
Effective Date
01-Apr-2024
Effective Date
01-Apr-2024
Effective Date
01-Apr-2024
Effective Date
01-May-2020
Effective Date
01-Jan-2020
Effective Date
15-Dec-2017
Effective Date
15-Dec-2017
Effective Date
15-Dec-2017
Effective Date
15-Feb-2013
Effective Date
15-Jun-2011
Effective Date
01-May-2011
Effective Date
01-May-2011
Effective Date
01-May-2011
Effective Date
01-May-2011

Overview

ASTM D3325-90(2020): Standard Practice for Preservation of Waterborne Oil Samples is an internationally recognized guideline developed by ASTM International. The standard details procedures to collect, preserve, and transport waterborne oil samples from the time of collection until laboratory analysis. It is focused on maintaining sample integrity by minimizing contamination and microbial degradation, with explicit recommendations for equipment preparation and preservation techniques. This standard is essential for ensuring accurate, reliable results during the analysis of oil spill samples or other waterborne oils in both field and laboratory settings.

Key Topics

  • Sample Integrity: Comprehensive guidance on avoiding contamination, minimizing autoxidation, and deterring microbial attack until the sample is analyzed.
  • Sample Containers: Strong emphasis on the use of borosilicate glass containers, with plastic or metal alternatives being unacceptable due to potential for contamination or interference with analytical results.
  • Field and Laboratory Procedures: Recommendations for both controlled lab conditions and field emergencies, offering alternative procedures when ideal conditions cannot be maintained.
  • Container Preparation: Detailed cleaning protocols, including detergent washes, solvent rinses, and thorough drying to prevent carryover contamination.
  • Closures and Shipping: Use of TFE-fluorocarbon or aluminum-coated closure inserts, robust shipping containers, and absorbent packing materials to ensure safe and compliant shipping.
  • Temperature Control: Storage at 4 to 5°C in explosion-proof refrigerators to inhibit microbial growth and prevent sample degradation.
  • Legal and Safety Compliance: Guidance to meet U.S. Department of Transportation (DOT), U.S. Postal Service (USPS), and International Civil Aviation Organization (ICAO) regulations for shipping hazardous samples.

Applications

The ASTM D3325-90(2020) standard is widely applied in scenarios involving the collection and analysis of waterborne oil samples, including:

  • Environmental Monitoring: Used by regulatory agencies, research organizations, and oil spill response teams to monitor environmental impact and support remediation efforts.
  • Oil Spill Response: Rapid and correct preservation of samples is vital after oil spills to quantify the extent, type, and impact of contamination.
  • Laboratory Analysis: Laboratories rely on preserved samples to ensure test accuracy using companion ASTM methods for oil identification and quantification.
  • Transport and Storage: Proper preservation is essential during sample shipment and interim storage, preventing degradation before analysis.

Adhering to this standard helps ensure validity in subsequent laboratory tests, supports regulatory compliance, and maintains chain-of-custody for forensic or legal reviews.

Related Standards

Several ASTM standards complement or reference ASTM D3325-90(2020) in the handling and analysis of waterborne oil and spill samples:

  • ASTM D4489: Practices for Sampling of Waterborne Oils
  • ASTM D3326: Practice for Preparation of Samples for Identification of Waterborne Oils
  • ASTM D3415: Practice for Identification of Waterborne Oils
  • ASTM D3328: Test Methods for Comparison of Waterborne Petroleum Oils by Gas Chromatography
  • ASTM D1129: Terminology Relating to Water

For those involved in environmental oil sample analysis, referencing these standards together ensures a comprehensive approach to sample collection, preservation, shipping, and analysis.


Keywords: preservation of waterborne oil samples, ASTM D3325, oil spill sample preservation, oil sample shipping, environmental oil analysis, waterborne petroleum oils, sample integrity, analytical chemistry standards, oil sample contamination prevention.

Buy Documents

Standard

ASTM D3325-90(2020) - Standard Practice for Preservation of Waterborne Oil Samples

English language (3 pages)
sale 15% off
sale 15% off

Get Certified

Connect with accredited certification bodies for this standard

ABS Quality Evaluations Inc.

American Bureau of Shipping quality certification.

ANAB United States Verified

Element Materials Technology

Materials testing and product certification.

UKAS United Kingdom Verified

ABS Group Brazil

ABS Group certification services in Brazil.

CGCRE Brazil Verified

Sponsored listings

Frequently Asked Questions

ASTM D3325-90(2020) is a standard published by ASTM International. Its full title is "Standard Practice for Preservation of Waterborne Oil Samples". This standard covers: ABSTRACT This practice establishes the standard method of preserving waterborne oil samples from the time of collection to the time of analysis. Information is provided to ensure sample integrity and to avoid contamination and to minimize microbial degradation. This practice is for controlled field or laboratory conditions and specifies thorough preparation of equipment and precise operation. If, however, these details must be compromised in a field emergency, nonstandard simplifications that will minimize or eliminate consequent errors are recommended. This procedure requires the use of the following apparatuses: sample containers, preferably borosilicate glass (plastic and metal are not acceptable ); closures; an explosion-proof refrigerator; and shipping containers (sturdy cartons or wooden boxes). Samples may be of several types, such as tar balls, collected oil, oil-water mixtures, emulsions, and oil and water on collecting devices such as silanized glass cloth, TFE-fluorocarbon polymer, or other materials. Instructions are given for the care of samples to minimize changes due to autoxidation and microbial attack between the time of sampling and the time of testing. Services available for transportation of samples are described as well. SCOPE 1.1 This practice covers the preservation of waterborne oil samples from the time of collection to the time of analysis. Information is provided to ensure sample integrity and to avoid contamination and to minimize microbial degradation. 1.2 The practice is for controlled field or laboratory conditions and specifies thorough preparation of equipment and precise operation. Where these details must be compromised in a field emergency, nonstandard simplifications are recommended that will minimize or eliminate consequent errors. Note 1: Procedures for the analysis of oil spill samples are Practices D3326, D3415, and D4489, and Test Methods D3650, D3327, D3328, and D3414. A guide to the use of ASTM test methods for the analysis of oil spill samples is found in Practice D3415. 1.3 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard. 1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

ABSTRACT This practice establishes the standard method of preserving waterborne oil samples from the time of collection to the time of analysis. Information is provided to ensure sample integrity and to avoid contamination and to minimize microbial degradation. This practice is for controlled field or laboratory conditions and specifies thorough preparation of equipment and precise operation. If, however, these details must be compromised in a field emergency, nonstandard simplifications that will minimize or eliminate consequent errors are recommended. This procedure requires the use of the following apparatuses: sample containers, preferably borosilicate glass (plastic and metal are not acceptable ); closures; an explosion-proof refrigerator; and shipping containers (sturdy cartons or wooden boxes). Samples may be of several types, such as tar balls, collected oil, oil-water mixtures, emulsions, and oil and water on collecting devices such as silanized glass cloth, TFE-fluorocarbon polymer, or other materials. Instructions are given for the care of samples to minimize changes due to autoxidation and microbial attack between the time of sampling and the time of testing. Services available for transportation of samples are described as well. SCOPE 1.1 This practice covers the preservation of waterborne oil samples from the time of collection to the time of analysis. Information is provided to ensure sample integrity and to avoid contamination and to minimize microbial degradation. 1.2 The practice is for controlled field or laboratory conditions and specifies thorough preparation of equipment and precise operation. Where these details must be compromised in a field emergency, nonstandard simplifications are recommended that will minimize or eliminate consequent errors. Note 1: Procedures for the analysis of oil spill samples are Practices D3326, D3415, and D4489, and Test Methods D3650, D3327, D3328, and D3414. A guide to the use of ASTM test methods for the analysis of oil spill samples is found in Practice D3415. 1.3 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard. 1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

ASTM D3325-90(2020) is classified under the following ICS (International Classification for Standards) categories: 75.080 - Petroleum products in general. The ICS classification helps identify the subject area and facilitates finding related standards.

ASTM D3325-90(2020) has the following relationships with other standards: It is inter standard links to ASTM D3325-90(2013), ASTM D3326-07(2024), ASTM D4489-95(2024), ASTM D3415-98(2024), ASTM D1129-13(2020)e2, ASTM D3328-06(2020), ASTM D4489-95(2017), ASTM D3415-98(2017), ASTM D3326-07(2017), ASTM D3328-06(2013), ASTM D3414-98(2011)e1, ASTM D3415-98(2011), ASTM D3650-93(2011), ASTM D3326-07(2011), ASTM D4489-95(2011). Understanding these relationships helps ensure you are using the most current and applicable version of the standard.

ASTM D3325-90(2020) is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

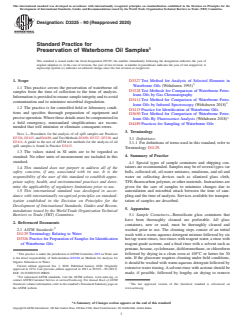

Standards Content (Sample)


This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
Designation: D3325 − 90 (Reapproved 2020)
Standard Practice for
Preservation of Waterborne Oil Samples
This standard is issued under the fixed designation D3325; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope D3327 Test Method for Analysis of Selected Elements in
Waterborne Oils (Withdrawn 1993)
1.1 This practice covers the preservation of waterborne oil
D3328 Test Methods for Comparison of Waterborne Petro-
samples from the time of collection to the time of analysis.
leum Oils by Gas Chromatography
Information is provided to ensure sample integrity and to avoid
D3414 Test Method for Comparison of Waterborne Petro-
contamination and to minimize microbial degradation.
leum Oils by Infrared Spectroscopy (Withdrawn 2018)
1.2 The practice is for controlled field or laboratory condi-
D3415 Practice for Identification of Waterborne Oils
tions and specifies thorough preparation of equipment and
D3650 Test Method for Comparison of Waterborne Petro-
precise operation.Where these details must be compromised in 3
leum Oils By Fluorescence Analysis (Withdrawn 2018)
a field emergency, nonstandard simplifications are recom-
D4489 Practices for Sampling of Waterborne Oils
mended that will minimize or eliminate consequent errors.
3. Terminology
NOTE 1—Procedures for the analysis of oil spill samples are Practices
D3326, D3415, and D4489, andTest Methods D3650, D3327, D3328, and
3.1 Definitions:
D3414. A guide to the use of ASTM test methods for the analysis of oil
3.1.1 For definitions of terms used in this standard, refer to
spill samples is found in Practice D3415.
Terminology D1129.
1.3 The values stated in SI units are to be regarded as
4. Summary of Practice
standard. No other units of measurement are included in this
standard.
4.1 Special types of sample containers and shipping con-
1.4 This standard does not purport to address all of the tainers are recommended. Samples may be of several types: tar
balls, collected oil, oil-water mixtures, emulsions, and oil and
safety concerns, if any, associated with its use. It is the
responsibility of the user of this standard to establish appro- water on collecting devices such as silanized glass cloth,
TFE-fluorocarbon polymer, or other materials. Instructions are
priate safety, health, and environmental practices and deter-
mine the applicability of regulatory limitations prior to use. given for the care of samples to minimize changes due to
1.5 This international standard was developed in accor- autoxidation and microbial attack between the time of sam-
dance with internationally recognized principles on standard- pling and the time of analysis. Services available for transpor-
ization established in the Decision on Principles for the tation of samples are described.
Development of International Standards, Guides and Recom-
5. Apparatus
mendations issued by the World Trade Organization Technical
Barriers to Trade (TBT) Committee. 5.1 Sample Containers—Borosilicate glass containers that
have been thoroughly cleaned are preferable. All glass
2. Referenced Documents
containers, new or used, must be thoroughly cleaned and
2.1 ASTM Standards:
washed prior to use. The cleaning steps consist of an initial
D1129 Terminology Relating to Water
wash with a warm aqueous detergent mixture followed by six
D3326 Practice for Preparation of Samples for Identification
hot tap water rinses, two rinses with reagent water, a rinse with
of Waterborne Oils
reagent-grade acetone, and a final rinse with a solvent such as
pentane, hexane, cyclohexane, dichloromethane, or chloroform
followed by drying in a clean oven at 105°C or hotter for 30
This practice is under the jurisdiction of ASTM Committee D19 on Water and
is the direct responsibility of Subcommittee D19.06 on Methods for Analysis for
min. If the glassware requires cleaning under field conditions,
Organic Substances in Water.
it should be washed with warm aqueous detergent followed by
Current edition approved Jan. 1, 2020. Published January 2020. Originally
extensive water rinsing.Asolvent rinse with acetone should be
approved in 1974. Last previous edition approved in 2013 as D3325 – 90 (2013).
DOI: 10.1520/D3325-90R20. made, if possible, followed by lengthy air drying to remove
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
Standards volume information, refer to the standard’s Document Summary page on The last approved version of this historical standard is referenced on
the ASTM website. www.astm.org.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

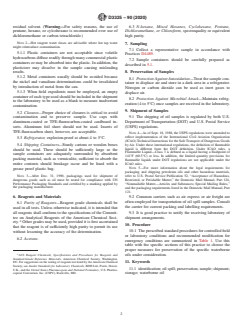

D3325 − 90 (2020)
residual solvent. (Warning—For safety reasons, the use of 6.3 N-hexane, Mixed Hexanes, Cyclohexane, Pentane,
pentane, hexane, or cylcohexane is recommended over use of Dichloromethane, or Chloroform, spectroquality or equivalent
dichloromethane or carbon tetrachloride.) high purity.
NOTE 2—Hot reagent water rinses are advisable where hot tap water
7. Sampling
might reintroduce contamination.
7.1 Collect a representative sample in accordance with
5.1.1 Plastic containers are not acceptable since volatile
Practices D4489.
hydrocarbons diffuse readily through many commercial plastic
7.2 Sample containers should be carefully prepared as
containers or may be absorbed into the plastic. In addition, the
described in 5.1.
plasticizer may dissolve in the sample causing misleading
results. 8. Preservation of Samples
5.1.2 Metal containers usually should be avoided because
8.1 Protection Against Autoxidation—Treat the sample con-
the nickel and vanadium determinations could be invalidated
tainer to displace air and store in a dark area in a refrigerator.
by introduction of metal from the can.
Nitrogen or carbon dioxide can be used as inert gases to
5.1.3 When field expedients must be employed, an empty
displace air.
container of eac
...
