SIST EN 12697-23:2018
(Main)Bituminous mixtures - Test methods - Part 23: Determination of the indirect tensile strength of bituminous specimens
Bituminous mixtures - Test methods - Part 23: Determination of the indirect tensile strength of bituminous specimens
This draft European Standard specifies a test method for determining the (splitting) indirect tensile strength of cylindrical specimens of bituminous mixtures.
NOTE Determination of the water sensitivity of bituminous specimens in accordance with EN 12697-12 is based on determination of the indirect tensile strength in accordance with this test method.
Asphalt - Prüfverfahren - Teil 23: Bestimmung der indirekten Zugfestigkeit von Asphalt-Probekörpern
Dieser Europäische Norm-Entwurf legt ein Prüfverfahren zur Bestimmung der indirekten Zugfestigkeit (Spalt-zugfestigkeit) von zylindrischen Asphalt-Probekörpern fest.
ANMERKUNG Die Bestimmung der Wasserempfindlichkeit von Asphalt-Probekörpern nach EN 12697-12 beruht auf der Bestimmung der indirekten Zugfestigkeit nach dem vorliegenden Prüfverfahren.
Mélanges bitumineux - Méthode d'essais - Partie 23 : Détermination de la résistance à la traction indirecte des éprouvettes bitumineuses
Le présent projet de Norme européenne spécifie une méthode d’essai permettant de déterminer la résistance à la traction indirecte (fendage) d’éprouvettes cylindriques de mélanges bitumineux.
NOTE La détermination de la sensibilité à l'eau des éprouvettes bitumineuses selon l'EN 12697-12 est fondée sur la détermination de la résistance à la traction indirecte selon la présente méthode d’essai.
Bitumenske zmesi - Preskusne metode - 23. del: Ugotavljanje posredne natezne trdnosti bitumenskih preskušancev
Ta osnutek evropskega standarda določa preskusno metodo za ugotavljanje (ločevanje) posredne natezne trdnosti cilindričnih preskušancev iz bitumenskih mešanic.
OPOMBA: Ugotavljanje občutljivosti bitumenskih preskušancev na vodo v skladu s standardom EN 12697-12 temelji na ugotavljanju posredne natezne trdnosti v skladu s to preskusno metodo.
General Information
- Status
- Published
- Public Enquiry End Date
- 29-Oct-2015
- Publication Date
- 13-Dec-2017
- Technical Committee
- CES - Roads
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 08-Dec-2017
- Due Date
- 12-Feb-2018
- Completion Date
- 14-Dec-2017
Relations
- Effective Date
- 01-Jan-2018
- Effective Date
- 21-Feb-2024
Overview
EN 12697-23:2017 (CEN) specifies a laboratory test method for determining the indirect (splitting) tensile strength - ITS - of cylindrical bituminous specimens. The method measures the peak diametrical load to calculate tensile stress at failure and is widely used for strength assessment and for conditioning-based water sensitivity tests (see EN 12697-12 linkage). The standard covers specimen dimensions, apparatus, conditioning, test procedure, calculation and reporting requirements.
Key topics and technical requirements
- Specimen types & size
- Cylindrical specimens (laboratory compacted or cored) with diameters of 80, 100, 120, 150 or 160 mm (tolerances apply).
- Specimen height typically 35–75 mm. Maximum aggregate size limits are specified per specimen diameter (e.g., 80 mm diameter ≤11 mm aggregate; 150/160 mm ≤40 mm).
- Number of specimens
- Minimum three specimens per sample/condition.
- Apparatus
- Compression testing (Marshall-type or similar) with a recommended minimum capacity of 28 kN (higher capacity may be required for stiff samples or large diameters).
- Loading strips of hardened steel with curvature matching specimen radius; specific strip widths are given per specimen diameter.
- Load measuring device accurate to ±0.2 kN.
- Conditioning
- Thermal conditioning in a thermostatic water bath (specimens protected by sealed soft plastic bags) or air chamber.
- Storage before testing: 48 hours to 42 days at ≤25 °C.
- Conditioning time: ≥2 h for specimens <150 mm diameter; ≥4 h for specimens ≥150 mm.
- Test procedure & environment
- Loading rate: constant deformation rate of 50 ± 2 mm/min (after a short transitory period <20% of loading time).
- Default test temperature 10 ± 2 °C (other temperatures +5 °C to +25 °C may be used depending on objectives).
- Complete test within 2 minutes after removal from conditioning.
- Calculation & reporting
- ITS expressed in kilopascals (kPa); ITS is calculated from peak load and specimen dimensions per the formula in the standard.
- Report specimen type, dimensions, test temperature, failure mode (clear tensile break / deformation / combination), and ITS results.
Applications and users
- Used for pavement materials testing, mix design verification, and quality control of asphalt/bituminous mixtures.
- Fundamental for water sensitivity assessment when paired with appropriate conditioning (EN 12697-12 references ITS).
- Typical users: pavement engineers, materials laboratories, contractors, road authorities, and researchers evaluating tensile cracking resistance and mix performance.
Related standards
- EN 12697-27 (Sampling)
- EN 12697-29 (Specimen dimensions)
- EN 12697-30 / -31 / -32 / -33 (Specimen preparation by various compactors / coring)
- EN 12697-34 (Marshall test)
- EN 12697-12 (water sensitivity - references ITS from this method)
Keywords: EN 12697-23, indirect tensile strength, ITS, bituminous mixtures, test method, cylindrical specimens, loading strips, test temperature, CEN.
Frequently Asked Questions
SIST EN 12697-23:2018 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Bituminous mixtures - Test methods - Part 23: Determination of the indirect tensile strength of bituminous specimens". This standard covers: This draft European Standard specifies a test method for determining the (splitting) indirect tensile strength of cylindrical specimens of bituminous mixtures. NOTE Determination of the water sensitivity of bituminous specimens in accordance with EN 12697-12 is based on determination of the indirect tensile strength in accordance with this test method.
This draft European Standard specifies a test method for determining the (splitting) indirect tensile strength of cylindrical specimens of bituminous mixtures. NOTE Determination of the water sensitivity of bituminous specimens in accordance with EN 12697-12 is based on determination of the indirect tensile strength in accordance with this test method.
SIST EN 12697-23:2018 is classified under the following ICS (International Classification for Standards) categories: 93.080.20 - Road construction materials. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 12697-23:2018 has the following relationships with other standards: It is inter standard links to SIST EN 12697-23:2004, oSIST prEN 12697-23:2025. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase SIST EN 12697-23:2018 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of SIST standards.

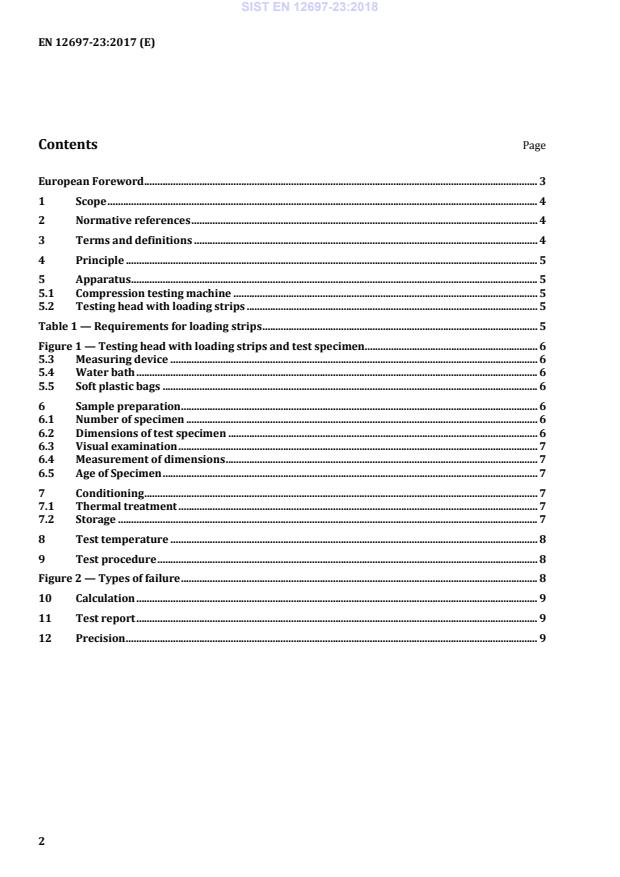

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Bitumenske zmesi - Preskusne metode - 23. del: Ugotavljanje posredne natezne trdnosti bitumenskih preskušancevAsphalt - Prüfverfahren - Teil 23: Bestimmung der indirekten Zugfestigkeit von Asphalt-ProbekörpernMélanges bitumineux - Méthode d'essais - Partie 23 : Détermination de la résistance à la traction indirecte des éprouvettes bitumineusesBituminous mixtures - Test methods - Part 23: Determination of the indirect tensile strength of bituminous specimens93.080.20Materiali za gradnjo cestRoad construction materialsICS:Ta slovenski standard je istoveten z:EN 12697-23:2017SIST EN 12697-23:2018en,fr,de01-januar-2018SIST EN 12697-23:2018SLOVENSKI
STANDARDSIST EN 12697-23:20041DGRPHãþD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 12697-23
November
t r s y ICS
{ uä r z rä t r Supersedes EN
s t x { yæ t uã t r r uEnglish Version
Bituminous mixtures æ Test methods æ Part
t uã Determination of the indirect tensile strength of bituminous specimens Mélanges bitumineux æ Méthode d 5essais æ Partie
t u ã Détermination de la résistance à la traction indirecte des éprouvettes bitumineuses
Asphalt æ Prüfverfahren æ Teil
t uã Bestimmung der indirekten Zugfestigkeit von AsphaltæProbekörpern This European Standard was approved by CEN on
t z August
t r s yä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
t r s y CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s t x { yæ t uã t r s y ESIST EN 12697-23:2018
— [5.2] Table 1 and Table 2 merged into one Table 1; — [6.2] addition of tolerances on diameter for specimens with diameter 80 mm and 120 mm; — [6.2] addition of maximum aggregate size for specimens with diameter 80 mm and 120 mm; — [6.5] introduction of requirements for specimen age; — [8] test temperature set to + 10 °C but opened by references from other standards; — [10] unit for ITS amended to kilopascals (kPa). Formula corrected accordingly; — [11] bullet g). Unit amended to kilopascals (kPa). According to the CEN-CENELEC Internal Regulations, the national standards organisations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 12697-23:2018
...
