Overview
EN 13848-6:2014/FprA1 is a CEN draft amendment to Part 6 of the EN 13848 series: Railway applications - Track - Track geometry quality - Part 6: Characterisation of track geometry quality. The amendment (prA1) updates normative references, refines terminology and notes, and adjusts how track geometry quality classes (TQC) and assessment functions are described and presented. It clarifies use of Power Spectral Density (PSD) methods and adds explanatory notes for high-speed ranges.
Key topics and technical requirements
- Characterisation of track geometry quality: Defines how track geometry quality is quantified and described through assessment functions and indices (e.g., TQIref and Track Quality Classes A–E).
- Track quality classes (TQC): The amendment refines descriptions and presentation of TQC and clarifies how to read percentage-based representations (e.g., “Y1 % of the concerned track section has a TQIref value that is less than X1”).
- Standard deviation thresholds by speed and class: Specifies limit values (standard deviation in mm) for track geometry by speed bands and quality classes. Key values introduced in the amendment include:
- For one set of wavelengths (table example):
- V ≤ 80 km/h: A <1.25 mm, B 1.75 mm, C 2.75 mm, D 3.75 mm
- 80 < V ≤ 120 km/h: A <0.75 mm, B 1.10 mm, C 1.80 mm, D 2.50 mm
- 120 < V ≤ 160 km/h: A <0.65 mm, B 0.85 mm, C 1.40 mm, D 1.85 mm
- 160 < V ≤ 230 km/h: A <0.60 mm, B 0.75 mm, C 1.15 mm, D 1.60 mm
- 230 < V ≤ 300 km/h: A <0.40 mm, B 0.55 mm, C 0.85 mm, D 1.15 mm
- For another wavelength set (alternative thresholds shown in the amendment):
- V ≤ 80 km/h: A <0.90 mm, B 1.25 mm, C 1.95 mm, D 2.70 mm
- 80 < V ≤ 120 km/h: A <0.50 mm, B 0.70 mm, C 1.05 mm, D 1.45 mm
- 120 < V ≤ 160 km/h: A <0.45 mm, B 0.55 mm, C 0.75 mm, D 1.00 mm
- 160 < V ≤ 230 km/h: A <0.40 mm, B 0.50 mm, C 0.70 mm, D 0.90 mm
- 230 < V ≤ 300 km/h: A <0.35 mm, B 0.40 mm, C 0.50 mm, D 0.65 mm
- For all tables: values for V > 300 km/h are listed as “Not available” (NOTE 1).
- For one set of wavelengths (table example):
- High-speed considerations: For speeds >160 km/h, standard deviations within wavelength D2 (and D3) can also be considered, though corresponding values are not yet defined (NOTE 2).
- Power Spectral Density (PSD): The amendment clarifies wording on PSD calculation and requires the PSD calculation method to be specified when alternative methods are used.
- Editorial and normative updates: Adds normative references to EN 13848-5 and EN 14363 and adjusts clause numbering and wording (e.g., “may” → “can” in specific notes).
Applications and users
- Railway infrastructure managers and track engineers for condition assessment and maintenance planning.
- Asset managers and planners to define geometric quality targets and inspection acceptance criteria.
- Test laboratories and vehicle/track interaction analysts using PSD and assessment functions for diagnostics and simulation.
- Standards bodies and procurement teams to reference unified TQC limits in contracts and network specifications.
Related standards
- EN 13848 series (other Parts such as Part 5 on geometric quality levels)
- EN 14363 (testing and simulation for running characteristics of railway vehicles)
Keywords: EN 13848-6:2014/FprA1, track geometry quality, track quality classes, TQI, PSD, railway track standards, CEN, high-speed track assessment.
Frequently Asked Questions
SIST EN 13848-6:2014/kFprA1:2020 is a draft published by the Slovenian Institute for Standardization (SIST). Its full title is "Railway applications - Track - Track geometry quality - Part 6: Characterisation of track geometry quality". This standard covers: No scope available
No scope available
SIST EN 13848-6:2014/kFprA1:2020 is classified under the following ICS (International Classification for Standards) categories: 45.080 - Rails and railway components; 93.100 - Construction of railways. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 13848-6:2014/kFprA1:2020 has the following relationships with other standards: It is inter standard links to SIST EN 13848-6:2014+A1:2021, SIST EN 13848-6:2014. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase SIST EN 13848-6:2014/kFprA1:2020 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of SIST standards.
Standards Content (Sample)
SLOVENSKI STANDARD
SIST EN 13848-6:2014/oprA1:2019
01-april-2019
Železniške naprave - Zgornji ustroj proge - Kakovost tirne geometrije - 6. del:
Karakterizacija kakovosti tirne geometrije - Dopolnilo A1
Railway applications - Track - Track geometry quality - Part 6: Characterisation of track
geometry quality
Bahnanwendungen - Oberbau - Qualität der Gleisgeometrie - Teil 6: Charakterisierung
der geometrischen Gleislagequalität
Applications ferroviaires - Voie - Qualité géométrique de la voie - Partie 6 :
Caractérisation de la qualité géométrique de la voie
Ta slovenski standard je istoveten z: EN 13848-6:2014/prA1
ICS:
45.080 7UDþQLFHLQåHOH]QLãNLGHOL Rails and railway
components
93.100 Gradnja železnic Construction of railways
SIST EN 13848-6:2014/oprA1:2019 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
SIST EN 13848-6:2014/oprA1:2019
SIST EN 13848-6:2014/oprA1:2019
DRAFT
EUROPEAN STANDARD
EN 13848-6:2014
NORME EUROPÉENNE
EUROPÄISCHE NORM
prA1
February 2019
ICS 93.100
English Version
Railway applications - Track - Track geometry quality -
Part 6: Characterisation of track geometry quality
Applications ferroviaires - Voie - Qualité géométrique Bahnanwendungen - Oberbau - Qualität der
de la voie - Partie 6 : Caractérisation de la qualité Gleisgeometrie - Teil 6: Charakterisierung der
géométrique de la voie geometrischen Gleislagequalität
This draft amendment is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 256.
This draft amendment A1, if approved, will modify the European Standard EN 13848-6:2014. If this draft becomes an
amendment, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for
inclusion of this amendment into the relevant national standard without any alteration.
This draft amendment was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13848-6:2014/prA1:2019 E
worldwide for CEN national Members.
SIST EN 13848-6:2014/oprA1:2019
EN 13848-6:2014/prA1:2019 (E)

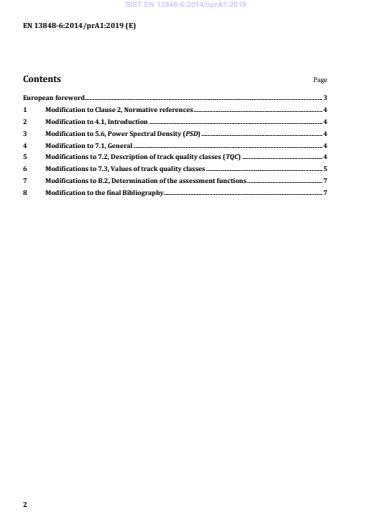

Contents Page
