SIST EN IEC 60079-14:2025
(Main)Explosive atmospheres - Part 14: Electrical installation design, selection and installation of equipment, including initial inspection (IEC 60079-14:2024)
Explosive atmospheres - Part 14: Electrical installation design, selection and installation of equipment, including initial inspection (IEC 60079-14:2024)
IEC 60079:2024 contains the specific requirements for the design of electrical systems, selection, installation and the required initial inspection of electrical installations of Ex Equipment in, or associated with, explosive atmospheres including requirements for documentation and personnel competency.
These requirements are in addition to the requirements for installations in non-hazardous areas.
This document applies to all electrical Ex Equipment including fixed, transportable, portable and personal, and installations, permanent or temporary.
This document does not apply to:
• electrical installations in mines susceptible to firedamp;
• inherently explosive situations and dust from explosives or pyrophoric substances (for example explosives manufacturing and processing);
• rooms used for medical purposes;
• electrical installations in areas where the hazard is due to flammable mist; and
• installation of non-electrical Ex Equipment (unless being part of an equipment assembly according IEC TS 60079-46).
No account is taken in this document of the toxic hazards that are associated with flammable gases, liquids and dusts in concentrations that are usually very much less than the lower flammable limit. In locations where personnel could be exposed to potentially toxic concentrations of flammable material, appropriate precautions are necessary. Such precautions are outside the scope of this document.
This sixth edition cancels and replaces the fifth edition published in 2013. This edition constitutes a technical revision. Edition 6 is a major restructure and introduces a number of technical changes from the previous edition (2013), see Table 1 of the foreword for detailed information.
Explosionsgefährdete Bereiche - Teil 14: Projektierung, Auswahl und Errichtung elektrischer Anlagen (IEC 60079-14:2024)
Atmosphères explosives - Partie 14: Conception des installations électriques, sélection et installation des appareils, comprenant l'inspection initiale (IEC 60079-14:2024)
IEC 60079-14:2024 contient les exigences spécifiques relatives à la conception de systèmes électriques, à la sélection, à l’installation et à l’inspection initiale exigée des installations électriques des appareils Ex électriques situés dans des atmosphères explosives, ou associées à celles-ci, comprenant les exigences relatives à la documentation et à la compétence du personnel.
Ces exigences complètent celles relatives aux installations dans les emplacements non dangereux.
Le présent document s’applique à tout appareil Ex électrique, comprenant les appareils fixes, transportables, portables, et personnels, et aux installations, permanentes ou temporaires.
Le présent document ne s’applique pas:
• aux installations électriques situées dans des mines grisouteuses;
• aux situations intrinsèquement explosives et aux poussières issues de substances explosives ou pyrophoriques (la fabrication et le traitement d’explosifs, par exemple);
• aux salles utilisées à des fins médicales;
• aux installations électriques situées dans des emplacements où le danger provient d’un brouillard inflammable; et
• à l’installation d’appareils Ex non électriques (sauf s’ils font partie d’un assemblage d’appareils conformément à l’IEC TS 60079-46).
Le présent document ne tient pas compte des dangers toxiques associés aux gaz, liquides et poussières inflammables présents dans des concentrations habituellement bien inférieures à la limite inférieure d’inflammabilité. Sur les sites où le personnel est susceptible d’être exposé à des concentrations potentiellement toxiques de matières inflammables, des précautions appropriées sont nécessaires. Ces précautions ne relèvent pas du domaine d’application du présent document.
Cette sixième édition annule et remplace la cinquième édition parue en 2013. Cette édition constitue une révision technique.
La 6e édition constitue une restructuration majeure et introduit plusieurs modifications techniques par rapport à l’édition précédente (2013). Le Tableau 1, voir AVANT-PROPOS "Tableau des modifications majeures", est fourni afin de mettre en avant les modifications techniques ainsi que les principales modifications rédactionnelles par rapport à l’édition précédente.
Ekspolozivne atmosfere - Načrtovanje, izbira in namestitev električnih inštalacij, vključno z začetnim pregledom (IEC 60079-14:2024)
Standard IEC 60079:2024 vsebuje posebne zahteve za načrtovanje električnih sistemov, izbiro, namestitev in zahtevan začetni pregled električnih inštalacij opreme s protieksplozijsko zaščito v eksplozivnih atmosferah ali v povezavi z njimi, vključno z zahtevami za dokumentacijo in usposobljenost osebja.
Te zahteve so dodatne k zahtevam za inštalacije v nenevarnih območjih.
Ta dokument se uporablja za vso električno opremo s protieksplozijsko zaščito, vključno s fiksno, premično, prenosno in osebno, ter stalne ali začasne inštalacije.
Ta dokument se ne uporablja za:
• električne inštalacije v rudnikih, kjer se lahko pojavijo eksplozivni plini;
• situacije, v katerih lahko že samo po sebi pride do eksplozije, in prah iz eksplozivov ali pirofornih snovi (npr. proizvodnja in predelava eksplozivov);
• prostore za zdravstvene namene;
• električne inštalacije na območjih, kjer obstaja nevarnost zaradi vnetljive meglice; ter
• namestitev neelektrične opreme s protieksplozijsko zaščito (razen če je del sklopa opreme v skladu s standardom IEC TS 60079-46).
V tem dokumentu niso zajete nevarnosti zastrupitve, povezane z vnetljivimi plini, tekočinami in prahom v koncentracijah, ki so običajno precej pod spodnjo mejo vnetljivosti. Na območjih, kjer je lahko osebje izpostavljeno toksičnim koncentracijam vnetljivega materiala, je treba upoštevati ustrezne previdnostne ukrepe. Taki previdnostni ukrepi ne spadajo na področje uporabe tega dokumenta.
Šesta izdaja razveljavlja in nadomešča peto izdajo, objavljeno leta 2013. Ta izdaja je tehnično popravljena izdaja. Šesta izdaja je bila obsežno preoblikovana in uvaja številne tehnične spremembe glede na prejšnjo izdajo (2013); za podrobnejše informacije glej preglednico 1 v predgovoru dokumenta.
General Information
- Status
- Published
- Public Enquiry End Date
- 29-Jun-2023
- Publication Date
- 12-Dec-2024
- Technical Committee
- EXP - Product for explosive atmospheres
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 15-Oct-2024
- Due Date
- 20-Dec-2024
- Completion Date
- 13-Dec-2024
Relations
- Effective Date
- 24-Dec-2019
- Effective Date
- 24-Dec-2019
Overview
SIST EN IEC 60079-14:2025 (identical to IEC 60079-14:2024, Edition 6) specifies requirements for the design, selection and installation of electrical equipment and systems intended for use in or associated with explosive atmospheres (Ex). It covers fixed, transportable, portable and personal Ex Equipment and both permanent and temporary installations, including initial inspection, documentation and personnel competency. These requirements supplement normal electrical installation rules for non‑hazardous areas.
This sixth edition is a major restructure and technical revision of the 2013 edition and focuses on modernising guidance for hazardous‑area design and safe installation practice.
Key Topics and Technical Requirements
- Zone classification and Equipment Protection Levels (EPLs): Guidance on matching equipment types and protection concepts to gas/dust zones.
- Design principles: Requirements to prevent incendive sparks, manage surface temperatures, and reduce ignition sources (static electricity, optical radiation, RF, lightning).
- Selection & installation of Ex Equipment: Rules for choosing appropriate protection concepts (flameproof "d", increased safety "e", intrinsic safety "i", pressurization "p", etc.) and correct installation practices.
- Cables and wiring systems: Selection, routing, segregation, surface temperature considerations, and crossing of hazardous areas.
- Earthing and bonding: Protective equipotential bonding, handling of extraneous conductive parts and cathodic protection interactions.
- Electrical machines & motors: Specific installation guidance for motors with various protection types.
- Electrical protection, isolation and emergency stop: Requirements for safe isolation, protective devices and emergency stop arrangements compatible with Ex requirements.
- Initial inspection & documentation: Mandatory documentation (site information, equipment data, installation records) and a structured initial inspection process.
- Personnel competency: Requirements for qualified personnel responsible for design, installation and inspection of Ex installations.
- Scope exclusions: Mines susceptible to firedamp; inherently explosive manufacturing (explosives/pyrophoric substances); medical rooms; areas dominated by flammable mist; non‑electrical Ex equipment installation (unless part of an assembly per IEC TS 60079-46).
Practical Applications & Who Should Use It
- Plant and process engineers in oil & gas, chemical, petrochemical and pharmaceutical industries
- Electrical designers and contractors installing Ex systems in hazardous areas
- Safety managers, asset owners and maintenance teams responsible for compliance and inspection
- Certification bodies and notified bodies assessing Ex installations
- Consultants providing hazardous‑area zoning, documentation and competency frameworks
Related Standards
Key related IEC/CENELEC documents referenced include: IEC/EN IEC 60079 series (Parts 0, 1, 7, 11, 15, 17, 19, 25, 28, 29‑1, 31, etc.), and other standards for cables, enclosures, lightning protection and electrical safety.
SIST EN IEC 60079-14:2025 is essential for ensuring safe, compliant electrical installations in explosive atmospheres and for meeting regulatory and industry best practices.
Frequently Asked Questions
SIST EN IEC 60079-14:2025 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Explosive atmospheres - Part 14: Electrical installation design, selection and installation of equipment, including initial inspection (IEC 60079-14:2024)". This standard covers: IEC 60079:2024 contains the specific requirements for the design of electrical systems, selection, installation and the required initial inspection of electrical installations of Ex Equipment in, or associated with, explosive atmospheres including requirements for documentation and personnel competency. These requirements are in addition to the requirements for installations in non-hazardous areas. This document applies to all electrical Ex Equipment including fixed, transportable, portable and personal, and installations, permanent or temporary. This document does not apply to: • electrical installations in mines susceptible to firedamp; • inherently explosive situations and dust from explosives or pyrophoric substances (for example explosives manufacturing and processing); • rooms used for medical purposes; • electrical installations in areas where the hazard is due to flammable mist; and • installation of non-electrical Ex Equipment (unless being part of an equipment assembly according IEC TS 60079-46). No account is taken in this document of the toxic hazards that are associated with flammable gases, liquids and dusts in concentrations that are usually very much less than the lower flammable limit. In locations where personnel could be exposed to potentially toxic concentrations of flammable material, appropriate precautions are necessary. Such precautions are outside the scope of this document. This sixth edition cancels and replaces the fifth edition published in 2013. This edition constitutes a technical revision. Edition 6 is a major restructure and introduces a number of technical changes from the previous edition (2013), see Table 1 of the foreword for detailed information.
IEC 60079:2024 contains the specific requirements for the design of electrical systems, selection, installation and the required initial inspection of electrical installations of Ex Equipment in, or associated with, explosive atmospheres including requirements for documentation and personnel competency. These requirements are in addition to the requirements for installations in non-hazardous areas. This document applies to all electrical Ex Equipment including fixed, transportable, portable and personal, and installations, permanent or temporary. This document does not apply to: • electrical installations in mines susceptible to firedamp; • inherently explosive situations and dust from explosives or pyrophoric substances (for example explosives manufacturing and processing); • rooms used for medical purposes; • electrical installations in areas where the hazard is due to flammable mist; and • installation of non-electrical Ex Equipment (unless being part of an equipment assembly according IEC TS 60079-46). No account is taken in this document of the toxic hazards that are associated with flammable gases, liquids and dusts in concentrations that are usually very much less than the lower flammable limit. In locations where personnel could be exposed to potentially toxic concentrations of flammable material, appropriate precautions are necessary. Such precautions are outside the scope of this document. This sixth edition cancels and replaces the fifth edition published in 2013. This edition constitutes a technical revision. Edition 6 is a major restructure and introduces a number of technical changes from the previous edition (2013), see Table 1 of the foreword for detailed information.
SIST EN IEC 60079-14:2025 is classified under the following ICS (International Classification for Standards) categories: 29.260.20 - Electrical apparatus for explosive atmospheres; 91.140.50 - Electricity supply systems. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN IEC 60079-14:2025 has the following relationships with other standards: It is inter standard links to SIST EN 60079-14:2014, SIST EN 60079-14:2014/AC:2016. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase SIST EN IEC 60079-14:2025 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of SIST standards.
Standards Content (Sample)
SLOVENSKI STANDARD
01-januar-2025
Ekspolozivne atmosfere - Načrtovanje, izbira in namestitev električnih inštalacij,
vključno z začetnim pregledom (IEC 60079-14:2024)
Explosive atmospheres - Part 14: Electrical installation design, selection and installation
of equipment, including initial inspection (IEC 60079-14:2024)
Explosionsgefährdete Bereiche - Teil 14: Projektierung, Auswahl und Errichtung
elektrischer Anlagen (IEC 60079-14:2024)
Atmosphères explosives - Partie 14: Conception des installations électriques, sélection
et installation des appareils, comprenant l'inspection initiale (IEC 60079-14:2024)
Ta slovenski standard je istoveten z: EN IEC 60079-14:2024
ICS:
29.260.20 Električni aparati za Electrical apparatus for
eksplozivna ozračja explosive atmospheres
91.140.50 Sistemi za oskrbo z elektriko Electricity supply systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN IEC 60079-14
NORME EUROPÉENNE
EUROPÄISCHE NORM October 2024
ICS 29.260.20 Supersedes EN 60079-14:2014;
EN 60079-14:2014/AC:2016
English Version
Explosive atmospheres - Part 14: Electrical installation design,
selection and installation of equipment, including initial
inspection
(IEC 60079-14:2024)
Atmosphères explosives - Partie 14: Conception des Explosionsgefährdete Bereiche - Teil 14: Projektierung,
installations électriques, sélection et installation des Auswahl und Errichtung elektrischer Anlagen
appareils, comprenant l'inspection initiale (IEC 60079-14:2024)
(IEC 60079-14:2024)
This European Standard was approved by CENELEC on 2024-10-04. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60079-14:2024 E

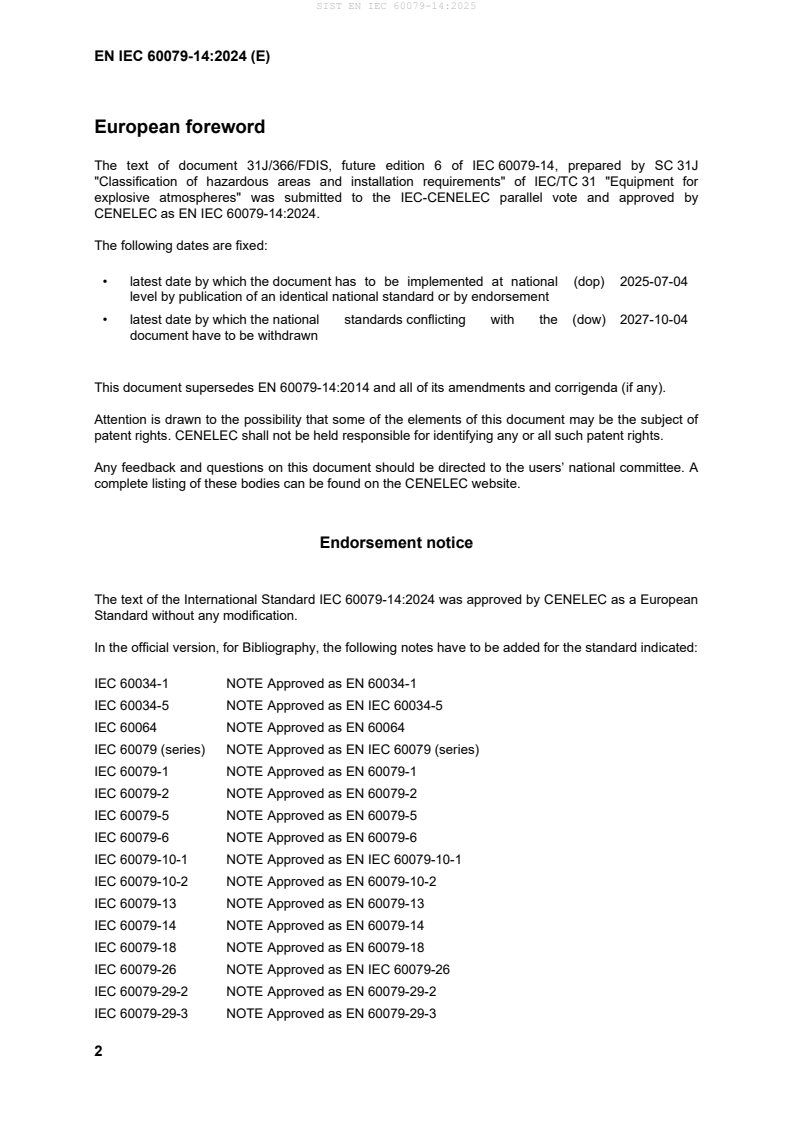

European foreword
