SIST EN IEC 62282-8-201:2024
(Main)Fuel cell technologies - Part 8-201: Energy storage systems using fuel cell modules in reverse mode - Test procedures for the performance of power-to-power systems (IEC 62282-8-201:2024)
Fuel cell technologies - Part 8-201: Energy storage systems using fuel cell modules in reverse mode - Test procedures for the performance of power-to-power systems (IEC 62282-8-201:2024)
This part of IEC 62282 defines the evaluation methods of typical performances for electric
energy storage systems using hydrogen. It is applicable to the systems that use electrochemical
reaction devices for both power charge and discharge. This document applies to systems that
are designed and used for service and operation in stationary locations (indoor and outdoor).
The conceptual configurations of the electric energy storage systems using hydrogen are shown
in Figure 1 and Figure 2.
Figure 1 shows the system independently equipped with an electrolyser module and a fuel cell
module. Figure 2 shows the system equipped with a reversible cell module.
Indispensable components are an electrolyser module and a fuel cell module, or a reversible
cell module, an overall management system (which includes a data interface and can include a
pressure management), a thermal management system (which can include a thermal storage),
a water management system (which can include a water storage) and a purge gas supply (inert
gas, practically neither oxidizing nor reducing).
NOTE 1 Indispensable components are indicated by bold lines in Figure 1 and Figure 2.
The system can be equipped with either a hydrogen storage or a connection to an external
hydrogen supply infrastructure or a combination of both. There can be a battery and an oxygen
storage, as optional components.
The electrolyser module can comprise one or more electrolysers whether or not of the same
type. Depending on the operating conditions and considering the operation history, the overall
management system can command the concurrent operation of the electrolysers. The fuel cell
module can comprise one or more fuel cells whether or not of the same type. Depending on the
operating conditions and considering the operation history, the overall management system can
command concurrent operation of the fuel cells. The reversible cell module can comprise one
or more reversible cells whether or not of the same type. The fuel cell module can comprise
one or more fuel cells whether or not of the same type. Depending on the operating conditions
and considering the operation history, the overall management system can command
concurrent operation of the reversible cells.
The performance measurement is executed in the defined area surrounded by the bold outside
solid line (system boundary).
NOTE 2 In the context of this document, the term "reversible" does not refer to the thermodynamic meaning of an
ideal process. It is common practice in the fuel cell community to call the operation mode of a cell that alternates
between fuel cell mode and electrolysis mode "reversible".
This document is intended to be used for data exchanges in commercial transactions between
the system manufacturer and customer. Users of this document can selectively execute test
items suitable for their purposes from those specified in this document.
Brennstoffzellentechnologien - Teil 8-201: Energiespeichersysteme mit Brennstoffzellenmodulen im reversiblen Betrieb - Prüfverfahren zum Leistungsverhalten von Power-to-Power-Systemen (IEC 62282-8-201:2024)
Technologies des piles à combustible - Partie 8-201: Systèmes de stockage de l’énergie à partir de modules de piles à combustible réversibles - Procédures d’essai pour la performance des systèmes de conversion électrochimiques électriques à électriques (IEC 62282-8-201:2024)
IEC 62282-8-201:2024 est disponible sous forme de IEC 62282-8-201:2024 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente.
L'IEC 62282-8-201 définit les méthodes d’évaluation des performances types des systèmes de stockage de l’énergie électrique utilisant de l’hydrogène. Elle s’applique aux systèmes qui emploient des dispositifs à réaction électrochimique à la fois pour la charge électrique et la décharge électrique. Le présent document s’applique aux systèmes conçus et utilisés pour l’entretien et le fonctionnement à des endroits fixes (en intérieur et à l’extérieur). La présente partie de l’IEC 62282 spécifie les méthodes d’évaluation des performances des systèmes de stockage de l’énergie électrique utilisant de l’hydrogène et recourant à des réactions électrochimiques tant pour l’électrolyse de l’eau et de la vapeur que pour la production d’électricité. La présente partie de l’IEC 62282 spécifie les méthodes d’évaluation des performances des systèmes de stockage de l’énergie électrique utilisant de l’hydrogène et recourant à des réactions électrochimiques tant pour l’électrolyse de l’eau et de la vapeur que pour la production d’électricité. Cette deuxième édition annule et remplace la première édition parue en 2020.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l’édition précédente:
a) prise en compte des systèmes raccordés à une infrastructure d’alimentation en hydrogène (réseaux d’hydrogène, cuves, cavernes ou canalisations);
b) ajout des débits d’hydrogène d’entrée et de sortie dans les paramètres du système (5.10);
c) révision de l’essai de capacité de stockage de l’énergie électrique (6.2);
d) révision de l’essai de rendement électrique aller-retour (6.5);
e) ajout de l’essai des débits d’hydrogène d’entrée et de sortie (6.6.6).
Tehnologija gorivnih celic - 8-201. del: Sistemi za shranjevanje energije, ki uporabljajo module gorivnih celic v obrnjeni smeri - Preskusni postopki za delovanje elektroenergetskih sistemov (IEC 62282-8-201:2024)
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
01-oktober-2024
Tehnologija gorivnih celic - 8-201. del: Sistemi za shranjevanje energije, ki
uporabljajo module gorivnih celic v obrnjeni smeri - Preskusni postopki za
delovanje elektroenergetskih sistemov (IEC 62282-8-201:2024)
Fuel cell technologies - Part 8-201: Energy storage systems using fuel cell modules in
reverse mode - Test procedures for the performance of power-to-power systems (IEC
62282-8-201:2024)
Brennstoffzellentechnologien - Teil 8-201: Energiespeichersysteme mit
Brennstoffzellenmodulen im reversiblen Betrieb - Prüfverfahren zum Leistungsverhalten
von Power-to-Power-Systemen (IEC 62282-8-201:2024)
Technologies des piles à combustible - Partie 8-201: Systèmes de stockage de l’énergie
à partir de modules de piles à combustible réversibles - Procédures d’essai pour la
performance des systèmes de conversion électrochimiques électriques à électriques
(IEC 62282-8-201:2024)
Ta slovenski standard je istoveten z: EN IEC 62282-8-201:2024
ICS:
27.070 Gorilne celice Fuel cells
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN IEC 62282-8-201
NORME EUROPÉENNE
EUROPÄISCHE NORM August 2024
ICS 27.070 Supersedes EN IEC 62282-8-201:2020
English Version
Fuel cell technologies - Part 8-201: Energy storage systems
using fuel cell modules in reverse mode - Test procedures for
the performance of power-to-power systems
(IEC 62282-8-201:2024)
Technologies des piles à combustible - Partie 8-201: Brennstoffzellentechnologien - Teil 8-201:
Systèmes de stockage de l'énergie à partir de modules de Energiespeichersysteme mit Brennstoffzellenmodulen im
piles à combustible réversibles - Procédures d'essai pour la reversiblen Betrieb - Prüfverfahren zum Leistungsverhalten
performance des systèmes de conversion électrochimiques von Power-to-Power-Systemen
électriques à électriques (IEC 62282-8-201:2024)
(IEC 62282-8-201:2024)
This European Standard was approved by CENELEC on 2024-08-14. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 62282-8-201:2024 E

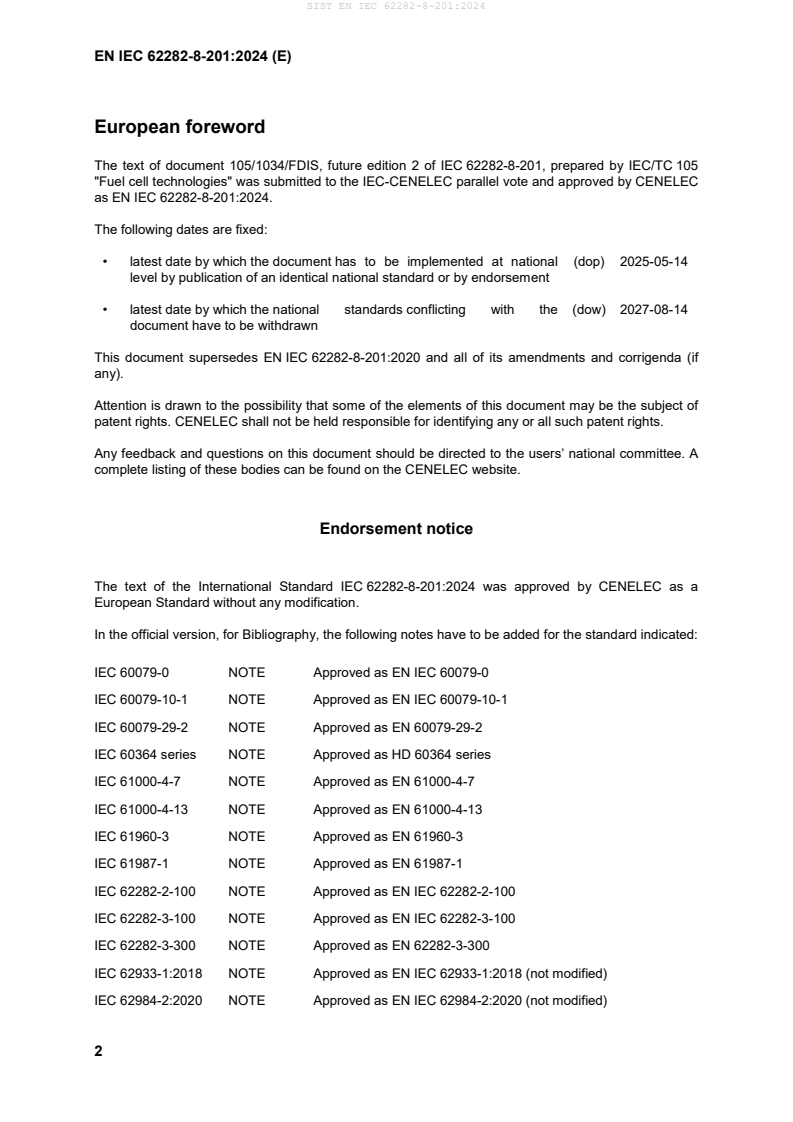

European foreword
