SIST HD 60364-7-709:2009

SLOVENSKI STANDARD
SIST HD 60364-7-709:2009
01-december-2009
1DGRPHãþD
SIST IEC 60364-7-709:2000
1L]NRQDSHWRVWQHHOHNWULþQHLQãWDODFLMHGHO=DKWHYH]DSRVHEQHLQãWDODFLMH
DOLORNDFLMH0DULQHLQSRGREQHORNDFLMH,(&VSUHPHQMHQ
Low-voltage electrical installations -- Part 7-709: Requirements for special installations or
locations - Marinas and similar locations
Errichten von Niederspannungsanlagen -- Teil 7-709: Anforderungen für Betriebsstätten,
Räume und Anlagen besonderer Art - Marinas und ähnliche Bereiche
Installations électriques à basse tension -- Partie 7-709: Exigences pour les installations
et emplacements spéciaux - Marinas et emplacements analogues
Ta slovenski standard je istoveten z: HD 60364-7-709:2009
ICS:
91.140.50 Sistemi za oskrbo z elektriko Electricity supply systems
93.140 *UDGQMDYRGQLKSRWLLQ Construction of waterways
SULVWDQLãþ and ports
SIST HD 60364-7-709:2009 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST HD 60364-7-709:2009

---------------------- Page: 2 ----------------------

SIST HD 60364-7-709:2009

HARMONIZATION DOCUMENT
HD 60364-7-709

DOCUMENT D'HARMONISATION
September 2009
HARMONISIERUNGSDOKUMENT

ICS 91.140.50; 29.020


English version


Low-voltage electrical installations -
Part 7-709: Requirements for special installations or locations -
Marinas and similar locations
(IEC 60364-7-709:2007, modified)


Installations électriques à basse tension - Errichten von Niederspannungsanlagen -
Partie 7-709: Exigences Teil 7-709: Anforderungen
pour les installations für Betriebsstätten, Räume
et emplacements spéciaux - und Anlagen besonderer Art -
Marinas et emplacements analogues Marinas und ähnliche Bereiche
(CEI 60364-7-709:2007, modifiée) (IEC 60364-7-709:2007, modifiziert)




This Harmonization Document was approved by CENELEC on 2009-04-01. CENELEC members are bound to
comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for implementation of this
Harmonization Document at national level.

Up-to-date lists and bibliographical references concerning such national implementations may be obtained on
application to the Central Secretariat or to any CENELEC member.

This Harmonization Document exists in three official versions (English, French, German).

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: Avenue Marnix 17, B - 1000 Brussels


© 2009 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. HD 60364-7-709:2009 E

---------------------- Page: 3 ----------------------

SIST HD 60364-7-709:2009
HD 60364-7-709:2009 - 2 -

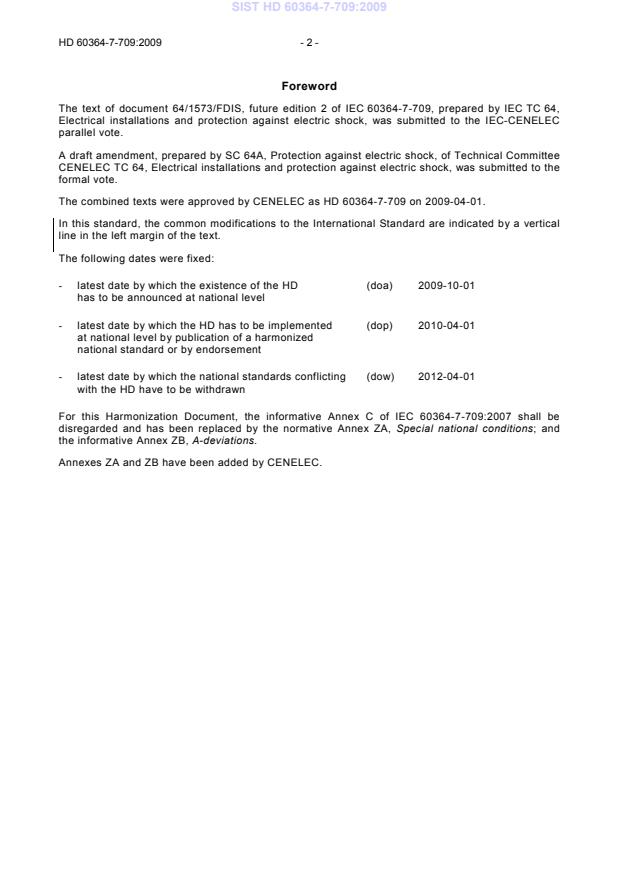

Foreword
The text of document 64/1573/FDIS, future edition 2 of IEC 60364-7-709, prepared by IEC TC 64,
Electrical installations and protection against electric shock, was submitted to the IEC-CENELEC
parallel vote.
A draft amendment, prepared by SC 64A, Protection against electric shock, of Technical Committee
CENELEC TC 64, Electrical installations and protection against electric shock, was submitted to the
formal vote.
The combined texts were approved by CENELEC as HD 60364-7-709 on 2009-04-01.
In this standard, the common modifications to the International Standard are indicated by a vertical
line in the left margin of the text.
The following dates were fixed:
- latest date by which the existence of the HD (doa) 2009-10-01
has to be announced at national level
- latest date by which the HD has to be implemented (dop) 2010-04-01
at national level by publication of a harmonized
national standard or by endorsement
- latest date by which the national standards conflicting (dow) 2012-04-01
with the HD have to be withdrawn
For this Harmonization Document, the informative Annex C of IEC 60364-7-709:2007 shall be
disregarded and has been replaced by the normative Annex ZA, Special national conditions; and
the informative Annex ZB, A-deviations.
Annexes ZA and ZB have been added by CENELEC.

---------------------- Page: 4 ----------------------

SIST HD 60364-7-709:2009
- 3 - HD 60364-7-709:2009
Introduction
The requirements of this part of HD 60364 supplement, modify or replace certain of the general
requirements contained in Parts 1 to 6 of HD 60364.
The clause numbering appearing after 709 refers to the corresponding parts or clauses of
HD 60364, Parts 1 to 6. Numbering of clauses does not, therefore, necessarily follow sequentially.
Numbering of figures and tables takes the number of this part followed by a sequential number.
The absence of reference to a part or a clause means that the general requirements contained in
Parts 1 to 6 of HD 60364 are applicable.

---------------------- Page: 5 ----------------------

SIST HD 60364-7-709:2009
HD 60364-7-709:2009 - 4 -
709.1 Scope
The particular requirements specified in this part of HD 60364 apply only to circuits intended to
supply pleasure craft or houseboats in marinas and similar locations.
NOTE 1  In this part “marina” means “marina and similar locations”.
The particular requirements do not apply to the supply of house boats if they are directly supplied
from the public network.
The particular requirements do not apply to the internal electrical installations of pleasure craft or
house boats.
NOTE 2  For electrical installations of pleasure craft, see EN 60092-507.
NOTE 3  The electrical installations of house boats should comply with the general requirements of HD 60364, together
with the relevant particular requirements of HD 60364-7.
For the remainder of the electrical installation of marinas and similar locations the general
requirements of HD 60364 together with the relevant particular requirements of HD 60364-7 apply.
709.2 Normative references
The following referenced documents are indispensable for the application of this document. For
dated references, only the edition cited applies. For undated references, the latest edition of the
referenced document (including any amendments) applies.
HD 472 S1:1989 + Corr. 2002, Nominal voltages for low voltage public electricity supply systems
(IEC 60038:1983, mod.)
EN 60309-1, Plugs, socket-outlets and couplers for industrial purposes – Part 1: General
requirements (IEC 60309-1)
EN 60309-2, Plugs, socket-outlets and couplers for industrial Purposes – Part 2: Dimensional
interchangeability requirements for pin and contact-tubes accessories (IEC 60309-2)
1)
HD 60364-4-43 , Low-voltage electrical installations - Part 4-43: Protection for safety – Protection
against overcurrent (IEC 60364-4-43, mod.)
EN 61558-2-4, Safety of power transformers, power supply units and similar – Part 2-4: Particular
requirements for isolating transformers for general use (IEC 61558-2-4)
EN 62262, Degrees of protection provided by enclosures for electrical equipment against external
mechanical impacts (IK code) (IEC 62262)
709.3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
709.3.1
pleasure craft
any boat, vessel, yacht, motor launch, houseboat or other floating craft used exclusively for sport or
leisure
709.3.2
marina
facility for the mooring of pleasure craft with fixed wharves, jetties, piers or a pontoon arrangement
capable of berthing one or more pleasure craft
709.3.3
houseboat
floating decked structure which is designed or adapted for use as a place of permanent residence
often kept in one place on inland water

1)
At draft stage.

---------------------- Page: 6 ----------------------

SIST HD 60364-7-709:2009
- 5 - HD 60364-7-709:2009
709.31 Purposes, supplies and structure
709.312 Conductor arrangement and system earthing
709.312.2 Types of system earthing
709.312.2.1 TN-systems
Add the following:
For a TN-system, the final circuits for the supply of pleasure craft or houseboats shall not include a
PEN conductor.
709.313 Supplies
Add the following:
709.313.1.2
The nominal supply system voltage shall be selected from HD 472 S1:1989 + Corr. 2002.
The nominal supply voltage shall not exceed 230 V single-phase, or 400 V three-phase.
709.4 Protection for safety
709.41 Protection against electric shock
709.411.2 Requirements for basic protection
709.41.B.2 Obstacles
Protection by obstacles shall not be used.
709.41.B.3 Placing out of reach
Protection by placing out of reach shall not be used.
709.41.C.1 Non-conducting location
Protection by non-conducting location shall not be used.
NOTE  This precludes the use of class 0 equipment.
709.41.C.2 Protection by earth-free local equipotential bonding
Protection by earth free local equipotential bonding shall not be used.
709.413 Protective measure: electrical separation
Where the protective measure of electrical separation is used for supplying pleasure craft
compliance with all the requirements of Clause 413 and with 709.413.3.2 and 709.413.3.6 shall be
ensured.
709.413.3.2 The circuit shall be supplied through a fixed isolating transformer complying with
EN 61558-2-4.
The protective conductor of the supply to the isolating transformer shall not be connected to the
earth terminal in the socket-outlet supplying the pleasure craft.
NOTE  See Annex A.

---------------------- Page: 7 ----------------------

SIST HD 60364-7-709:2009
HD 60364-7-709:2009 - 6 -
709.413.3.6
Add the following:
The equipotential bonding of the pleasure craft shall not be connected to the protective conductor of
the shore supply.
709.5 Selection and erection of electrical equipment
709.512 Operational conditions and external influences
709.512.2 External influences
Add the following:
NOTE  For marinas particular attention is given in this part to the likelihood of corrosive elements, movement of
structures, mechanical damage, presence of flammable fuel and the increased risk of electric shock due to
− presence of water;
− reduction in body resistance;
− contact of the body with earth potential.
709.512.2.1.1 Presence of water (AD)
In marinas, equipment installed on or above a jetty, wharf, pier or pontoon shall be selected as
follows, according to the external influences which may be present:
− water splashes (AD4): IPX4;
− water jets (AD5): IPX5;
− water waves (AD6): IPX6.
709.512.2.1.2 Presence of solid foreign bodies (AE)
Equipment installed on or above a jetty, wharf, pier or pontoon shall be selected with a degree of
protection of at least IP4X in order to protect against the ingress of very small objects (AE3).
709.512.2.1.3 Presence of corrosive or polluting substances (AF)
Equipment installed on or above a jetty, wharf, pier or pontoon shall be suitable for use in the
presence of atmospheric corrosive or polluting substances (AF2). If hydrocarbons are present AF3
is applicable.
709.512.2.1.4 Impact (AG)
Equipment installed on or above a jetty, wharf, pier or pontoon shall be protected against
mechanical damage (impact of medium severity AG2). Protection shall be afforded by one or more
of the following:
– the position or location of the equipment shall be selected to avoid being damaged by any
reasonably foreseeable impact;
– local or general mechanical protection shall be provided;
– equipment shall be installed which complies with a minimum degree of protection for external
mechanical impact of IK07 (see EN 62262).
709.521 Types of wiring systems
709.521.7 Wiring systems of marinas
709.521.7.1 The following wiring systems are suitable for distribution circuits in marinas:
a) underground cables;
b) overhead cables or overhead insulated conductors;

---------------------- Page: 8 ----------------------

SIST HD 60364-7-709:2009
- 7 - HD 60364-7-709:2009
c) cables with copper conductors and thermoplastic or elastomeric insulation and installed within an
appropriate cable management system taking into account external influences such as
movement, impact, corrosion and ambient temperature;
d) mineral-insulated cables with PVC protective covering;
e) armoured cables with a thermoplastic or elastomeric covering;
f) other cables and materials that are no less suitable than those listed under a), b), c), d) or e)
above.
709.521.7.2 The following wiring systems shall not be used on or above a jetty, wharf, pier or
pontoon:
a) overhead cables and overhead conductors in free air suspended from or incorporating a support
2)
wire, e.g. as installation method Nos. 35 and 36 in Table A52-3 of HD 60364-5-52 ;
b) insulated conductors in conduits, trunking etc., e.g. as installation methods Nos. 4 and 6 in
3)
Table A52-3 of HD 60364-5-52 ;
c) cables with aluminium conductors;
d) mineral-insulated cables.
709.521.7.3 Cables and cable management systems shall be selected and installed so that
mechanical damage due to tidal and other movement of floating structures is prevented.
Cable management systems shall be installed to allow the drainage of water/condensate e.g. by
sloping way
...
