SIST EN 10163-1:2005
(Main)Delivery requirements for surface condition of hot-rolled steel plates, wide flats and sections - Part 1: General requirements
Delivery requirements for surface condition of hot-rolled steel plates, wide flats and sections - Part 1: General requirements
1.1 This European Standard specifies the general requirements for the surface condition of hot-rolled steel plates, wide flats and sections. It covers the requirements on the type, the permissible depth and the permissible size of the surface area affected by:
¾ discontinuities (imperfections ant defects) and
¾ repairs by grinding and/or welding.
1.2 This European Standard shall be applied so far as no other requirements for the surface condition exist in the appropriate material or product standard. The requirements laid down in the appropriate material or product standard shall always prevail.
1.3 This Part 1 of this European Standard covers the general delivery requirements for the surface condition of hot-rolled steel products such as:
¾ plates and wide flats, see Part 2;
¾ sections, see Part 3;
Lieferbedingungen für die Oberflächenbeschaffenheit von warmgewalzten Stahlerzeugnissen (Blech, Breitflachstahl und Profile) - Teil 1: Allgemeine Anforderungen
1.1 Dieses Dokument enthält die allgemeinen Anforderungen an die Oberflächenbeschaffenheit von
warmgewalztem Blech und Breitflachstahl sowie von warmgewalzten Profilen aus Stahl. Es gilt für die
Anforderungen an die Art, die zulässige Tiefe und zulässige Größe der beeinflussten Oberflächenzone bei
. Ungänzen (Unvollkommenheiten und Fehler) und
. Ausbesserungen durch Schleifen und/oder Schweißen.
1.2 Dieses Dokument ist nur insoweit anzuwenden, als die entsprechende Werkstoff- oder Erzeugnisnorm
keine anderen Anforderungen an die Oberflächenbeschaffenheit festlegt. Die Anforderungen nach der
jeweiligen Werkstoff- oder Erzeugnisnorm haben stets Vorrang.
Conditions de livraison relatives a l'état de surface des tôles, larges plats et profilés en acier laminés a chaud - Partie 1: Généralités
1.1 Le présent document définit les conditions générales qui s'appliquent à l'état de surface des tôles,
larges-plats et profilés en acier laminés à chaud. Elle concerne le type, la profondeur et la surface admissibles des
¾ discontinuités de surface (imperfections et défauts) ;
¾ réparations par meulage et/ou par soudage.
1.2 Le présent document doit être appliquée si aucune autre exigence appropriée concernant l'état de surface
ne figure dans les normes de matériaux ou de produits. Les exigences de ces normes restent prépondérantes.
Zahteve za kakovost površine pri dobavi vroče valjane jeklene pločevine, širokih ploščatih izdelkov in profilov – 1. del: Splošne zahteve
General Information
- Status
- Published
- Publication Date
- 31-Jan-2005
- Technical Committee
- IFEK - Ferrous metals
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 01-Feb-2005
- Due Date
- 01-Feb-2005
- Completion Date
- 01-Feb-2005
Relations
- Effective Date
- 01-Feb-2005
- Effective Date
- 01-May-2007
Overview
EN 10163-1:2004 is the CEN European Standard that defines the general delivery requirements for the surface condition of hot‑rolled steel plates, wide flats and sections. It specifies how to classify, measure and accept surface discontinuities (imperfections and defects) and the acceptable procedures and limits for repairs by grinding and/or welding. The standard applies unless an applicable material or product standard supersedes it.
Key Topics
- Scope and responsibility
- Covers surface condition requirements for hot‑rolled plates, wide flats and sections (detailed delivery classes in Parts 2 and 3).
- Responsibility for meeting surface condition rests with the material producer; visible discontinuities are the producer’s concern.
- Classification
- Surface requirements and allowable repairs are subdivided into classes; specific classes and subclasses are defined in EN 10163‑2 and EN 10163‑3.
- Measurement of discontinuities
- Depth: representative discontinuities are measured from the product surface after removal by grinding.
- Affected area: defined geometrically (isolated, clustered or aligned discontinuities) by offsets of 20 mm from the discontinuity outline; clusters with edges closer than 40 mm are treated as one cluster.
- Repair rules
- Grinding: defects must be removed completely to full depth and blended smoothly; when disputed, magnetic particle or dye penetrant tests may demonstrate elimination.
- Welding: defects must be removed before welding; thickness after repair must not be reduced below 70% of nominal. Edge groove depth limits apply (not exceeding nominal thickness, max 30 mm). Welders and procedures must be qualified (EN 287‑1; EN ISO 15607, EN 288‑2/3). Post‑repair NDT options include ultrasonic, radiography, magnetic particle and dye penetrant inspection.
- Documentation
- On request, producers provide repair reports with sketches, dimensions, consumables and NDT/heat treatment details.
Applications
EN 10163‑1 is practical for:
- Steel producers setting delivery conditions and quality control for hot‑rolled products.
- Fabricators, welders and inspectors assessing acceptability of surface defects and approved repair methods.
- Purchasers and specifiers writing procurement contracts for plates, wide flats and sections.
- Structural and mechanical engineers who need to understand surface condition limits that affect fabrication, welding and fatigue performance.
Keywords: EN 10163-1:2004, surface condition, hot-rolled steel, plates, wide flats, sections, discontinuities, welding repair, grinding, delivery requirements.
Related Standards
- EN 10163‑2:2004 (Plates and wide flats)
- EN 10163‑3:2004 (Sections)
- EN 10079, EN 287‑1, EN ISO 15607, EN 288‑2 / EN 288‑3 (welding and product definitions)
Frequently Asked Questions
SIST EN 10163-1:2005 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Delivery requirements for surface condition of hot-rolled steel plates, wide flats and sections - Part 1: General requirements". This standard covers: 1.1 This European Standard specifies the general requirements for the surface condition of hot-rolled steel plates, wide flats and sections. It covers the requirements on the type, the permissible depth and the permissible size of the surface area affected by: ¾ discontinuities (imperfections ant defects) and ¾ repairs by grinding and/or welding. 1.2 This European Standard shall be applied so far as no other requirements for the surface condition exist in the appropriate material or product standard. The requirements laid down in the appropriate material or product standard shall always prevail. 1.3 This Part 1 of this European Standard covers the general delivery requirements for the surface condition of hot-rolled steel products such as: ¾ plates and wide flats, see Part 2; ¾ sections, see Part 3;
1.1 This European Standard specifies the general requirements for the surface condition of hot-rolled steel plates, wide flats and sections. It covers the requirements on the type, the permissible depth and the permissible size of the surface area affected by: ¾ discontinuities (imperfections ant defects) and ¾ repairs by grinding and/or welding. 1.2 This European Standard shall be applied so far as no other requirements for the surface condition exist in the appropriate material or product standard. The requirements laid down in the appropriate material or product standard shall always prevail. 1.3 This Part 1 of this European Standard covers the general delivery requirements for the surface condition of hot-rolled steel products such as: ¾ plates and wide flats, see Part 2; ¾ sections, see Part 3;
SIST EN 10163-1:2005 is classified under the following ICS (International Classification for Standards) categories: 77.140.50 - Flat steel products and semi-products; 77.140.70 - Steel profiles. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 10163-1:2005 has the following relationships with other standards: It is inter standard links to SIST EN 10163-1:1997, SIST EN 10163-1:2005/AC:2007. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase SIST EN 10163-1:2005 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of SIST standards.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Lieferbedingungen für die Oberflächenbeschaffenheit von warmgewalzten Stahlerzeugnissen (Blech, Breitflachstahl und Profile) - Teil 1: Allgemeine AnforderungenConditions de livraison relatives a l'état de surface des tôles, larges plats et profilés en acier laminés a chaud - Partie 1: GénéralitésDelivery requirements for surface condition of hot-rolled steel plates, wide flats and sections - Part 1: General requirements77.140.70Jekleni profiliSteel profiles77.140.50SROL]GHONLFlat steel products and semi-productsICS:Ta slovenski standard je istoveten z:EN 10163-1:2004SIST EN 10163-1:2005en01-februar-2005SIST EN 10163-1:2005SLOVENSKI
STANDARDSIST EN 10163-1:19971DGRPHãþD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 10163-1
December 2004 ICS 77.140.50 Supersedes EN 10163-1:1991 English version
Delivery requirements for surface condition of hot-rolled steel plates, wide flats and sections - Part 1: General requirements
Conditions de livraison relatives à l'état de surface des tôles, larges plats et profilés en acier laminés à chaud - Partie 1: Généralités
Lieferbedingungen für die Oberflächenbeschaffenheit von warmgewalzten Stahlerzeugnissen (Blech, Breitflachstahl und Profile) - Teil 1: Allgemeine Anforderungen This European Standard was approved by CEN on 4 November 2004.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36
B-1050 Brussels © 2004 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 10163-1:2004: ESIST EN 10163-1:2005

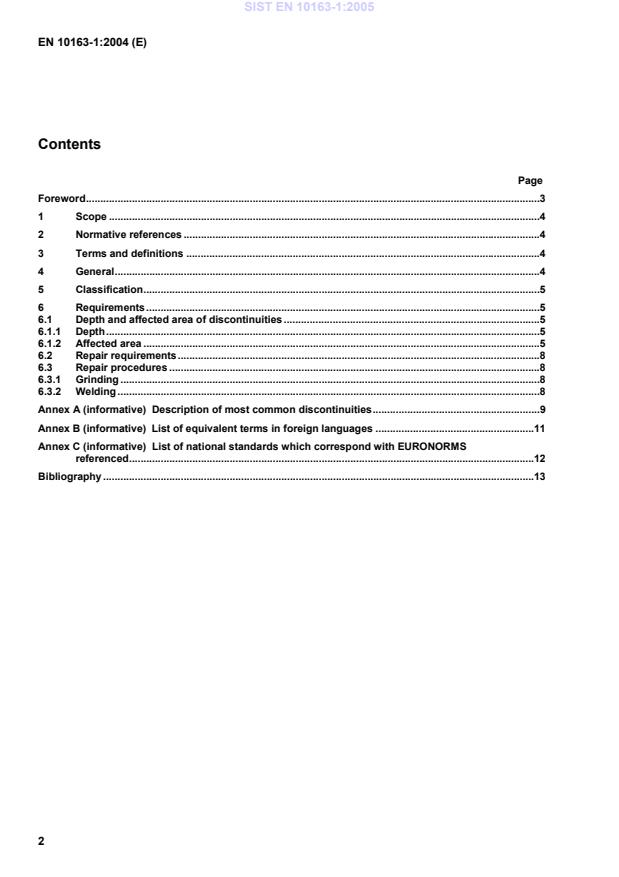

Description of most common discontinuities.9 Annex B (informative)
List of equivalent terms in foreign languages.11 Annex C (informative)
List of national standards which correspond with EURONORMS referenced.12 Bibliography.13
discontinuities (imperfections and defects) and repairs by grinding and/or welding. 1.2 This document shall be applied so far as no other requirements for the surface condition exist in the appropriate material or product standard. The requirements laid down in the appropriate material or product standard shall always prevail. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 287-1, Qualification test of welders – Fusion welding – Part 1: Steels. EN 288-2, Specification and approval of welding procedures for metallic materials – Part 2: Welding procedure specification for arc welding. EN 288-3, Specification and approval of welding procedures for metallic materials – Part 3: Welding procedure tests for the arc welding of steels. EN 10079:1992, Definition of steel products. EN 10163-2:2004, Delivery requirements for surface condition of hot-rolled steel plates, wide flats and sections – Part 2: Plate and wide flats. EN 10163-3:2004, Delivery requirements for surface condition of hot-rolled steel plates, wide flats and sections – Part 3: Sections.
EN ISO 15607, Specification and qualification of welding procedures for metallic materials – General rules (ISO 15607:2003).
NOTE In Annex C EURONORM 19, 53 and 54 are mentioned with corresponding national standards. These EURONORMS are formally withdrawn, but there are no corresponding EN's. Therefore they are not mentioned in this clause. 3 Terms and definitions For the purposes of this document, the terms and definitions given in EN 10079:1992, EN 10163-2:2004 and EN 10163-3:2004 apply. NOTE For the most common surface discontinuities see the descriptions in Annex A. In Annex B the terms can be found in their respective languages. 4 General Responsibility for the required surface condition, whether the product is delivered descaled or not, rests with the material producer, who has to take the necessary precautions. The producer can only take account of SIST EN 10163-1:2005
...
