SIST EN 60512-15-8:2002
(Main)Electromechanical components for electronic equipment - Basic testing procedures and measuring methods -- Part 15: Mechanical tests on contacts and terminations -- Section 8: Test 15h - Contact retention system resistance to tool application
General Information
- Abstract
Defines standard test method to check the ability of connectors to withstand the use of standardised tooling for insertion and extraction of contacts.
- Status
- Published
- Publication Date
- 31-Aug-2002
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 01-Sep-2002
- Due Date
- 01-Sep-2002
- Completion Date
- 01-Sep-2002
Overview
EN 60512-15-8:1995 (IEC 60512-15-8) defines a standardised mechanical test method to verify the ability of connector contact retention systems to withstand the application of standardised tooling used for contact insertion and extraction. The test evaluates whether connector contacts and their retention features resist damage or loss of retention when insertion/extraction tools are rotated under axial load, ensuring reliable assembly and serviceability in electronic equipment.
Key topics and requirements
- Scope: Mechanical test method for resistance of contact retention systems to tool application during contact insertion/extraction.
- Test specimens: Specimens are fitted with all contacts wired per the detail specification; five contacts are tested for each method.
- Two test methods:
- Method 1 - Rotation of the extraction tool: Introduce the extraction tool, apply the specified axial load, perform alternating rotations, then extract and reinsert the contact. Repeat three times per contact.
- Method 2 - Rotation of the insertion tool: Withdraw and reinsert the contact using the insertion tool under the specified axial load, perform alternating rotations, then extract the tool and withdraw the contact. Repeat three times per contact.
- Cycles and cavities: Use separate contact cavities for each method; perform the prescribed number of cycles (three) on each of the five contacts.
- Tool handling: If a tool is damaged during testing, it is replaced and testing continues.
- Final checks: After testing, perform applicable final measurements such as visual examination (test 1a of IEC 512-2) and contact retention in insert (test 15a of IEC 512-8).
- Details to be specified in the detail specification: wire type/size, insertion/extraction tool types, axial load on the tool, and the required contact retention force.
Applications and who uses it
- Connector manufacturers use the standard during product validation and design verification to ensure retention systems tolerate real-world tooling.
- Test laboratories and QA teams apply it for conformance testing, sample inspections, and supplier qualification.
- Design and reliability engineers use results to refine contact geometry and retention features to reduce assembly damage and field failures.
- Procurement and compliance officers reference the standard when specifying connector acceptance criteria.
Related standards
- IEC 512-2 (IEC 60512-2) - visual examination, continuity and contact resistance tests
- IEC 512-8 (IEC 60512-8 / IEC 60512-15-1) - connector mechanical tests and contact retention tests
Keywords: EN 60512-15-8:1995, IEC 60512-15-8, contact retention system, connector testing, tool application, insertion/extraction tooling, contact retention force, axial load, mechanical tests on contacts.
Relations
- Effective Date
- 03-Feb-2026
Frequently Asked Questions
SIST EN 60512-15-8:2002 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Electromechanical components for electronic equipment - Basic testing procedures and measuring methods -- Part 15: Mechanical tests on contacts and terminations -- Section 8: Test 15h - Contact retention system resistance to tool application". This standard covers: Defines standard test method to check the ability of connectors to withstand the use of standardised tooling for insertion and extraction of contacts.
Defines standard test method to check the ability of connectors to withstand the use of standardised tooling for insertion and extraction of contacts.
SIST EN 60512-15-8:2002 is classified under the following ICS (International Classification for Standards) categories: 31.220.10 - Plug-and-socket devices. Connectors. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 60512-15-8:2002 has the following relationships with other standards: It is inter standard links to SIST EN IEC 62282-2-100:2020. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
SIST EN 60512-15-8:2002 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

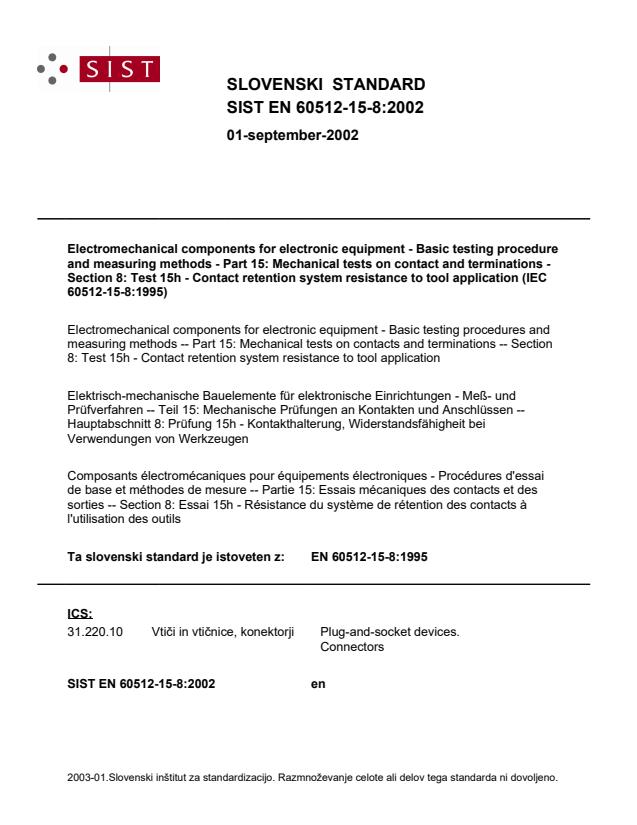

SLOVENSKI STANDARD
01-september-2002
Electromechanical components for electronic equipment - Basic testing procedure
and measuring methods - Part 15: Mechanical tests on contact and terminations -
Section 8: Test 15h - Contact retention system resistance to tool application (IEC
60512-15-8:1995)
Electromechanical components for electronic equipment - Basic testing procedures and
measuring methods -- Part 15: Mechanical tests on contacts and terminations -- Section
8: Test 15h - Contact retention system resistance to tool application
Elektrisch-mechanische Bauelemente für elektronische Einrichtungen - Meß- und
Prüfverfahren -- Teil 15: Mechanische Prüfungen an Kontakten und Anschlüssen --
Hauptabschnitt 8: Prüfung 15h - Kontakthalterung, Widerstandsfähigheit bei
Verwendungen von Werkzeugen
Composants électromécaniques pour équipements électroniques - Procédures d'essai
de base et méthodes de mesure -- Partie 15: Essais mécaniques des contacts et des
sorties -- Section 8: Essai 15h - Résistance du système de rétention des contacts à
l'utilisation des outils
Ta slovenski standard je istoveten z: EN 60512-15-8:1995
ICS:
31.220.10 9WLþLLQYWLþQLFHNRQHNWRUML Plug-and-socket devices.
Connectors
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
CEI
NORME
INTERNATIONALE IEC
512-15-8
INTERNATIONAL
Première édition
STANDARD
First edition
1995-11
Composants électromécaniques pour
équipements électroniques — Procédures
d'essai de base et méthodes de mesure —
Partie 15:
Essais mécaniques des contacts et des sorties —
Section 8: Essai 15h — Résistance du système
de rétention des contacts à l'utilisation des outils
Electromechanical components for electronic
equipment — Basic testing procedures and
measuring methods —
Part 15:
Mechanical tests on contacts and terminations —
Section 8: Test 15h — Contact retention system
resistance to tool application
© CEI 1995 Droits de reproduction réservés — Copyright — all rights reserved
Aucune partie de cette publication ne peut être reproduite ni No part of this publication may be reproduced or utilized in
utilisée sous quelque forme que ce soit et par aucun pro- any form or by any means, electronic or mechanical,
cédé, électronique ou mécanique, y compris la photocopie et including photocopying and microfilm, without permission
les microfilms, sans l'accord écrit de l'éditeur. in writing from the publisher.
Bureau Central de la Commission Electrotechnique Internationale 3, rue de Varembe
Genève, Suisse
Commission Electrotechnique Internationale
CODE PRIX
International Electrotechnical Commission
PRICE CODE E
MegutyHapoaHaa 3netcrporextttivecnaa Iiornuccwe
IEC
Pour prix, voir catalogue en
• vigueur
For price, see current catalogue
– 3 –
512-15-8 © IEC:1995
ELECTROMECHANICAL COMPONENTS FOR
ELECTRONIC EQUIPMENT - BASIC TESTING PROCEDURES
AND MEASURING METHODS -
Part 15: Mechanical tests on contacts and terminations -
Section 8: Test 15h - Contact retention system
resistance to tool application

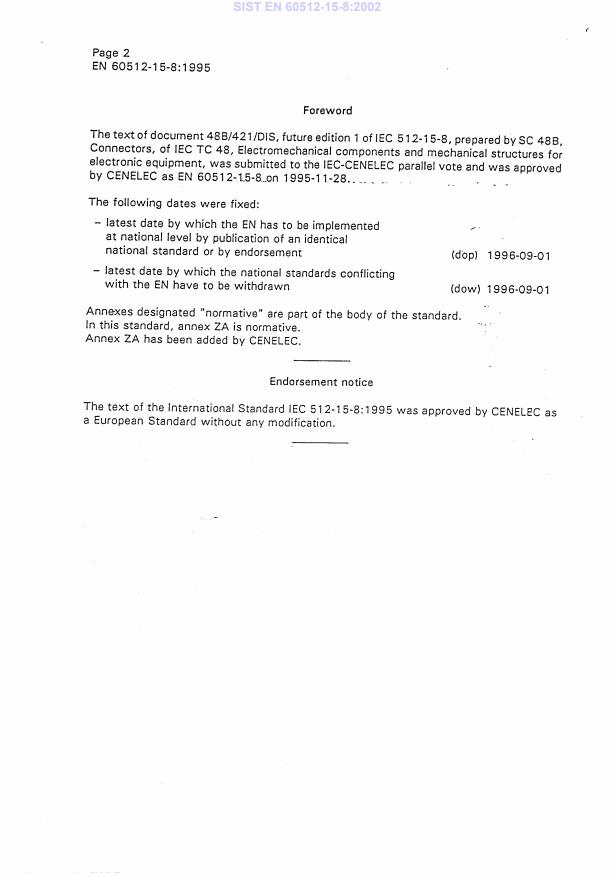

FOREWORD
1) The IEC (International Electrotechnical Commission) is a worldwide organization for standardization
comprising all national electrotechnical committees (IEC National Committees). The object of the IEC is to
promote international co-operation on all questions concerning standardization in the electrical and electronic
fields. To this end and in addition to other activities, the IEC publishes International Standards. Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt
with may participate in this preparatory work. International, governmental and non-governmental organizations
liaising with the IEC also participate in this preparation. The IEC collaborates closely with the International
Organization for Standardization (ISO) in accordance with conditions determined by agreement between the
two organizations.
The formal decisions or agreements of the IEC on technical matters, express as nearly as possible, an
2)
international consensus of opinion on the relevant subjects since each technical committee has representation
from all interested National Committees.
The documents produced have the form of recommendations for international use and are published in the
3)
form of standards, technical reports or guides and they are accepted by the National Committees in that
sense.
In order to promote international unification, IEC National Committees undertake to apply IEC Internatio
...
