SIST EN IEC 61076-2-117:2026
(Main)Connectors for electrical and electronic equipment - Product requirements - Part 2-117: Detail specification for shielded and unshielded, free and fixed connectors M12 to M40 for power, auxiliary and data transmission with frequencies up to 600 MHz
- Abstract
This part of IEC 61076-2 covers shielded and unshielded, free and fixed circular connectors without breaking capacity (COC) for power, signal and data transmission, and specifies the common dimensions, mechanical, electrical and transmission characteristics and environmental requirements as well as test specifications, respectively.
NOTE 1 As all the connectors described in this document are equipped with shielded data transmission portions, the attribute “shielded” or “unshielded” refers to the additional presence or lack of a shielded connector body.
The connectors described in this document are equipped with an M12, M17, M23 or M40 screw-locking mechanism or a quick-locking mechanism with a size derived from those.
Fixed and rewirable connectors with male or female contacts, mateable with Mxx screw- or quick-locking plugs.
This document provides multiple mating interfaces each of which is associated with a coding preventing the mating of incompatible male and female connectors. The individual codings differ by their numbers of ways, pin layouts and thicknesses, and thus by their power and data transmission capabilities. These codings are referred to as “Type x” where ‘x’ represents an Arabic number.
The connectors described in this document are intended to be used in one-cable automation applications which require various combinations and levels of power up to 600 V AC/ DC and up to 70 A, and either signal or data transmission, or both, with frequencies up to 600 MHz.
NOTE 2 The requirements (or information) described in this document facilitate data transmission through the following Ethernet media systems as defined in IEEE 802.3:
– single-pair Ethernet (10BASE-T1, 100BASE-T1, 1000BASE-T1);
– Fast Ethernet (100BASE-TX);
– Gigabit Ethernet (1000BASE-T);
– 10-gigabit Ethernet (10GBASE-T).
- Status
- Published
- Public Enquiry End Date
- 30-Sep-2025
- Publication Date
- 13-Oct-2026
- Technical Committee
- I11 - Imaginarni 11
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 07-Oct-2026
- Due Date
- 12-Dec-2026
- Completion Date
- 14-Oct-2026
SIST EN IEC 61076-2-117:2026 is a SIST standard for circular connectors for electrical and electronic equipment in M12, M17, M23 and M40 sizes. It specifies shielded and unshielded free and fixed connectors for power, signal and data transmission up to 600 MHz, and it tells manufacturers and users what dimensions, performance characteristics and test methods apply.
What does SIST EN IEC 61076-2-117:2026 specify?
SIST EN IEC 61076-2-117:2026 covers shielded and unshielded circular connectors without breaking capacity (COC) for power, signal and data transmission. It gives the common dimensions, electrical and transmission characteristics, environmental requirements and test specifications needed to design, qualify and compare these connectors.
The document applies to connectors with M12, M17, M23 or M40 screw-locking mechanisms, or quick-locking mechanisms derived from those sizes. It covers fixed and rewirable connectors with male or female contacts, and it includes multiple mating interfaces with coding so that incompatible connectors cannot be mated by mistake.
Clause structure:
- Clause 1 - Scope
- Clause 2 - Normative references
- Clause 3 - Terms and definitions
- Clause 4 - Technical information
- Clause 5 - Dimensional information
- Clause 6 - Characteristics
- Clause 7 - Tests and test schedule
What are the key requirements of SIST EN IEC 61076-2-117:2026?
SIST EN IEC 61076-2-117:2026 combines interface control, electrical ratings, transmission limits, mechanical robustness and qualification testing. In practice, that means the standard is useful both for design approval and for incoming or type testing of connector families.
Coding and compatibility
Clause 5.2 defines the coding system, with Type x codings used to separate mating interfaces that look similar but are not compatible. Clause 4.1 explains the compatibility levels: intermateability is about matching dimensions, while interoperability also requires compliance with the performance requirements and the test sequences in Clause 7.
Why this matters: the coding system prevents accidental mating of the wrong power, signal or data interface, which reduces field errors and mixed-family assembly problems.
Connector styles and dimensions
Clause 5.3 identifies the fixed and free styles for M12, M17, M23 and M40, including straight and right-angled versions, flange mounting, single-hole mounting, rewirable and non-rewirable designs. Clause 5.4 then gives the interface dimensions for each size and coding, with drawings for the mating interfaces and the housing envelope.
Why this matters: manufacturers can check housings, panel cut-outs, locking features and cable-side geometry against the same dimensional basis, and users can verify that two parts from different sources should fit and lock together.
Contact assignments and pin sizes
Clause 6.2 and Tables 36 to 40 define the contact element assignments for the different sizes and Types, including separate data, signal, power, shield and PE functions where applicable. Table 40 gives the pin size families used for power, PE, FE, data and shield contacts.
Why this matters: the contact map tells designers how the connector family separates functions, so they can select the right coding and contact arrangement for a given power or data link.
Climatic and mechanical classification
Clause 6.3 classifies the connectors into climatic categories and defines the performance level taxonomy X, Y and Z. X refers to the climate category, Y to the number of mechanical operations, and Z to shock and vibration severities. If different performance levels are mated, the lower level applies.
Why this matters: system designers need one simple way to compare environmental robustness, especially when mixing connector parts from different performance levels.
Electrical ratings and insulation performance
Clause 6.4 covers voltage information for creepage and clearance, voltage proof, current-carrying capacity, current rating, contact resistance, input-to-output d.c. resistance, insulation resistance and impedance. The document sets the nominal impedance at 100 Ω.
Why this matters: these are the core safety and performance checks for power and data links. They tell the user what electrical stress the connector is intended to withstand, what current the contacts can carry, and whether the connector stays within its resistance and insulation limits.
Transmission performance
Clause 6.5 covers insertion loss, return loss, NEXT, FEXT, TCL, TCTL, transfer impedance, coupling attenuation, PS ANEXT, PS AFEXT and propagation delay. The clause also states that transmission compliance is determined by the test methods in test group FP, and that results are reported as the worst-case outcome across the tested samples.
Why this matters: this is the section that matters most for signal and data integrity. It tells buyers, designers and test labs what must be measured to confirm that the connector will support the intended data transmission performance.
Mechanical strength, locking and protection
Clause 6.6 covers IP degree of protection, mechanical operation, connector coupling devices, insertion and withdrawal forces, polarizing method, vibration and shock. The connectors are specified for IP65/IP67 in the mated and locked position, with IP66, IP68 or other levels by agreement.
Why this matters: these requirements show whether the connector will keep its seal, stay locked, mate with the right orientation and survive repeated use and dynamic stress in the intended installation.
Test programme and qualification flow
Clause 7 defines the specimen handling, preconditioning and test schedule. The full schedule starts with preliminary tests and then separates the specimens into AP, BP, CP, DP, EP, FP, GP and HP groups, with different groups covering climatic stress, endurance, electrical load, chemical resistance, connection methods, transmission, shielding performance and current-carrying capacity.
Why this matters: qualification is not a single test. The document tells laboratories exactly how to prepare specimens, which contacts to measure, how to mount them and which sequence to use for a complete assessment.
What terms does SIST EN IEC 61076-2-117:2026 define?
SIST EN IEC 61076-2-117:2026 uses terms and definitions from IEC 60050-581, IEC 61076-1, IEC 61076-2 and IEC 60512-1.
- Connectors without breaking capacity (COC) - Connectors intended to be used without interrupting current under load, which is why the safety and use conditions need careful control.
- Mating performance level (MPL) - The performance classification used to compare how well connector pairs meet the required mechanical and environmental behavior.
- Protective earth (PE) - The earthing contact used for protection purposes in the connector interface.
- Functional earth (FE) - An earth contact used for functional or screening purposes rather than protective safety grounding.
- Near-end cross talk (NEXT) - Unwanted coupling measured at the same end of the link, important for data pair performance.
- Far-end cross talk (FEXT) - Unwanted coupling measured at the far end of the link, also critical for high-speed data transmission.
- Transverse conversion loss (TCL) - A measure of mode conversion performance, used to judge how well the connector preserves signal balance.
- Transverse conversion transfer loss (TCTL) - A related balance and conversion measure that supports signal integrity evaluation.
Who uses SIST EN IEC 61076-2-117:2026?
SIST EN IEC 61076-2-117:2026 is used by connector manufacturers, cable assembly makers, test laboratories, automation equipment designers, quality engineers and purchasing teams. It is also relevant to system integrators and machine builders selecting M12, M17, M23 or M40 connectors for one-cable automation applications.
In practice, these users rely on the standard to:
- choose the correct coding and connector style
- design mating interfaces and panel mounting
- verify electrical, transmission and environmental performance
- set up type tests, qualification tests and incoming checks
- compare products from different suppliers on the same basis
Which standards are used with SIST EN IEC 61076-2-117:2026?
SIST EN IEC 61076-2-117:2026 depends on several IEC and ISO documents for terms, test methods and interface rules.
- IEC 61076-1:2006 - Provides the generic connector rules used for compatibility levels and marking.
- IEC 61076-2 - Provides the sectional framework for circular connectors.
- IEC 60512 series - Supplies the test and measurement methods used throughout the qualification programme.
- IEC 61984 - Provides the safety requirements for connectors and the COC concept.
- IEC 60664-1 - Provides the insulation coordination basis for creepage, clearance and voltage rating.
- IEC 60529 - Defines the IP code used for ingress protection.
- IEC 60068-1 and IEC 60068-2-60 - Provide environmental testing conditions and mixed gas corrosion testing.
- IEC 60352 and IEC 60999-1 - Cover solderless and clamping terminations used for wiring specimens.
- IEC 63171 and IEC 63171-7 - Support several data-transmission and signal-integrity requirements referenced by the document.
- IEC 60603-7-1 and IEC 60603-7-3 - Are used as reference points for some transmission-performance requirements.
- ISO 21920-1 - Gives the surface texture basis for the gauge material condition.
What does the SIST EN IEC 61076-2-117:2026 document contain?
SIST EN IEC 61076-2-117:2026 contains the connector coding tables, style lists and interface drawings for fixed and free connector variants. It also contains the dimension tables for M12, M17, M23 and M40 interfaces, plus the engagement variants and gauge dimensions.
Clause 6 brings together the contact assignments, voltage and current ratings, resistance limits, transmission parameters, IP requirements and mechanical severities. Clause 7 then sets out the specimen preparation, mounting arrangements, test group sequences and the measurement methods used for qualification and comparison.
Relations
- Effective Date
- 22-Sep-2026
- Effective Date
- 22-Sep-2026
- Effective Date
- 22-Sep-2026
- Effective Date
- 22-Sep-2026
- Effective Date
- 22-Sep-2026
- Effective Date
- 22-Sep-2026
- Effective Date
- 22-Sep-2026
- Effective Date
- 22-Sep-2026
- Effective Date
- 22-Sep-2026
- Effective Date
- 22-Sep-2026
- Effective Date
- 22-Sep-2026
- Effective Date
- 22-Sep-2026
- Effective Date
- 22-Sep-2026
- Effective Date
- 22-Sep-2026
- Effective Date
- 22-Sep-2026
Frequently Asked Questions
SIST EN IEC 61076-2-117:2026 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Connectors for electrical and electronic equipment - Product requirements - Part 2-117: Detail specification for shielded and unshielded, free and fixed connectors M12 to M40 for power, auxiliary and data transmission with frequencies up to 600 MHz". This standard covers: This part of IEC 61076-2 covers shielded and unshielded, free and fixed circular connectors without breaking capacity (COC) for power, signal and data transmission, and specifies the common dimensions, mechanical, electrical and transmission characteristics and environmental requirements as well as test specifications, respectively. NOTE 1 As all the connectors described in this document are equipped with shielded data transmission portions, the attribute “shielded” or “unshielded” refers to the additional presence or lack of a shielded connector body. The connectors described in this document are equipped with an M12, M17, M23 or M40 screw-locking mechanism or a quick-locking mechanism with a size derived from those. Fixed and rewirable connectors with male or female contacts, mateable with Mxx screw- or quick-locking plugs. This document provides multiple mating interfaces each of which is associated with a coding preventing the mating of incompatible male and female connectors. The individual codings differ by their numbers of ways, pin layouts and thicknesses, and thus by their power and data transmission capabilities. These codings are referred to as “Type x” where ‘x’ represents an Arabic number. The connectors described in this document are intended to be used in one-cable automation applications which require various combinations and levels of power up to 600 V AC/ DC and up to 70 A, and either signal or data transmission, or both, with frequencies up to 600 MHz. NOTE 2 The requirements (or information) described in this document facilitate data transmission through the following Ethernet media systems as defined in IEEE 802.3: – single-pair Ethernet (10BASE-T1, 100BASE-T1, 1000BASE-T1); – Fast Ethernet (100BASE-TX); – Gigabit Ethernet (1000BASE-T); – 10-gigabit Ethernet (10GBASE-T).
This part of IEC 61076-2 covers shielded and unshielded, free and fixed circular connectors without breaking capacity (COC) for power, signal and data transmission, and specifies the common dimensions, mechanical, electrical and transmission characteristics and environmental requirements as well as test specifications, respectively. NOTE 1 As all the connectors described in this document are equipped with shielded data transmission portions, the attribute “shielded” or “unshielded” refers to the additional presence or lack of a shielded connector body. The connectors described in this document are equipped with an M12, M17, M23 or M40 screw-locking mechanism or a quick-locking mechanism with a size derived from those. Fixed and rewirable connectors with male or female contacts, mateable with Mxx screw- or quick-locking plugs. This document provides multiple mating interfaces each of which is associated with a coding preventing the mating of incompatible male and female connectors. The individual codings differ by their numbers of ways, pin layouts and thicknesses, and thus by their power and data transmission capabilities. These codings are referred to as “Type x” where ‘x’ represents an Arabic number. The connectors described in this document are intended to be used in one-cable automation applications which require various combinations and levels of power up to 600 V AC/ DC and up to 70 A, and either signal or data transmission, or both, with frequencies up to 600 MHz. NOTE 2 The requirements (or information) described in this document facilitate data transmission through the following Ethernet media systems as defined in IEEE 802.3: – single-pair Ethernet (10BASE-T1, 100BASE-T1, 1000BASE-T1); – Fast Ethernet (100BASE-TX); – Gigabit Ethernet (1000BASE-T); – 10-gigabit Ethernet (10GBASE-T).
SIST EN IEC 61076-2-117:2026 is classified under the following ICS (International Classification for Standards) categories: 31.220.10 - Plug-and-socket devices. Connectors. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN IEC 61076-2-117:2026 has the following relationships with other standards: It is inter standard links to SIST EN 60512-2-1:2003, SIST EN 60512-6-4:2003, SIST EN 60512-5-2:2003, SIST EN 60603-7-3:2010, SIST EN 60512-3-1:2003, SIST EN 60529:1997, SIST EN 60512-19-3:2002, SIST EN 60512-2-5:2004, SIST EN 60352-6:2002, SIST EN 60512-9-2:2012, SIST EN ISO 21920-1:2022, SIST EN 60352-4:2002/A1:2002, SIST EN 60068-1:2014, SIST EN IEC 61076-2:2026, SIST EN 60352-5:2002. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
SIST EN IEC 61076-2-117:2026 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

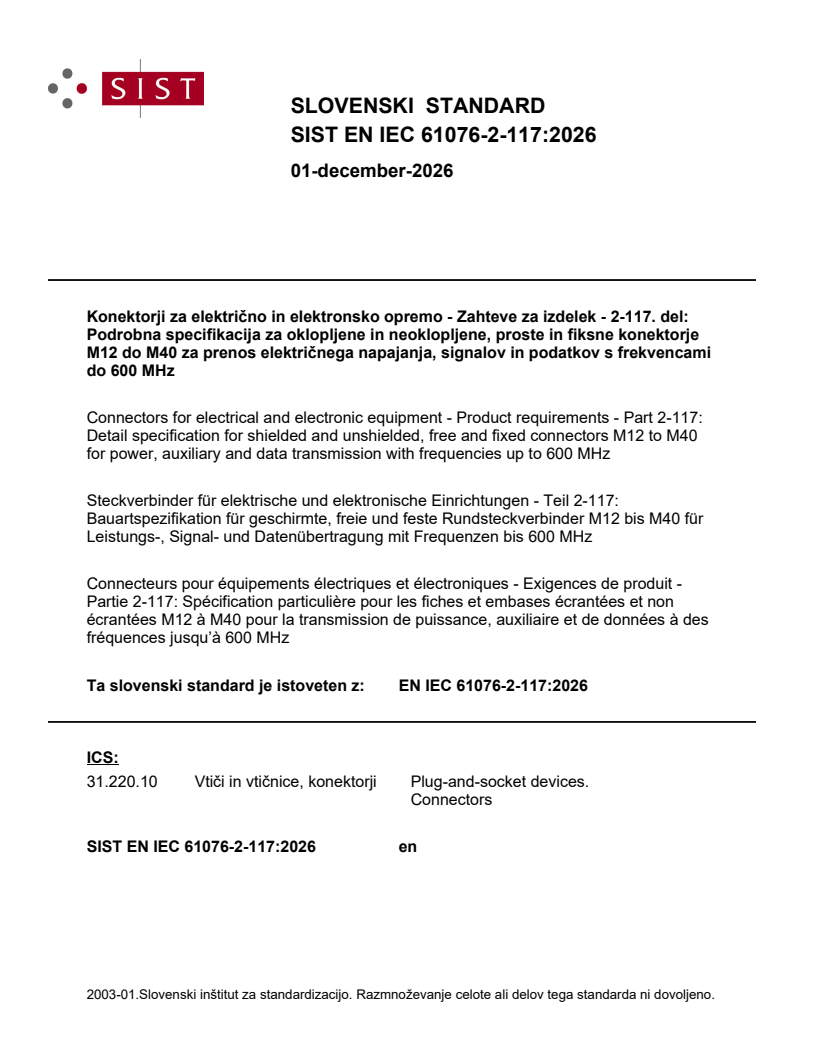

SLOVENSKI STANDARD
01-december-2026
Konektorji za električno in elektronsko opremo - Zahteve za izdelek - 2-117. del:
Podrobna specifikacija za oklopljene in neoklopljene, proste in fiksne konektorje
M12 do M40 za prenos električnega napajanja, signalov in podatkov s frekvencami
do 600 MHz
Connectors for electrical and electronic equipment - Product requirements - Part 2-117:
Detail specification for shielded and unshielded, free and fixed connectors M12 to M40
for power, auxiliary and data transmission with frequencies up to 600 MHz
Steckverbinder für elektrische und elektronische Einrichtungen - Teil 2-117:
Bauartspezifikation für geschirmte, freie und feste Rundsteckverbinder M12 bis M40 für
Leistungs-, Signal- und Datenübertragung mit Frequenzen bis 600 MHz
Connecteurs pour équipements électriques et électroniques - Exigences de produit -
Partie 2-117: Spécification particulière pour les fiches et embases écrantées et non
écrantées M12 à M40 pour la transmission de puissance, auxiliaire et de données à des
fréquences jusqu’à 600 MHz
Ta slovenski standard je istoveten z: EN IEC 61076-2-117:2026
ICS:
31.220.10 Vtiči in vtičnice, konektorji Plug-and-socket devices.
Connectors
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

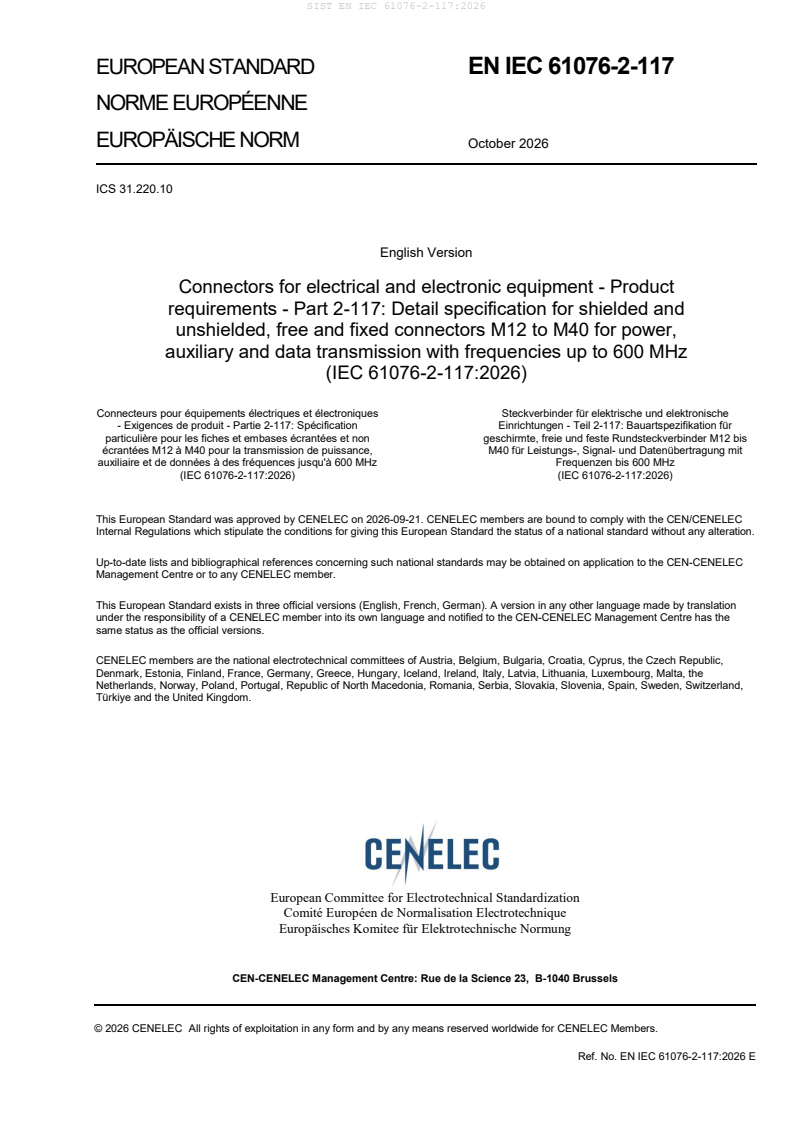

EUROPEAN STANDARD EN IEC 61076-2-117
NORME EUROPÉENNE
EUROPÄISCHE NORM October 2026
ICS 31.220.10
English Version
Connectors for electrical and electronic equipment - Product
requirements - Part 2-117: Detail specification for shielded and
unshielded, free and fixed connectors M12 to M40 for power,
auxiliary and data transmission with frequencies up to 600 MHz
(IEC 61076-2-117:2026)
Connecteurs pour équipements électriques et électroniques Steckverbinder für elektrische und elektronische
- Exigences de produit - Partie 2-117: Spécification Einrichtungen - Teil 2-117: Bauartspezifikation für
particulière pour les fiches et embases écrantées et non geschirmte, freie und feste Rundsteckverbinder M12 bis
écrantées M12 à M40 pour la transmission de puissance, M40 für Leistungs-, Signal- und Datenübertragung mit
auxiliaire et de données à des fréquences jusqu'à 600 MHz Frequenzen bis 600 MHz
(IEC 61076-2-117:2026) (IEC 61076-2-117:2026)
This European Standard was approved by CENELEC on 2026-09-21. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2026 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 61076-2-117:2026 E

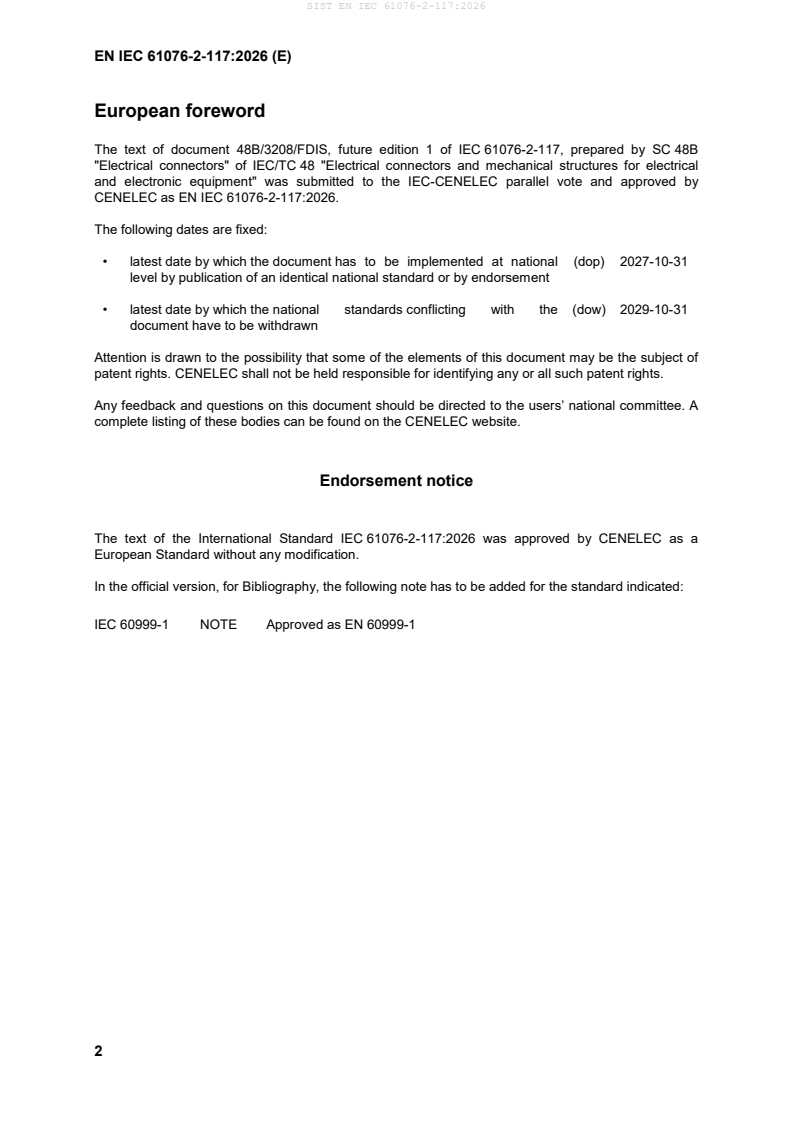

European foreword
The text of document 48B/3208/FDIS, future edition 1 of IEC 61076-2-117, prepared by SC 48B
"Electrical connectors" of IEC/TC 48 "Electrical connectors and mechanical structures for electrical
and electronic equipment" was submitted to the IEC-CENELEC parallel vote and approved by
CENELEC as EN IEC 61076-2-117:2026.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2027-10-31
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2029-10-31
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 61076-2-117:2026 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following note has to be added for the standard indicated:
IEC 60999-1 NOTE Approved as EN 60999-1
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 60050-581 - International Electrotechnical Vocabulary - - -
Part 581: Electromechanical components
for electronic equipment
IEC 60068-1 - Environmental testing - Part 1: General EN 60068-1 -
and guidance
IEC 60068-2-60 - Environmental testing - Part 2-60: Tests - EN 60068-2-60 -
Test Ke: Flowing mixed gas corrosion test
IEC 60352 series Solderless connections EN 60352 series
IEC 60512-1 - Connectors for electrical and electronic EN IEC 60512-1 -
equipment - Tests and measurements -
Part 1: Generic specification
IEC 60512-1-1 - Connectors for electronic equipment - EN 60512-1-1 -
Tests and measurements - Part 1-1:
General examination - Test 1a: Visual
examination
IEC 60512-1-2 - Connectors for electronic equipment - EN 60512-1-2 -
Tests and measurements - Part 1-2:
General examination - Test 1b:
Examination of dimension and mass
IEC 60512-2-1 - Connectors for electronic equipment - EN 60512-2-1 -
Tests and measurements - Part 2-1:
Electrical continuity and contact resistance
tests - Test 2a: Contact resistance -
Millivolt level method
IEC 60512-2-5 - Connectors for electronic equipment - EN 60512-2-5 -
Tests and measurements - Part 2-5:
Electrical continuity and contact resistance
tests - Test 2e: Contact disturbance
IEC 60512-3-1 - Connectors for electronic equipment - EN 60512-3-1 -
Tests and measurements - Part 3-1:
Insulation tests - Test 3a: Insulation
resistance
IEC 60512-4-1 - Connectors for electronic equipment - EN 60512-4-1 -
Tests and measurements - Part 4-1:
Voltage stress tests - Test 4a: Voltage
proof
IEC 60512-5-2 - Connectors for electronic equipment - EN 60512-5-2 -
Tests and measurements - Part 5-2:
Current-carrying capacity tests - Test 5b:
Current-temperature derating
IEC 60512-6-3 - Connectors for electronic equipment - EN 60512-6-3 -
Tests and measurements - Part 6-3:
Dynamic stress tests - Test 6c: Shock
IEC 60512-6-4 - Connectors for electronic equipment - EN 60512-6-4 -
Tests and measurements - Part 6-4:
Dynamic stress tests - Test 6d: Vibration
(sinusoidal)
IEC 60512-9-1 - Connectors for electronic equipment - EN 60512-9-1 -
Tests and measurements - Part 9-1:
Endurance tests - Test 9a: Mechanical
operation
IEC 60512-9-2 - Connectors for electronic equipment - EN 60512-9-2 -
Tests and measurements - Part 9-2:
Endurance tests - Test 9b: Electrical load
and temperature
IEC 60512-11-1 - Connectors for electrical and electronic EN IEC 60512-11-1 -
equipment - Tests and measurements -
Part 11-1: Climatic tests - Test 11a -
Climatic sequence
IEC 60512-11-4 - Connectors for electronic equipment - EN 60512-11-4 -
Tests and measurements - Part 11-4:
Climatic tests - Test 11d: Rapid change of
temperature
IEC 60512-11-7 - Connectors for electronic equipment - EN 60512-11-7 -
Tests and measurements - Part 11-7:
Climatic tests - Test 11g: Flowing mixed
gas corrosion test
IEC 60512-11-9 - Connectors for electronic equipment - EN 60512-11-9 -
Tests and measurements - Part 11-9:
Climatic tests - Test 11i: Dry heat
IEC 60512-11-10 - Connectors for electronic equipment - EN 60512-11-10 -
Tests and measurements - Part 11-10:
Climatic tests - Test 11j: Cold
IEC 60512-11-12 - Connectors for electronic equipment - EN 60512-11-12 -
Tests and measurements - Part 11-12:
Climatic tests - Test 11m: Damp heat,
cyclic
IEC 60512-13-2 - Connectors for electronic equipment - EN 60512-13-2 -
Tests and measurements - Part 13-2:
Mechanical operation tests - Test 13b:
Insertion and withdrawal forces
IEC 60512-13-5 - Connectors for electronic equipment - EN 60512-13-5 -
Tests and measurements - Part 13-5:
Mechanical operation tests - Test 13e:
Polarizing and keying method
IEC 60512-15-6 - Connectors for electronic equipment - EN 60512-15-6 -
Tests and measurements - Part 15-6:
Connector tests (mechanical) - Test 15f:
Effectiveness of connector coupling
devices
IEC 60512-16-5 - Connectors for electronic equipment - EN 60512-16-5 -
Tests and measurements - Part 16-5:
Mechanical tests on contacts and
terminations - Test 16e: Gauge retention
force (resilient contacts)
IEC 60512-19-3 - Electromechanical components for EN 60512-19-3 -
electronic equipment - Basic testing
procedures and measuring methods - Part
19: Chemical resistance tests - Section 3:
Test 19c - Fluid resistance
IEC 60512-25-9 - Connectors for electronic equipment - EN 60512-25-9 -
Tests and measurements - Part 25-9:
Signal integrity tests - Test 25i: Alien
crosstalk
IEC 60512-26-100 - Connectors for electronic equipment - EN 60512-26-100 -
Tests and measurements - Part 26-100:
Measurement setup, test and reference
arrangements and measurements for
connectors according to IEC 60603-7 -
Tests 26a to 26g
IEC 60512-29-100 - Connectors for electronic equipment - EN 60512-29-100 -
Tests and measurements - Part 29-100:
Signal integrity tests up to 500 MHz on
M12 style connectors - Tests 29a to 29g
IEC 60529 1989 Degrees of protection provided by EN 60529 1991
enclosures (IP Code)
- - + corrigendum May 1993
+ A1 1999 + A1 2000
+ A2 2013 + A2 2013
IEC 60664-1 2020 Insulation coordination for equipment EN IEC 60664-1 2020
within low-voltage supply systems - Part 1:
Principles, requirements and tests
IEC 60603-7-1 2011 Connectors for electronic equipment - Part EN 60603-7-1 2011
7-1: Detail specification for 8-way,
shielded, free and fixed connectors
IEC 60603-7-3 2010 Connectors for electronic equipment - Part EN 60603-7-3 2010
7-3: Detail specification for 8-way,
shielded, free and fixed connectors, for
data transmission with frequencies up to
100 MHz
IEC 61076-1 - Connectors for electronic equipment - EN 61076-1 -
Product requirements - Part 1: Generic
specification
IEC 61076-2 - Connectors for electrical and electronic EN IEC 61076-2 -
equipment - Product requirements - Part 2:
Sectional specification for circular
connectors
IEC 61984 2008 Connectors - Safety requirements and EN 61984 2009
tests
IEC 62153-4-12 - Metallic communication cable test methods - -
- Part 4-12: Electromagnetic compatibility
(EMC) - Coupling attenuation or screening
attenuation of connecting hardware -
Absorbing clamp method
IEC 63171 2021 Connectors for electrical and electronic EN IEC 63171 2021
equipment - Shielded or unshielded free
and fixed connectors for balanced single-
pair data transmission with current-carrying
capacity - General requirements and tests
ISO 21920-1 - Geometrical product specifications (GPS) - EN ISO 21920-1 -
Surface texture: Profile - Part 1: Indication
of surface texture
IEC 61076-2-117 ®
Edition 1.0 2026-08
INTERNATIONAL
STANDARD
Connectors for electrical and electronic equipment - Product requirements -
Part 2-117: Detail specification for shielded and unshielded, free and fixed
connectors M12 to M40 for power, auxiliary and data transmission with
frequencies up to 600 MHz
ICS 31.220.10 ISBN 978-2-8327-1399-0
IEC 61076-2-117:2026-08(en)
IEC 61076-2-117:2026 © IEC 2026
CONTENTS
FOREWORD . 6
INTRODUCTION . 8
1 Scope . 9
2 Normative references . 9
3 Terms and definitions . 12
4 Technical information . 12
4.1 Systems of levels – compatibility levels, in accordance with IEC 61076-1 . 12
4.1.1 Performance level . 12
4.1.2 Compatibility levels in accordance with IEC 61076-1 . 12
4.2 Classification into climatic categories . 12
4.3 Clearance and creepage distances . 12
4.4 Current carrying capacity . 12
4.5 Marking . 12
4.6 Safety aspects . 12
5 Dimensional information . 13
5.1 General . 13
5.2 Coding . 13
5.3 Survey of styles and variants . 16
5.3.1 General . 16
5.3.2 Fixed connectors . 17
5.3.3 Free connectors. 22
5.4 Interface dimensions . 26
5.4.1 M12 . 26
5.4.2 M17 . 32
5.4.3 M23 . 39
5.4.4 M40 . 46
5.5 Engagement (mating) information . 54
5.6 Gauges . 58
6 Characteristics . 58
6.1 General . 58
6.2 Contact element assignment . 59
6.3 Classification into climatic category . 66
6.4 Electrical characteristics . 66
6.4.1 Voltage information for creepage and clearance distances . 66
6.4.2 Voltage proof . 67
6.4.3 Current-carrying capacity . 68
6.4.4 Current rating . 69
6.4.5 Contact resistance – interface only (separable fixed and free contact) . 69
6.4.6 Shield resistance . 69
6.4.7 Contact resistance . 70
6.4.8 Insulation resistance . 70
6.4.9 Characteristic impedance (data transmission) . 71
6.5 Transmission performance . 71
6.5.1 General . 71
6.5.2 Insertion loss . 71
6.5.3 Return loss . 71
IEC 61076-2-117:2026 © IEC 2026
6.5.4 Near-end cross talk (NEXT) . 72
6.5.5 Far-end cross talk (FEXT). 72
6.5.6 Transverse conversion loss (TCL) . 72
6.5.7 Transverse conversion transfer loss (TCTL) . 73
6.5.8 Transfer impedance . 73
6.5.9 Coupling attenuation . 73
6.5.10 Power sum alien (exogenous) NEXT (PS ANEXT) . 74
6.5.11 Power sum alien (exogenous) FEXT (PS AFEXT) . 74
6.5.12 Propagation delay . 74
6.6 Mechanical characteristics . 75
6.6.1 IP degree of protection . 75
6.6.2 Mechanical operation . 75
6.6.3 Effectiveness of connector coupling devices . 75
6.6.4 Insertion and withdrawal forces . 76
6.6.5 Polarizing method . 76
6.6.6 Vibration (sinusoidal) . 77
6.6.7 Shock . 77
6.6.8 Severities . 77
7 Tests and test schedule . 78
7.1 General . 78
7.2 Mounting of specimens . 78
7.2.1 General . 78
7.2.2 Arrangement for contact resistance measurement . 78
7.2.3 Arrangement for dynamical stress tests . 79
7.2.4 Wiring of specimens . 79
7.3 Test procedures and measuring methods . 79
7.4 Preconditioning . 80
7.5 Test schedules. 80
7.5.1 General . 80
7.5.2 Basic (minimum) test schedule . 80
7.5.3 Full test schedule . 80
7.5.4 Test group AP – Dynamic climatic . 81
7.5.5 Test group BP – Mechanical endurance . 83
7.5.6 Test group CP – Electrical load . 84
7.5.7 Test group DP – Chemical resistivity . 86
7.5.8 Test group EP – Connection method tests . 86
7.5.9 Test group FP – Electrical transmission . 87
7.5.10 Test group GP – Transfer impedance and coupling attenuation . 88
7.5.11 Test Group HP – Current-carrying capacity . 88
Annex A (informative) Coding orientation . 89
A.1 Coding orientation M17 . 89
A.2 Coding orientation M23 . 89
A.3 Coding orientation M40 . 90
Bibliography . 91
Figure 1 – Fixed connector, male or female contacts, straight version, with a square
flange front mounting . 18
Figure 2 – Fixed connector, male or female contacts, straight version,
single hole mounting, with or without mounting orientation . 19
IEC 61076-2-117:2026 © IEC 2026
Figure 3 – Fixed connector, male or female contacts, right-angled version, with a
square flange front mounting . 20
Figure 4 – Fixed connector, male or female contacts, right-angled version,
single hole mounting . 21
Figure 5 – Rewirable connector, male or female contacts, straight version . 23
Figure 6 – Non-rewirable connector, male or female contacts, straight version . 24
Figure 7 – Rewirable connector, male or female contacts, straight version . 24
Figure 8 – Non-rewirable connector, male or female contacts, straight version . 25
Figure 9 – M12 mating dimensions for the coding Type 1 for male connectors . 26
Figure 10 – M12 mating dimensions for the coding Type 2 for male connectors . 27
Figure 11 – M12 mating dimensions for the coding Type 3 and style with male contacts . 29
Figure 12 – M12 mating dimensions for the female connectors
(at the example of coding Type 1 / 2) . 31
Figure 13 – M12 mating dimensions for the fixed connectors (side view) . 32
Figure 14 – Common dimensions for M17 Type 1/1A/1B male connectors . 33
Figure 15 – Detail dimensions for M17 Type 1/1A/1B male connectors . 34
Figure 16 – Common dimensions for M17 Type 2/2A/2B male connectors . 35
Figure 17 – Detail dimensions for M17 Type 2/2A/2B male connectors . 36
Figure 18 – Pin dimensions for M17 Type 1/1A/1B/2/2A/2B male connectors . 37
Figure 19 – M17 mating dimensions for the fixed connector (side view) . 38
Figure 20 – Common dimensions for M23 Type 1/1A male connectors . 39
Figure 21 – Detail dimensions for M23 Type 1/1A male connector . 40
Figure 22 – Common dimensions for M23 Type2/2A male connectors . 41
Figure 23 – Detail dimensions for M23 Type 2/2A male connector . 42
Figure 24 – Pin dimensions for M23 Type 1/1A/2/2A male connectors . 43
Figure 25 – M23 mating dimensions for the fixed connector (side view) . 45
Figure 26 – Common dimensions for M40 Type1/1A male connectors . 46
Figure 27 – Detail dimensions for M40 Type1/1A male connector . 47
