SIST EN 61534-1:2011

SLOVENSKI STANDARD
SIST EN 61534-1:2011
01-september-2011
Nadomešča:
SIST EN 61534-1:2004
Sistemi napajalnih razvodnic - 1. del: Splošne zahteve (IEC 61534-1:2011)
Powertrack systems - Part 1: General requirements (IEC 61534-1:2011)
Stromschienensysteme - Teil 1: Allgemeine Anforderungen (IEC 61534-1:2011)
Systèmes de conducteurs préfabriqués - Partie 1: Exigences générales (CEI 61534-
1:2011)
Ta slovenski standard je istoveten z: EN 61534-1:2011
ICS:
29.060.10 Žice Wires
29.120.20 Spojni elementi Connecting devices
SIST EN 61534-1:2011 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 61534-1:2011

---------------------- Page: 2 ----------------------
SIST EN 61534-1:2011

EUROPEAN STANDARD
EN 61534-1

NORME EUROPÉENNE
July 2011
EUROPÄISCHE NORM

ICS 29.060.10; 29.120.10 Supersedes EN 61534-1:2003


English version


Powertrack systems -
Part 1: General requirements
(IEC 61534-1:2011)


Systèmes de conducteurs préfabriqués - Stromschienensysteme -
Partie 1: Exigences générales Teil 1: Allgemeine Anforderungen
(CEI 61534-1:2011) (IEC 61534-1:2011)





This European Standard was approved by CENELEC on 2011-06-22. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels


© 2011 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61534-1:2011 E

---------------------- Page: 3 ----------------------
SIST EN 61534-1:2011

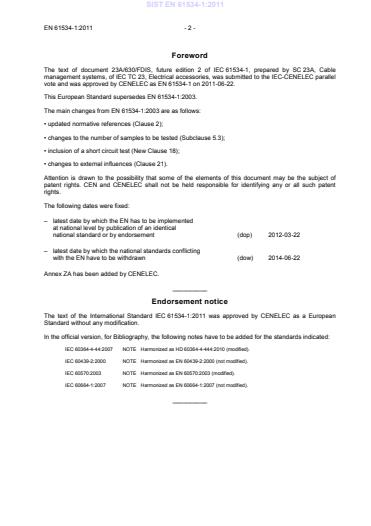

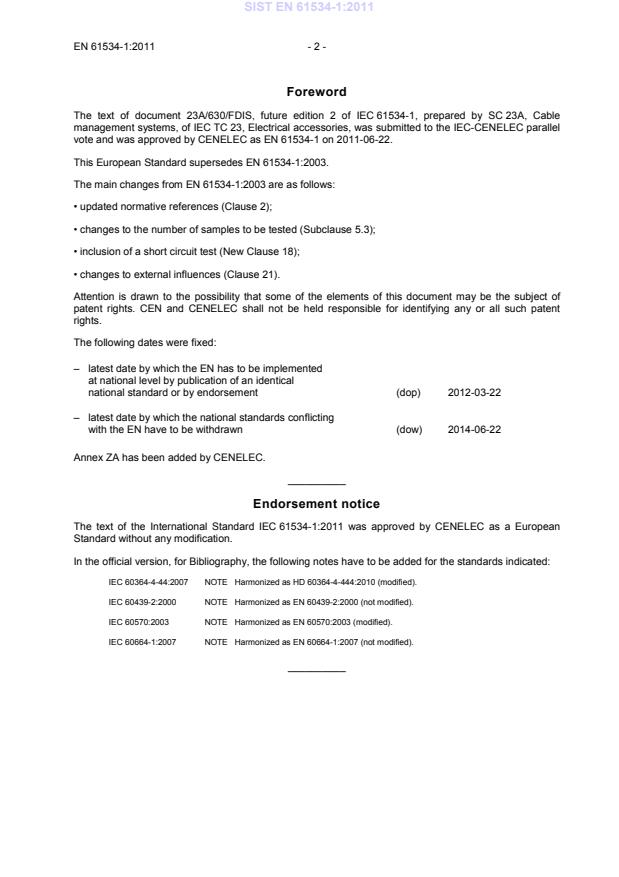

EN 61534-1:2011 - 2 -
Foreword
The text of document 23A/630/FDIS, future edition 2 of IEC 61534-1, prepared by SC 23A, Cable
management systems, of IEC TC 23, Electrical accessories, was submitted to the IEC-CENELEC parallel
vote and was approved by CENELEC as EN 61534-1 on 2011-06-22.
This European Standard supersedes EN 61534-1:2003.
The main changes from EN 61534-1:2003 are as follows:
 updated normative references (Clause 2);
 changes to the number of samples to be tested (Subclause 5.3);
 inclusion of a short circuit test (New Clause 18);
 changes to external influences (Clause 21).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN and CENELEC shall not be held responsible for identifying any or all such patent
rights.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
(dop) 2012-03-22
national standard or by endorsement
– latest date by which the national standards conflicting
(dow) 2014-06-22
with the EN have to be withdrawn
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 61534-1:2011 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 60364-4-44:2007 NOTE  Harmonized as HD 60364-4-444:2010 (modified).
IEC 60439-2:2000 NOTE  Harmonized as EN 60439-2:2000 (not modified).
IEC 60570:2003 NOTE  Harmonized as EN 60570:2003 (modified).
IEC 60664-1:2007 NOTE  Harmonized as EN 60664-1:2007 (not modified).
__________

---------------------- Page: 4 ----------------------
SIST EN 61534-1:2011
- 3 - EN 61534-1:2011
Annex ZA
(normative)

Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.

Publication Year Title EN/HD Year

1
IEC 60038 (mod) 2009 IEC standard voltages EN 60038 2011


IEC 60060-1 2010 High-voltage test techniques - EN 60060-1 2010
Part 1: General definitions and test
requirements


IEC 60068-2-52 - Environmental testing - EN 60068-2-52 -
Part 2: Tests - Test Kb: Salt mist, cyclic
(sodium chloride solution)


IEC 60068-2-75 - Environmental testing - EN 60068-2-75 -
Part 2-75: Tests - Test Eh: Hammer tests


IEC 60112 2003 Method for the determination of the proof and EN 60112 2003
 the comparative tracking indices of solid
insulating materials


IEC 60127-1 2006 Miniature fuses - EN 60127-1 2006
Part 1: Definitions for miniature fuses and
general requirements for miniature fuse-links


IEC 60269-1 2006 Low-voltage fuses - EN 60269-1 2007
Part 1: General requirements


IEC 60529 1989 Degrees of protection provided by enclosures EN 60529 1991
(IP Code) + corr. May 1993


IEC 60695-2-11 2000 Fire hazard testing - EN 60695-2-11 2001
 Part 2-11: Glowing/hot-wire based test
methods - Glow-wire flammability test method
for end-products


IEC 60695-10-2 2003 Fire hazard testing - EN 60695-10-2 2003
 Part 10-2: Abnormal heat - Ball pressure test


IEC 60695-11-2 2003 Fire hazard testing - EN 60695-11-2 2003
Part 11-2: Test flames - 1 kW nominal pre-
mixed flame - Apparatus, confirmatory test
arrangement and guidance


IEC 60884-1 2002 Plugs and socket-outlets for household and - -
+ A1 2006 similar purposes -
Part 1: General requirements


IEC 60998-1 (mod) 2002 Connecting devices for low-voltage circuits for EN 60998-1 2004
household and similar purposes -
Part 1: General requirements



1
At draft stage

---------------------- Page: 5 ----------------------
SIST EN 61534-1:2011
EN 61534-1:2011 - 4 -
Publication Year Title EN/HD Year
IEC 60998-2-3 2002 Connecting devices for low-voltage circuits for EN 60998-2-3 2004
(mod) household and similar purposes -
Part 2-3: Particular requirements for
connecting devices as separate entities with
insulation-piercing clamping units


IEC 60999-1 1999 Connecting devices - Electrical copper EN 60999-1 2000
conductors - Safety requirements for screw-
type and screwless-type clamping units -
Part 1: General requirements and particular
requirements for clamping units for conductors
from 0,2 mm² up to 35 mm² (included)


IEC 60999-2 2003 Connecting devices - Electrical copper EN 60999-2 2003
conductors - Safety requirements for screw-
type and screwless-type clamping units -
Part 2: Particular requirements for clamping
units for conductors above 35 mm² up to 300
mm² (included)


IEC 61032 1997 Protection of persons and equipment by EN 61032 1998
 enclosures - Probes for verification


IEC 61210 (mod) 2010 Connecting devices - Flat quick-connect EN 61210 2010
terminations for electrical copper conductors -
Safety requirements


IEC 60417 Graphical symbols for use on equipment - -
Data-
base


ISO 1456 2009 Metallic and other inorganic coatings - EN ISO 1456 2009
Electrodeposited coatings of nickel, nickel
plus chromium, copper plus nickel and of
copper plus nickel plus chromium


ISO 2081 2008 Metallic and other inorganic coatings - EN ISO 2081 2008
Electroplated coatings of zinc with
supplementary treatments on iron or steel


ISO 2093 1986 Electroplated coatings of tin - Specification - -
and test methods

---------------------- Page: 6 ----------------------
SIST EN 61534-1:2011
IEC 61534-1
®

Edition 2.0 2011-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE


Powertrack systems –
Part 1: General requirements

Systèmes de conducteurs préfabriqués –
Partie 1: Exigences générales


INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX XB
ICS 29.060.10; 29.120.10 ISBN 978-2-88912-504-3

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale

---------------------- Page: 7 ----------------------
SIST EN 61534-1:2011
– 2 – 61534-1 © IEC:2011
CONTENTS
FOREWORD . 5
INTRODUCTION . 7
1 Scope . 8
2 Normative references . 8
3 Terms and definitions . 10
4 General requirements . 15
5 General notes on tests . 15
6 Ratings . 16
7 Classification . 16
8 Marking and documentation . 17
9 Construction . 20
10 Clearances, creepage distances and solid insulation . 23
10.1 General . 23
10.2 Clearances . 23
10.2.1 General . 23
10.2.2 Clearances for basic insulation . 23
10.2.3 Clearances for functional insulation . 24
10.2.4 Clearances for supplementary insulation . 24
10.2.5 Clearances for reinforced insulation . 24
10.3 Creepage distances. 25
10.3.1 General . 25
10.3.2 Creepage distances for basic insulation . 25
10.3.3 Creepage distances for functional insulation . 26
10.3.4 Creepage distances for supplementary insulation . 26
10.3.5 Creepage distances for reinforced insulation . 26
10.4 Solid insulation . 26
11 Protection against electric shock . 27
11.1 Access to live parts . 27
11.2 Provision for earthing . 28
11.3 Effectiveness of protective circuit continuity . 28
12 Terminals and terminations . 28
13 Screws, current carrying parts and connections . 30
14 Mechanical strength . 33
14.1 General . 33
14.2 Impact test . 33
14.3 Static load test . 33
15 Insulation resistance test and dielectric strength test . 34
15.1 General . 34
15.2 Humidity treatment . 35
15.3 Insulation resistance test . 35
15.3.1 General . 35
15.3.2 Test for functional insulation . 35
15.3.3 Test for basic insulation, supplementary insulation and reinforced
insulation . 35

---------------------- Page: 8 ----------------------
SIST EN 61534-1:2011
61534-1 © IEC:2011 – 3 –
15.4 Dielectric strength test . 36
16 Normal operation . 36
17 Temperature rise . 37
18 Short-circuit protection and short-circuit withstand strength . 40
18.1 General . 40
18.2 Information concerning short-circuit rating . 40
18.3 Short circuit current values . 41
18.3.1 Relationship between peak current and short-circuit current . 41
18.3.2 Value and duration of the short-circuit current . 41
18.4 Verification of short-circuit withstand strength . 41
18.4.1 Test arrangement . 41
18.4.2 Test conditions – General . 41
18.4.3 Testing of the PT system . 42
19 Resistance to heat . 44
20 Fire hazard . 45
20.1 Flammability . 45
20.2 Flame spread . 46
21 External influences . 47
21.1 Resistance to corrosion . 47
21.1.1 General . 47
21.1.2 Corrosion test for dry non-aggressive environments . 47
21.1.3 Corrosion test for powertrack in contact with wet screed material . 47
21.2 Degrees of protection provided by enclosures . 47
21.2.1 General . 47
21.2.2 Protection against ingress of solid foreign objects . 48
21.2.3 Protection against ingress of water . 48
22 Electromagnetic compatibility . 48
22.1 Immunity . 48
22.2 Emission . 48
Annex A (normative) Measurement of clearances and creepage distances . 55
Annex B (normative) Proof tracking test . 60
Annex C (normative) Relationship between rated impulse withstand voltage, rated
voltage and overvoltage category III . 61
Annex D (normative) Pollution degree . 62
Annex E (informative) Diagram for the dimensioning of clearances and creepage
distances . 63
Annex F (normative) Impulse voltage test . 64
Annex G (normative) Routine test . 65
Annex H (normative) Additional test requirements for PT systems already complying
with IEC 61534-1: 2003 . 66
Bibliography . 67

Figure 1 – Pull apparatus for testing the cord anchorage . 49
Figure 2 – Torque apparatus for testing the cord anchorage . 50
Figure 3 – Arrangement for flame test . 51
Figure 4 – Enclosure for flame test . 52

---------------------- Page: 9 ----------------------
SIST EN 61534-1:2011
– 4 – 61534-1 © IEC:2011
Figure 5 – Static load test for a length . 53
Figure 6 – Static load test for a joint . 53
Figure 7 – Short-circuit test arrangement . 54

Table 1 – Pull and torque values for tests on cord anchorages . 22
Table 2 – Minimum clearances for basic insulation . 24
Table 3 – Minimum creepage distances for basic insulation . 26
Table 4 – Minimum connecting capacity of terminals . 29
Table 5 – Torque values for screws . 31
Table 6 – Minimum insulation resistance . 35
Table 7 – Dielectric strength . 36
Table 8 – Temperature rise values . 39
Table 9 – Cross-sectional areas of rigid test conductors (solid or stranded) . 39
Table 10 – Cross-sectional areas of flexible test conductors . 40
Table 11 – Standard values for the factor n. 41
Table 12 – Test temperatures for the glow wire test . 46
Table A.1 – Minimum values of width X . 55
Table C.1 – Rated impulse withstand voltage for PT systems energised directly from
the low voltage mains . 61
Table F.1 – Test voltages for verifying clearances at sea level . 64

---------------------- Page: 10 ----------------------
SIST EN 61534-1:2011
61534-1 © IEC:2011 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________

POWERTRACK SYSTEMS –

Part 1: General requirements


FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61534-1 has been prepared by subcommittee 23A: Cable
management systems, of IEC technical committee 23: Electrical accessories.
This second edition cancels and replaces the first edition published in 2003 and constitutes a
technical revision. The main changes from the previous edition are as follows:
• updated normative references (Clause 2);
• changes to the number of samples to be tested (Subclause 5.3);
• inclusion of a short circuit test (New Clause 18);
• changes to external influences (Clause 21).

---------------------- Page: 11 ----------------------
SIST EN 61534-1:2011
– 6 – 61534-1 © IEC:2011
The text of this standard is based on the following documents:
FDIS Report on voting
23A/630/FDIS 23A/631/RVD

Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all the parts in the IEC 61534 series, under the general title Powertrack systems, can
be found on the IEC website.
The following difference exists in the countries indicated below:
– Table 4, first column, first line: the 10 A rated terminal should be capable of clamping 1
2
mm as a minimum (UK);
– Australia has specific wiring rules covering socket-outlets to be switched. In Australia,
AS/NZS 3000 contains requirements for switching devices to be used in Australian and
New Zealand electrical installations;
– 9.5: in Australia, fuses and fuse-links are not to be used.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

---------------------- Page: 12 ----------------------
SIST EN 61534-1:2011
61534-1 © IEC:2011 – 7 –
INTRODUCTION
Particular requirements for specific types of powertrack systems will be specified in the
relevant parts 2 of IEC 61534.
For a specific type of powertrack system the requirements of Part 1 of the standard are to be
considered, together with the particular requirements of the appropriate Part 2, which will
supplement or modify some of the corresponding clauses in Part 1 to provide the complete
requirements for that type of system.
Part 1 shall apply unless supplemented or modified by an appropriate Part 2.

---------------------- Page: 13 ----------------------
SIST EN 61534-1:2011
– 8 – 61534-1 © IEC:2011
POWERTRACK SYSTEMS –

Part 1: General requirements



1 Scope
1.1 This part of IEC 61534 specifies general requirements and tests for powertrack (PT)
systems with a rated voltage not exceeding 277 V a.c. single phase, or 480 V a.c. two or three
phase 50 Hz/60 Hz with a rated current not exceeding 63 A. These systems are used for
distributing electricity in household, commercial and industrial premises.
1.2 Powertrack systems, according to this standard, are intended for use under the following
conditions:
– an ambient temperature in the range –5 °C to + 40 °C, the average value over a 24 h
period not exceeding 35 °C;
– a situation not subject to a source of heat likely to raise temperatures above the limits
specified above;
– an altitude not exceeding 2000 m above sea level;
– an atmosphere not subject to excessive pollution by smoke, chemical fumes, prolonged
periods of high humidity or other abnormal conditions.
In locations where special conditions prevail, as in ships, vehicles and the like and in
hazardous locations, for instance, where explosions are liable to occur, special constructions
may be necessary.
This standard does not apply to
1
– cable trunking systems and cable ducting systems covered by IEC 61084 [8] ;
– busbar trunking systems covered by IEC 60439-2 [5];
– el
...
