SIST EN IEC 60060-1:2025
(Main)High-voltage test techniques - Part 1: General definitions and test requirements
High-voltage test techniques - Part 1: General definitions and test requirements
IEC 60060-1:2025 is applicable to:
- dielectric tests with direct voltage;
- dielectric tests with alternating voltage;
- dielectric tests with impulse voltage;
- dielectric tests with combinations of the above.
This document is applicable to tests on equipment having its highest voltage for equipment Um above 1,0 kV AC and 1,5 kV DC.
This fourth edition cancels and replaces the third edition published in 2010. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
- The general layout and text have been updated and improved to make the standard easier to use, particularly the clauses for combined and composite test voltages.
- The positive tolerance of the front time of lightning impulse voltage has been extended for Um > 800 kV to 100 % (= 2,4 µs).
- For switching impulse voltage, a front time has been introduced, similar to lightning impulse voltage and with the new front time the standard switching impulse is defined as 170/2 500 µs.
- The requirements for precipitations have been adjusted depending on Um.
- A new Annex C, "Procedure for manual calculation from graphical waveforms" has been incorporated.
- No examples of software have been given in Annex D, "Guidance for implementing software for evaluation of lightning impulse voltage parameters".
- The annex relating to the "Background to the introduction of the test voltage factor for evaluation of impulses with overshoot" has been deleted.
- A new informative Annex F, "New definition of the front time of switching impulse voltage" has been incorporated.
NOTE 1 Alternative test procedures can be required to obtain reproducible and significant results. The choice of a suitable test procedure is considered by the relevant Technical Committee.
NOTE 2 For voltages Um above 800 kV it is possible that some specified procedures, tolerances and uncertainties will not be achievable.
Hochspannungs-Prüftechnik - Teil 1: Allgemeine Begriffe und Prüfbedingungen
Technique des essais à haute tension - Partie 1: Définitions et exigences générales
L'IEC 60060-1:2025 s'applique aux:
- essais diélectriques sous une tension continue;
- essais diélectriques sous une tension alternative;
- essais diélectriques sous une tension de choc;
- essais diélectriques qui combinent les essais ci-dessus.
Le présent document s'applique aux essais de matériels dont la tension Um du matériel la plus élevée est supérieure à 1,0 kV en tension alternative et à 1,5 kV en tension continue.
Cette quatrième édition annule et remplace la troisième édition parue en 2010. Cette édition constitue une révision technique.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
- La présentation générale et le texte ont été mis à jour et améliorés pour faciliter l'utilisation de la norme, en particulier les articles et paragraphes relatifs aux tensions d'essai combinées et composites;
- La tolérance positive sur la durée du front des tensions de choc de foudre a été portée à 100 % (= 2,4 µs) pour Um > 800 kV.
- Pour les tensions de choc de manœuvre, une durée du front a été adoptée de manière analogue aux tensions de choc de foudre; avec la nouvelle durée du front, la tension de choc de manœuvre normalisée est fixée à 170/2 500 µs.
- Les exigences d'aspersion dans les essais sous pluie ont été adaptées en fonction de Um.
- Une nouvelle Annexe C, "Procédure de calcul manuel à partir de formes d'ondes graphiques" a été ajoutée.
- Les exemples d’ensembles logiciels ont été enlevés de l'Annexe D, "Recommandations pour la mise en œuvre d'un logiciel d'évaluation des paramètres des tensions de choc de foudre".
- L'annexe intitulée "Arrière-plan de l'introduction du facteur de tension d'essai pour l'évaluation des chocs avec dépassement" a été supprimée.
- Une nouvelle Annexe F informative, "Nouvelle définition de la durée du front des tensions de choc de manœuvre" a été ajoutée.
NOTE 1 Des variantes aux procédures d'essai peuvent être exigées pour obtenir des résultats reproductibles et pertinents. Il convient que le Comité d'études compétent choisisse la procédure d'essai appropriée.
NOTE 2 Pour les tensions Um supérieures à 800 kV, il est possible que certaines des procédures, tolérances et incertitudes spécifiées ne soient pas réalisables.
Visokonapetostne preskusne tehnike - 1. del: Splošne definicije in preskusne zahteve
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
01-september-2025
Nadomešča:
SIST EN 60060-1:2011
Visokonapetostne preskusne tehnike - 1. del: Splošne definicije in preskusne
zahteve
High-voltage test techniques - Part 1: General definitions and test requirements
Hochspannungs-Prüftechnik - Teil 1: Allgemeine Begriffe und Prüfbedingungen
Technique des essais à haute tension - Partie 1: Définitions et exigences générales
Ta slovenski standard je istoveten z: EN IEC 60060-1:2025
ICS:
17.220.20 Merjenje električnih in Measurement of electrical
magnetnih veličin and magnetic quantities
19.080 Električno in elektronsko Electrical and electronic
preskušanje testing
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN IEC 60060-1
NORME EUROPÉENNE
EUROPÄISCHE NORM June 2025
ICS 17.220.20 Supersedes EN 60060-1:2010
English Version
High-voltage test techniques - Part 1: General terminology and
test requirements
(IEC 60060-1:2025)
Techniques d'essais à haute tension - Partie 1: Hochspannungs-Prüftechnik - Teil 1: Allgemeine Begriffe
Terminologie générale et exigences d'essai und Prüfbedingungen
(IEC 60060-1:2025) (IEC 60060-1:2025)
This European Standard was approved by CENELEC on 2025-05-22. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60060-1:2025 E

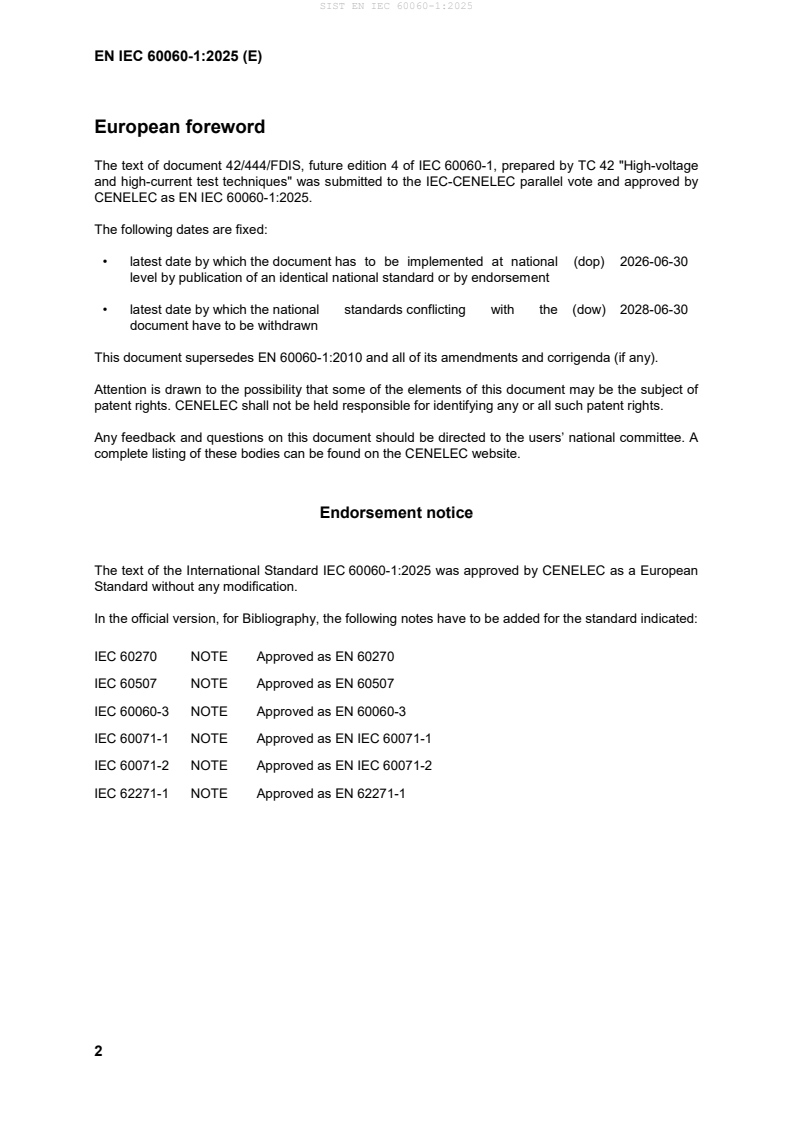

European foreword
The text of document 42/444/FDIS, future edition 4 of IEC 60060-1, prepared by TC 42 "High-voltage
and high-current test techniques" was submitted to the IEC-CENELEC parallel vote and approved by
CENELEC as EN IEC 60060-1:2025.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2026-06-30
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2028-06-30
document have to be withdrawn
This document supersedes EN 60060-1:2010 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 60060-1:2025 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standard indicated:
IEC 60270 NOTE Approved as EN 60270
IEC 60507 NOTE Approved as EN 60507
IEC 60060-3 NOTE Approved as EN 60060-3
IEC 60071-1 NOTE Approved as EN IEC 60071-1
IEC 60071-2 NOTE Approved as EN IEC 60071-2
IEC 62271-1 NOTE Approved as EN 62271-1
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 60060-2 - High-voltage test techniques - Part 2: EN IEC 60060-2 -
Measuring systems
IEC 61083-1 - Instruments and software used for EN 61083-1 -
measurement in high-voltage impulse tests
- Part 1: Requirements for instruments
IEC 61083-2 - Instruments and software used for EN 61083-2 -
measurement in high-voltage and high-
current tests - Part 2: Requirements for
software for tests with impulse voltages
and currents
IEC 62475 - High-current test techniques - Definitions EN 62475 -
and requirements for test currents and
measuring systems
IEC 60060-1 ®
Edition 4.0 2025-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
High-voltage test techniques –
Part 1: General terminology and test requirements
Techniques d'essais à haute tension –
Partie 1: Terminologie générale et exigences d'essai
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 17.220.20 ISBN 978-2-8327-0328-1
– 2 – IEC 60060-1:2025 © IEC 2025
CONTENTS
FOREWORD . 6
1 Scope . 8
2 Normative references . 8
3 Terms and definitions . 8
3.1 Terms related to characteristics of discharges . 9
3.2 Terms related to characteristics of the test voltage . 9
3.3 Terms related to tolerance and uncertainty . 10
3.4 Terms related to statistical characteristics of disruptive discharge voltage
values . 10
3.5 Terms related to classification of insulation in test objects . 12
3.6 Definitions for direct voltage tests . 13
3.7 Terms for alternating voltage tests . 13
3.8 Terms for lightning impulse voltage tests . 14
3.9 Terms for switching impulse voltage tests . 22
3.10 Terms for combined voltage tests . 24
3.11 Terms for composite voltage tests . 26
4 General requirements . 29
4.1 General requirements for test procedures . 29
4.2 Arrangement of the test object in dry tests . 29
4.3 Atmospheric corrections in dry tests. 30
4.3.1 Standard reference atmosphere . 30
4.3.2 Atmospheric correction factors for air gaps . 30
4.3.3 Application of correction factors . 30
4.3.4 Correction factor components . 31
4.3.5 Measurement of atmospheric parameters . 35
4.3.6 Conflicting requirements for testing internal and external insulation . 36
4.4 Wet tests . 37
4.4.1 Wet test procedure . 37
4.4.2 Atmospheric corrections for wet tests . 38
4.5 Artificial pollution tests . 38
5 Tests with direct voltage . 39
5.1 Test voltage . 39
5.1.1 Requirements for the test voltage . 39
5.1.2 Generation of the test voltage . 39
5.1.3 Measurement of the test voltage . 39
5.1.4 Measurement of the test current . 39
5.2 Test procedures . 40
5.2.1 Withstand voltage tests . 40
5.2.2 Disruptive discharge voltage tests . 40
5.2.3 Assured disruptive discharge voltage tests . 41
6 Tests with alternating voltage . 41
6.1 Test voltage . 41
6.1.1 Requirements for the test voltage . 41
6.1.2 Generation of the test voltage . 42
6.1.3 Measurement of the test voltage . 43
6.1.4 Measurement of the test current . 43
6.2 Test procedures . 43
IEC 60060-1:2025 © IEC 2025 – 3 –
6.2.1 Withstand voltage tests . 43
6.2.2 Disruptive discharge voltage tests . 44
6.2.3 Assured disruptive discharge voltage tests . 44
7 Tests with lightning impulse voltage. 44
7.1 Test voltage . 44
7.1.1 Requirements for test voltages . 44
7.1.2 Generation of the test voltage . 45
7.1.3 Measurement of the test voltage and determination of impulse shape . 45
7.1.4 Measurement of current during tests with impulse voltages . 46
7.2 Test procedures . 46
7.2.1 Withstand voltage tests . 46
7.2.2 Assured disruptive discharge voltage tests . 47
8 Tests with switching impulse voltage . 47
8.1 Test voltage . 47
8.1.1 Requirements for test voltages . 47
8.1.2 Generation of the test voltage . 48
8.1.3 Measurement of test voltage and determination of impulse shape . 48
8.1.4 Measurement of current during tests with impulse voltages . 48
8.2 Test procedures . 48
9 Tests with combined voltages .
...
