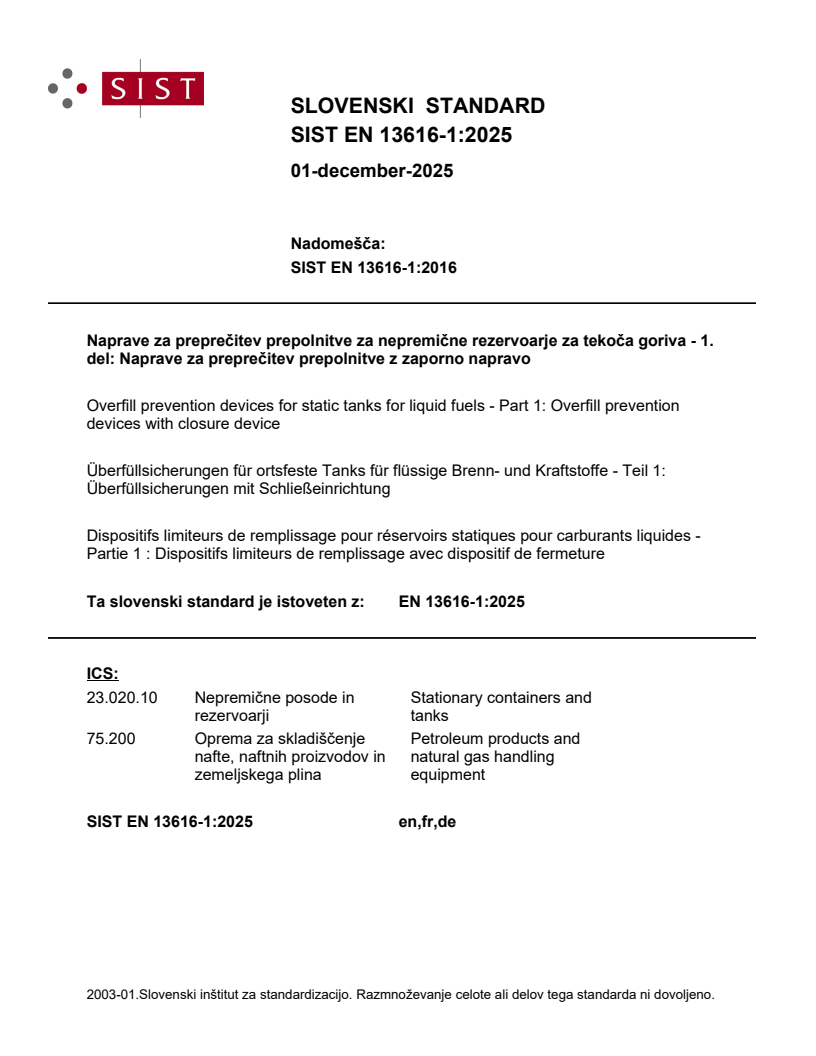

SIST EN 13616-1:2025

SLOVENSKI STANDARD
01-december-2025
Nadomešča:
SIST EN 13616-1:2016
Naprave za preprečitev prepolnitve za nepremične rezervoarje za tekoča goriva - 1.
del: Naprave za preprečitev prepolnitve z zaporno napravo
Overfill prevention devices for static tanks for liquid fuels - Part 1: Overfill prevention
devices with closure device
Überfüllsicherungen für ortsfeste Tanks für flüssige Brenn- und Kraftstoffe - Teil 1:
Überfüllsicherungen mit Schließeinrichtung
Dispositifs limiteurs de remplissage pour réservoirs statiques pour carburants liquides -
Partie 1 : Dispositifs limiteurs de remplissage avec dispositif de fermeture
Ta slovenski standard je istoveten z: EN 13616-1:2025
ICS:
23.020.10 Nepremične posode in Stationary containers and
rezervoarji tanks
75.200 Oprema za skladiščenje Petroleum products and
nafte, naftnih proizvodov in natural gas handling
zemeljskega plina equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

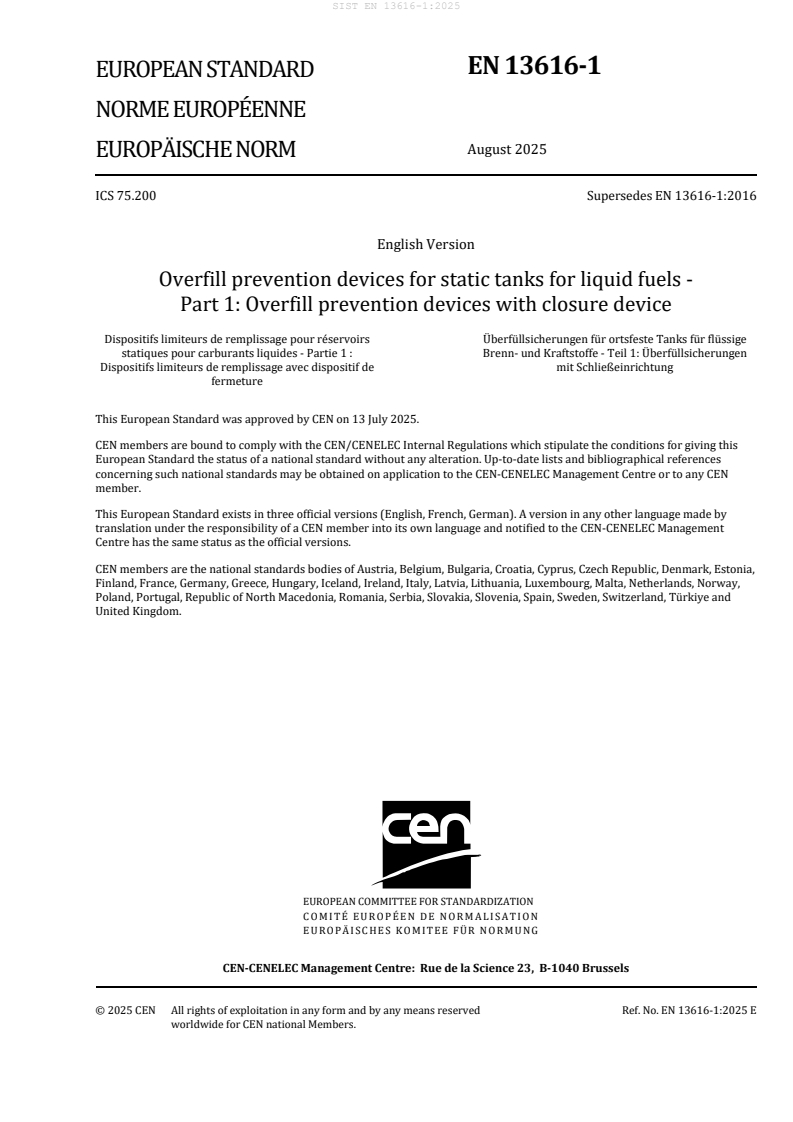

EN 13616-1
EUROPEAN STANDARD
NORME EUROPÉENNE
August 2025
EUROPÄISCHE NORM
ICS 75.200 Supersedes EN 13616-1:2016
English Version
Overfill prevention devices for static tanks for liquid fuels -
Part 1: Overfill prevention devices with closure device
Dispositifs limiteurs de remplissage pour réservoirs Überfüllsicherungen für ortsfeste Tanks für flüssige
statiques pour carburants liquides - Partie 1 : Brenn- und Kraftstoffe - Teil 1: Überfüllsicherungen
Dispositifs limiteurs de remplissage avec dispositif de mit Schließeinrichtung
fermeture
This European Standard was approved by CEN on 13 July 2025.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13616-1:2025 E
worldwide for CEN national Members.

Contents Page
European foreword . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 7
4 Requirements . 8
4.1 General. 8
4.2 Effectiveness . 8
4.2.1 General. 8
4.2.2 Operational flow range and operational pressure range . 8
4.2.3 Pressure surge range . 8
4.2.4 Closure level range . 9
4.2.5 Operational leak rate . 9
4.3 Construction . 9
4.4 Durability against wear from closure cycles. 10
5 Test methods . 10
5.1 General. 10
5.2 Chemical suitability test . 10
5.3 Temperature range test. 10
5.4 Component pressure tests . 10
5.5 Pressure surge test . 11
5.6 Function tests . 11
5.6.1 General. 11
5.6.2 Final closure level for single or two stages closure device test . 11
5.6.3 Operational leak rate after final closure level for single or two stages closure final device
test . 12
5.7 Mechanical strength . 12
5.8 Vapour tight – Non vapour tight test procedure . 12
5.8.1 Vapour tight test procedure . 12
5.8.2 Non vapour tight test procedure . 13
5.9 Durability test . 13
6 Classification. 13
7 Marking, labelling and packaging . 13
7.1 Identification . 13
7.2 Instruction plate . 13
7.3 Instructions for use . 14
Annex A (normative) Equipment for use in a hazardous area . 15
A.1 General. 15
A.2 Avoidance or reduction of ignition sources . 15
A.3 Electrical equipment. 15
A.4 Non-electrical equipment . 15
A.5 Electrostatic discharge. 15
Annex B (normative) Test rig layouts . 16
Annex C (normative) Additional information on diameter and flow rate . 17
Annex D (informative) Environmental checklist . 18
Annex ZA (informative) Relationship between this European Standard and the essential health and
safety requirements of Directive 2014/34/EU aimed to be covered . 20
Bibliography . 23

European foreword
This document (EN 13616-1:2025) has been prepared by Technical Committee CEN/TC 393 “Equipment
for storage tanks and for service stations”, the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by February 2026, and conflicting national standards shall
be withdrawn at the latest by February 2026.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights other than those identified above. CEN shall not be held responsible for identifying any or
all such patent rights.
This document supersedes EN 13616-1:2016.
a) Clause 2: Normative references were updated;
b) 3.2: The term “initial closure level” was replaced by “initial closure level for two stages closure device
only”;
c) 3.3: The term “final closure level” was replaced by “final closure level for single or two stages closure
final device”;
d) 3.9: New definition was added;
e) 4.2.1 and 4.2.3: Tolerance of ±5 % was added;
f) 5.2: Chemical suitability test was updated;
g) 5.3: Temperature range for final closure simulation was deleted;
h) New subclause 5.5: Subclause relating to pressure surge test was removed from previous subclause
on function test (5.6);
i) New Clause 6: Only FPC (Factory Production Control) aspects were kept according to previous
Clause 6 “AVCP”;
j) Figure B.1: Key was updated;
k) Table C.1: Maximum flow rate values were updated;
l) Annex ZA “Construction products Regulation - CPR” was deleted due to the fact that revision is not
candidate to the harmonization to CPR (but only to ATEX Directive).
An environmental check-list is indicated in the informative Annex D.
This document has been prepared under a standardization request addressed to CEN by the European
Commission. The Standing Committee of the EFTA States subsequently approves these requests for its
Member States.
For the relationship with EU Legislation, see informative Annex ZA, which is an integral part of this
document.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
1 Scope
This document specifies requirements, test and assessment methods, marking, labelling and packaging
applicable to overfill prevention devices with closure device. The devices are usually composed by:
— sensor;
— evaluation device;
— closure device.
Overfill prevention devices intended to be used in/with underground and/or above ground, non-
pressurized, static tanks designed for liquid fuels.
NOTE Liquid fuel means liquids for internal combustion engines, heating/cooling boilers and generators.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 228:2012+A1:2017, Automotive fuels — Unleaded petrol — Requirements and test methods
EN 590:2022,
...
