SIST EN 12543-5:2000
(Main)Non-destructive testing - Characteristics of focal spots in industrial X-ray systems for use in non-destructive testing - Part 5: Measurement of the effective focal spot size of mini and micro focus X-ray tubes
Non-destructive testing - Characteristics of focal spots in industrial X-ray systems for use in non-destructive testing - Part 5: Measurement of the effective focal spot size of mini and micro focus X-ray tubes
This European Standard specifies a method for the measurement of focal spot dimensions within the range of 5 um to 300 um of X-ray systems up to and including 225 kV tube voltage, by means of radiographs of sharp edges. The image quality and the resolution of X-ray images highly depend on the characteristics of the focal spot. The imaging qualities of the focal spot are based on the two dimensional intensity distribution in the object plane. For certification purposes the radiographic technique is used.
Zerstörungsfreie Prüfung - Charakterisierung von Brennflecken in Industrie-Röntgenanlagen für die zerstörungsfreie Prüfung - Teil 5: Messung der effektiven Brennfleckgröße von Mini- und Mikrofokus-Röntgenröhren
Diese Europäische Norm legt ein Verfahren für die Messung von Brennflecken zwischen 5 um und 300 um für Röntgenspannungen bis einschließlich 225 kV mit Hilfe von radiographischen oder radioskopischen Bildern von scharfen Kanten fest. Die Bildgüte und die Auflösung von Röntgenbildern hängen in erster Linie von den Eigenschaften eines Brennfleckes ab. Die Abbildungsqualität eines Brennfleckes basiert auf der zweidimensionalen Intensitätsverteilung in der Objektebene. Zur Zertifizierung wird die radiographische Technik angewendet.
Essais non destructifs - Caractéristiques des foyers émissifs des tubes radiogenes industriels utilisés dans les essais non destructifs - Partie 5: Mesure de la dimension du foyer émissif de tubes radiogenes a mini et micro foyer
La présente norme européenne spécifie une méthode de détermination des dimensions des foyers émissifs dans la gamme de 5 um à 300 um des tubes radiogènes de tension inférieure ou égale à 225 kV, à l'aide d'images radiographiques à bord franc. La qualité et la résolution des images radiographiques dépendent étroitement des caractéristiques du foyer émissif. Les qualités d'imagerie d'un foyer émissif sont fondées sur la répartition bidimensionnelle de la distribution spectrale dans le plan de l'objet. La technique radiographique est utilisée à des fins de certification.
Neporušitveno preskušanje - Značilnosti goriščne površine v industrijskih rentgenskih sistemih za Neporušitveno preskušanje - 5. del: Meritve efektivne velikosti goriščne površine za mini in mikro goriščne rentgenske aparate
General Information
- Status
- Published
- Publication Date
- 30-Sep-2000
- Technical Committee
- PKG - Testing of metallic materials
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 01-Oct-2000
- Due Date
- 01-Oct-2000
- Completion Date
- 01-Oct-2000
Relations
- Effective Date
- 13-Dec-2023
- Effective Date
- 22-Dec-2008
Overview
SIST EN 12543-5:2000 is a European Standard developed by CEN, focusing on non-destructive testing (NDT) techniques related to industrial X-ray systems. Specifically, this part 5 of the series addresses the measurement of the effective focal spot size of mini and micro focus X-ray tubes. The standard covers X-ray tubes operating up to 225 kV tube voltage, with focal spot dimensions measured in the range of 5 µm to 300 µm.
The effective focal spot size is a critical parameter since it directly influences the image quality and spatial resolution of radiographic inspections in non-destructive testing applications. This standard specifies a radiographic method using sharp edge images to accurately determine the two-dimensional intensity distribution of the focal spot in the object plane.
Key Topics
Focal Spot Characteristics
Understanding the physical dimensions and intensity distribution of the focal spot in mini and micro focus X-ray tubes is essential for ensuring optimal imaging performance.Measurement Method
The standard defines a radiographic technique involving sharp edge images to measure focal spot size. This method provides precise data on spot dimensions ranging from 5 µm to 300 µm.Tube Voltage Limitations
Applicable to systems with tube voltages up to 225 kV, making it suitable for a wide range of industrial radiography equipment.Image Quality Impact
Emphasizes the relationship between focal spot size and resolution and contrast in radiographic images, key factors in reliable defect detection.Certification and Quality Control
Establishes a consistent measurement standard for certification purposes in quality assurance and compliance within NDT practices.
Applications
Industrial Radiography
Used extensively in industries such as aerospace, automotive, and manufacturing for inspecting critical components without causing damage.Quality Assurance Programs
Integrates into inspection protocols to ensure X-ray systems meet defined focal spot size criteria, contributing to consistent image quality.Equipment Calibration and Maintenance
Enables precise calibration of mini and micro focus X-ray tubes, supporting system reliability and longevity.Research and Development
Assists in designing and validating new X-ray tubes and imaging systems with improved focal spot characteristics.
Related Standards
EN 12543-1 to EN 12543-4
Other parts in the EN 12543 series covering additional aspects of focal spot characterization and measurement techniques.ISO 17636 Series
International standards on radiographic testing of welds, often used alongside EN 12543-5 for comprehensive NDT procedures.ASTM E1742
Provides guidelines for X-ray focal spot size measurement methods, complementing European standards.
Keywords: SIST EN 12543-5:2000, non-destructive testing, NDT, focal spot size, X-ray tube, mini focus, micro focus, radiography, industrial X-ray systems, image resolution, quality assurance, tube voltage, radiographic measurement
Frequently Asked Questions
SIST EN 12543-5:2000 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Non-destructive testing - Characteristics of focal spots in industrial X-ray systems for use in non-destructive testing - Part 5: Measurement of the effective focal spot size of mini and micro focus X-ray tubes". This standard covers: This European Standard specifies a method for the measurement of focal spot dimensions within the range of 5 um to 300 um of X-ray systems up to and including 225 kV tube voltage, by means of radiographs of sharp edges. The image quality and the resolution of X-ray images highly depend on the characteristics of the focal spot. The imaging qualities of the focal spot are based on the two dimensional intensity distribution in the object plane. For certification purposes the radiographic technique is used.
This European Standard specifies a method for the measurement of focal spot dimensions within the range of 5 um to 300 um of X-ray systems up to and including 225 kV tube voltage, by means of radiographs of sharp edges. The image quality and the resolution of X-ray images highly depend on the characteristics of the focal spot. The imaging qualities of the focal spot are based on the two dimensional intensity distribution in the object plane. For certification purposes the radiographic technique is used.
SIST EN 12543-5:2000 is classified under the following ICS (International Classification for Standards) categories: 19.100 - Non-destructive testing. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 12543-5:2000 has the following relationships with other standards: It is inter standard links to kSIST FprEN 12543-5:2025; is excused to SIST EN 12543-1:2000. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
SIST EN 12543-5:2000 is associated with the following European legislation: EU Directives/Regulations: 97/23/EC; Standardization Mandates: M/071. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase SIST EN 12543-5:2000 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of SIST standards.

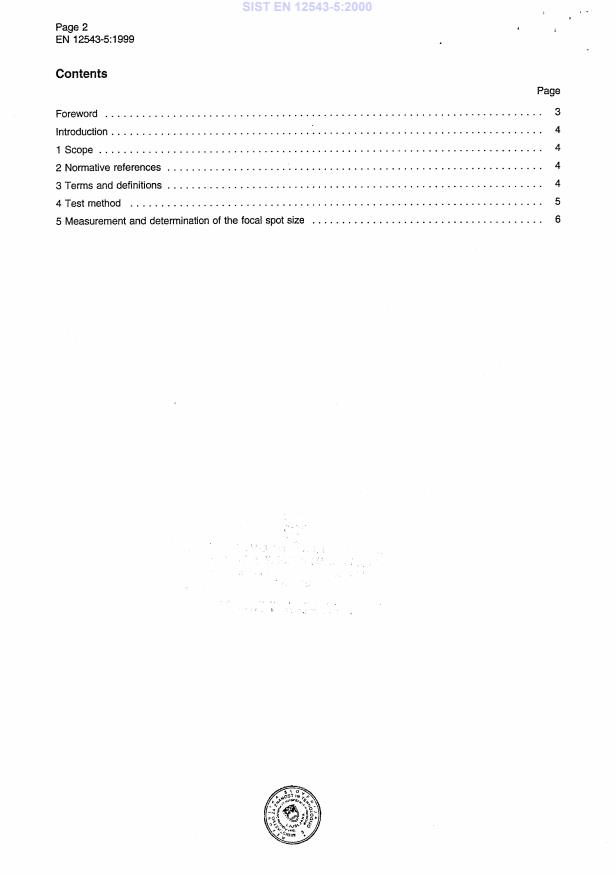

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.WULMVNLKDSDUDWHZerstörungsfreie Prüfung - Charakterisierung von Brennflecken in Industrie-Röntgenanlagen für die zerstörungsfreie Prüfung - Teil 5: Messung der effektiven Brennfleckgröße von Mini- und Mikrofokus-RöntgenröhrenEssais non destructifs - Caractéristiques des foyers émissifs des tubes radiogenes industriels utilisés dans les essais non destructifs - Partie 5: Mesure de la dimension du foyer émissif de tubes radiogenes a mini et micro foyerNon-destruct
...
