ISO 24097-1:2009

INTERNATIONAL ISO
STANDARD 24097-1
First edition
2009-09-15
Intelligent transport systems — Using
web services (machine-machine delivery)
for ITS service delivery —
Part 1:
Realization of interoperable web services
Utilisation des services du Web (livraison de machine à machine) pour
la livraison de services ITS —
Partie 1: Réalisation des services du Web interopérables

Reference number
©
ISO 2009
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2009
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2009 – All rights reserved

Contents Page
Foreword .iv
Introduction.v
1 Scope.1
2 Conformance .2
3 Normative references.2
4 Terms, definitions and abbreviated terms.2
4.1 Terms and definitions .2
4.2 Abbreviated terms .3
5 Notation .5
5.1 Prefixes and namespace URI used in core specification.5
5.2 Web service syntax notation : BNF pseudo-schemas.6
5.3 XPath 1.0 notation .6
5.4 Notation of service provider, service consumer combination .7
5.5 SOA stack name notation.7
5.6 Set notation.7
5.7 Tentative IRI expression .7
5.8 Rnnnn (nnnn: digits integer) .7
6 Requirements.7
6.1 Basic concept of web services standardization .7
6.2 Web service metadata.9
7 Service description layer.12
7.1 Service description layer structure .12
7.2 Service description layer — Requirements and recommendations for interface
description sublayer .12
7.3 Service description layer — Requirements and recommendations for policy description
sublayer.15
7.4 Service description layer — Requirements and recommendations for addressing sublayer .20
8 Quality of service layer .20
8.1 Quality of service layer — Requirements and recommendations for reliable messaging
sublayer.20
8.2 Quality of service layer — Requirements and recommendations for security sublayer .21
8.3 Quality of service layer — Requirements and recommendations for transaction sublayer .22
9 Messaging layer.22
9.1 Messaging layer — Requirements and recommendations for XML messaging.22
10 Service publication/discovery layer .23
10.1 Service publication/discovery layer — requirements and recommendations for universal
description, discovery and integration .23
Annex A (normative) Principles and evolution of WSDL from Version 1.1 to 2.0.28
Annex B (informative) WDSL syntax.39
Bibliography.43

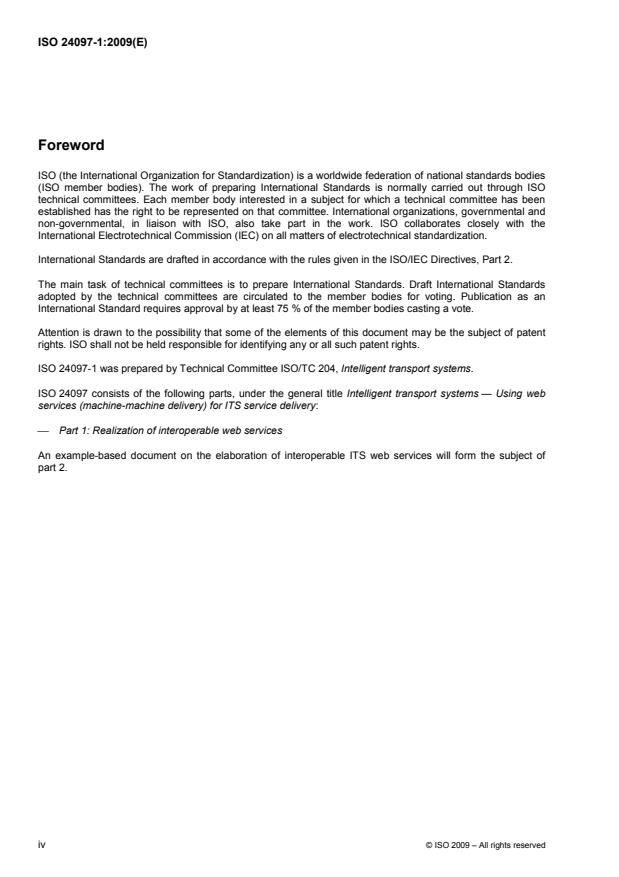

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 24097-1 was prepared by Technical Committee ISO/TC 204, Intelligent transport systems.
ISO 24097 consists of the following parts, under the general title Intelligent transport systems — Using web
services (machine-machine delivery) for ITS service delivery:
⎯ Part 1: Realization of interoperable web services
An example-based document on the elaboration of interoperable ITS web services will form the subject of
part 2.
iv © ISO 2009 – All rights reserved

Introduction
Intelligent Transport Systems (ITS) services have been evolving from single functional and limited area
specific services, to a broad range of services in which many systems cooperate to provide effective and
efficient service provision across a wide area. In today’s world, ITS services are required to communicate not
just with other parts of the same ITS service provision, but between different ITS services and even with non-
ITS services or a user’s system directly. Some examples of these systems are communications between
traffic management, route guidance systems, homeland security systems, environment protection systems
and private freight management systems.
These systems (even those limited to ITS services) are usually deployed in a heterogeneous circumstance,
use different hardware, different operating system (OS), middleware, or development languages. This
therefore creates a challenge in order to realize system coordination across the organizations in a way that is
flexible, quick and at reasonable cost. Web services (WS) are a recent methodology that overcomes these
difficulties. Using web service technology for ITS services can significantly simplify and reduce the cost of
Internet-based service provision, which can affect the level and speed of take up of use of ITS services.
The World Wide Web Consortium (W3C) defines WS as follows: “A web service is a software system
designed to support interoperable machine-machine interaction over a network. It has an interface described
in a machine-processable format [specifically WSDL (Web Services Description Language)]. Other systems
interact with the web service in a manner prescribed by its description using SOAP-messages, typically
conveyed using HTTP with an XML serialization in conjunction with other web-related standards.”
WS require quite a lot of functionalities and as a result, an architecture is indispensable. Web service
standardization organizations construct standards by Service-Oriented Architecture (SOA). SOA is an
evolutional form of distributed computing and object orientation.
By applying SOA-based standards to ITS services, the following effects are expected.
From a business viewpoint:
⎯ increased service value;
⎯ internationalization;
⎯ expansion towards business automation.
From a system development perspective:
⎯ easy and quick development of ITS service coordination and service area expansion;
⎯ WS enable system developers to focus on the “what” not the “how.” “HOW” is covered by standard base
tools. This enables quick and easy system software development;
⎯ composable structure of web service standards promote reusability of software;
⎯ easy connection to a legacy system.
In the ITS sector, message standardization of many applications has already been completed, are well
advanced, or are determined regionally. Message standardization is intended to improve system coordination,
interoperability and re-use and so the conditions for WS are considered already mature. In addition, the use of
WS will increase the flexibility of ITS services to interoperate and communicate beyond the ITS sector and in
areas where the delineation between ITS services and general commercial services converge.
From the perspective of the evolution of standards in WS, 2007 was an epoch-making year. WSDL 2.0
became the W3C recommendation. Correspondingly, relevant web service specifications were standardized
by open standardization bodies (W3C and OASIS). These standards cover all functional layers. In using these
standards, the ITS sector has a rigid base for interoperable WS.
ITS service collaboration with other sectors is expected to increase mutual effectiveness. Economic
globalization also requires communication across the country, often across the world. All of these
collaborations rely on interoperability of services. Interoperability is only achieved based on open international
standards.
WS were developed to use distributed network resources in an interoperable way. However, to realize
interoperable WS, various functionalities are required. ISO 24097 (all parts) has been developed based on
these circumstances.
vi © ISO 2009 – All rights reserved

INTERNATIONAL STANDARD ISO 24097-1:2009(E)

Intelligent transport systems — Using web services (machine-
machine delivery) for ITS service delivery —
Part 1:
Realization of interoperable web services
1 Scope
This part of ISO 24097 establishes a Service-Oriented Architecture (SOA) for the realization of interoperable
Intelligent Transport Systems (ITS) web services (WS). Web service behaviour is described at the metadata
level (i.e. a higher level of abstraction) to enable auto-generation of both a “Service requestor” program, as
well as a “Service provider” program.
The principal entities involved in a web service scenario are “Service provider“, “Service requestor” and
“Registry” (see Figure 1). The registry includes business information and technical information such as
interface and policy. A service provider interacts with the registry to enable it to “publish” the service he/she is
able to provide. The service is characterized by a web service interface describer in the form of a standardized
web service description language (WSDL) and policy (WS-Policy). A service requestor interacts with the
registry to “discover” a provider for the service he/she is seeking. That interaction takes place through
Universal Description Discovery and Integration (UDDI) dialogue and endpoint reference (EPR). Once the
service requestor identifies a service provider, he “binds” to the service provider via an SOA protocol.
NOTE Figure 1 depicts the actions of the service provider and the service requestor.
This part of ISO 24097 is applicable to inter-ITS sector WS, as well as ITS WS for non-ITS users.

Figure 1 — Web service entities and their relationships
2 Conformance
There are no explicit conformance tests in this part of ISO 24097. Conformance is achieved by conforming to
the requirements of ISO 24097-1. Specific conformance tests can be specified in another part of ISO 24097.
3 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 14817, Transport information and control systems — Requirements for an ITS/TICS central Data Registry
and ITS/TICS Data Dictionaries
4 Terms, definitions and abbreviated terms
For the purposes of this document, the following terms and definitions apply.
NOTE 1 General terms of W3C web service definitions can be obtained from the website: www.w3.org/tr/ws-arch/ and
terms defined in a specific web service standard are also referable.
NOTE 2 For general W3C references, see the Bibliography.
4.1 Terms and definitions
4.1.1
composability
facility enabling web services to add new features incrementally
4.1.2
domain
functional area in a policy assertion (e.g. security, reliability, transaction and messaging optimization)
4.1.3
ITS WS
web service that is designed specifically to support ITS services via the Internet
4.1.4
International Standard web service
web service conformant to this part of ISO 24097
4.1.5
platform
hardware, operating system, middleware and application development language, which provide a system
environment
4.1.6
policy assertion
element of service metadata which identifies a domain (such as messaging, security, reliability and
transaction) specific behaviour
4.1.7
skeleton
elements of service side code used for receiving remote method calls, invoking them and returning the result
to the sender
2 © ISO 2009 – All rights reserved

4.1.8
stub
client code required to talk to a remote service
4.1.9
WS metadata
service metadata
metadata
high-level service description of a web service that controls provision of that service
4.2 Abbreviated terms
4.2.1
BNF
Backus Naur Form
4.2.2
BP
basic profile (of web services interoperability organization)
4.2.3
BPEL
business process execution language
4.2.4
DD
data dictionary
4.2.5
DR
data registry
4.2.6
EPR
endpoint reference
4.2.7
HTTP
hypertext transfer protocol
4.2.8
HTTPS
hypertext transfer protocol security
4.2.9
IRI
internationalized resource identifier
4.2.10
MIME
multipurpose Internet mail extension
4.2.11
MOF
meta object facility
4.2.12
MTOM
〈SOAP〉 message transmission optimization mechanism
4.2.13
OID
object identifier
4.2.14
OMG
object management group
4.2.15
OSI
open system interconnection
4.2.16
QoS
quality of service
4.2.17
REC
recommendation
4.2.18
RM
reliable messaging
4.2.19
RMI/IIOP
remote method invocation/Internet inter-ORB protocol
4.2.20
RPC
remote procedure call
4.2.21
SMTP
simple mail transfer protocol
4.2.22
SOA
service-oriented architecture
4.2.23
TCP/IP
transmission control protocol/internet protocol
4.2.24
tModel
technical model
4.2.25
UDDI
universal description, discovery and integration
4.2.26
URI
uniform resource identifier
4.2.27
UTF-8(/16)
8(/16)-bit universal character set transformation format
4 © ISO 2009 – All rights reserved

4.2.28
W3C
World Wide Web Consortium
4.2.29
WS
web service
4.2.30
WS-I
web services interoperability (organization)
4.2.31
WSDL
web services description language
4.2.32
XML
eXtensible markup language
4.2.33
XSD
XML schema definition
5 Notation
5.1 Prefixes and namespace URI used in core specification
This part of ISO 24097 uses predefined namespace prefixes throughout as given in Table 1. Other prefixes
and namespaces (e.g. “Web Services Policy” and “Web Services Addressing”) are given in this part of
ISO 24097.
NOTE 1 The choice of any namespace prefix is arbitrary and not semantically significant (see [Namespaces in XML]).
However, the prefix is unique in any single document.
NOTE 2 For reasons of brevity, not all examples are shown as full schemas. In this case, it is assumed that the
namespace has been declared in a parent element.
Table 1 — Namespace prefix and namespace URI
Category Prefix Namespace URI
WS-I namespace wsi http://ws-i.org/profiles/basic/1.1
WSDL 2.0 namespace for WSDL framework wsdl http://schemas.xmlsoap.org/wsdl/
WSDL 1.1 namespace wsdl11 http://schemas.xmlsoap.org/wsdl
WSDL namespace for WSDL SOAP binding soapbind http://schemas.xmlsoap.org/wsdl/soap/
WSDL namespace for WSDL HTTP GET and
http http://schemas.xmlsoap.org/wsdl/http/
POST binding
Encoding namespace as defined by SOAP 1.1 soapenc http://schemas.xmlsoap.org/soap/encoding/
Envelope namespace as defined by SOAP 1.1 soapenv http://schemas.xmlsoap.org/soap/envelope/
http://www.w3.org/2000/10/XMLSchema-
Instance namespace as defined by XSD xsi
instance
Schema namespace as defined by XSD xsd http://www.w3.org/2000/10/XMLSchema
The “this namespace” (tns) prefix as a
tns (various)
convention to refer to the current document.
All other namespace prefixes are samples only.
In particular, IRIs starting with
(other) (various)
“http://example.com” represent application-
dependent or context-dependent IRI.

5.2 Web service syntax notation : BNF pseudo-schemas
BNF pseudo-schemas are used to represent web service syntax.
⎯ The syntax appears as an XML instance, but values in italics indicate data types instead of literal values.
⎯ Characters are appended to elements and attributes to indicate cardinality:
“?” (0 or 1);
“*” (0 or more);
“+” (1 or more).
⎯ The character “|” is used to indicate a choice between alternatives.
⎯ The characters “(“ and ”)” are used to indicate that contained items are to be treated as a group with
respect to cardinality or choice.
⎯ The characters “[“ and ”]” are used to call out references and property names.
⎯ Ellipses (i.e., “…”) indicate points of extensibility. Additional children and/or attributes MAY be added at
the indicated extension points but SHALL NOT contradict the semantics of the parent and/or owner,
respectively. By default, if a receiver does not recognize an extension, the receiver SHOULD ignore the
extension; exceptions to this processing rule, if any, are clearly indicated below.
5.3 XPath 1.0 notation
XPath 1.0 notation is used to specify an XML element and/or attribute.
6 © ISO 2009 – All rights reserved

5.4 Notation of service provider, service consumer combination
There are four combinations of service provider and service consumer. In this part of ISO 24097, the
combination is represented by a (service provider and service consumer) notation.
EXAMPLE (traffic service provider, freight industry).
5.5 SOA stack name notation
SOA stack name is represented by bold italics.
EXAMPLE messaging.
5.6 Set notation
Braces enclose a set: “{” “}”.
EXAMPLE Integer set of 1 to 9: {1, 2, 3, 4, 5, 6, 7, 8, 9}.
5.7 Tentative IRI expression
Some constructs cannot determine their value when creating standards. In this case, a tentative value is
expressed by /tentative in bold italics. The final value will be given using real IRI.
EXAMPLE WSDL soapbind:address (real web service address):
xmlns="http://schemas.xmlsoap.org/wsdl"… >
…





In this case, location is real service IRI and cannot determine the standardization point, however it shall be
expressed in order to provide a valid WSDL document.
5.8 Rnnnn (nnnn: digits integer)
Rnnnn is used to display the WS-I Basic Profile requirement identifier number. The expression is “[Rnnnn]”.
6 Requirements
6.1 Basic concept of web services standardization
6.1.1 Web services architecture
Given that WS require a number of functionalities, an architectural context is therefore essential. Web service
standardization organizations construct standards within the framework of an SOA. An SOA is an evolutionary
form of distributed computing and object-orientation).
The fundamental SOA philosophy (architecture) is:
⎯ systems shall be coupled loosely by message;
⎯ systems shall be linked dynamically;
⎯ systems shall be composable by functional stacks.
In a web service SOA, functional stacks are as follows.
a) Service composition stack: the stack that describes coordination of business processes. This stack is
used to automate real business.
b) Service description stack: the stack that describes service interface and related service policy. This stack
is used for metadata description.
c) Quality of service (QoS) stack: the stack that ensures message quality, security and transaction quality.
d) Messaging stack: the stack that describes message behaviour.
e) Transport stack: the stack that transports message.
f) Service publication and discovery stack: the stack that publishes a web service and its discovery.
WS are constructed on SOA-based open body standards (see Figure 2). Each standard is constructed in a
platform-independent manner. As a result, a web service (service and client) can communicate with each
other independent of their platform. In this case, interoperability is realized when both sides conform to the
same standard.
Figure 2 — SOA and its construct standards
NOTE 1 Currently, many software vendors provide a variety of development tools from integrated web service
developing tools to component level tools. Using these tools enables the developer to make rapid and comparatively easy
developments.
8 © ISO 2009 – All rights reserved

NOTE 2 Some architects depict QoS layer as an upper layer of Service description layer. Other architects depict the
reverse. This part of ISO 24097 describes the Service description layer as upper layer of the QoS layer. The reason for
this is that the Service description layer uses QoS layer and it controls behaviour of QoS.
6.1.2 International standard web service standardization
Figure 3 depicts a MOF-like view of WS. The dashed arrow shows reference relationships.
M3 Layer (XML + XML Schema and Namespace) provides the syntax of the web service standards.
ISO 24531 is the schema usage standard for the ITS sector.
M2 Layer (Web service standards, WS-I BP and this part of ISO 24097) provide rules and guidance for web
service development.
M1 Layer (ITS Web service standards) provided rules and guidance for web service development particular to
ITS. As long as M1 Layer instances of specific web service (ITS web service) follow this part of ISO 24097,
basic interoperability is achieved.

Figure 3 — ITS web service standard structure
6.2 Web service metadata
Web service standards are based on an SOA. This means that WS are constructed by the collection of
layered functions. The fundamental layers are depicted in Figure 2. The topmost layer is the Service
composition layer. This layer covers, as the name indicates, the composition of multiple services. As this part
of ISO 24097 covers only single web service application, this layer description is not included in this part of
ISO 24097.
The second upper-most layer is the Service description layer. This layer is a metadata layer in general terms.
The Service description layer consists of three sub-components, namely interface description, policy
description and addressing. These sub-components are standardized as WSDL, WS-Policy and
WS-Addressing, respectively.
The WSDL standard provides interface information description. The WS-Policy standard covers WS
capabilities and constraints. The WS-Addressing standard presents the basis of metadata EPR and some
message addressing functionality. Using these standards, ITS WS can respond to real world requirements.
WS-Policy and WS-Addressing can be used independent of the particular WSDL version being used.
Service description layer
Figure 4 — WSDL, WS-Policy and WS-Addressing relationship
A single service document is required for easy understanding of the service by the service consumer and easy
tool support. W3C provides two mechanisms: WSDL extensible points and WS-Policy attachment
specification. Extensible points are the logical points where other standards functionality (in this case
WS-Policy) can be attached to WSDL description. WS-Policy defines the attaching mechanism to WSDL.
Using these mechanisms, web service behaviour is described in a single document. WS provide enriched
functionality in a modular manner.
6.2.1 Common requirement and recommendation for metadata
6.2.1.1 International Standard web service metadata description
International Standard web service metadata shall be declared in formalized format.
NOTE A metadata formal expression is a contract between a service provider and a service requestor (usually
different parties). In addition, formal metadata supports auto creation of client and service programs.
6.2.1.2 Use of utf-8 or utf-16
UTF-8 or UTF-16 shall be used for metadata declaration.
NOTE Using UTF-8 or UTF-16 is a standard for internationalization for the XML application.
6.2.1.3 Version up scenario
If changing metadata, support shall be provided for all versions.
REASON There can be multiple scenarios when the web service version is upgraded (see Figure 5). If service is for an
anonymous user and/or requires a short recovery time from any trouble with the new version of the software, support from
the old version is required. A Type 2 scenario can respond to this requirement (see Figure 5).
10 © ISO 2009 – All rights reserved

Figure 5 — Version up scenario
6.2.1.4 Interface or policy change
When changing interface or policy, cross impact shall be analysed and proper cross change shall be carried
out.
REASON WS work only between a consistent interface and a policy pair. For example if a new binding is added in
interface description, it can impact on WS-Policy. The reverse is also true. Therefore, a cross check shall be made. Any
change should be made within the constraints defined in 6.2.1.3. If the change cannot meet the requirements of 6.2.1.3, it
shall become a new service and the old service shall remain.
NOTE There are many ways to manage physical files to correspond to a change of WSDL or WS-Policy. One
method is changing in the same file (Type 1 of Figure 6); alternatively creating a new physical file (Type 2). Type 1
minimizes change, but the method selected is left to the discretion of the service provider.

Figure 6 — WSDL WS-Policy change
6.2.1.5 Metadata versioning
Metadata versioning is not required, but is highly recommended. Where used, the version number shall be
attached to WSDL and WS-Policy independently.
REASON Version numbering helps to easily distinguish a change of metadata. Independent version numbering for both
WSDL and WS-Policy is necessary because each can change independently.
NOTE For the WSDL versioning rule, see 7.2.4. For WS-Policy versioning rule, see 7.2.4.
7 Service description layer
7.1 Service description layer structure
Since web service standards are based on an SOA, a set of standards shall be identified to address all
required functions. The Service description layer shall consist of the following sublayers: Interface description,
Policy description and Addressing and shall explicitly identify the standards for: WSDL, WS-Policy and
WS-Addressing. Clauses 7 to 10 describe the achievement of interoperable ITS WS using these standards.
7.2 Service description layer — Requirements and recommendations for interface
description sublayer
7.2.1 Role of WSDL
“Web Service Description Language” is the formal service description language of a web service interface. It
becomes a contract condition between a service provider and service consumers.
“Contract” also implies that the service provider and a service consumer can create a program from WSDL
without ambiguity.
The role of WSDL in the ITS field includes:
g) the description of technical conditions agreed between service provider and service consumer;
h) the provision of automatic generation of stub and skeleton using web service developing tools; this
reduces the software development load for both.
7.2.2 Multiple WSDL specifications
The current version of WSDL is WSDL 2.0 and this part of ISO 24097 focuses on WSDL 2.0. However, this is
a recent evolution. Figure 7 shows the evolution of WSDL and SOAP. The current versions (at the time of
developing this part of ISO 24097) of WSDL and SOAP are WSDL 2.0 and SOAP 1.2, respectively.
WSDL 1.1 will therefore be employed for some time and has to be accommodated where encountered.
This is important, because WSDL 2.0 and SOAP 1.2 are not backwards-compatible. Therefore only
(WSDL 1.1, SOAP 1.1), (WSDL 2.0, SOAP 1.2) and (WSDL 2.0, SOAP 1.1) are acceptable combinations. As
a result, the user shall select the version of the specification.
12 © ISO 2009 – All rights reserved

Figure 7 — WSDL and SOAP version correct combination
Even if WSDL 2.0 is significantly superior to WSDL 1.1 and WSDL 1.1 users migrate to WSDL 2.0, the phase-
out of WSDL 1.1 takes considerable time (see Figure 7), especially because WS are usually effected between
different organizations. Furthermore, tools supporting the implementation of WSDL 2.0 continue to be
developed beyond mid-2008.
With this uncertain condition, this part of ISO 24097, while focusing on WSDL 2.0, also accommodates
version 1 specification (WSDL 1.1 and SOAP 1.1) and version 2 specification (WSDL 2.0 and SOAP 1.2).
For better readability of this part of ISO 24097, WSDL 1.1 aspects are presented in Annex A and WSDL
syntax is given in Annex B.
Further information on WSDL 1.1 basics and the evolution from WSDL 1.1 to WSDL 2.0 is provided in
Annex A.
Figure 8 — WSDL migration
7.2.3 The relationship between WSDL and SOAP
SOAP is a messaging protocol. Both WSDL 1.1 and WSDL 2.0 can select SOAP protocol (as a syntax both
can select other protocols, such as direct HTTP or MIME).
WSDL 2.0 can designate SOAP 1.1 and /or SOAP 1.2 (default). SOAP is considered as the communication
infrastructure. Therefore, WSDL 2.0 supports use of SOAP 1.1 (backward compatibility).
In the case of WSDL 1.1, selecting SOAP binding requires the use of SOAP 1.1.
7.2.4 ITS web service interface versioning rule
a) The ITS web service interface version takes the following form:
Form: m.n.a
⎯ m: major version number (xs:positiveInteger)
⎯ n: minor version number (xs:nonNegativeInteger)
⎯ a: draft version number (xs:NCName)
b) Version change takes the following form:
⎯ m: if m version instance cause m+1 version service fault
⎯ n: if (n version instance is correct to (n+1) version service) & (some (n+1) version instance cause m
version service fault)
⎯ a: draft and semantic is changed
NOTE 1 The XML version is explicitly declared in the XML declaration. Others are specified by namespace attribute.
NOTE 2 Version number can explicitly be declared in WSDL 1.1; wsdl11/definition/@name.
7.2.5 Requirements and recommendations for applying WSDL 2.0
The requirement for applying WSDL 2.0 is determined in this subclause.
7.2.5.1 WSDL 2.0
WSDL 2.0 is superior to WSDL 1.1 at these points:
a) modular structure for easy WSDL development and reuse;
b) object-oriented style (e.g. inheritance) support;
c) clear definition of extension point (e.g. Web Service Policy is described using this extension point); this
enables the enriching functionality of WS.
NOTE At the time of publication of this part of ISO 24097, tool support for WSDL 2.0 is underway (e.g. Apache
Axis 2). By comparison, the older WSDL 1.1 has rich tool support. Considering this fact, the most appropriate WSDL
version is selected by taking the application requirement for tool support into account.
14 © ISO 2009 – All rights reserved

7.2.5.2 WSDL 2.0 conformance test
In order to promote interoperability, ITS WS shall use validation via the WSDL 2.0 web site of W3C.
REASON WSDL 2.0 validation to the WSDL web site of W3C is the minimum condition for interoperable WS.
NOTE It supports online checking.
7.2.5.3 Import message and fault
It is strongly recommended to construct a message as an independent XML document to WSDL and import it
to WSDL.
REASON Separating service description layer from messaging layer enables modular style development. Maintenance
or evolution of systems becomes easy. Most fault messages are common to various applications, therefore reusable. It
helps rapid development of ITS WS. Many countries have already completed message standardization. This also supports
interoperability and WS rapid development.
7.2.5.4 WSDL 2.0 name (wsdl:description/@name)
Where possible, service classification based on ISO 14813-1 should be used in WSDL 2.0 name attribute
(strongly recommended).
NOTE Its meaning is clearly understandable.
7.3 Service description layer — Requirements and recommendations for policy description
sublayer
WSDL supports formal description of an interface. As previously described, WS-Policy complements other
facets of WS facility and requirements (see Figure 4). Describing security, reliable messaging and/or
transaction in formal method are indispensable for real world WS. Formal description also supports tooling.
The basics of WS-Policy and requirements and recommendations for ITS WS are described in this subclause.
Table 2 gives the WS-Policy-related prefixes and XML Namespace.
Table 2 — Prefixes and XML Namespaces
Prefix XML Namespace Specifications
http://schemas.xmlsoap.org/ws/2004/09/policy/
mtom
[WS-MTOMPolicy]
optimizedmimeserialization
[SOAP 1.2 Messaging Framework
soap http://www.w3.org/2003/05/soap-envelope
(Second edition)]
http://docs.oasis-open.org/ws-sx/ws-
sp [WS-SecurityPolicy]
securitypolicy/200702
wsa http://www.w3.org/2005/08/addressing
[WS-Addressing Core]
wsam http://www.w3.org/2007/05/addressing/metadata
[WS-Addressing Metadata]
wsdl http://schemas.xmlsoap.org/wsdl/ [WSDL 1.1]
[Web services policy framework, web
wsp http://www.w3.org/ns/ws-policy
services policy attachment]
http://docs.oasis-open.org/wss/2004/01/oasis-
wss [WS-Security 2004]
200401-wss-wssecurity-secext-1.0.xsd
wst http://docs.oasis-open.org/ws-sx/ws-trust/200512
[WS-Trust]
http://docs.oasis-open.org/wss/2004/01/oasis-
wsu [WS-Security 2004]
200401-wss-wssecurity-utility-1.0.xsd
7.3.1 WS-Policy role and syntax
The basics of WS-Policy (role and syntax) and ITS WS requirements and recommendations are described in
this subclause.
7.3.1.1 WS-Policy ― Framework
As previously described, WS requirements and constraints relate to topics such as security, reliability,
transaction and messaging. Treating all the topics in one document helps understanding and simplifies
software tool development. How, then, are these topics (security, reliability, etc.) organized in a single policy
document? The W3C standard, “Web services policy 1.5 - Framework” provides a mechanism for consistently
assembling policy topics in a document (see Figure 9).
NOTE Web Services-Policy 1.5 WS-Policy were previously developed by vendor groups. The final specification
version was version 1.4. It moved away to W3C and its version is now 1.5.

Figure 9 — WS-Policy structure
This language consists of four elements — wsp:Policy, wsp:All, wsp:ExactlyOne,
wsp:PolicyReference elements — and two attributes ― wsp:Optional and wsp:Ignorable. The
namespace prefix “wsp” distinguishes WS-Policy vocabularies in XML documents. In this case wsp:Policy,
wsp:All, wsp:ExactlyOne and wsp:PolicyReference are used as WS-Policy vocabulary. These four
elements act as operators. As a computer language operator does something using operand(s) and construct
expressions, WS-Policy operand(s) do the same, namely do something to domain specific topics like security,
reliability, transaction and messaging. Attributes give some property to a policy.
The following is a WS-Policy assertion example with namespace reference.

…


…
…


16 © ISO 2009 – All rights reserved

In this example the prefix “wsp” means it belongs to the WS-Policy vocabulary [(wsp:All,
wsp:ExactlyOne) and the attribute (wsp:Optional)] and its functionality is defined in WS-Policy. Other
prefixed elements and attributes mean these constructs belong to other policy-related vocabularies. The
mtom:OptimizedMimeSerialization element is a direction to apply SOAP message optimization. The
“sp” prefix indicates the WS-Security vocabulary. Each prefixed construct functionality is defined in its
policy-related standards.
WS-Policy prepares the selection operator. In this example wsp:ExactlyOne means that the service
consumer can select or . These are policy
alternatives. The service consumer can select one desirable policy alternative, but the service provider shall
support both alternatives.
Service policy is one condition for selecting a service provider (others might be service price or quality of
contents). If a service consumer selects the service, he/she shall follow the policy. As a result, two parties
(consumer and provider) can keep interoperability (see Figure 10).

Figure 10 — Service provider and policy alternative selection
7.3.1.2 WS-Policy — Attachment
In addition to a consistent policy description facility (“framework”), a policy shall be linked to a WSDL as a
single description of a web service. “WS-Policy 1.5 – Attachment” responds to this requirement. Both
WSDL 1.1 and WSDL 2.0 define the extensible point. Using the extensible point, policy can be attached to a
WSDL document and UDDI by the service provider. “Attachment” defines semantics as well as attachment
syntax. Figure 11 depicts a policy attachment mechanism.
Figure 11 — WSDL, WS-Policy and domain specific policy
7.3.2 Requirements and recommendations for policy description
The WS-Policy requirements and recommendations for ITS WS are described in this subclause.
7.3.2.1 Explicit policy declaration of all applied domain specific policy
In a web service description, all relevant domain-specific policy shall be declared explicitly and
comprehensively.
REASON WS-Policy has a rule that if a web service does not declare policy explicitly, the service consumer should not
suppose anything about non-declared domain. If a service program uses non-declared domain, it might cause
incompatibility. Therefore, the policy employed shall be explicitly declared.
NOTE Usually it is the service provider who is supposed to develop policy, such as the following process:
a) analyse and list the necessary capability and restriction;
b) decide each policy item as mandatory, optional or ignorable;
c) describe policy based on WS-Policy;
d) attach policy to the WSDL;
e) develop policy.
Comprehensive policy domain is covered and explicitly declared in steps a) to d).
7.3.2.2 WSDL and policy description separation
WSDL and policy description separation is strongly recommended.
REASON One reason is separation increases readability. If WSDL and WS-Policy description are not separated, they
will become complex and difficult to understand. Separation increases readability. Another reason
...
