ISO/IEC 9796-2:2010

INTERNATIONAL ISO/IEC
STANDARD 9796-2
Third edition
2010-12-15
Information technology — Security
techniques — Digital signature schemes
giving message recovery —
Part 2:
Integer factorization based mechanisms
Technologies de l'information — Techniques de sécurité — Schémas
de signature numérique rétablissant le message —
Partie 2: Mécanismes basés sur une factorisation entière

Reference number
©
ISO/IEC 2010
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO/IEC 2010
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO/IEC 2010 – All rights reserved

Contents Page
Foreword .v
Introduction.vi
1 Scope.1
2 Normative references.1
3 Terms and definitions .1
4 Symbols and abbreviated terms .3
5 Converting between bit strings and integers .5
6 Requirements.5
7 Model for signature and verification processes .7
7.1 General .7
7.2 Signing a message.7
7.2.1 Overview.7
7.2.2 Message allocation.7
7.2.3 Message representative production.8
7.2.4 Signature production .8
7.3 Verifying a signature.8
7.3.1 Overview.8
7.3.2 Signature opening.8
7.3.3 Message recovery .8
7.3.4 Message assembly.9
7.4 Specifying a signature scheme.9
8 Digital signature scheme 1.9
8.1 General .9
8.2 Parameters .9
8.2.1 Modulus length.9
8.2.2 Trailer field options .10
8.2.3 Capacity.10
8.3 Message representative production.10
8.3.1 Hashing the message.10
8.3.2 Formatting.10
8.4 Message recovery .11
9 Digital signature scheme 2.12
9.1 General .12
9.2 Parameters .12
9.2.1 Modulus length.12
9.2.2 Salt length .12
9.2.3 Trailer field options .12
9.2.4 Capacity.13
9.3 Message representative production.13
9.3.1 Hashing the message.13
9.3.2 Formatting.13
9.4 Message recovery .13
10 Digital signature scheme 3.14
Annex A (normative) ASN.1 module .15
A.1 General.15
A.2 Use of subsequent object identifiers .17
© ISO/IEC 2010 – All rights reserved iii

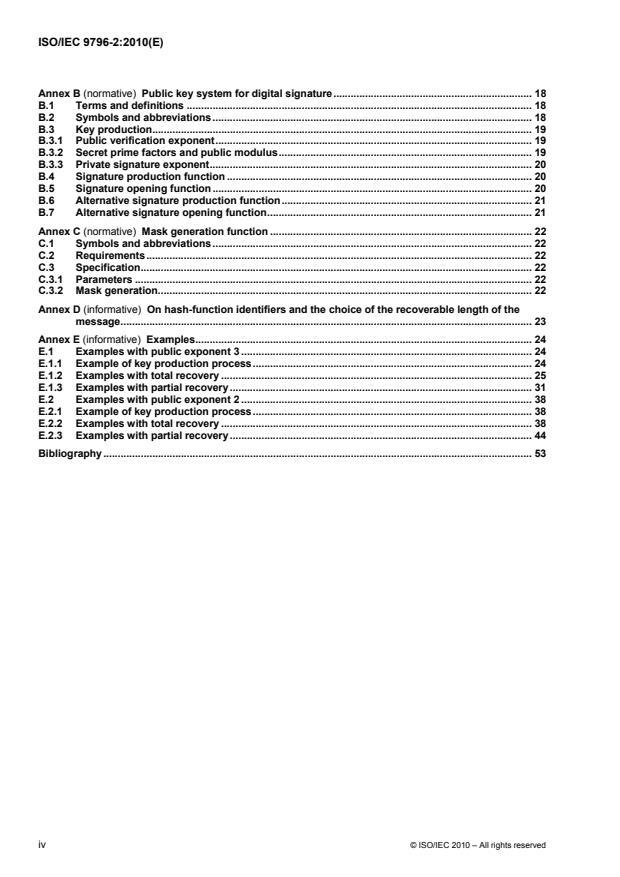

Annex B (normative) Public key system for digital signature. 18
B.1 Terms and definitions . 18
B.2 Symbols and abbreviations . 18
B.3 Key production. 19
B.3.1 Public verification exponent. 19
B.3.2 Secret prime factors and public modulus. 19
B.3.3 Private signature exponent. 20
B.4 Signature production function . 20
B.5 Signature opening function. 20
B.6 Alternative signature production function. 21
B.7 Alternative signature opening function. 21
Annex C (normative) Mask generation function . 22
C.1 Symbols and abbreviations . 22
C.2 Requirements. 22
C.3 Specification. 22
C.3.1 Parameters . 22
C.3.2 Mask generation. 22
Annex D (informative) On hash-function identifiers and the choice of the recoverable length of the
message. 23
Annex E (informative) Examples. 24
E.1 Examples with public exponent 3 . 24
E.1.1 Example of key production process. 24
E.1.2 Examples with total recovery . 25
E.1.3 Examples with partial recovery. 31
E.2 Examples with public exponent 2 . 38
E.2.1 Example of key production process. 38
E.2.2 Examples with total recovery . 38
E.2.3 Examples with partial recovery. 44
Bibliography. 53

iv © ISO/IEC 2010 – All rights reserved

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
ISO/IEC 9796-2 was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 27, IT Security techniques.
This third edition cancels and replaces the second edition (ISO/IEC 9796-2:2002), which has been technically
revised. It also incorporates the Amendment ISO/IEC 9796-2:2002/Amd.1:2008.
Implementations which comply with ISO/IEC 9796-2 (1st edition) and which use a hash-code of at least
160 bits in length will be compliant with ISO/IEC 9796-2 (3rd edition). Note, however, that implementations
complying with ISO/IEC 9796-2 (1st edition) that use a hash-code of less than 160 bits in length will not be
compliant with ISO/IEC 9796-2 (3rd edition). Implementations which comply with ISO/IEC 9796-2 (2nd edition)
will be compliant with ISO/IEC 9796-2 (3rd edition).
ISO/IEC 9796 consists of the following parts, under the general title Information technology ― Security
techniques — Digital signature schemes giving message recovery:
⎯ Part 2: Integer factorization based mechanisms
⎯ Part 3: Discrete logarithm based mechanisms
Further parts may follow.
© ISO/IEC 2010 – All rights reserved v

Introduction
Digital signature mechanisms can be used to provide services such as entity authentication, data origin
authentication, non-repudiation, and integrity of data. A digital signature mechanism satisfies the following
requirements.
⎯ Given the verification key but not the signature key it shall be computationally infeasible to produce a
valid signature for any message.
⎯ Given the signatures produced by a signer, it shall be computationally infeasible to produce a valid
signature on a new message or to recover the signature key.
⎯ It shall be computationally infeasible, even for the signer, to find two different messages with the same
signature.
NOTE 1 Computational feasibility depends on the specific security requirements and environment.
Most digital signature mechanisms are based on asymmetric cryptographic techniques and involve three basic
operations:
⎯ a process for generating pairs of keys, where each pair consists of a private signature key and the
corresponding public verification key;
⎯ a process that uses the signature key, called the signature process;
⎯ a process that uses the verification key, called the verification process.
There are two types of digital signature mechanism.
⎯ When, for a given signature key, two signatures produced for the same message are identical, the
mechanism is said to be non-randomized (or deterministic); see ISO/IEC 14888-1.
⎯ When, for a given message and signature key, each application of the signature process produces a
different signature, the mechanism is said to be randomized.
The first and third of the three mechanisms specified in this part of ISO/IEC 9796 are deterministic (non-
randomized), whereas the second of the three mechanisms specified is randomized.
Digital signature mechanisms can also be divided into the following two categories:
⎯ When the whole message has to be stored and/or transmitted along with the signature, the mechanism is
named a “signature mechanism with appendix” (see ISO/IEC 14888).
⎯ When the whole message, or part of it, can be recovered from the signature, the mechanism is named a
“signature mechanism giving message recovery” [see ISO/IEC 9796 (all parts)].
NOTE 2 Any signature mechanism giving message recovery, for example the mechanisms specified in ISO/IEC 9796
(all parts), can be converted to give a digital signature with appendix. This can be achieved by applying the signature
mechanism to a hash-code derived as a function of the message. If this approach is employed, then all parties generating
and verifying signatures must agree on this approach, and must also have a means of unambiguously identifying the
hash-function to be used to generate the hash-code from the message.
The mechanisms specified in ISO/IEC 9796 (all parts) give either total or partial recovery, with the objective of
reducing storage and transmission overhead. If the message is short enough, then the entire message can be
vi © ISO/IEC 2010 – All rights reserved

included in the signature, and recovered from the signature in the verification process. Otherwise, a part of the
message can be included in the signature, and the remainder stored and/or transmitted along with the
signature.
The mechanisms specified in this part of ISO/IEC 9796 use a hash-function for hashing the entire message
(possibly in more than one part). ISO/IEC 10118 specifies hash-functions for digital signatures.

© ISO/IEC 2010 – All rights reserved vii

INTERNATIONAL STANDARD ISO/IEC 9796-2:2010(E)

Information technology — Security techniques — Digital
signature schemes giving message recovery —
Part 2:
Integer factorization based mechanisms
1 Scope
This part of ISO/IEC 9796 specifies three digital signature schemes giving message recovery, two of which
are deterministic (non-randomized) and one of which is randomized. The security of all three schemes is
based on the difficulty of factorizing large numbers. All three schemes can provide either total or partial
message recovery.
This part of ISO/IEC 9796 specifies the method for key production for the three signature schemes. However,
techniques for key management and for random number generation (as required for the randomized signature
scheme) are outside the scope of this part of ISO/IEC 9796.
The first mechanism specified in this part of ISO/IEC 9796 is only applicable for existing implementations, and
is retained for reasons of backward compatibility.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO/IEC 10118 (all parts), Information technology — Security techniques — Hash-functions
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
capacity
positive integer indicating the number of bits available within the signature for the recoverable part of the
message
3.2
certificate domain
collection of entities using public key certificates created by a single Certification Authority (CA) or a collection
of CAs operating under a single security policy
3.3
certificate domain parameters
cryptographic parameters specific to a certificate domain and which are known and agreed by all members of
the certificate domain
© ISO/IEC 2010 – All rights reserved 1

3.4
collision-resistant hash-function
hash-function satisfying the following property:
⎯ it is computationally infeasible to find any two distinct inputs which map to the same output
[ISO/IEC 10118-1]
3.5
hash-code
string of bits which is the output of a hash-function
[ISO/IEC 10118-1]
3.6
hash-function
function which maps strings of bits to fixed-length strings of bits, satisfying the following two properties:
⎯ for a given output, it is computationally infeasible to find an input which maps to this output;
⎯ for a given input, it is computationally infeasible to find a second input which maps to the same output
[ISO/IEC 9797-2]
3.7
mask generation function
function which maps strings of bits to strings of bits of arbitrary specified length, satisfying the following
property:
⎯ it is computationally infeasible to predict, given one part of an output but not the input, another part of the
output
3.8
message
string of bits of any length
[ISO/IEC 14888-1]
3.9
message representative
bit string derived as a function of the message and which is combined with the private signature key to yield
the signature
3.10
nibble
block of four consecutive bits (half an octet)
3.11
non-recoverable part
part of the message stored or transmitted along with the signature; empty when message recovery is total
3.12
octet
string of eight bits
3.13
private key
key of an entity's asymmetric key pair which should only be used by that entity
[ISO/IEC 9798-1]
2 © ISO/IEC 2010 – All rights reserved

3.14
private signature key
private key which defines the private signature transformation
[ISO/IEC 9798-1]
3.15
public key
key of an entity's asymmetric key pair which can be made public
[ISO/IEC 9798-1]
3.16
public key system
〈digital signature〉 cryptographic scheme consisting of three functions:
⎯ key production, a method for generating a key pair made up of a private signature key and a public
verification key;
Σ from a message representative F and a
⎯ signature production, a method for generating a signature
private signature key;
⎯ signature opening, a method for obtaining the recovered message representative F* from a signature Σ
and a public verification key
NOTE The output of this function also contains an indication as to whether the signature opening procedure
succeeded or failed.
3.17
public verification key
public key which defines the public verification transformation
[ISO/IEC 9798-1]
3.18
recoverable part
part of the message conveyed in the signature
3.19
salt
random data item produced by the signing entity during the generation of the message representative in
Signature scheme 2
3.20
signature
string of bits resulting from the signature process
[ISO/IEC 14888-1]
3.21
trailer
string of bits of length one or two octets, concatenated to the end of the recoverable part of the message
during message representative production
4 Symbols and abbreviated terms
For the purposes of this document, the following symbols and abbreviations apply.
NOTE In most cases upper case letters are used to represent bit strings and octet strings, whereas lower case letters
are used to represent functions.
© ISO/IEC 2010 – All rights reserved 3

C Octet string encoding the bit length of the recoverable part of the message (used in message
representative production in Signature schemes 2 and 3).
c The capacity of the signature scheme, i.e. the maximum number of bits available for the recoverable
part of the message.
c* The recoverable message length, i.e. the length in bits of the recoverable part of the message
(c ≥ c*).
D, D′ Bit strings constructed during message representative production in Signature schemes 2 and 3.
D*, D′* Bit strings constructed during message recovery in Signature schemes 2 and 3.
F Message representative (a bit string).
F* Recovered message representative (as output from the Signature opening step).
g Mask generation function.
H Hash-code computed as a function of the message M (a bit string).
H* Recovered hash-code as derived during the Message recovery step.
h Collision-resistant hash-function.
k The bit length of the modulus of the private signature key and public verification key (see Annex A).
L The bit length of hash-codes produced by the hash-function h.
h
L The bit length of the salt S.
S
M Message to be signed (a bit string).
M* Message recovered from a signature as a result of the verification process.
M Recoverable part of the message M, i.e. M = M ||M .
1 1 2
M * Recovered recoverable part of the message (as generated during message recovery).
M Non-recoverable part of the message M, i.e. M = M ||M .
2 1 2
M * Non-recoverable part of the message, as input to the verification process.
N Bit string constructed during message representative production in Signature schemes 2 and 3.
N* Bit string generated during message recovery in Signature schemes 2 and 3.
P A string of zero bits constructed during message representative production in Signature schemes 2
and 3.
S Salt (a bit string).
S* Recovered salt (a bit string).
t The number of octets in the Trailer field (t = 1 or 2).
T The Trailer field (a string of 8t bits used during message representative production).
Δ Integer in the range 0 to 7 used in the specification of message allocation.
4 © ISO/IEC 2010 – All rights reserved

δ Integer in the range 0 to 7 used in the specification of Signature schemes 2 and 3.
Σ Signature (a bit string containing k-1 or k bits).
|A| The bit length of the bit-string A, i.e. the number of bits in A.
A || B Concatenation of bit strings A and B (in that order).
⎡a⎤ for a real number a, the smallest integer not less than a.
a mod n for integers a and n, (a mod n) denotes the (non-negative) remainder obtained when a is divided
by n. Еquivalently if b = a mod n, then b is the unique integer satisfying:
(i) 0 ≤ b < n, and
(ii) (b-a) is an integer multiple of n.
⊕ The bit-wise exclusive-or operator, as used to combine two binary strings of the same length.
5 Converting between bit strings and integers
l
To represent a non-negative integer x as a bit string of length l (l has to be such that 2 > x), the integer shall
be written in its unique binary representation:
l–1 l–2
x = 2 x + 2 x + … + 2x + x
l–1 l–2 1 0
l–1
where 0 ≤ x < 2 (note that one or more leading digits will be zero if x < 2 ). The bit string shall be
i
x x … x .
l-1 l-2 0
To represent a bit string x x … x (of length l) as an integer x, the inverse process shall be followed, i.e. x
l-1 l-2 0
shall be the integer defined by
l–1 l–2
x = 2 x + 2 x + … + 2x + x .
l–1 l–2 1 0
6 Requirements
Users of this part of ISO/IEC 9796 are, wherever possible, recommended to adopt the second mechanism
(Digital signature scheme 2). However, in environments where generation of random variables by the signer is
deemed infeasible, then Digital signature scheme 3 is recommended.
Users who wish to employ a digital signature mechanism compliant with this part of ISO/IEC 9796 shall
ensure that the following properties hold.
a) The message M to be signed shall be a binary string of any length, possibly empty.
b) The signature function uses a private signature key, while the verification function uses the corresponding
public verification key.
– Each signing entity shall use and keep secret its private signature key corresponding to its public
verification key.
– Each verifying entity should know the public verification key of the signing entity.
c) Use of the signature schemes specified in this part of ISO/IEC 9796 requires the selection of a collision-
resistant hash-function h. Hash-functions are standardised in ISO/IEC 10118. There shall be a binding
between the signature mechanism and the hash-function in use. Without such a binding, an adversary
might claim the use of a weak hash-function (and not the actual one) and thereby forge a signature.
© ISO/IEC 2010 – All rights reserved 5

NOTE 1 There are various ways to accomplish this binding. The following options are listed in order of increasing
risk.
1. Require a particular hash-function when using a particular signature mechanism. The verification process shall
exclusively use that particular hash-function. ISO/IEC 14888-3 gives an example of this option where the DSA
mechanism requires the use of Dedicated Hash-function 3 from ISO/IEC 10118-3 (otherwise known as SHA-1).
2. Allow a set of hash-functions and explicitly indicate the hash-function in use in the certificate domain parameters.
Inside the certificate domain, the verification process shall exclusively use the hash-function indicated in the
certificate. Outside the certificate domain, there is a risk arising from certification authorities (CAs) that may not
adhere to the user's policy. If, for example, an external CA creates a certificate permitting other hash-functions,
then signature forgery problems may arise. In such a case a misled verifier may be in dispute with the CA that
produced the other certificate.
3. Allow a set of hash-functions and indicate the hash-function in use by some other method, e.g., an indication in
the message or a bilateral agreement. The verification process shall exclusively use the hash-function indicated
by the other method. However, there is a risk that an adversary may forge a signature using another hash-
function.
NOTE 2 The ‘other method’ referred to in paragraph 3 immediately above could be in the form of a hash-function
identifier included in the message representative F (see 8.2.2 and 9.2.3). If the hash-function identifier is included in F
in this way then an attacker cannot fraudulently reuse an existing signature with the same M and a different M , even
1 2
when the verifier could be persuaded to accept signatures created using a hash-function sufficiently weak that pre-
images can be found. However, as discussed in detail in [16] (see also Annex D), in this latter case and using the
weak hash-function, an attacker can still find a new signature with a ‘random’ M .
NOTE 3 The attack mentioned in NOTE 2 that yields a new signature with a ‘random’ M can be prevented by
requiring the presence of a specific structure in M . For instance, one may impose a length limit on M that is
1 1
sufficiently less than the capacity of the signature scheme (see Annex D for further discussion). For digital signature
schemes 2 and 3, a length limit on M may also prevent an attacker from reusing existing signatures even if no hash-
function identifier is included in the message representative, provided that the mask generation function g is based on
the hash-function. This holds under the reasonable assumption that the weak hash-function involved is a ‘general
purpose’ hash-function, not one designed solely for the purpose of forging a signature.
The user of a digital signature mechanism should conduct a risk assessment considering the costs and
benefits of the various alternative means of accomplishing the required binding. This assessment should
include an assessment of the cost associated with the possibility of a bogus signature being produced.
d) The verifier of a signature shall always have a secure independent means of determining which of the
three signature schemes specified in this part of ISO/IEC 9796 have been employed to generate the
signature. In addition, if Digital signature scheme 2 or 3 is being used, the signature verifier shall also
have a means of determining which of the two signature production functions specified in Annex B have
been used. This could, for example, be achieved by specifying the mechanism and signature production
function in agreed ‘domain parameters’ or by including an unambiguous identifier for the signature
scheme and signature production function in the signer's public key certificate. The signature production
function may also be specified in an algorithm identifier associated with the signed data.
e) The digital signature schemes specified in this part of ISO/IEC 9796 each have particular options, the
range of possible choices of which by the signer must be known to the verifier by a secure independent
means. These options are as follows.
⎯ For all three digital signature schemes, the verifier must know whether trailer field option 1 or 2 is
being employed.
⎯ For digital signature schemes 2 and 3, the verifier must know L , the length of the salt S.
S
This could, for example, be achieved by specifying the option selection in the ‘domain parameters’ or by
including option information in the signer's public key certificate.
6 © ISO/IEC 2010 – All rights reserved

7 Model for signature and verification processes
7.1 General
The model for a signature scheme giving message recovery presented here applies to all three of the
schemes in this part of ISO/IEC 9796. When applied to a message M, a signature scheme of this type can
provide either total or partial message recovery.
⎯ If M is sufficiently short, then message recovery can be total because it is possible for M to be entirely
included in the signature.
⎯ If M is too long, then message recovery will be partial. In this case M shall be divided into the recoverable
part, a string of bits of limited length to be included in the signature, and the non-recoverable part, a string
of octets of any length to be stored and/or transmitted along with the signature.
The model is divided into three parts: a specification of the procedure for signing a message, a specification of
the procedure for verifying a signature, and details of the additional aspects of signing and verifying that need
to be defined in order to complete the specification of a signature scheme. Clauses 8, 9 and 10 specify these
additional aspects for the three schemes defined in this part of ISO/IEC 9796.
7.2 Signing a message
7.2.1 Overview
Given a message M to be signed, three steps need to be performed to generate a signature on M, namely
message allocation, recoverable string production, and signature production.
⎯ Message allocation consists of the process whereby the message is divided into two parts: a recoverable
part M and a non-recoverable part M (which may be empty). The length of the recoverable part is
1 2
bounded above by the capacity c of the signature scheme, a value determined by the choice of the
signature scheme and the key for the scheme. The recoverable part will be recovered from the signature
during the verification process, whereas the non-recoverable part must be made available to the verifier
by other means (e.g. it can be sent or stored with the signature). Hence, if the message is sufficiently
short, the entire message can be allocated to the recoverable part, and the non-recoverable part will be
empty.
⎯ Message representative production takes as input the two parts of the message, and outputs a formatted
string, known as the message representative, which is input to the signature production step.
⎯ Signature production takes as input the message representative and the private signature key and
outputs the signature Σ. This process is performed using a public key system.
7.2.2 Message allocation
The choice of signature scheme and key for the scheme determine the capacity c of the signature, where c
must satisfy c ≥ 7. The message M to be signed shall be divided into two parts, M and M , as follows.
1 2
A recoverable message length c* shall be chosen, where c* ≤ c, c* ≤ |M|, and c* ≡ |M| (mod 8). For Signature
scheme 1, c* shall be set equal to the minimum of c–Δ and |M|, where Δ = (c–|M|) mod 8.
⎯ If |M| = c* then the entire message shall be recoverable, i.e. M = M and M shall be empty.
1 2
⎯ If |M| > c* then M shall be set equal to the left-most c* bits of M, and M shall be set equal to the
1 2
remainder of M, i.e. M contains |M|–c* bits.
In either case it follows that M = M ||M .
1 2
© ISO/IEC 2010 – All rights reserved 7

NOTE 1 For practical purposes, an application may wish to structure the message M to ensure that data it wants to be
explicitly stored or transmitted (e.g., address information) is allocated to the non-recoverable message part M . However,
the structure and interpretation of the message M are outside the scope of this part of ISO/IEC 9796.
NOTE 2 The method for message allocation ensures that M is always a whole number of octets in length. Moreover,
choosing c* to be the minimum of c–Δ and |M|, where Δ = (c–|M|) mod 8, ensures that M is as long as possible subject to
this constraint. Also, if M is a whole number of octets in length, i.e. if |M| is an integer multiple of 8, then both M and M
1 2
will consist of a whole number of octets.
7.2.3 Message representative production
This step takes as input the recoverable and non-recoverable parts of the message, M and M , and outputs
1 2
the message representative F. This shall be achieved using one of the methods specified in Clauses 8, 9 and
10 of this part of ISO/IEC 9796. These methods require use of a hash-function h and, in the cases of the
second and third mechanisms, a mask generation function g that also uses h. The hash-function h to be used
shall be selected from amongst those standardised in ISO/IEC 10118; the mask generation function g shall be
set equal to the function specified in Annex C of this part of ISO/IEC 9796.
7.2.4 Signature production
This step takes as input the message representative F and the private signature key and outputs the
signature Σ. This shall be achieved using the public key system specified in Annex B to this part of
ISO/IEC 9796.
7.3 Verifying a signature
7.3.1 Overview
A signed message consists of either the signature Σ alone in the case of total recovery, or the non-
recoverable part of the message M * together with the signature Σ in the case of partial recovery. A signature
shall be accepted if and only if the verification process is successful.
Given a signature Σ and non-recoverable message part M *, three steps need to be performed to verify Σ and
recover M*, namely signature opening, message recovery and message assembly.
⎯ Signature opening takes as input the signature Σ and the public verification key and outputs a recovered
message representative F* or returns an indication that verification has failed. This process is performed
using a public key system.
⎯ Message recovery takes as input the recovered message representative F* and the non-recoverable part
of the message M *, and outputs the (recovered) recoverable part of the message M *, or returns an
2 1
indication that verification has failed.
⎯ Message assembly consists of the process whereby the recovered message M* is reconstituted from the
(recovered) recoverable part M * and the non-recoverable part M * (which may be empty).
1 2
7.3.2 Signature opening
This step takes as input the signature Σ and the public verification key and either outputs a recovered
message representative F* or returns an indication that verification has failed. This shall be achieved using the
public key system specified in Annex B to this part of ISO/IEC 9796.
7.3.3 Message recovery
This step takes as input the recovered message representative F* and the non-recoverable part of the
message M *, and outputs the recoverable part of the message M *, or returns an indication that verification
2 1
has failed. This shall be achieved using one of the methods specified in Clauses 8, 9 and 10 of this part of
ISO/IEC 9796. These methods require use of a hash-function and, in the case of the second and third
8 © ISO/IEC 2010 – All rights reserved

mechanisms, a mask generation function. The hash-function to be used shall be selected from amongst those
standardised in ISO/IEC 10118; the mask generation function shall be set equal to the function specified in
Annex C of this part of ISO/IEC 9796.
7.3.4 Message assembly
This step consists of the process whereby the message M* is reconstituted from the recoverable part M * and
the non-recoverable part M * (which may be empty). That is, the message M* is assembled as M* = M *||M *.
2 1 2
7.4 Specifying a signature scheme
The purpose of 7.4 is to define what choices need to be made to uniquely specify the signing and verification
processes specified in this part of ISO/IEC 9796.
a) The message allocation and message assembly steps are uniquely defined within this part of
ISO/IEC 9796.
b) One of the three options for the message representative production and message recovery steps, as
defined in Clauses 8, 9 and 10 of this part of ISO/IEC 9796, must be chosen. Whichever of these three
options is selected, a hash-function must also be chosen, which shall be selected from amongst those
standardised in ISO/IEC 10118 subject to the constraint that the hash-code output shall contain at least
160 bits. In two of the three cases a mask generation function is additionally required, and the function to
be employed is defined in Annex C of this part of ISO/IEC 9796.
c) The signature production and signature opening steps are uniquely defined within Annex B of this part of
ISO/IEC 9796, up to the choice of the private signature key used in the signature production process and,
in the case of Signature schemes 2 and 3 with an odd exponent, up to the choice between the basic and
alternative signature and verification functions. The method to be used to generate pairs of private
signature keys and public verification keys is defined in Annex B of this part of ISO/IEC 9796.
8 Digital signature scheme 1
8.1 General
Clause 8 defines the message representative production and message recovery processes for a deterministic
digital signature scheme giving message recovery.
Because of possible attacks (see [5] and [6]), this scheme shall only be used in environments where
operational constraints ensure that an attacker cannot obtain signatures on a large number of chosen
messages.
NOTE Digital signature scheme 1 should only be used in environments where compatibility is required with systems
implementing the first edition of this part of ISO/IEC 9796 (see [5] and [6]). However, Digital signature scheme 1 is only
compatible with systems implementing the first edition of this part of ISO/IEC 9796 that use hash-codes of at least 160 bits.
8.2 Parameters
8.2.1 Modulus length
The private signature key in use is ass
...
