ISO 4107:1995

I N T E R NAT I O NA L
IS0
S TA N DA R D 4107
Second edition
1995-02-1 5
Commercial vehicles -Wheel hub
attachment dimensions
Véhicules utilitaires - Caractéristiques dimensionnelles de la fixation de
la roue sur le moyeu
Reference number
IS0 41 07:1995(E)
IS0 4107:1995(E)
Foreword
IS0 (the International Organization for Standardization) is a worldwide
federation of national standards bodies (IS0 member bodies). The work
of preparing International Standards is normally carried out through IS0
technical committees. Each member body interested in a subject for
which a technical committee has been established has the right to be
represented on that committee. International organizations, governmental
and non-governmental, in liaison with ISO, also take part in the work. IS0
collaborates closely with the International Electrotechnical Commission
(IEC) on all matters of electrotechnical standardization.
Draft International Standards adopted by the technical committees are
circulated to the member bodies for voting. Publication as an International
Standard requires approval by at least 75 % of the member bodies casting
a vote.
IS0 41 07 was prepared by Technical Committee
International Standard
iSO/TC 22, Road vehicles, Subcommittee SC 19, Wheels.
This second edition cancels and replaces the first edition
(IS0 41 07:1979), of which it constitutes a technical revision.
Annex A of this International Standard is for information only.
O IS0 1995
All rights reserved Unless otherwise specified, no part of this publication may be reproduced
or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from the publisher
International Organization for Standardization
CH-1 21 1 Genève 20 Switzerland
Case Postale 56
Printed in Switzerland
ii
INTERNATIONAL STANDARD 0 IS0
IS0 4107:1995(E)
Commercial vehicles - Wheel hub attachment
dimensions
1 Scope
This International Standard specifies the dimensions necessary for the attachment of a commercial road vehicle
wheel on the hub of the vehicle whose fixing has 6, 8 or 10 stud holes.

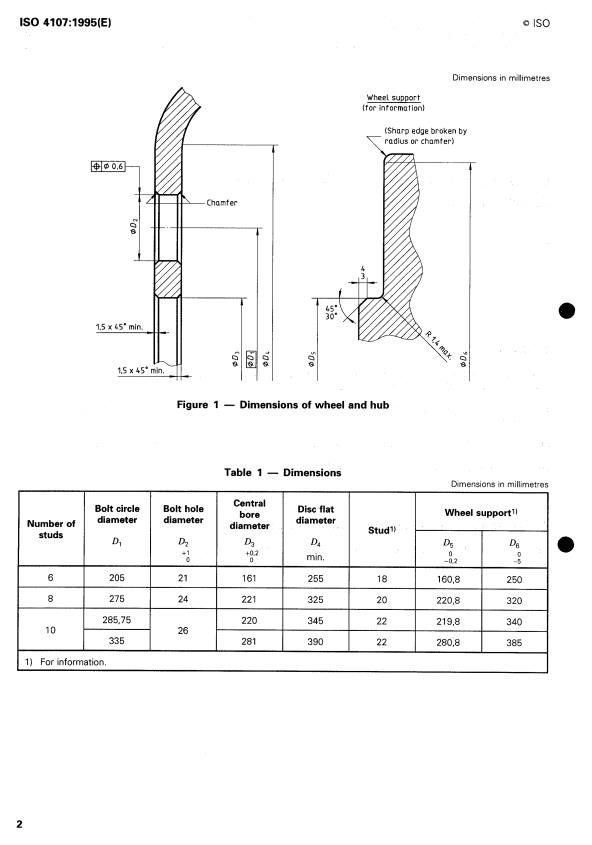

The flat attachment type with centring on central bore in figure 1 and table 1 is the recommended type for future
equipment.
NOTE 1 Annex A shows the characteristics
...
