ISO 11088:2015

INTERNATIONAL ISO
STANDARD 11088
Fifth edition
2015-12-15
Assembly, adjustment and inspection
of an alpine ski/binding/boot
(S-B-B) system
Montage, réglage et contrôle d’un ensemble ski/fixation/chaussure
(SFC) pour skis alpins
Reference number
ISO 11088:2015(E)
©
ISO 2015

---------------------- Page: 1 ----------------------
ISO 11088:2015(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2015, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2015 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 11088:2015(E)

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Skier’s parameters . 3
4.1 General . 3
4.2 Weight method . 3
5 Equipment parameters . 3
5.1 Choice of new equipment . 3
5.2 Visual inspection and preparation of used equipment . 3
5.3 Assembly . 4
5.4 Binding-to-boot fitting adjustments . 4
5.5 Initial indicator adjustment . 4
5.6 Functional check (inspection of functions) . 4
5.7 Measurement of release moment . 4
5.8 Report . 5
Annex A (normative) Definition of skier type . 6
Annex B (normative) Method of setting . 8
Annex C (normative) Flow chart .10
Annex D (normative) Clean versus lubricated diagnostic test for boot/binding compatibility .11
Annex E (normative) Drill .12
Bibliography .13
© ISO 2015 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 11088:2015(E)

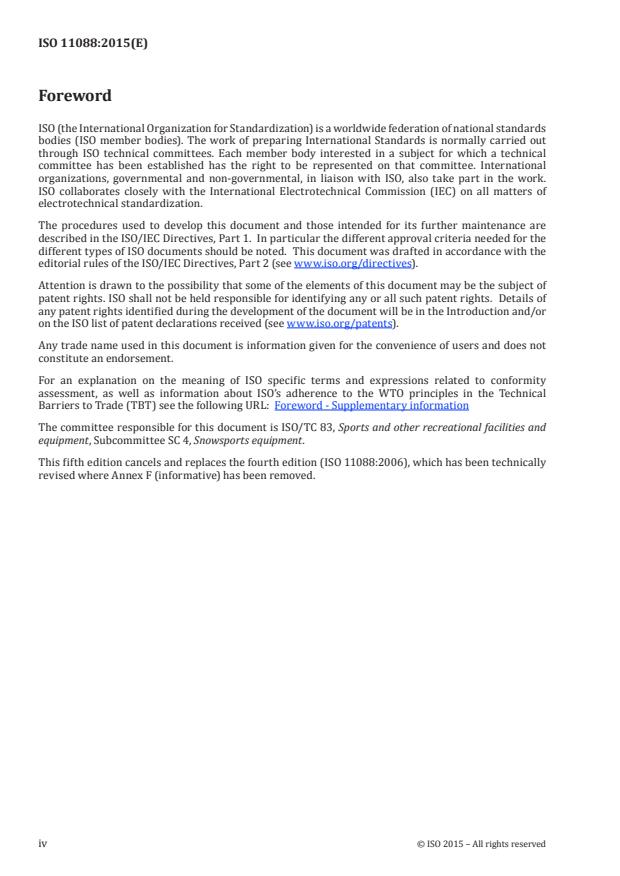

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical
Barriers to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/TC 83, Sports and other recreational facilities and
equipment, Subcommittee SC 4, Snowsports equipment.
This fifth edition cancels and replaces the fourth edition (ISO 11088:2006), which has been technically
revised where Annex F (informative) has been removed.
iv © ISO 2015 – All rights reserved

---------------------- Page: 4 ----------------------
ISO 11088:2015(E)

Introduction
International Standards exist for the components of the alpine ski/binding/boot (S-B-B) system, mainly
intended for the component manufacturers. An International Standard (ISO 8061) also exists for the
selection of release moments. The present International Standard is intended primarily for retailers.
However, its aim is to include in one text the different phases of the choice of components, their
assembly, adjustment and inspection in the form of practical procedures, and to provide tolerances for
inspection and adjustment.
The inspection procedures and tolerances described in this International Standard apply to the
condition of the S-B-B system before it leaves the ski shop and are not intended to be used to judge the
condition of the equipment once it is put into use.
© ISO 2015 – All rights reserved v

---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 11088:2015(E)
Assembly, adjustment and inspection of an alpine ski/
binding/boot (S-B-B) system
1 Scope
This International Standard specifies assembly, adjustment and inspection procedures for the binding
mechanisms of skis, integrating in a practical way, the requirements of those International Standards
which are related to skis, bindings and boots.
It is intended for all individuals and institutions concerned with those procedures, and especially for
sports retailers.
It is applicable to a ski/binding/boot system (S-B-B) for alpine skiing, of which at least one component
is owned by the user.
NOTE In the case where the two components (SB and B) are rented, ISO 13993 gives a method of
measurement by sampling as an alternative to systematic measurement, before delivery to the end-user.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 5355, Alpine ski-boots — Requirements and test methods
ISO 8061:2015, Alpine ski-bindings — Selection of release torque values
ISO 8364, Alpine skis and bindings — Binding mounting area — Requirements and test methods
ISO 9462, Alpine ski-bindings — Requirements and test methods
ISO 9523, Touring ski-boots for adults — Interface with touring ski-bindings — Requirements and test methods
ISO 11087, Alpine ski-bindings — Retention devices — Requirements and test methods
ISO 11110, Winter-sports equipment — Test devices for the setting of the functional unit ski/boot/
binding — Requirements and tests
ISO 13992, Alpine touring ski-bindings — Requirements and test methods
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
fitting adjustment
procedure required to obtain geometric compatibility and correct functioning of different components
3.2
indicator value
Z-mark
release indicator value marked on the binding in accordance with ISO 9462
© ISO 2015 – All rights reserved 1

---------------------- Page: 6 ----------------------
ISO 11088:2015(E)

3.3
skier type
release adjustment criteria pertaining to the type of skiing to be undertaken, as assessed by the skier in
accordance with Table A.1
Note 1 to entry: The designations L, A, S, which were used in ISO 8061:1984, have been replaced by types 1, 2 and
3, respectively, in ISO 8061:1991 and in ISO 8061:2004.
Note 2 to entry: If the skier desires a setting outside the tolerances of this International Standard, he or she can
select such a setting at his or her own discretion. Ski-binding manufacturers should provide guidelines to shops
and skiers regarding the recommended magnitude of such changes. Skiers should be clearly informed when these
changes result in release values above the upper limit or below the lower limit defined in ISO 8061.
3.4
initial indicator position
release indicator position of the binding corresponding with the instructions given in Table B.1
3.5 Release moment (values) M and M
Z Y
3.5.1
selected individual release moment
reference moment
〈for a given skier〉 release moment determined in accordance with ISO 8061
3.5.2
measured release moment
〈for a given S-B-B system〉 average or middle quantitative value of three consecutive release
measurements in the same direction on the same unit
Note 1 to entry: It is expressed in newton metres.
3.6
deviation accepted for the setting
inspection tolerance
maximum difference between the measured release moment (3.5.2) and the selected individual release
moment (3.5.1)
Note 1 to entry: This difference, which may be reduced by the setting, is limited for M to ±15 % or 3 N⋅m
Z
(whichever is greater), and for M to ±15 % or 10 N⋅m (whichever is greater).
Y
3.7
release adjustment
procedure for making the measured M and M values coincide with the selected individual M and M
Z Y Z Y
values within the limits stated in Table B.1
3.8
trouble-shooting procedures
additional procedures recommended by the equipment manufacturer
3.9
deviation accepted for the re-adjustment
re-adjustment tolerance
maximum difference between the measured release moment (3.5.2) at the initial indicator position (3.4)
and the selected individual release moment (3.5.1)
Note 1 to entry: This difference, which may be reduced by re-adjustment, is limited for M to ±30 % or 6 N⋅m
Z
(whichever is greater), and for M to ±30 % or 10 N⋅m (whichever is greater).
Y
2 © ISO 2015 – All rights reserved

---------------------- Page: 7 ----------------------
ISO 11088:2015(E)

4 Skier’s parameters
4.1 General
The individual release moment values are given in ISO 8061. The following procedure using discrete
values may be considered as an acceptable approximation of the basic functions of ISO 8061.
4.2 Weight method
4.2.1 Determine the skier’s parameters with the following:
— mass (weight);
— height;
— type (according to Annex A);
— age;
— sole length if necessary.
4.2.2 Using Table B.1, choose the individual r
...
