ISO 21360-6:2023

INTERNATIONAL ISO
STANDARD 21360-6
First edition
2023-12
Vacuum technology — Standard
methods for measuring vacuum-pump
performance —
Part 6:
Cryogenic vacuum pumps
Technique du vide — Méthodes normalisées pour mesurer les
performances des pompes à vide —
Partie 6: Pompes à vide cryogéniques
Reference number
© ISO 2023
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols . 2
5 Test methods . 3
5.1 Test gas . 3
5.2 Measurement of the volume flow rate (pumping speed) . 3
5.2.1 General . 3
5.2.2 Pretreatment procedure . 3
5.2.3 Volume flow rate (pumping speed) measurement by the throughput method . 3
5.2.4 Volume flow rate (pumping speed) measurement by the orifice method . 3
5.2.5 Measurement of water vapour volume flow rate (pumping speed) . 4
5.3 Maximum throughput measurement . 4
5.3.1 General . 4
5.3.2 Measurement method . 4
5.3.3 Measurement setup . 4
5.3.4 Measuring procedure . 4
5.4 Pumping capacity measurement . 4
5.4.1 General . 4
5.4.2 Measurement setup . 5
5.4.3 Measuring procedure . 5
5.5 Measurement of base pressure cryogenic vacuum pump . 5
5.6 Measurement of cooldown time . 5
5.6.1 General . 5
5.6.2 Measurement setup . 6
5.6.3 Measuring procedure . 6
5.7 Measurement of crossover value . . 6
5.7.1 General . 6
5.7.2 Measurement setup . 6
5.7.3 Measuring procedure . 8
6 Test report . 8
6.1 Content . . 8
6.2 Report on general information. 9
6.3 Report on pump parameters . 9
6.4 Report on test equipment and conditions . 9
6.5 Report on operational parameters . 9
6.6 Report on pump performance . 9
Annex A (informative) The volume flow rate calculation for the water vapour.11
Bibliography .12
iii

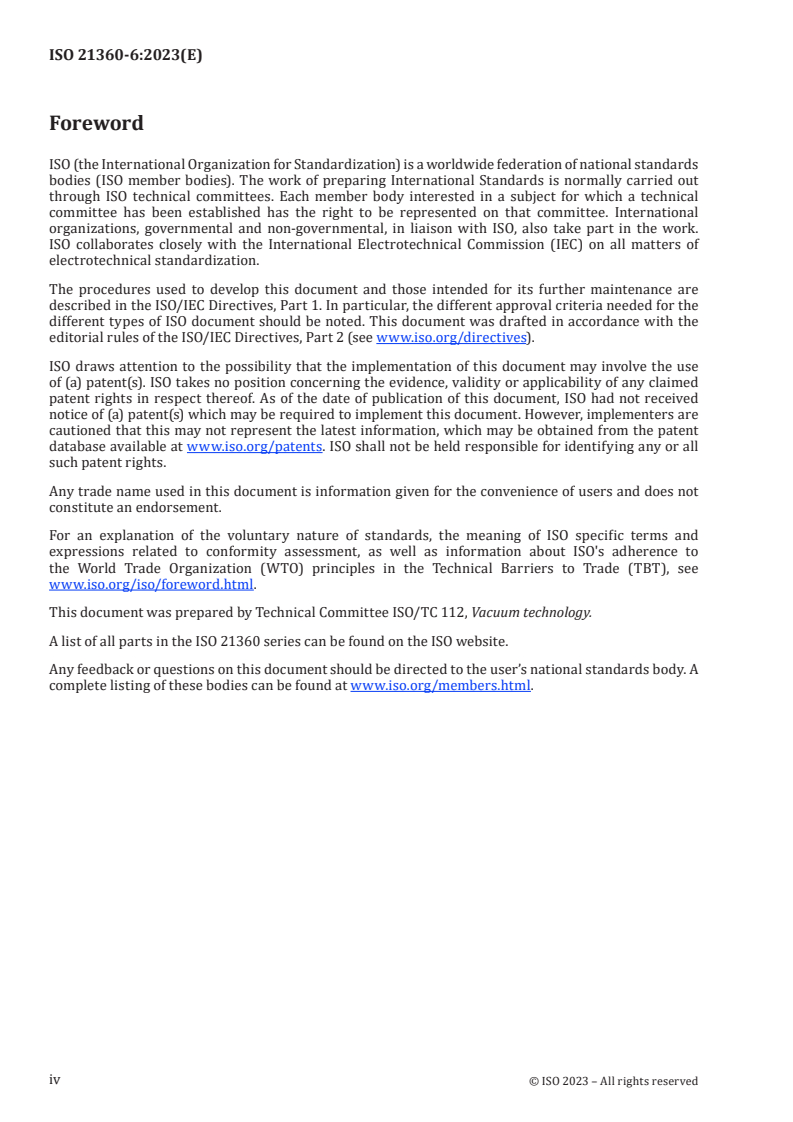

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO document should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use
of (a) patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed
patent rights in respect thereof. As of the date of publication of this document, ISO had not received
notice of (a) patent(s) which may be required to implement this document. However, implementers are
cautioned that this may not represent the latest information, which may be obtained from the patent
database available at www.iso.org/patents. ISO shall not be held responsible for identifying any or all
such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 112, Vacuum technology.
A list of all parts in the ISO 21360 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
Introduction
This document specifies methods for measuring the performance data of cryogenic vacuum pumps.
This document complements ISO 21360-1, which provides a general description of the measurement
of performance data of vacuum pumps. This document takes precedence in the event of a conflict with
ISO 21360-1.
v
INTERNATIONAL STANDARD ISO 21360-6:2023(E)
Vacuum technology — Standard methods for measuring
vacuum-pump performance —
Part 6:
Cryogenic vacuum pumps
1 Scope
This document specifies methods for measuring the volume flow rate, maximum throughput, pumping
capacity, base pressure cryogenic vacuum pump, cooldown time and crossover value of cryogenic
vacuum pumps.
It is applicable to two-stage, closed-loop gaseous helium cryogenic vacuum pumps, which can be
directly flanged to a vacuum chamber.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 21360-1:2020, Vacuum technology — Standard methods for measuring vacuum-pump performance —
Part 1: General description
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 21360-1 and the following
apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
base pressure cryogenic vacuum pump
p
b
pressure obtained in the test dome within 24 h of completing cooldown
Note 1 to entry: It is possible that the base pressure is not the lowest pressure obtainable with the cryogenic
vacuum pump. The base pressure represents the lowest pressure that can be obtained after reasonable
conditioning of the cryogenic vacuum pump and the test dome without any test gas (see 5.5).
Note 2 to entry: For many practical applications (e.g. only cooldown time is tested, see 5.6), base pressure also
can be obtained in the cryogenic vacuum pump with a blank-off flange at the entrance.
3.2
cooldown time
time elapsed between starting the cryogenic vacuum pump at room temperature (293 K ± 3 K) at a
starting pressure as indicated by the manufacturer and the point at which the temperature of the
second stage (3.6) reaches 20 K
Note 1 to entry: The roughing valve should only be closed when the action of closing does not cause the pressure
in the cryogenic vacuum pump to rise to a value above the starting pressure.
3.3
crossover value
q
cv
maximum amount of nitrogen gas which can be admitted into the pump over a short time with the
temperature of the second stage (3.6) remaining ≤20 K during the test gas flow
3.4
pumping capacity
q
pc
quantity of gas, which has been pumped up to the moment when the volume flow rate has reduced to
50 % of the initial value measured
Note 1 to entry: After having pumped this amount of gas, the pump still can reduce the pressure in the test dome
-3
down to a value of p ≤10 Pa in less than 10 min to ensure that a certain pumping performance is still available.
3.5
maximum throughput
Q
max
maximum quantity of condensable gas flow, which a cryogenic vacuum pump can pump
3.6
second stage
lower temperature side cooling station with the cold panels of a closed-loop, two-stage gaseous helium
cold head
4 Symbols
Symbol Designation Unit
-1 3 -1
Q
gas throughput of cryogenic vacuum pump Pa·l·s (or Pa·m ·s )
-1 3 -1
Q
maximum throughput Pa·l·s (or Pa·m ·s )
max
q crossover value Pa·l(or Pa·m )
cv
q
pumping capacity Pa·l(or Pa·m )
pc
pp,
pressures in the test dome for the orifice method Pa
de
p base pressure cryogenic vacuum pump Pa
b
p vacuum pressure on inlet Pa
p
starting pressure Pa
D
inner diameter of test dome m
D nominal diameter of test dome m
N
T
maximum temperature of the second stage K
max
5 Test methods
5.1 Test gas
All measurements in this document should be performed with at least 99,9 % (by mass) pure test gas.
The test gas should be nitrogen (alternatively dry air), argon and hydrogen.
5.2 Measurement of the volume flow rate (pumping speed)
5.2.1 General
The measurement of volume flow rate is specified in ISO 21360-1.
Pretreatment (see 5.2.2) is recommended before measuring the pumping speed of the test gas (except
hydrogen).
When the pressure remains stable within ±3 % (for hydrogen ±5 % is acceptable) for the following
minute, the average value per minute can be regarded as valid p .
If several test gases are used, without regenerating the pump completely, the gases should be used in
the following order: hydrogen, nitrogen (alternatively dry air), argon.
If during measurement more than 30 % of the pumping capacity as indicated by the manufacturer is
admitted, the cryogenic vacuum pump should be regenerated.
The test pump should be directly flanged to the test dome (see 5.7.2, Figure 1) or the quick-acting valve
(see 5.7.2, Figure 2). When using the test dome described in ISO 21360-1:2020, Figure 3, the cold surfaces
of the te
...
