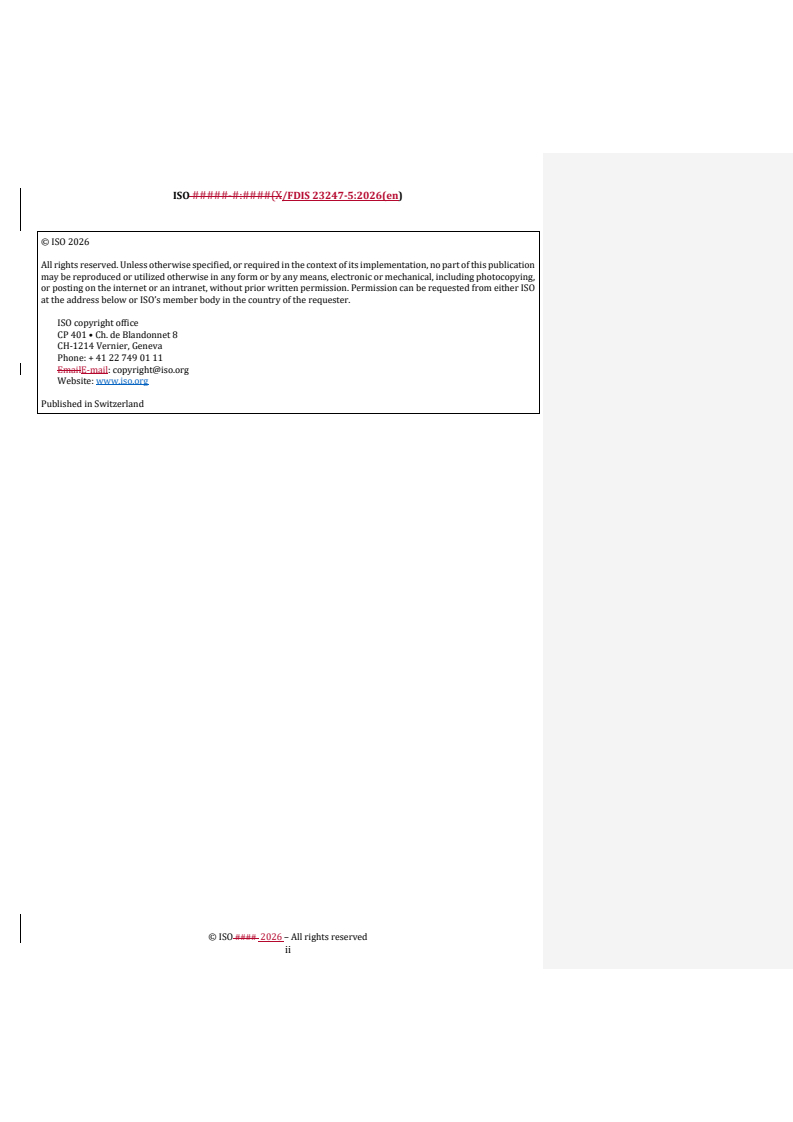

© ISO 2026
IN ADDITION TO THEIR EVALUATION AS
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO-
LOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL
or ISO’s member body in the country of the requester.
TO BECOME STAN DARDS TO WHICH REFERENCE MAY BE
MADE IN NATIONAL REGULATIONS.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland Reference number
ii

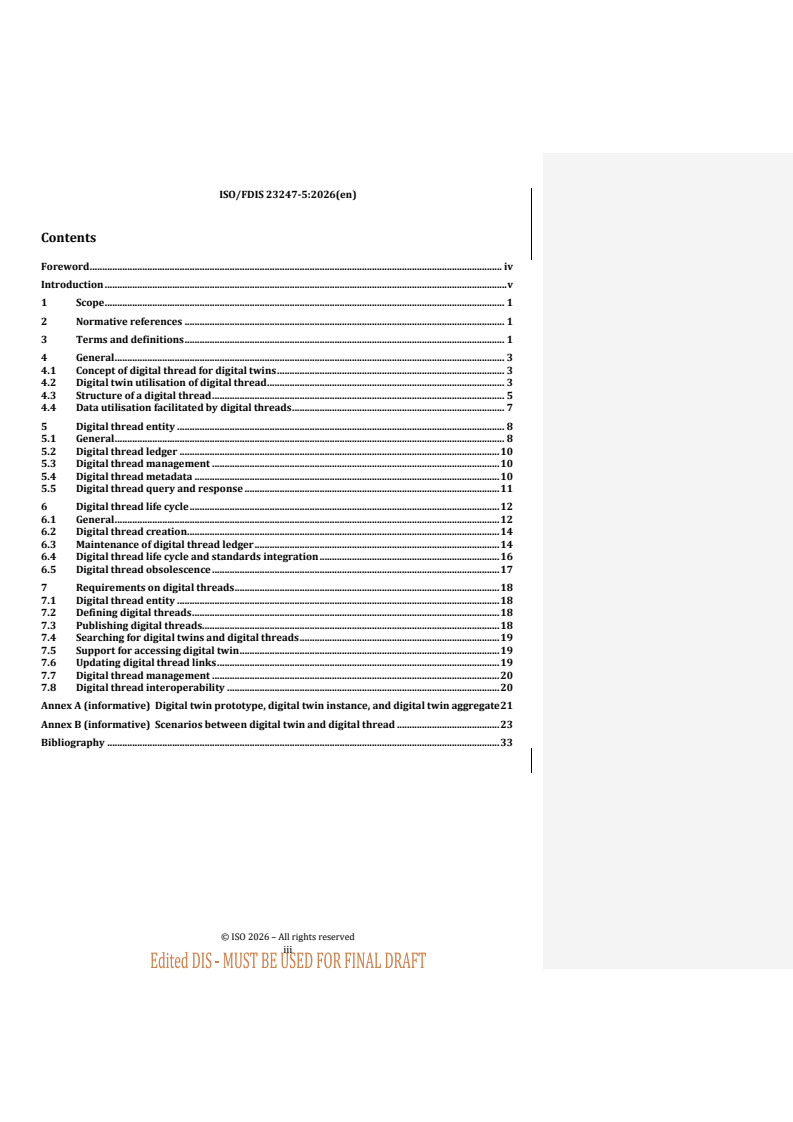

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 General . 2
4.1 Concept of digital thread for digital twins .2
4.2 Digital twin utilisation of digital thread .3
4.3 Structure of a digital thread .4
4.4 Data utilisation facilitated by digital threads .6
5 Digital thread entity . 6
5.1 General .6
5.2 Digital thread ledger .7
5.3 Digital thread management .8
5.4 Digital thread metadata .8
5.5 Digital thread query and response .9
6 Digital thread life cycle . 9
6.1 General .9
6.2 Digital thread creation .10
6.3 Maintenance of digital thread ledger .11
6.3.1 Overview .11
6.3.2 Validating digital thread links .11
6.3.3 Managing digital thread metadata and its attributes .11
6.3.4 Performance monitoring .11
6.3.5 Error handling .11
6.4 Digital thread life cycle and standards integration . 12
6.4.1 Overview . 12
6.4.2 Concept and definition . 12
6.4.3 Conceptual design . 12
6.4.4 Detailed engineering . 13
6.4.5 Prototype and validation . 13
6.4.6 Manufacturing planning . 13
6.4.7 Production and assembly . 13
6.4.8 Deployment and distribution . 13
6.4.9 Operation and monitoring . 13
6.4.10 Maintenance support. 13
6.5 Digital thread obsolescence . 13
7 Requirements on digital threads . 14
7.1 Digital thread entity .14
7.2 Defining digital threads .14
7.3 Publishing digital threads .14
7.4 Searching for digital twins and digital threads . 15
7.5 Support for accessing digital twin . 15
7.6 Updating digital thread links . 15
7.7 Digital thread management . 15
7.8 Digital thread interoperability.16
Annex A (informative) Digital twin prototype, digital twin instance, and digital twin aggregate . 17
Annex B (informative) Scenarios between digital twin and digital thread . 19
Bibliography .25

iii
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO documents should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 184, Automation systems and integration,
Subcommittee SC 4, Industrial data.
A list of all parts in the ISO 23247 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

iv
Introduction
The ISO 23247 series defines a framework to support digital twins in manufacturing. A digital twin assists
with detecting events in manufacturing processes to achieve functional objectives such as real-time control,
predictive maintenance, in-process adaptation, big data analytics, process and manufactured component
validation, and machine learning. A digital twin monitors its observable manufacturing elements by
constantly updating and analysing relevant operational and environmental data as process/part changes.
This visibility into process and execution enabled by a digital twin enhances manufacturing operations and
business cooperation.
Manufacturing supported by implementing the ISO 23247 framework depends on the standards and
technologies available to model the observable manufacturing elements. Different manufacturing domains
can use different data standards. As a framework, this document does not prescribe specific data formats or
communication protocols.
The subject areas of the six parts of this series are defined below:
— ISO 23247-1: General principles and requirements for developing digital twins in manufacturing;
— ISO 23247-2: Reference architecture with functional views;
— ISO 23247-3: List of basic information attributes for the observable manufacturing elements;
— ISO 23247-4: Technical requirements for information exchange between entities within the reference
architecture;
— ISO 23247-5: Requirements and guidance to use digital threads for connecting manufacturing lifecycle
data to digital twins;
— ISO 23247-6: Requirements and guidance for performing digital twin composition.
Figure 1 shows how the six parts of the series are related.
Figure 1 — ISO 23247 series relationships
This document describes how the digital thread supports the generation, implementation and transformation
of digital twins in manufacturing.
In manufacturing, without digital threads, data from various stages of the product life cycle, such as design,
production, quality management, and maintenance, usually remains isolated within individual digital twins.

v
Such isolation causes data and information to be fragmented, leading to inefficiencies such as processing
delays, information duplications and disruption. These problems hinder manufacturers in conducting
simulations and analyses with digital twins, as these functions depend on a continuous and integrated data
flow. The absence of digital threads makes it difficult to associate various events and complicates time series
analysis. The disconnection of information can cause delays or inhibitions in retrieving and processing data,
leading to poor decision-making and difficulty in addressing issues as they arise.
Digital threads connect digital twins representing different aspects of the product life cycle. The scalability
and adaptability of manufacturing are enhanced by digital threads that support seamless connections
between digital twins for manufacturing processes across the life cycle, and production facilities across the
extended enterprise.
This document defines the concept, requirements and operational characteristics of digital threads for
digital twins in manufacturing.

vi
FINAL DRAFT International Standard ISO/FDIS 23247-5:2026(en)
Automation systems and integration — Digital twin
framework for manufacturing —
Part 5:
Digital thread for digital twin
1 Scope
This document specifies how a digital thread enables the creation, connectivity, management, and
maintenance of manufacturing digital twins across the product life cycle, including design, planning,
production, and testing by defining principles, presenting methodologies, and providing use case examples.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 23247-2, Automation systems and integration — Digital twin framework for manufacturing — Part 2:
Reference architecture
3 Terms and definitions
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
digital thread
digital thread for digital twins
bidirectional, dependable and trustworthy information that links digital twins with multiple data
dimensions, including structure, behaviour, space, time, and lifecycle stages
Note 1 to entry: The linked digital twins can model design requirements, product models, manufacturing processes,
inspection results and verification data.
Note 2 to entry: This definition was derived from a definition developed by the Digital Twin Consortium.
3.2
digital thread entity
component that manages the digital thread for digital twins (3.1)
3.3
digital thread link
reference or pointer that connects one digital twin to another with digital thread metadata
(3.6) to establish a relationship
Note 1 to entry: Depending on performance constraints, a digital thread link (3.3) can connect digital twins using data
structure, URL, Universally Unique Identifier (UUID), DB query or other mechanisms.

3.4
data store
repository that collects, organises and manages content for the digital twin(s)
Note 1 to entry: Multiple data stores can be used for the digital twins depending on their roles (e.g. design, engineering,
manufacturing, verification).
Note 2 to entry: Depending on system architecture, a data store can be implemented as a relational database, a graph
database, a cloud storage, a distributed ledger, or other suitable solutions.
3.5
digital thread ledger
repository of digital thread links (3.3) that identifies digital twins and their relationships with
other digital twins
Note 1 to entry: In the simplest case, a digital thread ledger (3.5) contains a list of digital thread links for the life cycle
stages of one digital twin.
3.6
digital thread metadata
information about the digital thread link (3.3) between two digital twins
Note 1 to entry: The information can describe the purpose of the link, the date of the link, summarize an aspect of the
digital twins in the link, etc.
Note 2 to entry: When the term “metadata” is not further qualified, then it is assumed to be digital thread metadata.
3.7
digital twin prototype
DTP
informational sets necessary to describe and produce a digital twin instance (3.8) that duplicates or “twins”
the corresponding observable manufacturing element (OME) (3.9), including, but not limited to, requirements,
fully annotated 3D model, bill of materials (with material specifications), bill of processes, bill of services
and bill of disposal
Note 1 to entry: A digital twin prototype is not linked to an OME.
3.8
digital twin instance
DTI
fit for purpose digital representation of an observable manufacturing element (3.9) with synchronisation
between the element and its digital representation
Note 1 to entry: When the term “digital twin” is not further qualified, then it is assumed to be a digital twin instance.
3.9
observable manufacturing element
OME
element that has an observable physical presence or operation in manufacturing
Note 1 to entry: Observable manufacturing elements include personnel, equipment, material, process, facility,
environment, product and supporting documentation.
[SOURCE: ISO 23247-1:2021, 3.2.5, modified — "item" was replaced by "element".]
4 General
4.1 Concept of digital thread for digital twins
The digital thread facilitates utilization of data and information for the life cycle of digital twins. The
digital thread precedes and follows the definition and implementation of the manufacturing digital twin.
In manufacturing, a digital twin is a digital representation of an observable manufacturing element (OME).

A digital twin prototype has to meet the design requirement of the product OME, before being transformed
into digital twin instance when the actual product is being manufactured. When the OME is in place, plans
are made for its manufacture. When the necessary equipment has been allocated, the plans are applied to
the OME. At this stage, the digital twin prototype becomes a digital twin instance. When manufacturing is
finished, the product is tested and inspected. If it is judged ready, the product is delivered to a customer.
NOTE Detailed descriptions of digital twin prototype, digital twin instance and digital twin aggregate are in
Annex A.
As the product OME moves from design concept to delivery, the digital twins are linked together using the
digital thread. These links enable upstream processes to observe their impact on the final product and allow
downstream processes to access information that affected the upstream processes. The linked digital twins
can model requirement data, product data, manufacturing process data, inspection data and verification
data. The digital thread establishes a chain of custody for the digital twins so that users and applications can
inspect their evolution from design through planning, manufacturing and inspection. With this information,
manufacturers can optimise their processes, reduce waste and adapt effectively to changes, ultimately
driving innovation and competitiveness.
The digital thread enables digital twin and diverse applications to access data and information within
the context of the appropriate digital twin, ensuring seamless data flow across the product life cycle. In
the engineering stage, the digital thread connects design digital twins with simulation results, enabling
validation and optimisation before production starts. In the manufacturing stage, the digital thread links
the design digital twins and the manufacturing digital twins to ensure products are manufactured as
designed. In the validation stage, the digital thread integrates testing, manufacturing, and design digital
twins to facilitate problem analysis and quality improvements. Beyond production, the digital thread
supports predictive maintenance by combining multiple digital twins into digital twin aggregates that
model operational performance and historical trends for proactive decision making. The digital thread
facilitates multi-manufacturer collaboration and supply chain optimisation through digital twin sharing.
4.2 Digital twin utilisation of digital thread
The information of a digital twin is derived from information systems that support and enables the OME.
This information is contextualised for traceability, allowing users to monitor the status of the product OMEs
and thereby enhancing the visibility of the production process.
Figure 2 shows how digital twins utilise digital threads to integrate and interpret manufacturing data from
various sources. Life cycle data and information are often siloed, logically or physically separated. The digital
thread enables connection to digital twins from disparate data sources. Digital twins use digital threads to
obtain base information about the manufacturing process and model components. This allows data analysis
and optimisation to represent the characteristics of the target OME. By connecting and contextualising life
cycle data, the digital thread facilitates continuous monitoring and improvement of the OME. This process
enhances decision-making, optimises production processes and fosters collaboration throughout the supply
chain, ultimately driving improvements in product design, innovation and overall visibility.
In Figure 2, the lower left box (i.e. life cycle data of digital twins) shows the existing information system,
and the upper left box (i.e. digital thread of life cycle data) shows that digital twins are realised from those
systems and linked by the digital thread. The middle figure (i.e. digital twins in manufacturing) shows
a subset of the digital twins in a digital twin entity for various life cycle stages. Changes to the OME are
mirrored in the digital twins using the infrastructure described in ISO 23247-1, ISO 23247-2, ISO 23247-3
and ISO 23247-4. Some of the information is aggregated for further analysis. New digital twins are linked to
the digital thread for usage by subsequent manufacturing processes.

Figure 2 — Digital twin utilisation of digital threads
The following are different kinds of the life cycle data shown on the lower left of Figure 2.
— Contract data are data from agreements, terms and conditions between stakeholders or partners. These
data are the foundation for initiating the life cycle by establishing project goals and expectations.
— Requirement data are data from the functional and technical requirements of the product or system. It
serves as a base for design, development and testing.
— Design and engineering data are the physical and functional characteristics of the product, including
CAD models, schematics and engineering specifications used during the design and development stages.
— Supplier data are information related to external suppliers, including materials, components and supply
chain logistics. These data are essential for coordinating with external vendors.
— Production data are data from manufacturing processes, which include assembly instructions, machine
parameters and real-time production performance metrics.
— Test data are the results from product testing, validation and quality assurance. It specifies whether the
product meets its specifications and identifies any defects or issues.
— Operation and maintenance include usage statistics, performance monitoring, failure analysis and
maintenance logs.
— Legacy data are the historical data from previous projects, systems or versions.
The use of a digital thread by the digital twin has many benefits shown on the right panel of Figure 2.
The primary benefit is to support continuous enhancement and innovation within manufacturing, which
leads to the enhancement of efficiency in product design and development and improved decision-making.
Furthermore, the digital thread allows for a comprehensive view of the product life cycle, which results
in better traceability, quality control, and the ability to predict and address issues proactively. The digital
thread can provide information for the digital twin to enhance visibility, which leads to an enhancement in
cooperation and supply chain collaboration, and overall productivity in manufacturing.
4.3 Structure of a digital thread
Figure 3 depicts the structure of a digital thread that consists of a series of digital twins and digital thread
links. Each digital twin has units of data with a unique identifier and other descriptive information that

represents an OME. These unique identifiers serve as the building block of the digital thread, as they are the
means for identifying digital twins. A digital thread link is a reference or pointer that connects one digital
twin to another to establish a relationship. Organising these links constitutes a digital thread that enable
traceability of data flow and transformation across different stages of the product life cycle.
Key
D , D digital twin prototypes in the design stage
1 2
E , E digital twin prototypes in the engineering stage
1 2
M , M digital twin instances of OMEs in manufacturing
1 2
V , V digital twin instances of OMEs in testing
1 2
OME , OME OMEs that correspond to digital twins
1 2
digital thread link
association between digital twin and OME
{-} digital thread metadata
Figure 3 — Representative example of a structure of digital threads for digital twins
The digital thread links shown in Figure 3 include the following:
— D E is a link between the digital twin prototype in the design stage (D ) and the digital twin
1 1 1
prototype in the engineering stage (E ), representing the relationship between the digital twins of the
initial design and the engineering specification;
— E M is a link between E and the digital twin instance in the manufacturing stage (M ), representing
1 1 1 1
the relationship between the digital twins of the engineering specification and the product in the
manufacturing stage, with OME assigned to M for synchronisation;
1 1
— E M is a link between E and the digital twin instance in the manufacturing stage (M ), representing
1 2 1 2
the relationship between the digital twins of the engineering specification and the product in the
manufacturing stage, with OME assigned to M for synchronisation.
2 2
The digital threads shown in Figure 3 are as follows:
— D E M V is a digital thread that is used to trace the life cycle of OME from design to
1 1 1 1 1
validation;
— D E M V is a digital thread that is used to trace the life cycle of OME from design to
1 1 2 2 2
validation;
— D E is a digital thread that ends at the engineering stage, which means the design has not yet moved
2 2
to manufacturing.
4.4 Data utilisation facilitated by digital threads
Figure 4 illustrates the possible data utilisation facilitated by the digital thread shown in Figure 3. The digital
thread enables seamless exchange and reuse of information across the design, engineering, manufacturing,
and validation stages between digital twin prototypes, digital twin instances, and OMEs.
Key
D , D digital twin prototypes in the design stage
1 2
E , E digital twin prototypes in the engineering stage
1 2
M , M digital twin instances in the manufacturing stage
1 2
V , V digital twin instances in the validation stage
1 2
data utilisation facilitated by digital thread
Figure 4 — Examples of data utilisation enabled by digital thread
Because each digital twin can be a composite of many other digital twins, numerous utilisation pathways
are possible. For example, a manufacturing process digital twin can be composed of a workpiece, fixture and
cutting tools, but for simplicity, they are shown as one twin in Figure 4. The following are some examples of
data utilisation that are possible from Figure 4.
— For data utilisation from D to M , a digital twin in the manufacturing stage (M ) uses D to understand
1 1 1 1
assembly constraints or critical dimensions that need to be maintained during production. This is
implied by a digital thread D E M . A similar use case can be applied to the data utilisation from
1 1 1
D to M .
1 2
— For data utilisation from M to D , a digital twin in the design stage (D ) uses M to detect production
1 1 1 1
efficiency, CNC (Computer Numerical Control) tool wear, or machining error to improve design for
manufacturability and reduce production costs. This is implied by a digital thread D E M . A
1 1 1
similar use case can be applied to the data utilisation from M to D .
2 1
— For data utilisation between D and OMEs, D communicates with OMEs to acquire operational data such
1 1
as actual machining performance or detect production efficiency. This is implied by a digital thread D
E M or D E M V .
1 1 1 1 1 1
5 Digital thread entity
5.1 General
The digital thread entity consists of two components:
a) a digital thread ledger is a repository of logical digital thread links attributes defining the data
relationship between digital twins; and

b) an agent that facilitates access to the digital twins and provides for a historical record of digital thread
activity in response to service requests.
Key
DTE digital twin entity
D , D digital twins of design prototypes
1 2
E , E digital twins of engineering prototypes
1 2
M , M digital twins of product OMEs in manufacturing
1 2
V , V digital twins of product OMEs in testing
1 2
digital thread link that connects digital twins
digital thread
S data store for the design digital twins
D
S data store for the engineering digital twins
E
S data store for the manufacturing digital twins
M
S data store for the validation digital twins
V
digital thread query and response
{-} digital thread metadata
Figure 5 — Digital thread and digital twin entities
Figure 5 shows the elements and the interactions within the framework of the digital thread shown in
Figure 3. Each digital twin (D , D , E , E , M , M , V , V ) is a representation related to the product OME
1 2 1 2 1 2 1 2
in a specific stage of the product life cycle, including design, engineering, manufacturing, and validation.
Corresponding to each stage, digital twins are stored in designated data stores (S , S , S , S ) as shown in
D E M V
Figure 5.
The digital thread connects these digital twins through digital thread links that establish a logical
relationship across the product life cycle stages. These links enable end-to-end digital thread traceability
and continuity of information as the digital twins are transitioned, evolved or composed.
5.2 Digital thread ledger
The digital thread ledger is a repository that stores digital thread links and attributes of the links that
identify digital twins and their relationship with other digital twins. Attributes are in the format of the
metadata. It maintains entries for each digital thread including the sequence of digital twins represented
by the digital twin identifiers, references to the corresponding data stores, and digital thread metadata that
describes contextual and operational meaning to each digital thread link. It is managed by the digital thread
entity.
The digital threads stored in the digital thread ledger enable traceability of digital twin interactions and
serve as a foundation for the digital thread entity to process and respond to queries from digital twins.

The digital thread ledger can be implemented using various technologies, including relational databases,
graph models, distributed ledgers, or other data structures capable of supporting relationship-based
queries.
5.3 Digital thread management
The digital thread entity facilitates the definition, operational use and management of digital threads used
by digital twins. It provides an administrative function to support a historical registry of the digital thread
usage.
The digital thread entity enables:
— receiving and processing of queries from digital twins seeking related digital twins;
— searching the digital thread ledger to identify relevant digital twins and the associated digital thread
links;
— responding to queries by providing digital twin identifiers and corresponding access paths to the
requesting digital twin;
— updating the digital thread ledger when changes occur to the digital thread links between digital twins.
5.4 Digital thread metadata
Digital thread metadata enhances the traceability, interpretability and usability of the digital thread. It is
possible to construct a digital thread using only the source and destination digital twin identifiers. However,
including the metadata provides additional contextual and operational meaning to each digital thread
link. This facilitates efficient query responses and improved traceability through identifying, filtering and
selecting the most relevant digital twins for a given query.
Advantages of using metadata include:
— assisting in the selection of the required digital twin;
— preventing applications from using irrelevant digital twins;
— enabling intelligent searching and large language training;
— determining the utilisation of a digital twin;
— adding enterprise-specific information.
The metadata can include, but is not limited to, the following:
— digital thread link type;
NOTE Link type is a relationship between digital twins such as transition, composition, or evolution.
— descriptive information explaining the purpose of the digital thread link;
— identifiers of the source and destination digital twins;
— relevant attributes of the linked digital twins;
— timestamp, versioning and other administrative data;
— relevant attributes of domain-specific data.
The following examples describe metadata for the digital twins in Figure 3 and Figure 5.
EXAMPLE 1 D E {-}: metadata from D to E to capture the updated version number of the design modification.
2 2 2 2
EXAMPLE 2 E M {-}: metadata from E to M to document the serial number of the manufactured part.
1 2 1 2
EXAMPLE 3 M V {-}: metadata from M to V to indicate successful completion of the quality control validation.
2 2 2 2
5.5 Digital thread query and response
A digital thread query and response is an operational interface between a digital twin entity and a digital
thread entity. This interaction enables a digital twin to retrieve relevant information about other digital
twins that are connected through a digital thread, supporting traceability, decision-making and contextual
awareness throughout the product life cycle.
A digital thread query and response consists of the following steps:
— query initiation: the digital twin entity sends a query to the digital thread entity to search for related
digital twins;
— query processing: the digital thread entity searches the digital thread ledger to find the digital twin
requested by the digital twin entity;
— response: the digital thread entity provides a response containing the identifier(s) of the discovered
digital twins.
NOTE 1 Queries are submitted through an application programming interface (API), database interface, web portal
or messaging protocol such as MQTT (Message Queuing Telemetry Transport).
NOTE 2 Scenarios on how the digital threads are used by the digital twin are presented in Annex B.
6 Digital thread life cycle
6.1 General
The digital thread facilitates seamless access and exchange of information between manufacturing digital
twins. This enables a continuous data flow across the product life cycle, as shown in Figure 6.

Key
digital thread link in digital thread ledger
data or information as part of the product life cycle
standard as an enabler for the digital twin
data store interface
AP ISO 10303 Application Protocol
Figure 6 — Illustrative example of digital threads for a product life cycle
The need for a digital thread increases with the number of diverse and distributed systems working together.
In many cases, a digital twin is composed of component digital twins that are designed and maintained by
suppliers. Therefore, an integrated system of systems approach is needed to understand, design, produce
and sustain digital twins.
6.2 Digital thread creation
The digital thread entity creates a digital thread by following procedures that include, but are not limited to:
a) defining the structure: selects or develops the data model for the metadata and reference methods for
implementing the digital thread links to ensure traceability and interconnectivity;
b) setting up access and utilisation control: regulates who can read, write and modify digital thread data
to ensure secure data exchange and maintain integrity of the digital thread;
c) adopting usage control rights: inherits security permissions and ownership rights from the source
digital twin to prevent unauthorised modification and misuse of digital twin data;
d) registering a digital thread: assigns unique identifiers and classifies threads based on various factors,
such as life cycle stages, product or components, process types, time-based versions, compositions, etc.;
e) adding to a digital thread ledger: digital thread links are added to the digital thread ledger in response
to application requests. Digital threads are constructed on demand from the links by the digital thread
entity in response to application queries.

6.3 Maintenance of digital thread ledger
6.3.1 Overview
The digital thread evolves as digital twins participate in activities in manufacturing. The digital thread
entity is responsible for maintaining the accuracy, completeness and reliability of the digital thread ledger
over time. Subclauses 6.3.2 to 6.3.5 describe the maintenance capabilities provided by the digital thread
entity.
6.3.2 Validating digital thread links
Digital thread entity needs to periodically verify the validity and integrity of digital thread links recorded in
the digital thread ledger. The validation includes, but is not limited to, the following:
— existence check: both linked digital twins are present;
— accessibility check: both linked digital twins and their data stores are reachable and responsive;
— integrity check: identifiers, link types, and attributes conform to the defined metadata schema;
EXAMPLE Periodically verify that both linked digital twins exist and are in accessible state.
6.3.3 Managing digital thread metadata and its attributes
Digital thread entity supports updates to link metadata and its
...

ISO/TC 184/SC 4/WG 15
Secretariat: ANSI
Date: 2026-0103-02
Automation systems and integration — Digital twin framework for
manufacturing — —
Part 5:
Digital thread for digital twin
Systèmes d'automatisation et intégration — Cadre technique de jumeau numérique dans un contexte de
fabrication — Partie 5: Continuité numérique pour un jumeau numérique
FDIS stage
ISO #####-#:####(X/FDIS 23247-5:2026(en)
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication
may be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying,
or posting on the internet or an intranet, without prior written permission. Permission can be requested from either ISO
at the address below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: + 41 22 749 01 11
EmailE-mail: copyright@iso.org
Website: www.iso.org
Published in Switzerland
© ISO #### 2026 – All rights reserved
ii
Contents
Foreword . iv
Introduction . v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 General . 3
4.1 Concept of digital thread for digital twins . 3
4.2 Digital twin utilisation of digital thread . 3
4.3 Structure of a digital thread . 5
4.4 Data utilisation facilitated by digital threads . 7
5 Digital thread entity . 8
5.1 General . 8
5.2 Digital thread ledger . 10
5.3 Digital thread management . 10
5.4 Digital thread metadata . 10
5.5 Digital thread query and response . 11
6 Digital thread life cycle . 12
6.1 General . 12
6.2 Digital thread creation . 14
6.3 Maintenance of digital thread ledger . 14
6.4 Digital thread life cycle and standards integration . 16
6.5 Digital thread obsolescence . 17
7 Requirements on digital threads . 18
7.1 Digital thread entity . 18
7.2 Defining digital threads . 18
7.3 Publishing digital threads. 18
7.4 Searching for digital twins and digital threads . 19
7.5 Support for accessing digital twin . 19
7.6 Updating digital thread links . 19
7.7 Digital thread management . 20
7.8 Digital thread interoperability . 20
Annex A (informative) Digital twin prototype, digital twin instance, and digital twin aggregate 21
Annex B (informative) Scenarios between digital twin and digital thread . 23
Bibliography . 33

iii
ISO #####-#:####(X/FDIS 23247-5:2026(en)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types of
ISO documents should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Field Code Changed
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent rights
in respect thereof. As of the date of publication of this document, ISO had not received notice of (a) patent(s)
which may be required to implement this document. However, implementers are cautioned that this may not
represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
Field Code Changed
This document was prepared by Technical Committee ISO/TC 184, Automation systems and integration,
Subcommittee SC 4, Industrial data.
A list of all parts in the ISO 23247 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
Field Code Changed
© ISO #### 2026 – All rights reserved
iv
Introduction
The ISO 23247 series defines a framework to support digital twins in manufacturing. A digital twin assists
with detecting events in manufacturing processes to achieve functional objectives such as real-time control,
predictive maintenance, in-process adaptation, big data analytics, process and manufactured component
validation, and machine learning. A digital twin monitors its observable manufacturing elements by constantly
updating and analysing relevant operational and environmental data as process/part changes. This visibility
into process and execution enabled by a digital twin enhances manufacturing operations and business
cooperation.
Manufacturing supported by implementing the ISO 23247 framework depends on the standards and
technologies available to model the observable manufacturing elements. Different manufacturing domains can
use different data standards. As a framework, this document does not prescribe specific data formats or
communication protocols.
The subject areas of the six parts of this series are defined below:
— — ISO 23247-1: General principles and requirements for developing digital twins in manufacturing;
— — ISO 23247-2: Reference architecture with functional views;
— — ISO 23247-3: List of basic information attributes for the observable manufacturing elements;
— — ISO 23247-4: Technical requirements for information exchange between entities within the reference
architecture;
— — ISO 23247-5: Requirements and guidance to use digital threads for connecting manufacturing lifecycle
data to digital twins;
— — ISO 23247-6: Requirements and guidance for performing digital twin composition.
Figure 1Figure 1 shows how the six parts of the series are related.
v
ISO #####-#:####(X/FDIS 23247-5:2026(en)

Figure 1— ISO 23247 series relationships
This document describes how the digital thread supports the generation, implementation and transformation
of digital twins in manufacturing.
In manufacturing, without digital threads, data from various stages of the product life cycle, such as design,
production, quality management, and maintenance, usually remains isolated within individual digital twins.
Such isolation causes data and information to be fragmented, leading to inefficiencies such as processing
delays, information duplications and disruption. These problems hinder manufacturers in conducting
simulations and analyses with digital twins, as these functions depend on a continuous and integrated data
flow. The absence of digital threads makes it difficult to associate various events and complicates time series
analysis. The disconnection of information can cause delays or inhibitions in retrieving and processing data,
leading to poor decision-making and difficulty in addressing issues as they arise.
Digital threads connect digital twins representing different aspects of the product life cycle. The scalability
and adaptability of manufacturing are enhanced by digital threads that support seamless connections between
© ISO #### 2026 – All rights reserved
vi
digital twins for manufacturing processes across the life cycle, and production facilities across the extended
enterprise.
This document defines the concept, requirements and operational characteristics of digital threads for digital
twins in manufacturing.
vii
Automation systems and integration — Digital twin framework for
manufacturing — —
Part 5:
Digital thread for digital twin
1 Scope
This document specifies how a digital thread enables the creation, connectivity, management, and
maintenance of manufacturing digital twins across the product life cycle, including design, planning,
production, and testing by defining principles, presenting methodologies, and providing use case examples.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 23247-2, Automation systems and integration — Digital twin framework for manufacturing — Part 2:
Reference architecture
3 Terms and definitions
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— — ISO Online browsing platform: available at https://www.iso.org/obp
— — IEC Electropedia: available at https://www.electropedia.org/
3.1 3.1
digital thread
digital thread for digital twins
bidirectional, dependable and trustworthy information that links digital twins with multiple data dimensions,
including structure, behaviour, space, time, and lifecycle stages
Note 1 to entry: The linked digital twins can model design requirements, product models, manufacturing processes,
inspection results and verification data.
Note 2 to entry: This definition was derived from a definition developed by the Digital Twin Consortium.
3.2 3.2
digital thread entity
component that manages the digital thread for digital twins (3.1(3.1))
3.3 3.3
digital thread link
reference or pointer that connects one digital twin to another with digital thread metadata
(3.6(3.6)) to establish a relationship
Note 1 to entry: Depending on performance constraints, a digital thread link (3.3(3.3)) can connect digital twins using
data structure, URL, Universally Unique Identifier (UUID), DB query or other mechanisms.
3.4 3.4
data store
repository that collects, organises and manages content for the digital twin(s)
Note 1 to entry: Multiple data stores can be used for the digital twins depending on their roles (e.g.,. design, engineering,
manufacturing, verification).
Note 2 to entry: Depending on system architecture, a data store can be implemented as a relational database, a graph
database, a cloud storage, a distributed ledger, or other suitable solutions.
3.5 3.5
digital thread ledger
repository of digital thread links (3.3(3.3)) that identifies digital twins and their relationships
with other digital twins
Note 1 to entry: In the simplest case, a digital thread ledger (3.5(3.5)) contains a list of digital thread links for the life cycle
stages of one digital twin.
3.6 3.6
digital thread metadata
information about the digital thread link (3.3(3.3)) between two digital twins
Note 1 to entry: The information can describe the purpose of the link, the date of the link, summarize an aspect of the
digital twins in the link, etc.
Note 2 to entry: When the term “metadata” is not further qualified, then it is assumed to be digital thread metadata.
3.7 3.7
digital twin prototype
DTP
informational sets necessary to describe and produce a digital twin instance (3.8(3.8)) that duplicates or
“twins” the corresponding observable manufacturing element (OME) (3.9(3.9),), including, but not limited to,
requirements, fully annotated 3D model, bill of materials (with material specifications), bill of processes, bill
of services and bill of disposal
Note 1 to entry: A digital twin prototype is not linked to an OME.
3.8 3.8
digital twin instance
DTI
fit for purpose digital representation of an observable manufacturing element (3.9(3.9)) with synchronisation
between the element and its digital representation
Note 1 to entry: When the term “digital twin” is not further qualified, then it is assumed to be a digital twin instance.
3.9 3.9
observable manufacturing element
OME
element that has an observable physical presence or operation in manufacturing
Note 1 to entry: Observable manufacturing elements include personnel, equipment, material, process, facility,
environment, product and supporting documentation.
[SOURCE: ISO 23247-1:2021, 3.2.5, modified — "item" was replaced by "element".]
© ISO #### 2026 – All rights reserved
4 General
4.1 Concept of digital thread for digital twins
The digital thread facilitates utilization of data and information for the life cycle of digital twins. The digital
thread precedes and follows the definition and implementation of the manufacturing digital twin. In
manufacturing, a digital twin is a digital representation of an observable manufacturing element (OME). A
digital twin prototype has to meet the design requirement of the product OME, before being transformed into
digital twin instance when the actual product is being manufactured. When the OME is in place, plans are made
for its manufacture. When the necessary equipment has been allocated, the plans are applied to the OME. At
this stage, the digital twin prototype becomes a digital twin instance. When manufacturing is finished, the
product is tested and inspected. If it is judged ready, the product is delivered to a customer.
NOTE Detailed descriptions of digital twin prototype, digital twin instance and digital twin aggregate are in
Annex AAnnex A.
As the product OME moves from design concept to delivery, the digital twins are linked together using the
digital thread. These links enable upstream processes to observe their impact on the final product and allow
downstream processes to access information that affected the upstream processes. The linked digital twins
can model requirement data, product data, manufacturing process data, inspection data and verification data.
The digital thread establishes a chain of custody for the digital twins so that users and applications can inspect
their evolution from design through planning, manufacturing and inspection. With this information,
manufacturers can optimise their processes, reduce waste and adapt effectively to changes, ultimately driving
innovation and competitiveness.
The digital thread enables digital twin and diverse applications to access data and information within the
context of the appropriate digital twin, ensuring seamless data flow across the product life cycle. In the
engineering stage, the digital thread connects design digital twins with simulation results, enabling validation
and optimisation before production starts. In the manufacturing stage, the digital thread links the design
digital twins and the manufacturing digital twins to ensure products are manufactured as designed. In the
validation stage, the digital thread integrates testing, manufacturing, and design digital twins to facilitate
problem analysis and quality improvements. Beyond production, the digital thread supports predictive
maintenance by combining multiple digital twins into digital twin aggregates that model operational
performance and historical trends for proactive decision making. The digital thread facilitates multi-
manufacturer collaboration and supply chain optimisation through digital twin sharing.
4.2 Digital twin utilisation of digital thread
The information of a digital twin is derived from information systems that support and enables the OME. This
information is contextualised for traceability, allowing users to monitor the status of the product OMEs and
thereby enhancing the visibility of the production process.
Figure 2Figure 2 shows how digital twins utilise digital threads to integrate and interpret manufacturing data
from various sources. Life cycle data and information are often siloed, logically or physically separated. The
digital thread enables connection to digital twins from disparate data sources. Digital twins use digital threads
to obtain base information about the manufacturing process and model components. This allows data analysis
and optimisation to represent the characteristics of the target OME. By connecting and contextualising life
cycle data, the digital thread facilitates continuous monitoring and improvement of the OME. This process
enhances decision-making, optimises production processes and fosters collaboration throughout the supply
chain, ultimately driving improvements in product design, innovation and overall visibility.
In Figure 2Figure 2,, the lower left box (i.e. life cycle data of digital twins) shows the existing information
system, and the upper left box (i.e. digital thread of life cycle data) shows that digital twins are realised from
those systems and linked by the digital thread. The middle figure (i.e. digital twins in manufacturing) shows a
subset of the digital twins in a digital twin entity for various life cycle stages. Changes to the OME are mirrored
in the digital twins using the infrastructure described in ISO 23247-1 to, ISO 23247-2, ISO 23247-3 and ISO
23247-4. Some of the information is aggregated for further analysis. New digital twins are linked to the digital
thread for usage by subsequent manufacturing processes.

Figure 2— Digital twin utilisation of digital threads
The following are different kinds of the life cycle data shown on the lower left of Figure 2Figure 2.
— — Contract data are data from agreements, terms and conditions between stakeholders or partners.
These data are the foundation for initiating the life cycle by establishing project goals and expectations.
© ISO #### 2026 – All rights reserved
— — Requirement data are data from the functional and technical requirements of the product or system.
It serves as a base for design, development and testing.
— — Design and engineering data are the physical and functional characteristics of the product, including
CAD models, schematics and engineering specifications used during the design and development stages.
— — Supplier data are information related to external suppliers, including materials, components and
supply chain logistics. These data are essential for coordinating with external vendors.
— — Production data are data from manufacturing processes, which include assembly instructions,
machine parameters and real-time production performance metrics.
— — Test data are the results from product testing, validation and quality assurance. It specifies whether
the product meets its specifications and identifies any defects or issues.
— — Operation and maintenance include usage statistics, performance monitoring, failure analysis and
maintenance logs.
— — Legacy data are the historical data from previous projects, systems or versions.
The use of a digital thread by the digital twin has many benefits shown on the right panel of Figure 2Figure 2.
The primary benefit is to support continuous enhancement and innovation within manufacturing, which leads
to the enhancement of efficiency in product design and development and improved decision-making.
Furthermore, the digital thread allows for a comprehensive view of the product life cycle, which results in
better traceability, quality control, and the ability to predict and address issues proactively. The digital thread
can provide information for the digital twin to enhance visibility, which leads to an enhancement in
cooperation and supply chain collaboration, and overall productivity in manufacturing.
4.3 Structure of a digital thread
Figure 3Figure 3 depicts the structure of a digital thread that consists of a series of digital twins and digital
thread links. Each digital twin has units of data with a unique identifier and other descriptive information that
represents an OME. These unique identifiers serve as the building block of the digital thread, as they are the
means for identifying digital twins. A digital thread link is a reference or pointer that connects one digital twin
to another to establish a relationship. Organising these links constitutes a digital thread that enable
traceability of data flow and transformation across different stages of the product life cycle.
Key
D1, D2 digital twin prototypes in the design stage
E1, E2 digital twin prototypes in the engineering stage
M1, M2 digital twin instances of OMEs in manufacturing
V1, V2 digital twin instances of OMEs in testing
OME1, OME2 OMEs that correspond to digital twins
digital thread link
association between digital twin and OME

{-} digital thread metadata
Figure 3— Representative example of a structure of digital threads for digital twins
The digital thread links shown in Figure 3Figure 3 include the following:
— — D E is a link between the digital twin prototype in the design stage (D ) and the digital twin
1 1 1
prototype in the engineering stage (E1), representing the relationship between the digital twins of the
initial design and the engineering specification;
— — E M is a link between E and the digital twin instance in the manufacturing stage (M ),
1 1 1 1
representing the relationship between the digital twins of the engineering specification and the product
in the manufacturing stage, with OME assigned to M for synchronisation;
1 1
— — E M is a link between E and the digital twin instance in the manufacturing stage (M ),
1 2 1 2
representing the relationship between the digital twins of the engineering specification and the product
in the manufacturing stage, with OME2 assigned to M2 for synchronisation.
The digital threads shown in Figure 3Figure 3 are as follows:
© ISO #### 2026 – All rights reserved
— — D1 E1 M1 V1 is a digital thread that is used to trace the life cycle of OME1 from
design to validation;
— — D E M V is a digital thread that is used to trace the life cycle of OME from
1 1 2 2 2
design to validation;
— — D2 E2 is a digital thread that ends at the engineering stage, which means the design has not yet
moved to manufacturing.
4.4 Data utilisation facilitated by digital threads
Figure 4Figure 4 illustrates the possible data utilisation facilitated by the digital thread shown in
Figure 3Figure 3. The digital thread enables seamless exchange and reuse of information across the design,
engineering, manufacturing, and validation stages between digital twin prototypes, digital twin instances, and
OMEs.
Key
D1, D2 digital twin prototypes in the design stage
E1, E2 digital twin prototypes in the engineering stage
M , M digital twin instances in the manufacturing stage
1 2
V , V digital twin instances in the validation stage
1 2
data utilisation facilitated by digital thread
Figure 4— Examples of data utilisation enabled by digital thread
Because each digital twin can be a composite of many other digital twins, numerous utilisation pathways are
possible. For example, a manufacturing process digital twin can be composed of a workpiece, fixture and
cutting tools, but for simplicity, they are shown as one twin in Figure 4Figure 4. The following are some
examples of data utilisation that are possible from Figure 4Figure 4.
— — For data utilisation from D1 to M1, a digital twin in the manufacturing stage (M1) uses D1 to understand
assembly constraints or critical dimensions that need to be maintained during production. This is implied
by a digital thread D E M . A similar use case can be applied to the data utilisation from
1 1 1
D to M .
1 2
— — For data utilisation from M to D , a digital twin in the design stage (D ) uses M to detect production
1 1 1 1
efficiency, CNC (Computer Numerical Control) tool wear, or machining error to improve design for
manufacturability and reduce production costs. This is implied by a digital thread D1 E1 M1.
A similar use case can be applied to the data utilisation from M to D .
2 1
— — For data utilisation between D and OMEs, D communicates with OMEs to acquire operational data
1 1
such as actual machining performance or detect production efficiency. This is implied by a digital thread
D E M or D E M V .
1 1 1 1 1 1 1
5 Digital thread entity
5.1 General
The digital thread entity consists of two components:
a) a) a digital thread ledger is a repository of logical digital thread links attributes defining the data
relationship between digital twins; and
b) b) an agent that facilitates access to the digital twins and provides for a historical record of digital
thread activity in response to service requests.
© ISO #### 2026 – All rights reserved
Key
DTE  digital twin entity
D1, D2  digital twins of design prototypes
E1, E2  digital twins of engineering prototypes
M , M  digital twins of product OMEs in manufacturing
1 2
V , V  digital twins of product OMEs in testing
1 2
digital thread link that connects digital twins

DTE digital twin entity
D1, D2 digital twins of design prototypes
E1, E2 digital twins of engineering prototypes
M , M digital twins of product OMEs in manufacturing
1 2
V1, V2 digital twins of product OMEs in testing
digital thread link that connects digital twins

digital thread
SD data store for the design digital twins
S data store for the engineering digital twins
E
SM data store for the manufacturing digital twins
S data store for the validation digital twins
V
digital thread query and response

{-} digital thread metadata
digital thread
SD   data store for the design digital twins
SE  data store for the engineering digital twins
SM  data store for the manufacturing digital twins
S  data store for the validation digital twins
V
digital thread query and response
{-}  digital thread metadata
Figure 5— Digital thread and digital twin entities
Figure 5Figure 5 shows the elements and the interactions within the framework of the digital thread shown
in Figure 3Figure 3. Each digital twin (D , D , E , E , M , M , V , V ) is a representation related to the product
1 2 1 2 1 2 1 2
OME in a specific stage of the product life cycle, including design, engineering, manufacturing, and validation.
Corresponding to each stage, digital twins are stored in designated data stores (S , S , S , S ) as shown in
D E M V
Figure 5Figure 5.
The digital thread connects these digital twins through digital thread links that establish a logical relationship
across the product life cycle stages. These links enable end-to-end digital thread traceability and continuity of
information as the digital twins are transitioned, evolved or composed.
5.2 Digital thread ledger
The digital thread ledger is a repository that stores digital thread links and attributes of the links that identify
digital twins and their relationship with other digital twins. Attributes are in the format of the metadata. It
maintains entries for each digital thread including the sequence of digital twins represented by the digital twin
identifiers, references to the corresponding data stores, and digital thread metadata that describes contextual
and operational meaning to each digital thread link. It is managed by the digital thread entity.
The digital threads stored in the digital thread ledger enable traceability of digital twin interactions and serve
as a foundation for the digital thread entity to process and respond to queries from digital twins.
The digital thread ledger can be implemented using various technologies, including relational databases,
graph models, distributed ledgers, or other data structures capable of supporting relationship-based queries.
5.3 Digital thread management
The digital thread entity facilitates the definition, operational use and management of digital threads used by
digital twins. It provides an administrative function to support a historical registry of the digital thread usage.
The digital thread entity enables:
— — receiving and processing of queries from digital twins seeking related digital twins;
— — searching the digital thread ledger to identify relevant digital twins and the associated digital thread
links;
— — responding to queries by providing digital twin identifiers and corresponding access paths to the
requesting digital twin;
— — updating the digital thread ledger when changes occur to the digital thread links between digital twins.
5.4 Digital thread metadata
Digital thread metadata enhances the traceability, interpretability and usability of the digital thread. It is
possible to construct a digital thread using only the source and destination digital twin identifiers. However,
© ISO #### 2026 – All rights reserved
including the metadata provides additional contextual and operational meaning to each digital thread link.
This facilitates efficient query responses and improved traceability through identifying, filtering and selecting
the most relevant digital twins for a given query.
Advantages of using metadata include:
— — assisting in the selection of the required digital twin;
— — preventing applications from using irrelevant digital twins;
— — enabling intelligent searching and large language training;
— — determining the utilisation of a digital twin;
— — adding enterprise-specific information.
The metadata can include, but is not limited to, the following:
— — digital thread link type;
NOTE Link type is a relationship between digital twins such as transition, composition, or evolution.
— — descriptive information explaining the purpose of the digital thread link;
— — identifiers of the source and destination digital twins;
— — relevant attributes of the linked digital twins;
— — timestamp, versioning and other administrative data;
— — relevant attributes of domain-specific data.
The following examples describe metadata for the digital twins in Figure 3Figure 3 and Figure 5Figure 5.
EXAMPLE 1 D E {-}: metadata from D to E to capture the updated version number of the design modification.
2 2 2 2
EXAMPLE 2 E M {-}: metadata from E to M to document the serial number of the manufactured part.
1 2 1 2
EXAMPLE 3 M2V2{-}: metadata from M2 to V2 to indicate successful completion of the quality control validation.
5.5 Digital thread query and response
A digital thread query and response is an operational interface between a digital twin entity and a digital
thread entity. This interaction enables a digital twin to retrieve relevant information about other digital twins
that are connected through a digital thread, supporting traceability, decision-making and contextual
awareness throughout the product life cycle.
A digital thread query and response consists of the following steps:
— — query initiation: the digital twin entity sends a query to the digital thread entity to search for related
digital twins;
— — query processing: the digital thread entity searches the digital thread ledger to find the digital twin
requested by the digital twin entity;
— — response: the digital thread entity provides a response containing the identifier(s) of the discovered
digital twins.
NOTE 1 Queries are submitted through an application programming interface (API), database interface, web portal or
messaging protocol such as MQTT (Message Queuing Telemetry Transport).
NOTE 2 Scenarios on how the digital threads are used by the digital twin are presented in Annex BAnnex B.
6 Digital thread life cycle
6.1 General
The digital thread facilitates seamless access and exchange of information between manufacturing digital
twins. This enables a continuous data flow across the product life cycle, as shown in Figure 6Figure 6.
© ISO #### 2026 – All rights reserved
Key
digital thread link in digital thread ledger

data or information as part of the product life cycle
standard as an enabler for the digital twin

data store interface
AP ISO 10303 Application Protocol
Figure 6— Illustrative example of digital threads for a product life cycle
The need for a digital thread increases with the number of diverse and distributed systems working together.
In many cases, a digital twin is composed of component digital twins that are designed and maintained by
suppliers. Therefore, an integrated system of systems approach is needed to understand, design, produce and
sustain digital twins.
6.2 Digital thread creation
The digital thread entity creates a digital thread by following procedures that include, but are not limited to:
a) a) defining the structure: selects or develops the data model for the metadata and reference
methods for implementing the digital thread links to ensure traceability and interconnectivity;
b) b) setting up access and utilisation control: regulates who can read, write and modify digital
thread data to ensure secure data exchange and maintain integrity of the digital thread;
c) c) adopting usage control rights: inherits security permissions and ownership rights from the
source digital twin to prevent unauthorised modification and misuse of digital twin data;
d) d) registering a digital thread: assigns unique identifiers and classifies threads based on various
factors, such as life cycle stages, product or components, process types, time-based versions,
compositions, etc.;
e) 6) adding to a digital thread ledger: digital thread links are added to the digital thread ledger in
response to application requests. Digital threads are constructed on demand from the links by the digital
thread entity in response to application queries.
6.3 Maintenance of digital thread ledger
6.3.1 Overview
The digital thread evolves as digital twins participate in activities in manufacturing. The digital thread entity
is responsible for maintaining the accuracy, completeness and reliability of the digital thread ledger over time.
Subclauses 6.3.2Subclauses 6.3.2 to 6.3.56.3.5 describe the maintenance capabilities provided by the digital
thread entity.
6.3.2 Validating digital thread links
Digital thread entity needs to periodically verify the validity and integrity of digital thread links recorded in
the digital thread ledger. The validation includes, but is not limited to, the following:
© ISO #### 2026 – All rights reserved
— — existence check: both linked digital twins are present;
— — accessibility check: both linked digital twins and their data stores are reachable and responsive;
— — integrity check: identifiers, link types, and attributes conform to the defined metadata schema;
EXAMPLE Periodically verify that both linked digital twins exist and are in accessible state.
6.3.3 Managing digital thread metadata and its attributes
Digital thread entity supports updates to link metadata and its attributes in alignment with the changes to the
status of the relationship between digital twins. Management of the digital thread metadata and its attributes
includes, but is not limited to, the following:
— — status management: manage and control the status of the digital thread links. Link status includes active,
deprecated, superseded, or archived;
— — versioning and provenance: record and manage the versions, timestamps of the change, and rationale
for changes;
— — schema conformance: enforce required metadata attributes and validate optional metadata attribute
against the defined metadata schema.
EXAMPLE Change the link's status from "active" to "deprecated", as with the change to the link between digital
twins.
6.3.4 Performance monitoring
Digital thread entity monitors the operational performance of the digital thread ledger to ensure quality of
service and stability. The performance monitoring includes, but is not limited to, the following:
— — query performance: check response-time, throughput, and timeouts;
— — reliability: check error rates and retry counts;
— — data integrity: integrity checks using mechanisms such as checksums or hashes of the digital thread or
digital thread links.
EXAMPLE Generate alert when the average response time for processing queries exceeds a defined threshold.
6.3.5 Error handling
Digital thread entity detects and handles broken or unresolvable links and related failures. The error handling
includes, but is not limited to, the following:
— — detection: identify missing digital twins, invalid identifier, access denials, or metadata schema violations;
— — isolate and correction: temporary isolate faulty links, attempt automated correction, and re-validate link;
— — notification: issue notifications to the responsible role for uncorrectable links;
— — logging and audit: record error events, corrective actions, and the results.
EXAMPLE If a digital thread link cannot be resolved due to an issue with the destination digital twin, the digital
thread entity returns a defined error code, marks the link as “error”, schedules a retry, and notifies the responsible role.
6.4 Digital thread life cycle and standards integration
6.4.1 Overview
The digital thread entity facilitates the definition and utilisation of digital thread links and relationships by
applications. Graph models can represent the characteristics and nature of these digital thread links. Digital
thread links are assessed based on qualitative attributes such as adherence to data standards, retention of
data integrity, accuracy of the data, timeliness of data interface and interaction, and digital thread link
associations.
Based on these attributes, the digital thread ledger is an aggregate of various factors such as standardization,
efficiency, data quality, elasticity and complication of the digital twin and its links. A standardization factor
represents the percentage adherence of data standards for each digital twin and digital thread link. Whereas
an efficiency factor measures the digital twin data and the link transfer either from one life cycle stage to
another, or digital twin to digital twin interactions. The elasticity factor signifies the architectural scalability
of the digital thread, whereas the complication factor embodies the number of digital twins.
There are many different ways and means of representing a digital thread. One of the approaches is visualising
a digital thread by using a dimensional graph model. A notional digital thread is described as a network of
digital twins and digital th
...
