ISO/TR 25295:2025

Technical
Report
ISO/TR 25295
First edition
Footwear — Global last
2025-07
measurement systems
Chaussures — Systèmes de mesurage de la forme à l'échelle
mondiale
Reference number
© ISO 2025
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii

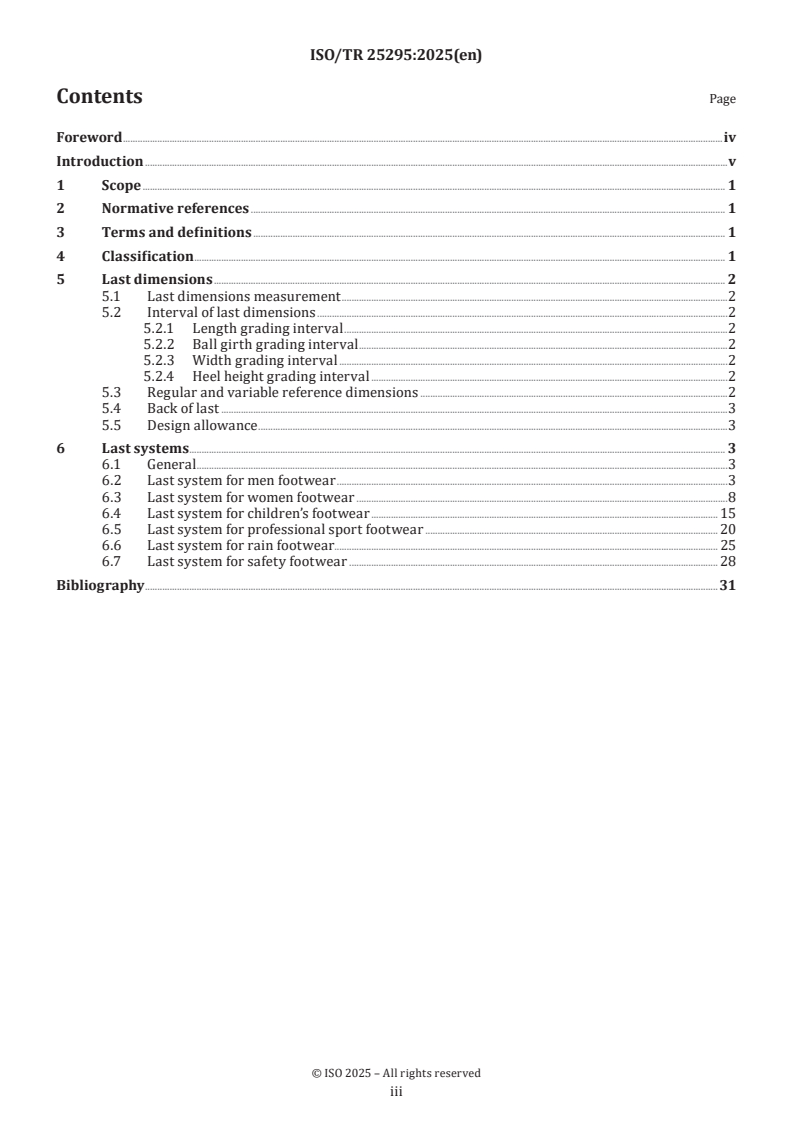

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Classification . 1
5 Last dimensions . 2
5.1 Last dimensions measurement .2
5.2 Interval of last dimensions .2
5.2.1 Length grading interval .2
5.2.2 Ball girth grading interval .2
5.2.3 Width grading interval .2
5.2.4 Heel height grading interval .2
5.3 Regular and variable reference dimensions .2
5.4 Back of last .3
5.5 Design allowance .3
6 Last systems . 3
6.1 General .3
6.2 Last system for men footwear .3
6.3 Last system for women footwear .8
6.4 Last system for children’s footwear . 15
6.5 Last system for professional sport footwear . 20
6.6 Last system for rain footwear. 25
6.7 Last system for safety footwear . 28
Bibliography .31

iii

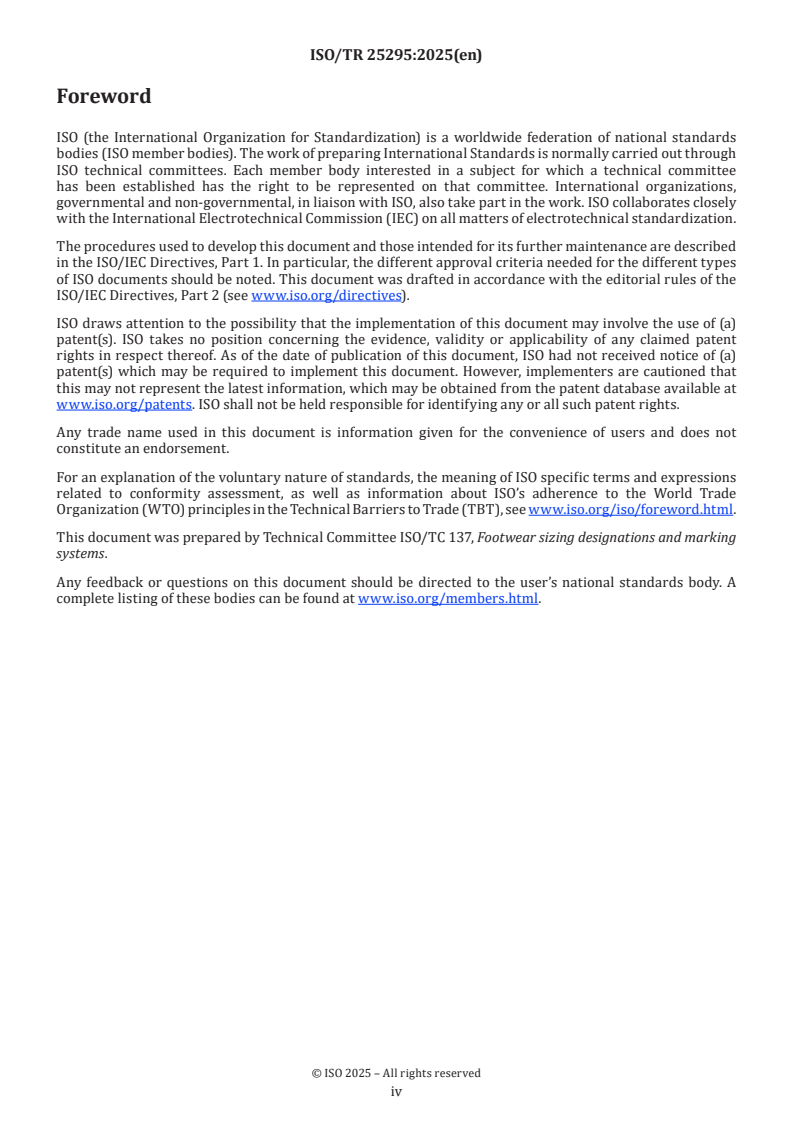

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO documents should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO’s adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 137, Footwear sizing designations and marking
systems.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

iv
Introduction
Lasts are the base for footwear production. Standardization related to lasts can guide and regulate the
design and production of lasts, thereby improving the fitting and comfort of footwear products.
This document includes partial information obtained from a survey carried out based on the Chinese
population in relation to GB/T 3293, the Chinese standard on lasts, which has undergone two revisions and
has been implemented for over 40 years.
This technical report not only allows footwear traders, manufacturers, and other stakeholders from various
countries to understand the last system, but also strengthens communication and cooperation in the design
and standardization of lasts.
v
Technical Report ISO/TR 25295:2025(en)
Footwear — Global last measurement systems
1 Scope
This document contains the sizing of last systems for daily wear footwear including casual footwear, sports
footwear and rain footwear.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 19408, Footwear — Sizing — Vocabulary
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 19408 and the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
reference last
last with dimensions as reference size
3.2
last system
complete sizing system of lasts that is set by increasing or reducing with the specified interval based on the
dimension of reference last (3.1)
3.3
regular reference dimensions
sizes that cannot be changed, such as the key points on the last bottom and ball girth
3.4
variable reference dimensions
dimensions other than the regular reference dimensions (3.3)
4 Classification
Footwear size can be classified according to Table 1. For each classification, reference sizes are given.

Table 1 — Footwear size with heel height classification
Dimensions in millimetres
Footwear size
Classification Common size Heel height of last
Special size
Size range Reference size
Infants 90 to 125 110 − −
Toddlers 130 to 170 150 − −
Children’s footwear
Young children 175 to 205 190 − −
Older children 210 to 250 225 Over 250 −
Flat ≤ 25
Women 215 to 250 235 Over 250 Middle 30 to 50
High 55 to 80
Adults’ footwear
Flat ≤ 20
Men 235 to 275 255 Over 275 Middle 25 to 35
High 40 to 50
5 Last dimensions
5.1 Last dimensions measurement
Measurement of last dimensions can be carried out according to ISO 19409.
5.2 Interval of last dimensions
5.2.1 Length grading interval
In practice, 10 mm intervals are commonly referred to as whole sizes, and 5 mm intervals as half sizes.
5.2.2 Ball girth grading interval
In practice, 7 mm intervals are commonly referred to as whole sizes, and 3,5 mm intervals as half sizes.
5.2.3 Width grading interval
In practice, 7 mm intervals are commonly referred to as whole sizes, and 3,5 mm intervals as half sizes.
5.2.4 Heel height grading interval
In practice, 5 mm intervals are commonly referred to as height grading, starting at 20 mm for men last and
at 25 mm for women last.
5.3 Regular and variable reference dimensions
5.3.1 The lengths of key points on the last bottom and ball girth are regular reference dimensions.
5.3.2 The widths of key points on the last bottom (including inner width of big toe, outer width of little
toe, inner width of first metatarsal, outer width of fifth metatarsal, tread width of heel, etc.) are regular
reference dimensions, but half size up or down is allowed based on the width reference dimensions, that is,
the width of each part on the last bottom can be set at any value within the range of plus or minus half size.
5.3.3 The other dimensions of the last are variable.

5.4 Back of last
Regardless of style of toe design, the dimension of back of last behind the ball girth can remain unchanged
for a last with the same type and same heel height.
5.5 Design allowance
5.5.1 Based on regular reference dimensions of the various length, girth and width on a last with the same
footwear size and type, the design allowance can be added to the toe allowance.
5.5.2 The design can be based on regular and variable reference dimensions and other dimensions to
achieve comfort and aesthetics of the footwear.
5.5.3 Design allowance can be variable as long as it does not affect wearing, but this does not apply to
safety footwear and children’s footwear.
6 Last systems
6.1 General
This clause contains the last systems for men, women and children footwear, and for different footwear types.
6.2 Last system for men footwear
The dimensions of reference last for men footwear are given in Table 2 and Table 3.

Table 2 — Reference last dimensions of men footwear (lace-up footwear, tongue-type footwear and high-cut footwear)
Dimensions in millimetres
Reference last dimensions
Lace-up footwear Tongue-type footwear High-cut footwear
Last dimensions
255 (2,5) 255 (2,5) 255 (2,5) 255 (2,5) 255 (2,5) 255 (2,5)
Size Interval Size Interval Size Interval Size Interval Size Interval Size Interval
Last bottom length 270,0 ±5,0 270,0 ±5,0 270,0 ±5,0 270,0 ±5,0 270,0 ±0,5 270,0 ±0,5
Toe allowance 20,4 ±0,4 20,4 ±0,4 20,4 ±0,4 20,4 ±0,4 20,4 ±0,4 20,4 ±0,4
Toe tip 249,9 ±4,6 249,9 ±4,6 249,6 ±4,6 249,6 ±4,6 249,6 ±4,6 249,6 ±4,6
Swell point of big toe 224,2 ±4,2 224,2 ±4,2 224,2 ±4,2 224,2 ±4,2 224,2 ±4,2 224,2 ±4,2
Swell point of little toe 193,6 ±3,6 193,6 ±3,6 193,6 ±3,6 193,6 ±3,6 193,6 ±3,6 193,6 ±3,6
st
Position of 1 metatarsal 179,6 ±3,0 179,6 ±3,0 179,6 ±3,3 179,6 ±3,3 179,6 ±3,3 179,6 ±3,3
Length
Landing point of forefoot 170,5 ±3,2 170,5 ±3,2 170,5 ±3,2 170,5 ±3,2 170,5 ±3,2 170,5 ±3,2
th
Position of 5 metatarsal 156,7 ±2,9 156,7 ±2,9 156,7 ±2,9 156,7 ±2,9 156,7 ±2,9 156,7 ±2,9
Landing point of total toe
153,0 ±2,8 153,0 ±2,8 153,0 ±2,8 153,0 ±2,8 153,0 ±2,8 153,0 ±2,8
spring
Waist 99,3 ±1,8 99,3 ±1,8 99,3 ±1,8 99,3 ±1,8 99,3 ±1,8 99,3 ±1,8
Centre of heel area 40,8 ±0,8 40,8 ±0,8 40,8 ±0,8 40,8 ±0,8 40,8 ±0,8 40,8 ±0,8
Maximum of heel curve 5,1 ±0,1 5,1 ±0,1 5,1 ±0,1 5,1 ±0,1 5,1 ±0,1 5,1 ±0,1
Ball girth 243,0 ±3,5 243,0 ±3,5 239,5 ±3,5 239,5 ±3,5 246,5 ±3,5 246,5 ±3,5
Girth
Instep girth 245,0 ±3,6 245,0 ±3,6 239,5 ±3,5 239,5 ±3,5 251,6 ±3,6 251,6 ±3,6
Stick width of ball area 88,8 ±1,3 88,8 ±1,3 87,5 ±1,3 87,5 ±1,3 90,1 ±1,3 90,1 ±1,3
Tread width of ball area 90,0 ±1,3 90,0 ±1,3 88,7 ±1,3 88,7 ±1,3 91,3 ±1,3 91,3 ±1,3
Inner width of big toe 34,1 ±0,5 34,1 ±0,5 33,6 ±0,5 33,6 ±0,5 34,6 ±0,5 34,6 ±0,5
Outer width of little toe 51,7 ±0,7 51,7 ±0,7 51,0 ±0,7 51,0 ±0,7 52,4 ±0,7 52,4 ±0,7
st
Inner width of 1
Width
36,0 ±0,5 36,0 ±0,5 35,5 ±0,5 35,5 ±0,5 36,5 ±0,5 36,5 ±0,5
metatarsal
th
Outer width of 5
52,8 ±0,8 52,8 ±0,8 52,0 ±0,8 52,0 ±0,8 53,6 ±0,8 53,6 ±0,8
metatarsal
Outer width of waist 40,0 ±0,6 40,0 ±0,6 39,4 ±0,6 39,4 ±0,6 40,6 ±0,6 40,6 ±0,6
Tread width of heel 60,5 ±0,9 60,5 ±0,9 59,6 ±0,9 59,6 ±0,9 61,4 ±0,9 61,4 ±0,9
a
Heel height of last 15,0 ±0,2 25,0 ±0,2 15,0 ±0,2 25,0 ±0,2 15,0 ±0,2 25,0 ±0,4
Height Toe spring 18,5 ±0,2 17,5 ±0,2 18,5 ±0,2 17,5 ±0,2 18,5 ±0,2 17,5 ±0,2
Total toe spring 26,0 ±0,3 32,0 ±0,3 26,0 ±0,3 32,0 ±0,3 26,0 ±0,3 32,0 ±0,5

Table 2 (continued)
Reference last dimensions
Lace-up footwear Tongue-type footwear High-cut footwear
Last dimensions
255 (2,5) 255 (2,5) 255 (2,5) 255 (2,5) 255 (2,5) 255 (2,5)
Size Interval Size Interval Size Interval Size Interval Size Interval Size Interval
Toe height 21,0 ±0,3 21,0 ±0,3 21,0 ±0,3 21,0 ±0,3 21,0 ±0,3 21,0 ±0,3
Height of maximum of heel
22,7 ±0,3 22,7 ±0,3 22,7 ±0,3 22,7 ±0,3 22,7 ±0,3 22,7 ±0,3
curve
Back height 75,0 ±1,0 75,0 ±1,0 75,0 ±1,0 75,0 ±1,0 101,4 ±1,4 101,4 ±1,4
Convexity of ball area 5,0 ±0,1 5,0 ±0,1 5,0 ±0,1 5,0 ±0,1 5,0 ±0,1 5,0 ±0,1
Other
Concavity of waist 5,5 ±0,1 6,5 ±0,1 5,5 ±0,1 6,5 ±0,1 5,5 ±0,1 6,5 ±0,6
Convexity of heel area 4,0 − 4,0 − 4,0 − 4,0 − 4,0 − 4,0 −
Width of top line 26,0 ±0,4 26,0 ±0,4 26,0 ±0,4 26,0 ±0,4 30,0 ±0,4 30,0 ±0,4
Length of top line 102,0 ±1,9 102,0 ±1,9 101,0 ±1,9 101,0 ±1,9 112,1 ±2,1 112,1 ±2,1
Diagonal length of last 269,9 ±5,0 268,5 ±5,0 269,9 ±5,0 268,5 ±5,0 282,7 ±5,2 282,7 ±5,2
NOTE  Design allowance of last can be determined based on the toe shape of last.
a
The classification and range of heel height of last are given in Table 1.

Table 3 — Reference last dimensions of men footwear (sandal and general sport footwear)
Dimensions in millimetres
Reference last dimensions
General sport footwear
Sandal
Last dimensions Medium-cut High-cut
255 (2,5) 255 (2,5) 255 (2,5) 255 (2,5) 255 (2,5) 255 (2,5)
Size Interval Size Interval Size Interval Size Interval Size Interval Size Interval
Last bottom length 260,0 ±5,0 260,0 ±5,0 267,0 ±5,0 267,0 ±5,0 268,0 ±5,0 268,0 ±5,0
Toe allowance 9,2 ±0,2 9,2 ±0,2 16,3 ±0,3 16,3 ±0,3 16,3 ±0,3 16,3 ±0,3
Toe tip 249,6 ±4,6 249,6 ±4,6 250,7 ±4,7 250,7 ±4,7 250,7 ±4,7 250,7 ±4,7
Swell point of big toe 224,2 ±4,2 224,2 ±4,2 224,2 ±4,2 224,2 ±4,2 224,2 ±4,2 224,2 ±4,2
Swell point of little toe 193,6 ±3,6 193,6 ±3,6 193,5 ±3,6 193,5 ±3,6 193,5 ±3,6 193,5 ±3,6
st
Position of 1 metatarsal 179,6 ±3,3 179,6 ±3,3 179,6 ±3,4 179,6 ±3,4 179,6 ±3,4 179,6 ±3,4
Length
Landing point of forefoot 170,5 ±3,2 170,5 ±3,2 170,5 ±3,2 170,5 ±3,2 170,5 ±3,2 170,5 ±3,2
th
Position of 5 metatarsal 156,7 ±2,9 156,7 ±2,9 156,7 ±2,9 156,7 ±2,9 156,7 ±2,9 156,7 ±2,9
Landing point of total toe
153,0 ±2,8 153,0 ±2,8 153,0 ±2,9 153,0 ±2,9 153,0 ±2,9 153,0 ±2,9
spring
Waist 99,3 ±1,8 99,3 ±1,8 99,3 ±1,9 99,3 ±1,9 99,3 ±1,9 99,3 ±1,9
Centre of heel area 40,8 ±0,8 40,8 ±0,8 40,8 ±0,8 40,8 ±0,8 40,8 ±0,8 40,8 ±0,8
Maximum of heel curve 5,1 ±0,1 5,1 ±0,1 5,0 ±0,1 5,0 ±0,1 5,0 ±0,1 5,0 ±0,1
Ball girth 243,0 ±3,5 243,0 ±3,5 243,0 ±3,5 243,0 ±3,5 243,0 ±3,5 243,0 ±3,5
Girth
Instep girth 245,0 ±3,6 245,0 ±3,6 247,0 ±3,6 245,0 ±3,6 247,0 ±3,6 245,0 ±3,6
Stick width of ball area 88,8 ±1,3 88,8 ±1,3 86,7 ±1,3 86,7 ±1,3 86,7 ±1,3 86,7 ±1,3
Tread width of ball area 90,0 ±1,3 90,0 ±1,3 87,7 ±1,3 87,7 ±1,3 87,7 ±1,3 87,7 ±1,3
Inner width of big toe 34,1 ±0,5 34,1 ±0,5 34,0 ±0,5 34,0 ±0,5 34,0 ±0,5 34,0 ±0,5
Outer width of little toe 51,7 ±0,7 51,7 ±0,7 50,2 ±0,8 50,2 ±0,8 50,2 ±0,8 50,2 ±0,8
st
Inner width of 1
Width
36,0 ±0,5 36,0 ±0,5 35,5 ±0,5 35,5 ±0,5 35,5 ±0,5 35,5 ±0,5
metatarsal
th
Outer width of 5
52,8 ±0,8 52,8 ±0,8 51,2 ±0,8 51,2 ±0,8 51,2 ±0,8 51,2 ±0,8
metatarsal
Outer width of waist 40,0 ±0,6 40,0 ±0,6 38,4 ±0,6 38,4 ±0,6 38,4 ±0,6 38,4 ±0,6
Tread width of heel 60,5 ±0,9 60,5 ±0,9 58,1 ±0,9 58,1 ±0,9 58,1 ±0,9 58,1 ±0,9

Table 3 (continued)
Reference last dimensions
General sport footwear
Sandal
Last dimensions Medium-cut High-cut
255 (2,5) 255 (2,5) 255 (2,5) 255 (2,5) 255 (2,5) 255 (2,5)
Size Interval Size Interval Size Interval Size Interval Size Interval Size Interval
a
Heel height of last 15,0 ±0,2 25,0 ±0,4 15,0 ±0,2 25,0 ±0,2 15,0 ±0,2 25,0 ±0,4
Height Toe spring 16,5 ±0,2 17,0 ±0,2 17,5 ±0,4 16,5 ±0,2 17,5 ±0,4 16,5 ±0,5
Total toe spring 23,0 ±0,3 29,0 ±0,4 28,0 ±0,4 34,0 ±0,4 28,0 ±0,4 34,0 ±0,5
Toe height 21,0 ±0,3 21,0 ±0,3 25,0 ±0,4 25,0 ±0,4 25,0 ±0,4 25,0 ±0,4
Height of maximum of heel
22,7 ±0,3 22,7 ±0,3 22,7 ±0,3 22,7 ±0,3 22,7 ±0,3 22,7 ±0,3
curve
Back height 75,0 ±1,1 75,0 ±1,1 92,0 ±1,4 92,0 ±1,4 117,0 ±1,7 117,0 ±1,7
Convexity of ball area 5,0 ±0,1 5,0 ±0,1 5,0 ±0,1 5,0 ±0,1 5,0 ±0,1 5,0 ±0,1
Other
Concavity of waist 5,5 ±0,1 6,5 ±0,6 5,0 ±0,1 6,0 ±0,1 5,0 ±0,1 6,5 ±0,1
Convexity of heel area 4,0 − 4,0 − 4,0 ±0,1 4,0 ±0,1 4,0 ±0,1 4,0 ±0,1
Width of top line 26,0 ±0,4 26,0 ±0,4 26,0 ±0,4 26,0 ±0,4 26,0 ±0,4 26,0 ±0,4
Length of top line 102,0 ±2,0 102,0 ±2,0 85,0 ±1,9 85,0 ±1,9 83,0 ±1,8 83,0 ±1,8
Diagonal length of last 255,1 ±5,0 253,7 ±5,0 270,0 ±5,0 268,0 ±5,0 289,0 ±5,5 287,0 ±5,5
NOTE  For lasts of general sport footwear, the ball girth, instep girth, toe height, height maximum of heel curve and back height all need to be adjusted by adding
the thickness of the insock.
a
The classification and range of heel height of last are given in Table 1.

6.3 Last system for women footwear
The dimensions of reference last for women footwear are given in Table 4, Table 5 and Table 6.

Table 4 — Reference last dimensions of women footwear (lace-up footwear and low-vamp footwear)
Dimensions in millimetres
Reference last dimensions
Lace-up footwear Low-vamp footwear
Last dimensions
235 (1,5) 235 (1,5) 235 (1,5) 235 (1,5) 235 (1,5) 235 (1,5)
Size Interval Size Interval Size Interval Size Interval Size Interval Size Interval
Last bottom length 247,0 ±5,0 247,0 ±5,0 247,0 ±5,0 245,0 ±5,0 245,0 ±5,0 245,0 ±5,0
Toe allowance 16,8 ±0,3 16,8 ±0,3 16,8 ±0,3 14,8 ±0,3 14,8 ±0,3 14,8 ±0,3
Toe tip 230,2 ±4,7 230,2 ±4,7 230,2 ±4,7 230,2 ±4,7 230,2 ±4,7 230,2 ±4,7
Swell point of big toe 206,7 ±4,2 206,7 ±4,2 206,7 ±4,2 206,7 ±4,2 206,7 ±4,2 206,7 ±4,2
Swell point of little toe 178,5 ±3,6 178,5 ±3,6 178,5 ±3,6 178,5 ±3,6 178,5 ±3,6 178,5 ±3,6
st
Position of 1 metatarsal 165,7 ±3,4 165,7 ±3,4 165,7 ±3,4 165,7 ±3,4 165,7 ±3,4 165,7 ±3,4
Length
Landing point of forefoot 157,0 ±3,2 157,0 ±3,2 157,0 ±3,2 157,0 ±3,2 157,0 ±3,2 157,0 ±3,2
th
Position of 5 metatarsal 144,5 ±2,9 144,5 ±2,9 144,5 ±2,9 144,6 ±3,0 144,5 ±3,0 144,6 ±3,0
Landing point of total
139,9 ±2,9 139,9 ±2,9 139,9 ±2,9 139,9 ±3,0 139,9 ±2,9 139,9 ±2,9
toe spring
Waist 91,7 ±1,9 91,7 ±1,9 91,7 ±1,9 91,7 ±1,9 91,7 ±1,9 91,7 ±1,9
Centre of heel area 37,7 ±0,8 37,7 ±0,8 37,7 ±0,8 37,7 ±0,8 37,7 ±0,8 37,7 ±0,8
Maximum of heel curve 4,5 ±0,1 4,0 ±0,1 3,4 ±0,1 4,5 ±0,1 4,0 ±0,1 3,4 ±0,1
Ball girth 218,0 ±3,5 220,0 ±3,5 224,0 ±3,5 214,5 ±3,5 216,5 ±3,5 220,5 ±3,5
Girth
Instep girth 220,0 ±3,6 218,0 ±3,5 214,0 ±3,4 218,9 ±3,5 216,9 ±3,4 211,4 ±3,3
Stick width of ball area 80,5 ±1,3 79,2 ±1,2 76,8 ±1,2 80,0 ±1,3 78,7 ±1,2 76,3 ±1,2
Tread width of ball area 81,5 ±1,3 80,2 ±1,2 77,8 ±1,2 80,8 ±1,2 79,5 ±1,2 77,3 ±1,2
Inner width of big toe 30,6 ±0,5 30,1 ±0,4 29,3 ±0,4 29,4 ±0,5 28,9 ±0,4 28,1 ±0,4
Outer width of little toe 46,2 ±0,7 45,5 ±0,7 44,1 ±0,7 45,8 ±0,7 45,1 ±0,7 43,7 ±0,7
st
Inner width of 1
Width
33,3 ±0,5 32,8 ±0,5 31,8 ±0,5 33,2 ±0,5 32,7 ±0,5 31,7 ±0,5
metatarsal
th
Outer width of 5
47,2 ±0,8 46,4 ±0,7 45,0 ±0,7 46,8 ±0,8 46,0 ±0,7 44,6 ±0,7
metatarsal
Outer width of waist 36,0 ±0,6 35,4 ±0,5 34,4 ±0,5 34,7 ±0,6 34,1 ±0,5 33,1 ±0,5
Tread width of heel 54,3 ±0,9 53,4 ±0,8 51,8 ±0,8 53,3 ±0,9 52,4 ±0,8 50,8 ±0,8
a
Heel height of last 20,0 ±0,3 40,0 ±0,6 70,0 ±0,9 20,0 ±0,3 40,0 ±0,6 70,0 ±0,9
Height Toe spring 15,3 ±0,3 13,2 ±0,2 10,2 ±0,2 15,3 ±0,3 13,2 ±0,2 10,2 ±0,2
Total toe spring 26,9 ±0,4 38,1 ±0,6 54,9 ±0,9 26,9 ±0,4 38,1 ±0,6 54,9 ±0,9

Table 4 (continued)
Reference last dimensions
Lace-up footwear Low-vamp footwear
Last dimensions
235 (1,5) 235 (1,5) 235 (1,5) 235 (1,5) 235 (1,5) 235 (1,5)
Size Interval Size Interval Size Interval Size Interval Size Interval Size Interval
Toe height 17,0 ±0,3 17,0 ±0,3 17,0 ±0,3 17,0 ±0,3 17,0 ±0,3 17,0 ±0,3
Height of maximum of heel
20,6 ±0,3 20,6 ±0,3 20,6 ±0,3 20,6 ±0,3 20,6 ±0,3 20,6 ±0,3
curve
Back height 70,0 ±1,1 70,0 ±1,1 70,0 ±1,0 70,0 ±1,1 70,0 ±1,1 70,0 ±1,0
Convexity of ball area 4,6 ±0,1 4,1 ±0,1 4,1 ±0,1 4,6 ±0,1 4,1 ±0,1 4,1 ±0,1
Other
Concavity of waist 5,6 ±0,1 7,1 ±0,1 8,6 ±0,1 5,6 ±0,1 7,1 ±0,1 8,6 ±0,1
Convexity of heel area 3,5 − 3,0 − 3,0 − 3,5 − 3,0 − 3,0 −
Width of top line 20,3 ±0,3 20,3 ±0,3 20,3 ±0,3 20,3 ±0,3 20,3 ±0,3 20,3 ±0,3
Length of top line 91,9 ±1,9 91,9 ±1,9 91,9 ±1,9 91,9 ±1,9 91,9 ±1,9 91,9 ±1,9
Diagonal length of last 245,2 ±5,0 242,4 ±4,9 238,2 ±4,8 242,0 ±4,9 239,2 ±4,9 235,0 ±4,8
NOTE  Design allowance of last can be determined based on the toe shape of the last.
a
The classification and range of heel height of last are given in Table 1.

Table 5 — Reference last dimensions of women footwear (tongue-type footwear and high-cut footwear)
Dimensions in millimetres
Reference last dimensions
Tongue-type footwear high-cut footwear
Last dimensions
235 (1,5) 235 (1,5) 235 (1,5) 235 (1,5) 235 (1,5) 235 (1,5)
Size Interval Size Interval Size Interval Size Interval Size Interval Size Interval
Last bottom length 247,0 ±5,0 247,0 ±5,0 247,0 ±5,0 247,0 ±5,0 247,0 ±5,0 247,0 ±5,0
Toe allowance 16,8 ±0,3 16,8 ±0,3 16,8 ±0,3 16,8 ±0,3 16,8 ±0,3 16,8 ±0,3
Toe tip 230,2 ±4,7 230,2 ±4,7 230,2 ±4,7 230,2 ±4,7 230,2 ±4,7 230,2 ±4,7
Swell point of big toe 206,7 ±4,2 206,7 ±4,2 206,7 ±4,2 206,7 ±4,2 206,7 ±4,2 206,7 ±4,2
Swell point of little toe 178,5 ±3,6 178,5 ±3,6 178,5 ±3,6 178,5 ±3,6 178,5 ±3,6 178,5 ±3,6
st
Position of 1 metatarsal 165,7 ±3,4 165,7 ±3,4 165,7 ±3,4 165,7 ±3,4 165,7 ±3,4 165,7 ±3,4
Length
Landing point of forefoot 157,0 ±3,2 157,0 ±3,2 157,0 ±3,2 157,0 ±3,2 157,0 ±3,2 157,0 ±3,2
th
Position of 5 metatarsal 144,5 ±2,9 144,5 ±2,9 144,5 ±2,9 144,5 ±3,0 144,5 ±3,0 144,5 ±3,0
Landing point of total
139,9 ±2,9 139,9 ±2,9 139,9 ±2,9 139,9 ±2,9 139,9 ±2,9 139,9 ±2,9
toe spring
Waist 91,7 ±1,9 91,7 ±1,9 91,7 ±1,9 91,7 ±1,9 91,6 ±1,8 91,7 ±1,9
Centre of heel area 37,7 ±0,8 37,7 ±0,8 37,7 ±0,8 37,7 ±0,8 37,7 ±0,8 37,7 ±0,8
Maximum of heel curve 4,4 ±0,1 4,0 ±0,1 3,6 ±0,1 4,5 ±0,1 4,0 ±0,1 3,6 ±0,1
Ball girth 216,0 ±3,5 218,0 ±3,5 222,0 ±3,5 221,5 ±3,5 223,5 ±3,5 227,5 ±3,5
Girth
Instep girth 220,0 ±3,5 218,0 ±3,5 216,0 ±3,4 226,5 ±3,5 224,0 ±3,5 220,0 ±3,4
Stick width of ball area 79,2 ±1,3 77,9 ±1,2 75,5 ±1,2 79,5 ±1,2 78,2 ±1,2 75,8 ±1,2
Tread width of ball area 80,2 ±1,3 78,9 ±1,2 76,5 ±1,2 80,5 ±1,2 79,2 ±1,2 76,8 ±1,2
Inner width of big toe 30,1 ±0,5 29,6 ±0,4 28,8 ±0,4 30,1 ±0,5 29,6 ±0,4 28,8 ±0,4
Outer width of littl
...
