ISO 12999-1:2020
(Main)Acoustics — Determination and application of measurement uncertainties in building acoustics — Part 1: Sound insulation
Acoustics — Determination and application of measurement uncertainties in building acoustics — Part 1: Sound insulation
This document specifies procedures for assessing the measurement uncertainty of sound insulation in building acoustics. It provides for — a detailed uncertainty assessment; — a determination of uncertainties by inter-laboratory tests; — an application of uncertainties. Furthermore, typical uncertainties are given for quantities determined according to ISO 10140 (all parts), ISO 16283 (all parts) and ISO 717 (all parts).
Acoustique — Détermination et application des incertitudes de mesure dans l'acoustique des bâtiments — Partie 1: Isolation acoustique
Le présent document spécifie des méthodes permettant d'évaluer l'incertitude de mesure de l'isolement acoustique dans le domaine de l'acoustique des bâtiments. Il prévoit: — l'évaluation détaillée de l'incertitude; — la détermination des incertitudes par des essais interlaboratoires; — l'application des incertitudes. En outre, des incertitudes caractéristiques sont données pour les grandeurs déterminées conformément à l'ISO 10140 (toutes les parties), l'ISO 16283 (toutes les parties) et l'ISO 717 (toutes les parties).
General Information
Relations
Buy Standard
Standards Content (Sample)

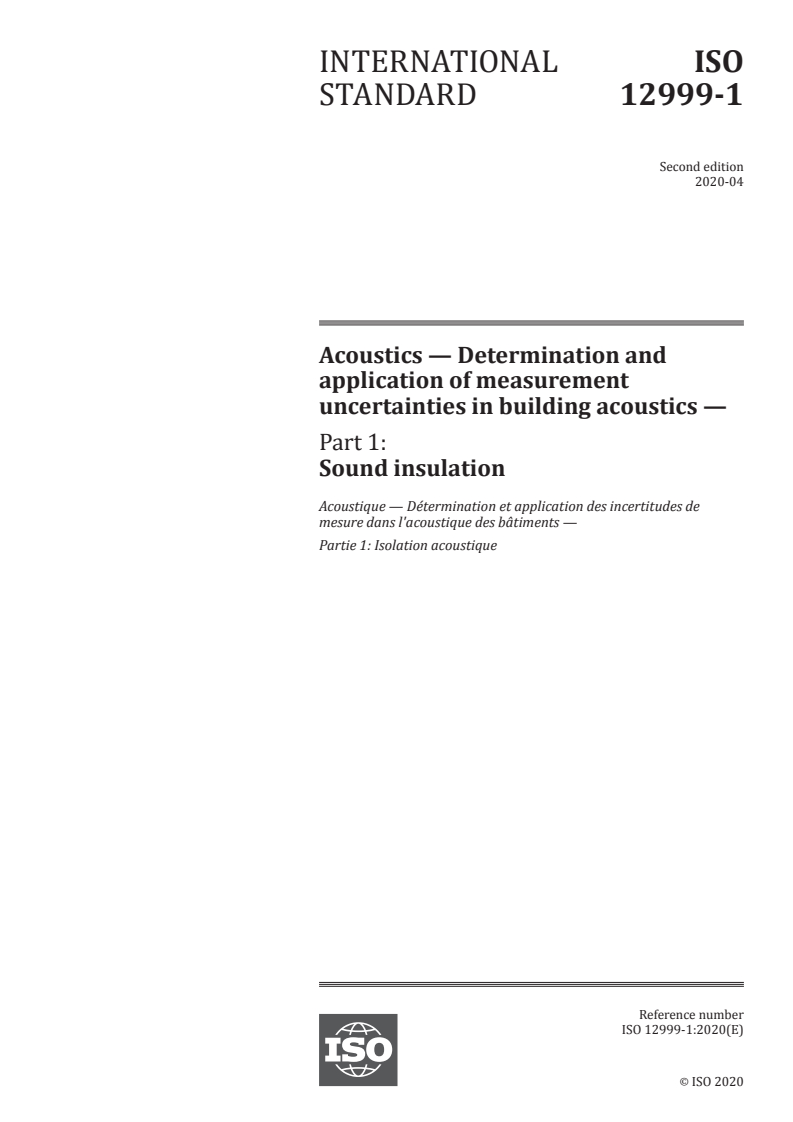

INTERNATIONAL ISO
STANDARD 12999-1
Second edition
2020-04
Acoustics — Determination and
application of measurement
uncertainties in building acoustics —
Part 1:
Sound insulation
Acoustique — Détermination et application des incertitudes de
mesure dans l'acoustique des bâtiments —
Partie 1: Isolation acoustique
Reference number
©
ISO 2020
© ISO 2020
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2020 – All rights reserved

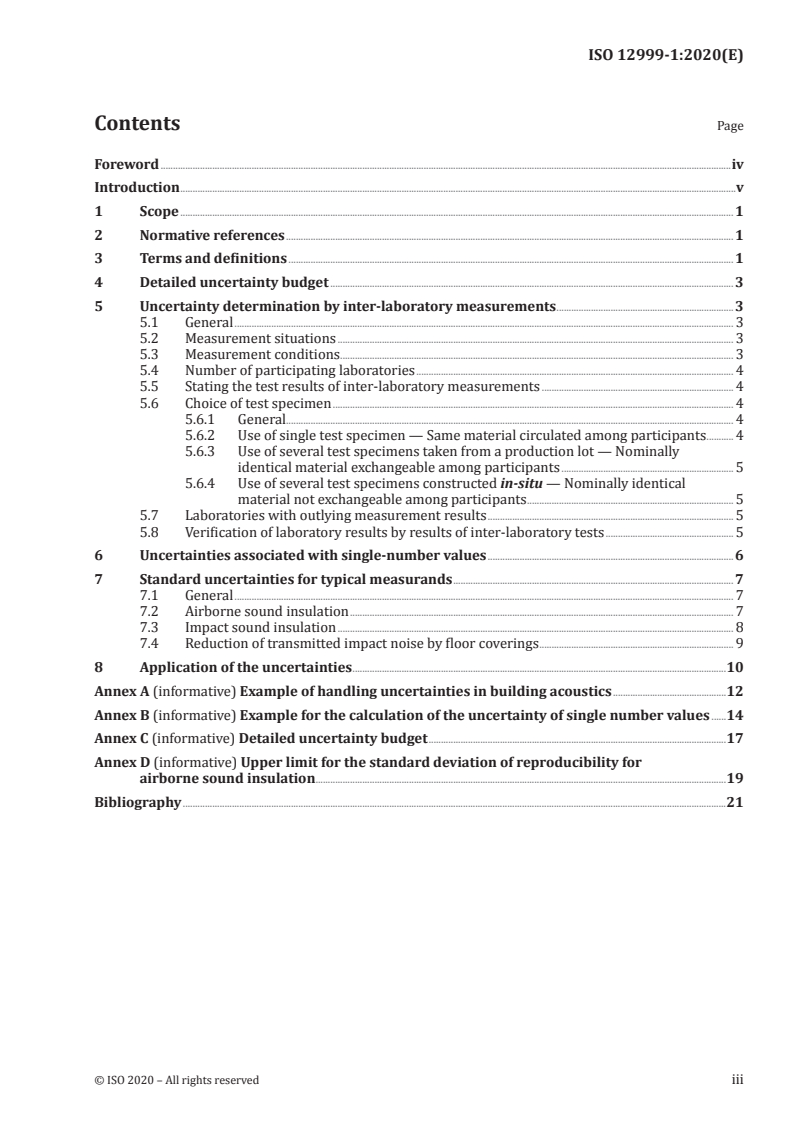

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Detailed uncertainty budget . 3
5 Uncertainty determination by inter-laboratory measurements . 3
5.1 General . 3
5.2 Measurement situations . 3
5.3 Measurement conditions . . 3
5.4 Number of participating laboratories . 4
5.5 Stating the test results of inter-laboratory measurements . 4
5.6 Choice of test specimen . 4
5.6.1 General. 4
5.6.2 Use of single test specimen — Same material circulated among participants . 4
5.6.3 Use of several test specimens taken from a production lot — Nominally
identical material exchangeable among participants . 5
5.6.4 Use of several test specimens constructed in-situ — Nominally identical
material not exchangeable among participants . 5
5.7 Laboratories with outlying measurement results . 5
5.8 Verification of laboratory results by results of inter-laboratory tests . 5
6 Uncertainties associated with single-number values . 6
7 Standard uncertainties for typical measurands . 7
7.1 General . 7
7.2 Airborne sound insulation . 7
7.3 Impact sound insulation . 8
7.4 Reduction of transmitted impact noise by floor coverings . 9
8 Application of the uncertainties .10
Annex A (informative) Example of handling uncertainties in building acoustics .12
Annex B (informative) Example for the calculation of the uncertainty of single number values .14
Annex C (informative) Detailed uncertainty budget .17
Annex D (informative) Upper limit for the standard deviation of reproducibility for
airborne sound insulation .19
Bibliography .21

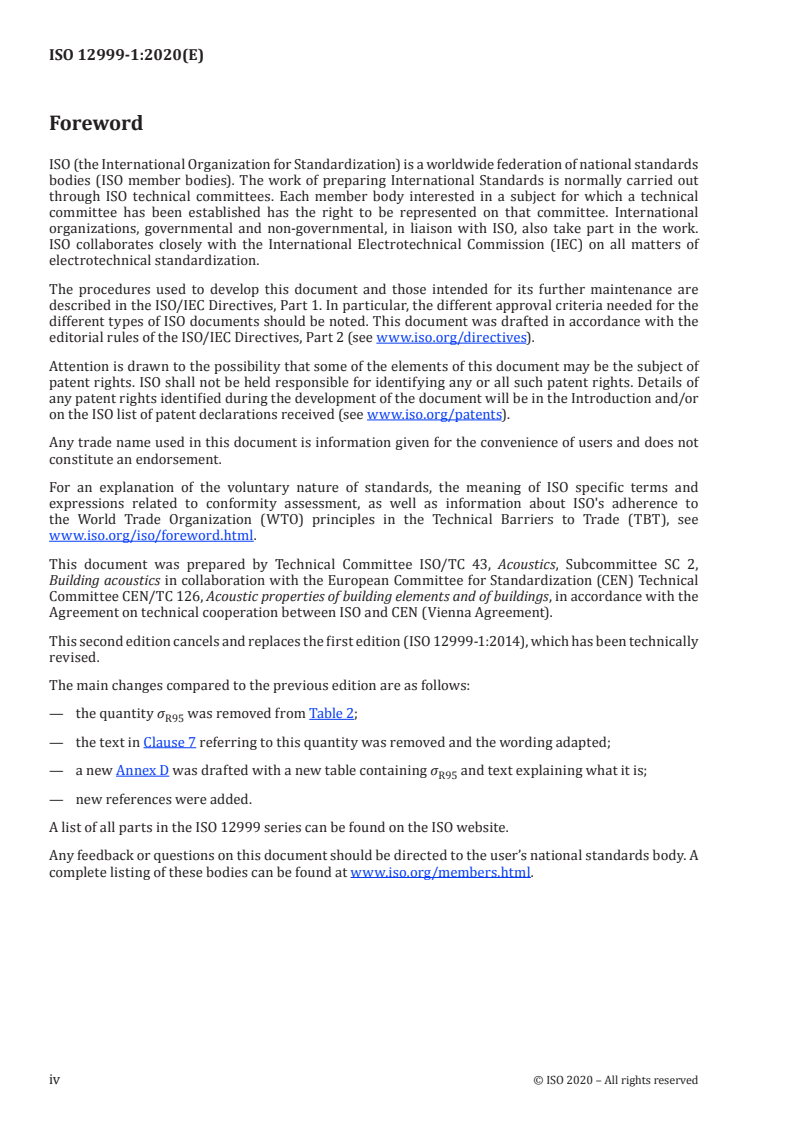

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www .iso .org/ iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 43, Acoustics, Subcommittee SC 2,
Building acoustics in collaboration with the European Committee for Standardization (CEN) Technical
Committee CEN/TC 126, Acoustic properties of building elements and of buildings, in accordance with the
Agreement on technical cooperation between ISO and CEN (Vienna Agreement).
This second edition cancels and replaces the first edition (ISO 12999-1:2014), which has been technically
revised.
The main changes compared to the previous edition are as follows:
— the quantity σ was removed from Table 2;
R95
— the text in Clause 7 referring to this quantity was removed and the wording adapted;
— a new Annex D was drafted with a new table containing σ and text explaining what it is;
R95
— new references were added.
A list of all parts in the ISO 12999 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2020 – All rights reserved
Introduction
An assessment of uncertainties that is comprehensible and close to reality is indispensable for many
questions in building acoustics. Whether a requirement is met, a laboratory delivers correct results
or the acoustic properties of a product are better than the same properties of some other product
can be decided only by adequately assessing the uncertainties associated with the quantities under
consideration.
Uncertainties should preferably be determined following the principles of ISO/IEC Guide 98-3. This
Guide specifies a detailed procedure for the uncertainty evaluation that is based upon a complete
mathematical model of the measurement procedure. At the current knowledge, it seems to be
impossible to formulate these models for the different quantities in building acoustics. Therefore, only
the principles of such an uncertainty assessment are explained.
To come to uncertainties all the same, the concept of reproducibility and repeatability is incorporated
which is the traditional approach for uncertainty determination in building acoustics. This concept
offers the possibility to state the uncertainty of a method and of measurements carried out according
to the method, based on the results of inter-laboratory measurements.
NOTE Whenever applicable, the terms and definitions used in this document are equivalent to those given in
[2] [7] [8]
ISO 5725-1 , in ISO/IEC Guide 98-3 and in ISO/IEC Guide 99 .
INTERNATIONAL STANDARD ISO 12999-1:2020(E)
Acoustics — Determination and application of
measurement uncertainties in building acoustics —
Part 1:
Sound insulation
1 Scope
This document specifies procedures for assessing the measurement uncertainty of sound insulation in
building acoustics. It provides for
— a detailed uncertainty assessment;
— a determination of uncertainties by inter-laboratory tests;
— an application of uncertainties.
Furthermore, typical uncertainties are given for quantities determined according to ISO 10140 (all parts),
ISO 16283 (all parts) and ISO 717 (all parts).
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1
measurand
particular quantity subject to measurement
EXAMPLE 1 The airborne sound insulation of a particular window pane determined in accordance with
ISO 10140 (all parts).
EXAMPLE 2 The standardized level difference of a particular facade according to ISO 16283-3.
3.2
measurement result
value attributed to a measurand (3.1), obtained by following the complete set of instructions given in a
measurement procedure
Note 1 to entry: The measurement result may be a frequency band level or a single number value determined
according to the rating procedures of ISO 717 (all parts).
3.3
uncertainty
parameter, associated with the measurement result (3.2), that characterizes the dispersion of the values
that can reasonably be attributed to the measurand (3.1)
3.4
standard uncertainty
u
uncertainty (3.3) of the measurement result (3.2) expressed as a standard deviation
3.5
combined standard uncertainty
u
c
standard uncertainty (3.4) of the result of a measurement when that result is obtained from the values
of a number of other quantities, equal to the positive square root of a sum of terms, the terms being the
variances or covariances of these other quantities weighted according to how the measurement result
(3.2) varies with changes in these quantities
3.6
expanded uncertainty
U
quantity defining an interval about the measurement result (3.2) that can be expected to encompass a
large fraction of the distribution of values that can reasonably be attributed to the measurand (3.1)
3.7
coverage factor
k
numerical factor used as a multiplier of the combined standard uncertainty (3.5) in order to obtain an
expanded uncertainty (3.6)
3.8
repeatability condition
condition of measurement that includes the same measurement procedure, same operators, same
measuring system, same location (laboratory or usual building), and replicate measurements on the
same object over a short period of time
3.9
repeatability standard deviation
σ
r
standard deviation of measurement results (3.2) obtained under repeatability conditions (3.8)
3.10
reproducibility condition
condition of measurement that includes the same measureme
...
