ISO 16484-5:2007/Amd 1:2009

INTERNATIONAL ISO
STANDARD 16484-5
Second edition
2007-03-15
AMENDMENT 1
2009-05-15



Building automation and control
systems —
Part 5:
Data communication protocol
AMENDMENT 1
Systèmes d'automatisation et de gestion technique du bâtiment —
Partie 5: Protocole de communication de données
AMENDEMENT 1





Reference number
ISO 16484-5:2007/Amd.1:2009(E)
©
ISO 2009

---------------------- Page: 1 ----------------------
ISO 16484-5:2007/Amd.1:2009(E)

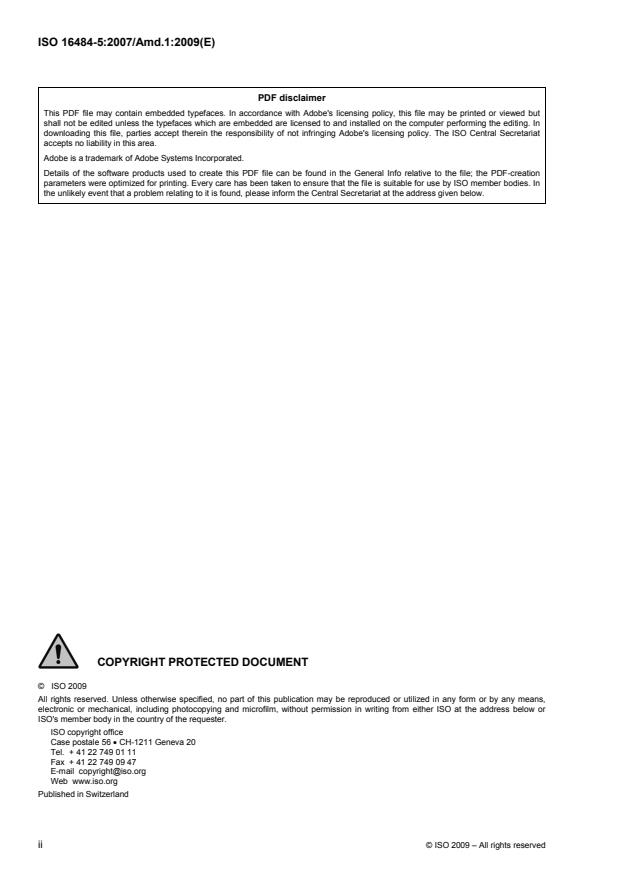

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.


COPYRIGHT PROTECTED DOCUMENT


©  ISO 2009
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland

ii © ISO 2009 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 16484-5:2007/Amd.1:2009(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
Amendment 1 to ISO 16484-5:2007 was prepared by Technical Committee ISO/TC 205, Building environment
design.

© ISO 2009 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 16484-5:2007/Amd.1:2009(E)

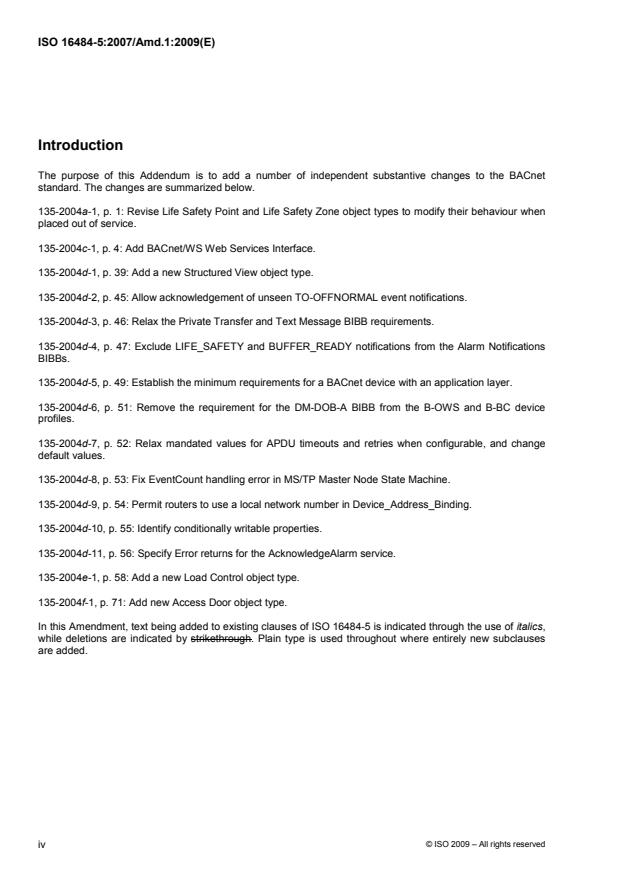

Introduction
The purpose of this Addendum is to add a number of independent substantive changes to the BACnet
standard. The changes are summarized below.
135-2004a-1, p. 1: Revise Life Safety Point and Life Safety Zone object types to modify their behaviour when
placed out of service.
135-2004c-1, p. 4: Add BACnet/WS Web Services Interface.
135-2004d-1, p. 39: Add a new Structured View object type.
135-2004d-2, p. 45: Allow acknowledgement of unseen TO-OFFNORMAL event notifications.
135-2004d-3, p. 46: Relax the Private Transfer and Text Message BIBB requirements.
135-2004d-4, p. 47: Exclude LIFE_SAFETY and BUFFER_READY notifications from the Alarm Notifications
BIBBs.
135-2004d-5, p. 49: Establish the minimum requirements for a BACnet device with an application layer.
135-2004d-6, p. 51: Remove the requirement for the DM-DOB-A BIBB from the B-OWS and B-BC device
profiles.
135-2004d-7, p. 52: Relax mandated values for APDU timeouts and retries when configurable, and change
default values.
135-2004d-8, p. 53: Fix EventCount handling error in MS/TP Master Node State Machine.
135-2004d-9, p. 54: Permit routers to use a local network number in Device_Address_Binding.
135-2004d-10, p. 55: Identify conditionally writable properties.
135-2004d-11, p. 56: Specify Error returns for the AcknowledgeAlarm service.
135-2004e-1, p. 58: Add a new Load Control object type.
135-2004f-1, p. 71: Add new Access Door object type.
In this Amendment, text being added to existing clauses of ISO 16484-5 is indicated through the use of italics,
while deletions are indicated by strikethrough. Plain type is used throughout where entirely new subclauses
are added.


© ISO 2009 – All rights reserved
iv

---------------------- Page: 4 ----------------------
ISO 16484-5:2007/Amd.1:2009(E)

Building automation and control systems —
Part 5:
Data communication protocol
AMENDMENT 1

135-2004a-1. Revise Life Safety Point and Life Safety Zone object types for out-of-service operation.

Addendum 135-2004a-1

[Change Table 12-18, p. 194]
Table 12-18. Properties of the Life Safety Point Object Type

Property Identifier Property Datatype Conformance Code
... ... ...
1
Present_Value BACnetLifeSafetyState R R
1
Tracking_Value BACnetLifeSafetyState OR
... ... ...

[Change 12.15.4, p. 195]

12.15.4 Present_Value

This property, of type BACnetLifeSafetyState, reflects the state of the Life Safety Point object. The means of
deriving the Present_Value shall be a local matter. Present_Value may latch non-NORMAL state values until reset.
The Present_Value property shall be writable when Out_Of_Service is TRUE.

[Change 12.15.5, p. 195]

12.15.5 Tracking_Value

This optional property, of type BACnetLifeSafetyState, reflects the non-latched state of the Life Safety Point object.
The means of deriving the state shall be a local matter. Unlike Present_Value, which may latch non-NORMAL state
values until reset, Tracking_Value shall continuously track changes in the state. The Tracking_Value property shall
be writable when Out_Of_Service is TRUE.

© ISO 2009 – All rights reserved 1

---------------------- Page: 5 ----------------------
ISO 16484-5:2007/Amd.1:2009(E)
[Change 12.15.11, p. 196]

12.15.11 Out_Of_Service

The Out_Of_Service property, of type BOOLEAN, is an indication whether (TRUE) or not (FALSE) the input(s) or
process the object represents is not in service. This means that changes to the Present_Value Tracking_Value
property are decoupled from the input(s) or process when the value of Out_Of_Service is TRUE. In addition, the
Reliability property and the corresponding state of the FAULT flag of the Status_Flags property shall be decoupled
when Out_Of_Service is TRUE. While the Out_Of_Service property is TRUE, the Present_Value Tracking_Value
and Reliability properties may be changed to any value as a means of simulating specific fixed conditions or for
testing purposes. Other functions that depend on the state of the Present_Value Tracking_Value or Reliability
properties shall respond to changes made to these properties while Out_Of_Service is TRUE, as if those changes had
occurred to the input(s) or process.

[Change Table 12-19, p. 200]
Table 12-19. Properties of the Life Safety Zone Object Type

Property Identifier Property Datatype Conformance Code
... ... ...
1
Present_Value BACnetLifeSafetyState R R
1
Tracking_Value BACnetLifeSafetyState O R
... ... ...

[Change 12.16.4, p. 201]

12.16.4 Present_Value

This property, of type BACnetLifeSafetyState, reflects the state of the Life Safety Zone object. The means of
deriving the Present_Value shall be a local matter. Present_Value may latch non-NORMAL state values until reset.
The Present_Value property shall be writable when Out_Of_Service is TRUE.

[Change 12.16.5, p. 201]

12.16.5 Tracking_Value

This optional property, of type BACnetLifeSafetyState, reflects the non-latched state of the Life Safety Zone object.
The means of deriving the state shall be a local matter. Unlike Present_Value, which may latch non-NORMAL state
values until reset, Tracking_Value shall continuously track changes in the state. The Tracking_Value property shall
be writable when Out_Of_Service is TRUE.

[Change 12.16.11, p. 202]

12.16.11 Out_Of_Service

The Out_Of_Service property, of type BOOLEAN, is an indication whether (TRUE) or not (FALSE) the input(s) or
process the object represents is not in service. This means that changes to the Present_Value Tracking_Value
property are decoupled from the input(s) or process when the value of Out_Of_Service is TRUE. In addition, the
Reliability property and the corresponding state of the FAULT flag of the Status_Flags property shall be decoupled
when Out_Of_Service is TRUE. While the Out_Of_Service property is TRUE, the Present_Value Tracking_Value
and Reliability properties may be changed to any value as a means of simulating specific fixed conditions or for
testing purposes. Other functions that depend on the state of the Present_Value Tracking_Value or Reliability
properties shall respond to changes made to these properties while Out_Of_Service is TRUE, as if those changes had
occurred to the input(s) or process.

© ISO 2009 – All rights reserved
2

---------------------- Page: 6 ----------------------
ISO 16484-5:2007/Amd.1:2009(E)
[Change Annex C, p.459]

LIFE-SAFETY-POINT :: = SEQUENCE {
…
present-value  [85] BACnetLifeSafetyState,
tracking-value  [164] BACnetLifeSafetyState OPTIONAL,
description  [28] CharacterString OPTIONAL,
…
}

[Change Annex C, p.460]

LIFE-SAFETY-ZONE :: = SEQUENCE {
…
present-value  [85] BACnetLifeSafetyState,
tracking-value  [164] BACnetLifeSafetyState OPTIONAL,
description  [28] CharacterString OPTIONAL,
…
}


© ISO 2009 – All rights reserved
3

---------------------- Page: 7 ----------------------
ISO 16484-5:2007/Amd.1:2009(E)
135-2004c-1. Adding BACnet/WS Web Services Interface

Rationale
"Web services" is emerging as the predominant technology for the integration of a wide variety of enterprise information. This
addendum defines a standard means of using Web services to integrate facility data from disparate data sources, including BACnet
networks, with a variety of business enterprise applications.

Addendum 135-2004c-1


[Add new Annex N]
ANNEX N - BACnet/WS WEB SERVICES INTERFACE (NORMATIVE)
(This annex is part of this standard and is required for its use.)

This annex defines a data model and Web service interface for integrating facility data from disparate data sources
with a variety of business management applications. The data model and access services are generic and can be used
to model and access data from any source, whether the server owns the data locally or is acting as a gateway to other
standard or proprietary protocols.

Implementations of the services described in this standard shall conform to the Web Services Interoperability
Organization (WS-I) Basic Profile 1.0, which specifies the use of Simple Object Access Protocol (SOAP) 1.1 over
Hypertext Transfer Protocol -- HTTP/1.1 (RFC2616) and encodes the data for transport using Extensible Markup
Language (XML) 1.0 (Second Edition), which uses the datatypes and the lexical and canonical representations
defined by the World Wide Web Consortium XML Schema.

Clients may determine the version of the BACnet/WS standard that a server implements by querying a specific
numerical value as defined in clause N.9. The numerical value for the version described in this document is 1.

There are three distinct usages of datatype names in this standard. Datatype names beginning with a lowercase letter,
such as "string", and "nonNegativeInteger", refer to datatypes defined by the XML Schema standard. Datatype
names beginning with an uppercase letter, such as "Real" or "Multistate" refer to the value types defined in Clause
N.8.9. Datatype names used in a "typical language binding signature" are arbitrary and are for illustrative purposes
only.
N.1 Data Model
The data structures and methods used to store information internally in a BACnet/WS server are a local matter.
However, in order to exchange that information using Web services, this standard establishes a minimal set of
requirements for the structuring and association of data exchanged with a BACnet/WS server.

A node is the fundamental primitive data element in the BACnet/WS data model. Nodes are arranged into a
hierarchy in the data model. The topmost node in the hierarchy is known as the root node. A root node has children,
but no parent. Every other node has a single parent and may optionally have children. The network visible state of a
node is exposed as a collection of attributes.

Any node may have a value. The possible types for a node's value are limited to the primitive datatypes "String",
"OctetString", "Real", "Integer", "Multistate", "Boolean", "Date", "Time", "DateTime", and "Duration". Nodes that
have a value may also have other attributes related to that value, such as minimum, writable, etc.

An attribute is a single aspect or quality of a node, such as its value or its writability. Every node exposes a
collection of attributes. Some attributes are required for all nodes, and some are conditionally required based on the
value of other attributes. Some of the attributes are localizable and may return different values based on an option in
a service request. Attributes are described more fully in Clause N.8.

Attributes may themselves have attributes that define a single aspect or quality of the original attribute. This standard
supports this recursion syntactically, but does not define or require that any of the standardized attributes have
attributes themselves at this time. Servers may provide proprietary attributes for any node or attribute at any level in
the hierarchy.

© ISO 2009 – All rights reserved
4

---------------------- Page: 8 ----------------------
ISO 16484-5:2007/Amd.1:2009(E)
A path is a character string that is used to identify a node or an attribute of a node. The hierarchy of nodes is
reflected in a path as a hierarchy of identifiers arranged as a delimited series, similar to the arrangement of identifiers
in a Uniform Resource Locator (URL) for the World Wide Web. A path like "/East Wing/AHU #5/Discharge Temp"
identifies a node, and a path like "/East Wing/AHU #5/Discharge Temp:InAlarm" identifies the InAlarm attribute of
that node. Paths are described more fully in Clause N.2.

To allow for an arbitrary number of logical arrangements of nodes, a single node may logically appear to be in more
than one place in the hierarchy through the use of a reference node. Reference nodes may be used to build alternate
logical arrangements of nodes since the children of a reference node may differ from that of its referent node.
Reference nodes are described more fully in Clause N.4.

The arrangement of data nodes into hierarchies and the naming of those nodes is generally a local matter. However,
this standard also defines a number of standardized nodes with standardized names and locations that allow clients to
obtain basic information about the server itself. These standardized nodes are described more fully in clause N.9.

N.2 Paths
A path is a character string that is used to identify a node or a specific attribute. The hierarchy of nodes is reflected in
a path as a hierarchy of node identifiers arranged as a delimited series separated by forward slash ("/") characters.
Similarly, the hierarchy of attributes is reflected in a path as a hierarchy of attribute identifiers arranged as a
delimited series separated by colon (":") characters.

Certain services accept an optional attribute path on the end of a node path. If an attribute path is not specified to
those services, the Value attribute is assumed. The attribute path is separated from the node path with a colon.

The concatenated path form is:

[/node-identifier[/node-identifier]…][:attribute-identifier[:attribute-identifier]…]

where square brackets indicate optionality and “…” indicates repetition of the previous element.

Examples: "/aaa"   "/aaa/bbb"  "/aaa/bbb/ccc:Description"   "/aaa/bbb/ccc:Description:.foo"

All identifiers are case sensitive and shall be of non-zero length. Identifiers are not localizable and are not affected
by the "locale" or "canonical" service options. A path with no node identifier ("") refers to the root of the hierarchy,
and ":attribute-identifier" is the syntax for accessing the attributes of the root node.

Only printable characters may be used to construct path identifiers, and, as an additional restriction, all characters
equivalent to the ANSI X3.4 "control characters" (those less than X'20') are not allowed, and neither are any
characters equivalent to the following ANSI X3.4 characters:    /  \  :  ;  |  <  >  *  ?  "  [  ]  {  }

Node identifiers beginning with a period (".") character and attribute identifiers not beginning with a period (".")
character are reserved for use by ASHRAE. This restriction separates node and attribute identifiers that are defined
by this standard from those that are defined by the server, perhaps based on user input. Server defined node
identifiers shall not start with a period, so that "/aaa/.first-floor" is invalid but "/aaa/first-floor" is valid. Conversely,
all server defined attribute identifiers shall start with a period, so that "/aaa:MyNewAttribute" is invalid but
"/aaa:.MyNewAttribute" is valid. This asymmetry is based on the expected common usage where most node
identifiers will be server defined and most attributes are standard, making the use of periods the exception rather than
the norm.

Space characters are allowed and are significant in identifiers; however, it is recommended that identifiers should not
begin or end with space characters.

N.3 Normalized Points
Most building automation protocols, both standard and proprietary, have the concept of organizing data into "points"
that have "values." In addition to their values, points often contain data such as "point description" or "point is in
alarm." But these data may be named, structured, and/or accessed differently in different protocols.

© ISO 2009 – All rights reserved
5

---------------------- Page: 9 ----------------------
ISO 16484-5:2007/Amd.1:2009(E)
To ensure that a Web service client can retrieve data without knowing these naming and access-method details, this
standard defines "normalized points." This means that the common attributes of points available in the majority of
building data models are exposed using a common set of names.

In this data model, nodes with a NodeType (see N.8.5) of "Point" are required to have a value and have a common
collection of attributes that may be used to map to these data from other protocols. Some data may not be available
in some protocols, in which case either the normalized attribute is absent, or it has a reasonable default value.

N.4 Reference Nodes
A node that refers to another node somewhere else in the hierarchy is termed a "reference node." The node to which
it refers is its "referent node". A reference node reflects most of the attributes of its "referent node", including its
type, so that for most purposes, the reference node is indistinguishable from its referent node. The use of reference
nodes allows a node's data to appear in more than one place in the hierarchy.

Multiple hierarchies may be supported on a server. Automated discovery of those hierarchies may be done by
starting at the root, or any other starting point, and using the Children attribute to enumerate the available nodes in a
structured fashion. Two or more paths in different hierarchies may express different relationships for a single object.
To denote this, and so that apparent duplicates of an object can be discerned, a node can refer to another node
somewhere else in the hierarchy. It is arbitrary and a local matter which node is the referent node and which is the
reference node. Multiple reference nodes can point to the same referent node, or alternately can daisy chain, one to
one another, ultimately leading to a referent they all have in common which is not a reference node. There shall be at
least one referent node which is not a reference node, as it is forbidden to create a loop of references.

One network-visible distinction between a reference node and its referent node is in the presence of a Reference
attribute in the reference node. This attribute contains a path to the referent node. The Reference attribute is present
in a node if and only if that node is a reference node.

In most cases, the distinction of whether a node is a reference node or not is unnecessary. But in those cases where
the client needs to make a distinction, it can check for the presence of a Reference and act accordingly. A client can
also determine, for any given node, if there are reference nodes that refer to it. This may be done with the Aliases
attribute.

Except for the attributes Children, Aliases, Attributes, and Reference, any attribute read from the reference node will
have the same value as when read from the referent node. The reason for this is that, when references are used to
create different relationships between nodes, the nodes are not fundamentally changed by that association.
Therefore, only the attributes involved in expressing the relationships between nodes, namely Children, Aliases,
Attributes, and Reference, are expected to be different depending on which path was used to access the node.  The
Attributes node only changes as needed to reflect the changing presence or absence of the Children, Aliases or
Reference attributes.  Otherwise, the contents of the Attributes attribute is unchanged.

A reference node may point to another reference node, but it is not allowed to refer to itself, nor is it allowed to
create a loop of references.

For example, the paths "/Geographic/East Wing/Air Handler 5/Discharge Temp" and "/Cooling/Chiller Manager/Air
Handler 5/Terminal Box 345-A" express two different relationships for Air Handler 5. If the geographic relationship
was modeled first, then for the cooling distribution relationship, the node identified by "/Cooling/Chiller
Manager/Air Handler 5" would be a reference node with its Reference Attribute containing the path
"/Geographic/East Wing/Air Handler 5".

N.5 Localization
BACnet/WS supports the creation of products that are specifically designed for particular regions of the world. The
designation of a natural language, paired with a set of notational customs, such as date and number formats, is
referred to as a "locale". A BACnet/WS server may support multiple locales simultaneously, and several of the
attributes of a node are accessible for different locales (see clauses N.11.4, N.11.5, and N.11.6). For example, in a
server that supports multiple locales, the DisplayName attribute can be used to get a user interface presentation name
for the node in more than one language. Specifying a locale in a service also allows the client to request dates, times
and numbers in a format appropriate to that locale.

© ISO 2009 – All rights reserved
6

---------------------- Page: 10 ----------------------
ISO 16484-5:2007/Amd.1:2009(E)
N.6 Security
BACnet/WS does not define its own authentication mechanism; rather, this standard specifies the use of lower level
Web service authentication methods defined by other standards. Some servers might not support or require any
authentication at all. Others might provide authentication by means of a simple username and password using HTTP
Basic authentication (defined by section 2 of HTTP Authentication: Basic and Digest Access Authentication)
secured through an SSL (Secure Sockets Layer, defined by SSL Protocol Version 3.0) or TLS (Transport Layer
Security, defined by TLS Protocol Version 1.0) connection. Some servers may be secured through public key
certificates or more advanced options that are currently in development or yet to be defined.

For specification simplicity and increased interoperability, servers shall claim support for one or both of the
following authentication and authorization mechanisms: “None”; “HTTP Basic through SSL or TLS”.

In addition to authentication, some forms of authorization can also occur before the Web services defined by this
standard are invoked. For example, some Web services host environments (e.g., Application Servers) can be
configured to limit users’ access to certain services based on HTTP path or SOAP method.

The content and format of errors returned from these lower level authentication and authorization methods varies and
is not specified by this standard since the services defined by this standard were never invoked.

When a Web service request successfully passes through the lower levels, and the services defined by this standard
are invoked, additional authentication and authorization operations may be performed by those services and the
content and format of errors resulting from such operations are fully defined by this standard. The configuration of
authentication and authorization policies, at any level, is a local matter.

N.7 Sessions
The Web services defined by this standard are stateless and establish no sessions between clients and servers. There
is no requirement for any information to be retained on the server from one service invocation to the next. Service
options such as "locale" that could be held in a session on the server are instead maintained by the client in a service
options string that is provided to the server for each service invocation.

N.8 Attributes
A node is exposed to Web services as a collection of named attributes. There are two forms of attributes: those that
are a primitive datatype, and those that are an array of primitive datatypes. Only the Value attribute is writable with
the services defined by this standard.

While some attributes are specified as optional, the presence of those attributes on a given node is not expected to
change dynamically. Clients can assume that the collection of available attributes will remain relatively stable in
operation and normally will be changed only by a reconfiguration or reprogramming of the server and not in the
normal course of operation. For example, even though the default value for the InAlarm attribute is "false", the
InAlarm attribute is not expected to be absent when the node is not in alarm and present only when the node is in
alarm. Generally, if an attribute can have a value that is different from its default during the normal course of
operation, then the attribute should be present at all times.

The server may provide proprietary attributes for any node or attribute anywhere in the hierarchy of the data model.
Proprietary attributes shall begin with a period ('.') character to distinguish them from standard attributes. The
datatype and set of possible values for these attributes are not defined by this standard.
N.8.1 Primitive Attributes
The datatype of a primitive attribute in this standard is defined using its XML Schema datatype name, such as
"boolean", "nonNegativeInteger", and "double". See Clause N.10 for details of how these are encoded for use in
Web services.

The datatype of some attributes, such as Value and Minimum, is dependent on the value of the ValueType attribute.
This is more fully described in Clause N.8.9.
© ISO 2009 – All rights reserved
7

---------------------- Page: 11 ----------------------
ISO 16484-5:2007/Amd.1:2009(E)
N.8.2 Enumerated Attributes
Some primitive attributes are enumerations. Enumerated attributes are of datatype XML Schema "string", but the set
of allowed values is defined by this standard. Additionally, some enumerated attributes are localizable (see N.5). In
that case, the non-localized set of values is defined by this standard, but the localized strings are a local matter.
N.8.3 Array Attributes
Array attributes are attributes that contain an array of primitive values. Each element in the array has the same
primitive datatype. The contents of an array attribute may be accessed either as an array of separate elements or as a
single concatenation of all the elements.

The datatype of an array element in this standard is defined using its XML Schema datatype name, such as
"boolean", "nonNegativeInteger", and "double". See Clause N.10 for details of how these are encoded for use in
Web services.

When array attributes are accessed with a service that returns an array, such as getArray, the array elements are
returned as individual strings. However, when accessed with a service that returns a single string, such as getValue,
the array values are concatenated into a single string by separating the array elements with a ';' (semicolon) character,
for example, "high;medium;low". The values of the individual array elements are not permitted to contain
semicolons.

The server shall retain a constant order for the elements of an array attribute. Clients of services such as
...
