ISO 4141-1:2005

INTERNATIONAL ISO
STANDARD 4141-1
Second edition
2005-09-15

Road vehicles — Multi-core connecting
cables —
Part 1:
Test methods and requirements for basic
performance sheathed cables
Véhicules routiers — Câbles de raccordement multiconducteurs —
Partie 1: Méthodes d'essai et exigences pour les câbles gainés à
performance de base




Reference number
ISO 4141-1:2005(E)
©
ISO 2005

---------------------- Page: 1 ----------------------
ISO 4141-1:2005(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.


©  ISO 2005
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland

ii © ISO 2005 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 4141-1:2005(E)
Contents Page
Foreword. iv
1 Scope. 1
2 Normative references. 1
3 Terms and definitions. 2
4 General. 2
5 Dimensions. 3
6 Electrical characteristics. 5
7 Mechanical characteristics. 6
8 Low temperature characteristics . 8
9 Resistance to abrasion. 9
10 Heat ageing. 9
11 Resistance to chemicals . 9
12 Resistance to flame propagation . 11
13 Artificial weathering. 11
Bibliography . 12

© ISO 2005 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 4141-1:2005(E)

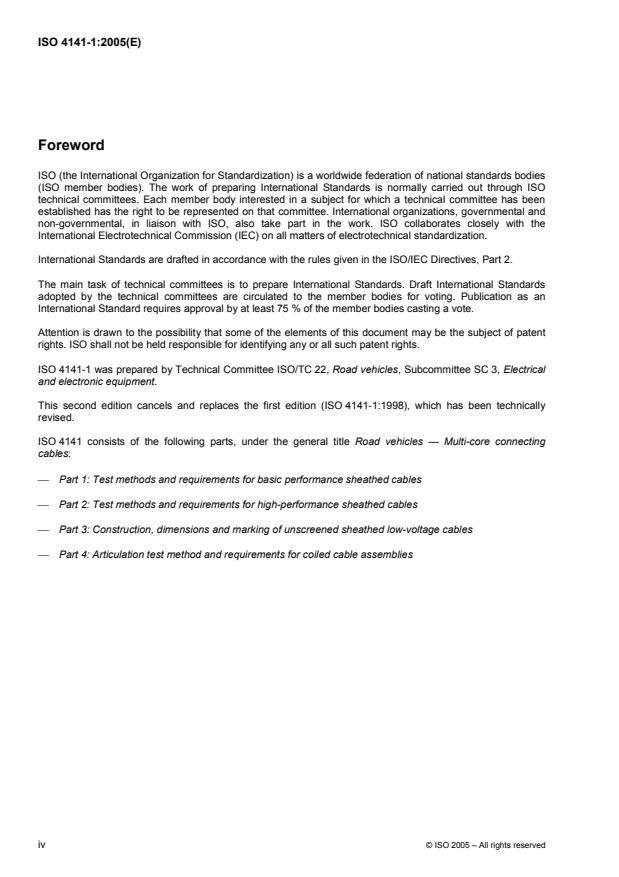

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 4141-1 was prepared by Technical Committee ISO/TC 22, Road vehicles, Subcommittee SC 3, Electrical
and electronic equipment.
This second edition cancels and replaces the first edition (ISO 4141-1:1998), which has been technically
revised.
ISO 4141 consists of the following parts, under the general title Road vehicles — Multi-core connecting
cables:
⎯ Part 1: Test methods and requirements for basic performance sheathed cables
⎯ Part 2: Test methods and requirements for high-performance sheathed cables
⎯ Part 3: Construction, dimensions and marking of unscreened sheathed low-voltage cables
⎯ Part 4: Articulation test method and requirements for coiled cable assemblies

iv © ISO 2005 – All rights reserved

---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 4141-1:2005(E)

Road vehicles — Multi-core connecting cables —
Part 1:
Test methods and requirements for basic performance
sheathed cables
1 Scope
This part of ISO 4141 specifies the test methods and requirements of basic performance multi-core sheathed
cables for the connection of towing and towed vehicles, suitable for a temperature range of –40 °C to +85 °C.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 1817, Rubber, vulcanised — Determination of the effect of liquids
ISO 4141-3 Road vehicles — Multi-core connecting cables — Part 3: Construction, dimensions and marking
of unscreened sheathed low-voltage cables
ISO 4892-2, Plastics — Methods of exposure to laboratory light sources — Part 2: Xenon-arc sources
ISO 4892-4, Plastics — Methods of exposure to laboratory light sources — Part 4: Open-flame carbon-arc
lamps
ISO 6722, Road vehicles — 60 V and 600 V single-core cables — Dimensions, test methods and
requirements
ISO 7638-1, Road vehicles — Connectors for the electrical connection of towing and towed vehicles — Part 1:
Connectors for braking systems and running gear of vehicles with 24 V nominal supply voltage
ISO 7638-2, Road vehicles — Connectors for the electrical connection of towing and towed vehicles — Part 2:
Connectors for braking systems and running gear of vehicles with 12 V nominal supply voltage
ISO 12098, Road vehicles — Connectors for the electrical connection of towing and towed vehicles — 15-pole
connector for vehicles with 24 V nominal supply voltage
ISO 14572, Road vehicles — Round, screened and unscreened, 60 V and 600 V multi-core sheathed
cables — Test methods and requirements for basic and high performance cables
ISO/PAS 16553, Road vehicles — Data cables — Test methods and requirements
IEC 60811-1-1, Common test methods for insulating and sheathing materials of electric cables and optical
cables — Part 1-1: Methods for general application — Measurement of thickness and overall dimensions —
Tests for determining the mechanical properties
© ISO 2005 – All rights reserved 1

---------------------- Page: 5 ----------------------
ISO 4141-1:2005(E)
EN 14214, Automotive fuels — Fatty acid methyl esters (FAME) for diesel engines — Requirements and test
methods
DIN V 70070, Diesel engines — NO -reduction additives AUS 32 — Requirements and test methods
x
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 6722 and the following apply.
3.1
basic performance
〈cable〉 meeting basic requirements for general automotive applications
3.2
screen
conductive material intended to reduce the penetration and/or radiation of a varying electromagnetic field into
an assigned region
3.3
unscreened
absence of a screen
3.4
core
an assembly comprising a conductor with its own insulation (and screens, if there are any)
4 General
Single core identification shall conform to ISO 4141-3. The single components of multi-core sheathed cables
shall comply with ISO 6722 for single cores, and with ISO/PAS 16553 for data cables, with the exception of
the capacitance test of unscreened twisted pair cores for which 6.3 shall apply.
The general test conditions and the ovens used shall be in accordance with ISO 6722.
If a visual examination is required, the sheath shall be smooth, even and free from surface imperfections, e.g.
lumps, voids and particles.
The test sequence for each sample group shall be in accordance with Table 1. (Sequences are indicated with
an “X”, ordered from top to bottom.)
2 © ISO 2005 – All rights reserved

---------------------- Page: 6 ----------------------
ISO 4141-1:2005(E)
Table 1 — Test sequences and requirements
Test Test sample group / sequence
SubclauseA BC DE FG HI J K L M N O PQ R
Visual examination 4 X XX XX XX XX X X X X X X XX X
Outside cable diameter 5.1 X
Ovality 5.2 X
Thickness of the sheath 5.3 X
Lay length 5.4  X
Continuity 6.1  X
Withstand voltage 6.2   X  X X X
Cyclic bending 7.3   X
Winding 8.1     X
Impact 8.2     X
Long-term ageing 10.1      X
Short-term ageing 10.2       X
Visual examination 4   X  X X X X
Withstand voltage 6.2   X  X X X
Capacitance 6.3   X
Pressure at high temperature 7.1    X
Adhesion of the sheath 7.2    X
Resistance to abrasion 9      X
Fluid compatibility of the sheath 11.1       X
Durability of sheath marking 11.2        X
Resistance to ozone 11.3        X
Resistance to flame propagation 12         X
Artificial weathering 13         X
Visual examination 4    X   X X XX X

5 Dimensions
5.1 Outside cable diameter
5.1.1 Test sample
Prepare a test sample of 600 mm length.
5.1.2 Apparatus
See ISO 6722.
© ISO 2005 – All rights reserved 3

---------------------- Page: 7 ----------------------
ISO 4141-1:2005(E)
5.1.3 Procedure
Determine the maximum and minimum outside cable diameter by taking three sets of measurements
separated by 200 mm and recording the highest (d ) and lowest (d ) values of the measurements at each
max min
of the three positions.
5.1.4 Requirement
Each diameter measured shall be between the limits agreed between customer and supplier for the cable
under test, which shall be within the limits according to ISO 4141-3.
5.2 Ovality
5.2.1 Test sample and apparatus
Use the measurements of 5.1.
5.2.2 Procedure
Calculate the ovality, for each set of measurements, as follows:
dd−
...
