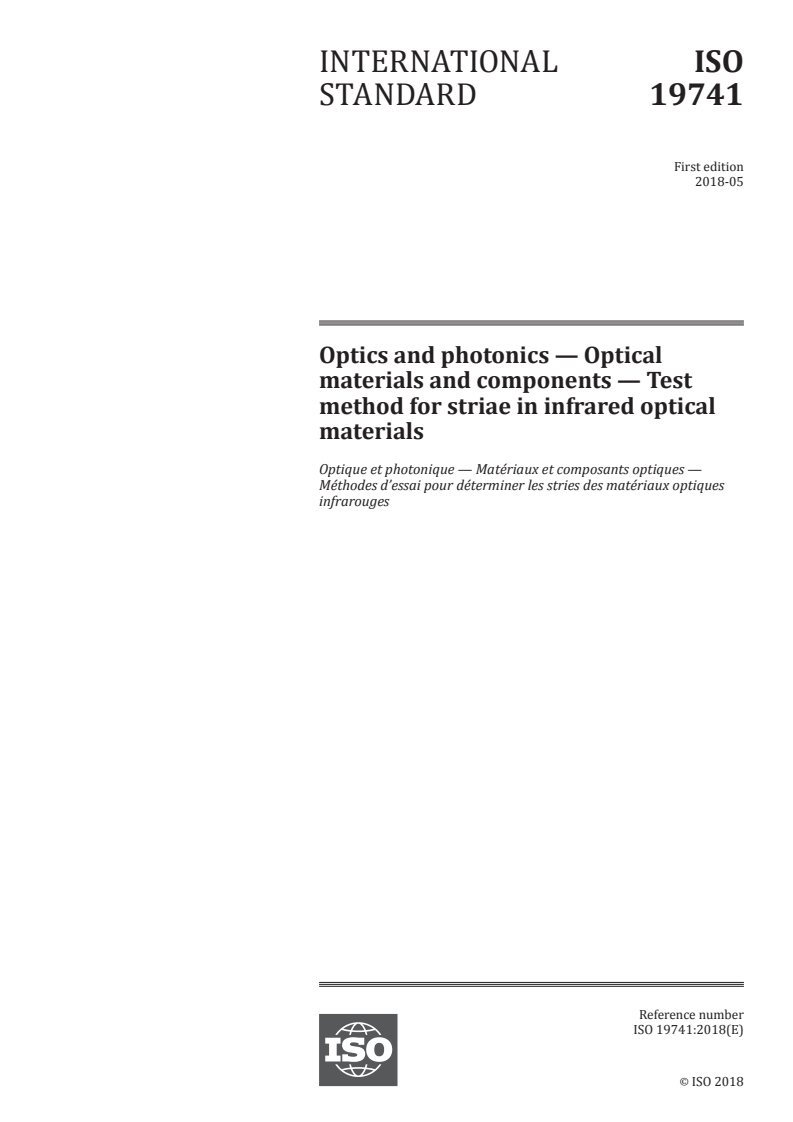

ISO 19741:2018

INTERNATIONAL ISO
STANDARD 19741
First edition
2018-05
Optics and photonics — Optical
materials and components — Test
method for striae in infrared optical
materials
Optique et photonique — Matériaux et composants optiques —
Méthodes d’essai pour déterminer les stries des matériaux optiques
infrarouges
Reference number
©
ISO 2018
© ISO 2018
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2018 – All rights reserved

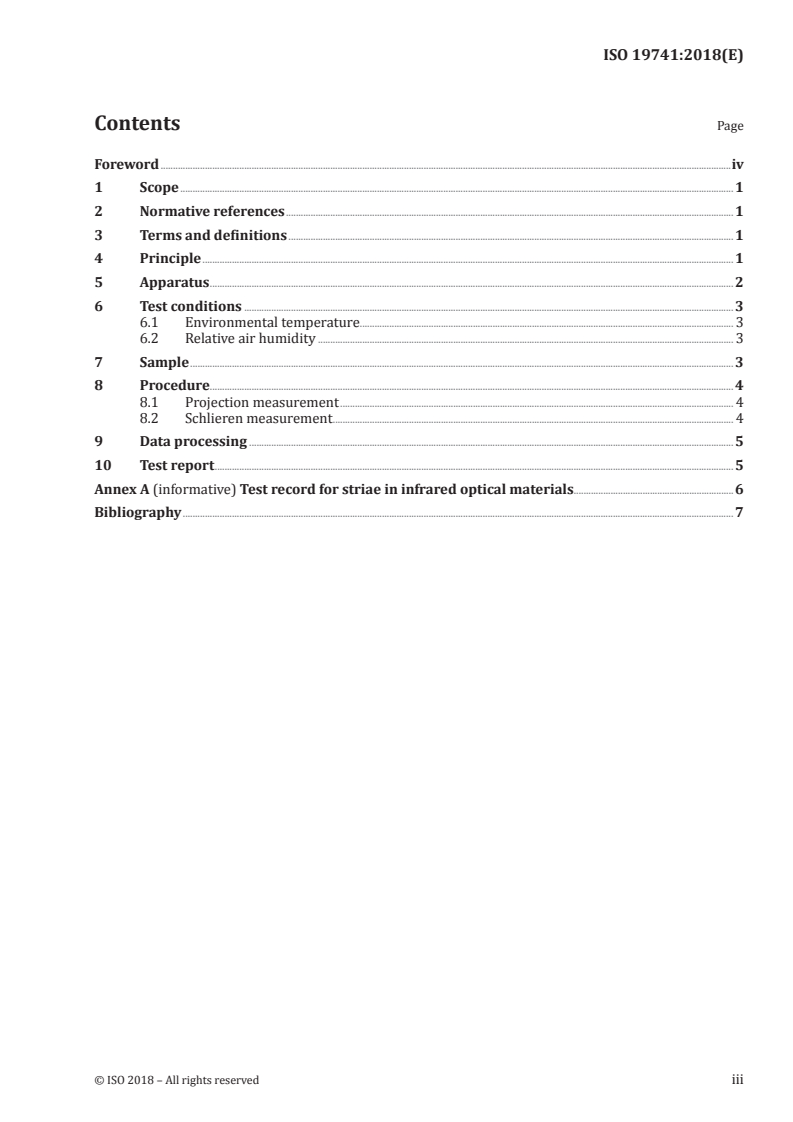

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 1
5 Apparatus . 2
6 Test conditions . 3
6.1 Environmental temperature . 3
6.2 Relative air humidity . 3
7 Sample . 3
8 Procedure. 4
8.1 Projection measurement . 4
8.2 Schlieren measurement . 4
9 Data processing . 5
10 Test report . 5
Annex A (informative) Test record for striae in infrared optical materials .6
Bibliography . 7

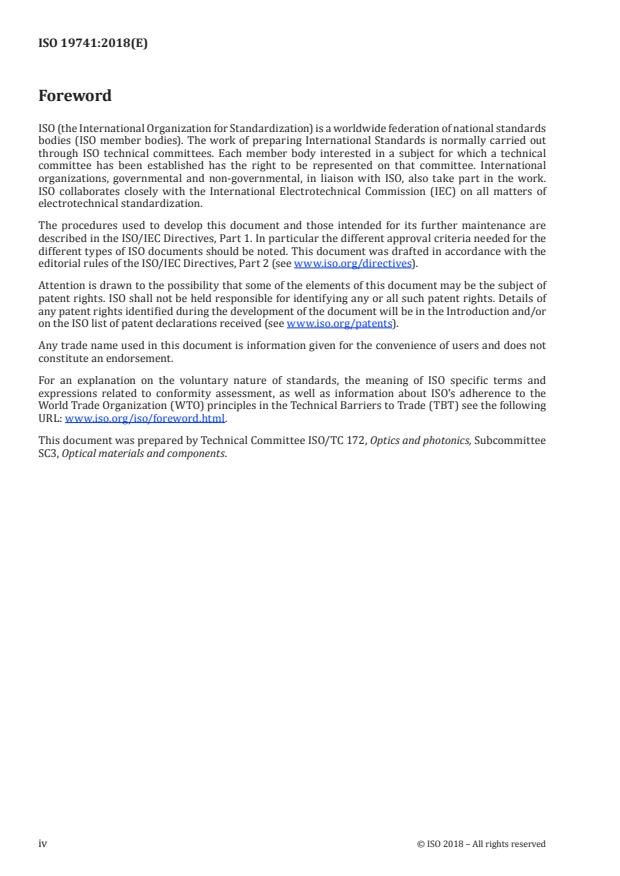

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www .iso .org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 172, Optics and photonics, Subcommittee
SC3, Optical materials and components.
iv © ISO 2018 – All rights reserved

INTERNATIONAL STANDARD ISO 19741:2018(E)
Optics and photonics — Optical materials and components
— Test method for striae in infrared optical materials
1 Scope
This document specifies the principle, apparatus, condition, sample, procedure and data processing of
measuring striae in infrared optical materials.
It is applicable to the determination of striae in infrared optical materials, such as infrared optical glass,
which is opaque to visible wavelengths and whose transmission optical spectra are beyond 0,78 µm.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 10110-7, Optics and photonics — Preparation of drawings for optical elements and systems — Part 7:
Surface imperfections
ISO 10110-8, Optics and photonics — Preparation of drawings for optical elements and systems — Part 8:
Surface texture; roughness and waviness
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https: //www .iso .org/obp
— IEC Electropedia: available at http: //www .electropedia .org/
3.1
striae
regions of resembling bands, layers or rods formed due to short range severe deviations of refractive
index in infrared optical materials, observed only by infrared detecting devices
3.2
striae value
average grey level of striae (3.1) multiplying the percentage of striae area per thickness of infrared
optical materials
4 Principle
The principle of this test is to illuminate a sample with collimated infrared radiation and image the
material in a Schlieren or projection imaging system. The striae will be imaged and measured, and then
the area and the product of striae area percentage to the mean grey level will be calculated. When the
projection optical system is adjusted to a beam-contracting telescope system, it is known as a projection
measurement system. And when the projection optical system is adjusted to a camera system which
utilizes a knife edge device, it is known as a Schlieren measurement system. The schematic diagram of
striae measurement in infrared optical materials is shown in Figure 1.
Key
1 light source 8 lens 2 of projection optical system
2 condenser 9 image sensor
3 light source diaphragm 10 computer image collecting, processing and
displaying system
4 i
...
