ISO 15746-1:2015

INTERNATIONAL ISO
STANDARD 15746-1
First edition
2015-04-01
Automation systems and integration —
Integration of advanced process
control and optimization capabilities
for manufacturing systems —
Part 1:
Framework and functional model
Systèmes d’automatisation et intégration — Intégration de contrôles
de processus avancés et capacités d’optimisation des systèmes de
fabrication —
Partie 1: Cadre de travail et modèle fonctionnel
Reference number
ISO 15746-1:2015(E)
©
ISO 2015

---------------------- Page: 1 ----------------------
ISO 15746-1:2015(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2015
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2015 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 15746-1:2015(E)

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Terms and definitions . 1
3 Abbreviated terms . 3
4 Concepts and capabilities . 3
4.1 Background concepts . 3
4.2 Capabilities of the APC-O system . 4
5 Functional architecture of the APC-O system . 4
6 Capabilities of modules within the APC-O system . 6
6.1 Soft sensor module . 6
6.2 APC module . 6
6.3 Optimization module . 6
6.4 Performance assessment module . 6
7 Structure and lifecycle phases of APC-O modules . 7
7.1 Generic structure of APC-O modules . 7
7.2 Life cycle phases of the soft sensor module . 8
7.3 Life cycle phases of the APC module .11
7.4 Life cycle phases of the optimization module .13
7.5 Life cycle phases of the performance assessment module .15
Annex A (informative) Typical example of APC-O system integration .17
Annex B (informative) PLS technique .19
Annex C (informative) Predictive control and steady state optimization .20
Annex D (informative) PID performance assessment .21
Bibliography .22
© ISO 2015 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 15746-1:2015(E)

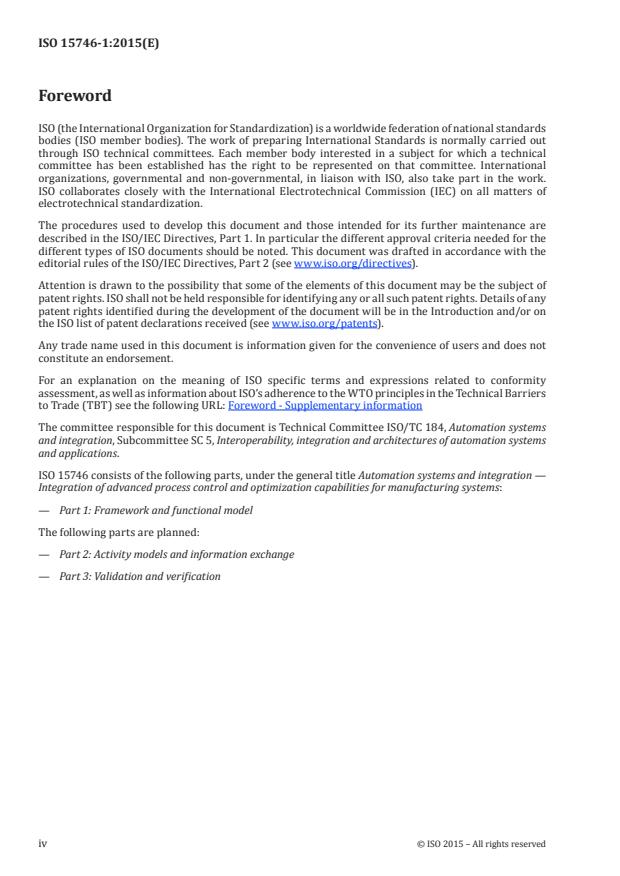

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of any
patent rights identified during the development of the document will be in the Introduction and/or on
the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical Barriers
to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is Technical Committee ISO/TC 184, Automation systems
and integration, Subcommittee SC 5, Interoperability, integration and architectures of automation systems
and applications.
ISO 15746 consists of the following parts, under the general title Automation systems and integration —
Integration of advanced process control and optimization capabilities for manufacturing systems:
— Part 1: Framework and functional model
The following parts are planned:
— Part 2: Activity models and information exchange
— Part 3: Validation and verification
iv © ISO 2015 – All rights reserved

---------------------- Page: 4 ----------------------
ISO 15746-1:2015(E)

Introduction
As a crucial part of manufacturing systems with increased complexity, the automation and control
applications enabled by advanced process control and optimization (APC-O) methodology and solutions
perform the operations directed by production planning and scheduling. ISO 15746 deals with the
integration of APC-O with manufacturing operations management (MOM) and with automation and
control of manufacturing process and equipment.
The following IEC 62264 functionalities related to manufacturing are hierarchically structured in a
functional model, as shown in Figure 1.
a) Level 0 defines the actual physical processes.
b) Level 1 defines the activities involved in sensing and manipulating the physical processes. Level 1
typically operates on time frames of seconds and faster.
c) Level 2 defines the activities of monitoring and controlling the physical processes. Level 2 typically
operates on time frames of hours, minutes, seconds and sub-seconds.
d) Level 3 defines the activities of the work flow to produce the desired end products. It includes the
activities of maintaining records and coordinating the processes. Level 3 typically operates on time
frames of days, shifts, hours, minutes and seconds.
e) Level 4 defines the business-related activities needed to manage a manufacturing organization.
Manufacturing-related activities include establishing the basic plant schedule (such as material use,
delivery and shipping), determining inventory levels and making sure that materials are delivered
on time to the right place for production. Level 3 information is critical to Level 4 activities. Level 4
typically operates on time frames of months, weeks and days.
Figure 1 — Functional hierarchy
ISO 15746 mainly focuses on the integration of APC-O capabilities into control activities (Level 2) and
MOM (Level 3), in Figure 1.
© ISO 2015 – All rights reserved v

---------------------- Page: 5 ----------------------
ISO 15746-1:2015(E)

The APC-O system within Level 2 interacts with the MOM system of Level 3. It shall provide the information
of the production processes to the MOM system, and in return accepts and executes the corresponding
operational commands from the MOM system. The APC-O system within Level 3 samples measurement
signals and monitors behaviour, and in return controls the operational systems within Level 2.
Automation solutions composed of software and hardware are provided by different suppliers to
accomplish APC-O capabilities. Due to the diversity of development environments and the variety of
demand focus, the automation solutions from various suppliers are isolated and relatively independent.
These differences make the integration of automation solutions difficult. Consequently, the customers
may purchase different automation solution components with redundant and duplicated functions,
resulting in a waste of resources and limited interoperability. This part of ISO 15746 offers a reference
interoperability framework for APC-O. It is intended to maximize the integration and interoperability of
automation solutions.
This part of ISO 15746 is intended to help:
— identify an approach to assist the providers and system integrators of APC-O systems and related
automation solutions components in verifying the interoperability of the components used to
construct the automation solutions to meet application lifecycle requirements during designing,
developing, implementing, testing, validating, installing and maintaining the automation solutions;
— identify the criteria to help users in choosing the appropriate automation solutions, such as APC-O
modules, to meet their requirements;
— outline the concepts and conceptual framework elements that will be sufficient to address the
identified problems and opportunities;
— reduce the time and cost in defining and describing the application requirements, as well as, in
developing and implementing automation solutions based on APC-O systems.
The target users of this part of ISO 15746 include users and providers of the APC-O solutions, such
as project solution suppliers, automation systems integrators, production departments of companies,
process engineers, independent software testing organizations, implementation and consulting service
organizations of APC-O software, and relevant governments and academic organizations.
vi © ISO 2015 – All rights reserved

---------------------- Page: 6 ----------------------
INTERNATIONAL STANDARD ISO 15746-1:2015(E)
Automation systems and integration — Integration of
advanced process control and optimization capabilities for
manufacturing systems —
Part 1:
Framework and functional model
1 Scope
This part of ISO 15746 establishes a framework and general functionality of a method for integration of
advanced process control and optimization (APC-O) capabilities for manufacturing systems. The goal is
to reduce the cost and risk associated with developing and implementing integrated APC-O capabilities.
The scope of this part of ISO 15746 is limited to specifying the set of concepts, terms, definitions and the
associated rules for describing the required functional capabilities of APC-O units.
The following are outside the scope of this part of ISO 15746:
— definition and specification of an interface or communication protocol between APC-O capabilities;
— requirement and restriction of a specific technical specification when developing and implementing
APC-O systems;
— strategy and method of a certain APC-O system.
2 Terms and definitions
2.1
advanced process control
APC
control strategy to cope with processes characterized by large time delays (2.18), non-minimum phase,
non-linearity, loop instability and multi-variable coupling
Note 1 to entry: APC enhances basic process control by addressing particular performance or economic
opportunities in the process.
EXAMPLE MPC, Adaptive control, Inferential control.
2.2
advanced process control and optimization
APC-O
collection of advanced process control (2.1) and optimization (2.13) strategies
2.3
controller
functional unit consisting of electronic devices or realized by computers (or digital systems), which is
used to execute the specified control strategies
2.4
data driven model
model (2.11) developed through the use of data derived from tests or from the output of investigated process
© ISO 2015 – All rights reserved 1

---------------------- Page: 7 ----------------------
ISO 15746-1:2015(E)

2.5
expert control
control strategy based on rule set and reasoning process, which adopts the knowledge and ideas to the
problem for control implementation
2.6
first principle model
model (2.11) reflecting physical and chemical laws, such as mass balance and energy balance
2.7
performance indicators
category of quantized and pre-authorized benchmarks that reflect the realization of the goals
2.8
physical sensor
physical equipment or converter that measures a physical quantity and converts it into a signal which
can be read by an observer or by an instrument
Note 1 to entry: These days, instruments are mostly electronic.
EXAMPLE Flowmeter; pressure transmitter.
2.9
manipulated variable
input variable of the control system, which is used to manipulate the controlled variable
2.10
model predictive control
predictive control
comprehensive closed loop optimized control strategy which combines a dynamic model (2.11) for
predicting future behaviour of the process, a continuous implementation of the control action based on
on-line repeated optimization (2.13) and a feedback correction for the model error
EXAMPLE Model Algorithmic Control (MAC); Dynamic Matrix Control (DMC); Generalized Predictive
Control (GPC).
2.11
model
abstract description of reality in any form (including mathematical, physical, symbolic, graphical or
descriptive) that presents a certain aspect of that reality
[SOURCE: ISO 19439:2006, 3.47]
2.12
manufacturing operations management
MOM
activities within Level 3 of a manufacturing facility that coordinate the personnel, equipment and
material in manufacturing
[SOURCE: IEC 62264-3:2007, 3.1.11, modified — Notes have been deleted; abbreviated term has been added.]
2.13
optimization
decision-making strategy to meet the business objective under a weighted set of conditions and concerns
2.14
soft sensor
virtual device using mathematical model (2.11) of sensing function to estimate process parameters
using other known variables as inputs
2 © ISO 2015 – All rights reserved

---------------------- Page: 8 ----------------------
ISO 15746-1:2015(E)

2.15
statistical process control
strategy which uses statistical methods to monitor and control the manufacturing process in order to
improve and maintain the system performance
2.16
steady state
equilibrium state at which the output variables are time-invariant
2.17
system identification
method, based on the observation of inputs and outputs, used to generate a model (2.11) of the system
from a set of models by suitably adjusting model parameters
Note 1 to entry: The key factors of system identification include model structure, observed information and
objective function.
2.18
time delay
time period that starts from when there is variation of the input variable until it influences the system
output variable
Note 1 to entry: Time delay is also referred to as deadtime.
3 Abbreviated terms
APC advanced process control
APC-O advanced process control and optimization
KPI key performance indicator
MOM manufacturing operations management
OPM object process methodology
PID proportional-integral-derivative
PLS partial least squares
4 Concepts and capabilities
4.1 Background concepts
Process control is one of the most important branches of industrial automation. It aims at the control
problems of process parameters, such as temperature and pressure. It covers a diversity of industrial
fields, such as petroleum, chemicals, electric power, metals, textiles, building materials, light industry,
nuclear energy, and pharmaceuticals.
With the development of modern industries, controlled objects are becoming increasingly sophisticated,
which brings along with it new difficulties and challenges, such as multiple time varying parameters, large
time delays, high nonlinearity, and complex coupling among input and output variables. Normal single
loop control strategies can no longer achieve the desired objective of modern industrial automatic control.
Since the 1970s, with the development of control theory and technology, a series of APC-O strategies have
been proposed, such as multi-loop control and optimization strategy based on a system model, control
strategy based on artificial intelligence and supervisory control strategy based on stochastic statistical
analysis. The typical examples of APC-O include multivariable model predictive control, gain-based
optimization, adaptive control, expert control and stochastic statistical process control.
© ISO 2015 – All rights reserved 3

---------------------- Page: 9 ----------------------
ISO 15746-1:2015(E)

4.2 Capabilities of the APC-O system
APC-O is the general definition of control and optimization strategies, which is used to cope with the
optimal operation problems of complicated multi-variable processes in manufacturing processes.
It can effectively solve problems such as large time delays, non-minimum phase, nonlinearity,
open loop instability, multi-variable coupling, manipulated variable and control variable with
constraints, multi-objective optimization.
APC-O is a type of dynamic coordinate control and optimization strategy with constraint handling to
supervise the regulatory control system in Level 2. An APC-O system interfaces with control systems in
Level 2 and provides real-time adjustments using these interfaces. These adjustments are intended to
adapt the control system in Level 2 to the system dynamics and varying operation requirements of the
manufacturing processes. In this way, a local and/or global optimization of the production processes
can be achieved, either yielding the desired benefits or suggesting strategies wherever compromises
are required. APC-O focuses on stationary and economic indicators to direct the optimization activity.
Overall, APC-O helps to:
— enhance the stability and reliability of the entire system such as improving the robustness and
safety of the equipment, and enforcing the safety and environmental operating constraints;
— improve overall system performance, such as reducing variance in system variables;
— improve the consistency of product quality, such as minimizing the quality giveaway;
— ensure the system operates as close to a constraint limit as possible such as operating close to
economic and physical constraints, and increasing throughput.
5 Functional architecture of the APC-O system
The functional architecture of an APC-O system is described by the integration of the following functional
modules: soft sensor, advanced process control (APC), optimization, and performance assessment,
which is shown in Figure 2.
4 © ISO 2015 – All rights reserved

---------------------- Page: 10 ----------------------
ISO 15746-1:2015(E)

Figure 2 — Functional architecture of APC-O system
The soft sensor module serves in the same function as a physical sensor, except that values are obtained
from a mathematical model of the physical sensor using other known variables as inputs. The soft
sensor consequently enhances variable monitoring by increasing sampling frequency and replacing
inaccurate measurements. The soft sensor module collects input data, and its outputs serve as inputs of
the modules of APC and optimization to replace the measurements that are obtained from laboratory
analysis or online analyzers with long cycle times.
The APC module includes a broad range of techniques and methodologies implemented within industrial
control systems. APC differs from regulatory loop control strategies and it is intended to generate better
control performance. The APC module collects input data from all the other modules of APC-O system.
Its outputs serve as inputs of the regulatory control system in Level 2 and all the other modules in APC-O
system except soft sensor module.
The optimization module intends to adjust the industrial equipment and processes to optimize a
specified set of parameters without violating constraints. The most common optimization goals are
minimizing cost, maximizing throughput and/or efficiency. The optimization module is based on a
mathematical model including a first principle model and/or a data driven model. The optimum of the
objective function is obtained by using analytical, numerical, programming or reasoning methods. The
optimization module collects input data from all the other modules of APC-O system, and its outputs
serve as inputs of all the other modules in APC-O system except soft sensor module.
The performance assessment module includes techniques and methodologies which help to maintain a
highly efficient operating performance of the industrial automation systems. It monitors and diagnoses
operating conditions of the industrial equipment and processes based on techniques such as control
theory, system identification, probability and statistics, and signal processing. The performance
assessment module intends to adjust the optimization and APC module to guarantee that the desired
performance indicators are met. The performance assessment module collects input data from all the
other modules of APC-O system except soft sensor module, its outputs serve as inputs of all the other
modules in APC-O system except soft sensor module.
© ISO 2015 – All rights reserved 5

---------------------- Page: 11 ----------------------
ISO 15746-1:2015(E)

6 Capabilities of modules within the APC-O system
6.1 Soft sensor module
Soft sensor module has the capability to estimate/predict the key process variables that are directly
related to the quality of the process output. The role of the soft sensor module is therefore of fundamental
importance for process control and management. Such key process variables can only be determined
by either online analysis at low sampling rates or through off-line analysis. Soft sensor module can,
therefore, deliver additional information about these variables at higher sampling rate and at lower cost.
Soft sensors module also have the capability to build features which are relevant to the process fault
state. Based on these features, soft sensor module allows the early detection of incipient process faults.
NOTE Soft sensor techniques are classified into data-driven techniques and first principle techniques.
Data-driven soft sensor techniques are used when a first principle model is not available or not accurate
enough . A soft sensor is designed on the basis of experimental data as well as industrial routinely
collected data. There are two main approaches to building data-driven soft sensors: multivariate
statistics and artificial intelligence such as neural networks, fuzzy logic and support vector machine.
First principle techniques estimate variables based on the principles of chemical reaction kinetics,
material balance, energy balance and other known concepts. It complements the data-driven soft
sensor technique. The first principle technique is intended to improve the system response accuracy
and robustness while keeping the overall architecture scalable.
6.2 APC module
APC module is able to address difficult control problems including large time delays, non-minimum
phase, nonlinearity, open loop instability and multivariable coupling. It can handle interactions of a
multivariable system and has good robustness to model and environmental uncertainty. APC module has
the capability to reduce the variance of controlled variables and allows the processes to be operated closer
to economic and physical constraints. It can improve product yield, reduce energy consumption, increase
capacity, improve product quality/consistency; reduce loss of production, increase responsiveness,
improve process safety and reduce environmental emissions. It is able to support the real-time process
optimization. It mainly includes control strategies such as predictive control and adaptive control.
6.3 Optimization module
Optimization module has the capability to respond to the production schedule in Level 3 and supply the
optimal process operating conditions or set points to the APC system. Such set points can ensure that
the process operates to achieve optimal objective function and satisfy operational constraints as well
as model constraints.
NOTE In one example, a steady state model with constraints operates in an offline or online calculation
mode to search for set points (operating points) to optimize an objective function while the process operates in
steady state mode.
As the complexity of the process increases, the optimal solution may not be the global optimal solution,
but it should satisfy the business requirements within the constraints.
In the APC-O system, optimization module can be implemented through a variety of technologies such
as linear programming, quadratic programming, sequential quadratic programming (SQP), interior
point method and active-set method.
6.4 Performance assessment module
Performance assessment module is used to detect and diagnose the performance degradation in the
APC-O system. The performance assessment module has the capabilities to provide the information
for determining whether the specified control/optimization performance targets and response
characteristics are being met by the APC-O systems. Performance assessment module can determine
6 © ISO 2015 – All rights reserved

---------------------- Page: 12 ----------------------
ISO 15746-1:2015(E)

the capability of the running APC-O system by selecting a benchmark, detect poor performing loops,
diagnose the underlying causes and suggest how to improve such loops.
NOTE In the APC-O system, the main purpose of performance assessment module is to evaluate and improve
the performance of the APC and Optimization module, and help operators to analyse the operational state of
equipment and Level 2 control systems, and determine when APC-O system maintenance is needed.
Some examples of performance assessment techniques include key performance indicators (KPIs) of
the APC-O system, process data statistics for key process measurements, and tracking of model biases.
7 Structure and lifecycle phases of APC-O modules
7.1 Generic structure of APC-O modules
The following module structures are depicted using the object process methodology (OPM), which is a
compact conceptual approach, language, and methodology for modelling and knowledge representation
of automation systems and their interoperation. OPM is a formal yet intuitive paradigm for systems design,
engineering, development, life cycle support, communication, and evolution. OPM notation supports
the conceptual modelling of systems. Its holistic approach can describe the functional, structural and
behavioural aspects of a system. In this part of ISO 15746, the structure of module is depicted by the
unfolded function of OPM. Table 1 defines the OPM notations used in the
...
