ISO 19440:2020

INTERNATIONAL ISO
STANDARD 19440
Second edition
2020-05
Enterprise modelling and
architecture — Constructs for
enterprise modelling
Modélisation et architecture d'entreprise — Constructions pour la
modélisation d'entreprise
Reference number
©
ISO 2020
© ISO 2020
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2020 – All rights reserved

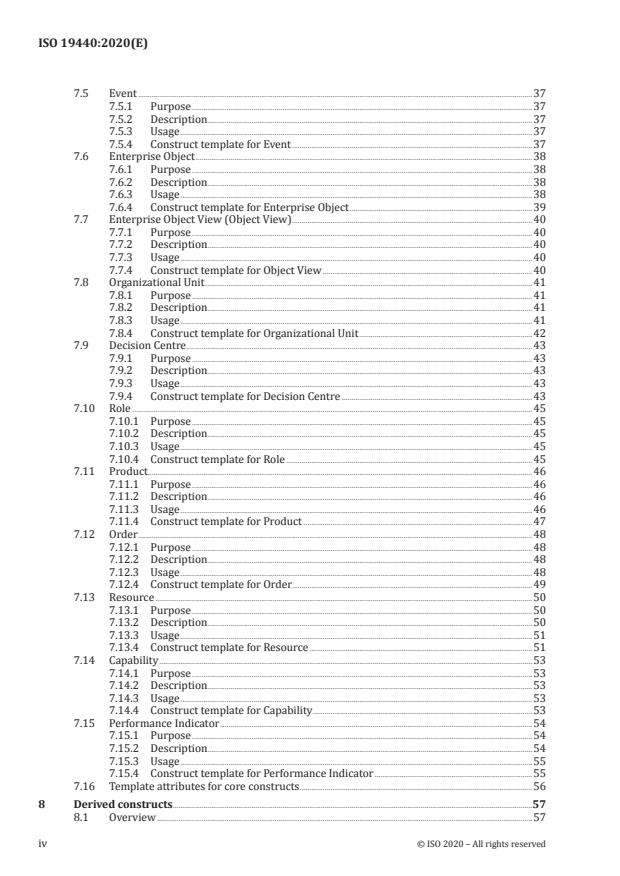

Contents Page
Foreword .vi
Introduction .viii
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Abbreviated terms .11
4.1 General .11
4.2 Construct-specific .11
5 Representations, relationships, roles and common concepts .12
5.1 Modelling language constructs, purpose and applicability .12
5.2 Dimensions of enterprise models .13
5.2.1 Dimension of genericity .13
5.2.2 Dimension of enterprise model phase .13
5.2.3 Dimension of enterprise model views .13
5.3 Construct representation .13
5.4 Common structure for modelling language constructs .14
5.5 Template for modelling language constructs .14
5.6 Referential integrity .15
5.7 Representation of attributes .17
5.8 Notation used to describe template contents.17
5.9 Support for modelling phases .18
5.10 Representation of relationships .19
5.11 Specializations .19
5.12 Complementary concepts .20
6 Conceptual structure .20
6.1 The four-component model .20
6.2 Meta-model component .21
6.3 Core component .22
6.4 Derivations component .24
6.5 Views component .25
7 Core constructs.26
7.1 Domain .26
7.1.1 Purpose .26
7.1.2 Description . . .26
7.1.3 Usage .26
7.1.4 Construct template for Domain .26
7.2 Business Process .28
7.2.1 Purpose .28
7.2.2 Description . . .28
7.2.3 Usage .29
7.2.4 Construct template for Business Process .29
7.2.5 Behavioural rules .30
7.3 Enterprise Activity .31
7.3.1 Purpose .31
7.3.2 Description . . .31
7.3.3 Usage .31
7.3.4 Construct template for Enterprise Activity .32
7.4 Service .34
7.4.1 Purpose .34
7.4.2 Description . . .34
7.4.3 Usage .34
7.4.4 Construct template for Service .35
7.5 Event .37
7.5.1 Purpose .37
7.5.2 Description . . .37
7.5.3 Usage .37
7.5.4 Construct template for Event .37
7.6 Enterprise Object .38
7.6.1 Purpose .38
7.6.2 Description . . .38
7.6.3 Usage .38
7.6.4 Construct template for Enterprise Object .39
7.7 Enterprise Object View (Object View) .40
7.7.1 Purpose .40
7.7.2 Description . . .40
7.7.3 Usage .40
7.7.4 Construct template for Object View .40
7.8 Organizational Unit .41
7.8.1 Purpose .41
7.8.2 Description . . .41
7.8.3 Usage .41
7.8.4 Construct template for Organizational Unit .42
7.9 Decision Centre .43
7.9.1 Purpose .43
7.9.2 Description . . .43
7.9.3 Usage .43
7.9.4 Construct template for Decision Centre .43
7.10 Role .45
7.10.1 Purpose .45
7.10.2 Description . . .45
7.10.3 Usage .45
7.10.4 Construct template for Role .45
7.11 Product.46
7.11.1 Purpose .46
7.11.2 Description . . .46
7.11.3 Usage .46
7.11.4 Construct template for Product .47
7.12 Order .48
7.12.1 Purpose .48
7.12.2 Description . . .48
7.12.3 Usage .48
7.12.4 Construct template for Order .49
7.13 Resource .50
7.13.1 Purpose .50
7.13.2 Description . . .50
7.13.3 Usage .51
7.13.4 Construct template for Resource .51
7.14 Capability .53
7.14.1 Purpose .53
7.14.2 Description . . .53
7.14.3 Usage .53
7.14.4 Construct template for Capability .53
7.15 Performance Indicator .54
7.15.1 Purpose .54
7.15.2 Description . . .54
7.15.3 Usage .55
7.15.4 Construct template for Performance Indicator .55
7.16 Template attributes for core constructs .56
8 Derived constructs .57
8.1 Overview .57
iv © ISO 2020 – All rights reserved

8.2 Derivations for a manufacturing-oriented enterprise .58
8.2.1 Purpose .58
8.2.2 Use of core constructs .58
8.2.3 Manufacturing derivations and core constructs .59
8.3 Derivations for a service-oriented enterprise.61
8.3.1 Purpose .61
8.3.2 Service system suppliers.61
8.3.3 Use of core constructs .61
8.3.4 Service derivations and core constructs .62
8.4 Derived constructs .63
8.4.1 Organizational Role .63
8.4.2 Operational Role.64
8.4.3 Person Profile .65
8.4.4 Stakeholder .67
8.4.5 User .68
8.4.6 Co-provider . .69
8.4.7 Functionality .69
Annex A (normative) Behavioural rules — Detailed description and syntax .71
Annex B (informative) Model views.85
Bibliography .110
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso .org/
iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 184, Automation systems and integration,
Subcommittee SC 5, Interoperability, integration, and architectures for enterprise systems and automation
applications.
This second edition cancels and replaces the first edition (ISO 19440:2007), which has been technically
revised.
The main changes compared to the previous edition are as follows:
— updates to the terms and definitions to address latest practice and harmonize with ISO 15704 and
ISO/IEC/IEEE 42010;
— reorganization of the material into four components (metamodel, core constructs, specializations
and model views), as described in 6.1;
— separation of the constructs into a slightly smaller number of core constructs in 6.3 and Clause 7,
and specializations thereof (which can be extended by a model user) in Clause 8;
— introduction of a Service construct as a core construct, with specializations in 8.3 to address
servitization;
— expansion of the Decision View in Clause B.4 and introduction of a new Collaboration View in
Clause B.5 to demonstrate extensibility, i.e. use in other application domains;
— renaming of the construct property ‘descriptive’ as ‘attribute’;
— introduction of a Role core construct as a generalization of Organizational Role, Operational Role
and Person Profile;
— introduction of a Performance Indicator core construct to support operational monitoring and
process improvement;
— allowing an Enterprise Activity to be decomposable into sub-activities;
vi © ISO 2020 – All rights reserved

— elimination of Functional Entity to reduce the number of core constructs and replacing it by ‘active
Resource’;
— insertion (in Clause A.1) of new text explaining why and how behavioural rules need to be
constrained;
— deletion of annexes which will be included in a future Technical Report on typical usages of
identification and usage of constructs in each model phase.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
Introduction
This document defines the generic concepts that are required to enable the creation of enterprise
models for industrial and other businesses and to provide support for the use of frameworks by
industrial and other enterprises. This document builds upon ISO 19439 and defines and details a set of
conformant user-oriented modelling language constructs for manufacturing and related services, which
provide common semantics and enable the unification of models developed by different stakeholders in
the various phases of model development. Such models are aimed at model-based support of operational
decision-making and can be employed for model-based operation monitoring and control.
The modelling language constructs defined in this document can be specialized or assembled or
both specialized and assembled into structures for specific purposes, for example for an industry
or enterprise sector or for a distinct kind of enterprise concern such as maintenance. In turn, such
structures and generic modelling language constructs can be used for developing distinct models for a
specific enterprise.
The general requirements that determine the characteristics of the core constructs necessary for
computer-supported modelling of enterprises are
a) the provision of an explicit model of Business Processes, with their dynamics, functions,
information, resources, relationships and organizational responsibilities,
b) sufficient detailing and qualification of enterprise components to allow the creation of a model for
a specific enterprise,
c) support for management of change, and
d) end-user-oriented representation to enable operational use.
NOTE All Unified Modelling Language (UML) class model figures are computer-generated scalable vector
graphics (SVG). All generalization-specialization relationships in those class models are coloured red for
increased clarity. Figures B.10 and B.11 are line drawings.
The names of terms representing core constructs (see Clause 7) and derived constructs (see Clause 8)
are capitalized throughout this document to aid the reader in distinguishing them from general usages
of the same term, specifically in order to distinguish the constructs Capability, Domain, Enterprise
Activity, Event and Resource from general usage of capability, domain (or enterprise domain), enterprise
activity, event and resource.
viii © ISO 2020 – All rights reserved

INTERNATIONAL STANDARD ISO 19440:2020(E)
Enterprise modelling and architecture — Constructs for
enterprise modelling
IMPORTANT — The electronic file of this document contains colours which are considered to be
useful for the correct understanding of the document. Users should therefore consider printing
this document using a colour printer.
1 Scope
This document identifies and specifies constructs necessary for users that model enterprises in
conformance with ISO 19439.
This document focuses on, but is not restricted to, engineering and the integration of manufacturing and
related services in the enterprise. The constructs enable the description of structure and functioning of
an enterprise for use in configuring or implementing in different application domains. This document
specifies an implementation framework in Clause 6 to map model constructs into such domains.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1
aggregation
process of, or result of, combining modelling language constructs (3.50) and
other model (3.49) components (3.9) into a whole entity (3.35)
Note 1 to entry: Modelling language constructs and other model components can be part of more than one
aggregation.
Note 2 to entry: Both Part-of and Consists-of are used in the aggregation relationships (3.64) described in 7.16.
3.2
attribute
piece of information stating a property of an entity (3.35)
[SOURCE: ISO 19439:2006, 3.2]
3.3
behavioural rule
description of the logical sequencing relationships (3.64) of constituent
activities used in the specification of Business Process (3.4) and Service (3.71) behaviour
3.4
Business Process
construct (3.12) that represents a partially ordered set of Business Processes,
Services and Enterprise Activities that when executed, achieves some desired end-result in pursuit of a
given objective of an enterprise (3.27) or a part of an enterprise
3.5
capability
ability to perform a specified activity
3.6
Capability
specialization (3.73) of the Enterprise Object (3.33) construct (3.12) that
represents the collection of capability (3.5) characteristics [expressed as capability attributes (3.2)] of
either a Resource (3.67) (its provided Capability) or an Enterprise Activity (3.28) (its required Capability)
3.7
class
abstraction representing and encapsulating properties, relationships (3.64) and behaviour, which
distinguish a collection of similar phenomena
Note 1 to entry: Class is used in a very general sense without any connotation for implementation or for use with
a specific methodology.
3.8
complementary concept
conceptual representation that is not itself a construct (3.12), but that has a distinct significance and
semantics for the purposes of enterprise modelling
Note 1 to entry: Many construct templates (3.14) use complementary concepts, which are listed in 5.12.
3.9
component
entity (3.35), with discrete structure within a system (3.75), which interacts with other
components of the system, thereby contributing to the system properties and characteristics
[SOURCE: ISO 19439:2006, 3.6, modified – The words “at the lowest level” have been deleted after
“contributing”.]
3.10
concept definition phase
enterprise model phase (3.31) that defines the business concepts of an enterprise domain (3.29) to be
employed in realizing its business objectives and its operation, including the necessary enterprise
domain inputs and outputs
[SOURCE: ISO 19439:2006, 3.7, modified – The word “phase” has been added to the term.]
3.11
constraint
restriction or limitation or condition placed upon a system (3.75) that originates from inside or outside
the system under consideration
[SOURCE: ISO 19439:2006, 3.8]
3.12
construct
abstraction devised as an element of a modelling language to represent a
generic concept in the Domain (3.24)
Note 1 to entry: This document addresses the domain of manufacturing, related services and collaborating
enterprises.
2 © ISO 2020 – All rights reserved

3.13
construct label
literal string defined for each construct template (3.14), identifying the kind of construct (3.12)
Note 1 to entry: Construct labels are listed in 4.2.
3.14
construct template
common structure that allows the identification and description of distinct modelling language
constructs (3.50) and the assignment of their properties
3.15
Co-provider
derived construct (3.22), a specialization (3.73) of Role (3.69), which represents
a person or an organization associated with another in providing a Service (3.71)
3.16
core construct
dominant construct (3.12) that is distinguished from normal usage of the term
by capitalizing the first letter of each word
Note 1 to entry: Core constructs are explained in Clause 7.
EXAMPLE Domain (3.24); Business Process (3.4); Enterprise Activity (3.28); Service (3.71); Event (3.36);
Enterprise Object (3.33); Enterprise Object View (3.34); Organizational Unit (3.55); Decision Centre (3.17); Role
(3.69); Product (3.63); Order (3.53); Capability (3.6); Performance Indicator (3.59).
3.17
Decision Centre
specialization (3.73) of the Enterprise Object (3.33) construct (3.12) that
represents a set of decision-making activities that are characterized by having the same time horizon
and planning period and belonging to the same kind of decision function category (3.18)
Note 1 to entry: The terminology used to describe aspects of Decision Centre is found in CEN/TS 14818, which
defines (time) horizon as “the part of the future taken into account by a decision, i.e. the horizon is six months
when a decision is taken on a time interval of six months” and (planning) period as “the time that passes between
a decision and when this decision shall be re-evaluated”.
3.18
decision function category
set of decision activities or Decision Centres (3.17) handling the same kinds of
decision-making activities and concerning the same kinds of subjects
EXAMPLE Manage resources; manage products; plan production.
3.19
declarative rule
set of objectives and constraints (3.11), possibly combined with a set of requirements expressed as text
Note 1 to entry: Declarative rules can be imposed on Business Processes (3.4) and Services (3.71).
3.20
decommission definition phase
enterprise model phase (3.31) that defines the final state of a decommissioned operational system (3.75),
all its components (3.9) for a specific enterprise domain (3.29) and the processes employed to conduct
the decommissioning, so enabling reuse or disposition of those components
[SOURCE: ISO 19439:2006, 3.11, modified – The word “phase” has been added to the term, and the word
“particular” has been replaced with “specific” in the definition.]
3.21
derivation
process of elaborating enterprise models (3.30) at successive enterprise model
phases (3.31) from the models (3.49) established at preceding phases, reusing the available contents
and extending them according to the needs expressed for a model phase
3.22
derived construct
construct (3.12) that is specialized from an Enterprise Object (3.33) and that is
distinguished from normal usage of the term by capitalizing the first letter of each word
Note 1 to entry: Derived constructs are explained in Clause 8.
EXAMPLE Organizational Role (3.54); Operational Role (3.52); Person Profile (3.61); Stakeholder (3.74); User
(3.76); Co-provider (3.15); Functionality (3.40).
3.23
design specification phase
enterprise model phase (3.31) that specifies the Business Processes (3.4), together with Enterprise
Activities (3.28) and rules, that are to be performed to achieve the requirements
[SOURCE: ISO 19439:2006, 3.13, modified – The word “phase” has been added to the term, the words
“Business Processes” have been capitalized and the word “capabilities” has been replaced with
“Enterprise Activities”.]
3.24
Domain
construct (3.12) that represents the portion of an enterprise (3.27) to be
modelled providing for identification of the relevant information
3.25
domain identification phase
enterprise model phase (3.31) that identifies the enterprise domain (3.29) to be modelled with respect
to its business objectives, the enterprise domain inputs and outputs and their respective origins and
destinations
[SOURCE: ISO 19439:2006, 3.15, modified – The word “phase” has been added to the term.]
3.26
domain operation phase
enterprise model phase (3.31) that encompasses the operational use of the Domain (3.24) model (3.49)
[SOURCE: ISO 19439:2006, 3.16, modified – The word “phase” has been added to the term.]
3.27
enterprise
human undertaking or venture that has definite mission (3.48), goals and
objectives to offer products or services (3.70), or to achieve a desired project outcome or business outcome
3.28
Enterprise Activity
construct (3.12) that represents all or some part of the most detailed extent of
enterprise functionality required by Business Process (3.4) objectives, that defines the task or tasks to
undertake and that identifies the inputs needed for its execution and the outputs created as a result
Note 1 to entry: The necessary inputs and resources (3.66) are identified in the Enterprise Activity template.
4 © ISO 2020 – All rights reserved

3.29
enterprise domain
part of the enterprise (3.27) with a given set of business objectives and constraints (3.11) for this
enterprise model (3.30)
Note 1 to entry: In this document, “enterprise domain” is abbreviated to “domain” whenever it is used as a
qualifier in such terms as “domain identification phase” and “domain model”. Other usages of “domain” have the
normal dictionary meaning.
3.30
enterprise model
representation of an enterprise (3.27) as well as entities (3.35) within an enterprise, their
interrelationships, their decomposition and detailing to the extent necessary to convey what the
enterprise intends to accomplish and how it operates
Note 1 to entry: An enterprise model, which is used to improve the effectiveness and efficiency of the enterprise,
identifies and specifies essential components (3.9) and elements to any necessary extent of detail, including any
subsystems and constituent models (3.49) of the enterprise, e.g. an enterprise architecture model.
[SOURCE: ISO 15704:2019, 3.6]
3.31
enterprise model phase
life cycle (3.45) phase of an enterprise model (3.30)
[SOURCE: ISO 19439:2006, 3.24]
3.32
enterprise model view
model view
view
selective perception or representation of an enterprise model (3.30) that emphasizes some distinct
aspect and disregards others
[SOURCE: ISO 19439:2006, 3.25, modified – The additional terms “model view” and “view” have been
added, and the word “particular” has been replaced with “distinct” in the definition.]
3.33
Enterprise Object
construct (3.12) that represents information in the enterprise (3.27) describing
a generalized or a real or an abstract entity (3.35) conceptualized as being a whole
Note 1 to entry: All other constructs in this document represent entities that have specific semantics requiring
distinct properties and additional descriptions.
[SOURCE: ISO 19439:2006, 3.27, modified – The term “Enterprise Object” has been capitalized, the field
“” has been added, the words “piece of information in the enterprise domain
that describes” have been replaced with “construct that represents information in the enterprise
describing”, the words “which can be” have been deleted before “conceptualized
...
