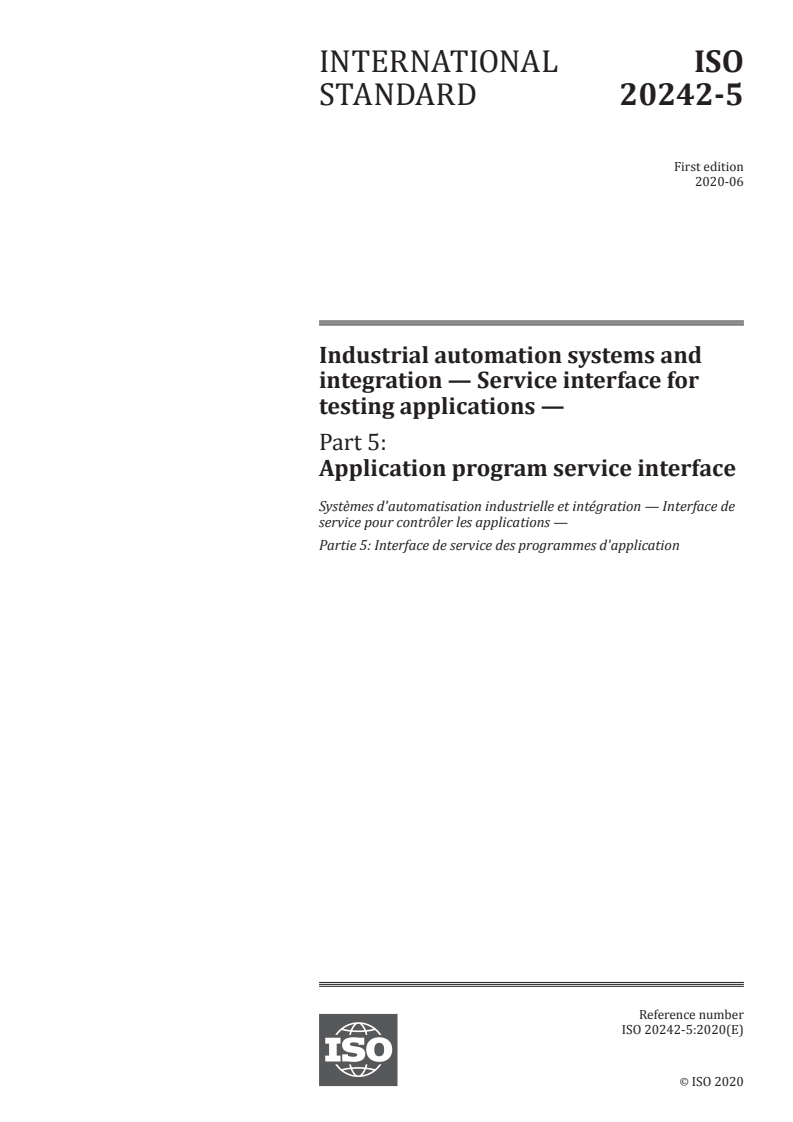

ISO 20242-5:2020

INTERNATIONAL ISO
STANDARD 20242-5
First edition
2020-06
Industrial automation systems and
integration — Service interface for
testing applications —
Part 5:
Application program service interface
Systèmes d'automatisation industrielle et intégration — Interface de
service pour contrôler les applications —
Partie 5: Interface de service des programmes d'application
Reference number
©
ISO 2020
© ISO 2020
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2020 – All rights reserved

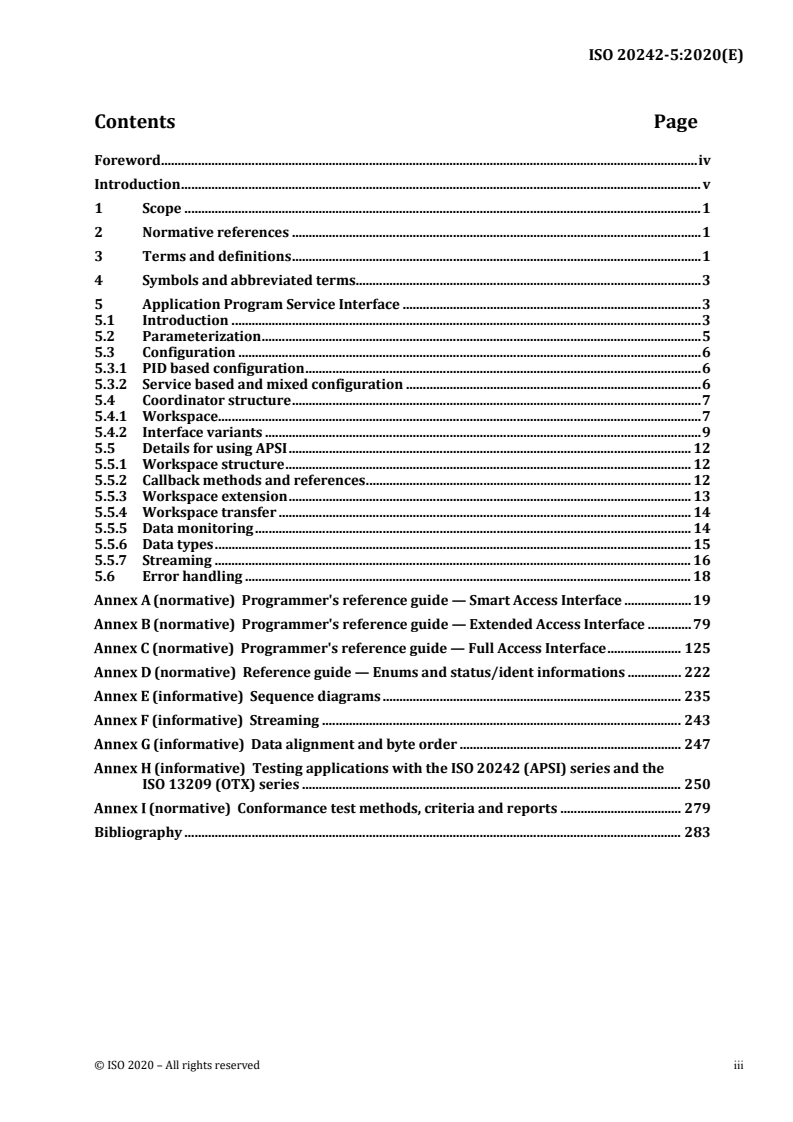

Contents         Page
Foreword . iv
Introduction . v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols and abbreviated terms . 3
5 Application Program Service Interface . 3
5.1 Introduction . 3
5.2 Parameterization . 5
5.3 Configuration . 6
5.3.1 PID based configuration . 6
5.3.2 Service based and mixed configuration . 6
5.4 Coordinator structure . 7
5.4.1 Workspace. 7
5.4.2 Interface variants . 9
5.5 Details for using APSI . 12
5.5.1 Workspace structure . 12
5.5.2 Callback methods and references . 12
5.5.3 Workspace extension . 13
5.5.4 Workspace transfer . 14
5.5.5 Data monitoring . 14
5.5.6 Data types . 15
5.5.7 Streaming . 16
5.6 Error handling . 18
(normative) Programmer's reference guide — Smart Access Interface . 19
(normative) Programmer's reference guide — Extended Access Interface . 79
(normative) Programmer's reference guide — Full Access Interface . 125
(normative) Reference guide — Enums and status/ident informations . 222
(informative) Sequence diagrams . 235
(informative) Streaming . 243
(informative) Data alignment and byte order . 247
(informative) Testing applications with the ISO 20242 (APSI) series and the
ISO 13209 (OTX) series . 250
(normative) Conformance test methods, criteria and reports . 279
Bibliography . 283

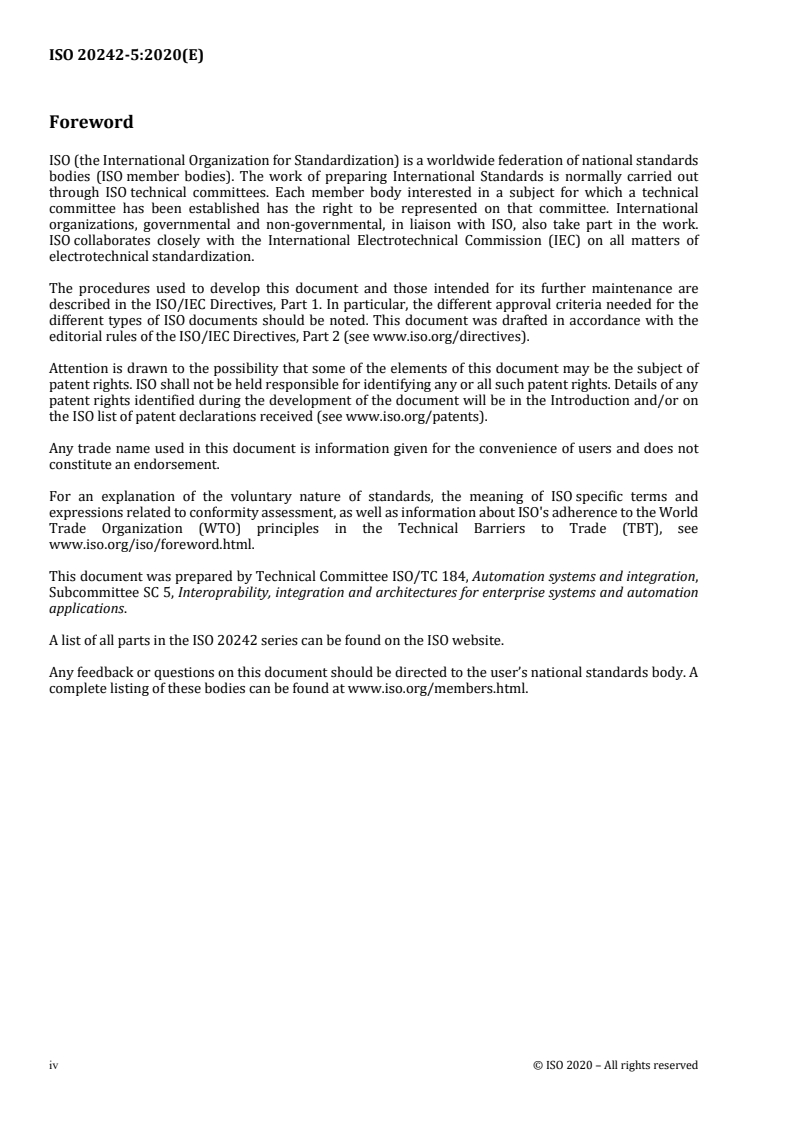

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of any
patent rights identified during the development of the document will be in the Introduction and/or on
the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the World
Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 184, Automation systems and integration,
Subcommittee SC 5, Interoprability, integration and architectures for enterprise systems and automation
applications.
A list of all parts in the ISO 20242 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv © ISO 2020 – All rights reserved

Introduction
The motivation for the ISO 20242 series stems from international automotive industries and their
suppliers to facilitate the integration of automation and measurement devices, and other peripheral
components for this purpose, into computer based applications. It defines rules for the construction of
device drivers and their behaviour in the context of an automation and/or measurement application.
The main goal of the ISO 20242 series is to provide users with:
— independence from the computer operating system;
— independence from the device connection technology (device interface/network);
— independence from device suppliers;
— the ability to certify device drivers with connected devices and their behavior in the context of a given
computer platform;
— independence from the technological device development in the future.
The ISO 20242 series will not force the development of new device families or the use of special interface
technologies (networks). It encapsulates a device and its communication interface to make it compatible
with other devices of that kind for a given application.
INTERNATIONAL STANDARD ISO 20242-5:2020(E)

Industrial automation systems and integration — Service
interface for testing applications —
Part 5:
Application program service interface
1 Scope
This document defines the formatting, syntax and semantic rules for describing
— an object oriented interface for using services provided by a coordinator and
— the configuration of virtual devices and the environment for their use.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 20242-1, Industrial automation and systems integration — Service interface for testing applications —
Part 1: Overview
ISO 20242-2, Industrial automation and systems integration — Service interface for testing applications —
Part 2: Resource Management Service Interface
ISO 20242-3, Industrial automation and systems integration — Service interface for testing applications —
Part 3: Virtual Device Service Interface
ISO 20242-4, Industrial automation and systems integration — Service interface for testing applications —
Part 4: Device Capability Profile Template
ISO 13209-1, Road vehicles — Open Test sequence eXchange format (OTX) — Part 1: General information
and use cases
ISO 13209-2, Road vehicles — Open Test sequence eXchange format (OTX) — Part 2: Core data model
specification and requirements
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 20242-1, ISO 20242-2,
ISO 20242-3, ISO 20242-4, ISO 13209-1, ISO 13209-2 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at http://www.electropedia.org/
3.1
communication object
existing object which may be accessed with a communication function to read or write a value
[SOURCE: ISO 20242-1:2005, 2.3]
3.2
coordinator
program with a specified interface to handle the access of an application program to one or more device
drivers (3.5) and to manage real-time application aspects, synchronization and events
[SOURCE: ISO 20242-1:2005, 2.4]
3.3
coordinator capability description
text file containing information about the capabilities of coordinators (3.2) in a defined format (i.e.
structure, syntax)
[SOURCE: ISO 20242-4:2011, 3.3]
3.4
coordinator services
services of a coordinator (3.2) for the exchange of data with application programs
3.4
device capability description
text file containing information about the capabilities of virtual devices (3.9) in a defined format (i.e.
structure, syntax)
[SOURCE: ISO 20242-1:2005, 2.5, modified — Note 1 to entry deleted.]
3.5
device driver
software module providing an ISO 20242-specified interface with service functions to call a platform
adapter to access physical devices
[SOURCE: ISO 20242-2:2010, 3.1]
3.6
function object
instance describing one capability of a virtual device (3.9)
[SOURCE: ISO 20242-3:2011, 3.4]
3.7
operation
instance describing one complete procedure
[SOURCE: ISO 20242-3:2011, 3.5]
3.8
parameterization instance description
information about the configuration of a coordinator (3.2) and of virtual devices (3.9)
[SOURCE: ISO 20242-4:2011, 3.8]
2 © ISO 2020 – All rights reserved

3.9
virtual device
representation of one or more physical devices and/or stand-alone software modules that provide an
unambiguous view of the resources of a communication interface
[SOURCE: ISO 20242-3:2011, 3.7]
3.10
workspace
grouping of coordinators (3.2) resources providing an access point for an application
4 Symbols and abbreviated terms
APSI Application Program Service Interface
ASCII American Standard Code for Information Interchange
CCD Coordinator Capability Description
CO Communication Object
DCD Device Capability Description
DCPT Device Capability Profile Template
DSL Domain Specific Language
EAI Extended Access Interface
FAI Full Access Interface
FO Function Object
NIL Null pointer or null reference, does not refer to a valid object
OP Operation
OTX Open Test sequence eXchange
PID Parameterization Instance Description
SAI Smart Access Interface
VD Virtual Device
VDSI Virtual Device Service Interface
XML eXtensible Markup Language (see REC-xml-20040204)
5 Application Program Service Interface
5.1 Introduction
This clause describes a set of services that shall be provided by a coordinator to be used by several
application programs (Figure 1).
Application 1 Application 2 Application 3
Measurement
Visualization Monitoring
Automation
Application 4 Application 5
Device Device
Parameterization Maintenance
C o o r d i n a t o r
Figure 1 — Exemplary application programs using a coordinator
The concept for the Application Program Service Interface (APSI) is to be device neutral. It shall be
possible to access application-relevant data presented by any device without device-specific services or
parameters (Applications 1, 2 and 3 in Figure 1). Nevertheless, for the configuration of devices and other
device-specific tasks it should also be possible to transfer device-specific information (Applications 4 and
5 in Figure 1). Therefore, APSI defines different interfaces (see 5.4.2), whereas the Smart Access Interface
(SAI) is mandatory and shall not handle any device-specific access, and the Full Access Interface (FAI) is
optional and shall enable an access to virtual devices in device drivers (see ISO 20242-3). In a typical full
stack usage of the ISO 20242 series, the coordinator accesses device drivers via the Virtual Device Service
Interface (see Annex I and
ISO 20142-1:2005).
The application should use abstract data sources and sinks identified by instance names. Depending on
the application environment, data types of sources and sinks are known before or have to be identified
via the interface. Applications using APSI typically will not have information about the physical devices
providing the requested information processing. In addition, the coordinator shall implement a memory
separation between application data and device data (see 5.5.7). Therefore, device-specific data elements
shall be encapsulated and not be visible for the application.
This document describes the basics of coordinator services and their usage in typical applications. An
object-oriented model is used with a fundamental description of classes, attributes and methods. Services
are executable synchronous by default. The asynchronous operation is optional. Corresponding
capabilities of a coordinator shall be described in a datasheet delivered with the coordinator (see I.2).
Asynchronous operation is controlled via callback functions. For global event handling in a workspace
(see 5.4.1), the callback functions (e.g. see refCBInformationReport in A.2.2.7) shall be defined with
opening the workspace. Additionally local callbacks should be registered at each attribute (see 5.5.2).
Coordinator services will typically be mapped to the applied technology, platform and programming
language (e.g. CORBA, JAVA, C++). Therefore, this document defines services and not an interface for a
specific programming language. Details for a specific programming language shall be explained for the
respective mapping in a datasheet (see I.2). This also applies for the error handling, because technological
restrictions of data processing have to be considered for the corresponding implementation.
Annex H describes the usage of this standard with applications based on ISO 13209 (OTX). Conformance
tests for this document shall be carried out as specified in Annex I.
4 © ISO 2020 – All rights reserved

5.2 Parameterization
The coordinator shall be able to link and release applications and device drivers dynamically and to
create and delete data objects in device drivers (virtual devices, function objects and communication
objects as defined in ISO 20242-3). This procedure shall be identical for all device drivers. The sequence
of creating and deleting data objects shall not be fixed. It shall be possible to use a parameter instance
description (PID, as defined in ISO 20242-4) to control the procedure of instantiation.
NOTE 1 The coordinator does not know, which device capabilities are necessary for a specific application, but it
can communicate with each device on the basis of its device capability description (DCD, as defined in
ISO 20242-4).
NOTE 2 To achieve a balance between the functionalities needed by the application and the device capabilities
provided by the device drivers, a configuration is usually set up by means of a parameterization procedure. The
result is a parameterization instance description (PID) which contains the information for the coordinator to create
all necessary data objects. This procedure is the key for device independence, as the application does not need to
know the specific capabilities of the used devices. A parameterization tool can create the PID, which can be part of
the application itself or a stand-alone software.
The parameterization shall be based on the DCD available for the device drivers and should be supported
by multilingual text elements as defined in ISO 20242-4:2011, Clause 8.
NOTE 3 The PID can be created without a coordinator and it is not necessary to connect any device.
The PID shall not be altered by a coordinator.
The following information shall be included within the parameter instance description:
— workspace name,
— drivers (location) with version number,
— device capability descriptions (DCD) of drivers,
— virtual devices (VD) including identification and parameters for creation,
— function objects (FO) including identification and parameters for creation,
— communication objects (CO) and their default values,
— operations (OP) and their identification,
— in/out-structures of operations with values for input parameter,
— initializing order, and
— application references (instance names) for the abstract data sources and sinks.
The parameter instance description (PID) shall be based on the description of structured data types.
Thus, the typedef sections of the DCDs shall be resolved. See ISO 20242-4 for details.
NOTE 4 With this parameterization, the initialized values for virtual devices, function objects and
communication objects are established for an application-related configuration.
The generated PID shall be stored separately. The read configurations shall be reproducible by the
coordinator at any time.
5.3 Configuration
5.3.1 PID based configuration
With a PID based configuration, an XML file created using the specification in ISO 20242-4 will be
presented to the coordinator by the application at the creation of a workspace. This file shall be processed
automatically by the coordinator. When an application logs in at the coordinator, the instance description
to be used shall be identified by name.
If the application knows the instance names and types of the abstract data sources and sinks, it could
iterate over the object references created by the coordinator. This is a typical use case for the Smart
Access Interface.
If the application does not know the instance names and types of the abstract data sources and sinks, it
should iterate over the object references created by the coordinator and request the names and types of
the abstract data sources and sinks. This is a typical use case for the Extended Access Interface.
The coordinator shall instantiate the objects given with the instance description, and thus creates
abstract data sources and inside to be used by the application. The data objects of the device driver
assigned to these abstract data sources and sinks shall be instantiated within the corresponding virtual
devices.
NOTE During the life time of the device driver these abstract data sources and sinks can be updated by the
application via reading and writing. The coordinator can update the abstract data sources and sinks accessing the
data objects instantiated within the device drivers, as the coordinator knows the relations between the abstract
data sources and sinks inside and the function objects of the virtual devices.
The operating state of a virtual device will be "Working" (ISO 20242-3:2011, Clause 7) after running a
parameterization with the SAI or EAI. In this state, the modification of parameters is not possible. The
method GdiCoWorkspace::gdiSetAllowChangeParameter(boolean bEnable) resets this
prohibition and enables the application to write a parameter (see A.2.29.12). For this, the coordinator
shall transit the respective VDs to the appropriate states.
5.3.2 Service based and mixed configuration
If the full access interface is implemented in the coordinator, an application itself can do the configuration
without an accordingly prepared PID.
In a service based configuration, the structure (classes and data types) and the content (instances and
parameters) of the interface can be created. See Annex C for details of this step by step procedure of
configuration.
In a mixed configuration, a PID without instances and parameters (called empty PID in this document)
can be presented at the interface. The coordinator shall build the structure based on the DCD contained
in the empty PID. Instances and parameters can be created afterwards.
For both cases, the operating state of a VD can be controlled by the application.
6 © ISO 2020 – All rights reserved

5.4 Coordinator structure
5.4.1 Workspace
The workspace in this document is defined as a grouping of coordinator resources and provides an access
point for an application. The coordinator shall provide several workspaces which shall be managed
separately. An application can use one or more workspaces. Workspaces shall be identified by name and
shall connect only to one application (Figure 2) and an optional monitoring application (see 5.5.5 for
details).
Monitor-
Application 1 Application 2
Application
Workspace A Workspace B Workspace C
C o o r d i n a t o r
Figure 2 — Applications and workspaces
APSI shall be a multi client interface, as several workspaces can be used at the same time. The content of
a PID file shall exactly describe one workspace, independent from the number of devices, device drivers
and DCDs.
GdiCoWorkspace
Description Instantiation
(Data Base) (Run Time)
GdiCoDriverCD GdiCoDriverRT
GdiCoVDRT
GdiCoModuleCD
GdiCoDataObjectRT
GdiCoInterfaceCD GdiCoFuncObjectRT
GdiCoOperationCD GdiCoOperationRT
GdiCoCommObjectCD GdiCoCommObjectRT
has reference to
Figure 3 — Workspace view for service organisation
With connecting to a workspace, an application shall get a handle for its further identification. Therefore
any interface access after connecting takes this application handle as parameter.
A coordinator shall be able to handle several applications simultaneously. The objects set up by the
coordinator for each application shall remain reserved for this application and shall be invisible for other
applications. If several applications need access to identical coordinator objects, this should be organized
by the application connected to the workspace.
Access services defined in this document shall be carried out as specified in Annex A for the Smart Access
Interface (SAI), Annex B for the Extended Access Interface (EAI) and Annex C for the Full Acces Interface
(FAI). Further services providing information about enums, status and identification shall be carried out
as specified in Annex D. The services are organized with a view on two sides of a workspace. One side is
called Description and the other side is called Instantiation (see Figure 3).
The Description side is also referred to as Data Base side, because the contained information is static and
represents the class descriptions from the DCDs of the corresponding device drivers. The Instantiation
side is referred to as RunTime side, because it represents the realized instances including default initial
values used at RunTime. If an application uses only the services from the RunTime side, the allocation of
the separate device drivers and VDs shall be not visible. Instead a pool of abstract data sources and sinks
shall be provided.
Device driver and DCD form a unit. For each device driver there is exactly one Description side, which
represents the respective DCD, and exactly one RunTime side. The classes of Description side and the
objects of RunTime have a tree structure. Each element is assigned to an unambiguous position in the
tree. The GdiCoDriverCD (see C.2.7) is the root element in the Description side and GdiCoDriverRT
(see C.2.9) is the root element in the RunTime side.
8 © ISO 2020 – All rights reserved

Instance names of function objects within a workspace (RunTime side) shall be unique over all used
drivers.
If an object from RunTime side is set up, there shall be an implicit set up of the corresponding instance
within the device driver. All parameters for set up shall be handed over directly by streaming (see Annex
F) when the service for the creation of a VD or FO is used.
Annex E describes typical use cases to get more grip on the services and to facilitate the development of
coordinator software.
5.4.2 Interface variants
This document defines three kinds of interfaces.
For PID based configuration there shall be the
— mandatory Smart Access Interface
and there should be the
— optional Extended Access Interface.
For service based or mixed parameterization there should be the
— optional Full Access Interface.
With view to the structure of APSI, these different interfaces are based upon each other. There is
additional functionality within the Extended Access Interface compared to the Smart Access Interface.
The classes and methods of individual objects are always identical for each interface variant (e.g.
GdiCoFuncObjectRT). An application can use any of the interface variants, if they all are implemented.
With creating a workspace, the parameter eRequiredCoordinatorInterface shall select the
required functionality.
With the Extended Access Interface, only the object GdiCoExtendedObjectNavigator (see B.2.6, it
contains methods for navigation over the objects and data) is defined additional to the Smart Access
Interface. With the Full Access Interface the classes GdiCoObjectNavigator (see C.2.18, it contains
methods for navigation over the objects and data) and GdiCoFactory (see C.2.11, it contains methods
for adding and deleting of objects) exist in addition to the Extended Access Interface. The Full Access
Interfaces shall be able to alter (extend, modify, delete) the RunTime side (Instantiation) and to also alter
(extend, modify) the Data Base side (Description). The capabilities of the different interfaces shall be
independent from the kind of configuration (PID based, service based or mixed) done after creating the
workspace.
To maintain the compatibility between the separate interfaces, the methods
— gdiGetFactory
— gdiGetObjectNavigator and
— gdiGetExtendedObjectNavigator
are included in the class GdiCoWorkspace (see A.2.29). They return the references to the objects
corresponding to the capabilities of the coordinator, or NIL, if the Coordinator does not support the
desired functionality.
With the description of interfaces in this document, the stereotypes explained in Table 1 are used to mark
the affiliation of classes and methods to an interface variant.
Table 1 — Classes of interface variants (without data types)
Stereotype Applies to
<< S, E, F >> classes and methods of Smart Access Interface.
Also available in Extended Access Interface and Full Access Interface.
<< E, F >> classes and methods of Extended Access Interface.
Also available in Full Access Interface.
<< F >> classes and methods of Full Access Interface.
Only available in Full Access Interface.

In figures, stereotypes are marked with graphical elements (Figure 4).
<>
<>
<>
<>
<>
<>
<>
Figure 4 — Graphical marks for stereotypes in figures

Figure 5 shows the classes for all interface variants. If implemented, the coordinator shall provide the
interface variant requested by an application. A workspace created for Smart Access Interface shall be
open for switching to Full Access Interface, if that is implemented. After using a workspace for Smart
Access Interface with configuration by PID, it shall be possible to transfer the workspace to another
application for being used with its Full Access Interface to extend the capabilities by additional service
based configuration. See 5.5.4 for details.
The method GdiCoManager::gdiGetCoordinatorType shall return a bit mask, which visualizes
the support of the interface variants (, , ).
10 © ISO 2020 – All rights reserved

Figure 5 — Classes of interface variants (without data types)
The Application Programm Service Interface with implemented Full Access Interface shall support all
services described in Annex C and therefore provides capabilities to
— set up application areas within the coordinator and to generate instances via parameterization data
or via services,
— obtain references to function objects and communication objects,
— exchange data with the coordinator,
— initiate the data transport within a device driver,
— obtain descriptions of data (types and names),
— load device drivers,
— install and control virtual devices,
— generate instances (function objects and communication objects),
— set up data elements (assign symbolic names and define types) and
— delete instances.
5.5 Details for using APSI
5.5.1 Workspace structure
For each device driver and DCD exactly one Description side and one Instantiation side exists in the
workspace. These are structured as trees. The application access to the individual objects depends on the
used interface variant. See Figure 5 for an overview of the classes and objects which can be used by an
application. The names of the classes in Description side end with CD (for capability description) to show
their affiliation as the names in RunTime side end with RT.
RunTime objects can be instantiated using the reference to the Description objects, the class name (e.g.
name of an interface in the DCD) or the class Id (DCD Id). A coordinator shall provide the following
services for the instantiation of RunTime objects:
gdiCreateDriverRTByDescription(),
gdiCreateVdRTByDescription(),
gdiCreateFuncObjectRTByDescription(),
gdiCreateCommObjectByDescription() and
gdiCreateOperationRTByDescription() in GdiCoFactory (see C.2.11).
From RunTime side, the respective Description objects may be accessed via methods of the RunTime
objects. That is:
gdiGetDriverCD() in GdiCoDriverRT (see C.2.9),
gdiGetModuleCD() in GdiCoVdRT (see C.2.29),
gdiGetInterfaceCD() in GdiCoCommObjectCD (see C.2.4),
gdiGetCommOjectCD() in GdiCoObjectNavigator (see C.2.18) and
gdiGetOperationCD() in GdiCoObjectNavigator (see C.2.18).
If the Full Access Interface is used, the Description elements as well as the RunTime objects may be
modified.
5.5.2 Callback methods and references
An asynchronous execution of services should be implemented, as it provides an easy way for
applications to handle concurrent procedures for data transfer.
If asynchronous execution is implemented, it shall be realized via callback methods.
With creating a workspace by method gdiCreateWorkspace() in GdiCoManager (see A.2.20), the
arguments refCBException, refCBAccept und refCBInformationReport shall take callback
references to methods within the application for handling event based errors, unsolicited data requests
by devices and unsolicited data transmissions from devices. With a NIL reference, the callbacks shall be
switched off.
This global assignment of callback references shall be mandatory for the whole life cycle of the
workspace. It shall be possible to overwrite the callbacks locally.
12 © ISO 2020 – All rights reserved

The local callback registration shall be done with the
— create methods (VD, FuncObject, ComObject), and the
— asynchronous method calls
(GdiCoCommObjectRT::gdiReadValue, GdiCoCommObjectRT::gdiWriteValue,
GdiCoOperationRT::gdiExecuteOperation,
GdiCoExtendedObjectNavigator::gdiReadCommObjectData,
GdiCoExtendedObjectNavigator::gdiWriteCommObjectData and
GdiCoExtendedObjectNavigator::gdiExecuteOperation).
The local callback reference is handed over with this registration and temporarily overwrites the global
callback reference for the respective application (identified by its handle). If more applications are
registered (see data monitoring 5.5.5), the callbacks shall be distributed to all registered applications. For
deregister, the callback reference NIL shall be given. It shall be possible to change local references for
InformationReport and Accept by multiple registrations.
With gdiReleaseWorkspace or gdiReleaseMonitorAccess the registered callbacks shall be
made invalid. If an application connects to an existing workspace, the callback references shall be
registered again.
The same applies for InformationReport and Accept. The global callback references shall be set at creating
the workspace and the local callback references at the GdiCoAttributeRT
(gdiSetLocalCBAccept, gdiSetLocalCBInfReport).
5.5.3 Workspace extension
It shall be possible to extend existing configurations by using a (new) PID file. This shall not depend on
the used interface variant.
For this, the following rules apply:
— The existing configuration shall be maintained;
— No information shall be deleted;
— Configuration elements shall only be added;
— The PID file has to belong to the same devices.
At first the correct syntax and semantic of the PID file shall be checked with respect to the definitions of
ISO 20242-4.
For the following configuration check, the PID shall be aligned with the existing configuration of the
workspace. The new PID file shall be tested for already existing objects. Instance names and the DCD class
descriptions for objects (OP, CO, FO) shall be compared. For already existing objects, the application
reference name and the DCD class name for the object and the parent (FO and/or VD) shall be in
accordance. If there is any CO or OP with an application reference name that has not been instantiated
and the application reference name and DCD class name for the parent (FO/VD) are identical, a re-
instantiation shall be done. Any creation parameters for already existing VDs and FOs shall be ignored.
If application reference names for identical class names of CO and/or OP are not in accordance, an error
exception shall be thrown (see 5.6). If application reference names for identical class names of FOs are
not in accordance but the parent object has an identical application reference name and DCD class name
for the VD, this FO shall be added.
If the new PID file holds values for existing COs, these COs shall be written for a value update. Create
parameters of existing FOs generally shall not be updated.
All other COs shall not be modified. Also, no implicit default values shall be set (e.g. minimum of a value).
If the new PID file marks execution of operations, they shall be executed.
When method gdiExtendWorkspace is finished, the state of the corresponding VD shall be Working
(see ISO 20242-4).
If any error concerning accordance is registered for the given PID file, the processing is stopped. The
Workspace remains in the VD state Preparation for all VDs concerned. The same action will take place, if
any error occurs while running the PID file.
If there is an error, the processing is stopped. All concerned VDs shall be in state Preparation (see
ISO 20242-4). If the error is with the syntax and semantic check, the method gdiExtendWorkspace
shall throw the exception
eINT_PID_FILE_MISMATCH (GdiCoInternalException, see A.2.19)
and if it is with applying the new configuration, the method shall throw the exception
ePAR_INCORRECT_PARAMETERIZATION (GdiCoParameterizationException, see A.2.24).
5.5.4 Workspace transfer
It shall be possible that different applications can use the same workspace successively. When an
application disconnects from the workspace via method gdiReleaseWorkspace (see A.2.20.11),
another application may connect to the released workspace using the workspace name and method
gdiGetWorkspaceByName (see A.2.20.7).
NOTE The workspace transfer enables the user of APSI to split big applications into smaller, independent
modules which take less resources. Examples are modules for basic configuration, extend configuration, maintain
devices and run automation.
Because of the sequential use of the workspace by different applications, there is always a short period
of time, where no application is connected. When executing gdiReleaseWorkspace(), the
coordinator shall set all connected VDs to the state Preparation, and release the workspace afterwards.
Release of workspace shall be rejected, if errors hinder the transition to Preparation.
With gdiGetWorkspaceByName()the VDs shall be set to Working if SAI or EAI is used (eSMART or
eEXTENDED in parameter eRequiredCoordinatorInterface) or shall remain in Preparation
if FAI is used (eFULL in the parameter eRequiredCoordinatorInterface).
The state of a workspace, e.g. if it is just used or not, shall be provided for any application via
GdiWorkspaceIterator (see A.2.31) and GdiCoWorkspaceInfo (see A.2.30).
After release of a workspace, all references shall become invalid. Any access with an invalid handle shall
throw the exception eINT_INVALID_ACCESS (see A.2.19).
5.5.5 Data monitoring
If an application connects to a workspace via gdiGetMonitorAccessByWorkspaceName (see
A.2.20.6), it shall have only rights for reading data access (gdiGetDataValue, see A.2.9.2, and
14 © ISO 2020 – All rights reserved

InformationReport via callback in refCBInformationReport, see A.2.20.6) and there shall be
no influence to the state of the workspace (eNOT_USED, eUSED). This application is called monitor
application.
A monitor application shall have access to the existing trees of the RunTime side and to the data types of
the communication parameters and operation parameters. An access to the Database side should be
rejected, any access changing state or configuration shall be rejected with error eOAD_OBJECT_ACCESS.
For problems with data access, e.g. caused by access of the main application, the error
eOAD_DATAINUSE_OR_INCONSISTENT shall be notified.
Exceptions shall be limited to errors occurring at the call of methods by the monitor application and
method gdiReleaseMonitorAccess shall release the connection.
InformationReports for communication objects shall be sent to the monitor application only for those
objects, which are processed for the main application. The object administration for sending events shall
be specific for the main application. Therefore, monitor applications shall receive information reports
only for objects,
— which have valid callbacks from the monitor application within the object tree and
— for which the InformationReport has been enabled by the main application.
An additional InformationReport is sent from the coordinator to the monitor, if the main application has
processed a successful write or read of an attribute.
The global callback reference for InformationReports (parameter in refCBInformationReport of
gdiGetMonitorAccessByWorkspaceName), shall be overwritten related to the attribute when
method GdiCoAttributeRT::gdiSetLocalCBInfReport is used to define callbacks.
The number of connected monitor applications shall not be limited. Monitor applications shall stay valid
if a workshop transfer is done with main applications.
If the main application wants to delete the workspace via gdiDeleteWorkspace while a monitor
application is connected, the deletion is rejected with error eINT_INVALID_ACCESS.
5.5.6 Data types
All defined data types, including FO references, shall be supported. On the Description side, data type
descriptions exist from the DCD. On RunTime side, data objects shall exist, which correspond to defined
types. Complex types shall be created step-by-step in a tree structure.
The data exchange between application and device driver shall be mediated by the coordinator with
providing formatted and allocated communication memory corresponding to the data type descriptions.
Data exchange shall be done in two steps:
1. Data is copied form the source (application or driver) to the communication memory of the
abstract data sink.
2. The data destination object reads the data from this communication memory.
APSI shall provide services for writing and reading of communication memory within the coordinator.
Methods gdiGet.Value and gdiSet.Value (see e.g. B.2.4.1) shall handle the formatted access
to the communication memory of the coordinator via streaming without launching any activity at the
device driver. Further on, eac
...
