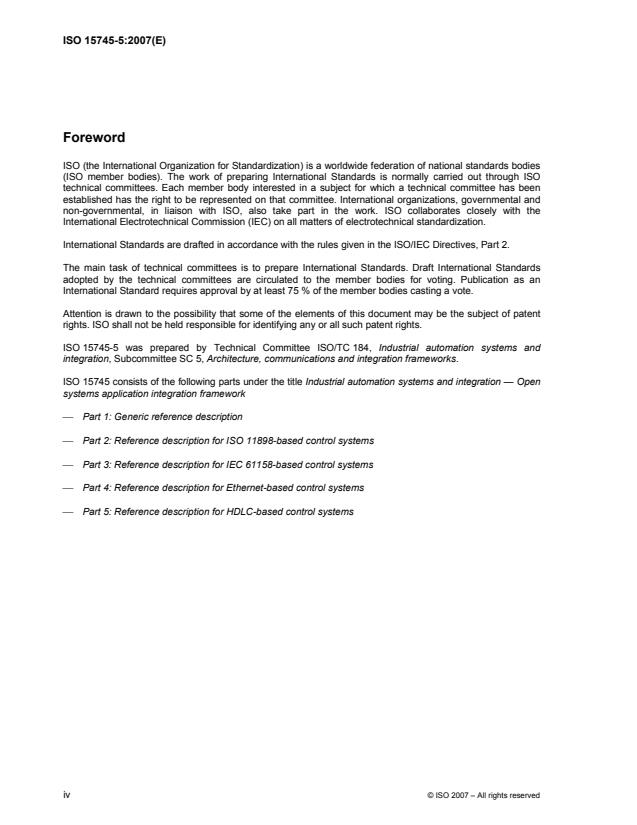

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 15745-5 was prepared by Technical Committee ISO/TC 184, Industrial automation systems and
integration, Subcommittee SC 5, Architecture, communications and integration frameworks.
ISO 15745 consists of the following parts under the title Industrial automation systems and integration — Open
systems application integration framework
⎯ Part 1: Generic reference description
⎯ Part 2: Reference description for ISO 11898-based control systems
⎯ Part 3: Reference description for IEC 61158-based control systems
⎯ Part 4: Reference description for Ethernet-based control systems
⎯ Part 5: Reference description for HDLC-based control systems
iv © ISO 2007 – All rights reserved

Introduction
The application integration framework (AIF) described in ISO 15745 defines elements and rules that facilitate:
⎯ the systematic organization and representation of the application integration requirements using
integration models;
⎯ the development of interface specifications in the form of application interoperability profiles (AIPs) that
enable both the selection of suitable resources and the documentation of the "as built" application.
ISO 15745-1 defines the generic elements and rules for describing integration models and AIPs, together
with their component profiles - process profiles, information exchange profiles, and resource profiles. The
context of ISO 15745 and a structural overview of the constituents of an AIP are given in Figure 1 of
ISO 15745-1:2003.
This part of ISO 15745 extends the generic AIF described in ISO 15745-1 by defining the technology specific
elements and rules for describing both communication network profiles and the communication related
1) 2)
aspects of device profiles specific to HDLC -based control systems (CC-Link ). CC-Link is based on HDLC
technology.
In particular, this part of ISO 15745 describes technology specific profile templates for the device profile and
the communication network profile. Within an AIP, a device profile instance or a communication network
profile instance is part of the resource profile defined in ISO 15745-1. The device profile and the
communication network profile XML instance files are included in a resource profile XML instance using the
ProfileHandle_DataType as specified in ISO 15745-1:2003, 7.2.5.
AIFs specified using the elements and rules of ISO 15745-1 can be easily integrated with the component
profiles defined using the elements and rules specified in this part of ISO 15745.

1)
HDLC is used in this document as a synonym for ISO/IEC 13239.
2)
CC-Link is the trade name of the CC-Link Partner Association (CLPA). This information is given for the convenience of
users of ISO 15745 and does not constitute an endorsement by ISO of the trade name holder or any of its products.
Compliance to this part of ISO 15745 does not require use of the trade name CC-Link. Use of the trade name CC-Link

requires permission of the CLPA.
INTERNATIONAL STANDARD ISO 15745-5:2007(E)

Industrial automation systems and integration — Open systems
application integration framework — Part 5: Reference
description for HDLC-based control systems
1 Scope
This part of ISO 15745 defines the technology specific elements and rules for describing both communication
network profiles and the communication related aspects of device profiles specific to HDLC-based control
systems.
NOTE Generic elements and rules for describing integration models and application interoperability profiles, together
with their component profiles (process profiles, information exchange profiles, and resource profiles) are specified in ISO
15745-1.
This part of ISO 15745 is to be used in conjunction with ISO 15745-1 to describe an application integration
framework.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 15745-1:2003, Industrial automation systems and integration – Open systems application integration
framework – Part 1: Generic reference description
ISO/IEC 13239, Information technology – Telecommunications and information exchange between systems –
High-level data link control (HDLC) procedures
REC-xml-20040204, Extensible Markup Language (XML) 1.0 Third Edition – W3C Recommendation 04
February 2004
REC-xmlschema-1-20010502, XML Schema Part 1: Structures – W3C Recommendation 02 May 2001
REC-xmlschema-2-20010502, XML Schema Part 2: Datatypes – W3C Recommendation 02 May 2001
UML V1.4, OMG - Unified Modeling Language Specification (Version 1.4, September 2001)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 15745-1 apply.
NOTE The UML terminology and notation used in this part of ISO 15745 is described in Annex A of ISO 15745-1:2003
and Annex B of this part of ISO 15745.
4 Abbreviated terms
AIF Application Integration Framework
AIP Application Interoperability Profile
ASCII American Standard Code for Information Interchange
CSP CC-Link System Profile (see BAP-05028)
HDLC High-level Data Link Control (see ISO/IEC 13239)
IAS Industrial Automation Systems
I/O Input and Output
LT CC-Link/LT
OSI Open System Interconnection
RWr Remote register for read
RWw Remote register for write
RX Remote input
RY Remote output
SEMI Semiconductor Equipment and Materials International (in this context refer to SEMI standard,
SEMI E54.12-0701)
UML Unified Modeling Language (see UML V1.4)
XML eXtensible Markup Language (see REC-xml-20040204)
5 Technology specific elements and rules
5.1 Integration models and IAS interfaces
The AIP developer shall develop the integration model using the rules described in ISO 15745-1, and shall
ensure that the HDLC-based device and communication network profiles (whether representing the interface
requirements or those derived from existing devices/communication networks) include the necessary IAS
interfaces. The IAS interfaces included in the profile shall be identified in the header section (see ISO 15745-
1:2003, 7.2.2).
NOTE IAS interfaces are described in ISO 15745-1:2003, Annex B.
5.2 Profile templates
5.2.1 General
The HDLC-based technology specific profile templates are derived from the generic profile templates specified
in ISO 15745-1:2003, clause 7.
2 © ISO 2007 – All rights reserved

5.2.2 Contents and syntax
ISO 15745 specifies profile templates that are XML schemas (REC-xmlschema-1-20010502 and REC-
xmlschema-2-20010502) and use a common general structure. The device and communication network
profiles based on these templates typically contain:
⎯ information needed to identify the connected device,
⎯ a description of device data that can be accessed via the network,
⎯ a description of the communication capabilities supported by the device,
⎯ additional vendor-specific information.
However, CC-Link technology uses specific legacy ASCII syntax. Hence, for backward compatibility, template
definitions (see Annex A) include the following:
⎯ communication network and device profile templates, as defined in ISO 15745-1,
⎯ ISO 15745 template to encapsulate files with legacy ASCII syntax ("wrapper").
5.2.3 Header
The profile template header defined in ISO 15745-1:2003, 7.2.2, is used for HDLC-based technology specific
profile templates. Each technology uses one or more names to identify the technology or its particular
component(s) (see Table 1). The selected name shall be stored in the ProfileTechnology attribute in the
header section.
Table 1 — ProfileTechnology names
ProfileTechnology name Technology
CC-Link CC-Link
CSP CC-Link
5.3 Technology specific profiles
The technology specific communication network profile structure and communication related aspects of device
profile structure based on HDLC technology are described in clause 6. The technology included is CC-Link
(see 6.2).
The related profile template definitions are specified in Annex A.
6 Device and communication network profiles for HDLC-based control systems
6.1 General
The CC-Link technology specific device and communication network profiles are described in 6.2.
6.2 CC-Link
6.2.1 Device profile
6.2.1.1 General
Figure 1 shows the class structure of the CC-Link device profile.
DeviceProfile
0.*
ApplicationProcess
DeviceIdentity
DeviceManager
1.*
DeviceFunction
Figure 1 — CC-Link device profile class diagram
The DeviceProfile class of any version of CC-Link except version LT may include the ApplicationProcess class.
The DeviceProfile class of CC-Link version LT shall not include the ApplicationProcess class.
The available formats for CC-Link device profiles are described in A.2.
The XML schema representing the CC-Link device profiles template is defined in A.2.1.3. The file name of this
XML schema shall be “CC-Link_DeviceProfile.xsd”.
The XML schema representing the encapsulation of a CC-Link CSP into the ISO 15745 device profile
template is defined in A.2.2.2. The file name of this XML schema shall be “CSP_DeviceProfile_wrapper.xsd”.
The legacy CSP ASCII syntax itself is described in A.4.
6.2.1.2 Device identity
Figure 2 shows the class structure of the DeviceIdentity class.
DeviceIdentity
DevVer
CcLinkVer
0.1
StationNumber
VendName
StationType
VendID
0.1
RemDevType
DevModel
Figure 2 — CC-Link DeviceIdentity class diagram
The DeviceIdentity class shall consist of the child classes shown in Figure 2 and specified in Table 2. Child
classes of DeviceIdentity class apply to profile, type, and instance.
4 © ISO 2007 – All rights reserved

Table 2 — Child classes of DeviceIdentity class
Class Description
CcLinkVer CC-Link version used by the device
VendName vendor name
VendID vendor code
DevModel model name
DevVer version number
StationNumber Identifier of the device
StationType type code for slave station
RemDevType type code for remote device station

6.2.1.3 Device manager
6.2.1.3.1 General
Figure 3 shows the structure of the DeviceManager class.
DeviceManager
Mode
NumOccupiedStations
0.1
TotalIO
0.1
ExtendedCycleConf
0.1
IOType
0.1
BmpFile
0.1
SEMISupport
0.1
ErrReg
0.1
LEDList
0.1
UpDownLoadF
1.*
LED
0.1
MasterFlg
Figure 3 — CC-Link DeviceManager class diagram
The DeviceManager class consists of the child classes shown in Figure 3 and Table 3.
Table 3 — Child classes of DeviceManager class
Class Version 1.00 / 1.10 Version 1.11 Version 2.00 Version LT
NumOccupiedStations Mandatory Mandatory Mandatory Mandatory
ExtendedCycleConf Not applicable Not applicable Optional Not applicable
BmpFile Mandatory Mandatory Mandatory Not applicable
ErrReg Optional Optional Optional Not applicable
UpDownLoadF Mandatory Mandatory Mandatory Not applicable
MasterFlg Optional Optional Optional Not applicable
Mode Mandatory Mandatory Mandatory Mandatory
TotalIO Optional Optional Optional Optional
IOType Optional Optional Optional Optional
SEMISupport Not applicable Optional Optional Not applicable
LEDList Optional Optional Optional Optional
NOTE The four right hand columns indicate whether a certain child class is mandatory,
optional, or not applicable for a device profile of a specified CC-Link version.

6.2.1.3.2 NumOccupiedStations
NumOccupiedStations is the number of occupied stations.
6.2.1.3.3 ExtendedCycleConf
ExtendedCycleConf is the extension level of an amount of I/O points used in the extended cyclic
communication.
6.2.1.3.4 BmpFile
BmpFile is the name of the associated bitmap file.
6.2.1.3.5 ErrReg
ErrReg is a register used to store an error code.
6.2.1.3.6 UpDownLoadF
UpDownLoadF indicates whether an upload and download is applicable or not.
6.2.1.3.7 MasterFlg
MasterFlg indicates whether the device can be a standby master or not.
6.2.1.3.8 Mode
Mode indicates supporting operation modes (see Table A.3).
6.2.1.3.9 TotalIO
TotalIO is the total number of I/O points (see Table A.4).
6 © ISO 2007 – All rights reserved

6.2.1.3.10 IOType
IOType is the type of I/O (see Table A.5).
6.2.1.3.11 SEMISupport
SEMISupport indicates whether the SEMI standard function is supported or not.
6.2.1.3.12 LEDList, LED
The LEDList is a listing of available LEDs. The LED describes the name and the possible state of the LED on
the device (see Table A.6).
6.2.1.4 Device function
Figure 4 shows the structure of the DeviceFunction class.
DeviceFunction
DevFuncData
0.1
Figure 4 — CC-Link DeviceFunction class diagram
NOTE The definition of the DevFuncData of the DeviceFunction is outside the scope of this part of ISO 15745.
6.2.1.5 Application process
6.2.1.5.1 General
Figure 5 shows the class structure of the ApplicationProcess class.
ApplicationProcess
0.1
0.1
RemoteIOMemoryMap {XOR} RemoteDeviceMemoryMap
0.*
SelectPrm
0.2
IO_Info_R
0.*
PrmSet
IO_Info_RW
0.*
GrpItem
0.2
IO_RW_Bit
0.1
Method
0.*
CmdPtrn
Figure 5 — CC-Link ApplicationProcess class diagram
6.2.1.5.2 RemoteIOMemoryMap
6.2.1.5.2.1 General
RemoteIOMemoryMap is a CSP profile equivalent for a remote I/O device. The CSP profile is described in A.4.
6.2.1.5.2.2 IO_Info_R
Figure 6 shows the class structure of the IO_Info_R class.
IO_Info_R
1.*
BEntry
0.1
OffName
PrmName
0.1
OnName
RegNo
Figure 6 — CC-Link IO_Info_R class diagram
The IO_Info_R represents IO_Info_RX section and IO_Info_RY section of the CSP profile. A BEntry shall
contain the child classes shown in Figure 6 and A.2.1.2.4.1.
6.2.1.5.3 RemoteDeviceMemoryMap
6.2.1.5.3.1 General
RemoteDeviceMemoryMap is a CSP profile equivalent for a remote device.
6.2.1.5.3.2 IO_Info_R
The class structure of the IO_Info_R class is described in 6.2.1.5.2.2.
6.2.1.5.3.3 IO_Info_RW
Figure 7 shows the class structure of IO_Info_RW class.
8 © ISO 2007 – All rights reserved

IO_Info_RW
0.1 1.*
Comment WEntry
0.1
UnitStr
PrmName
HandReq
RWNo
HandAns
0.1
SelectPrm DatTypFlg
0.1
ReadReg
0.1
SecNameRef
{XOR}
0.1
ILock
0.1
0.1
PrmSet Default
0.1
InterReq
0.1
Range
0.1
InterAns
Figure 7 — CC-Link IO_Info_RW class diagram
Comment class is used to annotate. A WEntry contains the child classes shown in Figure 7 and A.2.1.2.4.2. A
WEntry represents parameters of a word register.
6.2.1.5.3.4 IO_RW_Bit
Figure 8 shows the class structure of IO_RW_Bit class.
IO_RW_Bit
1.*
IO_RW_Bit_Reg
1 0.1
1.*
RegNo WBEntry CmdPtrnRef CmdPtrn
0.1
OffName
PrmName
0.1
OnName
RWBit
Figure 8 — CC-Link IO_RW_Bit class diagram
IO_RW_Bit_Reg class is a container of the associated subclasses. RegNo class represents register number.
WBEntry class contains the child classes shown in Figure 8 and A.2.1.2.4.3. WBEntry class represents
parameters of bits used in a word register. CmdPtrnRef is a reference to CmdPtrn.
6.2.1.5.3.5 SelectPrm
Figure 9 shows the class structure of SelectPrm class.
SelectPrm CmdPtrn
0.1
1.*
0.1
{XOR}
SEntry
0.1
UnitStr
PrmName
0.1
SecNameRef
0.1
CodeNo
0.1 0.1
UpDwnTyp PrmSet
Figure 9 — CC-Link SelectPrm class diagram
SEntry class contains the child classes shown in Figure 9 and A.2.1.2.4.4. A SEntry represents an entry of the
"Select parameter section" defined in a CSP profile.
6.2.1.5.3.6 PrmSet
Figure 10 shows the class structure of PrmSet class.
PrmSet
1.* 1
PrmSetGrp Default
1 1
GrpItemRef GrpItem
GrpName
0.1
MethodRef MethodEntry
GrpNum
Figure 10 — CC-Link PrmSet class diagram
PrmSetGrp class contains the child classes shown in Figure 10 and A.2.1.2.4.5. PrmSetGrp represents an
entry of the parameter set section defined in a CSP profile. The Default class is a reference to the default
PrmSetGrp.
6.2.1.5.3.7 GrpItem
Figure 11 shows the class structure of GrpItem class.
10 © ISO 2007 – All rights reserved

GrpItem
1.*
PEntry
0.1
Default
ItemName
0.1
Range
0.1
PrmNo
0.1
UnitStr
0.1
RegNo
0.1
MethodRef MethodEntry
DatTypFlg
Figure 11 — CC-Link GrpItem class diagram
A PEntry contains the child classes shown in Figure 11 and A.2.1.2.4.6. PEntry represents the items of a
parameter entry defined in a CSP profile.
6.2.1.5.3.8 Method
Figure 12 shows the class structure of Method class.
Method
1.*
MethodEntry
0.1
TrueCnd
CmdRegNoCode
0.1
ErrReg
0.1
ReqRY
0.1
TrueCnd2
0.1
EndRX
0.1
ILock
0.1
ErrEnd
0.1
InterReq
0.1
ReplyRW
0.1
InterAns
Figure 12 — CC-Link Method class diagram
MethodEntry contains the child classes shown in Figure 12 and A.2.1.2.4.7. A MethodEntry represents a
method defined in a CSP profile.
6.2.1.5.3.9 CmdPtrn
Figure 13 shows the class structure of CmdPtrn class.
CmdPtrn
0.1 1.*
Comment WEntry
Figure 13 — CC-Link CmdPtrn class diagram
Comment class is used to annotate. A WEntry contains the child classes shown in Figure 7 and A.2.1.2.4.2. A
WEntry represents parameters of a word register.
6.2.2 Communication network profile
6.2.2.1 General
Figure 14 shows the class structure of the CC-Link communication network profile.
CommNetworkProfile
1 1 0.1
ApplicationLayers TransportLayers
NetworkManagement
Figure 14 — CC-Link communication network profile class diagram
The available formats for CC-Link communication network profiles are described in A.3.
The XML schema representing the CC-Link communication network profile template is defined in A.3.1.3. The
file name of this XML schema shall be “CC-Link_CommNetworkProfile.xsd.”
The XML schema representing the encapsulation of a CC-Link CSP file into the ISO 15745 communication
network profile template is defined in A.3.2.2. The file name of this XML schema shall be
"CSP_CommNetworkProfile_wrapper.xsd."
6.2.2.2 Application layers
The ApplicationLayers class represents the combined profiles for the upper 3 OSI layers of the communication
network integration model. It states the supported application service elements and their associate services.
ApplicationLayers class consists of the child classes shown in Figure 15 and Table 4.
12 © ISO 2007 – All rights reserved

1 Master
ApplicationLayers
{XOR}
Slave
0.1
Cyclic
0.1
ExtendedCyclic
0.1
Transient
0.*
OptionCommand
CommandType
Comment
BroadcastSupport
ReqRes
0.1
Message
Figure 15 — CC-Link ApplicationLayers class diagram
Table 4 — Constraints for child classes of ApplicationLayers class
Class Version 1.00 / 1.10 Version 1.11 Version 2.00 Version LT
Master Mandatory Mandatory Mandatory Mandatory
Slave Mandatory Mandatory Mandatory Mandatory
Cyclic Mandatory Mandatory Optional Mandatory
ExtendedCyclic Not applicable Not applicable Mandatory Not applicable
Transient Optional Optional Optional Not applicable
Message Not applicable Mandatory Optional Not applicable
NOTE The four right hand columns indicate whether a certain child class is mandatory,
optional, or not applicable in a device profile of a specified CC-Link version.

The child classes of ApplicationLayers represent the following:
⎯ Master indicates that the device is a master;
⎯ Slave indicates that the device is a slave;
⎯ Cyclic indicates that the device supports cyclic communication;
⎯ ExtendedCyclic indicates that the device supports extended cyclic communication;
⎯ Transient indicates whether or not the device supports transient communication and documents optional
commands defined by the vendor;
⎯ Message indicates whether or not the device supports message communication.
6.2.2.3 Transport layers
6.2.2.3.1 General
The TransportLayers class represents the combined profiles for the lower 4 OSI layers of the CC-Link
communication network integration model. TransportLayers class consists of the child classes shown in
Figure 16.
TransportLayers
1 1
DatalinkLayerInterface PhysicalLayerInterface
0.1
DLConfigParams
0.1
DLVariables
Figure 16 — CC-Link TransportLayers class diagram
6.2.2.3.2 PhysicalLayerInterface
The PhysicalLayerInterface class defines the properties associated with the physical layer of CC-Link.
6.2.2.3.3 DatalinkLayerInterface
The DatalinkLayerInterface class defines the properties associated with the data link layer of CC-Link. The
child classes of DatalinkLayerInterface are represented as follows:
⎯ DLConfigParams defines the properties associated with data link layer configuration;
⎯ DLVariables defines the properties associated with data link layer monitoring.
6.2.2.4 Network management
The NetworkManagement class represents the properties relating to the network management of the CC-Link
communication network integration model. The NetworkManagement class consists of the child classes
shown in Figure 17 and Table 5.
14 © ISO 2007 – All rights reserved

NetworkManagement
0.1 0.1 0.1
NetworkStatusInfo
OtherStationsMInfoList SlaveTransInfoLT
0.1 1.* 0.64
SelfStationStatus OtherStationManagementInfo SlaveStationInfo
0.1 0.64
FarStationStatus STInfo
0.1
MasterToSlaveST
0.*
SlaveToMasterST
0.64
ReceivingInfoLT
0.64
SlaveStatusLT
Figure 17 — CC-Link NetworkManagement class diagram
Table 5 — Constraints of the child classes of CC-Link NetworkManagement class
class Version 1.00 / 1.10 Version 1.11 Version 2.00 Version LT
NetworkStatusInfo Optional Optional Optional Optional
OtherStationsMInfoList Optional Optional Optional Not applicable
SlaveTransInfoLT Not applicable Not applicable Not applicable Optional
NOTE The four right hand columns indicate whether a certain child class is mandatory, optional, or not
applicable in a device profile of a specified CC-Link version.

The child classes of NetworkManagement class are as follows:
⎯ NetworkStatusInfo and the associated child classes define the properties associated with status of CC-
Link network;
⎯ OtherStationsMInfoList and OtherStationManagementInfo define the properties associated with the other
stations;
⎯ SlaveTransInfoLT and the associated child classes define the properties associated with the transmission
information of slave stations.
Annex A
(normative)
CC-Link profile templates
A.1 General
Configuration tools currently available for CC-Link devices use a specially formatted ASCII file, referred to as
the CSP (CC-Link System Profile). The CSP provides information about a device, such as:
⎯ information needed to identify the connected device,
⎯ a description of device data that can be accessed via the network (e.g. configurable parameters),
⎯ a description of the hardwired connection capabilities supported by the device (e.g. connections),
⎯ additional vendor-specific information.
The CSP allows a configuration tool to automate the device configuration process. The CSP requirements
provide an open, consistent and compatible approach for performing device configuration
The CSP information is very similar to the information required in both communication network and device
profiles, hence, A.2, A.3, and A.4 specify respectively the format for:
⎯ communication network and device profile templates, as defined in ISO 15745-1:2003,
⎯ encapsulation of legacy CSP files in the ISO 15745 templates (“wrappers”), and
⎯ the legacy CSP files format, including common semantics information.
A.2 Device profile template description
A.2.1 Device profile template description – XML based
A.2.1.1 General
The device profile XML file shall comply with the device profile XML schema as specified in A.2.1.3.
Contents of this XML schema are derived from the device profile class diagrams shown in 6.2.1.
A.2.1.2 Semantics of XML schema elements
A.2.1.2.1 ProfileBody
This main element is associated with a set of attributes which provide additional information about the profile
file. The attributes are shown in Table A.1. The semantics of the attributes are described in Table A.35.
16 © ISO 2007 – All rights reserved

Table A.1 — Attributes of ProfileBody
Attribute Description Constraint
FileComment File comment Optional
CreateDate File creation date Required
CreateTime File creation time Required
ModDate Last modified date Optional
ModTime Last modified time Optional
Version CSP file version Required

A.2.1.2.2 DeviceIdentity
A.2.1.2.2.1 CcLinkVer
This element specifies a CC-Link version used by the device.
A.2.1.2.2.2 VendName
This element specifies a vendor name of the device (see Table A.37).
A.2.1.2.2.3 VendID
This element specifies a vendor ID of the device (see Vendor identification in Table A.37).
A.2.1.2.2.4 DevModel
This element specifies a model name of the device (see Device model name in Table A.37).
A.2.1.2.2.5 DevVer
This element specifies a version number of the device (see Version in Table A.37).
A.2.1.2.2.6 StationNumber
This element specifies a unique identifier of the device among the devices which are connected to each other
in a CC-Link network.
A.2.1.2.2.7 StationType
This element specifies a type of slave station (see Station type in Table A.37).
A.2.1.2.2.8 RemDevType
This element specifies a type of remote device station (see Remote device type in Table A.37 and Table A.38).
A.2.1.2.3 DeviceManager
A.2.1.2.3.1 NumOccupiedStations
This element specifies the number of network visible stations occupied by a device.
A.2.1.2.3.2 ExtendedCycleConf
This element specifies the multiplicity of an amount of I/O points in the extended cyclic communication. Table
A.2 shows the semantics of ExtendedCycleConf.
Table A.2 — ExtendedCycleConf element
Value Description
0 Single
1 Double
2 Quadruple
3 Octuple
A.2.1.2.3.3 BmpFile
This element specifies an associated bitmap file name.
A.2.1.2.3.4 ErrReg
This element specifies a storage register used to store an error code.
A.2.1.2.3.5 UpDownLoadF
The element is a flag which indicates whether the CSP file supports upload/download.
The value 0 means unsupported and the value 1 means supported.
A.2.1.2.3.6 MasterFlg
The element is a flag to indicate whether the device can be a standby master station or not. An intelligent
device type slave device can also have the capability of being a standby master.
The value 0 means that the device is not capable of being a standby master station. The value 1 means that
the device is capable of being a standby master station.
A.2.1.2.3.7 Mode
This element specifies an operation mode of the device. Table A.3 shows the semantics of Mode.
Table A.3 — Mode element
Value Description
“Online” Datalink is working normally.
“LineTest1” Checking whether the master device communicates
normally with all slave devices.
“LineTest2” Checking whether the master device communicates
normally with a specific slave device.
“ParamCheckTest” Checking the content of the parameters
“HardwareTest” Checking whether or not hardware works properly.

18 © ISO 2007 – All rights reserved

A.2.1.2.3.8 TotalIO
This element specifies the number of I/O points. Table A.4 shows the semantics of TotalIO.
Table A.4 — TotalIO element
Value Description
0 Dependent on the number of occupied stations
1 8 points
2 32 points
3 16 points
A.2.1.2.3.9 IOType
The element specifies the type of I/O. Table A.5 shows the semantics of IOType.
Table A.5 — IOType element
Value Description
0 The device uses both inputs and outputs and the same numbers are used
for both inputs and outputs (starting from RX0 and RY0, respectively)
1 Input
2 Output
3 The device uses both inputs and outputs but the same numbers are not
used for input (RX) and output (RY).

A.2.1.2.3.10 SEMISupport
This element whose type is Boolean specifies whether the SEMI standard function is supported or not. The
value TRUE represents that the SEMI function is supported and the value FALSE represents the function is
not supported.
A.2.1.2.3.11 LEDList, LED
Table A.6 describes the attributes of the LED class.
NOTE The semantics of the values are defined in BAP-05027. The semantics of the values for Version LT are
defined in BAP-05031.
Table A.6 — Attributes of LED class
Attribute Description Values
Name Name of LED “PW”
“RUN”
“ERR.”
“MST”
“S MST”
“LOCAL”
“CPU R/W”
“SW”
“M/S”
“PRM”
“TIME”
“LINE”
“L RUN”
“L ERR.”
“SD”
“RD”
State State of LED “ON”
“OFF”
“BLINK”
A.2.1.2.4 ApplicationProcess
A.2.1.2.4.1 BEntry
BEntry elements are specified in Table A.7.
Table A.7 — BEntry elements
Element Description
PrmName Name of the signal
RegNo Register number
OffName Label of the parameter of which value is 0
OnName Label of the parameter of which value is 1

A.2.1.2.4.2 WEntry
WEntry elements are specified in Table A.8.
20 © ISO 2007 – All rights reserved

Table A.8 — WEntry elements
Element Description
PrmName Name of the signal
RWNo Register number
DatTypFlg Data type
SecNameRef Reference to SelectPrm, PrmSet or nothing
Default Default value
Range Range of the value of the parameter
UnitStr The unit of the parameter
HandReq RY Handshake device name and its status
HandAns RX Handshake device name and its status
ReadReg Read word register
ILock Interlock
InterReq Inter-sequence request register
InterAns Inter-sequence answer register

A.2.1.2.4.3 WBEntry
WBEntry elements are specified in Table A.9.
Table A.9 — WBEntry elements
Element Description
PrmName Name of the signal
RWBit Bit register number
OffName Label of the parameter of which value is 0
OnName Label of the parameter of which value is 1

A.2.1.2.4.4 SEntry
SEntry elements are specified in Table A.10.
Table A.10 — SEntry elements
Element Description
PrmName Name of the signal
CodeNo Code number
UnitStr The unit of the parameter
SecNameRef Reference to SelectPrm, PrmSet, CmdPtrn or nothing
UpDwnTyp Upload/download type
A.2.1.2.4.5 PrmSetGrp
PrmSetGrp elements are specified in Table A.11.
Table A.11 — PrmSetGrp elements
Element Description
GrpName Group name
GrpNum Number of group items
GrpItemRef Reference to GrpItem
MethodRef Reference to MethodEntry

A.2.1.2.4.6 PEntry
PEntry elements are specified in Table A.12.
Table A.12 — PEntry elements
Element Description
ItemName Item name
PrmNo Parameter number
RegNo Register number
DatTypFlg Data type
Default Default value
Range Setting range
UnitStr The unit of the parameter
MethodRef Reference to MethodEntry

A.2.1.2.4.7 MethodEntry
MethodEntry elements are specified in Table A.13.
22 © ISO 2007 – All rights reserved

Table A.13 — MethodEntry elements
Element Description
CmdRegNoCode Command setting register and command code
ReqRY Command operation request
EndRX Command operation complete
ErrEnd Command operation abnormal complete
ReplyRW Reply code storage register
TrueCnd Condition to be used for evaluating a replied value
ErrReg Error code storage register
TrueCnd2 Condition to be used for further evaluation of the device condition
ILock Interlock
InterReq Inter-sequence request register
InterAns Inter-sequence answer register

A.2.1.3 XML schema : CC-Link_DeviceProfile.xsd

targetNamespace="http://www.cc-link.org/ISO15745/DeviceProfile"
elementFormDefault="qualified" attributeFormDefault="unqualified"
xmlns="http://www.cc-link.org/ISO15745/DeviceProfile"
xmlns:xsd="http://www.w3.org/2001/XMLSchema">









* HEADER SECTION *












maxOccurs="unbounded"/>




* HEADER DATA TYPES *













































* BODY SECTION *








maxOccurs="unbounded"/>










* ISO 15745 CC-LINK DEFINED ELEMENTS *





24 © ISO 2007 – All rights reserved











































...
