DRAFT INTERNATIONAL STANDARD
ISO/DIS 17190-10
ISO/TC 173/SC 3 Secretariat: SIS
Voting begins on: Voting terminates on:
2019-08-15 2019-11-07
Urine-absorbing aids for incontinence — Polyacrylate
superabsorbent powders —
Part 10:
Test method for determination of extractable polymer
content by potentiometric titration
Aides pour absorption d'urine — Méthodes d'essai pour caractériser les matériaux absorbants à base de
polymères —
Partie 10: Détermination de la teneur en polymère extractible par titrage potentiométrique
ICS: 11.180.20
THIS DOCUMENT IS A DRAFT CIRCULATED
FOR COMMENT AND APPROVAL. IT IS
THEREFORE SUBJECT TO CHANGE AND MAY
NOT BE REFERRED TO AS AN INTERNATIONAL
STANDARD UNTIL PUBLISHED AS SUCH.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL,
This document is circulated as received from the committee secretariat.
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
STANDARDS MAY ON OCCASION HAVE TO
BE CONSIDERED IN THE LIGHT OF THEIR
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
Reference number
NATIONAL REGULATIONS.
ISO/DIS 17190-10:2019(E)
RECIPIENTS OF THIS DRAFT ARE INVITED
TO SUBMIT, WITH THEIR COMMENTS,
NOTIFICATION OF ANY RELEVANT PATENT
RIGHTS OF WHICH THEY ARE AWARE AND TO
©
PROVIDE SUPPORTING DOCUMENTATION. ISO 2019

---------------------- Page: 1 ----------------------
ISO/DIS 17190-10:2019(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/DIS 17190-10:2019(E)

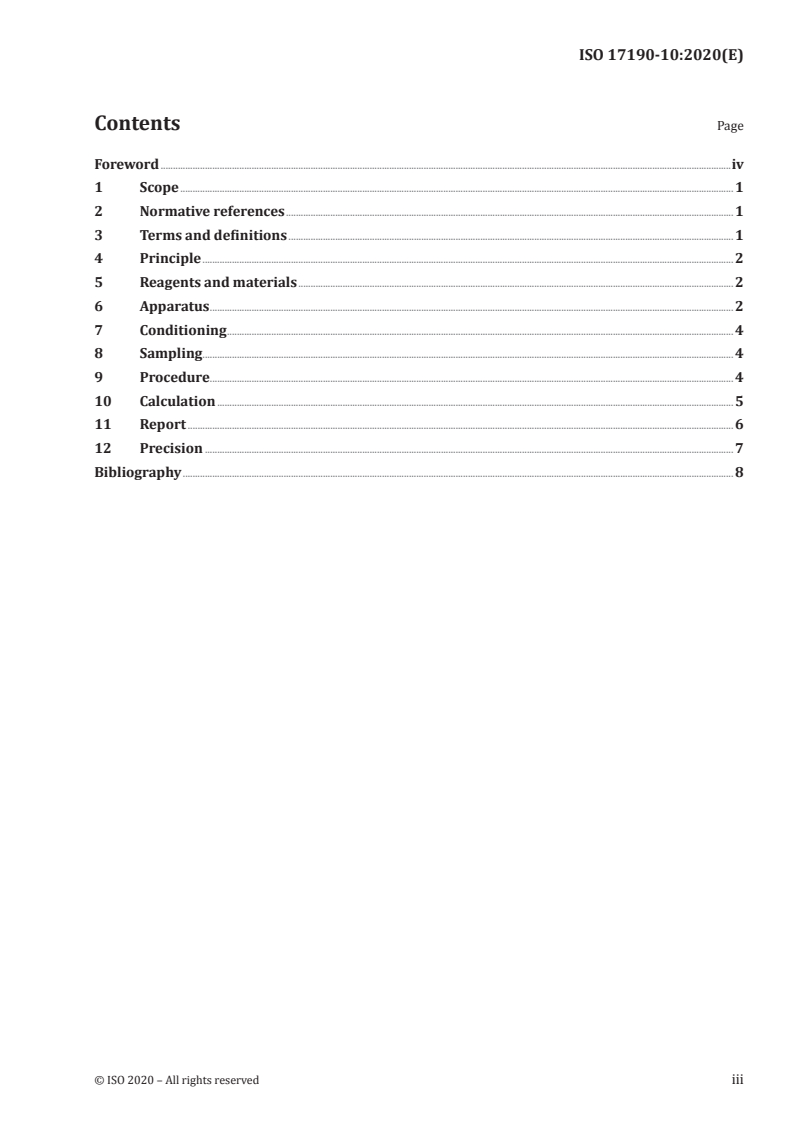

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 2
5 Reagents and Materials . 2
6 Apparatus . 3
7 Conditioning . 4
8 Sampling . 4
9 Procedure. 4
10 Calculation . 5
11 Report . 6
12 Precision . 7
Annex A (informative) Modification Track Sheet . 8
Bibliography . 9
© ISO 2019 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO/DIS 17190-10:2019(E)

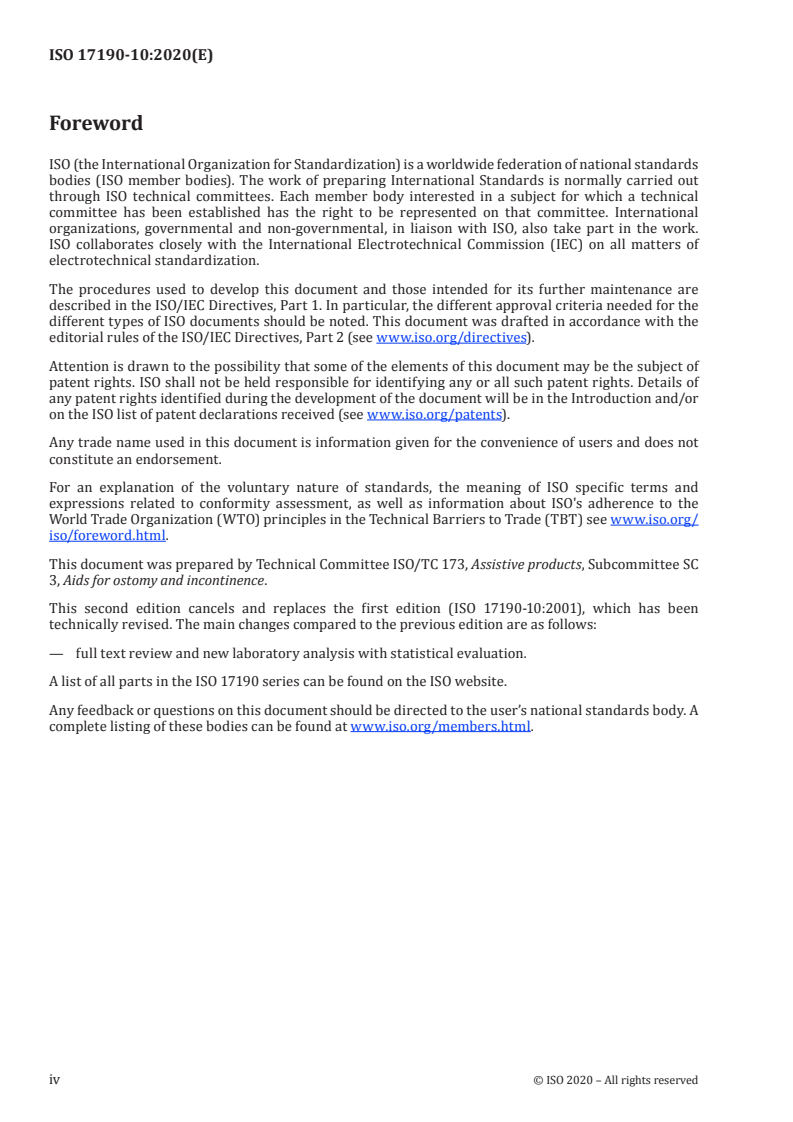

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso
.org/iso/foreword .html.
This document was prepared by Technical Committee [or Project Committee] ISO/TC [or ISO/PC] ###,
[name of committee], Subcommittee SC ##, [name of subcommittee].
This second/third/… edition cancels and replaces the first/second/… edition (ISO #####:####), which
has been technically revised.
The main changes compared to the previous edition are as follows:
— xxx xxxxxxx xxx xxxx
A list of all parts in the ISO ##### series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO 2019 – All rights reserved

---------------------- Page: 4 ----------------------
DRAFT INTERNATIONAL STANDARD ISO/DIS 17190-10:2019(E)
Urine-absorbing aids for incontinence — Polyacrylate
superabsorbent powders —
Part 10:
Test method for determination of extractable polymer
content by potentiometric titration
1 Scope
This test method is used to determine the mass fraction of soluble polymers present in crosslinked
polyacrylate superabsorbent powders that may be extracted into saline solution.
NOTE - This standard does not claim to address all of the safety concerns, if any, associated with its use. It is
the responsibility of the user of this standard to establish appropriate safety and health practices and determine
the applicability of regulatory limitations prior to use. It is expected that the person performing this test has
been fully trained in all aspects of this procedure.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 187, Paper, board and pulps — Standard atmosphere for conditioning and testing and procedure for
monitoring the atmosphere and conditioning of samples
ISO 3696, Water for analytical laboratory use — Specification and test methods
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https: //www .iso .org/obp
— IEC Electropedia: available at http: //www .electropedia .org/
3.1
acid groups
carboxylic acid group
3.2
extractables
sum of the soluble acid and salt groups of monomeric, oligomeric and polymeric carboxylates extracted
from the superabsorbent polymer
3.3
salt group
Alkali metal salt of carboxylic acid group also referred to as neutralized carboxylic acid or carboxylate
© ISO 2019 – All rights reserved 1

---------------------- Page: 5 ----------------------
ISO/DIS 17190-10:2019(E)

3.4
sample
product or portion of a product taken from a production lot for testing purposes and identifiable and
traceable back to its origin
3.5
specimen
specific portion of the identified sample upon which a test is performed
4 Principle
The amount of extractable polymer in polyacrylate superabsorbent powders is determined by mixing
the polymer in saline solution for 1 hour. The resulting saline suspension is filtered in its entirety
through a paper filter of <12-µm pore size. An aliquot of the filtrate is titrated against a standard
base solution (NaOH) to pH 10.0 to determine the concentration of free carboxylic acid groups. The
resulting solution is then back-titrated against a standard acid solution (HCI) to pH 2.7 to determine
the concentration of neutralised carboxylate groups. The titration data are used to calculate the total
amount of extractables present in the superabsorbent powder.
5 Reagents and Materials
Use only reagents of recognized analytical grade, unless otherwise specified.
5.1 Water
Grade 3 water according to ISO 3696, with the exception that the conductivity can be as high as 30 μS/cm.
5.2 Sodium hydroxide solution
c(NaOH) = 0.1 mol/l. Obtained as ready-made analytical grade solution.
5.3 Hydrochloric acid solution
c(HCl) = 0.1 mol/l. Obtained as ready-made analytical grade solution.
5.4 Sodium Chloride solution
5.4.1 0.9% by mass (m/m) Weigh 9.00 ± 0.01 g of sodium chloride into a 1 l beaker and add 991.0 ± 0.1
g of deionised water (grade 3). Stir until dissolved.
5.4.2 The conductivity of the solution should be checked prior to each use using properly calibrated
measuring equipment. The expected conductivity of a 0,9% saline solution is of the order of 16mS/cm at
25 °C. Each testing lab must determine the correct conductivity for the conditions obtaining in the lab. It
is also recommended that the temperature of the solution be maintained at (23 +/- 2) °C for the duration
of the test.
5.5 Standard buffer solutions
Prepare 3 buffer solutions according to ISO 10523 (or equivalent national standards) with pH values
suitable to work in a range from pH 2,7 till pH 10. For instance
— 3.0 ± 0.02
— 7.0 ± 0.02
— 10.0 ± 0.02
2 © ISO 2019 – All rights reserved

---------------------- Page: 6 ----------------------
ISO/DIS 17190-10:2019(E)

6 Apparatus
6.1 Analytical balance capable of weighing a mass of 1.000 ± 0.001 g of polymer powder in
combination with the mass of the weighing vessel
...
