ISO/IEC 24759:2014

INTERNATIONAL ISO/IEC
STANDARD 24759
Second edition
2014-02-01
Information technology — Security
techniques — Test requirements for
cryptographic modules
Technologies de l’information — Techniques de sécurité — Exigences
d’essai pour modules cryptographiques
Reference number
©
ISO/IEC 2014

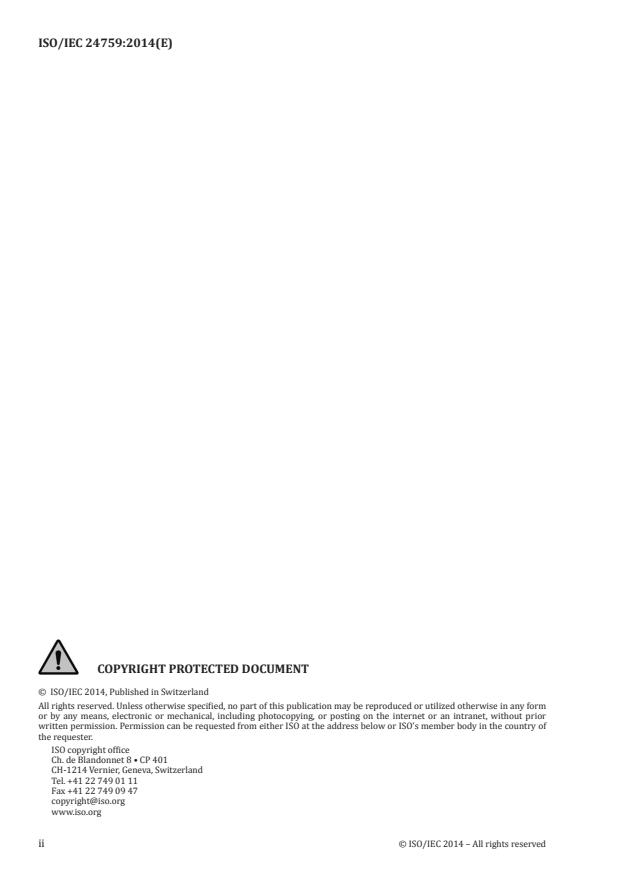

© ISO/IEC 2014
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO/IEC 2014 – All rights reserved

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols and abbreviated terms . 1
5 Document organization . 1
5.1 General . 1
5.2 Assertions and security requirements . 1
5.3 Assertions with cross references . 2
6 Security requirements . 2
6.1 General . 2
6.2 Cryptographic module specification . 3
6.3 Cryptographic module interfaces .17
6.4 Roles, services, and authentication .30
6.5 Software/Firmware security .46
6.6 Operational environment .50
6.7 Physical security .61
6.8 Non-invasive security .82
6.9 Sensitive security parameter management .84
6.10 Self-tests .95
6.11 Life-cycle assurance .113
6.12 Mitigation of other attacks .126
6.13 A - Documentation requirements .127
6.14 B - Cryptographic module security policy .127
6.15 C - Approved security functions .128
6.16 D - Approved sensitive security parameter generation and establishment methods .128
6.17 E - Approved authentication mechanisms .128
6.18 F - Approved non-invasive attack mitigation test metrics .128
© ISO/IEC 2014 – All rights reserved iii

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical
activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other international
organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the
work. In the field of information technology, ISO and IEC have established a joint technical committee,
ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the national bodies
casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
ISO/IEC 24759 was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 27, IT Security techniques.
This second edition cancels and replaces the first edition (ISO/IEC 24759:2008), which has been
technically revised.
iv © ISO/IEC 2014 – All rights reserved

INTERNATIONAL STANDARD ISO/IEC 24759:2014(E)
Information technology — Security techniques — Test
requirements for cryptographic modules
1 Scope
This International Standard specifies the methods to be used by testing laboratories to test whether the
cryptographic module conforms to the requirements specified in ISO/IEC 19790:2012. The methods are
developed to provide a high degree of objectivity during the testing process and to ensure consistency
across the testing laboratories.
This International Standard also specifies the requirements for information that vendors provide to
testing laboratories as supporting evidence to demonstrate their cryptographic modules’ conformity to
the requirements specified in ISO/IEC 19790:2012.
Vendors can use this International Standard as guidance in trying to verify whether their cryptographic
modules satisfy the requirements specified in ISO/IEC 19790:2012 before they apply to the testing
laboratory for testing.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO/IEC 19790:2012, Information technology — Security techniques — Security requirements for
cryptographic modules
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 19790:2012 apply.
4 Symbols and abbreviated terms
For the purposes of this document, the symbols and abbreviated terms given in ISO/IEC 19790:2012
apply.
5 Document organization
5.1 General
Clause 6 of this document specifies the methods that shall be used by testing laboratories and the
requirements for information that vendors shall provide to testing laboratories. Clause 6, besides
a general subclause 6.1, includes eleven subclauses corresponding to the eleven areas of security
requirements and six subclauses corresponding to the six Annexes A to F of ISO/IEC 19790:2012.
5.2 Assertions and security requirements
Within each subclause, the corresponding security requirements from ISO/IEC 19790:2012 are divided
into a set of assertions (i.e., statements that have to be true for the module to satisfy the requirement of
a given area at a given level). All of the assertions are direct quotations from ISO/IEC 19790:2012.
© ISO/IEC 2014 – All rights reserved 1

The assertions are denoted by the form
AS.
where “requirement_number” is the number of the corresponding area specified in ISO/IEC 19790:2012
(i.e., one through twelve and A through F), and “sequence_number” is a sequential identifier for assertions
within a subclause. After the statement of each assertion, the security levels to which the assertion
applies (i.e., levels 1 through 4) are listed in parentheses.
Following each assertion is a set of requirements levied on the vendor. These requirements describe the
types of documentation or explicit information that the vendor shall provide in order for the tester to
verify conformity to the given assertion. These requirements are denoted by the form
VE..
where “requirement_number” and “assertion_sequence_number” are identical to the corresponding
assertion requirement number and sequence number, and “sequence_number” is a sequential identifier
for vendor requirements within the assertion requirement.
Also following each assertion and the requirements levied on the vendor is a set of requirements levied on
the tester of the cryptographic module. These requirements instruct the tester as to what he or she shall
do in order to test the cryptographic module with respect to the given assertion. These requirements
are denoted by the form
TE..
where “requirement_number” and “assertion_sequence_number” are identical to the corresponding
assertion requirement number and sequence number, and “sequence_number” is a sequential identifier
for tester requirements within the assertion requirement.
A validation authority may modify, add or delete VEs and/or TEs in this international standard.
5.3 Assertions with cross references
For clarity in some assertions, cross references to ISO/IEC 19790:2012 or other assertions numbers
have been put between curly brackets “{“ and ”}”. Those cross references are written in italics.
6 Security requirements
6.1 General
AS01.01: (Specification – Levels 1, 2, 3, and 4)
This clause specifies the security requirements that shall be satisfied by the cryptographic
module’s compliance to this International Standard.
NOTE This subclause states general requirements to meet the assertions of the other subclauses in clause 6,
and A through F. This subclause sets no assertion of itself and is not separately tested.
AS01.02: (Specification – Levels 1, 2, 3, and 4)
A cryptographic module shall be tested against the requirements of each area addressed in this
clause.
NOTE 1 The tests can be performed in one or more of the following manners:
a) Tester performs tests at the tester’s facility
b) Tester performs tests at the vendor’s facility
2 © ISO/IEC 2014 – All rights reserved

c) Tester supervises vendor performing tests at the vendor’s facility
1) Rationale is included that explains why tester could not perform the tests
2) Tester develops the required test plan and required tests
3) Tester directly observes the tests being performed
An assertion fails if any of its subsequent tests fails.
NOTE 2 This subclause states general requirements to meet the assertions of the other subclauses in clause 6.
This subclause sets no assertion of itself and is not separately tested.
AS01.03: (Specification – Levels 1, 2, 3, and 4)
The cryptographic module shall be independently rated in each area.
NOTE This subclause states general requirements to meet the assertions of the other subclauses in clauses 6
and A through F. This subclause sets no assertion of itself and is not separately tested.
AS01.04: (Specification – Levels 1, 2, 3, and 4)
All documentation, including copies of the user and installation manuals, design specifications,
life-cycle documentation shall be provided for a cryptographic module that is to undergo an
independent verification or evaluation scheme.
NOTE This subclause states general requirements to meet the assertions of the other subclauses in clauses 6
and A through F. This subclause sets no assertion of itself and is not separately tested.
6.2 Cryptographic module specification
6.2.1 Cryptographic module specification general requirements
AS02.01: (Specification – Levels 1, 2, 3, and 4)
A cryptographic module shall be a set of hardware, software, firmware, or some combination
thereof, that at a minimum, implements a defined cryptographic service employing an
approved cryptographic algorithm, security function or process and contained within a defined
cryptographic boundary.
NOTE This assertion is not separately tested.
AS02.02: (Specification – Levels 1, 2, 3, and 4)
The documentation requirements specified in {ISO/IEC 19790:2012 Annex} A.2.2 shall be provided.
NOTE This assertion is tested as part of ASA.01.
6.2.2 Types of cryptographic modules
AS02.03: (Specification – Levels 1, 2, 3, and 4)
A cryptographic module shall be defined as one of the following module types:
— Hardware module is a module whose cryptographic boundary is specified at a hardware
perimeter. Firmware and/or software, which may also include an operating system, may be
included within this hardware cryptographic boundary.
— Software module is a module whose cryptographic boundary delimits the software exclusive
component(s) (may be one or multiple software components) that execute(s) in a modifiable
operational environment. The computing platform and operating system of the operational
environment which the software executes in are external to the defined software module
boundary.
© ISO/IEC 2014 – All rights reserved 3

— Firmware module is a module whose cryptographic boundary delimits the firmware exclusive
component(s) that execute(s) in a limited or non-modifiable operational environment.
The computing platform and operating system of the operational environment which the
firmware executes in are external to the defined firmware module boundary but explicitly
bound to the firmware module.
— Hybrid Software module is a module whose cryptographic boundary delimits the composite of
a software component and a disjoint hardware component (i.e. the software component is not
contained within the hardware module boundary). The computing platform and operating
system of the operational environment which the software executes in are external to the
defined hybrid software module boundary.
— Hybrid Firmware module is a module whose cryptographic boundary delimits the composite
of a firmware component and a disjoint hardware component (i.e. the firmware component
is not contained within the hardware module boundary). The computing platform and
operating system of the operational environment which the firmware executes in are
external to the defined hybrid firmware module boundary but explicitly bound to the hybrid
firmware module.
Required Vendor Information
VE02.03.01: The vendor shall provide a description of the cryptographic module describing the type of
cryptographic module. It will explain the rationale of the module type selection.
VE02.03.02: The vendor shall provide a specification of the cryptographic module identifying all
hardware, software and/or firmware components of the cryptographic module.
Required Test Procedures
TE02.03.01: The tester shall verify that the vendor provided documentation identifies one of the module
types listed in AS02.03.
TE02.03.02: The tester shall verify from the vendor provided specification documentation, by identifying
all hardware, software and/or firmware components (AS02.15 through AS02.18), that the cryptographic
module is consistent with the type of the cryptographic module.
AS02.04: (Specification – Levels 1, 2, 3, and 4)
For hardware and firmware modules, the physical security and non-invasive security
requirements found in {ISO/IEC 19790:2012 subclause} 7.7 and 7.8 shall apply.
NOTE This assertion is not tested separately.
AS02.05: (Specification – Levels 1, 2, 3, and 4)
For hybrid modules, the software and firmware component(s) shall meet all applicable
requirements of {ISO/IEC 19790:2012 subclause} 7.5 and 7.6.
NOTE This assertion is not tested separately.
AS02.06: (Specification – Levels 1, 2, 3, and 4)
{For hybrid modules} The hardware component(s) shall meet all applicable requirements of
{ISO/IEC 19790:2012 subclause} 7.7 and 7.8.
NOTE This assertion is not tested separately.
6.2.3 Cryptographic boundary
6.2.3.1 Cryptographic boundary general requirements
AS02.07: (Specification – Levels 1, 2, 3, and 4)
4 © ISO/IEC 2014 – All rights reserved

The cryptographic boundary shall consist of an explicitly defined perimeter (i.e. set of hardware,
software or firmware components) that establishes the boundary of all components of the
cryptographic module.
Required Vendor Information
VE02.07.01: The vendor documentation shall specify all components within the cryptographic boundary.
Required Test Procedures
TE02.07.01: The tester shall verify by inspection and from the vendor documentation that all the
components specified in AS02.15 through AS02.18 are within the cryptographic boundary.
TE02.07.02: The tester shall verify by inspection and from the vendor documentation that there are no
unidentified components which are not specified in AS02.15 through AS02.18 within the cryptographic
boundary.
AS02.08: (Specification – Levels 1, 2, 3, and 4)
The requirements of this International Standard shall apply to all algorithms, security functions,
processes and components within the module’s cryptographic boundary.
NOTE This assertion is not tested separately.
AS02.09: (Specification – Levels 1, 2, 3, and 4)
The cryptographic boundary shall, at a minimum, encompass all security relevant algorithms,
security functions, processes and components of a cryptographic module (i.e., security relevant
within the scope of this International Standard).
Required Vendor Information
VE02.09.01: The vendor shall provide a list of all the security relevant algorithms, security functions,
processes and components within the cryptographic boundary.
Required Test Procedures
TE02.09.01: The tester shall verify that the vendor provided documentation clearly identifies and lists
all the security relevant algorithms, security functions, processes and components of the module within
the cryptographic boundary.
AS02.10: (Specification – Levels 1, 2, 3, and 4)
Non-security relevant algorithms, security functions, processes or components which are used in
an approved mode of operation shall be implemented in a manner to not interfere or compromise
the approved operation of the cryptographic module.
Required Vendor Information
VE02.10.01: The vendor provided documentation shall list the non-security relevant functions used in
an approved mode of operation and justify that they are not interfering with the approved mode of
operation of the module.
Required Test Procedures
TE02.10.01: The tester shall verify through documentation review and inspection of the module that the
non-security relevant functions are not interfering or compromising the approved mode of operation of
the module.
TE02.10.02: The tester shall verify the correctness of any rationale for not interfering nor compromising
provided by the vendor. The burden of proof is on the vendor; if there is any uncertainty or ambiguity,
the tester shall require the vendor to produce additional information as needed.
© ISO/IEC 2014 – All rights reserved 5

AS02.11: (Specification – Levels 1, 2, 3, and 4)
The defined name of a cryptographic module shall be representative of the composition of the
components within the cryptographic boundary and not representative of a larger composition
or product.
Required Vendor Information
VE02.11.01: The vendor shall provide the defined name of the module.
Required Test Procedures
TE02.11.01: The tester shall verify that the vendor provided module name is consistent with the
composition of the components within the cryptographic boundary.
TE02.11.02: The tester shall verify that the module name does not represent a compostion of components
or functions that are not consistent with the composition of the components within the cryptographic
boundary.
AS02.12: (Specification – Levels 1, 2, 3, and 4)
The cryptographic module shall have, at minimum, specific versioning information representing
the distinct individual hardware, software and/or firmware components.
Required Vendor Information
VE02.12.01: The vendor shall provide the versioning information of the modules distinct individual
hardware, software and/or firmware components.
Required Test Procedures
TE02.12.01: The tester shall verify the versionig information represents the modules distinct individual
hardware, software and/or firmware components.
AS02.13: (Specification – Levels 1, 2, 3, and 4)
The excluded hardware, software or firmware components shall be implemented in a manner to
not interfere or compromise the approved secure operation of the cryptographic module.
Required Vendor Information
VE02.13.01: The vendor shall describe the excluded components of the module which are not within the
cryptographic module and justify that these components will not interfere with the approved mode of
operation of the module.
Required Test Procedures
TE02.13.01: The tester shall verify from the vendor provided documentation that the excluded
components of the cryptographic boundary will not interfere with the approved mode of operation of
the module.
AS02.14: (Specification – Levels 1, 2, 3, and 4)
The excluded hardware, software or firmware shall be specified { ISO/IEC 19790:2012} (Annex A).
Required Vendor Information
VE02.14.01: All components that are to be excluded from the security requirements shall be explicitly
listed in the vendor documentation.
VE02.14.02: The vendor documentation shall provide the rationale for excluding each of the components
listed in response to requirement VE02.13.01. The vendor shall show that each component, even if
malfunctioning or misused, cannot cause a compromise.
6 © ISO/IEC 2014 – All rights reserved

Required Test Procedures
TE02.14.01: The tester shall verify whether the vendor indicates that any components of the module are
to be excluded from the requirements of ISO/IEC 19790:2012.
TE02.14.02: If the vendor has indicated that certain components of the module are to be excluded from
the requirements of ISO/IEC 19790:2012, the tester shall verify that a rationale for each exclusion is
provided. The rationale has to show that even if the component malfunctions, it cannot cause a potential
release of , plaintext data, or other information that if misused could lead to a compromise. Rationale
that may be acceptable, if adequately supported by documentation, includes:
a) The component does not process SSPs, plaintext data, or other information that if misused could
lead to a compromise
b) The component is not connected with security relevant components of the module that would allow
inappropriate transfer of SSPs, plaintext data, or other information that if misused could lead to a
compromise
c) All information processed by the component is strictly for internal use of the module, and does not
in any way impact the equipment to which the module is connected
TE02.14.03: The tester shall verify the correctness of any rationale for exclusion provided by the vendor.
The burden of proof is on the vendor; if there is any uncertainty or ambiguity, the tester shall require the
vendor to produce additional information as needed.
6.2.3.2 Definitions of cryptographic boundary
AS02.15: (Specification – Levels 1, 2, 3, and 4)
The cryptographic boundary of a hardware cryptographic module shall delimit and identify:
— The set of hardware components which may include:
— physical structures, including circuit boards, substrates or other mounting surfaces that
provide the interconnecting physical wiring between components,
— active electrical components such as semi-integrated, custom-integrated or common-
integrated circuits, processors, memory, power supplies, converters, etc.
— physical structures, such as enclosures, potting or encapsulation materials, connectors,
and interfaces,
— firmware, which may include an operating system,
— other components types not listed above.
Required Vendor Information
VE02.15.01: All hardware components of the cryptographic module shall be identified in the vendor
documentation. Components to be listed shall include all of the following:
a) Physical structures, including circuit boards, substrates or other mounting surfaces that provide
the interconnecting physical wiring between components.
1) circuit boards, substrates and mounting surfaces.
b) Active electrical components such as semi-integrated, custom-integrated or common-integrated
circuits, processors, memory, power supplies, converters, etc.
1) processors, including microprocessors, digital signal processors, custom processors,
microcontrollers, or any other types of processors (identify manufactuer and type),
© ISO/IEC 2014 – All rights reserved 7

2) read-only memory (ROM) integrated circuits for program executable code and data (this may
include mask-programmed ROM, programmable ROM (PROM) such as ultraviolet, erasable
PROM (EPROM), electrically erasable PROM (EEPROM), or Flash-memory,
3) random-access memory (RAM) or other integrated circuits for temporary data storage,
4) semi-custom, application-specific integrated circuits, such as gate arrays, programmable logic
arrays, field programmable gate arrays, or other programmable logic devices,
5) fully custom, application-specific, integrated circuits, including any custom cryptographic
integrated circuits,
6) power supply components, including power supply, voltage conversion modules (e.g. AC-to-DC
or DC-to-DC modules), transformers, input power connectors, and output power connectors,
7) other active electronic circuit elements (passive circuit elements such as pull up/pull down
resistors or bypass capacitors do not need to be included if they do not provide security relevant
function as part of the cryptographic module).
c) Physical structures, such as enclosures, potting or encapsulation materials, connectors, and
interfaces,
1) physical structures and enclosures, including any removable access doors or covers,
2) potting or encapsulation materials,
3) boundary connectors,
4) connectors between major independent sub assemblies within the module.
d) Firmware, which may include an operating system,
1) Executable code:
i) Non-modifiable
ii) Modifiable
e) Other components types not listed above
1) cooling or heating arrangements, such as conduction plates, cooling airflow, heat exchanger,
cooling fins, fans, heaters, or other arrangements for removing or adding heat.
VE02.15.02: The vendor documentation shall indicate the internal layout and assembly methods (e.g.
fasteners and fittings) of the module, including drawings that are at least approximately to scale.
VE02.15.03: The vendor documentation shall describe the primary physical parameters of the module,
including descriptions of the enclosure, access points, circuit boards, location of power supply,
interconnection wiring runs, cooling arrangements, and any other significant parameters.
VE02.15.04: The vendor documentation shall include a block diagram which represents the module’s
boundary and relationship of the hardware components.
Required Test Procedures
8 © ISO/IEC 2014 – All rights reserved

TE02.15.01: The tester shall identify all hardware components of the cryptographic module. Components
to be listed shall include all of the following:
a) Physical structures, including circuit boards, substrates or other mounting surfaces that provide
the interconnecting physical wiring between components.
1) circuit boards, substrates and mounting surfaces.
b) Active electrical components such as semi-integrated, custom-integrated or common-integrated
circuits, processors, memory, power supplies, converters, etc.
1) processors, including microprocessors, digital signal processors, custom processors,
microcontrollers, or any other types of processors (identify manufactuer and type),
2) read-only memory (ROM) integrated circuits for program executable code and data (this may
include mask-programmed ROM, programmable ROM (PROM) such as ultraviolet, erasable
PROM (EPROM), electrically erasable PROM (EEPROM), or Flash-memory,
3) random-access memory (RAM) or other integrated circuits for temporary data storage,
4) semi-custom, application-specific integrated circuits, such as gate arrays, programmable logic
arrays, field programmable gate arrays, or other programmable logic devices,
5) fully custom, application-specific, integrated circuits, including any custom cryptographic
integrated circuits,
6) power supply components, including power supply, voltage conversion modules (e.g. AC-to-DC
or DC-to-DC modules), transformers, input power connectors, and output power connectors,
7) other active electronic circuit elements (passive circuit elements such as pull up/pull down
resistors or bypass capacitors do not need to be included if they do not provide security relevant
function as part of the cryptographic module).
c) Physical structures, such as enclosures, potting or encapsulation materials, connectors, and
interfaces,
1) physical structures and enclosures, including any removable access doors or covers,
2) potting or encapsulation materials,
3) boundary connectors,
4) connectors between major independent sub assemblies within the module.
d) Firmware, which may include an operating system,
1) Executable code:
i) Non-modifiable
ii) Modifiable
e) Other components types not listed above
1) cooling or heating arrangements, such as conduction plates, cooling airflow, heat exchanger,
cooling fins, fans, heaters, or other arrangements for removing or adding heat.
TE02.15.02: The tester shall verify that the components list is consistent with information provided for
other assertions of this subclause, as defined below:
a) The specification of the cryptographic boundary under assertion AS02.07. Verify that all components
inside the cryptographic boundary are included in the components list and vice versa. Also verify
© ISO/IEC 2014 – All rights reserved 9

that any components outside the cryptographic boundary are not listed as components of the
cryptographic module.
b) The specification of the block diagram under assertion ASA.01. Verify that any individual components
identified in the block diagram (e.g. processors, application-specific integrated circuits) are also
listed in the components list.
c) Any components that are to be excluded from the requirements of ISO/IEC 19790:2012 under the
provisions of assertion AS02.14. Verify that components to be so excluded are still listed in the
components list.
TE02.15.03: The tester shall verify that the cryptographic boundary is physically contiguous, such that
there are no gaps that could allow uncontrolled input, output, or other access into the cryptographic
module. (Physical protection and tamper protection are covered separately in requirements under 7.7
of ISO/IEC 19790:2012.) The module design has to also ensure that there are no uncontrolled interfaces
into or out of the cryptographic module that could pass SSPs, plaintext data, or other information that if
misused could lead to a compromise.
TE02.15.04: The tester shall verify that the cryptographic boundary encompasses all components that
are identified in the block diagram under assertion ASA.01 in this subclause as inputting, outputting, or
processing SSPs, plaintext data, or other information that if misused could lead to a compromise.
TE02.15.05: As a partial exception to the above requirements, the vendor is allowed to exclude certain
components from the requirements of ISO/IEC 19790:2012 after satisfying the requirements under
assertion AS02.14 in this subclause. The vendor may then treat such excluded components as effectively
outside the cryptographic boundary of the module. In this case, the tester shall verify that any interfaces
or physical connections between such excluded components and the rest of the module do not allow
uncontrolled release of CSPs, plaintext data, or other information that if misused could lead to a
compromise.
TE02.15.06: The tester shall verify that the vendor’s documentation shows the internal layout of the
module, including the placement and approximate dimensions of major identifiable components of the
module. This has to include drawings that are at least approximately to scale.
TE02.15.07: The tester shall verify that the vendor’s documentation indicates the major physical
assemblies of the module and how they are assembled or inserted into the module.
TE02.15.08: The tester shall verify that the vendor’s documentation describes the primary physical
parameters of the module. This description has to include at least the following:
a) Enclosure shape and approximate dimensions, including any access doors or covers
b) Circuit board(s) approximate dimensions, layout, and interconnections
c) Location of power supply, power converters, and power inputs and outputs
d) Interconnection wiring runs: routing and terminals
e) Cooling arrangements, such as conduction plates, cooling airflow, heat exchanger, cooling fins, fans,
or other arrangements for removing heat from the module
f) Other component types not listed above
TE02.15.09: The tester shall verify the that the vendor provided block diagram represents the module’s
boundary and relationship of the hardware components.
AS02.16: (Specification – Levels 1, 2, 3, and 4)
The cryptographic boundary of a software cryptographic module shall delimit and identify:
— The set of executable file or files that constitute the cryptographic module; and
10 © ISO/IEC 2014 – All rights reserved

— The instantiation of the cryptographic module saved in memory and executed by one or more
processors.
Required Vendor Information
VE02.16.01: All software components of the cryptographic module shall be identified in the vendor
documentation. Components to be listed shall include all of the following:
a) The set of executable file or files that constitute the cryptographic module,
b) Other security relevant component types not listed above.
VE02.16.02: The vendor documentation shall indicate the internal software architecture, including how
the software components interact.
VE02.16.03: The vendor documentation shall indicate the software environment (e.g. operating system,
run-time library, etc.) on which the module executes.
Required Test Procedures
TE02.16.01: The tester shall verify that the documentation includes a components list that includes all
software components of the cryptographic module.
TE02.16.02: The tester shall verify that the components list includes all occurrences of the following
types of components, excluding only component types that are not used in the module:
a) Software components.
b) Other component types not listed above.
TE02.16.03: The tester shall verify that the components list is consistent with information provided for
other assertions of this subclause, as defined below:
a) The specification of the cryptographic boundary under assertion AS02.07. Verify that all components
inside the cryptographic boundary are included in the components list and vice versa. Also verify
that any components outside the cryptographic boundary are not listed as components of the
cryptographic module.
b) The specification of the software under assertion ASA.01. Verify that the list of software components
is the same as in the specifications under assertion AS02.07.
c) The specification of the block diagram under assertion ASA.01. Verify that any individual components
identified in the block diagram are also listed in the components list.
d) Any components that are to be excluded from the requirements of ISO/IEC 19790:2012 under the
provisions of assertion AS02.14. Verify that components to be so excluded are still listed in the
components list.
TE02.16.04: As a partial exception to the above requirements, the vendor is allowed to exclude certain
components from the requirements of ISO/IEC 19790:2012 after satisfying the requirements under
assertions AS02.13 and AS02.14 in this subclause. The vendor may then treat such excluded components
as effectively outside the cryptographic boundary of the module. In this case, the tester shall verify that
any interfaces or physical connections between such excluded components and the rest of the module
do not allow uncontrolled release of CSPs, plaintext data, or other information that if misused could lead
to a compromise.
TE02.16.05: The tester shall verify that the vendor’s documentation indicates the major software
components of the module and how they are linked together forming the module.
AS02.17: (Specification – Levels 1, 2, 3, and 4)
© ISO/IEC 2014 – All rights reserved 11

The cryptographic boundary of a firmware cryptographic module shall delimit and identify:
— The set of executable file or files that constitute the cryptographic module; and
— The instantiation of the cryptographic module saved in memory and executed by the
processor.
Required Vendor Information
VE02.17.01: All firmware components of the cryptographic module shall be identified in the vendor
documentation. Components to be listed shall include all of the following:
a) The set of executable file or files that constitute the cryptographic module,
b) Other security relevant component types not listed above.
VE02.17.02: The vendor documentation shall indicate the internal firmware architecture, including how
the firmware components interact.
VE02.17.03: The vendor documentation shall indicate the firmware environment (e.g. operating system,
run-time library, etc.) on which the module executes.
Required Test Procedures
TE02.17.01: The tester shall verify that the documentation includes a components list that includes all
firmware components of the cryptographic module.
TE02.17.02: The tester shall verify that the components list includes all occurrences of the following
types of components, excluding only component types that are not used in the module:
a) Firmware components.
b) Other component types not listed above.
TE02.17.03: The tester shall verify that the components list is consistent with information provided for
other assertions of this subclause, as defined below:
a) The specification of the cryptographic boundary under assertion AS02.07. Verify that all components
inside the cryptographic boundary are included in the components list and vice versa. Also verify
that any components outside the cryptographic boundary are not listed as components of the
cryptographic module.
b) The specification of the firmware under assertion ASA.01. Verify that the list of firmware components
is the same as in the specifications under assertion AS02.07.
c) The specification of the block diagram under assertion ASA.01. Verify that any individual components
identified in the block diagram are also listed in the components list.
d) Any components that are to be excluded from the requirements of ISO/IEC 19790:2012 under the
provisions of assertions AS02.13 and AS02.14. Verify that components to be so excluded are still
listed in the components list.
TE02.17.04: As a partial exception to the above requirements, the vendor is allowed to exclude certain
components from the requirements of ISO/IEC 19790:2012 after satisfying the requirements under
assertions AS02.13 and AS02.14 in this subclause. The vendor may then treat such excluded components
as effectively outside the cryptographic boundary of the module. In this case, the tester shall verify that
any interfaces or physical connections between such excluded components and the rest of the module
do not allow uncontrolled release of CSPs, plaintext data, or other information that if misused could lead
to a compromise.
TE02.17.05: The tester shall verify that the vendor’s documentation indicates the major firmware
components of the module and how they are linked together forming the module.
12 © ISO/IEC 2014 – All rights reserved

AS02.18: (Specification – Levels 1, 2, 3, and 4)
The cryptographic boundary of a hybrid cryptographic module shall:
— be the composite of the module’s hardware component boundary and the disjoint software
or firmware component(s) boundary; and
— include the collection of all ports and interfaces from each component.
NOTE In addition to the disjoint software or firmware component(s), the hardware component will also
include embedded software or firmware.
Required Vendor Information
VE02.18.01: The cryptographic module shall be identified in the vendor documentation as either a
Hybrid Software Module or a Hybrid Firmware Module.
— Hybrid Software Module components listed shall include the requirements in VE02.15.01 through
VE02.15.04 and VE02.16.01 through VE02.16.03.
— Hybrid Firmware Module components listed shall include the requirements in VE02.15.01 through
VE02.15.04 and VE02.17.01 through VE02.17.03.
Required Test Proced
...
