ISO/PAS 18152:2003

PUBLICLY ISO/PAS
AVAILABLE 18152
SPECIFICATION
First edition
2003-10-01
Ergonomics of human-system
interaction — Specification for the
process assessment of human-system
issues
Ergonomie de l'interaction homme-système — Spécification pour
l'évaluation de processus des aspects homme-système

Reference number
©
ISO 2003
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2003
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2003 — All rights reserved

Contents Page
Foreword. iv
Introduction . v
1 Scope. 1
2 Conformance . 1
3 Normative references . 2
4 Terms and definitions. 2
5 Symbols (and abbreviated terms) . 6
6 Content and format of the model . 6
6.1 Use of ISO/PAS 18152. 6
6.2 Format of the HS model. 7
7 Human-system process category (HS). 9
7.1 HS.1 Life cycle involvement. 9
7.2 HS.2 Integrate human factors . 12
7.3 HS.3 Human-centred design . 17
Annex A (informative) Example of an assessment model. 20
Annex B (informative) Structure and context of the human-system model . 63
Annex C (informative) Human resources process . 68
Annex D (informative) Use of the human-system life cycle processes . 71
Annex E (informative) ISO/IEC 15504 capability scale and attributes. 75
Annex F (informative) Mapping between processes in this specification. 81
Annex G (informative) Mapping to ISO 13407 and ISO/TR 18529 . 85
Annex H (informative) Mapping to ISO/IEC 15288. 87
Annex I (informative) Conformance to ISO/IEC 15504 . 89
Bibliography . 92

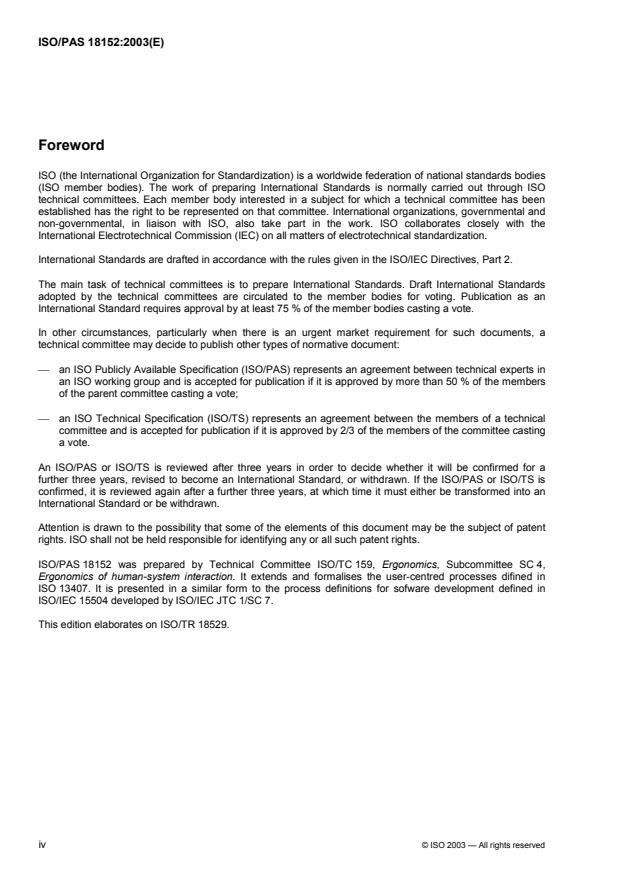

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
In other circumstances, particularly when there is an urgent market requirement for such documents, a
technical committee may decide to publish other types of normative document:
 an ISO Publicly Available Specification (ISO/PAS) represents an agreement between technical experts in
an ISO working group and is accepted for publication if it is approved by more than 50 % of the members
of the parent committee casting a vote;
 an ISO Technical Specification (ISO/TS) represents an agreement between the members of a technical
committee and is accepted for publication if it is approved by 2/3 of the members of the committee casting
a vote.
An ISO/PAS or ISO/TS is reviewed after three years in order to decide whether it will be confirmed for a
further three years, revised to become an International Standard, or withdrawn. If the ISO/PAS or ISO/TS is
confirmed, it is reviewed again after a further three years, at which time it must either be transformed into an
International Standard or be withdrawn.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO/PAS 18152 was prepared by Technical Committee ISO/TC 159, Ergonomics, Subcommittee SC 4,
Ergonomics of human-system interaction. It extends and formalises the user-centred processes difined in
ISO 13407. It is presented in a similar form to the process definitions for sofware development defined in
ISO/IEC 15504 developed by ISO/IEC JTC 1/SC 7.
This edition elaborates on ISO/TR 18529.
iv © ISO 2003 — All rights reserved

Introduction
This specification presents a view of system life cycle processes with an emphasis on the identification and
handling of issues related to people (users and other stakeholders). It is intended for use in process
assessment. The specification describes a set of processes that address issues associated with humans
throughout the life cycle of a system.
Process models offer:
a) the potential to analyse the ability of an organization to deliver and/or maintain a system that meets a
required level of performance,
b) a description of the factors that hinder this ability, and
c) the means of addressing such shortcomings and mitigating risk.
These have led to the widespread adoption of process modelling and assessment as an element in the
assurance of timely and effective system delivery. Processes are defined at the level of what is done to
develop and operate a system or organization. Process reference models have been defined for particular
applications and industries. International Standard process models are being developed by ISO and ISO/IEC
JTC 1. This specification provides a bridge between standardization in the area of Ergonomics (by ISO
TC159) and the life cycle standardization being carried out by ISO/IEC JTC 1 Information technology, SC 7,
Software engineering.
ISO/PAS 18152 makes the contents of ISO 13407 accessible to process assessors and to those familiar with,
or involved in, process modelling. ISO/PAS 18152 extends the range of processes in ISO 13407 to cover the
integration of human-centred design with project and organizational processes and makes a clearer
separation between human-centred processes and human-centred design in the system life cycle. A mapping
between ISO/PAS 18152 and ISO 13407 is provided in Annex G.
ISO/PAS 18152 informs the developers and users of process models who want to integrate
Ergonomics/Human Factors processes in system, hardware and software life cycles in order to assure system
usability, health and safety.
The processes in ISO/PAS 18152 (the Human-System process model, or HS model) present a collation of
good practice in ergonomics/human factors, user/human-centred design and human factors integration across
a range of industries worldwide. These processes are performed by a range of staff and with different degrees
of rigour depending on the industrial sector, the type of system, its purpose or use and the need for an
assured level of usability.
ISO/PAS 18152 has been developed with the following objectives in mind
 To provide the means of assessing and mitigating risks arising from human-system issues that will affect
usability through the life cycle, both at transition points between life cycle stages and during each stage.
 To provide a description of human-system processes for use in project planning and for inter-disciplinary
communication.
 As a basis for understanding and cooperation during the tendering process and for human-system
capability evaluation to support contract award, either in a stand-alone manner or in conjunction with a
software or system capability evaluation.
 To provide a basis for structured human-system process improvement by supplier, customer or employer
organizations.
PUBLICLY AVAILABLE SPECIFICATION ISO/PAS 18152:2003(E)

Ergonomics of human-system interaction — Specification for
the process assessment of human-system issues
1 Scope
This Publicly Available Specification presents a human-systems (HS) model for use in ISO/IEC 15504-
conformant assessment of the maturity of an organization in performing the processes that make a system
usable, healthy and safe. It describes processes that address human-system issues and the outcomes of
these processes. It details the practices and work products associated with achieving the outcomes of each
process.
The model describes processes for specifying and evaluating usability, health and safety, but it does not
address all processes relating to their achievement.
The model will always be tailored to the specific organizational and system context prior to use in assessment.
Annex D provides advice on tailoring process models for a range of uses.
The HS model does not define the roles or competencies of staff who perform HS processes.
This specification is intended for use by process assessors and those developing process assessment models
and tools. It may be informative for those responsible for human factors activities and human factors
specialists. The latter groups of readers should familiarise themselves with the vocabulary of process
modelling and process assessment prior to reading this specification. The Bibliography lists informative
standards and texts.
This specification should be used in conjunction with ISO 13407 and ISO/IEC 15504. The latter standard
provides the framework in which the process descriptions in this specification may be used. This specification
defines an additional category of processes for use with other process standards, for example ISO/IEC 12207
and ISO/IEC 15288.
NOTE 1 Readers of this specification are expected to be familiar with ISO 13407 and ISO/IEC 15504.
This specification can be applied to the specification, design, assessment and operation of manned or
embedded systems, hardware and software. The model can be applied to generic systems (for example
consumer products), bespoke systems (for example control or defence systems) and systems which
continuously change to meet changes in the business or user environment (for example management
information systems). However, it will need to be tailored for each application.
NOTE 2 Copyright release for the process descriptions: Users of this specification may freely reproduce the process
descriptions contained in Clause 7 and Annex A of this specification as part of any Process Assessment Model, or as part
of any demonstration of compatibility with this specification, so that it can be used for its intended purpose.
2 Conformance
Those wishing to claim that derived process assessment models are conformant to this specification shall
meet the conformance requirements of ISO/IEC 15504-2:2003, subclause 6.3. An example of such a
conformance statement is provided by the attestation of conformance in Annex I of this specification.
3 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
1)
ISO 6385:— , Ergonomic principles in the design of work systems
ISO/IEC 9126-1:2001, Software engineering — Product quality — Part 1: Quality model
ISO 9241-11:1998, Ergonomic requirements for office work with visual display terminals (VDTs) — Part 11:
Guidance on usability
ISO 13407:1999, Human-centred design processes for interactive systems
ISO/IEC 15288:2002, Systems engineering — System life cycle processes
ISO/IEC 15504-2:2003, Process assessment — Part 2: Performing an assessment
ISO/IEC 15504 (all parts) Software engineering — Process assessment
4 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 6385, ISO 9241-11, ISO 13407,
ISO/IEC TR 15504-9, ISO/IEC 9126-1 and ISO/IEC 15288 apply. The terms most relevant to this specification
are given below.
4.1
(process) capability
ability of a process to achieve a required goal
[ISO/IEC TR 15504-9:1998]
NOTE 1 This usage differs from human capability, military capability and operational capability. To avoid confusion,
these alternative usages are avoided in this specification.
NOTE 2 The capability levels used in ISO/IEC 15504-2 are included in Annex E.
4.2
context of use
users, tasks, equipment (hardware, software and materials), and the physical and social environments in
which a system is used
[ISO 9241-11:1998]
4.3
enabling system
system that complements the system of interest during its life-cycle stages, but does not contribute directly to
its functionality
NOTE 1 For example, when the system enters the production stage of the life cycle, an (enabling) production system is
required.
NOTE 2 Each enabling system has a life cycle of its own. This specification is applicable to each enabling system
when, in its own right, it is treated as the system of interest.

1) To be published. (Revision of ISO 6385:1981)
2 © ISO 2003 — All rights reserved

4.4
enterprise
that part of an organization with responsibility to acquire and to supply products and/or services according to
agreements
[ISO/IEC 15288:2002]
NOTE An organization may be involved in several enterprises and an enterprise may involve one or more
organizations.
4.5
ergonomics
human factors
study of human capabilities and limitations, human interaction with technologies and environments, and the
application of this knowledge to products, processes and environments
NOTE The new word “Ergonomics” was originally created from a combination of the Greek words “ergos” and
“nomos” to mean literally “laws of work”.
4.6
formative evaluation
evaluation designed and used to improve the object of evaluation, especially when it is still being developed
[The Program Evaluation Standards, second edition]
4.7
HF data
information about users and other stakeholders that is generated and maintained by the Human Sciences
NOTE This includes, for example, anthropometric data, health and safety data, psychometric measurements,
ergonomics standards, accessibility standards, and expert knowledge in all human sciences (e.g. psychology, sociology,
medicine, human computer interaction, behavioural science, anthropology, management science, education, personnel
and staffing management), and codifications of this information and knowledge (e.g. international standards, legislative
requirements, existing patents, good practice, style guides and project standards).
4.8
human-centred design
user-centred design
an approach to design that is characterised by the active involvement of users, a clear understanding of user
and task requirements, an appropriate allocation of function between users and technology, iterations of
design solutions, and multi-disciplinary design
[ISO 13407:1999, subclause 5.1]
NOTE Usability engineering is often used as a substitute for human-centred design. However applying usability
engineering methods does not necessarily prescribe the active user involvement that is the essence of human-centred
design. In addition, usability engineering often over-emphasises the role of evaluation methods. Human-centred design,
on the other hand, refers to the process of analysing context of use, eliciting user requirements, producing design
solutions and evaluating the design against the requirements, all in an iterative fashion.
4.9
human factors integration
a systematic approach to the identification, tracking and resolution of human-system issues in order to ensure
the balanced development of both the technological and human aspects of operational capability
NOTE 1 The aim is to ensure that project decisions are properly informed by adequate information about the human-
related issues, and that relevant project decisions take proper account of HF data.
NOTE 2 Adapted from UK MoD Human Factors Integration — An Introductory Guide, 2000).
4.10
human-system issue
an issue (for example, a need, want, constraint, limit, concern, barrier, factor or consideration) relating to the
people (users and other stakeholders) and their involvement in, or interaction with, a system at any time in the
life cycle of that system. The domains in which HS issues may arise are listed in B.6.
4.11
life cycle
the stages and activities spanning the life of the system from the definition of its requirements to the
termination of its use covering its conception, development, operation, maintenance support and disposal
NOTE Adapted from definitions in IEC 61508, ISO 13407 and ISO/IEC 12207.
4.12
(base) practice
a technical or management activity that contributes to the creation of the output (i.e. work products, see
Annex A) of a process or enhances the capability of a process
[ISO/IEC TR 15504-9:1998]
4.13
process
a set of interrelated activities, which transform inputs into outputs
[ISO 8402:1994]
4.14
process assessment
a disciplined evaluation of an organization's processes against a model
[ISO/IEC TR 15504-9:1998]
4.15
process category
a set of processes addressing the same general area of activity
[ISO/IEC TR 15504-9:1998]
4.16
process improvement
action taken to change an organization's processes so that they meet the organization's business needs and
achieve its business goals more effectively
[ISO/IEC TR 15504-9:1998]
4.17
project
an endeavour with defined start and finish dates undertaken to create a product or service in accordance with
specified resources and requirements
[ISO/IEC 15288:2002]
NOTE The term ‘project' is not intended to be exclusive to the development of a system. Projects include long-term
activities related to a system, such as training, maintenance and support.
4.18
prototype
refers to any artefact created for the purpose of demonstration to users in order to elicit or test user feedback
4 © ISO 2003 — All rights reserved

NOTE 1 This includes inter alia demonstrators, mock-ups, paper prototypes, simulations, role-plays, dummy systems
or documents, scenarios.
NOTE 2 Adapted from ISO 13407.
4.19
stakeholder
an interested party having a right, share or claim in the system or in its possession of qualities that meet that
party's needs and/or expectations
EXAMPLE The user, the customer, the employer, developers, regulatory bodies, maintenance staff, support desk.
“The employer” includes those responsible for providing the personnel for a system (e.g. staffing planners, training
organization).
NOTE The term “project stakeholder” is used in this specification to refer to the members of an organization who
have a stake in a project. This includes, for example, the project manager, task leaders, technical staff, administrative staff,
and quality assurance.
4.20
summative evaluation
evaluation designed to present conclusions about the merit or worth of the object of evaluation and
recommendations about whether it should be retained, altered or eliminated
[The Program Evaluation Standards, second edition]
4.21
system
a combination of interacting elements organized to achieve one or more stated purposes
[ISO/IEC 15288:2002]
NOTE 1 A system may be considered as a product or as the services it provides.
NOTE 2 A system includes the workplace, physical equipment, computer software, documentation, manuals, human
tasks and organizational or management procedures. When these are combined with users and operated, the result is a
work system q.v. ISO 6385 gives guidance on the design and operation of work systems.
4.22
task
an activity required to achieve an intended outcome of a work system
1)
NOTE 1 Adapted from ISO 6385:— .
NOTE 2 Task is not used to describe a project activity, the term 'practice' q.v. is used for this type of activity.
4.23
user
individual interacting with the system [ISO 13407:1999]
NOTE The user organization can also be considered as a user of the system.
4.24
usability
extent to which a product can be used by specified users to achieve specified goals with effectiveness,
efficiency and satisfaction in a specified context of use [ISO 9241-11:1998]
4.25
work product
an artefact associated with the execution of a process
[ISO/IEC TR 15504-9:1998]
NOTE A work product might be used, produced or changed by a process.
4.26
work system
the work system comprises a combination of people and working equipment, acting together in the work
process, to perform the work task, at the work space, in the work environment, under the conditions imposed
by the work task
[ISO 6385:1981]
5 Symbols (and abbreviated terms)
BP Base Practice
HCD Human-Centred Design
HF Human Factors
HFI Human Factors Integration
HR Human Resources
HS Human-System
6 Content and format of the model
6.1 Use of ISO/PAS 18152
The HS model presents a particular view of system processes that emphasises the treatment of HS issues in
the system life cycle and its processes. The human-system process category consists of a set of processes
that address issues associated with people throughout the system life cycle. The HS processes contribute to
the achievement of usability, health and safety for the intended users of a system throughout its life.
Clause 7 presents three sets of process descriptions. Each description presents the purpose of the process,
what will be achieved if it is performed (the outcomes) and lists the practices by which these outcomes are
achieved. Notes on each practice and a list of the work products used by and produced by the process are
provided in Annex A.
Informative annexes are provided to this specification. Annex A provides descriptive notes on the processes
and practices in Clause 7, and lists of work products for each process. It may be used as an assessment
model. Annex B describes the technical components of the model, the relationship between the processes in
the model, the lifecycle and the organization, and places it in context to assessment and process standards
and HFI. Annex C presents an additional set of processes relating to human resources activities and system
usability. Annex D describes the use of the HS model in process definition, improvement and assessment.
Annex E describes the ISO/IEC 15504 capability scale and indicates the practices in the HS model which are
evidence of maturity greater than level 1. Annex F indicates the interrelationship between the processes and
work products in the HS model. Annexes G and H present mappings between the HS model and ISO process
models for HCD and the system life cycle. Annex I is an ISO/IEC 15504 conformance statement for the HS
model.
6 © ISO 2003 — All rights reserved

6.2 Format of the HS model
The HS model presented in this specification uses the format common to process assessment models.
Process assessment models describe the processes that give an organization the best opportunity to achieve
defined technical goals. The processes in this model are described in the format used in ISO/IEC 15504. Each
process is described with a reference number of the form HS.n.m and a unique title. “HS” indicates that the
process is from the HS model, “n” is the view (i.e. super process) reference and “m” is the unique process
number. The purpose of each process is described, along with a note indicating the benefits of enactment of
the process. The list of outcomes indicates the significant, assessable results of the achievement of the
process. A list of the activities (practices) by which the purpose is achieved is also included. These are
uniquely numbered by extension of the process reference and a sequential number commencing with the
identifier “BP”. Process models do not indicate roles associated with the enactment of processes. Enactment
of HS processes is not specifically associated with any roles, specialisms or professions.
Table 1 lists the processes belonging to the human-system process category with a type and a reference. The
reference provides a link to the subclauses of Clause 7 that describe the processes, and to the annexes that
provide further details. These annexes are described in 6.1. Annexes B and F provide details of the links
between the processes in the HS model. Processes are likely to be instantiated and enacted several times in
a life cycle and in several parts of an organization. This is in part a result of the hierarchical reduction of a
system into sub-systems and implementable elements, each of which will be defined, developed and
maintained by the enactment of the relevant processes, and in part the result of iterative development or
continuous improvement of the system. Processes are performed whenever the preconditions for enactment
(i.e. need for the outcomes) occur. The duration and degree of rigour employed in the enactment of a process
depends on context and requirements.
This specification uses the concept of stage enabling systems presented in ISO/IEC 15288 as a basis for
HS.1, the life-cycle involvement process. ISO/IEC 15288 describes each stage in the life cycle of a system of
interest as a process. This specification adopts this concept and describes the HS elements of these
processes.
Table 1 classifies the processes in the model using the process description provided in ISO/IEC 15504. This
defines three types (basic, extended and new) and 2 levels (process and component). For this process
specification, these combine in relation to ISO 13407 as follows:
a) Basic Process — identical in intent to a process in ISO 13407.
b) Extended Process — expansion of a process in ISO 13407.
c) New Process — outside the scope of ISO 13407.
d) Component Process — a group of one or more ISO 13407 activities from the same process.
e) Extended Component Process — one or more of ISO 13407 activities from the same process, with
additional material. This would normally be a component process of an extended process.
f) New Component Process — one or more component processes outside the scope of ISO 13407. These
would normally be component processes of a new or extended process.
Table 1 — Human-system life cycle processes
Reference Number. Overview of process
Process Name Ref. No. Type of process
HS.1 This process anticipates the particular HS issues at specific stages of the life cycle. It makes the system life
cycle efficient by addressing people in the stage enabling systems for the system of interest.
NOTE These processes are in general grouped according to the example stages provided in Annex B of ISO/IEC 15288 q.v.
However, in order to create meaningful groups of HS activities, the utilisation stage is split between the early stages (installation
and transition to use) and the mainstream use of the system (operation and support of the system).
Life cycle involvement HS.1 Extended
Human-system issues in conception HS.1.1 New component
Human-system issues in development HS.1.2 Extended component
Human-system issues in production and utilisation HS.1.3 New component
Human-system issues in utilisation and support HS.1.4 Extended component
Human-system issues in retirement HS.1.5 New component
HS.2 This process ensures that HS issues are addressed by the appropriate stakeholders. It reduces life cycle costs
by ensuring that design for people is used within the organization.
Integrate human factors
HS.2 Extended
Human-system issues in business strategy HS.2.1 New component
Human-system issues in quality management HS.2.2 New component
Human-system issues in authorisation and control HS.2.3 Extended component
Management of human-system issues HS.2.4 Extended component
HF data in trade-off and risk mitigation HS.2.5 New component
User involvement HS.2.6 Extended component
Human-system integration HS.2.7 Extended component
Develop and re-use HF data HS.2.8 New component
HS.3 This process enables user-centred technical activity to be focused appropriately. It contributes to a better
system by designing for people who use the system of interest in its context of use.
Human-centred design HS.3 Basic
Context of use HS.3.1 Component
User requirements HS.3.2 Component
Produce design solutions HS.3.3 Component
Evaluation of use HS.3.4 Component
HS.4 This process provides the means to resolve issues by means of the human part of the system, rather than the
equipment-centred part. It ensures the continued delivery of the correct number of competent people required to use
the most suitable equipment.
NOTE This process has not been reviewed to the same standard as HS.1-3. It is therefore presented in Annex C rather than
in the main text of the standard.
Human resources HS.4 New
Human resources strategy HS.4.1 New component
Define standard competencies and identify gaps HS.4.2 New component
Design staffing solution and delivery plan HS.4.3 New component
Evaluate system solutions and obtain feedback HS.4.4 New component
8 © ISO 2003 — All rights reserved

7 Human-system process category (HS)
7.1 HS.1 Life cycle involvement
The purpose of the Life cycle involvement process is to consider the interests and needs of the individuals
and/or groups that will work with the system.
NOTE The benefits include: the usability of a system is given specific attention; user satisfaction with, and
acceptance of, the system are enhanced; working conditions for users are improved; support and training costs are
reduced; users can be made to feel more empowered and motivated to learn; the through-life costs of the system are
minimised and overall system effectiveness maximised; the system adapts to changing user needs; organizational change,
including the responsibilities of users and developers, is addressed.
As a result of successful implementation of this process, the following outcomes are achieved:
1) projects meet and anticipate the issues and risks arising from human-system interaction;
2) the system has a life cycle, phase planning and resourcing designed to combat HF risks in a cost-
effective manner;
3) the needs of the stakeholders in the system are communicated to the organization;
4) HS processes are applied when required in the life cycle.
This is achieved through performance of the following sub-processes.
7.1.1 HS.1.1 Human-system issues in conception
The purpose of the Human issues in conception process is to establish a focus on user issues in each part of
the organization which deals with the strategy, markets, options and overall planning for a proposed system.
NOTE The benefits include: system whole-life costing including personnel costs and soft costs such as training and
reorganization; the assessment of future system performance takes human and organizational performance into account;
systems are less likely to encounter problems with operational acceptance or when fielded; the human aspects of system
cost and effectiveness are included in the business case for the system.
As a result of successful implementation of this process, the following outcomes are achieved:
1) HS risks and the impact on the stakeholders, existing systems and the working environment are
considered in the development and assessment of the system concept;
2) evolving and future stakeholder, organization, social and legislative requirements are described in
the system strategy;
3) marketing strategy takes account of HS issues to define systems which meet users' and employer's
needs and expectations;
4) the organization takes future acquisition strategy into account when defining organizational change.
This is achieved through performance of the following practices:
 HS.1.1.BP1 Identify expected context of use of systems.
 HS.1.1.BP2 Analyse the system concept.
 HS.1.1.BP3 Describe the objectives which the user or user organization wants to achieve through use of
the system.
 HS.1.1.BP4 Identify and analyse the roles of each group of stakeholders likely to be affected by the
system.
 HS.1.1.BP5 Perform research into required system usability.
 HS.1.1.BP6 Present context and human resources options and constraints to the project stakeholders.
 HS.1.1.BP7 Contribute to the business case for the system.
7.1.2 HS.1.2 Human-system issues in development
The purpose of the Human-system issues in development process is to present and represent the needs of
the user in the specification, design and verification of the system and its elements.
NOTE The benefits include: potential user problems and scope for improvements in; the technology, supporting
material, organizational or physical environment are identified and included in trade-off studies; the design option that best
fits the functional and user and organizational requirements is evolved; the hazards to and from users are identified and
mitigated.
As a result of successful implementation of this process, the following outcomes are achieved:
1) design is based on trials of prototypes by potential users;
2) the principles of human-centred design are applied in the development of the system;
3) HS costs (e.g. personnel and training costs), effectiveness (e.g. human performance) and risks are
known;
4) feedback and further requirements from the users are collected and used.
This is achieved through performance of the following practices:
 HS.1.2.BP1 Generate design options for each aspect of the system related to its use and its effect on
stakeholders.
 HS.1.2.BP2 Produce user-centred solutions for each design option.
 HS.1.2.BP3 Design for customisation.
 HS.1.2.BP4 Develop simulation or trial implementation of key aspects of the system for the purposes of
testing with users.
 HS.1.2.BP5 Collect user input on the usability of the developing system.
 HS.1.2.BP6 Assess the health and well-being risks to the users of the system.
 HS.1.2.BP7 Assess the risks to the community and environment arising from human error in the use of
the system.
7.1.3 HS.1.3 Human-system issues in production and utilization
The purpose of the Human issues in production and utilization process is to facilitate, oversee and ensure that
HS aspects are given sufficient attention throughout the implementation, introduction and validation of a
system.
NOTE The benefits include: the fit between the system, its operational goals and the user requirements is assessed;
the HR issues of re-organization and training are aligned with system introduction; the system is incorporated into the
organization, e.g. with the safety management system, system support organization, quality management system, training,
10 © ISO 2003 — All rights reserved

recruitment and staff development processes; the delivered system conforms to international, national and/or statutory
requirements; the costs, time scales and resources required to put the system into service are fully understood.
As a result of successful implementation of this process, the following outcomes are achieved:
1) the system is adapted to meet the requirements of individual implementations;
2) transition is made to new designs of jobs and new teamworking arrangements;
3) the HS issues of introduction and rollout are addressed;
4) critical HS criteria are part of the acceptance of the delivered system.
This is achieved through performance of the following practices:
 HS.1.3.BP1 Evolve options and constraints into an implementation strategy covering technical,
integration, and planning and manning issues.
 HS.1.3.BP2 Identify, specify and produce the infrastructure for the system.
 HS.1.3.BP3 Maintain contact with users and the client organization throughout the definition,
development and introduction of a system.
 HS.1.3.BP4 Build required competencies into training and awareness programmes.
 HS.1.3.BP5 Test that the system meets the requirements of the users, the tasks and the environment,
as defined in its specification.
 HS.1.3.BP6 Analyse feedback on the system during delivery and inform the organization of emerging
issues.
7.1.4 HS.1.4 Human-system issues in utilization and support
The purpose of the Human issues in utilization and support process is to monitor and advise the user
organization on the user's response to operation, use, support and maintenance of the system.
NOTE The benefits include: the system is more responsive to changes in users (for example, their needs, tasks,
context); the system is more responsive to changes in its stakeholders; system usability is maintained at required levels.
As a result of successful implementation of this process, the following outcomes are achieved:
1) safe operational and health and safety procedures are complied with;
2) the long-term use of the system is monitored in relation to the design intent;
3) the competencies required to utilise and support the system are identified and evolved over time;
4) user and maintainer requirements for support are met by the system.
This is achieved through performance of the following practices:
 HS.1.4.BP1 Produce personnel strategy.
 HS.1.4.BP2 Deliver training and other forms of awareness-raising to users and support staff.
 HS.1.4.BP3 Review the system for adherence to applicable human science knowledge, style guides,
standards, guidelines, regulations and legislation.
 HS.1.4.BP4 Assess the effect of change on the usability of the system.
 HS.1.4.BP5 Review the health and well-being risks to the users of the system.
 HS.1.4.BP6 Review the risks to the community and environment arising from human error in the use of
the system.
 HS.1.4.BP7 Take action on issues arising from in-service assessment.
 HS.1.4.BP8 Perform research to refine and consolidate operation and support strategy for the system.
7.1.5 HS.1.5 Human-system issues in retirement
The purpose of the Human-system issues in retirement process is to take account of user needs in the close
down, removal from service, decommissioning and destruction of a system.
NOTE The benefits include: the HS risks, and health and safety issues associated with removal from service and
destruction of the system are addressed; there is support for users during and after decommissioning.
As a result of successful implementation of this process, the following outcomes are achieved:
1) user reactions and in-service data are used to define future versions of the system;
2) the re-allocation, departure from employment and/or transfer of users is defined and actioned;
3) user requirements for the replacement(s) of the system are identified;
4) the safety and health and safety hazards to workers, users and the general public are monitored.
This is achieved through performance of the following practices:
 HS.1.5.BP1 Collect and analyse in-service reports to generate updates or lessons learnt for the next
version of the system.
 HS.1.5.BP2 Identify risks and health and safety issues associated with removal from service and
destruction of the system.
 HS.1.5.BP3 Define how users will be re-allocated, dismissed, or transferred to other duties.
 HS.1.5.BP4 Plan break-up of social structures.
 HS.1.5.BP5 Debriefing and retrospective analysis for replacement system.
7.2 HS.2 Integrate human factors
The purpose of the Integrate human factors process is the satisfactory deployment of human-system
processes for a system.
NOTE The benefits include: human-centred design is applied in the system life cycle; the system is responsive to the
growing understanding of user needs; HF skills, methods and techniques are applied to support user-centred design and
operation of the system.
As a result of successful implementation of this process, the following outcomes are achieved:
1) HS issues are addressed by the organization;
2) HS life cycle processes are enacted.
This is achieved through performance of the following sub-p
...
