ISO 12949:2011

INTERNATIONAL ISO
STANDARD 12949
First edition
2011-11-01
Standard test method for measuring
the heat release rate of low flammability
mattresses and mattress sets
Méthode d’essai normalisée pour mesurer le débit calorifique de
matelas et d’éléments de matelas à inflammabilité réduite
Reference number
ISO 12949:2011(E)
©
ISO 2011

---------------------- Page: 1 ----------------------
ISO 12949:2011(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2011
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO’s
member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2011 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 12949:2011(E)
Contents Page
Foreword . v
Introduction .vi
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Summary of test method . 2
5 Significance and use . 2
6 Apparatus and equipment . 2
6.1 Test area . 2
6.2 Test frame . 5
6.3 Ignition source . 6
6.4 Fuel supply and control .10
6.5 Ignition burner gas flow . 11
7 Test specimens .12
8 Test preparation .12
8.1 Specimen conditioning .12
8.2 Instrument calibration .13
8.3 Specimen orientation .13
8.4 Burner set-up .13
8.5 Burner alignment procedure .14
8.6 Video recording .17
9 Test procedure .18
9.1 Safety precautions .18
9.2 Burner preparation .18
9.3 Initiation of recording systems .18
9.4 Test initiation .18
9.5 Test conduct .19
10 Test report .19
Annex A (informative) Reducing fire hazards associated with mattress flammability .21
Bibliography .23
© ISO 2011 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 12949:2011(E)

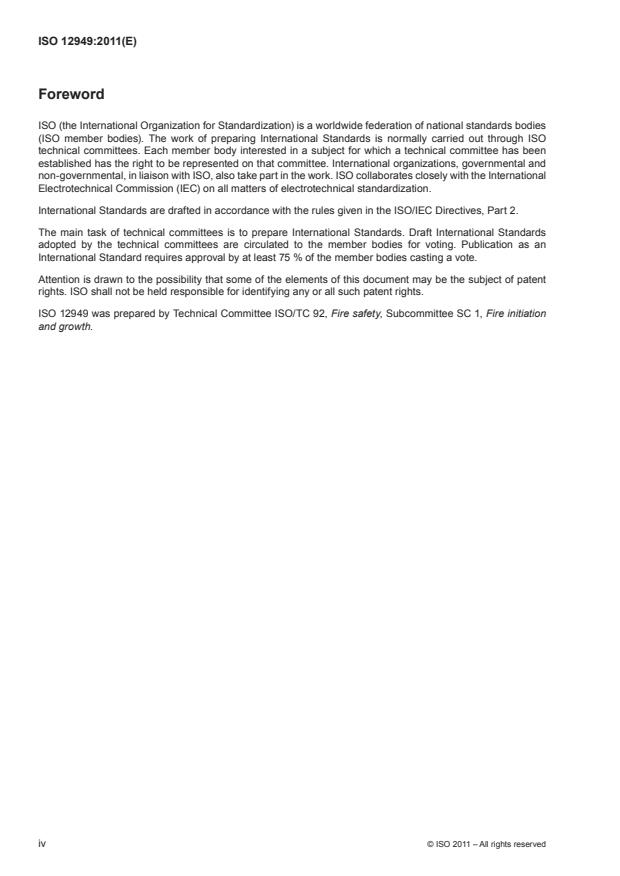

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the International
Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 12949 was prepared by Technical Committee ISO/TC 92, Fire safety, Subcommittee SC 1, Fire initiation
and growth.
iv © ISO 2011 – All rights reserved

---------------------- Page: 4 ----------------------
ISO 12949:2011(E)
Introduction
A typical bed consists of several components, including a mattress, a foundation, and a collection of bedclothes
(e.g. mattress pad, sheets, pillows, blankets, quilts and/or comforters). Mattress and bedding fires are a major
[1]
contributor to residential fire deaths . A significant portion of these deaths and injuries results from fires in
which the bedclothes are the first items ignited, and those flames ignite the mattress or foundation. In the
United States, approximately two-thirds of all deaths from flaming bed fires occur after the room has reached
[2]
the point of flashover . This accounts for nearly all the fatalities that occur outside the room of fire origin and
about half of the fatalities that occur within the room of origin.
A burning mattress is generally the primary energy contributor to a fatal bedroom fire. Once the mattress
is ignited, the fire develops rapidly. Room flashover occurs at heat release rates near or above 1 000 kW
[3]
(1 MW) for small-to-medium size bedrooms . 1 m wide mattresses, without bedclothes, have been shown to
[3]
reach peak heat release rates of 2 MW and flash over a room in less than 300 s . In addition, a typical set
of bedclothes on a 1 m wide bed can lead to a fire whose peak rate of heat release is approximately 100 kW
[4] [5]
to 200 kW , with values up to 400 kW possible for the heaviest sets . A bed clothes fire can become
[6]
appreciably more threatening on larger beds .
It follows that a significant reduction in bed fire fatalities can be achieved by reducing the combined peak heat
release rate of a bed, the bedclothes, and other furnishings ignited by the bedclothes to a level well below
1 MW. Current regulation in the United States limits the peak rate of heat release of a mattress and foundation
[7], [8]
to 200 kW and the total heat release to 15 MJ during the first 10 min of the test . Combined with the
typical heat release rate of the bedclothes, which generally occurs well before the peak heat release from
the mattress, the overall heat release rate from the burning bed is substantially below the value that leads to
room flashover. Furthermore, as the intensity of the bed fire is decreased this much, there is an accompanying
reduction in the spatial extent of the radiant heat from flames. This reduces the likelihood that other bedroom
furnishings will be ignited by the bed fire and greatly increases the time available for occupants to recognize
and escape the fire.
This International Standard addresses a fire hazard scenario different from one in which a cigarette ignites the
bed and threatens people who might be asleep on the bed with their heads near the location of the dropped
cigarette. The resulting deaths most often result from inhalation of the toxic fumes from the smouldering fire
and are distinct from the deaths that are to be averted by limiting the flaming intensity of the bed fire. In several
[9]
countries, mattresses are tested for cigarette ignition resistance , which reduces the likelihood of smouldering
fires, but infrequently addresses the fire hazard addressed by this International Standard.
© ISO 2011 – All rights reserved v

---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 12949:2011(E)
Standard test method for measuring the heat release rate of low
flammability mattresses and mattress sets
WARNING — So that suitable precautions can be taken to safeguard health, the attention of all
concerned with fire tests is drawn to the possibility that toxic or harmful gases are evolved during
combustion of test specimens.
The test procedures involve high temperatures. Hazards can therefore exist for burns and ignition of
extraneous objects or clothing. The operators should use protective clothing, helmets, face-shields,
and breathing equipment for avoiding exposure to toxic gases.
Laboratory safety procedures should be set up to ensure the safe termination of tests. It is imperative
that adequate means of extinguishing such a fire are provided.
1 Scope
This International Standard provides a full-scale test method for determining the heat release rate and total
heat release from a mattress or a mattress and foundation. The test specimen is ignited by exposure to a pair
[5]
of gas burners that simulate burning bedclothes . The measurement capability is designed for mattress sets
of low flammability, i.e. having a peak rate of heat release below 300 kW.
This International Standard applies to mattresses and mattress and foundation sets. This International Standard
does not apply to mattress pads, pillows, blankets, or other items used on top of a mattress.
This International Standard is a performance standard and does not prescribe the use of any specific
components, fire retardant chemicals, or materials, and does not prescribe any design features that might lead
to improved or degraded performance of a mattress set.
Annex A describes an analysis that indicates the potential reduction in life loss achievable by limiting the
magnitude of the bed fire.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced document
(including any amendments) applies.
ISO 9705, Fire tests — Full-scale room test for surface products
ISO 13943, Fire safety — Vocabulary
ISO 24473, Fire tests — Open calorimetry — Measurement of the rate of production of heat and combustion
products for fires of up to 40 MW
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 13943 and the following apply.
3.1
foundation
ticking-covered structure used to support a mattress or other sleep surface
© ISO 2011 – All rights reserved 1

---------------------- Page: 6 ----------------------
ISO 12949:2011(E)
3.2
mattress
resilient material, used alone or in combination with other materials, enclosed in a ticking, and intended or
promoted for sleeping upon
3.3
mattress set
mattress and foundation labelled for sale as a single unit or a mattress labelled for sale without any foundation
3.4
tape edge
edge made by using binding tape to encase and finish raw edges of a mattress or foundation
3.5
ticking
outermost layer of fabric or related material of a mattress or foundation
NOTE This does not include any layers of fabric or related materials that are quilted together with the outermost layer
of fabric or related material.
4 Summary of test method
This test method measures the flammability performance of a mattress or mattress set by exposing the
specimen to a specified flaming ignition source and allowing it to burn freely in a controlled test area. The test
area shall be one of two configurations, either an open calorimeter, as in ISO 24473, or a test room meeting
specified dimensions and connected to a collection hood. The flaming ignition source is specified as a pair of
propane burners, simulating burning bedclothes, that impose differing heat fluxes for differing times on the top
and side of the test specimen. Measurements of the time-dependent heat release rate from the test specimen
are made during and after exposure to the specified burners in order to quantify the enthalpy generated by the
fire. The rate of heat release is measured by oxygen consumption calorimetry derived from measurements in
the exhaust duct. The test continues for 30 min or until there is a significant threat to the safety of test personnel
and/or the test equipment and test facility.
5 Significance and use
This International Standard defines an apparatus and a process for measuring the rate of heat release and
the total heat generated by a bed whose peak heat release rate is near or under 300 kW. This value, even
combined with the heat release rate from bedclothes for a 1 m wide bed, is significantly lower than the heat
release rate that results in flashover of a typical bedroom.
6 Apparatus and equipment
6.1 Test area
The test shall be conducted in an open calorimeter or in a test room.
6.1.1 Environmental conditions
The test area shall be maintained at a temperature greater than 10 °C and less than 30 °C and a relative
humidity less than 75 %.
6.1.2 Open calorimeter
6.1.2.1 In this configuration (Figure 1), the specimen to be tested is placed under the centre of an open
calorimeter whose characteristics are described in ISO 24473. The calorimeter shall be capable of measuring a
heat release rate of 300 kW or lower, with a total uncertainty of no more than 20 kW.
2 © ISO 2011 – All rights reserved

---------------------- Page: 7 ----------------------
ISO 12949:2011(E)
Key
A calorimeter hood
B optional hood skirt
C mattress
D foundation
E bed frame
F catch surface
G elevated support (optional)
Figure 1 — Test assembly, shown under an open calorimeter
6.1.2.2 The area surrounding the test specimen shall be sufficiently large that there are no heat re-radiation
effects from any nearby materials or objects.
6.1.2.3 The calorimeter hood shall capture the entire smoke plume and is instrumented for the measurement
of the heat release rate using oxygen consumption calorimetry. The air supply to the hood shall be sufficient that
the fire is not in any way limited or affected by the available air supply.
6.1.2.3.1 As needed, skirts shall be placed on the hood periphery to help assure capture of the entire smoke
plume. Such skirts shall not be of such an excessive length as to cause the incoming flow to disturb the burning
process. The skirts shall not heat to the point that they contribute significant re-radiation to the test specimen.
6.1.2.3.2 The fire plume shall not enter the hood exhaust duct.
NOTE Flickers of flame that last for a few seconds and occupy only a minor fraction of the hood exhaust duct inlet
cross-section are acceptable because they do not signify appreciable suppression of flames.
6.1.2.4 The air flow to the test specimen shall be symmetrical from all sides. A small flame placed in the centre
of the test specimen area shall not bend consistently in one direction.
6.1.2.5 The test specimen shall be placed on a test frame, which is to be centred under the hood.
© ISO 2011 – All rights reserved 3

---------------------- Page: 8 ----------------------
ISO 12949:2011(E)
6.1.3 Test room
6.1.3.1 The test room (Figure 2) shall have dimensions of at least 3 m wide × 3 m deep × 2,4 m high.
NOTE 1 This is larger than the ISO 9705 test room.
NOTE 2 The larger room and the angled position of the bed in the room are necessary to minimize radiative feedback
from the room walls to the bed, especially if there is burning along the side panels. Radiative feedback can increase the
burning rate of the test specimen in a non-repeatable manner and can also lead to results different from those obtained in
an open calorimeter.
NOTE 3 A room of these dimensions is sufficiently large to accommodate a mattress that is up to 1 000 mm wide and
up to 2 000 mm long, along with the space needed for the movement of the burner assembly. To test larger mattresses, the
minimum room dimensions are increased by the increases in the length and width of the larger test mattress over those of
the twin mattress.
6.1.3.2 The room shall have no large openings permitting air infiltration other than a doorway opening
(970 ± 5) mm wide and (2 030 ± 5) mm high, which shall be located as shown in Figure 2. There may be small
openings necessary to make the prescribed measurements. There shall be no obstructions to the set-up in the
air supply.
Key
A mattress and foundation on bed frame
B burner footprint
C catch surface
NOTE All dimensions are ±5 mm.
Figure 2 — Apparatus and specimen arrangement in test room
6.1.3.3 For video or photographic recording of the tests, there shall be at least one window to allow full view
of the specimen, sealed with heat resistant glass, in one of the room walls. The window(s) shall be appropriately
placed to obtain the required full-length view of the specimen (see 8.6).
4 © ISO 2011 – All rights reserved

---------------------- Page: 9 ----------------------
ISO 12949:2011(E)
6.1.3.4 An exhaust hood shall be positioned outside of and directly above the doorway so as to collect all of
the combustion gases. The hood exhaust system shall be instrumented for oxygen consumption calorimetry
measurements, as described in ISO 9705.
6.1.3.5 The test room shall be constructed of wood or metal studs and shall be lined with non-combustible
material at least 12,7 mm thick.
NOTE Gypsum wallboard and calcium silicate board have been found to be suitable liner materials.
6.1.3.6 The test specimen shall be placed on a test frame in the test room as shown in Figure 2. One corner
of the test specimen shall be 130 mm to 170 mm from the wall, and the other corner shall be 250 mm to 300 mm
from the wall. The test room shall contain no furnishings or combustible materials except for the test specimen.
NOTE The angled placement is intended to minimize the interaction of flames on the side surfaces of the test
specimen with the room walls.
6.1.4 Test area air flow
The horizontal air flow at a distance of 0,5 m on all sides of the test specimen at the mattress top height shall
be no more than 0,5 m/s. If there is any visual evidence that the burner flames are disturbed by drafts during
their exposure durations, the burner regions shall be enclosed on two or more sides by at least a triple layer
of screen wire. The screens shall be at least 250 mm high. The screen(s) for the top burner shall sit on the
mattress top and shall be wide enough to extend beyond the area of the burner impingement. All screens shall
be far enough away (typically 300 mm or more) from the burner tubes so as not to interfere or interact with
flame spread during the burner exposure. The screen for the side burner will require a separate support from
below. All screens shall be removed at the end of the 70 s exposure interval.
NOTE The objective is to keep the burner flames impinging on a fixed area of the specimen surface rather than
wandering back and forth over a larger area.
6.1.5 Heat release rate calibration
The oxygen consumption calorimetry system shall be calibrated at a minimum of two calibration points, 75 kW
and 200 kW, using the procedures in ISO 24473 for open calorimetry or ISO 9705 if a test room is utilized.
6.2 Test frame
6.2.1 The test specimen shall be supported around its perimeter by a test frame with a flat surface and
no edges extending up from the surface. The frame shall be made from a welded, nominally 40 mm steel
angle. The top surface of the frame shall be flat, with no edges extending up from the surface, i.e. the angle is
configured downward. The outer dimensions of the test frame shall be within 5 mm of the outer dimensions of
the test specimen. The frame shall be completely open under the test specimen except for two crosspieces,
each 25 mm wide, and located at the one-third length points. If the sagging of the specimen between the
crosspieces exceeds 19 mm below the frame, a minimal number of additional crosspieces shall then be added
to prevent such sagging of the specimen.
6.2.2 The test frame shall be 115 mm high, except if adjustments are necessary to accommodate the required
side burner position. The height of the frame shall also be adjusted, as necessary, so that the burner is no less
than 25 mm above the supporting surface of the frame.
6.2.3 The test frame feet shall rest on a surface of either calcium silicate board or fibre cement board, 13 mm
thick, and 200 mm wider and longer than the outer dimensions of the test specimen. The top surface of this board
shall be cleaned between tests to avoid build-up of combustible residues. Lining this surface with aluminium foil
to facilitate cleaning is not recommended because this might increase fire intensity via reflected radiation.
NOTE The board serves as a catch surface for any flaming melt/drip material falling from the bed assembly and can
thus be the location of a pool fire that consumes such materials.
© ISO 2011 – All rights reserved 5

---------------------- Page: 10 ----------------------
ISO 12949:2011(E)
6.3 Ignition source
6.3.1 General
The ignition source shall consist of two T-shaped burners, shown in Figures 3 and 4. One burner impinges
flames on the top surface of the mattress; the second burner impinges flames on the side of the mattress and
on the side of the foundation. Each of the burners shall be constructed from stainless steel tubing (12,7 mm
diameter with 0,89 mm ± 0,05 mm wall thickness). Each burner shall incorporate a standoff foot to set its
distance from the test specimen surface (Figure 5). Both burners shall be mounted with a mechanical pivot
point. The side burner is locked in place to prevent movement about this pivot in normal usage. The top burner
is free to rotate about its pivot during a burner exposure and is lightly weighted so as to exert a downward
force on the mattress top through its stand-off foot so that the burner follows a receding top surface on the test
specimen. The combination of burner stand-off distance and propane gas flow to the burners determines the
heat flux they impose on the surface of the test specimen. The top burner is set to generate a nominally 18 kW
flame for 70 s; the side burner is set to generate a nominally 9 kW flame for 50 s.
Key
A 17 holes spaced over 135 mm length, pointing 5° out of the plane of the diagram
B stainless steel tubing
C gas-tight weld at 90° angle
D top and bottom end caps with gas-tight welded seal
Figure 3 — Details of horizontal burner head
6 © ISO 2011 – All rights reserved

---------------------- Page: 11 ----------------------
ISO 12949:2011(E)
Key
A 14 holes spaced over 110 mm length, pointing 5° out of the plane of the diagram
B stainless steel tubing
C gas-tight weld at 90° angle
D top and bottom end caps with gas-tight welded seal
Figure 4 — Details of vertical burner head
a) Front view   b) End view
Key
A collar holding stand-off
B stand-off foot
C burner holes pointing 5° out of the plane of the burner, away from the stand-off
NOTE All dimensions are ±0,5 mm.
Figure 5 — Details of burner stand-off
© ISO 2011 – All rights reserved 7

---------------------- Page: 12 ----------------------
ISO 12949:2011(E)
6.3.2 Top surface burner
The T head of the top surface burner (horizontal burner, Figure 3) shall be (305 ± 2) mm long, with gas-
tight plugs in each end. Each end of the T shall contain 17 holes equally spaced over a 135 mm length, i.e.
(8,5 ± 0,1) mm apart. The holes on each side shall begin 8,5 mm from the centreline of the burner head. The
holes shall be 1,45 mm to 1,53 mm in diameter. The holes shall point 5° out of the plane of the diagram as
shown in Figure 3.
NOTE 1 The diameter of the holes corresponds to Grade 10 machining practice with a well formed No. 53 drill bit.
NOTE 2 Pointing the holes out of the plane broadens the width of the heat flux profile imposed on the surface of the
test specimen.
6.3.3 Side surface burner
The T head of the side surface burner (vertical burner) shall be constructed similarly to the top surface burner,
as shown in Figure 4, except that its overall length shall be (254 ± 2) mm. Each end of the burner head shall
contain 14 holes spaced evenly over a 110 mm length, i.e. (8,5 ± 0,1) mm apart. The holes shall be 1,45 mm to
1,53 mm in diameter. The holes shall point 5° out of the plane of the diagram as shown in Figure 4.
6.3.4 Pilot lights
Each burner head shall have a pilot light consisting of a 3 mm outside diameter copper tube with an independently
controlled supply of propane gas. The tube terminates within 10 mm of the centre of the burner head. Care
should be taken to set the pilot flame size small enough so as not to heat the test specimen before the timed
burner exposure is begun.
6.3.5 Burner arms
Each burner shall be connected to a metal arm made of stainless steel tubing of 12,7 mm outside diameter.
The top burner arm is to be approximately 1,8 m long; the side burner arm is to be approximately 1,3 m long.
6.3.6 Burner frame
The arms of the two burners shall be supported on a burner frame (Figure 6). The burner frame shall rest on
three feet, with the two forward points on wheels. Each arm shall be connected to the frame with a pivot to
enable adjustment of the burner height and burner arm length from the pivot point. On the top burner arm is a
counterweight to adjust the downward force on the stand-off foot (see 6.3.7). The location of the counterweight
can be adjusted using a knob or thumbscrew.
8 © ISO 2011 – All rights reserved

---------------------- Page: 13 ----------------------
ISO 12949:2011(E)
Key
A pilot light
B top burner
C stand-off foot
D side burner
E thumb screws
F pivot point screw
G sliding weight
H pivot point pin
I set screw
J sliding weight
Figure 6 — Burner assembly, showing arms and pivots in relation to portable frame,
allowing burner height adjustment
6.3.7 Burner stand-off
The burner stand-off on each burner shall consist of a collar fixed by a set screw onto the inlet tube of the
burner head (Figure 5). The collar shall hold a 3 mm diameter stainless steel rod having a 12,7 mm by 51 mm
by (2 mm to 2,5 mm) thick stainless steel pad welded on its end with its face (and long axis) parallel to the T
head of the burner. The foot pad shall be displaced about 10 mm to 12 mm from the longitudinal centreline of
the burner head so that it does not rest on the test specimen in an area of peak heat flux. A short section of
copper tubing shall be placed in each inlet gas line just before each burner so that it can be bent to make the
burners nominally parallel to the test specimen surfaces (see 8.5). These sections of copper tubing shall be
9,5 mm outer diameter and about 80 mm long. The copper tube on the top surface burner shall be protected
from excessive heat and surface oxidation by wrapping it with a suitable layer of high temperature insulation to
protect the equipment. Both copper tubes are to be bent by hand in the burner alignment process. They shall
be replaced if they bec
...
