ISO 18319:2015
(Main)Fibre-reinforced polymer (FRP) reinforcement for concrete structures - Specifications of FRP sheets
Fibre-reinforced polymer (FRP) reinforcement for concrete structures - Specifications of FRP sheets
ISO 18319:2015 specifies requirements for fibre-reinforced polymer (FRP) sheets for upgrading of concrete members. The methodologies to express the mechanical properties as characteristic values, appearance and dimensions, and sampling test are specified in this International Standard. The properties for design are calculated from the characteristic values, as prescribed in an appropriate design code which is in accordance with ISO 14484. The fibre orientation of the FRP sheets covered by this International Standard is unidirectional.
Polymère renforcé par des fibres (PRF) pour l'armature du béton — Spécifications des feuilles en PRF
General Information
- Status
- Published
- Publication Date
- 15-Apr-2015
- Current Stage
- 9092 - International Standard to be revised
- Start Date
- 03-Dec-2021
- Completion Date
- 13-Dec-2025
Relations
- Effective Date
- 06-Jun-2022
Overview
ISO 18319:2015 specifies requirements for fibre-reinforced polymer (FRP) sheets used to upgrade concrete members. The standard focuses on unidirectional FRP sheets and defines how to express mechanical properties as characteristic values, sets criteria for appearance and dimensions, and prescribes sampling and test procedures. Properties for design are derived from the characteristic values and are to be applied within an appropriate design code in accordance with ISO 14484.
Key Topics
Mechanical properties: Characteristic values required are tensile strength, Young’s modulus and ultimate strain. The characteristic tensile strength is obtained by subtracting three times the standard deviation from the mean strength. The characteristic Young’s modulus is the mean value. The characteristic ultimate strain is calculated from the characteristic tensile strength divided by the characteristic Young’s modulus.
Appearance and dimensions: Dry sheets must have a smooth surface without folds or notable waves and no significant breakage of fibre bundles. Length and width are to be agreed between parties; width must be measured with a precision of 1 mm.
Nominal thickness and mass: Nominal thickness is calculated from the fibre mass per unit area of the dry sheet and the dry sheet density (see Clause 6.2.2 and Annex A). Annex A describes the procedure to determine fibre mass per unit area using square specimens and a precision balance.
Sampling and testing: Initial testing requires at least 20 test pieces; periodic inspection requires at least five. Tensile tests are to be carried out in accordance with ISO 10406-2. Appearance inspections should use daylight or daylight-type lighting (around 6 500 K). Measurements are normally at room temperature; in disputes, standard conditions per ISO 291 apply (27 °C ± 2 °C, 65 % ± 5 % RH for warm climates).
Applications
ISO 18319:2015 is intended for manufacturers, specifiers, testing laboratories and designers involved in retrofitting and upgrading concrete structures with FRP sheets. Practical uses include:
- Establishing reliable design input values for structural strengthening projects.
- Defining quality control and acceptance criteria during production and on-site inspection.
- Supporting procurement specifications and supplier verification for FRP reinforcement.
Using the standard helps ensure consistent material properties and repeatable test methods across projects, improving safety and predictability of FRP-based repairs and upgrades.
Related Standards
- ISO 10406-2 - FRP reinforcement test methods (FRP sheets)
- ISO 14484 - Performance guidelines for design using FRP materials
- ISO 291 - Standard atmospheres for conditioning and testing
- ISO 5725 - Accuracy (trueness and precision) of measurement methods
- ISO 10548 - Determination of size (referenced for sizing agent content)
For implementation, combine ISO 18319 characteristic-value procedures with the appropriate design code and laboratory methods described in the referenced standards to achieve robust, code-compliant FRP reinforcement solutions.
Frequently Asked Questions
ISO 18319:2015 is a standard published by the International Organization for Standardization (ISO). Its full title is "Fibre-reinforced polymer (FRP) reinforcement for concrete structures - Specifications of FRP sheets". This standard covers: ISO 18319:2015 specifies requirements for fibre-reinforced polymer (FRP) sheets for upgrading of concrete members. The methodologies to express the mechanical properties as characteristic values, appearance and dimensions, and sampling test are specified in this International Standard. The properties for design are calculated from the characteristic values, as prescribed in an appropriate design code which is in accordance with ISO 14484. The fibre orientation of the FRP sheets covered by this International Standard is unidirectional.
ISO 18319:2015 specifies requirements for fibre-reinforced polymer (FRP) sheets for upgrading of concrete members. The methodologies to express the mechanical properties as characteristic values, appearance and dimensions, and sampling test are specified in this International Standard. The properties for design are calculated from the characteristic values, as prescribed in an appropriate design code which is in accordance with ISO 14484. The fibre orientation of the FRP sheets covered by this International Standard is unidirectional.
ISO 18319:2015 is classified under the following ICS (International Classification for Standards) categories: 91.080.40 - Concrete structures. The ICS classification helps identify the subject area and facilitates finding related standards.
ISO 18319:2015 has the following relationships with other standards: It is inter standard links to ISO 18319-1. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ISO 18319:2015 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
INTERNATIONAL ISO
STANDARD 18319
First edition
2015-04-15
Fibre-reinforced polymer (FRP)
reinforcement for concrete
structures — Specifications of FRP
sheets
Polymère renforcé par des fibres (PRF) pour l’armature du béton —
Spécifications des feuilles en PRF
Reference number
©
ISO 2015

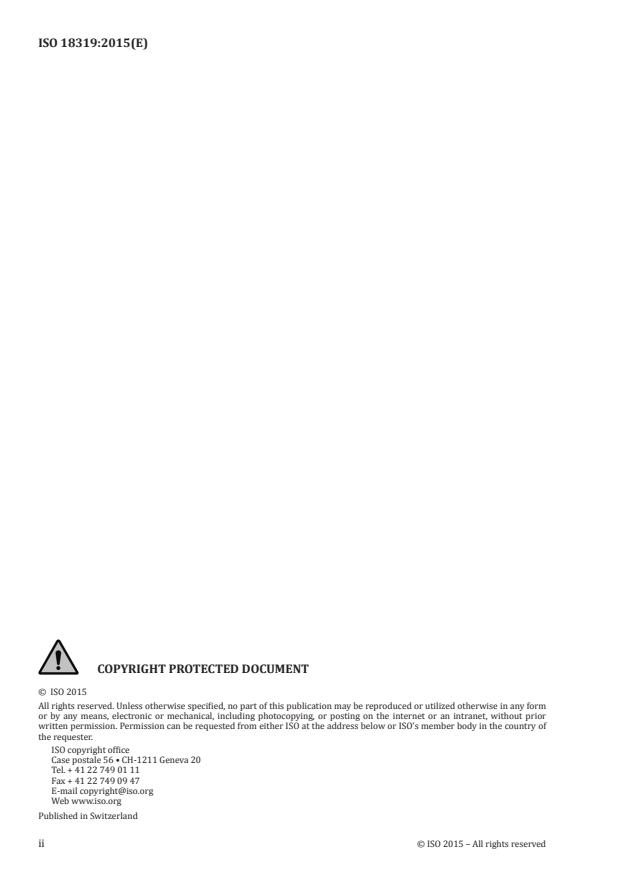

© ISO 2015
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2015 – All rights reserved
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols . 1
5 Mechanical properties . 2
5.1 General . 2
5.2 Characteristic value of tensile strength . 2
5.3 Characteristic value of Young’s modulus . 2
5.4 Characteristic value of ultimate strain . 2
6 Appearance and dimensions . 2
6.1 Appearance . 2
6.2 Dimensions . 2
6.2.1 Length and width . 2
6.2.2 Nominal thickness . 3
7 Sampling test . 3
7.1 Sampling . 3
7.2 Appearance . 3
7.3 Dimensions . 3
7.3.1 Conditions of measurement . 3
7.3.2 Width . 3
7.4 Tensile test . 3
Annex A (normative) Determination of fibre mass per unit area of dry sheet .4
Bibliography . 6
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of any
patent rights identified during the development of the document will be in the Introduction and/or on
the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical Barriers
to Trade (TBT), see the following URL: Foreword — Supplementary information.
The committee responsible for this document is ISO/TC 71, Concrete, reinforced concrete and pre-stressed
concrete, Subcommittee SC 6, Non-tradition
...
