ISO 9012:2023
(Main)Gas welding equipment — Air-aspirated hand blowpipes — Specifications and tests
Gas welding equipment — Air-aspirated hand blowpipes — Specifications and tests
This document specifies requirements and test methods for air-aspirated hand blowpipes. This document applies to blowpipes for brazing, soldering, heating, fusion and other allied thermal processes which use a fuel gas and aspirated air (injector-type blowpipes) and are intended for manual use. This document is applicable to: — air-aspirated hand blowpipes which are fed with a fuel gas in the gaseous phase, at a controlled pressure by a regulator, through a gas supply hose; — air-aspirated hand blowpipes which are fed with a liquefied fuel gas in the gaseous phase at the container pressure, through a gas supply hose; — so-called liquid-phase blowpipes which are fed with a fuel gas in the liquid phase, and where thermal evaporation takes place within the blowpipe. It does not apply to blowpipes in which the fuel gas leaves the injector in the liquid phase, or to so-called “cartridge” blowpipes where the gas supply is fixed directly onto the blowpipe and possibly constitutes the shank. NOTE Figures 1 to 4 are given for guidance only, to facilitate the explanation of the terms. They do not specify the construction details, which are left to the discretion of the manufacturer.
Équipement de soudage aux gaz — Chalumeaux manuels aéro-gaz à air aspiré — Spécifications et essais
Le présent document spécifie les exigences et les méthodes d'essai des chalumeaux manuels aéro-gaz à air aspiré. Le présent document s'applique aux chalumeaux destinés au brasage fort, au brasage tendre, au chauffage, à la fusion et aux autres procédés thermiques similaires, utilisant un gaz combustible et de l'air aspiré (chalumeau à air induit), conçus pour une utilisation manuelle. Le présent document s'applique également: — aux chalumeaux manuels aéro-gaz à air aspiré, alimentés par un gaz combustible en phase gazeuse, sous une pression régulée par un détendeur, à travers un tuyau d'amenée de gaz; — aux chalumeaux manuels aéro-gaz à air aspiré, alimentés par un gaz combustible liquéfié en phase gazeuse sous la pression du réservoir, à travers un tuyau d'amenée de gaz; — aux chalumeaux dits à phase liquide, alimentés par un gaz combustible en phase liquide et dans lesquels se produit une évaporation thermique. Il ne s'applique pas aux chalumeaux dans lesquels le gaz combustible sort de l'injecteur en phase liquide, ni aux chalumeaux dits «à cartouche» comportant une réserve de gaz directement fixée sur le chalumeau et pouvant éventuellement servir de manche. NOTE Les Figures 1 à 4 sont données uniquement à titre indicatif pour faciliter l'explication des termes. Elles ne spécifient pas les détails de construction qui sont laissés à la discrétion du fabricant.
General Information
- Status
- Published
- Publication Date
- 16-Oct-2023
- Technical Committee
- ISO/TC 44/SC 8 - Equipment for gas welding, cutting and allied processes
- Drafting Committee
- ISO/TC 44/SC 8 - Equipment for gas welding, cutting and allied processes
- Current Stage
- 6060 - International Standard published
- Start Date
- 17-Oct-2023
- Due Date
- 15-Oct-2024
- Completion Date
- 17-Oct-2023
Relations
- Effective Date
- 12-Feb-2026
- Revises
ISO 9012:2008 - Gas welding equipment — Air-aspirated hand blowpipes — Specifications and tests - Effective Date
- 23-Apr-2020
Overview
ISO 9012:2023 - Gas welding equipment - Air-aspirated hand blowpipes - Specifications and tests sets international requirements and test methods for air‑aspirated hand blowpipes (injector‑type blowpipes) used in brazing, soldering, heating, fusion and allied thermal processes. The standard covers blowpipes fed with fuel gas in the gaseous phase (regulated or at container pressure) and liquid‑phase blowpipes where evaporation occurs inside the blowpipe. It excludes devices that discharge fuel in the liquid phase or cartridge blowpipes with an integrated gas supply.
Key topics and technical requirements
ISO 9012:2023 organizes technical content into specification and verification areas, including:
- Types of aspiration - classification by mixing-zone location: attachment, nozzle or shank.
- Materials and construction - requirements for components used in gas welding equipment (see Clause 6).
- Valves and controls - valve types, automatic flame‑reducing controls, pressure‑control/reducing devices, ignition systems and on/off control.
- Hose connections and shank design - fitting, mounting and safe use of gas supply hoses.
- Gas tightness and gas‑flow rates - criteria and measurement methods to ensure safe and consistent fuel delivery.
- Safety against sustained backfiring and flame blow‑off - design and test requirements to prevent internal flame propagation and flame detachment.
- Operational performance - flame adjustment, stability in air currents, ignition reliability and prevention of inadvertent operation.
- Tests (Clause 7) - general checks, operational and overheating tests, gas‑tightness tests, valve endurance (life‑cycle testing), flow‑rate verification and safety tests. Notably, valve endurance testing is specified at 1 500 cycles in this edition.
- Marking and instructions - marking of shank/attachments, code letters for gases and user instructions (Clauses 8–10).
Note: Figures in the standard are for guidance and do not prescribe construction details.
Applications and users
ISO 9012:2023 is essential for:
- Manufacturers of gas welding equipment and hand blowpipes who need to design, certify and market compliant products.
- Test laboratories and quality assurance teams performing conformity, safety and performance testing.
- Procurement, safety and maintenance personnel in manufacturing, HVAC, metal fabrication, plumbing and jewelry industries that use brazing/soldering torches.
- Certification bodies and regulators assessing equipment for workplace safety and compliance.
Related standards
Relevant referenced documents include:
- ISO 554 (standard atmospheres for testing)
- ISO 9090 (gas tightness)
- ISO 9539 (materials for gas welding equipment)
- ISO 10225 (marking for gas welding equipment)
- ISO/TR 28821 (guidance replacing withdrawn ISO 3253)
Adopting ISO 9012:2023 helps ensure safer, reliable air‑aspirated blowpipes and supports compliance with international best practices for gas welding equipment.
ISO 9012:2023 - Gas welding equipment — Air-aspirated hand blowpipes — Specifications and tests Released:17. 10. 2023
ISO 9012:2023 - Équipement de soudage aux gaz — Chalumeaux manuels aéro-gaz à air aspiré — Spécifications et essais Released:10/26/2023
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
CARES (UK Certification Authority for Reinforcing Steels)
UK certification for reinforcing steels and construction.
DVS-ZERT GmbH
German welding certification society.
Sponsored listings
Frequently Asked Questions
ISO 9012:2023 is a standard published by the International Organization for Standardization (ISO). Its full title is "Gas welding equipment — Air-aspirated hand blowpipes — Specifications and tests". This standard covers: This document specifies requirements and test methods for air-aspirated hand blowpipes. This document applies to blowpipes for brazing, soldering, heating, fusion and other allied thermal processes which use a fuel gas and aspirated air (injector-type blowpipes) and are intended for manual use. This document is applicable to: — air-aspirated hand blowpipes which are fed with a fuel gas in the gaseous phase, at a controlled pressure by a regulator, through a gas supply hose; — air-aspirated hand blowpipes which are fed with a liquefied fuel gas in the gaseous phase at the container pressure, through a gas supply hose; — so-called liquid-phase blowpipes which are fed with a fuel gas in the liquid phase, and where thermal evaporation takes place within the blowpipe. It does not apply to blowpipes in which the fuel gas leaves the injector in the liquid phase, or to so-called “cartridge” blowpipes where the gas supply is fixed directly onto the blowpipe and possibly constitutes the shank. NOTE Figures 1 to 4 are given for guidance only, to facilitate the explanation of the terms. They do not specify the construction details, which are left to the discretion of the manufacturer.
This document specifies requirements and test methods for air-aspirated hand blowpipes. This document applies to blowpipes for brazing, soldering, heating, fusion and other allied thermal processes which use a fuel gas and aspirated air (injector-type blowpipes) and are intended for manual use. This document is applicable to: — air-aspirated hand blowpipes which are fed with a fuel gas in the gaseous phase, at a controlled pressure by a regulator, through a gas supply hose; — air-aspirated hand blowpipes which are fed with a liquefied fuel gas in the gaseous phase at the container pressure, through a gas supply hose; — so-called liquid-phase blowpipes which are fed with a fuel gas in the liquid phase, and where thermal evaporation takes place within the blowpipe. It does not apply to blowpipes in which the fuel gas leaves the injector in the liquid phase, or to so-called “cartridge” blowpipes where the gas supply is fixed directly onto the blowpipe and possibly constitutes the shank. NOTE Figures 1 to 4 are given for guidance only, to facilitate the explanation of the terms. They do not specify the construction details, which are left to the discretion of the manufacturer.
ISO 9012:2023 is classified under the following ICS (International Classification for Standards) categories: 25.160.30 - Welding equipment. The ICS classification helps identify the subject area and facilitates finding related standards.
ISO 9012:2023 has the following relationships with other standards: It is inter standard links to EN ISO 9012:2023, ISO 9012:2008. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ISO 9012:2023 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
INTERNATIONAL ISO
STANDARD 9012
Fourth edition
2023-10
Gas welding equipment — Air-
aspirated hand blowpipes —
Specifications and tests
Équipement de soudage aux gaz — Chalumeaux manuels aéro-gaz à
air aspiré — Spécifications et essais
Reference number
© ISO 2023
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii

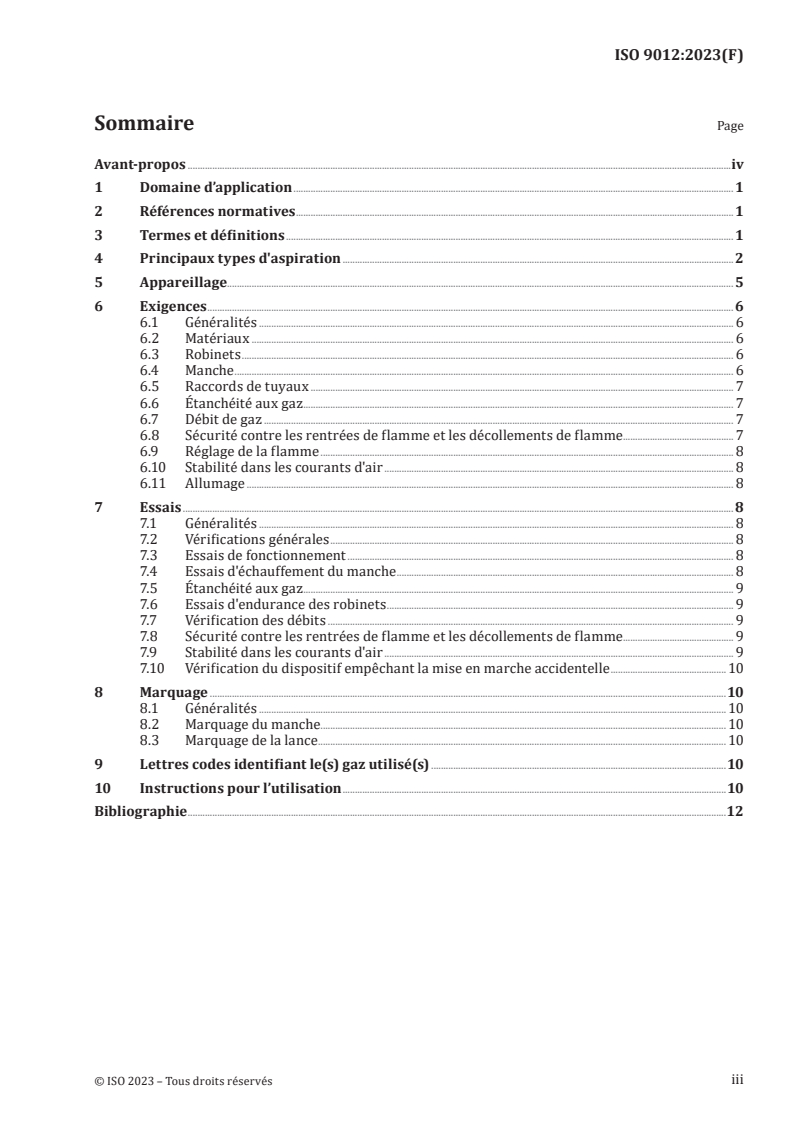

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Main types of aspiration . 2
5 Apparatus . 5
6 Requirements . 6
6.1 General . 6
6.2 Materials . 6
6.3 Valves . 6
6.4 Shank . 6
6.5 Hose connection . 7
6.6 Gas tightness . 7
6.7 Gas-flow rate . 7
6.8 Safety against sustained backfiring and blowing-off of the flame . 7
6.9 Flame adjustment . 7
6.10 Stability in air currents . . . 8
6.11 Ignition . 8
7 Tests . 8
7.1 General . 8
7.2 General checks . 8
7.3 Operational tests . 8
7.4 Shank-overheating tests . 8
7.5 Gas tightness . 9
7.6 Valve endurance test . 9
7.7 Checking gas-flow rates . 9
7.8 Safety against sustained backfire and blowing-off of the flame . 9
7.9 Stability in air currents . . . 9
7.10 V erification of the device against inadvertent operation . 9
8 Marking . . 9
8.1 General . 9
8.2 Marking of the shank . 10
8.3 Marking of the attachment . 10
9 Code letters identifying the gas(es) used .10
10 Instructions for use . .10
Bibliography .11
iii

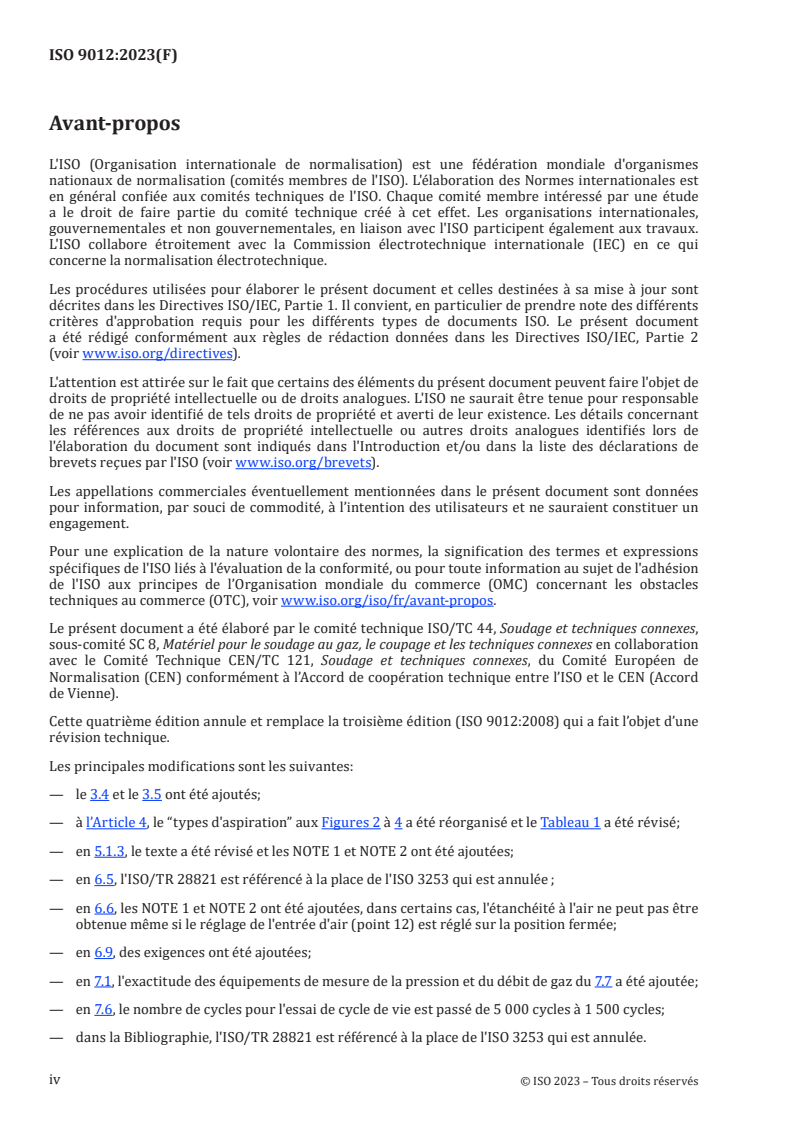

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO document should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use
of (a) patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed
patent rights in respect thereof. As of the date of publication of this document, ISO had not received
notice of (a) patent(s) which may be required to implement this document. However, implementers are
cautioned that this may not represent the latest information, which may be obtained from the patent
database available at www.iso.org/patents. ISO shall not be held responsible for identifying any or all
such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 44, Welding and allied processes,
Subcommittee SC 8, Equipment for gas welding, cutting and allied processes, in collaboration with the
European Committee for Standardization (CEN) Technical Committee CEN/TC 121, Welding and allied
processes, in accordance with the Agreement on technical cooperation between ISO and CEN (Vienna
Agreement).
This fourth edition cancels and replaces the third edition (ISO 9012:2008), which has been technically
revised.
The main changes are as follows:
— entries 3.4 and 3.5 added;
— in Clause 4, the “types of aspiration” in Figures 2 to 4 rearranged and Table 1 revised;
— in 5.1.3, text revised and NOTES 1 and 2 added;
— in 6.5, ISO/TR 28821 referred to instead of the withdrawn ISO 3253;
— in 6.6, NOTES 1 and 2 added because there are cases where airtightness cannot be obtained even if
the adjustment of air inlet (item 12) is set to the closed position;
— in 6.9, requirements added;
— in 7.1, the accuracy of gas pressure and flow rate measuring equipment from 7.7 added;
— in 7.6, the number of cycles for the life cycle test changed from 5 000 cycles to 1 500 cycles;
— in the Bibliography, ISO/TR 28821 referred to instead of the withdrawn ISO 3253.
iv
Any feedback or questions on this document should be directed to the user’s national standards
body. A complete listing of these bodies can be found at www.iso.org/members.html. Official
interpretations of ISO/TC 44 documents, where they exist, are available from this page:
https://committee.iso.org/sites/tc44/home/interpretation.html.
v
INTERNATIONAL STANDARD ISO 9012:2023(E)
Gas welding equipment — Air-aspirated hand blowpipes —
Specifications and tests
1 Scope
This document specifies requirements and test methods for air-aspirated hand blowpipes.
This document applies to blowpipes for brazing, soldering, heating, fusion and other allied thermal
processes which use a fuel gas and aspirated air (injector-type blowpipes) and are intended for manual
use.
This document is applicable to:
— air-aspirated hand blowpipes which are fed with a fuel gas in the gaseous phase, at a controlled
pressure by a regulator, through a gas supply hose;
— air-aspirated hand blowpipes which are fed with a liquefied fuel gas in the gaseous phase at the
container pressure, through a gas supply hose;
— so-called liquid-phase blowpipes which are fed with a fuel gas in the liquid phase, and where thermal
evaporation takes place within the blowpipe.
It does not apply to blowpipes in which the fuel gas leaves the injector in the liquid phase, or to so-called
“cartridge” blowpipes where the gas supply is fixed directly onto the blowpipe and possibly constitutes
the shank.
NOTE Figures 1 to 4 are given for guidance only, to facilitate the explanation of the terms. They do not
specify the construction details, which are left to the discretion of the manufacturer.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 554, Standard atmospheres for conditioning and/or testing — Specifications
ISO 9090, Gas tightness of equipment for gas welding and allied processes
ISO 9539, Gas welding equipment — Materials for equipment used in gas welding, cutting and allied
processes
ISO 10225, Gas welding equipment — Marking for equipment used for gas welding, cutting and allied
processes
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
air-aspirated hand blowpipe
blowpipe in which the fuel gas leaves the injector in the gaseous phase, being subsequently mixed in
the mixing zone with a sufficient quantity of air, aspirated from the ambient atmosphere, to produce a
technically usable flame
Note 1 to entry: See Figure 1.
NOTE See Table 1 for the key to Figure 1.
Figure 1 — Schematic drawing of the mixing zone
3.2
sustained backfire
penetration of the flame into the blowpipe, with continued burning upstream of the part intended for
this purpose, i.e. within:
— the blowpipe nozzle, behind the grid or flame-supporting devices;
— the tube;
— the blowpipe shank
3.3
blowing-off of the flame
detachment of the flame from the blowpipe nozzle, possibly causing the flame to be extinguished
3.4
maximum flow rate
flow rate of fuel gas of the blowpipe obtained by fully opening the valve at the maximum inlet pressure
given by the manufacturer
3.5
minimum flow rate
flow rate of the proper fuel gas flow range at the minimum inlet pressure given by the manufacturer
4 Main types of aspiration
Depending on the location of the mixing zone, a distinction is made between blowpipes with air
aspiration in the:
a) attachment (see Figure 2);
b) nozzle (see Figure 3);
c) shank (see Figure 4).
NOTE See Table 1 for the key to Figure 2.
Figure 2 — Examples of blowpipes with air aspiration in the attachment
NOTE See Table 1 for the key to Figure 3.
Figure 3 — Examples of blowpipes with air aspiration in the nozzle
NOTE See Table 1 for t
...
NORME ISO
INTERNATIONALE 9012
Quatrième édition
2023-10
Équipement de soudage aux gaz —
Chalumeaux manuels aéro-gaz à air
aspiré — Spécifications et essais
Gas welding equipment — Air-aspirated hand blowpipes —
Specifications and tests
Numéro de référence
DOCUMENT PROTÉGÉ PAR COPYRIGHT
© ISO 2023
Tous droits réservés. Sauf prescription différente ou nécessité dans le contexte de sa mise en œuvre, aucune partie de cette
publication ne peut être reproduite ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique,
y compris la photocopie, ou la diffusion sur l’internet ou sur un intranet, sans autorisation écrite préalable. Une autorisation peut
être demandée à l’ISO à l’adresse ci-après ou au comité membre de l’ISO dans le pays du demandeur.
ISO copyright office
Case postale 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Genève
Tél.: +41 22 749 01 11
E-mail: copyright@iso.org
Web: www.iso.org
Publié en Suisse
ii
Sommaire Page
Avant-propos .iv
1 Domaine d’application . 1
2 Références normatives .1
3 Termes et définitions . 1
4 Principaux types d'aspiration .2
5 Appareillage . 5
6 Exigences . 6
6.1 Généralités . 6
6.2 Matériaux . 6
6.3 Robinets . 6
6.4 Manche . 6
6.5 Raccords de tuyaux . 7
6.6 Étanchéité aux gaz . 7
6.7 Débit de gaz . 7
6.8 Sécurité contre les rentrées de flamme et les décollements de flamme . . 7
6.9 Réglage de la flamme . 8
6.10 Stabilité dans les courants d'air . 8
6.11 Allumage . 8
7 Essais . 8
7.1 Généralités . 8
7.2 Vérifications générales . 8
7.3 Essais de fonctionnement . 8
7.4 Essais d'échauffement du manche . 8
7.5 Étanchéité aux gaz . 9
7.6 Essais d'endurance des robinets . 9
7.7 Vérification des débits . 9
7.8 Sécurité contre les rentrées de flamme et les décollements de flamme . . 9
7.9 Stabilité dans les courants d'air . 9
7.10 Vérification du dispositif empêchant la mise en marche accidentelle . 10
8 Marquage .10
8.1 Généralités . 10
8.2 Marquage du manche . 10
8.3 Marquage de la lance . 10
9 Lettres codes identifiant le(s) gaz utilisé(s) .10
10 Instructions pour l’utilisation .10
Bibliographie .12
iii
Avant-propos
L'ISO (Organisation internationale de normalisation) est une fédération mondiale d'organismes
nationaux de normalisation (comités membres de l'ISO). L'élaboration des Normes internationales est
en général confiée aux comités techniques de l'ISO. Chaque comité membre intéressé par une étude
a le droit de faire partie du comité technique créé à cet effet. Les organisations internationales,
gouvernementales et non gouvernementales, en liaison avec l'ISO participent également aux travaux.
L'ISO collabore étroitement avec la Commission électrotechnique internationale (IEC) en ce qui
concerne la normalisation électrotechnique.
Les procédures utilisées pour élaborer le présent document et celles destinées à sa mise à jour sont
décrites dans les Directives ISO/IEC, Partie 1. Il convient, en particulier de prendre note des différents
critères d'approbation requis pour les différents types de documents ISO. Le présent document
a été rédigé conformément aux règles de rédaction données dans les Directives ISO/IEC, Partie 2
(voir www.iso.org/directives).
L'attention est attirée sur le fait que certains des éléments du présent document peuvent faire l'objet de
droits de propriété intellectuelle ou de droits analogues. L'ISO ne saurait être tenue pour responsable
de ne pas avoir identifié de tels droits de propriété et averti de leur existence. Les détails concernant
les références aux droits de propriété intellectuelle ou autres droits analogues identifiés lors de
l'élaboration du document sont indiqués dans l'Introduction et/ou dans la liste des déclarations de
brevets reçues par l'ISO (voir www.iso.org/brevets).
Les appellations commerciales éventuellement mentionnées dans le présent document sont données
pour information, par souci de commodité, à l’intention des utilisateurs et ne sauraient constituer un
engagement.
Pour une explication de la nature volontaire des normes, la signification des termes et expressions
spécifiques de l'ISO liés à l'évaluation de la conformité, ou pour toute information au sujet de l'adhésion
de l'ISO aux principes de l’Organisation mondiale du commerce (OMC) concernant les obstacles
techniques au commerce (OTC), voir www.iso.org/iso/fr/avant-propos.
Le présent document a été élaboré par le comité technique ISO/TC 44, Soudage et techniques connexes,
sous-comité SC 8, Matériel pour le soudage au gaz, le coupage et les techniques connexes en collaboration
avec le Comité Technique CEN/TC 121, Soudage et techniques connexes, du Comité Européen de
Normalisation (CEN) conformément à l’Accord de coopération technique entre l’ISO et le CEN (Accord
de Vienne).
Cette quatrième édition annule et remplace la troisième édition (ISO 9012:2008) qui a fait l’objet d’une
révision technique.
Les principales modifications sont les suivantes:
— le 3.4 et le 3.5 ont été ajoutés;
— à l’Article 4, le “types d'aspiration” aux Figures 2 à 4 a été réorganisé et le Tableau 1 a été révisé;
— en 5.1.3, le texte a été révisé et les NOTE 1 et NOTE 2 ont été ajoutées;
— en 6.5, l'ISO/TR 28821 est référencé à la place de l'ISO 3253 qui est annulée ;
— en 6.6, les NOTE 1 et NOTE 2 ont été ajoutées, dans certains cas, l'étanchéité à l'air ne peut pas être
obtenue même si le réglage de l'entrée d'air (point 12) est réglé sur la position fermée;
— en 6.9, des exigences ont été ajoutées;
— en 7.1, l'exactitude des équipements de mesure de la pression et du débit de gaz du 7.7 a été ajoutée;
— en 7.6, le nombre de cycles pour l'essai de cycle de vie est passé de 5 000 cycles à 1 500 cycles;
— dans la Bibliographie, l'ISO/TR 28821 est référencé à la place de l'ISO 3253 qui est annulée.
iv
Il convient que l’utilisateur adresse tout retour d’information ou toute question concernant le présent
document à l’organisme national de normalisation de son pays. Une liste exhaustive desdits organismes
se trouve à l’adresse www.iso.org/fr/members.html.
Les interprétations officielles des documents de
l'ISO/TC 44, lorsqu'elles existent sont disponibles depuis la page:
https://committee.iso.org/sites/tc44/home/interpretation.html.
v
NORME INTERNATIONALE ISO 9012:2023(F)
Équipement de soudage aux gaz — Chalumeaux manuels
aéro-gaz à air aspiré — Spécifications et essais
1 Domaine d’application
Le présent document spécifie les exigences et les méthodes d'essai des chalumeaux manuels aéro-gaz à
air aspiré.
Le présent document s'applique aux chalumeaux destinés au brasage fort, au brasage tendre, au
chauffage, à la fusion et aux autres procédés thermiques similaires, utilisant un gaz combustible et de
l'air aspiré (chalumeau à air induit), conçus pour une utilisation manuelle.
Le présent document s'applique également:
— aux chalumeaux manuels aéro-gaz à air aspiré, alimentés par un gaz combustible en phase gazeuse,
sous une pression régulée par un détendeur, à travers un tuyau d'amenée de gaz;
— aux chalumeaux manuels aéro-gaz à air aspiré, alimentés par un gaz combustible liquéfié en phase
gazeuse sous la pression du réservoir, à travers un tuyau d'amenée de gaz;
— aux chalumeaux dits à phase liquide, alimentés par un gaz combustible en phase liquide et dans
lesquels se produit une évaporation thermique.
Il ne s'applique pas aux chalumeaux dans lesquels le gaz combustible sort de l'injecteur en phase
liquide, ni aux chalumeaux dits «à cartouche» comportant une réserve de gaz directement fixée sur le
chalumeau et pouvant éventuellement servir de manche.
NOTE Les Figures 1 à 4 sont données uniquement à titre indicatif pour faciliter l'explication des termes.
Elles ne spécifient pas les détails de construction qui sont laissés à la discrétion du fabricant.
2 Références normatives
Les documents suivants sont cités dans le texte de sorte qu’ils constituent, pour tout ou partie de leur
contenu, des exigences du présent document. Pour les références datées, seule l'édition citée s'applique.
Pour les références non datées, la dernière édition du document de référence s'applique (y compris les
éventuels amendements).
ISO 554, Atmosphères normales de conditionnement et/ou d'essai — Spécifications
ISO 9090, Étanchéité aux gaz des appareils pour soudage aux gaz et techniques connexes
ISO 9539, Matériel de soudage aux gaz — Matériaux utilisés pour le matériel de soudage aux gaz, coupage
et techniques connexes
ISO 10225, Matériel de soudage aux gaz — Marquage des matériels de soudage aux gaz, de coupage et pour
techniques connexes
3 Termes et définitions
Pour les besoins du présent document, les termes et définitions suivants s’appliquent.
L’ISO et l’IEC tiennent à jour des bases de données terminologiques destinées à être utilisées en
normalisation, consultables aux adresses suivantes:
— ISO Online browsing platform: disponible à l’adresse https:// www .iso .org/ obp
— IEC Electropedia: disponible à l’adresse https:// www .electropedia .org/
3.1
chalumeau manuel aéro-gaz à air aspiré
chalumeau dans lequel le gaz combustible sort à l'état gazeux d'un injecteur et est ensuite mélangé,
dans une zone de mélange, en aspirant de l'atmosphère environnant une quantité d'air suffisante pour
obtenir une flamme techniquement utilisable
Note 1 à l'article: Voir Figure 1.
NOTE Pour la légende de la Figure 1, se référer au Tableau 1.
Figure 1 — Schéma de principe de la zone de mélange
3.2
rentrée de flamme
pénétration de la flamme dans le chalumeau avec entretien de la combustion en amont de la partie
prévue à cet effet, c'est-à-dire:
— à l'intérieur de la tête du chalumeau, derrière la grille ou les dispositifs d'accrochage de la flamme,
— dans le tube,
— dans le manche du chalumeau.
3.3
décollement de flamme
détachement de la flamme de la tête du chalumeau, pouvant conduire à l'extinction de la flamme
3.4
débit maximum
débit de gaz combustible du chalumeau, obtenu en ouvrant complètement le robinet à la pression
d'entrée maximale indiquée par le fabricant
3.5
débit minimum
débit de la gamme de débit de gaz combustible appropriée à la pression d'entrée minimale donnée par
le fabricant
4 Principaux types d'aspiration
En fonction de l'emplacement de la zone de mélange, on distingue les chalumeaux avec aspiration de
l'air dans:
a) la lance (voir Figure 2);
b) la tête de chalumeau (voir Figure 3);
c) le manche (voir Figure 4).
NOTE Pour la légende de la Figure 2, se référer au Tableau 1.
Figure 2 — Exemples de chalumeaux à aspiration d'air dans la lance
NOTE Pour la légende de la Figure 3, se référer au Tableau 1.
Figure 3 — Exemples de chalumeaux à aspiration d'air dans la tête du brûleur
NOTE Pour la légende de la Figure 4, se référer au Tableau 1.
Figure 4 — Exemples de chalumeaux à aspiration d'air dans le manche
Tableau 1 — Légendes des Figures 1 à 4
Ensemble Point
A tuyau souple 1 poignée
B manche 2 robinet
C lance à aspiration d'air 3 raccord porte-tuyau
D lance à aspiration d'air pour brasage tendre 4 raccordement de la lance
avec panne en cuivre
E tube de liaison cintré 5 injecteur
F tube de liaison droit 6 entrée d'air
G tête de chalumeau avec système d'aspiration 7 tube (pouvant comporter l'entrée d'air)
d'air
H tête de chalumeau à phase liquide avec système 8 tête de chalumeau
d
...








Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
