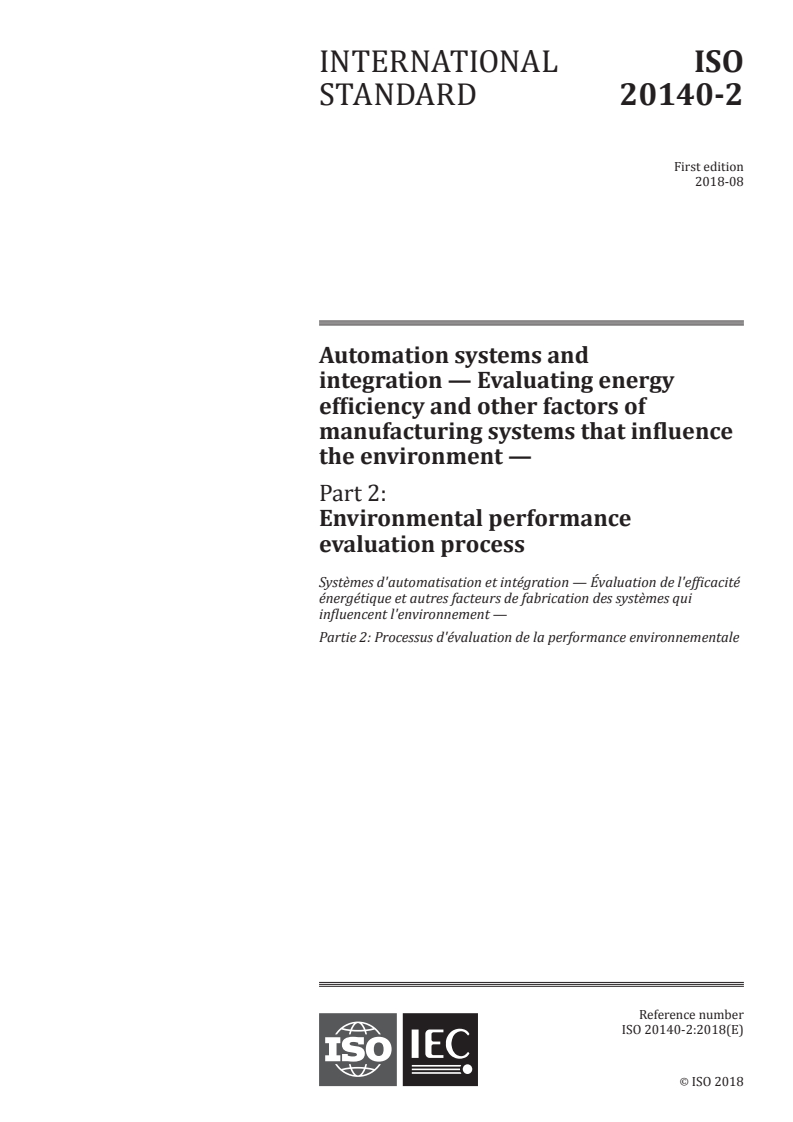

ISO 20140-2:2018

INTERNATIONAL ISO
STANDARD 20140-2
First edition
2018-08
Automation systems and
integration — Evaluating energy
efficiency and other factors of
manufacturing systems that influence
the environment —
Part 2:
Environmental performance
evaluation process
Systèmes d'automatisation et intégration — Évaluation de l'efficacité
énergétique et autres facteurs de fabrication des systèmes qui
influencent l'environnement —
Partie 2: Processus d'évaluation de la performance environnementale
Reference number
©
ISO 2018
© ISO 2018
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2018 – All rights reserved

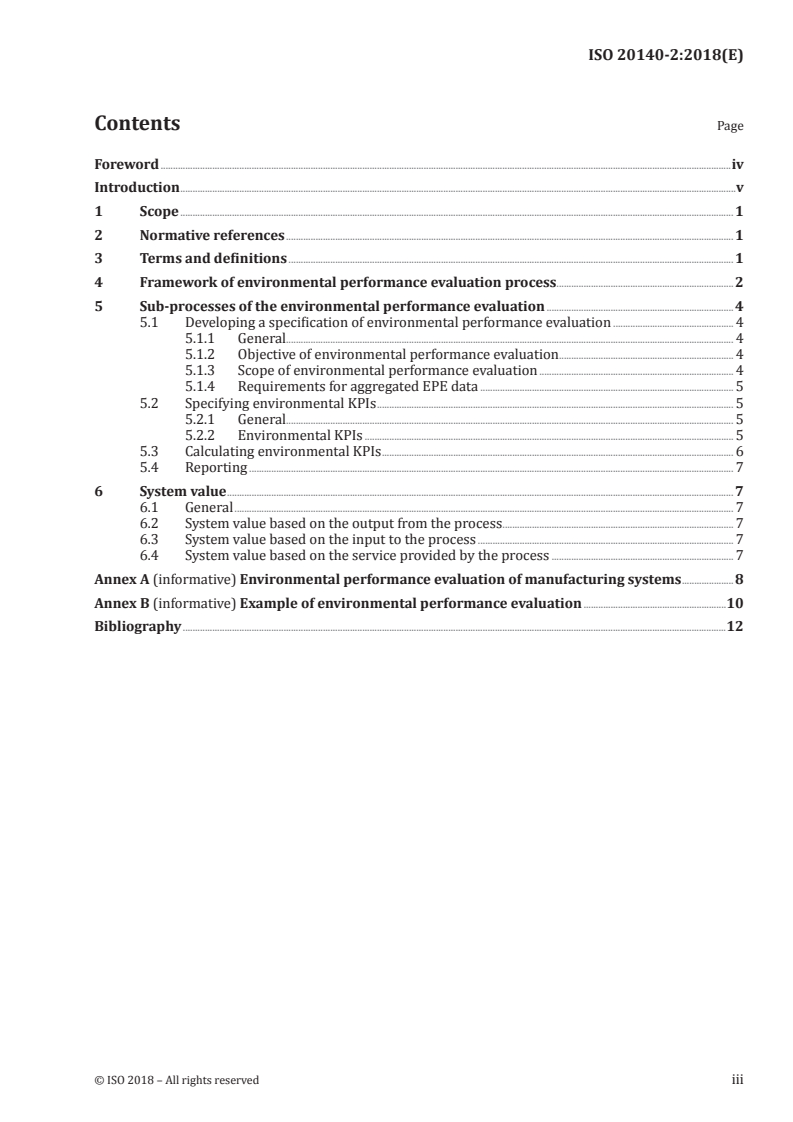

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Framework of environmental performance evaluation process. 2
5 Sub-processes of the environmental performance evaluation . 4
5.1 Developing a specification of environmental performance evaluation . 4
5.1.1 General. 4
5.1.2 Objective of environmental performance evaluation . 4
5.1.3 Scope of environmental performance evaluation . 4
5.1.4 Requirements for aggregated EPE data . 5
5.2 Specifying environmental KPIs . 5
5.2.1 General. 5
5.2.2 Environmental KPIs . 5
5.3 Calculating environmental KPIs . 6
5.4 Reporting . 7
6 System value . 7
6.1 General . 7
6.2 System value based on the output from the process . 7
6.3 System value based on the input to the process . 7
6.4 System value based on the service provided by the process . 7
Annex A (informative) Environmental performance evaluation of manufacturing systems .8
Annex B (informative) Example of environmental performance evaluation .10
Bibliography .12

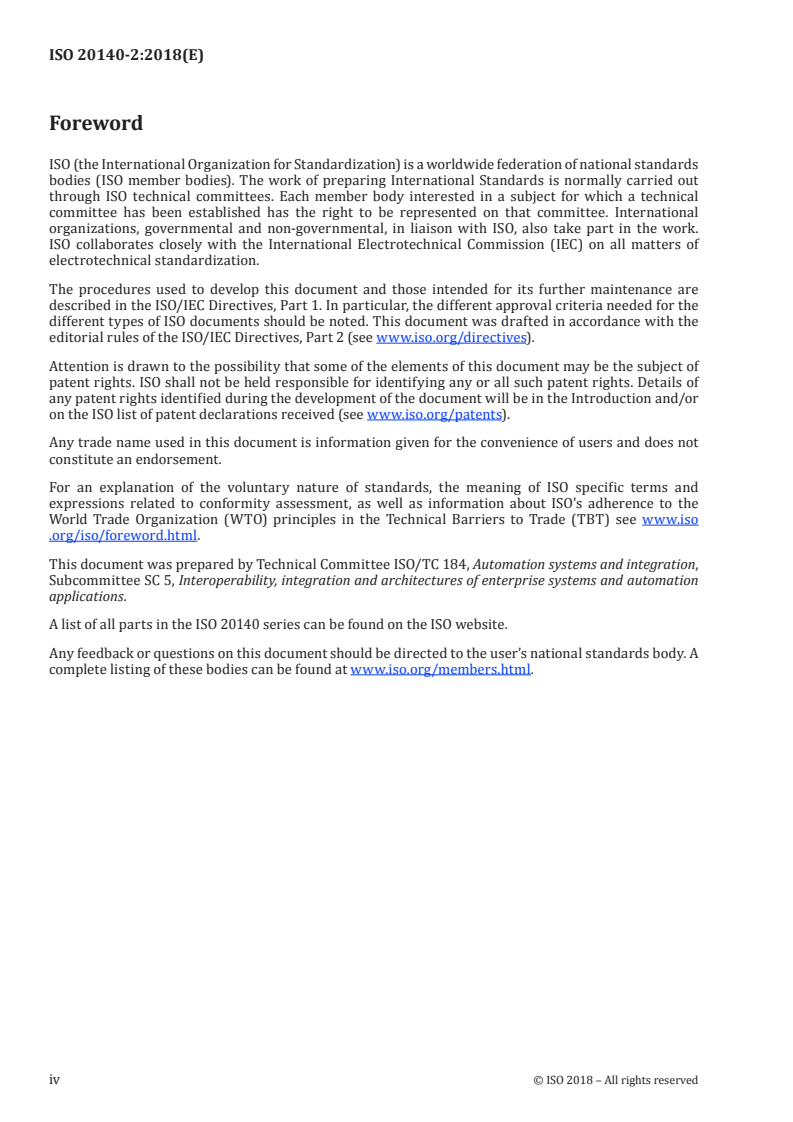

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso
.org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 184, Automation systems and integration,
Subcommittee SC 5, Interoperability, integration and architectures of enterprise systems and automation
applications.
A list of all parts in the ISO 20140 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO 2018 – All rights reserved

Introduction
ISO 20140 specifies a method for evaluating the energy efficiency and other factors of a manufacturing
system that influence the environment, e.g. energy consumption, waste and release.
ISO 20140 is applicable to manufacturing systems for discrete, batch, and continuous manufacturing.
ISO 20140 focuses on manufacturing systems that have a hierarchical structure.
ISO 20140 can be used for:
— benchmarking of environmental performance against a generic reference manufacturing system or
comparing between different manufacturing systems;
— alternative studies for improving environmental performance;
— setting targets of environmental performance improvement;
— visualizing the environmental performance of a manufacturing system under operation.
Expected users of ISO 20140 are:
a) managers who are responsible for environmental conditions of a manufacturing system;
b) engineers who design manufacturing processes for products;
c) engineers who design a manufacturing system;
d) engineers and foremen who are responsible for manufacturing products.
This document specifies a process for environmental performance evaluation of activities executed by
a manufacturing system based on the general principles described in ISO 20140-1. The process uses
environmental performance evaluation data based on ISO 20140-5.
This document does not specify any evaluation process specific to particular implementations of
manufacturing systems.
INTERNATIONAL STANDARD ISO 20140-2:2018(E)
Automation systems and integration — Evaluating energy
efficiency and other factors of manufacturing systems that
influence the environment —
Part 2:
Environmental performance evaluation process
1 Scope
This document specifies a process for environmental performance evaluation of activities executed by
a manufacturing system based on the general principles described in ISO 20140-1. The process uses
environmental performance evaluation data based on ISO 20140-5.
This document does not specify any evaluation process specific to particular implementations of
manufacturing systems.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 20140-1, Automation systems and integration — Evaluating energy efficiency and other factors of
manufacturing systems that influence the environment — Part 1: Overview and general principles
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 20140-1 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https: //www .iso .org/obp
— IEC Electropedia: available at https: //www .electropedia .org/
3.1
aggregated EPE data
numerical representation of environmental influence (3.3) caused by a manufacturing process in a given
type of environmental influence and in a given mode
3.2
energy efficiency
ratio or other quantitative relationship between an output of performance, service, goods or energy,
and an input of energy
[SOURCE: ISO 50001:2011, 3.8, modified — Example and Note to entry have been deleted.]
3.3
environmental influence
result of manufacturing process that can cause environmental impacts and that is considered
throughout the life cycle of the manufacturing system associated with the process
Note 1 to entry: Environmental influence, such as energy consumed and CO emitted, can cause environmental
impacts, such as global warming and sea level rise.
EXAMPLE Amount of electric energy consumed; amount of CO emitted; amount of hazardous substance
discharged.
3.4
environmental KPI
key performance indicator (3.7) that represents environmental performance (3.5)
3.5
environmental performance
measurable results related to environmental aspects
[SOURCE: ISO 14045:2012, 3.5]
3.6
environmental performance evaluation data
EPE data
data that is used to evaluate the environmental performance (3.5)
[SOURCE: ISO 20140-5:2017, 3.6, modified.]
3.7
key performance indicator
KPI
quantifiable level of achieving a critical objective
Note 1 to entry: The KPIs are derived directly from, or through an aggregation function of, physical measurements,
data and/or other KPIs.
[SOURCE: ISO 22400-1:2014, 2.1.5]
3.8
system value
worth or desirability ascribed to a manufacturing process
4 Framework of environmental performance evaluation process
The environmental performance evaluation process shall comprise the sub-processes of developing a
specification of environmental performance evaluation, specifying the environmental KPIs, calculating
the environmental KPIs, and reporting the evaluation results as illustrated in Figure 1. This document
specifies the requirements for these sub-processes.
a) Developing specification of environmental performance evaluation
A specification of environmental performance evaluation is developed in this process. This
specification includes requirements for aggregated EPE data.
b) Specifying environmental KPIs
Environmental KPIs are specified by a formula with the necessary conditions, according to the
specification of environmental performance evaluation specified by the process described in a) above.
2 © ISO 2018 – All rights reserved

c) Calculating the environmental KPIs
Values of each environmental KPI are calculated according to the environmental KPI specification
specified by the process described in b) above.
An aggregated EPE data, which represents the environmental influence, is provided by the
aggregation process for each KPI.
A system value is obtained for each KPI according to the specification of environmental performance
evaluation specified by the process described in a) above.
NOTE The actual capture and calculation of system value for use in calculating each KPI is outside the
scope of ISO 20140.
d) Reporting
The results of the environmental performance evaluation, such as environmental KPI specification
and its calculated values, are reported with
...
