ISO 6044:1985
(Main)Shipbuilding and marine structures - Derrick boom heel fittings - Main dimensions
Shipbuilding and marine structures - Derrick boom heel fittings - Main dimensions
Lays down the main dimensions for interchangeability and the materials for forks and associated bolts or pins for derrick boom heel fittings.
Construction navale et structures maritimes — Ferrures de pied de corne de charge — Dimensions principales
General Information
- Status
- Published
- Publication Date
- 18-Dec-1985
- Technical Committee
- ISO/TC 8/SC 4 - Outfitting and deck machinery
- Drafting Committee
- ISO/TC 8/SC 4 - Outfitting and deck machinery
- Current Stage
- 9093 - International Standard confirmed
- Start Date
- 21-Aug-2022
- Completion Date
- 13-Dec-2025
Relations
- Effective Date
- 06-Jun-2022
Overview
ISO 6044:1985 specifies the main dimensions and basic material requirements for derrick boom heel fittings used in shipbuilding and marine structures. The standard defines dimensions for fork-type heel fittings and their associated bolts or pins to ensure interchangeability between suppliers and shipyards. It includes reference figures, a dimensional table (millimetres), and rules for designation of fittings for reference in drawings.
Key topics and requirements
- Scope: Main dimensions and materials for forks and associated bolts/pins of derrick boom heel fittings used in derricks and lifting arrangements on ships and marine structures.
- Nominal size: A numeric designation (no unit) derived from the permissible maximum thrust in the boom measured in kilonewtons (kN).
- Dimensions: Main fork and bolt/pin dimensions are specified by figures and a table (dimensions in millimetres). Figure notes clarify that the drawings indicate standardized dimensions but do not prescribe exact construction or shape.
- Diameter D: The fitting diameter equals the boom outside diameter or may be slightly larger depending on weld attachment form.
- Materials:
- Fork: steel to ISO 630, minimum grade Fe 360.
- Bolt/pin: steel to ISO 630, minimum grade Fe 430.
- If heat-treated quenched steels are required, material shall comply with ISO/R 683/1.
- Tolerances: Dimensional tolerances correspond to grade IT14 as given in ISO 286.
- Designation: Example format for reference (not for ordering): Heel fitting ISO 6044 - 10 (where 10 is nominal size).
- Notes: Type of bolt securing and final bolt/pin details are subject to national regulations and industry practice.
Applications and who uses it
ISO 6044 is directly relevant to:
- Shipbuilders and fabrication yards specifying derrick fittings for newbuilds and repairs
- Naval architects and marine engineers designing lifting arrangements and derricks
- Rigging designers and offshore lifting equipment suppliers seeking component interchangeability
- Classification societies, procurement teams, and surveyors verifying compliance with accepted dimensional and material practices
Using ISO 6044 helps ensure compatibility of heel fittings across different manufacturers, improves safety through clearer material specifications, and simplifies procurement and maintenance.
Related standards
- ISO 630 - Structural steels (material grades Fe 360, Fe 430)
- ISO 286 - ISO system of limits and fits (tolerance grades, including IT14)
- ISO/R 683/1 - Heat-treated steels, when quenched/tempered materials are required
- ISO 8147 - Shipbuilding vocabulary for derrick rigs and component parts
For design, manufacturing, and procurement, always confirm you are using the latest edition of ISO standards and consult national regulations for bolt securing and final construction details.
ISO 6044:1985 - Shipbuilding and marine structures -- Derrick boom heel fittings -- Main dimensions
ISO 6044:1985 - Construction navale et structures maritimes -- Ferrures de pied de corne de charge -- Dimensions principales
Frequently Asked Questions
ISO 6044:1985 is a standard published by the International Organization for Standardization (ISO). Its full title is "Shipbuilding and marine structures - Derrick boom heel fittings - Main dimensions". This standard covers: Lays down the main dimensions for interchangeability and the materials for forks and associated bolts or pins for derrick boom heel fittings.
Lays down the main dimensions for interchangeability and the materials for forks and associated bolts or pins for derrick boom heel fittings.
ISO 6044:1985 is classified under the following ICS (International Classification for Standards) categories: 47.020.40 - Lifting and cargo handling equipment. The ICS classification helps identify the subject area and facilitates finding related standards.
ISO 6044:1985 has the following relationships with other standards: It is inter standard links to ISO 14528-2:1999. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase ISO 6044:1985 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of ISO standards.
Standards Content (Sample)
International Standard
INTERNATIONAL ORGANIZATION FOR STANDARDIZATION.MEXAYHAPOAHAR OPrAHM3AWlR r-IO CTAHAAPTM3AlJMM~ORGANISATION INTERNATIONALE DE NORMALISATION
Shipbuilding and marine structures - Derrick boom heel
fittings - Main dimensions
Construction navale et structures maritimes - Ferrures de pied de corne de Charge - Dimensions princbales
I
First edition - 1985-12-15
UDC 621.885.9 : 629.12
Ref. No. ISO 6044-1985 (E)
Descriptors : shipbuilding, Iifting equipment, derricks, hinge joints, hinge Pins,
dimensions, materials, designation.
I
%
CD
cn
- Price based on 2 pages
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of
national Standards bodies (ISO member bodies). The work of preparing International
Standards is normally carried out through ISO technical committees. Esch member
body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, govern-
mental and non-governmental, in liaison with ISO, also take part in the work.
Draft International Standards adopted by the technical committees are circulated to
the member bodies for approval before their acceptance as International Standards by
the ISO Council. They are approved in accordance with ISO procedures requiring at
least 75 % approval by the member bodies voting.
International Standard ISO 6044 was prepared by Technical Committee ISO/TC 8,
Shipbuilding and marine structures.
Users should note that all International Standards undergo revision from time to time
and that any reference made herein to any other International Standard implies its
latest edition, unless othetwise stated.
0 International Organkation for Standardkation, 1985
Printed in Switzerland
ISO 60444985 (E)
INTERNATIONAL STANDARD
Shipbuilding and marine structures - Derrick boom heel
Main dimensions
fittings -
1 Scope and field of application 3 Definitions
For the purposes of this International Standard, the definitions
This International Standard lays down the main dimensions for
given in ISO 8147 apply.
interchangeability and the materials for forks and associated
bolts or pins of derrick boom heel fittings for shipbuilding and
marine structures.
4 Nominal size
The nominal size designation of a derrick boom heel fitting is a
2 References numerical value without unit for reference purposes; it is
derived from the permissible maximum thrust in the boom in
ISO 286, ISO System of limits and fits. 1 ) kilonewtons.
ISO 630, Structural steels.
5 Dimensions and tolerantes
ISO/R 68311, Heat-treated steels, alloy steels and free-cutting
5.1 Main dimensions
Part I : Quenched and tempered unalle yed steels.
steels -
T
...
Norme internationale
INTERNATIONAL ORGANIZATION FOR STANDARDIZATION.MEX~YHAPO~HAfl OPf-AHt43AL&lR fI0 CTAHAAPTl43AUMbI~ORGANISATiON INTERNATIONALE DE NORMALISATION
Construction navale et structures maritimes - Ferrures de
pied de corne de charge - Dimensions principales
.
Shipbuilding and marine structures - Derrick boom heel fittings - Main dimensions
Première édition - 19854245
E CDU 621.885.9 : 629.12 Réf. no : ISO 60444985 (F)
Y
Descripteurs : construction navale, appareil de levage, derrick, joint articulé, axe d’articulation, dimension, matériau, désignation.
Prix basé sur 2 pages

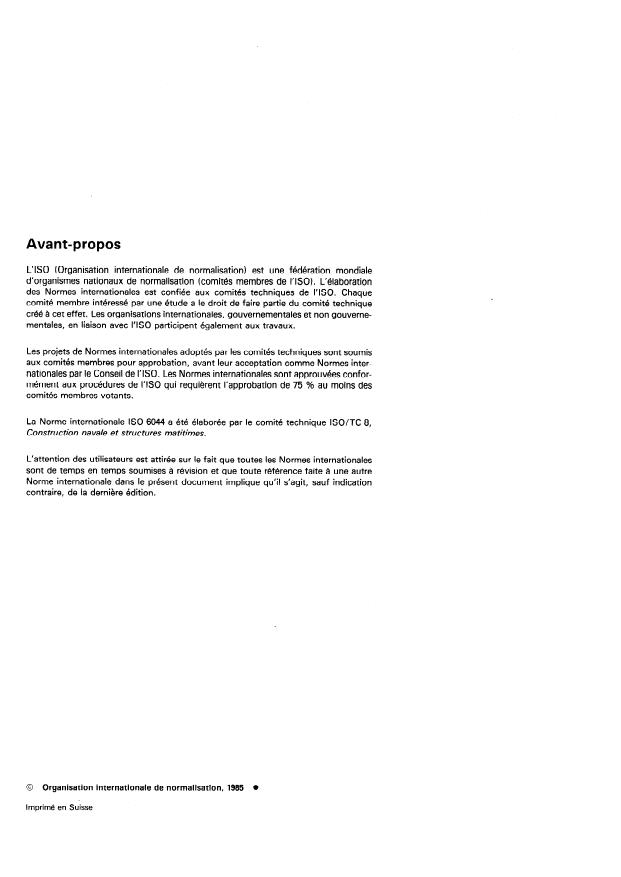

Avant-propos
L’ISO (Organisation internationale de normalisation) est une fédération mondiale
d’organismes nationaux de normalisation (comités membres de I’ISO). L’élaboration
des Normes internationales est confiée aux comités techniques de I’ISO. Chaque
comité membre intéressé par une étude a le droit de faire partie du comité technique
créé à cet effet. Les organisations internationales, gouvernementales et non gouverne-
mentales, en liaison avec I’ISO participent également aux travaux.
Les projets de Normes internationales adoptés par les comités techniques sont soumis
aux comités membres pour approbation, avant leur acceptation comme Normes inter-
nationales par le Conseil de I’ISO. Les Normes internationales sont approuvées confor-
mément aux procédures de I’ISO qui requièrent l’approbation de 75 % au moins des
comités membres votants.
La Norme internationale ISO 6044 a été élaborée par le comité technique ISO/TC 8,
Cons truc tion na vale et s truc turcs ma titimes.
L’attention des utilisateurs est attirée sur le fait que toutes les Normes internationales
sont de temps en temps soumises à révision et que toute référence faite à une autre
Norme internationale dans le présent document implique qu’il s’agit, sauf indication
contraire, de la dernière édition.
0 Organisation internationale de normalisation, 1985 0
Imprimé en Su‘isse
NORME INTERNATIONALE ISO 60444985 (FI
Construction navale et structures maritimes - Ferrures de
pied de corne de charge - Dimensions principales
1 Objet et domaine d’application ISO 8147, Construction navale et structures maritimes - Appa-
raux de levage et composants - Vocabulaire. *)
La présente Norme internationale fixe les dimensions principa-
les d’interchangeabilité et spécifie les matériaux des chapes et
boulons ou broches associé(e)s de ferrures de pied de corne de
P
charge pour construction navale et structures maritimes.
3 Définitions
Dans le cadre de la présente Norme internationale, les défini-
2 Références tions données dans I’ISO 8147 sont applicables.
ISO 286, Système /SO de tolérances et d’ajustements?
4 Grandeur nominale
ISO 630, Aciers de construction métallique.
I SO / R 683/ 1, Aciers pour traitement thermique, aciers alliés et La grandeur nominale d’une ferrure de pied de corne de charge
...
