ISO 12574-2:2008

INTERNATIONAL ISO
STANDARD 12574-2
First edition
2008-09-15
Thermal insulation — Cellulose-fibre
loose-fill for horizontal applications in
ventilated roof spaces —
Part 2:
Principal responsibilities of installers
Isolation thermique — Fibres de cellulose en vrac pour applications
horizontales dans les combles ventilées —
Partie 2: Principales responsabilités des installateurs

Reference number
ISO 12574-2:2008(E)
©
ISO 2008

---------------------- Page: 1 ----------------------
ISO 12574-2:2008(E)

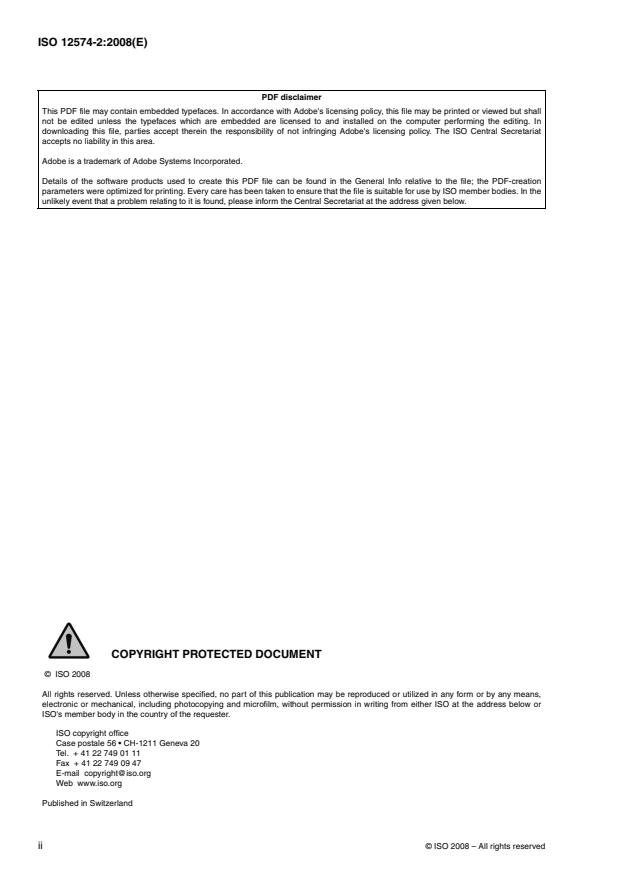

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall
not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the
unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
 COPYRIGHT PROTECTED DOCUMENT
© ISO 2008
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56  CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
©
ii ISO 2008 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 12574-2:2008(E)
Contents Page
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 General responsibilities of the installer . 3
4.1 Installer training . 3
4.2 Documentation obtained from the manufacturer . 4
4.3 Responsibility for health and safety . 4
4.4 Transportation and storage . 4
4.5 Verification of material compliance . 4
4.6 Suitability for installation . 4
4.7 Defects prior to installation . 5
4.8 Authority having jurisdiction . 5
4.9 Installer qualifications on-site . 5
4.10 Equipment requirements . 5
4.11 Defects in installation . 5
4.12 Documentation by the installer . 5
4.13 Maintenance of records . 6
5 Specific responsibilities related to performance . 6
5.1 Thickness — Control of installed thickness . 6
5.2 Coverage — Calculation of coverage . 6
5.3 Installed number of bags — Calculation . 7
5.4 Surface density — Calculation . 7
Annex A (normative) Dispute resolution measurements — Measurements for field audits . 9
Annex B (informative) Job-site certificate . 10
Annex C (informative) Suitability of the building to receive the insulation product —
Example of installer's checklist . 11
Bibliography . 12
©
ISO 2008 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 12574-2:2008(E)

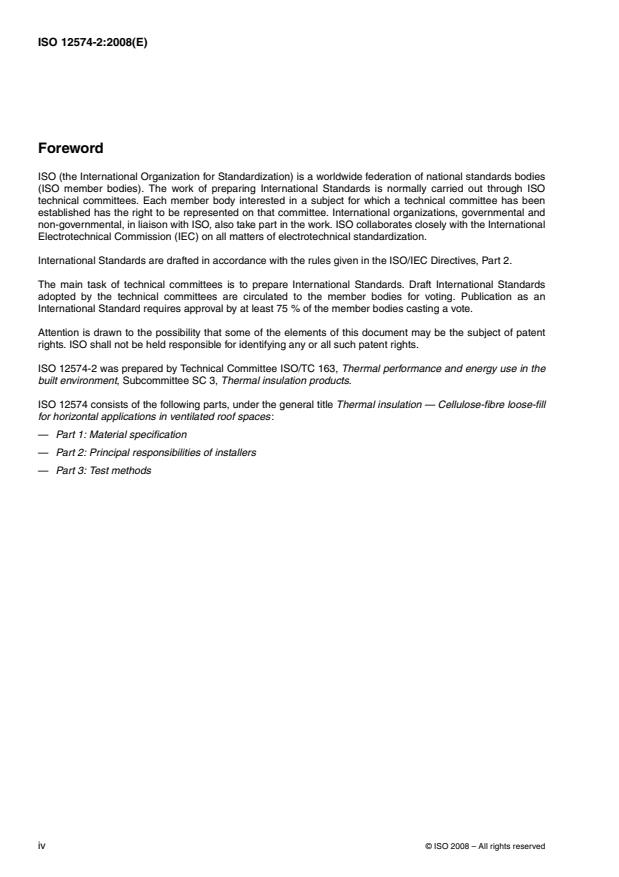

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the International
Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 12574-2 was prepared by Technical Committee ISO/TC 163, Thermal performance and energy use in the
built environment, Subcommittee SC 3, Thermal insulation products.
ISO 12574 consists of the following parts, under the general title Thermal insulation — Cellulose-fibre loose-fill
for horizontal applications in ventilated roof spaces:
— Part 1: Material specification
— Part 2: Principal responsibilities of installers
— Part 3: Test methods
©
iv ISO 2008 – All rights reserved

---------------------- Page: 4 ----------------------
ISO 12574-2:2008(E)
Introduction
This part of ISO 12574 specifies the principal responsibilities of installers, as these are common in all countries.
It does not specify the application procedures or requirements of the installation, which can vary greatly from
one construction to another, from one country to another, or from one jurisdiction in a country to another. This
part of ISO 12574 does not conflict with local building codes or labour practices. It serves to clearly delineate
the principal responsibilities of the manufacturer of the thermal insulation, which are specified in the material
specification, from the principal responsibilities of the installer listed in this part of ISO 12574. Because of the
uniqueness of the concept of principal responsibilities for the installer, the following general definitions in more
than one form are given to assist in translation of the term to other languages. Specific definitions are given in
Clause 3.
a) Principal requirements include the following:
1) procedures that are common to all installations regardless of the construction of the building or the
country in which the installation occurs; principal requirements can include instructions to carry out a
policy statement (meet an objective) but it is not necessarily required to provide a linear progression of
steps or actions to be taken;
2) document that provides methods used and that are necessary to accomplish the objective of producing
a functional installation.
b) Responsibility includes the following:
1) condition of being accountable for one's actions; accepting responsibility for one's actions means that
the individual who commits an act is the one who is required to explain the act and accept any
consequences;
2) condition of being obliged to answer, for one's actions, to an authority that can impose a penalty for
failure.
©
ISO 2008 – All rights reserved v

---------------------- Page: 5 ----------------------
.
vi

---------------------- Page: 6 ----------------------
INTERNATIONAL STANDARD ISO 12574-2:2008(E)
Thermal insulation — Cellulose-fibre loose-fill for horizontal
applications in ventilated roof spaces —
Part 2:
Principal responsibilities of installers
1Scope
This part of ISO 12574 gives the principal responsibilities of the installers of cellulose-fibre loose-fill thermal
insulation products for buildings. If a product is manufactured and packaged according to ISO 12574-1 and then
installed in ventilated roof spaces as described in ISO 9774, it is expected to provide the properties declared by
the manufacturer.
This part of ISO 12574 gives the principal responsibilities of the installer in the installation of the product, in the
documentation of the installation and in the declaration that all requirements of this part of ISO 12574 have
been met.
This part of ISO 12574 does not specify fitness of the product for the intended use beyond those aspects
relating to installation. Many aspects relating to the fitness for use are specified in government regulations. It is
necessary that the installer ensure, when installing the product, that the product installed is suitable for the
application, based on the government regulations and the manufacturer's recommendations.
The installer can be required to meet ancillary (additional) requirements that are specified in local regulations or
the customer's requirements.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced document
(including any amendments) applies.
ISO 7345, Thermal insulation — Physical quantities and definitions
ISO 9229, Thermal insulation — Vocabulary
ISO 12574-1, Thermal insulation— Cellulose-fibre loose-fill for horizontal applications in ventilated roof
spaces — Part 1: Material specification
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 7345, ISO 9229 and the following
apply.
3.1
application training
training provided by a manufacturer or by a training institute for which certification is provided
©
ISO 2008 – All rights reserved 1

---------------------- Page: 7 ----------------------
ISO 12574-2:2008(E)
3.2
roof space
loft space
attic space
enclosed space between the roof and the ceiling
3.3
authority having jurisdiction
agency of the government or trade having responsibility for the safe and proper installation of thermal insulation
3.4
blowing wool
fibrous insulation material sub-divided into granules or pellets for application or installation by pneumatic
equipment
[ISO 9229]
3.5
coverage
area provided by a package of loose-fill insulation when applied as per the manufacturer's instructions to
achieve a declared thermal performance
[ISO 9229]
3.6
designation code
shift, production and/or date code used by the manufacturer to identify a particular product lot
3.7
declared thermal resistance
thermal resistance of the insulation declared by the manufacturer for a specific settled thickness, density, and
mean temperature
NOTE The declared thermal resistance is expressed in units of square metre-kelvin per watt.
3.8
equipment manufacturer
organization that manufactures or markets equipment designed to apply cellulose-fibre loose-fill thermal
insulation
3.9
inspection authority
authority that has regulatory responsibility for enforcement
3.10
installed thickness
as-blown thickness
initial thickness at the time of installation necessary to provide the declared thickness after settlement
NOTE 1 See settled thickness, 3.18.
NOTE 2 The initial thickness is equal to or greater than the declared thickness and it is necessary to take into account any
settling after installation.
3.11
installer
individual who has application training to install cellulose-fibre loose-fill thermal insulation in roof spaces, such
that it conforms to the labelling on the package and other applicable requirements and regulations
©
2 ISO 2008 – All rights reserved

---------------------- Page: 8 ----------------------
ISO 12574-2:2008(E)
3.12
loose-fill system
blowing machine and blowing hose required to install cellulose-fibre loose-fill insulation to the specifications
given on the performance chart
3.13
manufacturer
organization that manufactures or markets cellulose-fibre loose-fill thermal insulation products and that is
responsible for packaging and labelling of the material and specifying the system for application
3.14
performance chart
table specifying the installed and settled thickness of insulation required to give tabulated values of thermal
resistance and maximum area of attic surface covered by each bag
3.15
principal requirement
essential procedures that are common to all installations regardless of the construction of the building or the
country in which the installation occurs
NOTE Principal requirements may include instructions to carry out a policy statement (meet an objective) but it is not
necessarily required to provide a linear progression of steps or actions to be taken. Methods used and methods that are
necessary to accomplish the objective of a functional installation are normally included.
3.16
R-value
thermal resistance of the insulation for a given settled thickness and density
NOTE The R-value is expressed in units of square metre-kelvin per watt.
3.17
responsibility
condition of being accountable for one's actions, accepting responsibility for one's actions, explaining the act,
and answering to an authority and accepting any consequences or penalties
3.18
settled thickness
thickness declared by the manufacturer such that it meets the requirements of the governing standard
3.19
settlement
decrease in the thickness of installed insulation thickness with time
NOTE The settlement is expressed as a percentage of the initially installed thickness.
4 General responsibilities of the installer
4.1 Installer training
The installer shall ensure that someone present at the site is trained in the following:
a) site inspection and preparation;
b) physical properties of the insulation materials;
c) use and maintenance of equipment;
d) manufacturer's installation requirements;
e)
...
