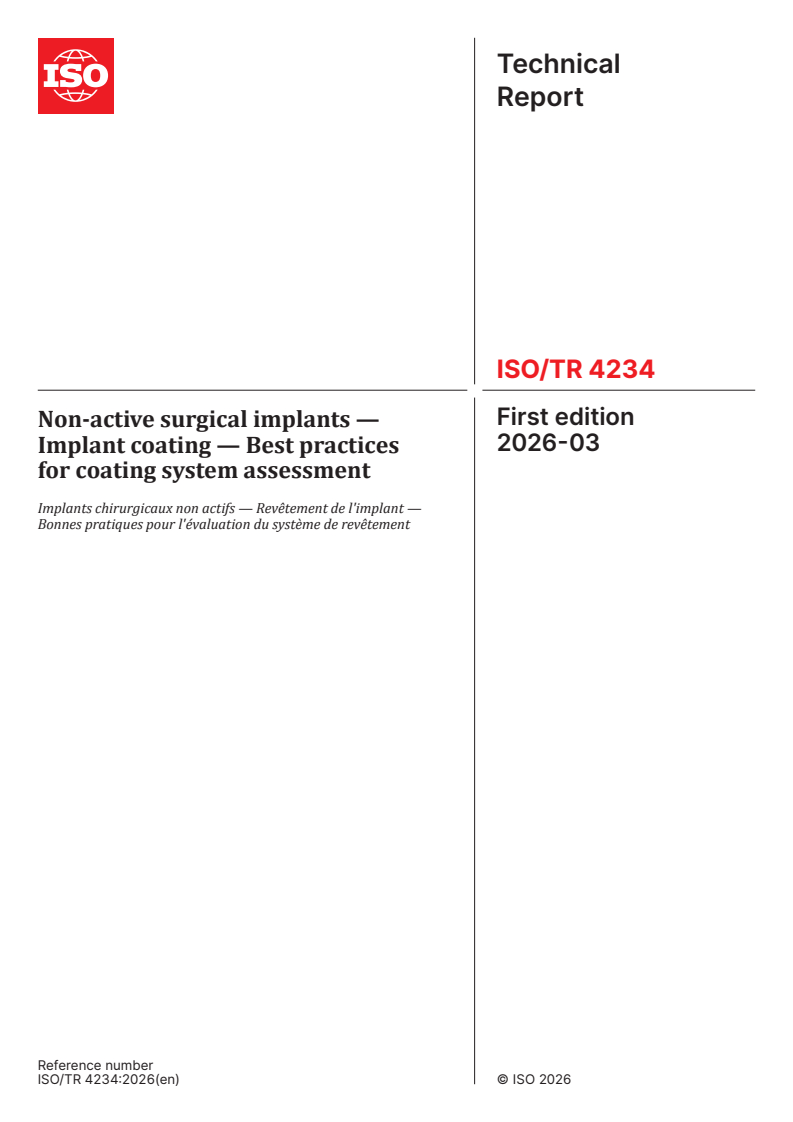

ISO/TR 4234:2026

Technical
Report
ISO/TR 4234
First edition
Non-active surgical implants —
2026-03
Implant coating — Best practices
for coating system assessment
Implants chirurgicaux non actifs — Revêtement de l'implant —
Bonnes pratiques pour l'évaluation du système de revêtement
Reference number
© ISO 2026
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii

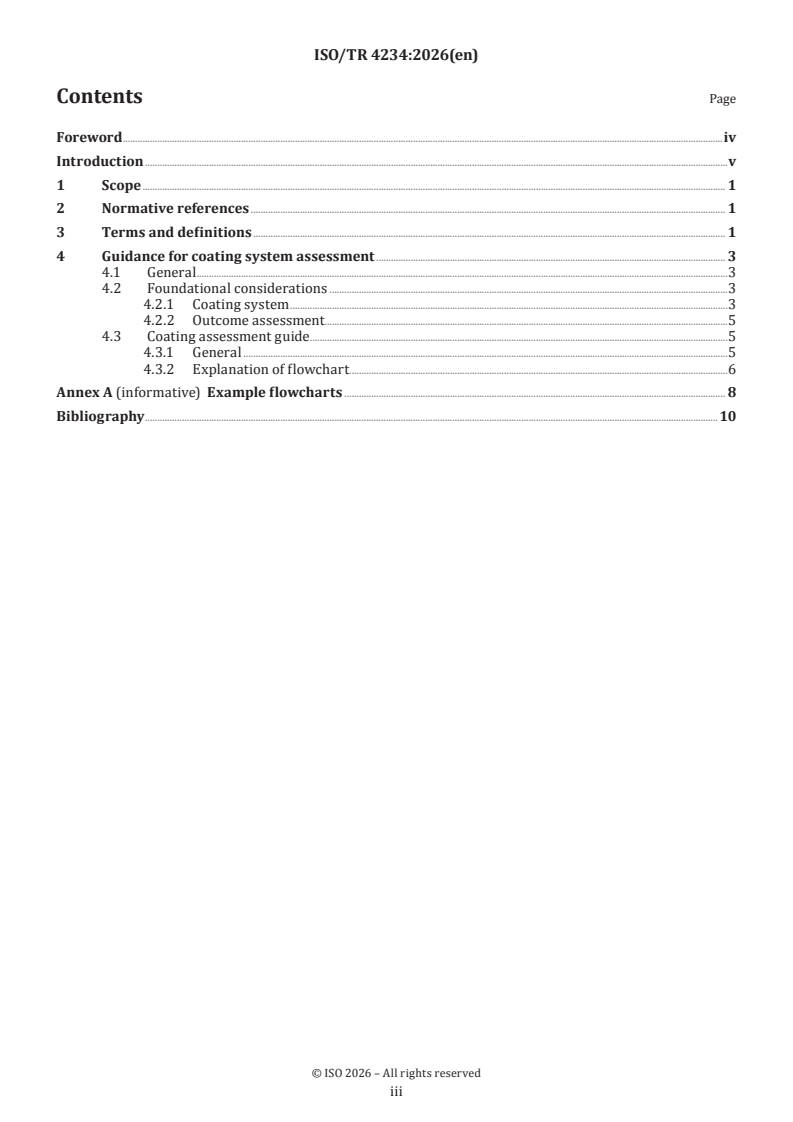

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Guidance for coating system assessment . 3
4.1 General .3
4.2 Foundational considerations .3
4.2.1 Coating system .3
4.2.2 Outcome assessment.5
4.3 Coating assessment guide . .5
4.3.1 General .5
4.3.2 Explanation of flowchart.6
Annex A (informative) Example flowcharts . 8
Bibliography .10

iii

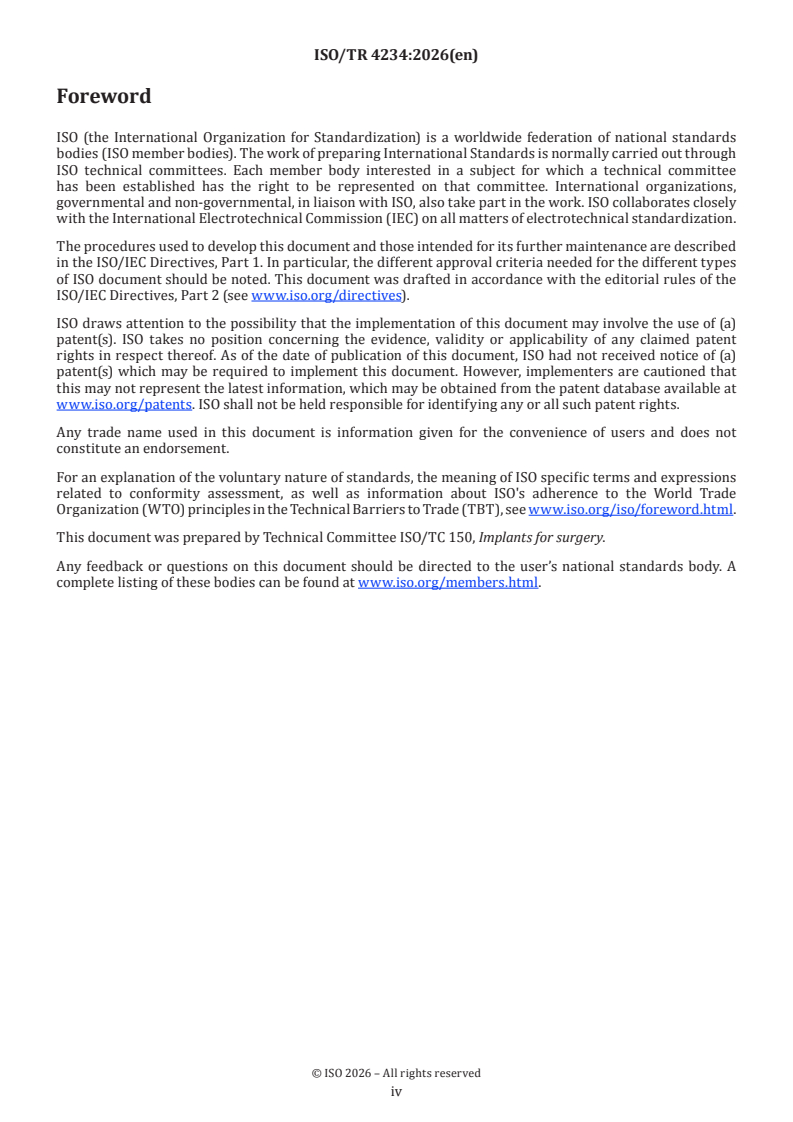

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 150, Implants for surgery.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

iv
Introduction
Coatings for surgical implants are widely used in the medical device industry. These coatings are
sophisticated systems involving the coating, the coating interface and substrate(s) to the coating. Due
to this increasing complexity and variability of coating systems, tools for the consistent assessment of
their performance and suitability to their application (i.e. their service environment) are increasingly
necessary. Specifically, herein the assessment of coating systems is described from design, functional and
manufacturing perspectives.
As described in ISO 17327-1, an implant coating is a layer of material with any different property than
the natural surface of the substrate that it is intentionally added [upon] and it is designed to have specific
physical features such as dimension, phase and coverage as well as mechanical, physical, optical, electrical,
bonding and perhaps other properties such as elution. A coating also can have specific interactions with the
contacting tissues, that can lead to the tissue’s biological reactions to the coating and the tissue’s impact on
the coating.
A coating has multiple intended functions, such as allowing easier delivery, achieving optimal tissue
integration and supporting the proper functioning of the device. The functions of a coating are supported
by a coating’s characteristics and intended use conditions in the patient. This drives the coating evaluation
work into two areas:
a) coating characterization per design; and
b) functional evaluation in context of the finished products for the patients.
Although these two areas can overlap, e.g. lubricity of the lubricious coating where both the designer and
user see the same thing from the patient’s function perspective, these two perspectives can also diverge
significantly from a coating characteristic testing perspective.
A coating and the substrate upon which the coating is placed make up a system that is intimately connected
through the interface such that the coating can have an effect on the substrate and the substrate can have an
effect on the coating. Some coatings are multi-layered, and as such, they can have multiple coating-substrate
and coating-coating interfaces to consider. The substrate and intermediate surface can require pre-
treatment such as roughening and cleaning, the use of process and post coating finishing can be necessary.
Due to this complexity, it is possible that some unintended chemicals, physical structures or properties can
be present in the final product. Therefore, the process is not only considered for producing the coating but
can also impart characteristics to the coating. For this reason, both the pre- and post-coating processes are
evaluated when determining the necessary biological functions and safety of a coating system.
A coating is usually made with a validated manufacturing process, that can involve one or more steps or
technologies. It is common that multiple parties are involved in designing and manufacturing finished
devices for medical uses. All parties have to be aware of the intended use of the materials, components and
product that they produce. Blind use of materials, components and processes to make finished products
cannot only add risks to the quality control but also add burden to be compliant to regulations.

v
Technical Report ISO/TR 4234:2026(en)
Non-active surgical implants — Implant coating — Best
practices for coating system assessment
1 Scope
This document specifies a systematic approach for the development of an assessment plan for coating
systems for potential use for implants. This document provides brief introductory guidance on the coating
system and intended functions. This document describes the assessment process from the context of product
design, manufacturing (including sterilization), product aging and clinical intended use. This assessment
process is intended to help evaluate coating properties that are pertinent to the performance of the coated
devices and uses relevant examples to illustrate the process.
NOTE ISO 17327-1 defines a set of coating properties that can be pertinent for any specific coating.
This document is intended to be a useful tool in the development of an assessment plan of coating systems and
is meant to support communication, e.g. among coatings manufacturer, original equipment manufacturer
and regulatory bodies (through direct interaction or master files).
This document does not address the clinical safety and performance of the surgical implant for which the
coating system is a part.
This document also does not cover specific tests for coating systems, as it is intended to be a structure for
determining important properties and tests that can be appropriate for any given coating system.
NOTE ISO/TR 17327-2 provides several tables listing standards related to coatings including some known test
methods.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 14630, Non-active surgical implants — General requirements
ISO 17327-1, Non-active surgical implants — Implant coating — Part 1: General requirements
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 14630, ISO 17327-1 and the
following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
implant coating
surface coating (3.2) or surface modification (3.3)
Note 1 to entry: Implant coating is considered a constituent of an implant.

Note 2 to entry: A laminate, i.e. a composite material made of multiple layers of the same or different materials with
the same or different internal structures assembled sandwich-like and bonded by heat, pressure, welding, soldering
or adhesives, is not in itself considered an implant coating. But the exposed surface of the laminate can be an implant
coating.
Note 3 to entry: A covering is not considered an implant coating. For example, additional material (e.g. a graft) added
to a structure (e.g. a stent) specifically to bridge elements of the structure for the sole purpose of reducing the
permeability of the structure.
[SOURCE: ISO 17327-1:2018, 3.1]
3.2
surface coating
layer of material with any different property than the
...
