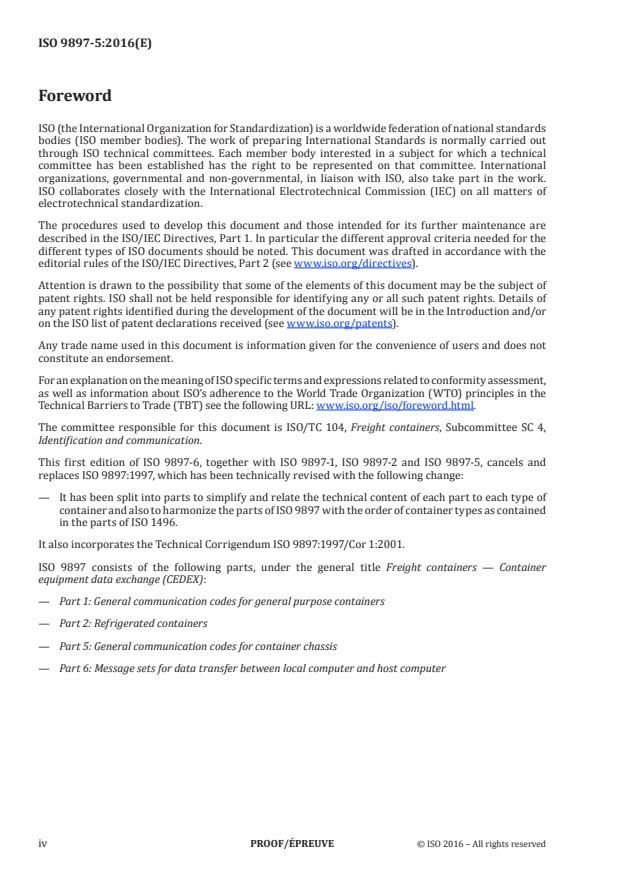

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity assessment,
as well as information about ISO’s adherence to the World Trade Organization (WTO) principles in the
Technical Barriers to Trade (TBT) see the following URL: www.iso.org/iso/foreword.html.
The committee responsible for this document is ISO/TC 104, Freight containers, Subcommittee SC 4,
Identification and communication.
This first edition of ISO 9897-6, together with ISO 9897-1, ISO 9897-2 and ISO 9897-5, cancels and
replaces ISO 9897:1997, which has been technically revised with the following change:
— It has been split into parts to simplify and relate the technical content of each part to each type of
container and also to harmonize the parts of ISO 9897 with the order of container types as contained
in the parts of ISO 1496.
It also incorporates the Technical Corrigendum ISO 9897:1997/Cor 1:2001.
ISO 9897 consists of the following parts, under the general title Freight containers — Container
equipment data exchange (CEDEX):
— Part 1: General communication codes for general purpose containers
— Part 2: Refrigerated containers
— Part 5: General communication codes for container chassis
— Part 6: Message sets for data transfer between local computer and host computer
iv PROOF/ÉPREUVE © ISO 2016 – All rights reserved

INTERNATIONAL STANDARD ISO 9897-5:2016(E)
Freight containers — Container equipment data exchange
(CEDEX) —
Part 5:
General communication codes for container chassis
1 Scope
This part of ISO 9897 specifies general communication codes for container chassis and equipment data
exchange (CEDEX).
It is intended for business entities for use in communications relating to freight container transactions.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 3166:1993, Codes for the representation of names of countries
ISO 6346:1995, Freight containers — Coding, identification and marking
ISO 9897-6:2010, Freight containers — Container equipment data exchange (CEDEX) — Message sets for
data transfer between trading partners and systems
UN/C-FACT Draft Directory and Standard Directory
3 Principle
In ISO 9897, codes are assigned to pieces of information called “data elements,” which are commonly
used in transactions relating to freight containers. These data elements are named and defined, and
each element is assigned a CEDEX alphabetical or alphanumeric code. Separate code lists for each type of
information (damage, component, repair, location, etc.) are maintained. A code may be reused in several
different code lists, but a code is never used for more than one data element within a single code list.
The data element may refer to the material of a container. For example, CEDEX code “ST” in material
type code list (Annex E) stands for “Steel, carbon.” A code may define the component of the container
that is damaged, its location, or its operating defect, depending on which data element is being defined.
A selection is made from the appropriate code list to indicate the component, location, or defect. Other
coded data elements indicate essential physical characteristics of the container and information
pertinent to the use and management of the container, such as names and addresses of owners.
It can be seen from these examples that the text of a message can be substantially reduced in length
by using the CEDEX codes instead of plain language. Use of the CEDEX codes results in messages much
reduced in length, transmission time, and communication cost, yet conveying information as complete
as a much longer plain-language message.
Through proper programming of a computer, a CEDEX-encoded message can be printed out in plain
language for the benefit of the communicators, if so desired, or it can be left in its encoded form. The
personnel using the code routinely will develop the skill of being able to read messages in coded form;
in fact, experience using the code has borne out this assertion. Also, many operators will not require
ISO 9897-5:2016(E)
use of all CEDEX codes assigned in ISO 9897, but only a portion of them due to the limited variety of
containers and container chassis in their domain.
Specific information about the manufacturer, type, and model of a container or container chassis and its
equipment is contained in the message (see 4.2.2).
4 Data elements and codes
4.1 Data elements
Data elements and corresponding code sets required to describe equipment components, their
condition, repair methods, etc are included in the appropriate Annex shown in Table 1.
4.2 Data assignments
4.2.1 CEDEX codes
All code assignments of CEDEX shall be taken as obligatory. That is, an operator shall not pick and
choose alternative codes unilaterally, nor depart from the established protocol, nor introduce new
codes without having registered the codes in accordance with 4.3.
However, two trading partners may agree mutually to use alternative codes if necessary codes are not
included in this part of ISO 9897. It is strongly recommended that such code be registered in accordance
with 4.3 as soon as possible after introduction.
4.2.2 Message sets
Message sets as per ISO 9897-6 are alternative interface messages used for electronic data interchange
transmission. An owner or operator can pick and choose amongst other standards and the standard
serves as a list of required and optional data elements.
The specific information about the manufacturer, type, and model of a container or container chassis
and its equipment is contained in the message sets.
ISO 9897-6:—, Annex A of describes the manner by which a directory of users is developed. The
directory is maintained by the Bureau International des Containers et du Transport Intermodal (BIC)
listed as BIC-LOCODES at www.bic-code.org.
2 PROOF/ÉPREUVE © ISO 2016 – All rights reserved

ISO 9897-5:2016(E)
Table 1 — Data elements and code sets
Data elements Code set
Message type See Annex A
Full/empty indicator (container) See Annex B
Structural condition (container) See Annex B
Repair condition (container) See Annex B
Outside coating (container) See Annex B
Inside coating (container) See Annex B
Damage location See Annex C
Damage type See Annex D
Material type See Annex E
Repair type See Annex F
Measure unit specifier See Annex G
Work scale (standard time factor) See Annex G
Responsibility (for repair action) See Annex H
Component for container chassis See Annex I
Mapping table of ISO to AAR Codes See Annex J
4.3 Updating data elements
The ISO Council has, in accordance with the provisions of the Directives for the technical work of
ISO, designated the Bureau International des Containers et du Transport Intermodal (BIC) as the
Registration authority for the data elements:
Registration authority for ISO 9897
Bureau International des Containers et du Transport Intermodal (BIC)41, rue Réaumur
FR 75003 Paris
France
Phone: +33 1 47660390
Telefax: +33 1 47660891
E-mail: bic@bic-code.org
www.bic-code.org
Additional data elements will be added to Table 1 at the request of international organizations, ISO/TC
104 member bodies, and approval of TC 104/SC 4. The actual process of registration will be performed
by the TC 104/SC 4 Secretariat in consultation with the experts of TC 104/SC 4.
Each additional data element will be allocated an alphabetic or alphanumeric code, not currently used
within the same code list covering a type of data.
ISO 9897-5:2016(E)
Annex A
(normative)
Code — Message types
Numerical code Name Description Message
a,b
01050 Damage/repair estimate Description of damages and repair methods; DESTIM
authorization for repair work to proceed
c
01060 Damage/repair estimate Description of damages and repair methods; WESTIM WEST-
c
authorization for repair work to proceed IMDT
a
To be used for electronic data interchange transmissions. See appropriate message descriptions published by
UN/C-FACT to determine messages to which the codes in this standard may apply. Further message types and
equivalent EDIFACT codes will be added as released by C-FACT TBG3.
b
EDIFACT codes, message standards (including the relevant message type codes) are controlled by UN/C-FACT,
a subsidiary organization to UN/ECE/WP.4. ISO has assented to this arrangement via a memorandum of under-
standing between ISO and UN/ECE.
c
To be used for electronic data interchange transmissions. See appropriate message descriptions in ISO 9897-6.
The messages of ISO 9897-6 are developed for trading partner systems that do not support EDI. These messages
are also used for import and export of data between systems.
4 PROOF/ÉPREUVE © ISO 2016 – All rights reserved

ISO 9897-5:2016(E)
Annex B
(normative)
Structural condition, repair condition, outside coating, inside
coating, full/empty indicator
B.1 Structural condition, repair condition, outside coating, inside coating
Numerical code Name Description Message
01110 Bad Inferior quality or state of structural parts, B
workmanship, surface treatment, etc.
01120 Poor Poor quality or state of structural parts, P
workmanship, surface treatment, etc.
01130 Medium Average or acceptable quality or state of M
structural parts, workmanship, surface treat-
ment, etc.
01140 Good Good quality or state of structural parts, G
workmanship, surface treatment, etc.
01150 Excellent Excellent quality or state of structural parts, X
workmanship, surface treatment, etc.
01110 Bad Inferior quality or state of structural parts, B
workmanship, surface treatment, etc.
01120 Poor Poor quality or state of structural parts, P
workmanship, surface treatment, etc.
01130 Medium Average or acceptable quality or state of M
structural parts, workmanship, surface treat-
ment, etc.
B.2 Full/empty indicator
Numerical code Name Description Message
01160 Empty Empty condition of equipment E
01170 Full Loaded condition of equipment F
ISO 9897-5:2016(E)
Annex C
(normative)
Damage location — Location coding convention for container
chassis
C.1 First character
The first character of the location code for all container chassis is always C.
C.2 Second character
The second character defines the major assembly of the container chassis. The relevant codes are:
Axle (full width) A
Bumper (rear end) area B
Frame (main) F
Frame (extension) Y
Kingpin/grid/upper coupler K
Landing gear G
Left wheel(s) L
Miscellaneous Z
Right wheel(s) R
Subframe/suspension U
Unspecified assembly N
Whole unit X
6 PROOF/ÉPREUVE © ISO 2016 – All rights reserved

ISO 9897-5:2016(E)
C.3 Third and fourth characters
On all container chassis, the third and fourth characters indicate the section of the relevant assembly
(defined by the second location code character) affected. Acceptable characters are shown in the
table below:
SECOND CHARACTER: THIRD CHARACTER FOURTH CHARACTER
Assembly (code)
Axle-full width (A) N: Not applicable C: Centre axle (triaxle unit)
X: All wheels on axle F: Front axle
N: Not specified
R: Rear axle
X: All axles
Bumper-rear end (B) L: Left half N: Not applicable
N: Not specified
R: Right half
X: Both halves
Frame (main) (F) Rearmost damaged section (identify left Forwardmost damaged section:
half, right half, or both halves as appli- Same codes as third character, except N
cable): also used when damage is limited to a
single section
1: Aft section, left half (aft or forward-
most point on running gear or slider
range if applicable)
2: Central section, left half (between
landing gear and aft section)
3: Forward section, left half (forward of
landing gear)
4: Aft section, right half
5: Central section, right half
6: Forward section, right half
7: Aft section, both halves
8: Central section, both halves
9: Forward section, both halves
N: Not specified
X: Entire frame
Frame extension (Y) L: Left half F: Front axle
N: Not specified N: Not specified
R: Right half R: Rear half
X: Both halves X: Both halves
Kingpin/grid/upper cou- L: Left half F: Front axle
pler (K)
N: Not specified N: Not specified
R: Right half R: Rear half
X: Both halves X: Both halves
ISO 9897-5:2016(E)
SECOND CHARACTER: THIRD CHARACTER FOURTH CHARACTER
Assembly (code)
Landing gear (G) L: Left half N: Not applicable
N: Not specified
R: Right half
X: Both halves
Left wheel(s) (L) I: Inside wheel C: Centre axle (triaxle unit)
N: Not applicable F: Front axle
O: Outside wheel N: Not specified
X: Both inside and outside wheels R: Rear axle
X: All axles
Miscellaneous (Z) N: Not applicable N: Not applicable
Right wheel(s) (R) I: Inside wheel C: Centre axle (triaxle unit)
N: Not applicable F: Front axle
O: Outside wheel N: Not specified
X: Both inside and outside wheels R: Rear axle
X: All axles
Subframe/suspension (U) L: Left half F: Front axle
N: Not specified N: Not specified
R: Right half R: Rear half
X: Both halves X: Both halves
Unspecified assembly (N) N: Not applicable N: Not applicable
X: Entire assembly X: Entire assembly
Whole unit (X) X: Entire assembly X: Entire assembly
8 PROOF/ÉPREUVE © ISO 2016 – All rights reserved

ISO 9897-5:2016(E)
a) Main examples b) Rear bumper example
c) Frame extension examples (extensibles or d) Kingpin/grid/upper coupler examples
20’ sliders)
e) Landing gear examples (front view) f) Wheels and axles examples (triaxle shown)
Figure C.1 (continued)
ISO 9897-5:2016(E)
g) Subframe and suspension examples

a
Left.
b
Right.
c
Front.
d
Rear.
e
Center.
f
Slide range.
Figure C.1 — Examples of location coding for container chassis
10 PROOF/ÉPREUVE © ISO 2016 – All rights reserved

ISO 9897-5:2016(E)
Annex D
(normative)
Damage types
Numerical code Name Description CEDEX code
04010 Bald Tyre is bald or worn to less than legal tread WB
depth remaining
04020 Bent Component is damaged by being bent BT
04030 Bowed Component is damaged by being bowed. Usu- BW
ally damage is gradual over the length of the
component
04040 Blocked Drain, tube, outlet, etc. is blocked BK
04050 Blowout Tyre is unusable due to a blowout BL
04060 Broken/split Component is damaged by being broken or split BR
04065 Bulged Weakened wall permitting formation of a BU
bulge due to internal pressure
04069 Burned Component whose surface is damaged by burns BN
04070 Burned out Electrical component is burned out BO
04080 Casing/tread separation Casing or tread has separated from the car- TS
cass of the tyre
04100 Contaminated Equipment is rendered unsuitable for cargo CT
because of contamination by chemicals or
other cargo products, or by infestation
04110 Corroded/rusty Component is corroded or rusty CO
04115 Cracked Crack apparent either in surface or through CK
part or all of component profile
04117 Cracked weld Welding seam is damaged by being cracked CW
04120 Cut Component is damaged by being cut CU
04130 Curbing Tyre is rendered unusable by being damaged CB
in the shoulder area by running up on the curb
04150 Delaminated Component, usually of wood, is damaged due DL
to separation of laminations
04160 Dent Component is damaged by being dented DT
04170 Flat/puncture Tyre is deflated due to being punctured FP
04180 Flat spots Tyre has spots or areas where tread is worn FS
below legal limits for tread depth remaining
04190 Frozen Component is inoperable by being frozen or FZ
corroded
04200 Gouged Component is damaged by being gouged GD
04230 Holed Component is damaged by being holed HO
04240 Improper repair A repair that does not conform to owner’s IR
requirements or industry standards
04250 Leak Equipment or component leaks LK
04260 Loose Component is loose LO
04270 Low fluid level Component or system has less than required LF
amount of fluid
ISO 9897-5:2016(E)
Numerical code Name Description CEDEX code
04280 Markings/labels Labels, marks, logos, and graffiti, etc., not ML
required by owner
04290 Motor failure Motor will not function MF
04300 Misaligned Component, usually container chassis tandem, MA
is misaligned
04310 Mismatched Two adjacent tyres have different diame- MM
ters and are, therefore, not acceptable as
matched pair
04320 Missing/lost Component is missing or lost MS
04330 Nails Equipment is rendered unsuitable for cargo NL
due to nails, usually in flooring
04340 Not within ISO dimensions Equipment is not usable because it is no longer NI
within the ISO dimensional envelope
04350 Not to TIR requirements Equipment or component no longer complies NT
with TIR regulations
04355 Not applicable A condition for which no specific damage ZZ
type applies
04360 Not as required by owner Equipment or component no longer complies NO
with owner’s requirements
04365 Not as required by user Equipment or component no longer complies NV
with user’s requirements
04380 Oil saturated Component, usually flooring, is damaged by OL
being heavily contaminated with oil
04390 Oil stains Component, usually flooring, is damaged by OS
being spotted with oil
04400 Other unacceptable repairs Any repair deemed unacceptable by the owner OU
or for reasons not specifically covered
04410 Out-of-date Renewal of a periodic inspection, test or docu- OD
ment is overdue
04420 Over-inflated Tyre is damaged by being run while over-in- OI
flated
04430 Under-inflated Tyre is damaged by being run while un- UI
der-inflated
04440 Pin holes Component is damaged with minute holes PH
04450 Run flat Tyre is damaged by being run with very little RF
or no inflation
04455 Scratched/abraded moving Moving part (bearing, piston, etc.) scored, SA
part scratched, or abraded by friction
04460 Separated Brake lining has separated from the brake shoe SP
04470 Short/open circuit Electrical system is inoperable due to a short SH
or open circuit
04480 Shrunk Component, usually tarpaulin, cover, tilt, or SR
flooring, is damaged by shrinkage
04490 Stretched Component, usually tarpaulin, cover, or tilt is SD
damaged by stretching
04500 Switched Tyre is not original and is not comparable to SW
the other tyres on the container chassis
04510 Uneven tread Adjacent tyres have different tread depth TU
remaining
04520 Paint failure Component suffers from a breakdown of the PF
paint system
04540 Warped Component is damaged by being warped WA
12 PROOF/ÉPREUVE © ISO 2016 – All rights reserved

ISO 9897-5:2016(E)
Numerical code Name Description CEDEX code
04550 Weathered Tyre is rendered unusable due to long expo- WV
sure to weather
04560 Wear and tear The unavoidable deterioration of a compo- WT
nent during usage under proper operating
conditions
04570 Worn Component is rendered unusable by being WN
worn. For a tyre, worn to below legal tread
depth remaining
04580 Wrong material Previous repair or replacement was carried WM
out using the wrong material
ISO 9897-5:2016(E)
Annex E
(normative)
Material types
Numerical code Name Description CEDEX code
05000 Material unspecified Material is not specified MU
05100 Steel unspecified Material is steel of no specific type SU
05110 Steel, carbon Material is of carbon steel ST
05150 Steel, galvanized Material is galvanized steel SG
05200 Aluminium unspecified Material is aluminium of no specific type AU
05400 Plastic Plastic, unspecified type PU
05410 Plastic reinforced Plastic reinforced with fibres PE
05440 Rubber, unspecified Rubber, unspecified type RU
14 PROOF/ÉPREUVE © ISO 2016 – All rights reserved

ISO 9897-5:2016(E)
Annex F
(normative)
Repair type
Numerical code Name Description CEDEX code
06001 No action necessary The damage to the component is within ac- NA
ceptable limits and will not require repair
06002 Special repair The work necessary to repair the component SP
is not described by another single repair
code; a series of different repair steps may be
involved
06005 Technical bulletin A specific schedule of work instructions TB
completed has been completed. May apply to a set of
instructions issued by the owner or manufac-
turer detailing procedures for a modification,
repair, warranty etc.
06010 Abrade and paint To remove rust/loose paint using abrasive AB
grit/shot blast and paint
06015 Mechanical cleaning To clean the surface of a component by me- MC
(scrape off paint) chanical means, (i.e. scrape or grind off paint)
06060 Brand Apply a name/initial or other mark to tyres BD
to denote ownership or other information
06070 Chemical clean To clean a component with chemical wash CC
06075 Deodorise Neutralize odour in container DO
06080 Drain Drain the system DR
06090 Drain and fill Drain the system and fill with appropriate DF
fluid
06100 Inspect and report Inspect equipment or component for proper IP
function, damage, or reason for non-opera-
tion, and re-estimate, an additional report
will follow on completion
06110 Free To free a frozen, seized, or stiff component by FR
means of force, lubricants, or heat
06112 Free-up and lubricate To free a frozen, seized, or stiff component by LF
means of force, lubricants, or heat, and then
apply lubricant
06115 Handling Equipment must be handled in order to make HN
available, but without other repair action
06120 Insert To remove and replace part of the cross sec- IT
tional profile of a component over part of its
length and/or width, the replacement portion
is butt welded to the original component
06125 Install To fit a component for the first time IN
06127 Reinforce To provide additional support to a component RI
06130 Lubricate To apply lubrication LC
06135 Modifications, miscellane- To alter a component such that its specifica- MD
ous tion is changed
06138 Not applicable A condition for which no specific repair ZZ
type applies
ISO 9897-5:2016(E)
Numerical code Name Description CEDEX code
06150 Paint To apply paint PA
06155 Overlay Cover a surface with a thin layer of the same OX
or similar material
06160 Partial refurbishment Remove localized corrosion and repaint the PR
surface of the equipment fully or partially
06170 Patch Remove and replace a part of the PT
cross-sectional profile of a component, over
only part of the component’s length and/
or width. A patch is overlapped with and
fillet-welded to the original component. The
exterior of the patch is continuously welded
to the original component. The interior may
be continuously or skip-welded with sealer
applied to the seams between skip welds
06180 Preventive maintenance Maintenance carried out under the owner’s VM
instruction
06190 Re-align a) Remove or unfasten a component, usually RA
doors, and refit to bring into alignment
b) Move container chassis tandem to bring
into alignment
06195 Cross measurement To measure and compare the dimensions of a CM
container chassis to ensure it is both dimen-
sional correct and square
06200 Rebuild Strip, clean, lubricate, and reassemble a me- RB
chanical component
06205 Re-bush To remove and refit a bush(ing) into a com- RU
ponent
06210 Recharge Supply a full charge of fluid to system CH
06220 Recondition/refurbish To refurbish the container chassis in accord- RX
ance with the owner’s instructions
06230 Refit To refit a removable component to its proper FT
position
06250 Re-mark Replace markings MK
06270 Repairs prior to refurbish- Repairs ordered by owner prior to refur- PV
ment bishment
06280 Remove (without replace- To remove and not replace a component RM
ment)
06290 Remove and refit To remove and refit after repair RR
06295 Remove glue and tape To clean surfaces of glue and tape, including GT
their residues
06297 Remove markings To remove unwanted labels, marks, logos, MV
and graffiti
06300 Replace Remove and replace the complete cross-sec- RP
tional profile of a component over its entire
length and width
06305 Fit part from owner’s stock Renew using a component from the owner’s EX
stock
06310 Re-rate To modify data relating to maximum gross RT
mass or tare on any data plate or weight
marking
06315 Re-secure To reapply or tighten fasteners on loose RE
components
16 PROOF/ÉPREUVE © ISO 2016 – All rights reserved

ISO 9897-5:2016(E)
Numerical code Name Description CEDEX code
06320 Rewire Repair an electrical component or system by RW
rewiring
06325 Sand To smooth a surface by sanding SD
06330 Seal/reseal a) To repair pin holes in a tarpaulin cover or SE
tilt using sealant
b) To apply sealant to or around component
06340 Section To remove and replace the complete cross SN
sectional profile of a component over part of
its length and/or width
06350 Splice To repair by section using rivets with, usual- SI
ly, a doubler piece or backing plate at the joint
06360 Straighten To repair by straightening GS
06370 Straighten and re-secure To repair by straightening and re-securing RS
the component when repaired
06380 Straighten and weld To repair by straightening a component and GW
re-welding it into position
06390 Steam clean To clean the component, usually the interior/ SC
floor, using high pressure steam
06400 Surface preparation and To remove rust/loose paint using grinding/ PS
paint scraping and paint
06420 Top up Refill fluid to correct level TP
06430 Water wash To clean the component, usually the floor, WW
using water
06440 Weld To repair by welding WD
06450 Grind and weld To repair by grinding and welding XW
06460 Conversion To amend the character or function of a com- CN
ponent/unit
06470 Dry out To remove moisture, i.e. the floor or the inte- DU
rior of the unit
06480 Combined repair item A series of repair processes which overlap CR
06500 Temporary repair Repair for temporary securement of cargo TR
worthiness until a permanent repair can be
made at a suitable repair shop
06510 Off-hire No action the container chassis is designated OF
for off-hire
ISO 9897-5:2016(E)
Annex G
(normative)
Measure unit specifier, repair size dimension and work scales
G.1 Measure unit specifier
Numerical code Name Description CEDEX code
07010 Inches Measurement in inches INH
07012 Square inches Measurement in square inches SQI
07014 Cubic inches Measurement in cubic inches CUI
07020 Feet Measurement in feet FOT
07022 Square feet Measurement in square feet SQF
07024 Cubic feet Measurement in cubic feet CUF
07030 Millimetres Measurement in millimetres MMT
07032 Square millimetres Measurement in square millimetres SQT
07034 Cubic millimetres Measurement in cubic millimetres CUT
07040 Centimetres Measurement in centimetres CMT
07042 Square centimetres Measurement in square centimetres SQC
07044 Cubic centimetres Measurement in cubic centimetres CUC
07050 Metres Measurement in metres MTR
07052 Square metres Measurement in square metres SQM
07054 Cubic metres Measurement in cubic metres CUM
07060 Pounds Measurement in pounds LBS
07070 Kilograms Measurement in kilograms KGS
07080 Pints Measurement in pints PNT
07090 Litres Measurement in litres LTR
07100 Hours Measurement in hours HRS
07110 Minutes Measurement in minutes MTS
07120 Quantity Measurement in quantity QTY
G.2 Size of repair
Size of repair, where required, is defined as either length, length and height, or length and width.
EXAMPLE
Length only 15
Length and height 1 500 x 100
Length and width 60 x 30
18 PROOF/ÉPREUVE © ISO 2016 – All rights reserved

ISO 9897-5:2016(E)
G.3 Work scale
G.3.1 The work scale is a factor related to the standard time to reflect ease or difficulty of repair. The
factor is a percentage shown as 2-numeric. In normal cases, it may range from 05 (i.e. 50 % easier work)
to 10 (i.e. standard time) to 15 (i.e. 50 % over the standard time needed).
G.3.2 The material scale is a factor related to the standard material amount to reflect differences of
material used for combined repairs. The factor is a percentage shown as 2-numeric. In normal cases, it
may range from 05 (i.e. 50 % easier work) to 10 (i.e. standard time) to 15 (i.e. 50 % over the standard
time needed).
ISO 9897-5:2016(E)
Annex H
(normative)
Responsibility
Numerical code Name Description CEDEX code
08010 Manufacturer The repair is necessary to correct a man- H
ufacturer’s defect outside the warranty or
guarantee period
08020 Depot The repair is necessary to correct damage/ D
negligence by depot and is for the account of
the depot
08030 Terminal The repair is necessary to correct damage/ S
negligence by terminal and is for the account
of the terminal
08040 User The repair is for the user’s / lessee’s account U
08050 Owner The repair is for the owner’s account O
08060 Third party The repair should be charged to a party T
responsible for the damages, usually not
known at time of damage assessment
08070 Warranty The repair is required under a manufactur- W
er’s warranty within the agreed period
08080 DPP/insurance The repair costs are covered by insurance or I
an insurance programme
08090 Consignor/consignee The repair costs are to be recovered from C
consignor and/or consignee
08100 Trucker The repair costs are to recovered from the V
haulier
20 PROOF/ÉPREUVE © ISO 2016 – All rights reserved

ISO 9897-5:2016(E)
Annex I
(normative)
Components of the container chassis
Numerical code Name Description CEDEX code
90010 Air coupling Fittings for connecting air brake lines be- KAC
tween vehicles
Alternative: Gladhand, 90310
90012 Air hose support spring A device used to support brake hoses (com- KHS
ponent 90090) or brake lines (component
90092 and 90096) so they do not chafe on
container chassis components or pavement
90014 Air ride suspension assem- A suspension which utilizes flexible KAR
bly (without bladder) pneumatic cushioning bladders, which are
pressurized by tractor air and regulated by
height control valves or variable pressure
regulators
90015 Air suspension bladder The flexible pneumatic cushioning device, KAB
pressurized by tractor air, in air ride suspen-
sion assembly
90016 Anchor pin The pin which secures two brake shoes in a KAP
foundation brake, and about which the brake
shoes rotate when brake application is made
90017 Anti-skid controller The computerized control module in an an- KSC
ti-skid brake assembly
90018 Anti-skid assembly Device which, when incorporated into a ser- KSK
vice brake system, automatically controls the
degree of rotational wheel slip at one or more
wheels of an undercarriage during braking
90020 Axle assembly Rectangular, square, or circular steel tubes KAX
with spindles pressed onto the ends about
which wheels rotate
90025 Axle nut (wheel axle) The nut on the end of a wheel axle which KAN
retains the wheel bearings, wheel bearing
cups, and wheel bearing lock washer; code
may also be used for intermediate nuts se-
curing wheel bearings to the axle
90030 Axle spindle The machined shaft at each end of the axle KAS
90040 Bicycle guard A railing, mounted along the outside of the KBG
container chassis between the landing gear
assembly and the rear axle assembly, to
guard against bicyclists accidentally falling
underneath
90050 Bolster A transverse structural member designed to KBO
support the container in a fixed position
90055 Bolster gusset support/ A gusset or brace which stiffens a container KGU
bracing chassis bolster to resist longitudinal shocks
90060 Brake assembly The brake system KBK
90070 Brake Parts of the braking system in which the KBC
forces opposing the movement or tendency
to movement of a vehicle are produced
ISO 9897-5:2016(E)
Numerical code Name Description CEDEX code
90072 Brake chamber mounting A bracket attached to an axle for mounting KBM
bracket the spring brake (component 90780)
90074 Brake chamber push rod A rod which exists from chamber of the KPR
spring brake (component 90780) and ex-
tends outward upon brake application to
rotate the brake slack adjuster and brake
S-cam shaft, in turn engaging brake shoe
lining and brake drum
90076 Brake clevis A U-shaped metal shackle with the ends KCV
drilled to receive a clevis pin, which attaches
the brake chamber push rod to the brake
slack adjuster
90078 Brake clevis pin A pin which inserts through the drilled ends KCP
of the brake clevis, to retain the brake clevis
90080 Brake drum The cylindrical rotating member of a wheel KBD
acted upon by frictional material (brake
shoes) of the brake system
90090 Brake hoses A flexible or rigid conductor for the trans- KBH
mission or air pressure in the brake system
90092 Brake line, emergency The hose which carries air from the tractor KBE
compressor through the container chassis
brake valve(s) to the reservoir (component
90680)
90096 Brake line, service The hose which transmits the brake actuat- KSR
ing signal from the tractor to the container
chassis brake valve(s)
90100 Brake lining The lining of the brake shoes that act upon KBL
the brake drum
90102 Brake quick release valve A valve placed in the service brake line to KQR
accelerate the release of pressurized air in
the line
90103 Brake rollers Cylindrical rolling pins in the brake shoe KRO
assembly which, upon brake application, roll
along the S-cam of the brake S-cam shaft,
spreading the brake shoes apart, and causing
contact of brake shoes and brake drum
90104 Brake S-cam bushing A hollow cylinder which reduces friction KCH
at the rotation point of the brake S-cam
through the brake spider
90105 Brake S-cam shaft A shaft having an S-shaped cam which moves KCS
brake rollers, thereby spreading shoes apart
to make linings contact the brake drum
90106 Brake shoe (with lining) A curved, flange-stiffened metal plate with KSE
friction-absorbing material attached, which
contacts the brake drum to cause braking
90108 Brake shoe assembly (with An assembly consisting of two lined brake KSA
lining) shoes, brake rollers, and miscellaneous hard-
ware including brake anchor pin, other pins,
and springs
90110 Brake spider The centre plate, either bolted or welded KBS
to the axle, to which the brake assembly is
attached
90115 Automatic airing system Automatic airing system PAS
90116 Brake ABS valve Brake ABS valve KAV
90120 Bulb Light bulb for lights KSG
22 PROOF/ÉPREUVE © ISO 2016 – All rights reserved

ISO 9897-5:2016(E)
Numerical code Name Description CEDEX code
90130 Bumper A structure designed to provide rear-end KBP
impact protection
90132 Bumper filler plate A plate which fits between the uprights in KBF
the bumper, to which the licence plate may
be attached
90134 Bumper uprights The vertical stiffening members in the KBU
bumper
90136 Bumper crosspiece The horizontal member at the base of the KBQ
bumper, which is attached to the bumper
uprights
90138 Container chassis Entire container chassis, including sliding MCH
mechanism and running gear
90140 Circuit breaker An electrical overload protection device KCB
which opens a circuit upon sensing excessive
voltage or heat
90150 Certification label A label permanently affixed, usually to the KCL
forward left side of the container chassis,
stating that the vehicle conforms to all appli-
cable safety standards in effect on the date
of original manufacture (for example in the
United States, as required by the National
Highway Traffic Safety Administration)
90160 Clearance lights Lights which show to the front or rear of a KLT
vehicle, mounted on the permanent struc-
ture of the vehicle as near as practicable to
the upper left and right extreme edges, to
indicate the overall width and height of the
vehicle; the front and rear clearance lights of
a container chassis are sometimes combined
with the front and rear side marker lights,
respectively
90170 Connection box Contains fittings for container chassis emer- KBX
gency and service brake connections and
electrical connector to which the lines from
the towing vehicle may be connected (also
called “Nose box,” 90580)
90180 Container guides A structural member on the front of a con- KCG
tainer chassis to serve as a gathering device
for guiding a container into its proper place
on the container chassis
Alternative: Horn, 90350
90185 Cross-member, container Transverse member in the container
...
