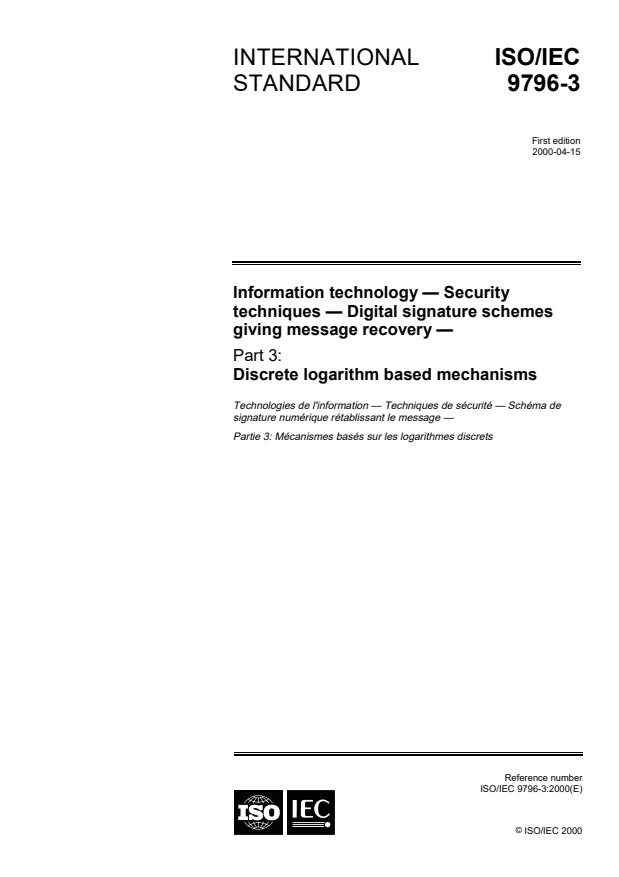

ISO/IEC 9796-3:2000

INTERNATIONAL ISO/IEC
STANDARD 9796-3
First edition
2000-04-15
Information technology — Security
techniques — Digital signature schemes
giving message recovery —
Part 3:
Discrete logarithm based mechanisms
Technologies de l'information — Techniques de sécurité — Schéma de
signature numérique rétablissant le message —
Partie 3: Mécanismes basés sur les logarithmes discrets
Reference number
©
ISO/IEC 2000

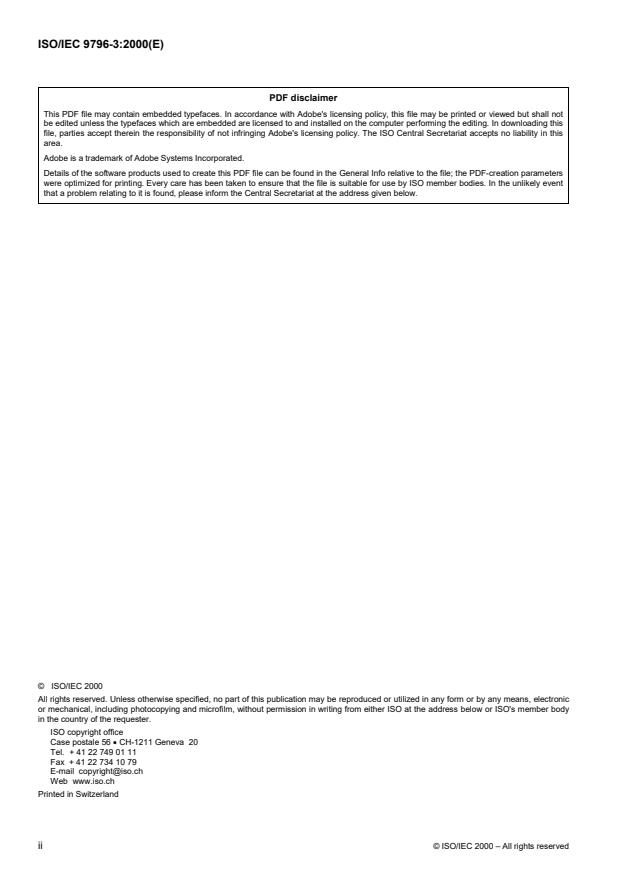

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not
be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading this
file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in this
area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation parameters
were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the unlikely event
that a problem relating to it is found, please inform the Central Secretariat at the address given below.
© ISO/IEC 2000
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic
or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO's member body
in the country of the requester.
ISO copyright office
Case postale 56 � CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 734 10 79
E-mail copyright@iso.ch
Web www.iso.ch
Printed in Switzerland
ii © ISO/IEC 2000 – All rights reserved

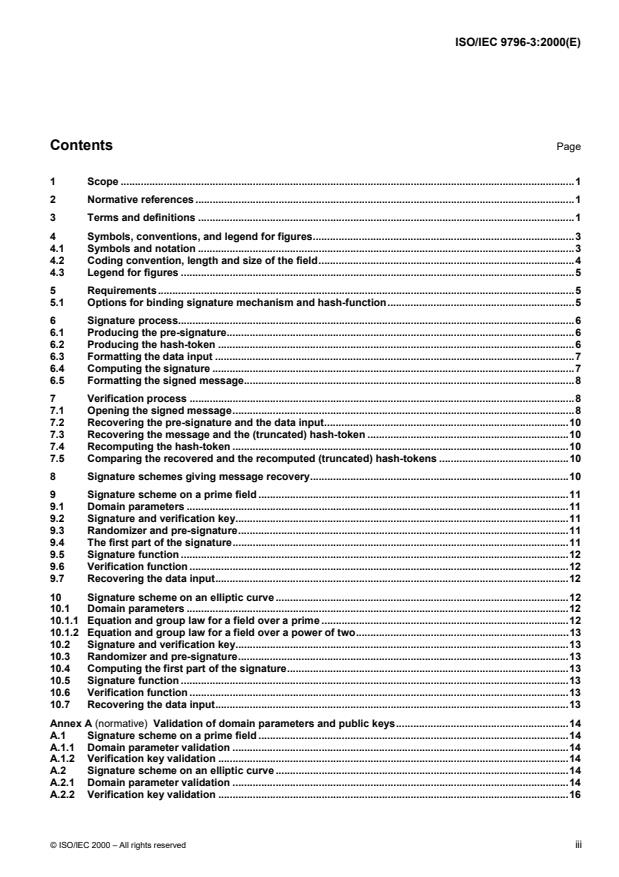

Contents Page
1 Scope .1
2 Normative references .1
3 Terms and definitions .1
4 Symbols, conventions, and legend for figures.3
4.1 Symbols and notation .3
4.2 Coding convention, length and size of the field.4
4.3 Legend for figures .5
5 Requirements.5
5.1 Options for binding signature mechanism and hash-function.5
6 Signature process.6
6.1 Producing the pre-signature.6
6.2 Producing the hash-token .6
6.3 Formatting the data input .7
6.4 Computing the signature .7
6.5 Formatting the signed message.8
7 Verification process .8
7.1 Opening the signed message.8
7.2 Recovering the pre-signature and the data input.10
7.3 Recovering the message and the (truncated) hash-token .10
7.4 Recomputing the hash-token .10
7.5 Comparing the recovered and the recomputed (truncated) hash-tokens .10
8 Signature schemes giving message recovery.10
9 Signature scheme on a prime field .11
9.1 Domain parameters .11
9.2 Signature and verification key.11
9.3 Randomizer and pre-signature.11
9.4 The first part of the signature.11
9.5 Signature function .12
9.6 Verification function .12
9.7 Recovering the data input.12
10 Signature scheme on an elliptic curve .12
10.1 Domain parameters .12
10.1.1 Equation and group law for a field over a prime .12
10.1.2 Equation and group law for a field over a power of two.13
10.2 Signature and verification key.13
10.3 Randomizer and pre-signature.13
10.4 Computing the first part of the signature.13
10.5 Signature function .13
10.6 Verification function .13
10.7 Recovering the data input.13
Annex A (normative) Validation of domain parameters and public keys.14
A.1 Signature scheme on a prime field .14
A.1.1 Domain parameter validation .14
A.1.2 Verification key validation .14
A.2 Signature scheme on an elliptic curve .14
A.2.1 Domain parameter validation .14
A.2.2 Verification key validation .16
© ISO/IEC 2000 – All rights reserved iii

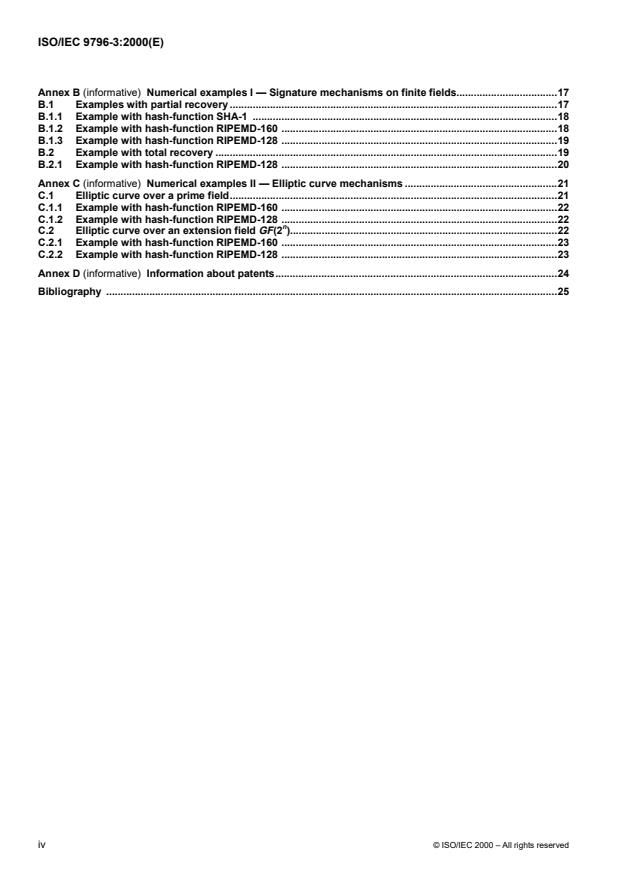

Annex B (informative) Numerical examples I — Signature mechanisms on finite fields.17
B.1 Examples with partial recovery .17
B.1.1 Example with hash-function SHA-1 .18
B.1.2 Example with hash-function RIPEMD-160 .18
B.1.3 Example with hash-function RIPEMD-128 .19
B.2 Example with total recovery .19
B.2.1 Example with hash-function RIPEMD-128 .20
Annex C (informative) Numerical examples II — Elliptic curve mechanisms .21
C.1 Elliptic curve over a prime field.21
C.1.1 Example with hash-function RIPEMD-160 .22
C.1.2 Example with hash-function RIPEMD-128 .22
n
C.2 Elliptic curve over an extension field GF(2 ).22
C.2.1 Example with hash-function RIPEMD-160 .23
C.2.2 Example with hash-function RIPEMD-128 .23
Annex D (informative) Information about patents.24
Bibliography .25
iv © ISO/IEC 2000 – All rights reserved

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical Commission)
form the specialized system for worldwide standardization. National bodies that are members of ISO or IEC
participate in the development of International Standards through technical committees established by the
respective organization to deal with particular fields of technical activity. ISO and IEC technical committees
collaborate in fields of mutual interest. Other international organizations, governmental and non-governmental, in
liaison with ISO and IEC, also take part in the work.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.
In the field of information technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
Draft International Standards adopted by the joint technical committee are circulated to national bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the national bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this part of ISO/IEC 9796 may be the subject of
patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
International Standard ISO/IEC 9796-3 was prepared by Joint Technical Committee ISO/IEC JTC 1, Information
technology, Subcommittee SC 27, IT Security techniques.
This first edition cancels and replaces ISO/IEC 9796:1991, which has been technically revised.
ISO/IEC 9796 consists of the following parts, under the general title Information technology ― Security
techniques — Digital signature schemes giving message recovery:
� Part 2: Mechanisms using a hash-function
� Part 3: Discrete logarithm based mechanisms
Annex A forms a normative part of this part of ISO/IEC 9796. Annexes B to D are for information only.
© ISO/IEC 2000 – All rights reserved v

Introduction
Digital signature mechanisms can be used to provide services such as entity authentication, data origin
authentication, non-repudiation, and integrity of data.
A digital signature mechanism satisfies the following requirements:
� Given only the verification key and not the signature key it is computationally infeasible to produce any
message and a valid signature for this message.
� The signatures produced by a signer can neither be used for producing any new message and a valid
signature for this message nor for recovering the signature key.
� It is computationally infeasible, even for the signer, to find two different messages with the same signature.
NOTE Computational feasibility depends on the specific security requirements and environment.
Most digital signature mechanisms are based on asymmetric cryptographic techniques and involve three basic
operations:
� A process of generating pairs of keys, where each pair consists of a private signature key and the
corresponding public verification key.
� A process using the signature key; called the signature process.
� A process using the verification key; called the verification process.
There are two types of digital signature mechanisms:
� When, for each given signature key, the signatures produced for the same message are the same, the
mechanism is said to be non-randomized (or deterministic, see ISO/IEC 14888-1).
� When, for a given message and a given signature key, each application of the signature process produces a
different signature, the mechanism is said to be randomized.
Digital signature schemes can also be divided into the following two categories:
� When the whole message has to be stored and/or transmitted along with the signature, the mechanism is
named a ”signature mechanism with appendix” (see ISO/IEC 14888).
� When the whole message or a part of it is recovered from the signature, the mechanism is named a ”signature
mechanism giving message recovery” (see ISO/IEC 9796).
NOTE Any signature mechanism giving message recovery, for example, the mechanisms specified in ISO/IEC 9796, can
be converted for provision of digital signatures with appendix. In this case, the signature is produced by application of the
signature mechanism to a hash-token of the message.
The mechanisms specified in ISO/IEC 9796 give either total or partial recovery, aiming at reducing storage and
transmission overhead.
The mechanisms specified in this part of ISO/IEC 9796 use a hash-function for hashing the entire message.
ISO/IEC 10118 specifies hash-functions for digital signatures. If the message is short enough, then the entire
message can be included in the signature, and recovered from the signature in the verification process. Otherwise,
a part of the message can be included in the signature and the rest of it is stored and/or transmitted along with the
signature.
vi © ISO/IEC 2000 – All rights reserved

INTERNATIONAL STANDARD ISO/IEC 9796-3:2000(E)
Information technology — Security techniques — Digital signature
schemes giving message recovery —
Part 3:
Discrete logarithm based mechanisms
1 Scope
This part of ISO/IEC 9796 specifies two randomized digital signature schemes giving message recovery. The
security of both schemes is based on the difficulty of the discrete logarithm problem. The first scheme is defined on
a prime field and the second one on an elliptic curve.
This part of ISO/IEC 9796 also defines a redundancy scheme using hash-codes and specifies how the basic
signature schemes are to be combined with the redundancy scheme.
This part of ISO/IEC 9796 also defines an optional control field in the hash-token, which can provide added security
to the signature.
2 Normative references
The following normative documents contain provisions which, through reference in this text, constitute provisions of
this part of ISO/IEC 9796. For dated references, subsequent amendments to, or revisions of, any of these
publications do not apply. However, parties to agreements based on this part of ISO/IEC 9796 are encouraged to
investigate the possibility of applying the most recent editions of the normative documents indicated below. For
undated references, the latest edition of the normative document referred to applies. Members of ISO and IEC
maintain registers of currently valid International Standards.
ISO/IEC 10118 (all parts), Information technology – Security techniques – Hash-functions.
ISO/IEC 11770-3:1999, Information technology – Security techniques – Key management – Part 3: Mechanisms
using asymmetric techniques.
ISO/IEC 14888-1:1998, Information technology – Security techniques – Digital signatures with appendix – Part 1:
General.
ISO/IEC 15946 (parts 1 and 2, to be published), Information technology – Security techniques – Cryptographic
techniques based on elliptic curves – Part 1: General and Part 2: Digital signatures.
3 Terms and definitions
For the purposes of this part of ISO/IEC 9796, the following definitions apply.
3.1 assignment
[ISO/IEC 14888-1] A data item which is a function of the witness and possibly of a part of the message, and forms
part of the input to the signature function.
3.2 certification authority
[ISO/IEC 11770-3] A centre trusted to create and assign public key certificates. Optionally, the certification authority
may create and assign keys to the entities.
© ISO/IEC 2000 – All rights reserved 1

3.3 collision-resistant hash-function
[ISO/IEC 10118-1] A hash-function satisfying the following property:
� it is computationally infeasible to find any two distinct inputs which map to the same output.
NOTE Computational feasibility depends on the specific security requirements and environment.
3.4 data input
A data item which depends on the entire message and forms a part of the input to the signature function.
3.5 domain parameter
[ISO/IEC14888-1] A data item which is common to and known by or accessible to all entities within the domain.
NOTE The set of domain parameters may contain data items such as hash-function identifier, length of the hash-token,
length of the recoverable part of the message, finite field parameters, elliptic curve parameters, or other parameters specifying
the security policy in the domain.
3.6 hash-code
[ISO/IEC 10118-1] The string of bits which is the output of a hash-function.
3.7 hash-function
[ISO/IEC 10118-1] A function which maps strings of bits to fixed-length strings of bits, satisfying the following two
properties:
� for a given output, it is computationally infeasible to find an input which maps to this output; and
� for a given input, it is computationally infeasible to find a second input which maps to the same output.
NOTE Computational feasibility depends on the specific security requirements and environment.
3.8 hash-token
[ISO/IEC 14888-1] A concatenation of a hash-code and an optional control field, which can be used to identify the
hash-function and the padding method.
NOTE The control field with hash-function identifier is mandatory unless the hash-function is uniquely determined by the
signature mechanism or by the domain parameters.
3.9 message
A string of bits of any length.
3.10 pre-signature
[ISO/IEC 14888-1] A value computed in the signature process which is a function of the randomizer but is
independent of the message.
3.11 public key certificate
[ISO/IEC 11770-3] The public key information of an entity signed by the certification authority and thereby rendered
unforgeable.
NOTE In the context of this part of ISO/IEC 9796 the public key information contains the information about the verification
key and the domain parameters.
3.12 randomized
[ISO/IEC 14888-1] Dependent on a randomizer.
3.13 randomizer
[ISO/IEC 14888-1] A secret data item produced by the signing entity in the pre-signature production process, and
not predictable by other entities.
2 © ISO/IEC 2000 – All rights reserved

3.14 signature
The string of bits resulting from the signature process.
NOTE This string of bits may have internal structure specific to the signature mechanism. The signatures produced by the
mechanisms specified in this part of ISO/IEC 9796 have two parts, of which only the second one depends on the signature key.
3.15 signature function
[ISO/IEC 14888-1] A function in the signature process which is determined by the signature key and the domain
parameters. A signature function takes the assignment and possibly the randomizer as inputs and gives the second
part of the signature as output.
NOTE In the context of this part of ISO/IEC 9796, the assignment is the data input.
3.16 signature key
[ISO/IEC 14888-1] A secret data item specific to an entity and usable only by this entity in the signature process.
3.17 signature process
[ISO/IEC 14888-1] A process which takes as inputs the message, the signature key and the domain parameters,
and which gives as output the signature.
3.18 signed message
[ISO/IEC 14888-1] A set of data items consisting of the signature, the part of the message which cannot be
recovered from the signature, and an optional text field.
3.19 verification function
[ISO/IEC 14888-1] A function in the verification process which is determined by the verification key and which gives
a recomputed value of the witness as output.
3.20 verification key
[ISO/IEC 14888-1] A data item which is mathematically related to an entity's signature key and which is used by the
verifier in the verification process.
3.21 verification process
[ISO/IEC 14888-1] A process which takes as input the signed message, the verification key and the domain
parameters, and which gives as output the result of the signature verification: valid or invalid.
3.22 witness
[ISO/IEC 14888-1] A data item which provides evidence to the verifier.
NOTE In the context of this part of ISO/IEC 9796 the witness is based on a hash-token.
4 Symbols, conventions, and legend for figures
4.1 Symbols and notation
The following symbols and notation are used in this part of ISO/IEC 9796.
D, D' data input, recovered data input, respectively
F finite field
G element of a prime field or point on an elliptic curve
H, H', H" hash-token, recovered (truncated) hash-token, recomputed (truncated) hash-token, respectively
elliptic curve
�
© ISO/IEC 2000 – All rights reserved 3

K randomizer
k, m, n positive integers
L length in bytes of (truncated) hash-token
L size of the field F
F
L ,L ,L , L length in bytes of M , M , P, and Q, respectively
rec clr P Q rec clr
L , L length in bytes of short and long redundancy, respectively
1 2
len length in bits of Q
Q
M, M ,M message, nonrecoverable part of message, and recoverable part of message, respectively
clr rec
M', M' recovered message, recovered part of message, respectively
rec
NA Nth multiple of a point A on an elliptic curve
O point at infinity on an elliptic curve
P prime number
pre-signature, recovered pre-signature, respectively
�,�'
Q prime number, order of G
R first part of the signature
S second part of the signature
x x-coordinate of a point on an elliptic curve
X signature key
y y-coordinate of a point on an elliptic curve
Y verification key
sum of points A and B on an elliptic curve
A� B
U mod V the remainder, when integer U is divided by integer V
integer U is congruent to integer V modulo integer W
U� V (mod W)
4.2 Coding convention, length and size of the field
All integers are written with the most significant digit (or bit, or byte) in the leftmost position.
n
Given a non-negative integer n and an integer U in the range 0 � U< 2 , the integer U is converted to a string of
bits of length n using its binary representation as shown below:
n -1 n -2
U = u �2 + u �2 +…+ u �2+ u � (u , u ,…,u , u ).
1 2 n -1 n 1 2 n -1 n
Conversely, a string of bits of length n is converted to an integer by the rule
n -1 n -2
(u , u ,…,u , u )� u �2 + u �2 +…+ u �2+ u .
1 2 n -1 n 1 2 n -1 n
4 © ISO/IEC 2000 – All rights reserved

k -1 k
If an integer U is in the range 2 � U< 2 , it is said that the length of U in bits is equal to k, and the notation k =
len is used.
U
m -1 m
If an integer U is in the range 256 � U <256 , it is said that the length of U in bytes equals m, and the notation
m = L is used. Hence, L is the least integer with the property 8�L � len .
U U U U
n
If F is a field over a prime P, the field size L is defined as L = L .If F is a field over a power of two 2 , the field size
F F P
L is defined as the least integer with the property 8�L � n.
F F
4.3 Legend for figures
The legend for figures in this part of ISO/IEC 9796 is as follows:
step of the process
mandatory data
optional data
5 Requirements
Users who wish to employ a digital signature mechanism from this part of ISO/IEC 9796 shall select:
� a signature scheme from between the two specified in Clause 9 and Clause 10;
� size L of the underlying field F;
F
� parameter Q for the selected signature scheme;
� the byte length L of the short redundancy and the byte length L of the long redundancy, where 8L and 8L are
1 2 1 2
strictly less than the length len of the binary representation of Q, and
Q
� a collision-resistant hash-function which produces hash-codes such that the length of the resulting hash-tokens
in bytes is L .
Agreement on these choices amongst the users is essential for the purpose of the operation of the digital signature
mechanism giving message recovery.
Short redundancy is used if the entire message is recoverable from the signature. Then the bit-length of the
message is at most len –8L –1 bits.
Q 1
Long redundancy is used if a part of the message is not recoverable from the signature. Then the recoverable part
of the message is at most len –8L –1 bits.
Q 2
NOTE The sizes of the parameters Q, L and L also affect the security level of the signatures giving message recovery.
1 2
Typical values of L are 8 or 10. Typical values of L vary from 17 to 21. It is also possible to set L = L .
1 2 1 2
5.1 Options for binding signature mechanism and hash-function
When a digital signature mechanism uses a hash-function, there shall be a binding between the signature
mechanism and the hash-function in use. Without such a binding, an adversary may claim the use of a weak hash-
function (and not the actual one) and thereby forge the signature. There are various ways to accomplish the
required binding. The following options are presented in order of increasing risk.
© ISO/IEC 2000 – All rights reserved 5

a) Require a particular hash-function when using a particular signature mechanism. The verification process shall
exclusively use that particular hash-function. ISO/IEC 14888-3 gives an example of this option where the DSA
mechanism requires the use of SHA-1.
b) Allow a set of hash-functions and explicitly indicate in every signature the hash-function in use by a hash-
function identifier included as part of the signature calculation. The hash-function identifier is an extension of
the hash-code: it indicates how to derive the hash-code. The verification process shall exclusively use the
hash-function indicated by the identifier in the signature. This part of ISO/IEC 9796 and ISO/IEC 9796-2 give
examples of this option.
c) Allow a set of hash-functions and explicitly indicate the hash-function in use in the certificate domain
parameters. Within the domain, the verification process shall exclusively use the hash-function indicated in the
certificate. Outside the domain, there is a risk due to less rigorous certification authorities. If other certificates
may be created, then other signatures may be created. Then the attacked user would be in a dispute situation
with the certification authority that produced the other certificate.
d) Allow a set of hash-functions and indicate the hash-function in use by some other method, e.g., an indication in
the message or a bilateral agreement. The verification process shall exclusively use the hash-function
indicated by the method. However, there is a risk that an adversary may forge a signature using another hash-
function.
The user of a digital signature mechanism should conduct a risk assessment considering the costs and benefits of
the various alternatives. This assessment includes the cost associated with the possibility of a bogus signature
being produced.
6 Signature process
Figure 1 shows the signature process, which consists of the following steps:
� producing a randomizer and the pre-signature
� splitting the message
� hashing the message
� formatting the data input
� computing the signature
� formatting the signed message
6.1 Producing the pre-signature
Pre-signature is an intermediate data item produced in any randomized signature mechanism. First a randomizer
K, which is an integer, is produced. Then the pre-signature� is computed as an element in the finite field specified
by the signature scheme, see 9.3 or 10.3, respectively. The pre-signature is a public data item, while the value of
the randomizer shall be usable only by the signature process.
Randomizers can be produced and corresponding pre-signatures computed off-line and stored securely for future
use by the signature process.
6.2 Producing the hash-token
The input to the hash-function is formed by concatenating the following strings of bits from the left to the right
� the 64-bit string representing the integer L ;
rec
6 © ISO/IEC 2000 – All rights reserved

� the 64-bit string representing the integer L ;
clr
� the 8�(L + L )-bit string of M, and
clr rec
� the pre-signature� converted to a string of bits of length 8�L .
F
The output from the hash-function is the hash-code. The hash-token H is formed by the hash-code by itself, or with
the hash-function identifier concatenated to the right of the hash-code. The choice of whether or not the hash-token
includes the hash-function identifier shall be controlled by the domain parameters.
len L L M X
Q 1 2
SPLITTING PRODUCING A
THE MESSAGE RANDOMIZER AND
THE PRE-SIGNATURE
LL L M M
rec clr rec clr
K
�
PRODUCING THE
HASH-TOKEN
H M
rec
FORMATTING
THEDATAINPUT
D
L
Q
COMPUTING
THE SIGNATURE
RS
FORMATTING THE SIGNED MESSAGE
signed message
Figure 1 — Signature process
6.3 Formatting the data input
The data input D is formed by concatenating the following two strings of bits from the left to the right:
� the L leftmost bytes of H,and
� the L bytes of M .
rec rec
Then 8�(L + L )� len – 1. Consequently, the data input D, after conversion to an integer, is in the range 0� D < Q.
rec Q
6.4 Computing the signature
The computation of the signature is specified by the selection of the signature scheme from between the two
schemes specified in Clause 9 or Clause 10 and shall be indicated by the domain parameters.
© ISO/IEC 2000 – All rights reserved 7

The signatures produced by the schemes specified in this part of ISO/IEC 9796 consist of two parts R and S.The
first part R is computed as a function of the data input D and the pre-signature�, see 9.4 or 10.4, respectively. The
second part S is computed as a function of the first part R, the randomizer K, and the signature key X,see 9.5or
10.5, respectively.
6.5 Formatting the signed message
Knowledge of the lengths of the recoverable and non-recoverable parts of the message is necessary for the
successful opening and verification of the signed message. Unless given by the domain
...
