ISO 28278-2:2010

INTERNATIONAL ISO
STANDARD 28278-2
First edition
2010-12-15


Glass in building — Glass products for
structural sealant glazing —
Part 2:
Assembly rules
Verre dans la construction — Produits verriers pour vitrage extérieur
collé —
Partie 2: Règles de pose





Reference number
ISO 28278-2:2010(E)
©
ISO 2010

---------------------- Page: 1 ----------------------
ISO 28278-2:2010(E)

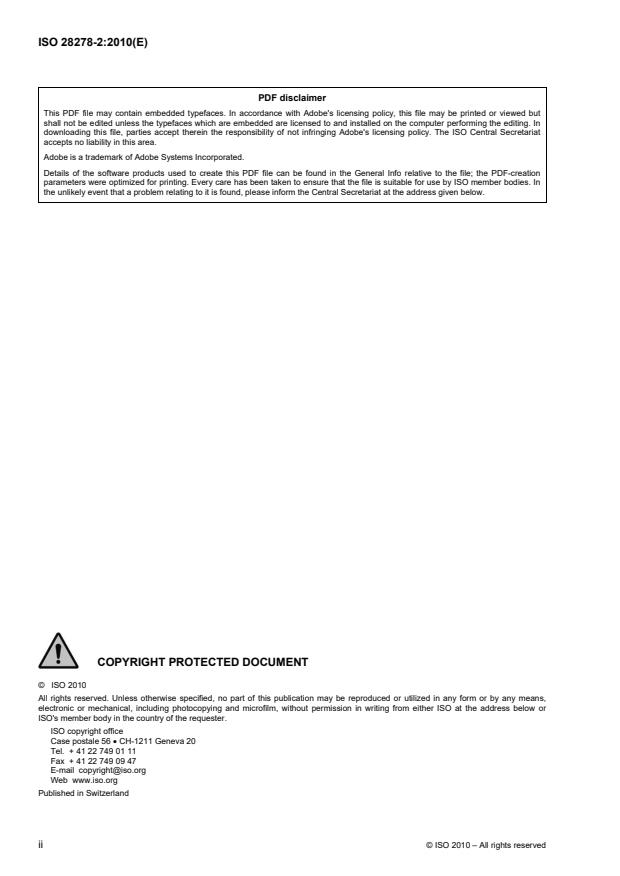

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.


COPYRIGHT PROTECTED DOCUMENT


©  ISO 2010
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland

ii © ISO 2010 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 28278-2:2010(E)
Contents Page
Foreword .iv
Introduction.v
1 Scope.1
2 Normative references.2
3 Terms and definitions .3
4 Requirements.4
4.1 Environmental conditions .4
4.2 Conformity of the work with the design.4
5 Assembly/bonding .4
6 Assembly/bonding control .5
6.1 Assembly/bonding control requirements .5
6.1.1 General .5
6.1.2 Organization.5
6.1.3 Assembly — Quality assurance system .6
6.2 Inspection and testing tables for assembling glass elements into or onto the framework
with structural sealant .7
Annex A (normative) Dynamic peel test on structural sealant .13
Annex B (informative) Dynamic tensile test on structural sealant .15
Annex C (normative) Design guidance.17
Annex D (normative) Adhesion tests in assembly/bonding control.24
Annex E (informative) Compatibility with adjacent material .28
Annex F (normative) Skin-over time/elastomeric test.32
Bibliography.33

© ISO 2010 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 28278-2:2010(E)

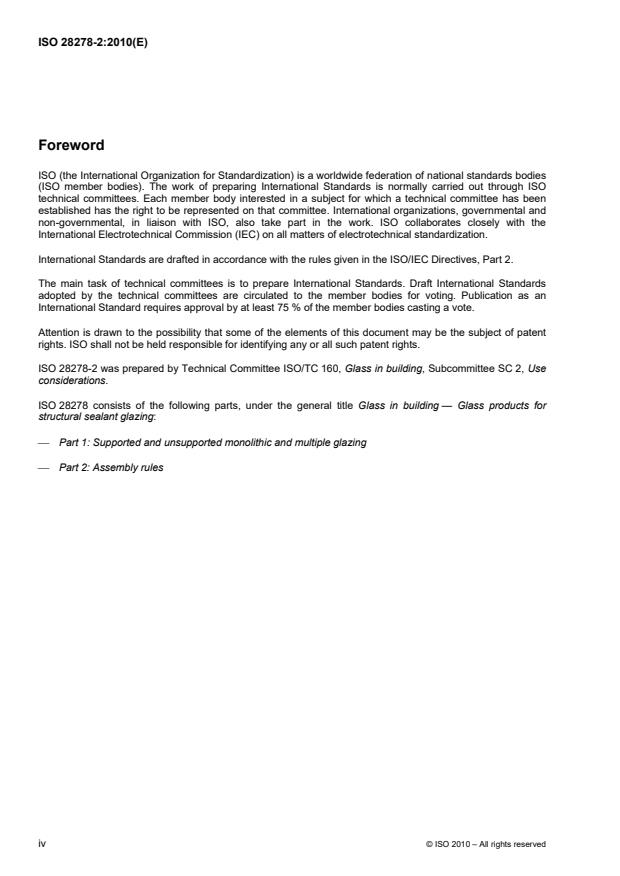

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 28278-2 was prepared by Technical Committee ISO/TC 160, Glass in building, Subcommittee SC 2, Use
considerations.
ISO 28278 consists of the following parts, under the general title Glass in building — Glass products for
structural sealant glazing:
⎯ Part 1: Supported and unsupported monolithic and multiple glazing
⎯ Part 2: Assembly rules
iv © ISO 2010 – All rights reserved

---------------------- Page: 4 ----------------------
ISO 28278-2:2010(E)
Introduction
Structural sealant glazing, hereinafter referred to as SSG, is an assembly in which the glass products are fixed
to the structural seal frame by means of a sealant.
The sealant must primarily be capable of withstanding the load actions applied to the glass products and
transferred to the structural seal frame but can also function as a barrier against the passage of air and water
through a building envelope.
Structural sealant glazing can be considered a product. It can also be considered an assembly method for
glass into or onto a framework.
In the first consideration, the conditions are to be fulfilled by a manufacturer in order to place a complete
structural sealant glazing and structural sealant glazing kit on the market, intended to be sold as one complete
product in one (trade) transaction
In the second consideration, the framework, glass products, sealant and accessories, materials and
components can be the subject of separate, independent (trade) transactions, independently ordered, and
supplied on the construction site or in a workshop where an assembler only assembles the various materials
and component elements and subsequently installs the construction, all in accordance with the conditions and
under the responsibility of a designer.
Only when the design of a building can be such that the glass products should be installed directly in the
building using a structural glazing technique, but under controlled environmental conditions as expressed in
Clause 5 of this document, should this part of ISO 28278 apply.
This means that the assembler is only responsible for the assembly, not for the design. Assembly and design
are two separate tasks with their own responsibilities.
However, in a number of countries, contractors have the duty to warn architects if there is a view that
something in the design is wrong. An analogy would be the case where it is assumed that the assembler has
the same duty towards the designer. In order to give the assembler a feeling of what the design
considerations are, and at the same time to understand what information he or she requires from the designer,
design guidance is given in this part of ISO 28278 in Annex C.

© ISO 2010 – All rights reserved v

---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 28278-2:2010(E)

Glass in building — Glass products for structural sealant
glazing —
Part 2:
Assembly rules
1 Scope
This part of ISO 28278 gives guidelines for the assembly and bonding of glass elements in a frame, window,
door or curtain-walling construction, or directly into the building by means of structural bonding of the glass
element into or onto the framework or directly into the building.
It gives the assembler information that enable him to organize his work and comply with requirements
regarding quality control.
Quality control of the assembly process is of the highest importance. This part of ISO 28278 provides the
minimum requirements for acceptable quality control of the process of structural sealant glazing (SSG) on a
single project. The annexes contained at the end of this part of ISO 28278 provide the methods to ensure
proper application and documentation for a safe and weatherproof glazing assembly product.
This process is intended to be applicable to most SSG projects. The project testing on metal substrates and
glass products will determine proper surface preparation and installation instructions.
These rules do not apply to the adhesion or durability of the paint finishes or glass products. This is not
intended to be a durability test requirement for the paint and glass products commonly used in the SSG
process.
The structural, weatherproofing and sealant products which are commonly used in structural glazing
applications are those based on organosiloxane, “silicone” polymers.
This part of ISO 28278 does not preclude the use of other sealant types, where these can demonstrate
suitability for service according to this part of ISO 28278 and when they are used following the
recommendations of the sealant manufacturer.
Supports to be taken into consideration shall be only metallic substrates, uncoated glass, coated glass and
ceramic frit enamelled glass.
This part of ISO 28278 relates to SSG systems for use in façades and roofs, or parts of them, with glazing
with slopes as shown in Figure 1.
Façades with an inclination of less than 15° from the vertical are considered vertical façades.
If the slope to the outer side has an inclination above 50°, the glass is considered unsupported glass.

© ISO 2010 – All rights reserved 1

---------------------- Page: 6 ----------------------
ISO 28278-2:2010(E)

Key
a
Outer side.
b
Inner side.
Figure 1 — Slopes and glass positions
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 4892-2, Plastics — Methods of exposure to laboratory light sources — Part 2: Xenon-arc lamps
ISO 8339, Building construction — Sealants — Determination of tensile properties (Extension to break)
ISO 11600, Building construction — Jointing products — Classification and requirements for sealants
1)
ISO 28278-1:— , Glass in Building — Glass products for structural sealant glazing — Part 1: Supported and
unsupported monolithic and multiple glazing
ASTM C794, Standard Test Method for Adhesion-in-Peel of Elastomeric Joint Sealants
EN 28339, Building construction. Jointing products. Sealants. Determination of tensile properties


1) To be published.
2 © ISO 2010 – All rights reserved

---------------------- Page: 7 ----------------------
ISO 28278-2:2010(E)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 28278-1 and the following apply.
3.1
structural bonding
assembly of glass elements into or onto a window, door or curtain-walling framework by means of a structural
seal
3.2
structural seal
joint of elastic structural sealant extruded between glass element or glass and framework which is, when
cured, of adequate transverse cross-section to transfer appropriate forces applied on the glass to the
structural seal support frame
3.3
structural sealant
elastic sealant used for making a structural seal
3.4
cohesion failure
failure occurring in the matter
3.5
adhesive failure
failure occurring on the bonding surface
3.6
initial cure
stage in the curing where sealant has appropriate cohesive strength to resist different levels of action
3.7
creep factor
shear design stress under permanent static load
3.8
type testing
determination of the performance of a product (characteristic, durability), on the basis of either actual tests or
other procedures (such as conventional, standardized, tabulated or general accepted values, standardized or
recognized calculation methods, test reports when made available), in accordance with, and demonstrating
compliance with, this part of ISO 28278
3.9
test report
document that covers the results of tests undertaken on a representative sample of the product from
production or on a prototype design of the product
3.10
product description
document that details the relevant parameters for defining a product that complies with the standard
NOTE It includes specific reference(s) to characteristics that are modified by the production process and by raw
materials.
3.11
significant change
variation in performance beyond the permitted tolerance for the characteristic
© ISO 2010 – All rights reserved 3

---------------------- Page: 8 ----------------------
ISO 28278-2:2010(E)
3.12
glazing assembly manufacturer
manufacturer who assembles, bonds and seals the different components
4 Requirements
4.1 Environmental conditions
The assembly of the glass elements into or onto the window, door or curtain-walling framework or directly in
the building or construction shall take place under the following controlled environmental conditions:
⎯ the temperature of the surface of the frame and of the glass and of the close environment shall be not
less than 5 °C and not more than 40 °C;
⎯ for a given temperature, the %RH value shall be inferior to the value corresponding to the dew point on
the support to the seal;
⎯ the environment in the vicinity of the assembly shall be dust-free;
⎯ glass elements stored and installed vertically are securely fixed until the sealant has reached a cure level
that meets design requirements.
4.2 Conformity of the work with the design
It shall be ensured that the work is executed as foreseen by the design so that, in particular:
⎯ curing of the various seals proceeds as foreseen by the design;
⎯ after curing, the characteristic performances, including durability are deemed to satisfy the design
requirements;
⎯ assembled units that meet the design loads at the time of installation are installed on the building;
⎯ a full record of quality control documentation for the entire project shall be maintained;
⎯ the design shall conform to Annex C.
5 Assembly/bonding
The assembly manual shall be used for instruction by both the assembly and control personnel and will be a
part of the assembly control documentation.
The assembly manual shall make reference to the design of the work and detail the assembly procedures, in
particular what is related to:
⎯ the component materials and products, trade name, generic type, marking and labelling;
⎯ the cleaning and preparation materials, trade name, generic type, marking and labelling;
⎯ the installations, equipment and tools for transport, storage, cleaning, use of primers, other preparation
work of bonding surfaces, mixing sealant components, extrusion of sealant;
⎯ the cleaning process of the seal bonding surfaces;
4 © ISO 2010 – All rights reserved

---------------------- Page: 9 ----------------------
ISO 28278-2:2010(E)
⎯ information concerning the compatibility with:
⎯ various materials and components such as paint finishes, metal coatings, setting blocks, spacers,
etc.;
⎯ cleaning products;
⎯ where applicable, the process for use of primers;
⎯ the positioning of glass and framework before extrusion of sealant, including the application of glazing
blocks (see ISO 28278-1), anti-adhesive film and backer rod;
⎯ the extrusion of sealant;
⎯ the waiting time to obtain initial cure and the transport and storage conditions just after initial cure;
⎯ the waiting time to obtain further curing and the final installation of the work;
⎯ the finishing processes such as removal of temporary fixing means and application of weather seals;
⎯ the control of adhesion before achievement.
The assembly manual shall also contain control and testing requirements and conditions, which may be by full
description or by reference to this part of ISO 28278.
2)
The designer shall specify that the sealant conforms to Annex B of 28278-1:— .
6 Assembly/bonding control
6.1 Assembly/bonding control requirements
6.1.1 General
An assembler operating under a quality management system such as ISO 9001 or equivalent (when required
by an independent laboratory), in which the quality procedures refer to 6.1.3, has the benefit of presumption of
compliance with this part of ISO 28278. If not, the following clauses shall be applied.
6.1.2 Organization
6.1.2.1 Responsibility and authority
The responsibility, authority and interrelation of all personnel who manage, perform and verify work affecting
conformity shall be defined, particularly with regard to personnel who need the organizational freedom and
authority to:
a) initiate action to prevent the occurrence of non-conforming assembly;
b) identify and record any assembly non-conformities.

2) To be published.
© ISO 2010 – All rights reserved 5

---------------------- Page: 10 ----------------------
ISO 28278-2:2010(E)
6.1.2.2 Management representative for assembly control
The glazing assembly manufacturer shall appoint a management representative who, irrespective of other
responsibilities, shall have defined authority and responsibility for ensuring that the requirements of this part of
ISO 28278 are implemented and maintained.
6.1.2.3 Management review
The assembly control system shall be reviewed at appropriate intervals by the manufacturer's management to
ensure its continuing suitability and effectiveness. Records of such reviews shall be maintained so that the
assembly process is carried out in accordance with the contract documents.
6.1.3 Assembly — Quality assurance system
6.1.3.1 General
The glazing assembly manufacturer shall establish and maintain a documented system as a means of
ensuring that the assembly conforms to this part of ISO 28278. The following requirements shall be fulfilled.
6.1.3.2 Personnel
The glazing assembly manufacturer shall appoint personnel for the inspections and assembly control tests
that will be carried out before (e.g. incoming materials), during and after assembly.
6.1.3.3 Documentation
The glazing assembly manufacturer's documentation and procedures shall be relevant to the assembly and
assembly control, and shall be described adequately in a manual containing the following elements:
a) the objective, responsibilities and authorities of the management with regard to assembly/bonding
conformity;
b) the procedures for specifying and verifying the incoming materials (see also the assembly manual);
c) the manufacturing (see the assembly manual), production control and other techniques, processes and
systematic actions that will be used;
d) the inspections that will be carried out before production, the inspection tests during and after production,
and the frequency with which they will be carried out.
6.1.3.4 Test equipment
The calibration of the test equipment necessary for assembly control shall be documented at the beginning of
the project as part of the required documentation and the test equipment shall be calibrated according to the
schedule recommended by the test equipment manufacturer.
6.1.3.5 Inspection and testing
Subclause 6.2 designates the inspections and tests by means of tables. The requirements and records are
compulsory. The test methods are recommended and therefore only given as information. The frequencies
are also recommended and therefore given as information, except when designated otherwise.
Testing and inspection of the glazing assembly process are required so that a full documentation of the project
is maintained.
If another testing scheme is used, it shall be described in detail in the quality manual and submitted as part of
the contract documents.
6 © ISO 2010 – All rights reserved

---------------------- Page: 11 ----------------------
ISO 28278-2:2010(E)
Annexes A, B, D, and E and 6.2 describe the tests referred to in this clause as recommendations.
6.1.3.6 Quality contracts
Inspections and tests on incoming materials (the material control section of Table 1) can be reduced on the
basis of quality contracts between the supplier and the designer, on condition that the contract refers to the
appropriate tables in 6.2.
Quality contracts shall include the possibility of the supplier being audited.
Quality records shall be made available by suppliers for evaluation by the glazing assembly manufacturer
representative for all materials supplied on the project.
6.2 Inspection and testing tables for assembling glass elements into or onto the framework
with structural sealant
The tables consist of three sections:
⎯ section 1: Material control
⎯ section 2: Assembly control
⎯ section 3: Final control
The tables do not pretend to be exhaustive. The designer, assembler, and material suppliers can complete
them. The tables can require something that is non-existent in some designs. In such a case, the inspection or
test row shall be ignored and in other cases a row shall be added.
When an assembly process is such that one or more of the listed inspections or tests are not applicable or
physically not possible, the concerned inspection or test shall be ignored and an alternative shall be
determined and documented.
The inspections or tests on incoming materials and component products shall be carried out as soon as
possible. In the case of non-conforming materials, action shall be taken so that non-conforming assembly is
not performed.
The required records in the tables hereafter can include any document such as order documents, production
documents, log books, etc., as described in the quality procedures and associated documentation. However,
records shall indicate non delivery or batch identification. When no record is required, this requirement is only
valid if there is no negative result. In the case of a negative result, a record shall always be made.
Adjustments of machinery and equipment used for assembly are periodically checked against defined
parameters for optimal results.
The assembler shall fulfil the requirements in Clause 4 of this part of ISO 28278.

© ISO 2010 – All rights reserved 7

---------------------- Page: 12 ----------------------
ISO 28278-2:2010(E)
8 © ISO 2010 – All rights reserved
Table 1 — Inspection and test table for structural assembly in accordance with ISO 28278-2
Section 1: Material control
Recommended method Recommended frequency
Record
Ref. Material, inspection or test Normative requirement
(decision to be made (decision to be made by
normative
by assembler) designer or assembler)
1.1 Framework
1.1.1 packaging and label Visual See purchase specification Each delivery No
1.1.2 identification Visual See purchase specification Each delivery Yes
1.2 Glass products
1.2.1 packaging and label Visual See purchase specification Each delivery No
1.2.2 identification (according to Visual See purchase specification Each delivery Yes
relevant standards)
1.2.3 dimensions Measurement See purchase specification Each package and thickness No
1.3 Structural sealant
1.3.1 packaging and label Visual See purchase specification Each delivery No
1.3.2 shelf-life Visual Suppliers' specification Each delivery Yes
Convenience test Annex A
1.3.3 Annex A and
abc
Annex D Failure shall be 90 % cohesive Each delivery of sealant, glass Yes
tensile test (when no delivery information
b
on the sealant or from the sealant supplier is or framework
Annex B
Peel and tensile tests
available)
Strength W supplier's declared value
adhesion test (may be carried out together or
Minimum breaking value: 0,70 MPa
in combination with section 2, line 2.3.1)
Minimum elongation value: 50 %
Rupture: 100 % cohesive
1.4 Bond-breaker material
1.4.1 packaging and labelling Visual See purchase specification Each delivery No
1.4.2 identification Visual See purchase specification Each delivery Yes
1.5 Spacer material

1.5.1 packaging and labelling Visual See purchase specification Each delivery No
1.5.2 identification Visual See purchase specification Each delivery Yes

---------------------- Page: 13 ----------------------
ISO 28278-2:2010(E)
© ISO 2010 – All rights reserved 9
Table 1 (continued)
Section 1: Material control
Recommended method Recommended frequency
Record
Ref. Material, inspection or test Requirement
(decision to be made (decision to be made by
normative
by assembler) designer or assembler)
1.6 Weather sealant
1.6.1 packaging and labelling Visual See purchase specification Each delivery No
1.6.2 identification Visual See purchase specification Each delivery Yes
1.7 Finishing material
1.7.1 packaging and labelling Visual See purchase specification Each delivery No
1.7.2 identification Visual See purchase specification Each delivery Yes
1.8 Retaining devices
1.8.1 packaging and labelling Visual See purchase specification Each delivery No
1.8.2 identification Visual See purchase specification Each delivery Yes
1.9 Retaining clips
1.9.1 packaging and labelling Visual See purchase specification Each delivery No
1.9.2 identification Visual See purchase specification Each delivery Yes
1.10 Cleaning products
1.10.1 packaging and labelling Visual See purchase specification Each delivery No
1.10.2 identification Visual See purchase specification Each delivery Yes
1.11 Primer
1.11.1 packaging and labelling Visual See purchase specification Each delivery No
1.11.2 identification Visual See purchase specification Each delivery Yes
1.12 Metal paint finish
1.12.1 hardness Measurement
1.12.2 thickness Measurement

---------------------- Page: 14 ----------------------
ISO 28278-2:2010(E)
10 © ISO 2010 – All rights reserved
Table 1 (continued)
Section 1: Material control
Recommended method Recommended frequency
Record
Ref. Material, inspection or test Requirement
(decision to be made (decision to be made by
normative
by assembler) designer or assembler)
1.13 Structural sealant
1.13.1 packaging and labelling Visual See purchase specification Each delivery No
1.13.2 identification Visual See purchase specification Each delivery Yes
1.13.3 shelf-life Visual Suppliers' specification Each delivery Yes
Adhesion control test
1.13.4
a
(When no delivery information on the sealant
or from the sealant supplier is available. May
be carried out together or in combination
with section 2, line 2.3.1)
1.13.4.1 tensile test Annex B Annex B Beginning of the project Yes
Strength W supplier's declared value
Minimum breaking value: 0,70 MPa
Minimum elongation value: 50 %
Rupture: 100 % cohesive
1.13.4.2 peel test Annex A Annex A Beginning of the project Yes
1.13.5 curing test control for one part Annex F See purchase specification Each delivery Yes
Section 2: Assembly control
2.1 Washing efficiency
2.1.1 dry and clean framework surface Visual No visible contamination Continually Yes
2.1.2 dry and clean glass surface Visual No visible contamination Continually Yes
2.2 Structural sealant application
2.2.1 preparation (including application primer) and Visual Assembly manual Continually Yes
positioning glass elements or framework
2.2.2 extrusion of structural sealant and application Visual Assembly manual Continually Yes
retaining clips
2.2.3 storage after initial cure Visual Assembly manual Continually Yes

---------------------- Page: 15 ----------------------
ISO 28278-2:2010(E)
© ISO 2010 – All rights reserved 11
Table 1 (continued)
Section 2: Assembly control
Re
...
