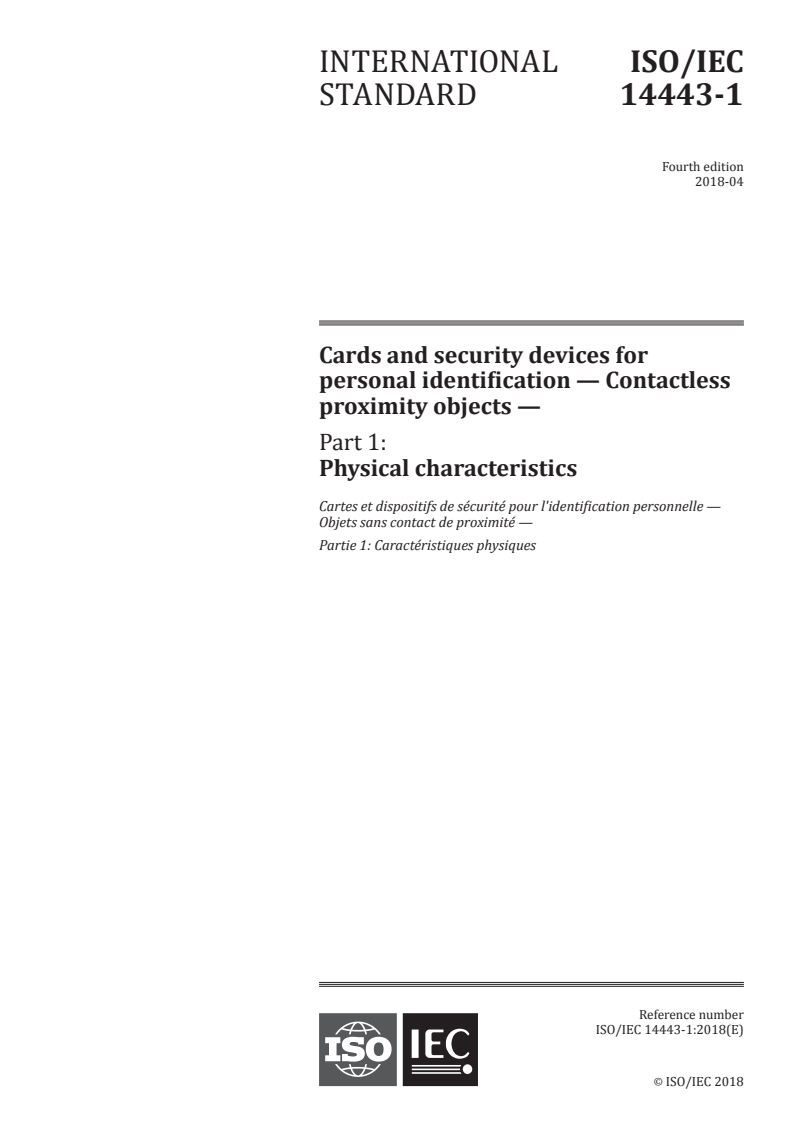

ISO/IEC 14443-1:2018

INTERNATIONAL ISO/IEC
STANDARD 14443-1
Fourth edition
2018-04
Cards and security devices for
personal identification — Contactless
proximity objects —
Part 1:
Physical characteristics
Cartes et dispositifs de sécurité pour l'identification personnelle —
Objets sans contact de proximité —
Partie 1: Caractéristiques physiques
Reference number
©
ISO/IEC 2018
© ISO/IEC 2018
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO/IEC 2018 – All rights reserved

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Physical characteristics . 2
4.1 General . 2
4.2 Antenna . 2
4.3 Additional requirements for PICC classes . 2
4.4 Alternating magnetic field . 2
Annex A (normative) PICC class definitions . 3
Bibliography .11
© ISO/IEC 2018 – All rights reserved iii

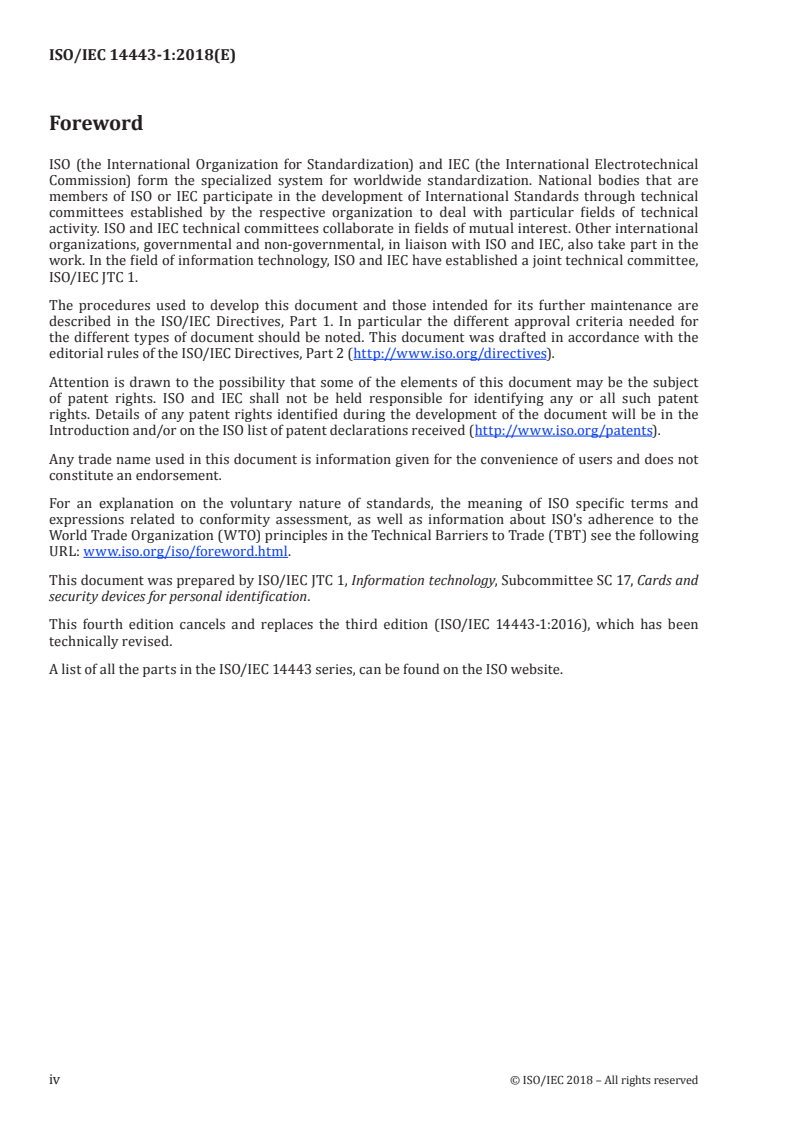

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical
activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other international
organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the
work. In the field of information technology, ISO and IEC have established a joint technical committee,
ISO/IEC JTC 1.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for
the different types of document should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (http:// www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject
of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent
rights. Details of any patent rights identified during the development of the document will be in the
Introduction and/or on the ISO list of patent declarations received (http:// www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www .iso .org/ iso/ foreword .html.
This document was prepared by ISO/IEC JTC 1, Information technology, Subcommittee SC 17, Cards and
security devices for personal identification.
This fourth edition cancels and replaces the third edition (ISO/IEC 14443-1:2016), which has been
technically revised.
A list of all the parts in the ISO/IEC 14443 series, can be found on the ISO website.
iv © ISO/IEC 2018 – All rights reserved

Introduction
Contactless card standards encompass a variety of types as embodied in the ISO/IEC 10536 series of
standards (close-coupled cards), the ISO/IEC 14443 series of standards (Contactless proximity objects)
and the ISO/IEC 15693 series of standards (Contactless vicinity objects). These device types are
intended, respectively, for operation when very near, nearby and at a longer distance from associated
coupling devices.
The ISO/IEC 14443 series of standards defines the technology-specific requirements for identification
cards conforming to ISO/IEC 7810 and thin flexible cards conforming to ISO/IEC 15457-1 and the use of
such cards to facilitate international interchange. However, it also recognizes that the technology offers
the possibility that proximity objects may be provided in forms other than that of the International
Standard card formats. Furthermore, it does not preclude the incorporation of other standard
technologies on the card, such as those referenced in the Bibliography.
The ISO/IEC 14443 series of standards accommodates the operation of proximity cards in the presence
of other contactless cards conforming to the ISO/IEC 10536 series of standards and the ISO/IEC 15693
series of standards.
© ISO/IEC 2018 – All rights reserved v

INTERNATIONAL STANDARD ISO/IEC 14443-1:2018(E)
Cards and security devices for personal identification —
Contactless proximity objects —
Part 1:
Physical characteristics
1 Scope
This document defines the physical characteristics of proximity cards (PICCs).
It is intended to be used in conjunction with other parts of ISO/IEC 14443.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO/IEC 7810, Identification cards — Physical characteristics
ISO/IEC 14443-2:2016, Identification cards — Contactless integrated circuit cards — Proximity cards —
Part 2: Radio frequency power and signal interface
ISO/IEC 15457-1, Identification cards — Thin flexible cards — Part 1: Physical characteristics
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 7810, ISO/IEC 15457-1
and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http:// www .electropedia .org/
— ISO Online browsing platform: available at http:// www .iso .org/ obp
3.1
integrated circuit
IC
electronic component designed to perform processing and/or memory functions
3.2
contactless
achievement of signal exchange with, and supply of power to, the card without the use of galvanic
elements
Note 1 to entry: It is also the absence of an ohmic path from the external interfacing equipment to the integrated
circuit(s) contained within the card.
3.3
contactless integrated circuit card
card into which integrated circuit (3.1) and coupling means have been placed, such that communication
to such integrated circuit is done in a contactless (3.2) manner
© ISO/IEC 2018 – All rights reserved 1

3.4
operate as intended
operates in the manner described by the manufacturer's specification in accordance with ISO/IEC 14443
3.5
PICC
contactless integrated circuit card (3.3) or other object with which communication and power transfer
are done by inductive coupling in proximity of a coupling device
Note 1 to entry: Commonly called a proximity card.
3.6
PICC antenna zone
for each class a zone defined by an external geometrical shape and when defined an internal
geometrical shape
3.7
PICC class
combination of antenna dimension and loading effect
Note 1 to entry: See Annex A.
4 Physical characteristics
4.1 General
The PICC may be in the form of a card compliant with ISO/IEC 7810 or ISO/IEC 15457-1, or an object of
any other dimension.
4.2 Antenna
If the PICC dimensions are not compliant with ISO/IEC 7810 or ISO/IEC 15457-1, the dimensions of the
PICC antenna shall not exceed 86 mm × 54 mm × 3 mm.
NOTE This antenna size restriction stems from the fact that the radio frequency power and signal interface
defined in ISO/IEC 14443-2 and its test methods in ISO/IEC 10373-6 are based on ID-1 cards.
4.3 Additional requirements for PICC classes
It has been established that the use of a prescribed PICC cl
...
