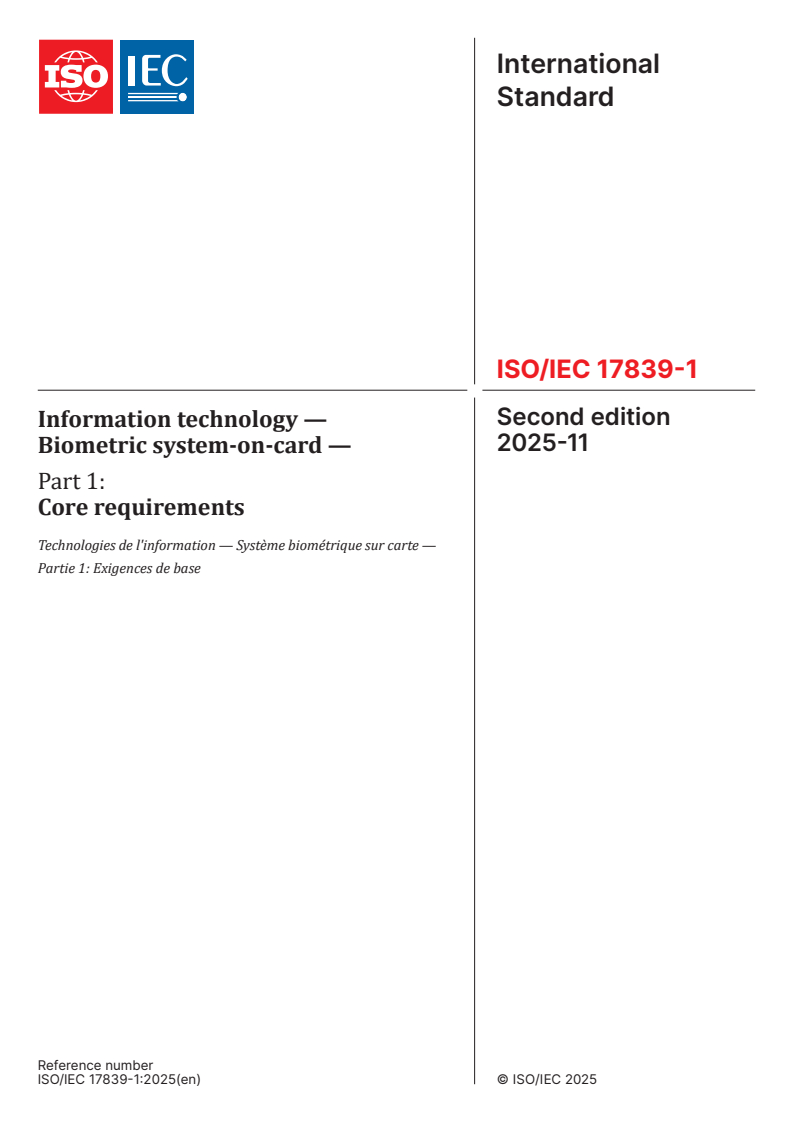

ISO/IEC 17839-1:2025

International
Standard
ISO/IEC 17839-1
Second edition
Information technology —
2025-11
Biometric system-on-card —
Part 1:
Core requirements
Technologies de l'information — Système biométrique sur carte —
Partie 1: Exigences de base
Reference number
© ISO/IEC 2025
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
© ISO/IEC 2025 – All rights reserved
ii
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Abbreviated terms . 3
5 Functional architecture of a BSoC . 3
5.1 BSoC verification .3
5.2 Type ID-1 BSoC .3
5.3 Type ID-T BSoC .4
5.4 Feedback to the user .4
5.5 Sensor type .4
6 Discriminative power . 5
7 Power supply . 5
7.1 General .5
7.2 Contacts .5
7.3 Contactless .5
7.4 Internal power supply .5
8 Infrastructure . 5
Annex A (informative) Motivations for the specification of Type ID-T . 6
Bibliography . 7

© ISO/IEC 2025 – All rights reserved
iii
Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical activity.
ISO and IEC technical committees collaborate in fields of mutual interest. Other international organizations,
governmental and non-governmental, in liaison with ISO and IEC, also take part in the work.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of document should be noted. This document was drafted in accordance with the editorial rules of the ISO/
IEC Directives, Part 2 (see www.iso.org/directives or www.iec.ch/members_experts/refdocs).
ISO and IEC draw attention to the possibility that the implementation of this document may involve the
use of (a) patent(s). ISO and IEC take no position concerning the evidence, validity or applicability of any
claimed patent rights in respect thereof. As of the date of publication of this document, ISO and IEC had not
received notice of (a) patent(s) which may be required to implement this document. However, implementers
are cautioned that this may not represent the latest information, which may be obtained from the patent
database available at www.iso.org/patents and https://patents.iec.ch. ISO and IEC shall not be held
responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www.iso.org/iso/foreword.html.
In the IEC, see www.iec.ch/understanding-standards.
This document was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 17, Cards and security devices for personal identification.
This second edition cancels and replaces the first edition (ISO/IEC 17839:2014), which has been technically
revised.
The main changes are as follows:
— updated Biometric System-on-Card architecture in alignment with ISO/IEC 24787-1;
— replaced references to S1 and S2 with ID-1 and ID-T;
— removed normative references to ISO/IEC 15693;
— added diagram for feedback.
A list of all parts in the ISO/IEC 17839 series can be found on the ISO and IEC websites.
Any feedback or questions on this document should be directed to the user’s national standards
body. A complete listing of these bodies can be found at www.iso.org/members.html and
www.iec.ch/national-committees.

© ISO/IEC 2025 – All rights reserved
iv
Introduction
In the context of this document, a Biometric System-on-Card is a portable card-sized device including the
following entities: biometric capture, data processing, storage, comparison, decision, and action. It is a
functional extension to on-card biometric comparison by physically and logically integrating the sensor and
signal processing into the card.
ISO/IEC 7816-11, ISO/IEC 19785-3, ISO/IEC 19795-7 and ISO/IEC 24787-1 include technologies with respect
to on-card biometric comparison.
The physical integration of a biometric sensor in an ISO/IEC 7810 card withstanding torsion and bending
tests is technically challenging. This document describes two types of Biometric System-on-Card. Type ID-1
BSoC is a flexible card fully conformant to ISO/IEC 7810 while Type ID-T BSoC conformant to Annex A of
ISO/IEC 18328-2:2021 intentionally deviates from some of the requirements to size and bending stiffness,
keeping the rest of the requirements intact, including the use of a contactless ICC interface.
The ISO/IEC 17839 series is currently organized in 3 separate documents:
— ISO/IEC 17839-1, Biometric System-on-Card — Part 1: Core requirements (this document)
— ISO/IEC 17839-2, Biometric System-on-Card — Part 2: Physical characteristics
— ISO/IEC 17839-3, Biometric System-on-Card — Part 3: Logical information interchange mechanism

© ISO/IEC 2025 – All rights reserved
v
International Standard ISO/IEC 17839-1:2025(en)
Information technology — Biometric system-on-card —
Part 1:
Core requirements
1 Scope
This document establishes:
— functional architecture of a Biometric System-on-Card (BSoC);
— definition of Type ID-1 BSoC (ISO/IEC 7810 conformant) and Type ID-T BSoC (see ISO/IEC 18328-2:2021,
Annex A) implementation of a BSoC;
— sensor types in a BSoC;
— requirements to a BSoC with respect to:
— discriminative power (i.e. biometric accuracy criteria);
— interfaces;
— power supply options.
The following aspects are out of scope of this document (see ISO/IEC 24787-1):
— off-card biometric comparison, storage-on-card;
— on-card biometric comparison (sensor-off-card);
— work-sharing implementations;
— detailed specification and configuration of individual components.
This document provides a functional architectural description of a BSoC and describes how the interfaces
are mapped using existing commands and data structures from other International Standards.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO/IEC 2382-37, Information technology — Vocabulary — Part 37: Biometrics
ISO/IEC 7810, Identification cards — Physical characteristics
ISO/IEC 7816-3, Identification cards — Integrated circuit cards — Part 3: Cards with contacts — Electrical
interface and transmission protocols
ISO/IEC 7816-12, Identification cards — Integrated circuit cards — Part 12: Cards with contacts — USB
electrical interface and operating procedures
ISO/IEC 14443 (all parts), Cards and security devices for personal identification — Contactless proximity objects

© ISO/IEC 2025 – All rights reserved
ISO/IEC 17839-3, Information technology — Biometric System-on-Card — Part 3: Logical information
interchange mechanism
ISO/IEC 18092, Telecommunications and information exchange between systems — Near Field Communication
Interface and Protocol 1 (NFCIP-1)
ISO/IEC 18328-2:2021, Identification cards — ICC-managed devices — Part 2: Physical characteristics and test
methods for cards with devices
ISO/IEC 24787-1:2024, Information technology — On-card biometric comparison — Part 1: General principles
and specifications
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 2382-37 and the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
Biometric System-on-Card
card-sized device including biometric capture, data processing, comparison, decision and action, used to
compose a complete biometric verification system
3.2
storage-on-card
system architecture where biometric reference data is stored in an integrated circuit card (ICC) and
compared outside of the ICC used as a portable data carrier
3.3
decision
process that compares a similarity score to a predefined threshold to decide whether the biometric claim is
from the genuine cardholder or an imposter
[SOURCE: ISO/IEC 24787-1:2024, 3.9]
3.4
action
operation taken according to the results of the biometric decision
[SOURCE: ISO/IEC 24787-1:2024, 3.1, modified — Example and Note 1 to entry removed.]
3.5
biometric verification
process of confirming a biometric claim through comparison
[SOURCE: ISO/IEC 24787-1:2024, 3.8, modified — Note 1 to entry removed.]

© ISO/IEC 2025 – All rights reserved
4 Abbreviated terms
BSoC Biometric System-on-Card
ICC integrated circuit card
IFD interface device
FMR false match rate
LED light-emitting diode
5 Functional architecture of a BSoC
5.1 BSoC verification
ISO/IEC 24787-1 describes the approaches for storage-on-card, on-card biometric comparison (sensor-off-
card) and BSoC.
A BSoC verification means the whole biometric sample verification process is performed on the card. The
process i
...
