ISO 17842-3:2015

INTERNATIONAL ISO
STANDARD 17842-3
First edition
2015-07-01
Safety of amusement rides and
amusement devices —
Part 3:
Requirements for inspection during
design, manufacture, operation and
use
Sécurité des manèges et des dispositifs de divertissement —
Partie 3: Exigences relatives à l’inspection pendant la conception,
fabrication et fonctionnement
Reference number
ISO 17842-3:2015(E)
©
ISO 2015

---------------------- Page: 1 ----------------------
ISO 17842-3:2015(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2015, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2015 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 17842-3:2015(E)

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Requirements . 1
4.1 Initial Approval — Procedures . 1
4.1.1 General. 1
4.1.2 Review of design documents . 2
4.1.3 Inspection of manufacturing process . 2
4.2 In-service inspection (periodical test) . 4
4.2.1 General. 4
4.2.2 Inspection process. 4
4.2.3 Electrical equipment . 5
4.2.4 Report . 6
Bibliography . 7
© ISO 2015 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 17842-3:2015(E)

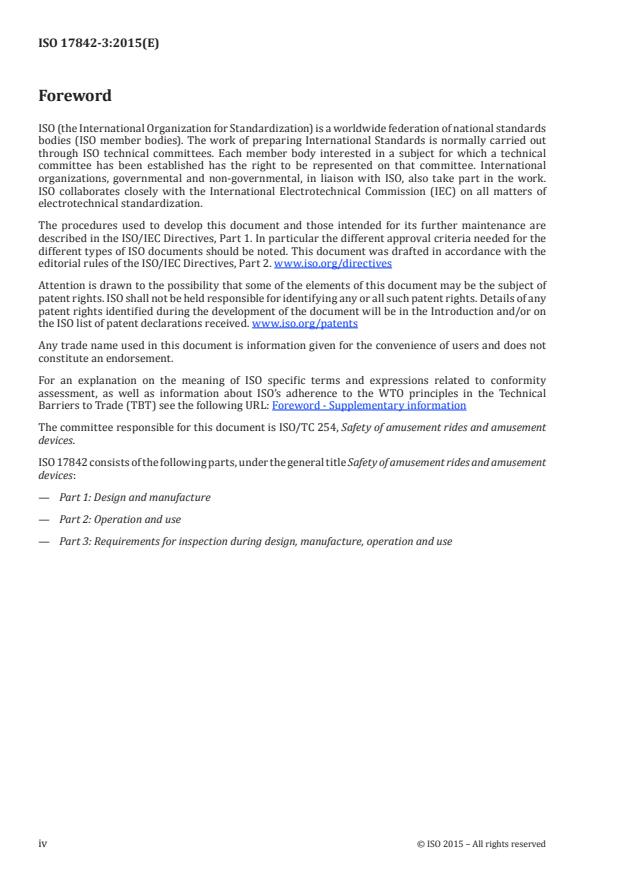

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2. www.iso.org/directives
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of any
patent rights identified during the development of the document will be in the Introduction and/or on
the ISO list of patent declarations received. www.iso.org/patents
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical
Barriers to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/TC 254, Safety of amusement rides and amusement
devices.
ISO 17842 consists of the following parts, under the general title Safety of amusement rides and amusement
devices:
— Part 1: Design and manufacture
— Part 2: Operation and use
— Part 3: Requirements for inspection during design, manufacture, operation and use
iv © ISO 2015 – All rights reserved

---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 17842-3:2015(E)
Safety of amusement rides and amusement devices —
Part 3:
Requirements for inspection during design, manufacture,
operation and use
1 Scope
This part of ISO 17842 defines requirements for the necessary inspections, in accordance with
ISO/IEC 17020, of amusement devices designed, manufactured, operated and used according to
ISO 17842-1 and ISO 17842-2.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 9712, Non-destructive testing — Qualification and certification of NDT personnel
ISO 17842-1, Safety of amusement rides and amusement devices — Part 1: Design and manufacture
ISO 17842-2, Safety of amusement rides and amusement devices — Part 2: Operation and use
ISO/TS 17929, Biomechanical effects on amusement ride passengers
ISO/IEC 17020, Conformity assessment — Requirements for the operation of various types of bodies
performing inspection
IEC 60204-1, Safety of machinery — Electrical equipment of machines — Part 1: General requirements
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 17842-1, ISO 17842-2 and
ISO/IEC 17020 apply.
4 Requirements
4.1 Initial Approval — Procedures
4.1.1 General
The initial approval of any amusement device consists of review, inspections and tests to be carried out
as follows.
The inspection body performing the initial approval shall operate in accordance with ISO/IEC 17020.
All safety-relevant design documents as well as the completed amusement device shall be subjected
to review and inspection. After a successful inspection, a document confirming compliance with
ISO 17842-1 may be issued.
The results of the various reviews, inspections and tests shall become an integral part of the device log.
© ISO 2015 – All rights reserved 1

---------------------- Page: 5 ----------------------
ISO 17842-3:2015(E)

The initial approval of the amusement device shall comprise
a) design review,
b) inspection of manufacturing process, and
c) initial inspection and testing.
4.1.2 Review of design documents
The review of design documents is an inspection of relevant design documents.
The design documents shall, where relevant, be reviewed, checked and accepted by an independent
body for
— completeness,
— correctness of all the assumptions with respect to the input values for any analyses,
— correctness of all calculations, and
— compliance with applicable standards and specifications.
The design documents shall where relevant include the following:
— design risk assessment;
— design calculations;
— stress and fatigue analysis and stability verification;
— structural and mechanical parts;
— hydraulic and pneumatic parts;
— drive units, bearings;
— brakes and safety devices;
— design drawings;
— acceleration/containment details, according to ISO/TS 17929;
— hydraulic/pneumatic specification;
— electrical/electronic specification including software details;
— mechanical/structural specification;
— installation, operation, maintenance and inspection information;
— identification of critical components and control requirements.
4.1.3 Inspection of manufacturing process
4.1.3.1 Description
The inspection for the hereafter stated manufacturing requirements shall be made mainly during the
manufacturing process and entirely before operation with passengers. As a general requirement, the
compliance of the parts,
...
