ISO/TR 24496:2012

TECHNICAL ISO/TR
REPORT 24496
First edition
2012-11-15
Office furniture — Office work
chairs — Methods for the
determination of dimensions
Mobilier de bureau — Sièges de travail pour bureau — Méthodes
pour déterminer les dimensions
Reference number
©
ISO 2012

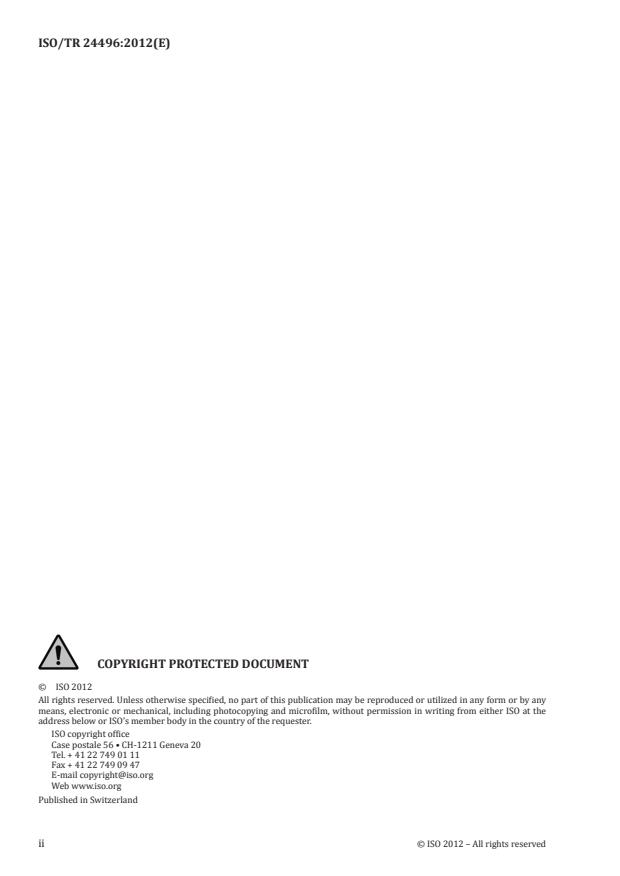

© ISO 2012
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any
means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the
address below or ISO’s member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2012 – All rights reserved

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 General measurement conditions .28
4.1 Preliminary preparation .28
4.2 Tolerances .28
4.3 Measurement uncertainty and compliance evaluations .29
5 Test equipment.29
5.1 Floor surface .29
5.2 CMD placement fixture .29
5.3 Chair measuring device (CMD) .29
5.4 High friction material .29
6 Measurement methods and procedures .31
6.1 General .31
6.2 Chair set-up and placement of CMD .31
6.3 Measurement procedures.35
7 Test report .51
Annex A (informative) Drawings and specifications, PDF files .52
Annex B (informative) Anthropometric equivalents of terms and definitions .56
Annex C (informative) Development history and rationale .65
Bibliography .69

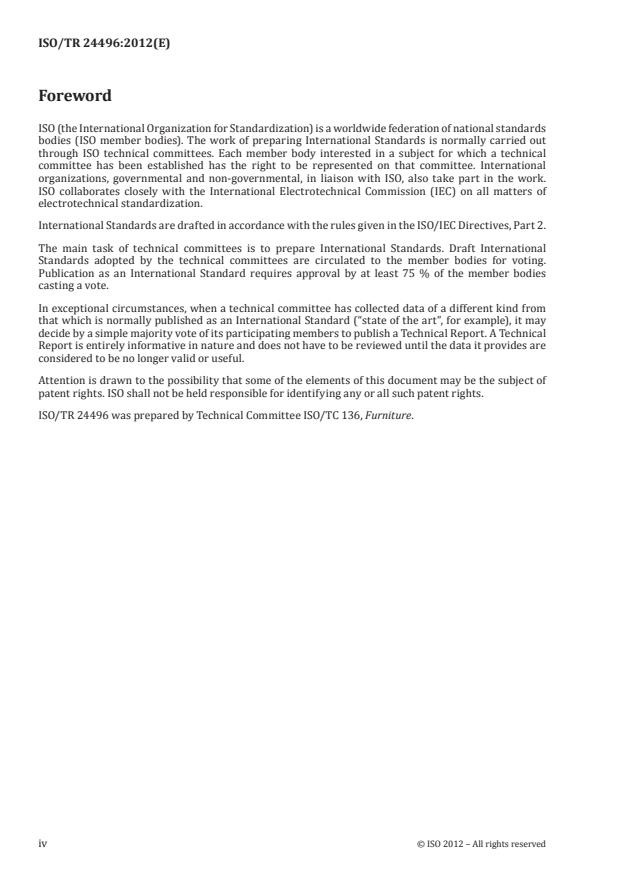

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International
Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies
casting a vote.
In exceptional circumstances, when a technical committee has collected data of a different kind from
that which is normally published as an International Standard (“state of the art”, for example), it may
decide by a simple majority vote of its participating members to publish a Technical Report. A Technical
Report is entirely informative in nature and does not have to be reviewed until the data it provides are
considered to be no longer valid or useful.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO/TR 24496 was prepared by Technical Committee ISO/TC 136, Furniture.
iv © ISO 2012 – All rights reserved

Introduction
The test methods in this Technical Report are based on the manner in which anthropometric
measurements are measured.
Therefore, in order to be able to relate the dimensions of office seating to the anthropometric dimensions,
a theoretical reference seating posture has been adopted. This posture does, however, not automatically
correspond to the ideal or optimum seating posture.
The reference seating posture is as follows:
— the sole of the foot placed on the floor;
— the foot forms an angle of approximately 90° with the lower leg;
— the lower leg is approximately vertical;
— the lower leg forms an angle of approximately 90° with the thigh;
— the thigh is almost horizontal;
— the thigh forms an angle of approximately 90° with the trunk;
— the trunk is erect.
Further information on the anthropometric dimensions can be found in ISO 7250 (all parts) and ISO 14738.
This Technical Report is meant to be used in conjunction with requirements documents. Such documents
will specify which of the dimensions must be measured. It is possible that not all of the measurements
that can be taken by this Technical Report will be specified by the individual requirements document.
TECHNICAL REPORT ISO/TR 24496:2012(E)
Office furniture — Office work chairs — Methods for the
determination of dimensions
1 Scope
This Technical Report specifies methods for the determination of the dimensions of office chairs.
It does not contain dimensional specifications or requirements.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
Not applicable.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
NOTE They do not describe measurement procedures. Measurement procedures can be found in Clause 6.
3.1
angle between backrest and seat
angle γ between the loaded backrest and the loaded seat
Note 1 to entry: See Figure 1.
Key
a backrest
b seat
c Chair Measuring Device (CMD) buttocks pad
d CMD thoracic pad
e CMD pelvic pad
f backrest line
γ angle between backrest and seat
Figure 1 — Angle between backrest and seat
3.2
angle – origin and sign convention
angle sign convention viewed from the right side of the chair is: clockwise angle rotation is positive (+);
counter-clockwise is negative (–)
Note 1 to entry: See Figure 2.
2 © ISO 2012 – All rights reserved

Figure 2 — Angle – origin and sign convention
3.3
armrest height
distance from the top surface of the armrest to the bottom of the loaded CMD buttocks pad parallel to
the backrest line at a distance of 180 mm from the backrest line
Note 1 to entry: See Figure 3.
Dimensions in millimetres
Key
a CMD vertical member
b armrest
c CMD buttocks pad
d intersection of projection of vertical member front face and armrest
e backrest line
f armrest height
Figure 3 — Armrest height
3.4
armrest length
distance along the armrest within an envelope down from the top of the armrest that is 20 mm deep
Note 1 to entry: See Figure 4.
4 © ISO 2012 – All rights reserved

Dimensions in millimetres
Key
a armrest
b armrest length
Figure 4 — Armrest length
3.5
armrest – clear distance between
smallest horizontal distance between armrest from the rear of the seat surface width zone (3.28) forward
to the front edge of the seat (see Figure 5) within the measurement zone 5 mm down from the top of the
armrest (see Figure 7)
Key
a armrest
b armrest pad measurement zone
c clear distance between armrest
d rear of seat width zone
Figure 5 — Armrest – clear distance between
3.6
armrest position – front of
perpendicular distance from the backrest line to the front of the armrest that is in the measurement
zone 120 mm and greater above the top surface of the loaded CMD buttocks pad
Note 1 to entry: See Figure 6.
6 © ISO 2012 – All rights reserved

Dimensions in millimetres
Key
a armrest
b backrest line
c CMD buttocks pad
d measurement zone
e front of armrest position
Figure 6 — Armrest position – front of
3.7
armrest width
horizontal distance across the armrest within the measurement zone 5 mm down from the top of the armrest
Note 1 to entry: See Figure 7.
Dimensions in millimetres
Key
a armrest
b armrest width
Figure 7 — Armrest width
3.8
back to seat movement ratio
ratio of change of the backrest angle relative to the change of angle of the seat that occurs when a seat
and backrest move concurrently
Note 1 to entry: Not applicable to chairs with seat and/or back angles that only move independently.
3.9
backrest angle to vertical
angle β between vertical and the loaded backrest
Note 1 to entry: See Figure 8.
8 © ISO 2012 – All rights reserved

Key
a CMD thoracic pad
b CMD pelvic pad
c backrest line
d vertical
β backrest angle to vertical
Figure 8 — Backrest angle to vertical
3.10
backrest width
smallest horizontal dimension of the backrest within the lumbar zone (3.18)
Note 1 to entry: See Figure 9.
Key
a backrest
b lumbar zone
c backrest width
Figure 9 — Backrest width
3.11
backrest height
distance from the loaded seat to the top of the backrest, measured parallel to the backrest line
Note 1 to entry: See Figure 10.
10 © ISO 2012 – All rights reserved

Key
a backrest
b CMD buttocks pad
c backrest line
d backrest height
Figure 10 — Backrest height
3.12
backrest inclination – range
tilt range of the backrest from its foremost inclination to its most rearward inclination
Note 1 to entry: See Figure 11.
Key
a backrest
b CMD thoracic pad
c CMD pelvic pad
d forward most tilt backrest line
e rearward most tilt backrest line
Δ range of backrest inclination
Figure 11 — Backrest inclination – range
3.13
backrest radius – horizontal
horizontal radius of the backrest measured within the lumbar zone (3.18)
Note 1 to entry: See Figure 12.
12 © ISO 2012 – All rights reserved

Key
a seat
b backrest
c lumbar zone
r horizontal radius of backrest
Figure 12 — Backrest radius – horizontal
3.14
chair measuring device
CMD
instrument for measuring dimensions of chairs
Note 1 to entry: Specified in Annex A.
3.15
hip breadth clearance
smallest horizontal distance between armrest assembly from the rear of the seat width zone (3.28) forward
to the front edge of the armrest or armrest assembly as measured above the top of the seat surface
Note 1 to entry: See Figure 13.
Key
a armrest assembly
b rear of seat surface width zone to front of armrest
c hip breadth clearance
Figure 13 — Hip breadth clearance
3.16
lumbar support – height
distance from the loaded seat to the most prominent segment (or segments) of the lumbar support as
determined by the measuring indicators on the CMD (see Figure 35), measured parallel to the backrest
line (see Figure 14)
14 © ISO 2012 – All rights reserved

Key
a backrest line
b height of lumbar support
L the most prominent segment (or segments) of the lumbar support
Figure 14 — Lumbar support – height
3.17
lumbar support – protrusion
distance from the backrest line to the most prominent segment (or segments) of the lumbar support as
determined by the measuring indicators on the CMD (see Figure 35), measured perpendicular to the
backrest line (see Figure 15)
Key
a backrest line
b protrusion of lumbar support
L most prominent segment (or segments) of the lumbar support
Figure 15 — Lumbar support – protrusion
3.18
lumbar zone
area parallel to the backrest line, 160 mm to 270 mm above the bottom of the loaded CMD buttocks pad
Note 1 to entry: See Figure 16.
16 © ISO 2012 – All rights reserved

Dimensions in millimetres
Key
a lumbar zone
Figure 16 — Lumbar zone
3.19
median plane
vertical plane dividing the chair into two generally symmetrical parts (right and left)
Note 1 to entry: See Figure 17.
Key
a median plane
Figure 17 — Median plane
3.20
neck/head rest protrusion
perpendicular distance from the backrest line to the foremost protrusion on the neck/head rest
Note 1 to entry: See Figure 18.
18 © ISO 2012 – All rights reserved

Key
a neck/head rest
b backrest line
c neck/head rest protrusion
Figure 18 — Neck/head rest protrusion
3.21
neck/head rest height
distance from the loaded seat to the most prominent segment of the neck/head rest, measured parallel
to the backrest line when the neck/hear rest is in its most vertical position
Note 1 to entry: See Figure 19.
Key
a neck/head rest
b backrest line
c neck/head rest height
Figure 19 — Neck/head rest height
3.22
seat depth
distance from the backrest line measured parallel to the CMD buttocks pad to the front of the seat
Note 1 to entry: See Figure 20.
20 © ISO 2012 – All rights reserved

Key
a seat
b CMD buttocks pad
c backrest line
d seat depth
Figure 20 — Seat depth
3.23
seat height
vertical distance, measured at the front of the seat, from the loaded seat to the floor
Note 1 to entry: See Figure 21.
Note 2 to entry: Adjustment of the seat inclination does not constitute a change in seat height.
Key
a seat
b CMD buttocks pad
c front of seat
d seat height
Figure 21 — Seat height
3.24
sitting height
vertical distance, measured 85 mm ahead of the CMD backrest line, from bottom of the loaded CMD
buttocks pad to the floor
Note 1 to entry: See Figure 22.
Note 2 to entry: Adjustment of the seat inclination does not constitute a change in sitting height.
22 © ISO 2012 – All rights reserved

Dimensions in millimetres
Key
a chair seat
b CMD buttocks pad
c backrest line
d sitting height
e sitting height line marked on the CMD
Figure 22 — Sitting height
3.25
seat inclination
angle between the loaded CMD buttocks and the horizontal
Note 1 to entry: See Figure 23.
Key
a CMD buttocks pad
b horizontal
α seat inclination
Figure 23 — Seat inclination
3.26
seat surface depth
dimension of the least seat depth within the zone 115 mm either side of the median plane
Note 1 to entry: See Figure 24.
24 © ISO 2012 – All rights reserved

Dimensions in millimetres
Key
a seat
b median plane
c seat surface depth
Figure 24 — Seat surface depth
3.27
seat surface width
smallest dimension of the seat surface within the seat surface width zone (3.28) marked on the CMD
Note 1 to entry: See Figure 25.
Key
a seat
b seat surface width zone
c seat surface width
Figure 25 — Seat surface width
3.28
seat surface width zone
area along the seat surface, from 65 mm forward of the backrest line to 120 mm forward of the 65 mm
line, that supports the user’s buttocks as marked on the CMD
Note 1 to entry: See Figure 26.
26 © ISO 2012 – All rights reserved

Dimensions in millimetres
Key
a seat surface
b backrest line
c seat surface width zone (120 mm)
Figure 26 — Seat surface width zone
3.29
under-frame – maximum off-set
maximum off-set of the under-frame is the maximum distance between the outermost point of the
under-frame including castors or glides and the axis of rotation
Note 1 to entry: See Figure 27.
Under-frame without castors Under-frame with castors
Key
s maximum off-set of under-frame
Figure 27 — Under-frame – maximum off-set
4 General measurement conditions
Caution must be used to assure that any chair movement, adjustments and/or applied forces do not
dislodge the CMD causing injury to the user or damage to the CMD.
4.1 Preliminary preparation
The chair should be assembled and/or configured according to the instructions supplied with it.
If mounting or assembly instructions are not supplied, the mounting or assembly method should be
recorded in the report.
All adjustments should be operated through their range of adjustments at least one time before
measurements are taken.
If a measurement cannot be taken as specified in the procedures due to the design of the product, it
should be carried out as far as possible as described, and deviations from the measurement procedure
should be recorded in the test report.
The test should be carried out in indoor ambient conditions. If during a test, the temperature is outside of the
range of 15° C to 25° C the maximum and/or minimum temperature should be recorded in the test report.
4.2 Tolerances
The following equipment tolerances should be applicable unless otherwise specified:
28 © ISO 2012 – All rights reserved

— Forces: specified in the relevant clauses;
— Masses: ± 1 % of the nominal mass;
— Dimensions: ± 1 mm of the nominal dimension;
— Angles: ± 1° of the nominal angle.
Test weights, forces, dimensions and angles should be targeted at the nominal values specified.
4.3 Measurement uncertainty and compliance evaluations
Compliance evaluations should consider the measurement uncertainties in determining compliance to
the recommendations or requirements of this Technical Report.
The following measurement uncertainties should be applicable unless otherwise specified:
— Backrest angles: ± 10 %, but not more than ± 2°;
— Backrest-to-seat angles: ± 15 %, but not more than ± 2°;
— Seat angles: ± 1,5°;
— All other dimensions: ± 5 %.
NOTE The uncertainty for this device and method will be evaluated and determined when round-robin
evaluations are complete. The above uncertainties are based on BIFMA, International CMD-1-2002 Universal
measurement procedure for the use of BIFMA chair measuring device (CMD).
5 Test equipment
5.1 Floor surface
A rigid, horizontal and flat surface.
5.2 CMD placement fixture
A fixture which holds the chair in position while applying the horizontal force and lowering the CMD
into the chair. This device should not prevent adjustment of the chair. An example of the device (or
devices) is shown in Figures 28 and 29.
5.3 Chair measuring device (CMD)
Device as specified in detail in Annex A.
NOTE A common calibration procedure of the lumbar support measuring device is subject to current research.
5.4 High friction material
Friction cloth: for placing between the seat and the CMD in order to prevent the CMD from sliding on the
seat during measurements. It can be e.g. anti-slip material used underneath carpets. The thickness of
the material, when compressed by the CMD, should not exceed 1 mm.
Key
a CMD lowering crane
b horizontal force loading device [see 6.2.2 e)]
c chair base restraint mechanism
Figure 28 — Example of CMD placement fixture without chair
30 © ISO 2012 – All rights reserved

Key
a CMD lowering crane
b horizontal force loading device [see 6.2.2 e)]
c chair base restraint mechanism
d CMD
Figure 29 — Example of CMD placement fixture with chair and CMD
6 Measurement methods and procedures
6.1 General
The measurements should be taken to determine the dimensions and angles of the chair.
After the chair set-up and the CMD placement (6.2) the measurements should be taken as specified in
the measurement procedures (6.3).
6.2 Chair set-up and placement of CMD
6.2.1 Chair set-up
a) Position the chair on the floor surface (5.1) with the seat in the highest position.
b) Adjust all of the following to the mid position of their range: seat depth, back rest tilt tension, back
rest height, and lumbar devices. If there are independently adjustable lumbar device(s), adjust
the height to the approximate midpoint of the lumbar zone, then adjust the protrusion to its mid-
position, if that can be done without altering the height setting.
c) Adjust the seat so that it is approximately horizontal, without forcing the functions of the chair.
d) If independently adjustable, position the backrest so that the support surface is approximately
vertical. If the adjustment of the backrest to a vertical position will change the seat inclination, the
horizontal seat position should take precedence.
6.2.2 Initial placement of CMD on chair
a) Place a layer of high friction material (5.4) between the CMD and the seat in order to ensure that the
CMD does not slide on the seat.
b) The vertical member of the CMD should be locked at 90° until step g), 6.2.2 (see Figure 30).
Key
a CMD vertical member to buttocks lock
Figure 30 — CMD vertical member locked
c) Place and attach the chair in the CMD placement fixture (5.2), so that CMD vertical member is close
to, but not touching, the chair’s backrest.
d) Ensure the CMD, chair and chair fixture are in alignment with the median plane. Ensure the CMD
buttocks pad is approximately horizontal. Place the CMD seat depth indicator at a position that will
be near, but not in contact with, the front edge of the seat as the CMD is lowered into the chair. Lower
the CMD until it is just above seat (no part of the CMD should touch the seat) and just in front of the
back rest (see Figure 31).
32 © ISO 2012 – All rights reserved

Figure 31 — CMD hovering above chair
e) Push the CMD towards the backrest with a force F of (40 ± 2) N (see Figure 32).
f) With this force acting, lower the CMD into the seat while maintaining CMD alignment with the chair.
Ensure the seat depth indicator does not touch the chair during loading/placement.
Key
F force of (40 ± 2) N
Figure 32 — Installation fixture force application
g) Release the vertical member lock;
h) Remove the force F;
i) Position the CMD seat depth indicator so that it is just touching the front edge of the seat (see Figure 33).
Key
a seat depth indicator
Figure 33 — Location of the seat depth indicator
34 © ISO 2012 – All rights reserved

6.2.3 Final placement of CMD on chair
With the CMD fully resting on the seat, re-adjust the chair (typically by adjusting the seat inclination), if
needed, so that the CMD buttocks pad is as horizontal as possible.
NOTE This may require removal and re-placing of the CMD.
If any adjustments to the chair were made, reclamp the vertical member at 90°, remove the CMD and
follow the procedure in 6.2.2 to reposition the CMD in the chair.
Mark the chair with the seat surface width zone identified on the CMD (3.28).
Mark the lumbar zone (3.18) as defined.
6.3 Measurement procedures
6.3.1 Initial chair measurements
6.3.1.1 Lumbar support protrusion and height (Probe method)
Lock the CMD vertical member to the CMD buttocks pad at the angle that it has taken after its
release from 90°.
Apply a force perpendicular to the vertical member of the CMD simultaneously to 18 vertically stacked
segments. The bottom of the lowest segment should start at 150 mm from the base of the buttocks pad.
Each segment should apply a force of (3,5 ± 0,5) N against the backrest through a 10 mm high by 60 mm
wide surface area. The scale on the CMD should be used to indicate the height and depth of the most
prominent segment of the lumbar protrusion (see Figures 34 and 35).
Make the various lumbar support protrusion depth adjustments available to cause the lumbar protrusion
to be its greatest dimension. If adjustments are made, remove the force and reapply it. Record this
dimension as the maximum lumbar protrusion. Record the lumbar support height at this setting. If the
greatest lumbar protrusion is the same over more than one height indication, record all those heights
with the same protrusion.
Key
a Pressure gage
b Pressure pump
c Lumbar support protrusion and height measurement; vertically stacked segments
d Lumbar support protrusion scale
e Lumbar support height scale
Figure 34 — Lumbar support protrusion and height measurement (overall view)
36 © ISO 2012 – All rights reserved

Without adjusting the height, adjust the lumbar protrusion (horizontal adjustment), if any, to cause the
lumbar support protrusion to be its least dimension. Reapply the force of (3,5 ± 0,5) N to the vertically
stacked segments. Record this dimension as the minimum lumbar protrusion.
Calculate the difference between the maximum and minimum protrusion measurements and record the
difference as the protrusion adjustment range.
Remove the force on the vertically stacked segments. Readjust the lumbar protrusion settings so that
the lumbar protrusion depth is at its maximum.
When available, make the various backrest adjustments including lumbar support so that the lumbar
support is at the greatest height that can be attained. Reapply the force of (3,5 ± 0,5) N to the vertically
stacked segments. Record this dimension as the maximum lumbar support height. If more than one
segment is at a maximum protrusion, record the highest one as the maximum support height. Remove
the force on the vertically stacked segments.
When available, make the various backrest adjustments including that lumbar support is at the least
height that can be attained. Reapply the force of (3,5 ± 0,5) N to the vertically stacked segments. Record
this dimension as the minimum lumbar support height. If more than segment is at a minimum protrusion,
record the highest on as the minimum support height.
Calculate the difference between the maximum and minimum height measurements and record the
difference as the lumbar support height adjustment range.
If the calculations above result in zero, then record the measured dimension as lumbar support
protrusion and/or height as appropriate.
Remove the force on the vertically stacked segments. Reposition the lumbar support adjustments to the
position used in 6.2.1 b).
Key
a Lumbar support protrusion and height measurement; vertically stacked segments
b Lumbar support protrusion scale
c Maximum lumbar support protrusion span
d Maximum lumbar support height
e Lumbar support height scale
f Maximum lumbar support protrusion
Figure 35 — Lumbar support protrusion and height measurement (close-up view)
38 © ISO 2012 – All rights reserved

6.3.1.2 Inclination of seat, backrest angle to vertical and angle between seat and backrest
Measure the angle of inclination of the seat to horizontal, backrest angle to vertical and angle between
seat and backrest in the sequence given in Table 1.
The chair should be adjusted through each of the positions given in Table 1, in sequence, to assure
appropriate positioning of the chair for each measurement. Record those measurements required in the
applicable standards document.
NOTE 1 It may not be possible to take all of these measurements on some types of chairs.
NOTE 2 Prior to taking forward tilt measurements; the CMD may need to be secured to the chair to prevent
dislodgement.
Table 1 — Angle measurement sequence
Angle
Backrest
Meas- Graphical presen- Inclination between
angle to ver-
urement tation of meas- Settings of seat backrest and
tical
a
sequence urement α seat
b
β
c
γ
— Set seat as horizon-
tal as possible
— Set backrest as ver-
tical as possible
— Set only the seat to
its most forward tilt
position
2 — Backrest remains
at the same adjust-
ment as the prior step,
e
but may move
— Set only the seat to
its most rearward tilt
position
3 — Backrest remains
at the same adjust-
ment as the prior step,
but may move
Table 1 (continued)
Angle
Backrest
Meas- Graphical presen- Inclination between
angle to ver-
urement tation of meas- Settings of seat backrest and
tical
a
sequence urement α seat
b
β
c
γ
— Backrest remains
at the same adjust-
ment as the prior step,
but may move
— Set backrest to its
most forward position
— Set seat to its most
forward tilt position
— Backrest remains
at the same adjust-
ment as the prior step,
e
but may move
— Set seat as horizon-
tal as possible
— Backrest remains
at the same adjust-
6 ment as the prior step,
e
but may move
— Backrest remains
at the same adjust-
ment as the prior step,
but may move
— Set backrest to its
most rearward posi-
d
tion
— Set seat to its most
rearward tilt position
— Backrest remains
at the same adjust-
ment as the prior step,
d
but may move
40 © ISO 2012 – All rights reserved

Table 1 (continued)
Angle
Backrest
Meas- Graphical presen- Inclination between
angle to ver-
urement tation of meas- Settings of seat backrest and
tical
a
sequence urement α seat
b
β
c
γ
— Set seat to its most
forward tilt position
— Backrest remains
at the same adjust-
ment as the prior step,
d,e
but may move
a
α is read from the protractor positioned on the buttocks pad of the CMD.
b
β is read from the protractor positioned on the front of the vertical member of the CMD.
c
γ can be read directly from the angle indicator on the vertical member of the CMD or can be
calculated from protractor readings.
d
When measuring backrest angle at its most rearward position, set the backrest adjustment
tension to minimum and move the top section of the rear buttocks weights (25 kg) to the top back-
rest. Additional force may be applied to the backrest to assure the full range of movement is attained.
e
When measuring inclination of seat at its most forward position, if the seat tension is sepa-
rately adjustable, set to minimum. Additional force may be applied to the seat to assure the full range
of movement is attained.
6.3.1.3 Back to seat movement ratio
This measurement applies only to chairs that have angles between the seat and back that vary as the
chair tilts (e.g. “synchro-tilts”) (3.8).
Calculate the back to seat movement ratio as follows:
(backrest angle – backrest angle ) / (seat angle – seat angle )
most forward most rearward most forward most rearward)
6.3.2 Measurements with the chair components adjusted to their maximum positions
Reclamp the vertical member at 90° in the CMD.
Remove the CMD from the chair.
If independently adjustable, the lumbar protrusion should be set to its minimum depth. If independently
adjustable, the lumbar height should be set at the approximate midpoint of the lumbar zone. Adjust
the seat and backrest so that they are in their most horizontal and vertical position respectively. All
other components, including head and backrest, except the lumbar height/depth should be set to their
maximum position. Moving the backrest may move the lumbar away from the midpoint of the lumbar
zone; this is acceptable.
Position the CMD in the chair according to 6.2.2 and 6.2.3.
6.3.2.1 Seat height and sitting height
The seat height should be measured with the seat in its most horizontal position.
If the seat is not in a horizontal position, but can be moved to the horizontal position with little effort,
then move the seat to horizontal position and secure it there. If the seat is secured in this manner, the
technique should be noted in the test report.
Measure the seat height as the vertical distance from the underside of the CMD to the floor on a measuring
scale placed through the seat height slot of the CMD at the front of the seat (see Figure 36).
Key
a seat height measurement slot
b seat height
Figure 36 — Seat height measurement (2 views)
Measure the sitting height point at the top of the CMD buttocks pad at the “sitting height point” marked
on the buttocks pad to the floor and subtract 60 mm from the measurement (see Figure 38). When a
chair arm interferes with the direct measurement of the height, place a spacer on the buttocks pad that
is high enough that its height is greater than the arm. Measure the height of that stack and subtract both
the spacer thickness and 60 mm from the measurement.
42 © ISO 2012 – All rights reserved

Key
a Sitting height line
b Sitting height plus 60 mm
Figure 37 — Sitting height measurement
6.3.2.2 Seat depth
Read the depth from the measuring scale on the top of the buttocks pad. Adjusting the seat inclination
or angle of backrest does not constitute seat depth adjustment (see Figure 38).
Key
a seat depth
Figure 38 — Seat depth measurement
6.3.2.3 Backrest height
Slide the backrest height gauge until it touches the top of the backrest; read the height on the scale
(see Figure 39).
Key
a backrest height scale
b backrest height
Figure 39 — Backrest height measurement
44 © ISO 2012 – All rights reserved

6.3.2.4 Front of armrest position
The armrest swivel, fore/aft movement and/or armrest clearance should be adjusted as required to
achieve the most forward position within the armrest measurement zone (see 3.6).
Place a bar across the armrests at front edges. If the front edges of the armrest are less than 120 mm
above the top surface of the loaded CMD buttocks pad, then place the bar at the front part of the armrest
that is at the 120 mm high point. Measure the distance between the bar and the front part of vertical
member of the CMD and add 180 mm (see Figure 40); (see 3.6 and Figure 6).
Dimensions in millimetres
Key
a front of armrest position
b backrest line
c front of armrest to front of CMD vertical member
Figure 40 — Armrest position – front
6.3.2.5 Armrest height
Measure the armrest height based on a straight line between the top of the armrests where it crosses
the scale on the front of the vertical member of the CMD (see Figure 41).
Key
a armrest height
Figure 41 — Armrest height
6.3.2.6 Neck/head rest height and protrusion
Align the marker on the neck/head rest measurement tool with the most forward point on the neck/head
rest. Read the neck/head rest height from the ruler at the front of the vertical height adjustment tube
and the protrusion from the ruler on the side of the horizontal adjustment tube (see Figure 42).
46 © ISO 2012 – All rights reserved

Key
a neck/head rest protrusion
b neck/head rest height
c most forward point of neck/head rest
Figure 42 — Neck/head rest height and protrusion
6.3.3 Measurements with the chair components in their minimum position
Reclamp the vertical member at 90° in the CMD. Remove the CMD from the chair. If independently
adjustable, the lumbar protrusion should be set to its minimum depth. If independently adjustable, the
lumbar height should be set at the approximate midpoint of the lumbar zone. Adjust the seat and backrest
so that they are in their most horizontal and vertical positions respectively. All other components except
the lumbar height/depth should be set to their minimum position. Moving the backrest may move the
lumbar away from the midpoint of the lumbar zone; this is acceptable. Position the CMD in the chair
according to 6.2.2 and 6.2.3.
6.3.3.1 Seat height and sitting height
Measure the seat height and sitting height as in 6.3.2.1.
6.3.3.2 Seat depth
Measure the seat depth as in 6.3.2.2.
6.3.3.3 Backrest height
Measure the height to the top of the backrest as in 6.3.2.3.
6.3.3.4 Front of armrest position
Measure the front of the armrest position as in 6.3.2.4.
6.3.3.5 Armrest height
Measure the armrest height as in 6.3.2.5.
6.3.3.6 Neck/head rest height and protrusion
Measure the neck/head rest height and protrusion as in 6.3.2.6.
6.3.4 Measurements without the CMD in the chair
Reclamp the vertical member at 90° in the CMD. Remove the CMD and carry out the measurements given
in the following sub-clauses.
6.3.4.1 Seat surface width
Measure the narrowest seat surface width within the seat surface plane width zone.
6.3.4.2 Seat surface depth
Measure the least seat surface depth within the span 115 mm either side of the median plane (see Figure 24).
6.3.4.3 Backrest width
Measure the narrowest backrest width within the lumbar zone.
6.3.4.4 Backrest horizontal radius
Measure the backrest horizontal radius within the lumbar zone.
6.3.4.5 Armrest length
Measure the greatest length in the fore and aft direction of the armrests horizontally within 20 mm
below the top surface using callipers with jaws 20 mm long (see Figure 43).
48 © ISO 2012 – All rights reserved

Figure 43 — Armrest length callipers
6.3.4.6 Width of armrests
Measure the greatest width in the side to side direction of the armrests horizontally within 5 mm below
the top surface using callipers with jaws 5 mm long (see Figure 44).
Figure 44 — Armrest width callipers
6.3.4.7 Hip breadth clearance
Adjust the armrests to their widest possible position. Measure the minimum width between the armrest
assembly from 85 mm forward of the backrest line to the front edge of the armrest above the top of the
seat surface (see Figure 45).
6.3.4.8 Armrests – clear distance between
Adjust the armrests to their widest possible position and then to their narrowest possible position.
Measure and record the smallest horizontal distance between the armrests in each position from the
rear of the seat width zone forward to the front edge of the seat (see Figure 21 c) within the measurement
zone 5 mm down from the top of the armrest (see Figure 7).
6.3.4.9 Maximum offset of the under-frame
Measure the maximum offset of the under-frame as the distance from the axis of chair rotation to the
outermost point of the base/castor/glide.
50 © ISO 2012 – All rights reserved

ISO/
...
