ISO 13785-2:2002

INTERNATIONAL ISO
STANDARD 13785-2
First edition
2002-12-15
Reaction-to-fire tests for façades —
Part 2:
Large-scale test
Essais de réaction au feu des façades —
Partie 2: Essai à grande échelle

Reference number

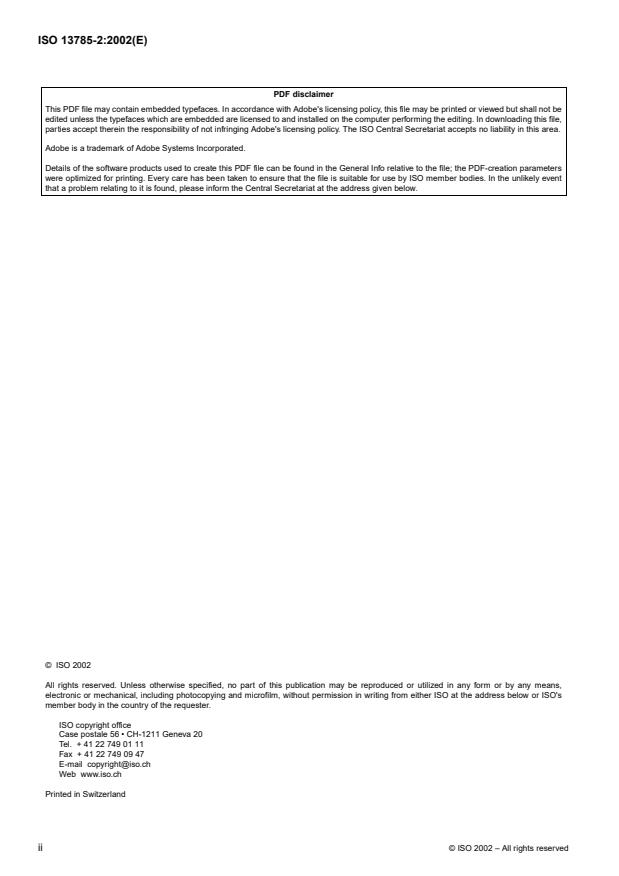

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not be
edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading this file,
parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation parameters
were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the unlikely event
that a problem relating to it is found, please inform the Central Secretariat at the address given below.
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO's
member body in the country of the requester.
ISO copyright office
Case postale 56  CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.ch
Web www.iso.ch
Printed in Switzerland
©
ii ISO 2002 – All rights reserved

Contents Page
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Principle . 3
5 Test facility and test facility calibration . 3
6 Fire source and exposure . 5
7 Test specimen . 6
8 Test specimen instrumentation . 6
9 Test specimen conditioning . 8
10 Test environment . 9
11 Procedure . 9
12 Expression of results . 9
13 Precision . 9
14 Test report . 10
Annexes
A Standard ignition source . 11
B Alternative ignition sources . 13
B.1 Liquids . 13
B.2 Wooden cribs . 13
Bibliography. 16
©
ISO 2002 – All rights reserved iii

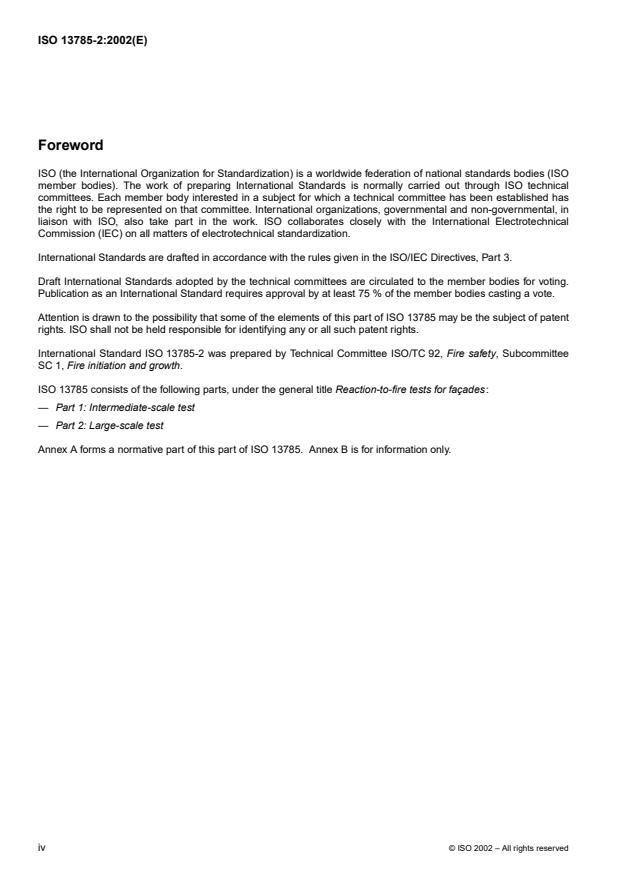

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO
member bodies). The work of preparing International Standards is normally carried out through ISO technical
committees. Each member body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, governmental and non-governmental, in
liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical
Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.
Draft International Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this part of ISO 13785 may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
International Standard ISO 13785-2 was prepared by Technical Committee ISO/TC 92, Fire safety, Subcommittee
SC 1, Fire initiation and growth.
ISO 13785 consists of the following parts, under the general title Reaction-to-fire tests for façades:
— Part 1: Intermediate-scale test
— Part 2: Large-scale test
Annex A forms a normative part of this part of ISO 13785. Annex B is for information only.
©
iv ISO 2002 – All rights reserved

Introduction
Fire is a complex phenomenon. Its behaviour and effects depend on a number of interrelated factors. The behaviour
of materials and products depends on the characteristics of the fire, the method of use of the materials and the
[2]
environment in which they are exposed. The theory of “reaction to fire tests” is explained in .
The need for improved thermal insulation of buildings, both for single- and multi-storey dwellings and for industrial
buildings, has led to an increased use of insulated and often ventilated façades.
In their end use, façade assemblies can potentially be subjected to three primary fire exposure scenarios. These are:
a) an interior compartment fire venting through a window on to a façade;
b) an exterior fire in combustibles accumulated near a wall (e.g. rubbish, vegetation, bush fires);
c) radiant exposure from fire in an adjacent building.
This part of ISO 13785 only covers items a) and b). Item c) is typically regulated by spatial separation and allowable
openings in the building codes.
The test specified in this part of ISO 13785 is for a post-flashover fire scenario within a building compartment venting
through a window opening and impinging directly on to a façade. The window fire exposure may also simulate a fire
from combustibles accumulated near a wall. The results may not, however, reflect the actual performance of exterior
wall assemblies under all fire exposure conditions.
Fire on a façade can spread in several ways, with the most significant over a combustible exterior surface. Fire can
also travel vertically and horizontally through air cavities within cladding or façade components or through an
insulation core. Experience from real fire accidents, and also laboratory studies worldwide on configurations with and
without internal corners, show that the worst-case situation is with an internal corner. This part of ISO 13785
therefore includes an internal corner.
Fire incidents show that fire can spread along an exterior façade, from the level of fire origin to the level above,
regardless of the contribution from façade components. This test method therefore is intended to determine the
contribution from the façade components to upward fire spread, beyond the floor immediately above the level of fire
origin (i.e. the contribution from façade components for fire to spread from the level of fire origin to two levels above,
also called leap-frogging).
The two parts of ISO 13785 provide two methods of test: an intermediate-scale test specified in Part 1 which should
only be used for screening or for evaluation of subcomponents or “families of products”, and the large scale test
specified in this part, which should be used to provide an end-use evaluation of all aspects of the façade system. A
direct correspondence between the intermediate-scale test, specified in Part 1, and the full-scale test specified in this
part, should not be assumed. The purpose of Part 1 is only to reduce the burden of testing in Part 2 by eliminating
systems which fail Part 1.
The test specified in this part of ISO 13785 is intended to evaluate external wall or facing materials and constructions
[3]
of façades which are not suitable for assessment using ISO 9705 , which evaluates the fire growth from a surface
product intended to be used for internal wall and ceiling linings.
The test specified in this part of ISO 13785 does not rely on the use of asbestos-based materials.
©
ISO 2002 – All rights reserved v

INTERNATIONAL STANDARD ISO 13785-2:2002(E)
Reaction-to-fire tests for façades —
Part 2:
Large-scale test
WARNING — So that suitable precautions may be taken to safeguard health, all persons involved in the fire
tests should be aware of the possibility that toxic or harmful gases may be evolved during exposure of test
specimens.
Hazards are encountered when assessing the fire performance of any product on a large scale and it is
essential that adequate precautions be taken.
Particular attention should be paid to the potential evolution of smoke and toxic gases and to the fact that
extensive flaming of specimens can occur sometimes, resulting in mechanical failure of fixings and joints
and possible structural collapse.
An adequate means of extinguishing the specimen should be provided.
1 Scope
This part of ISO 13785 specifies a method of test for determining the reaction to fire of materials and construction of
façade claddings when exposed to heat and flames from a simulated interior compartment fire with flames emerging
through a window opening and impinging directly on the façade. The information generated from this test may also
be applicable to the scenario of an external fire impinging on a façade; however, the results may not be applicable for
all fire exposure conditions.
This method is applicable only to façades and claddings that are non-loadbearing. No attempt is made to determine
the structural strength of the façade or cladding.
This test is not intended to determine the fire behaviour of a given building façade. Details such as balconies,
windows, window shutters, curtains, etc., are not considered in this test. This test does not include the risk of fire
spread, for example through the window details of the façade system, as it only is constructed as a façade wall.
There is clear evidence that an internal corner (also called a re-entrant corner) configuration produces a more
intense fire exposure than a flat façade. The most commonly encountered internal re-entrant corner is with an angle
◦ ◦
90 90
of . The test façade specimen therefore contains an internal corner with a re-entrant angle of .
The test method described is intended to evaluate the inclusion of combustible components within façades and
claddings of buildings which are otherwise of non-combustible construction.
2 Normative references
The following normative documents contain provisions which, through reference in this text, constitute provisions of
this part of ISO 13785. For dated references, subsequent amendments to, or revisions of, any of these publications
do not apply. However, parties to agreements based on this part of ISO 13785 are encouraged to investigate the
possibility of applying the most recent editions of the normative documents indicated below. For undated references,
the latest edition of the normative document referred to applies. Members of ISO and IEC maintain registers of
currently valid International Standards.
ISO 13943:2000, Fire safety — Vocabulary
IEC 60584-2, Thermocouples — Part 2: Tolerances
©
ISO 2002 – All rights reserved 1

3 Terms and definitions
For the purposes of this part of ISO 13785, the terms and definitions given in ISO 13943:2000 and the following
apply.
3.1
assembly
fabrication of materials and/or composites
EXAMPLE Sandwich panels.
NOTE An assembly may include an air gap, and vertical and horizontal joints.
3.2
composite
combination of materials that are generally recognized in building construction as discrete entities
EXAMPLES Coated, laminated or heterogeneous mixed materials.
3.3
exposed surface
surface of a product subjected to the heating conditions of the test
3.4
façade
cladding
products or constructions added to the external surface of an existing wall or frame
NOTE The structure can be of concrete, lightweight concrete block work, masonry, steel, timber, etc. The cladding may be
applied directly to this structure or may incorporate an air gap and/or an insulating layer.
3.5
material
single substance or uniformly dispersed mixture
EXAMPLES Metal, stone, timber, concrete, mineral wool, polymers.
3.6
product
material, composite or assembly about which information is required
3.7
specimen
façade or cladding representing the product of the end-use façade including joints and fixings
NOTE 1 The specimen does not include the lightweight concrete block wall, if used, of the test rig.
NOTE 2 The specimen may include an air gap.
3.8
surface product
any part of a building that constitutes an exposed surface on the walls and/or the ceiling/roof
EXAMPLES Panels, boards.
©
