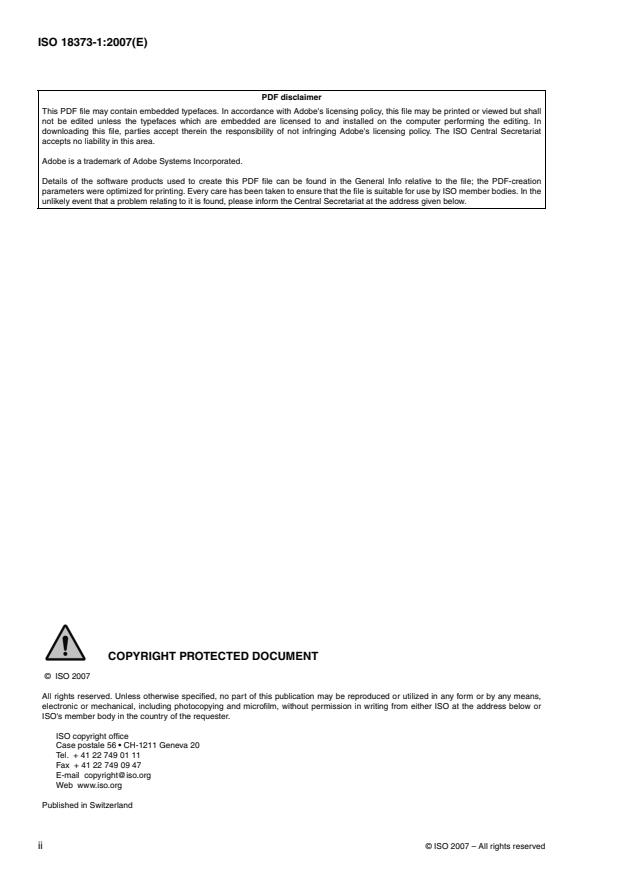

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall
not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the
unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56  CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
©
ii ISO 2007 – All rights reserved

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the International
Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 18373-1 was prepared by Technical Committee ISO/TC 138, Plastics pipes, fittings and valves for the
transport of fluids, Subcommittee SC 5, General properties of pipes, fittings and valves of plastic materials and
their accessories - Test methods and basic specifications.
ISO 18373 consists of the following parts, under the general title Rigid PVC pipes — Differential scanning
calorimetry (DSC) method:
— Part 1: Measurement of the processing temperature
— Part 2: Measurement of the enthalpy of fusion of crystallites
©
ISO 2007 – All rights reserved iii

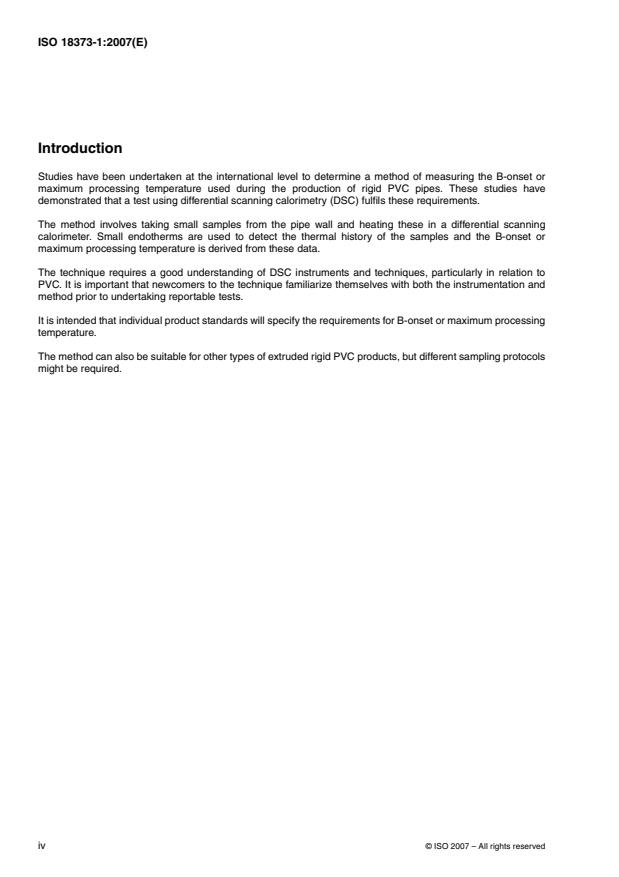

Introduction
Studies have been undertaken at the international level to determine a method of measuring the B-onset or
maximum processing temperature used during the production of rigid PVC pipes. These studies have
demonstrated that a test using differential scanning calorimetry (DSC) fulfils these requirements.
The method involves taking small samples from the pipe wall and heating these in a differential scanning
calorimeter. Small endotherms are used to detect the thermal history of the samples and the B-onset or
maximum processing temperature is derived from these data.
The technique requires a good understanding of DSC instruments and techniques, particularly in relation to
PVC. It is important that newcomers to the technique familiarize themselves with both the instrumentation and
method prior to undertaking reportable tests.
It is intended that individual product standards will specify the requirements for B-onset or maximum processing
temperature.
The method can also be suitable for other types of extruded rigid PVC products, but different sampling protocols
might be required.
©
iv ISO 2007 – All rights reserved

INTERNATIONAL STANDARD ISO 18373-1:2007(E)
Rigid PVC pipes — Differential scanning calorimetry (DSC)
method —
Part 1:
Measurement of the processing temperature
1Scope
This part of ISO 18373 specifies a method for the determination of the processing temperature of rigid PVC
pipe samples. The method is based on the measurement of the thermal history using differential scanning
calorimetry (DSC) and is suitable for all types of rigid PVC pipes.
2 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
2.1
baseline tilting
adjustment of the angle of the baseline to bring it to the horizontal
2.2
curve magnification
magnification of the differential scanning calorimetry (DSC) curve around A-onset and B-onset temperature
(“zooming”)
2.3
A-onset
indication of first crystallite melting
2.4
B-onset
indication of maximum processing temperature (T )
p
2.5
instrumental baseline
measurement with empty sample pan, i.e. background subtraction
2.6
position of sample
location in the product from where the sample was taken
2.7
purge gas
gas used to ensure an inert environment
2.8
repeat samples
samples from the same position
©
ISO 2007 – All rights reserved 1

3Principle
DSC is a well-established method for testing the melt temperature in PVC products (see References [1]
and [2]).
The benefits with this test are that an accurate assessment can be made of the processing temperature, as well
as the possibility of finding variations in the processing temperature in local areas of the product, due to the fact
that only a small size of sample is required for the test. This enables the operator to cut samples from different
locations around the pipe circumference. Thus, temperature variations in the pipe wall can be examined.
The characteristic B-onset temperature occurs because crystallites with melting points at or above the
maximum processing temperature (T ) will be annealed, thus slightly raising their melting point. Crystallites that
p
do melt at T will recrystallize on cooling and therefore will have melting points below T . Thus, there are very
p p
few crystallites with melting temperatures in the immediate vicinity of T .
p
4 Apparatus
4.1 DSC instrument, and associated software, calibrated.
Calibration should be carried out using at least two different metals. An instrumental baseline must be obtained
with an empty sample pan and reference pan in place, and with temperature settings and purge gas identical to
the settings to be used for the sample analysis.
4.2 Aluminium sample pans.
4.3 Inert purge gas (e.g. N , Ar, etc.), of at least industrial quality.
4.4 Analytical balance, with an accuracy to within 0,01 mg.
4.5 Slow-speed saw (see Reference [3]), knife, or any other device introducing neither heat nor stress into
the sample as it is cut.
5 Preparation of the test pieces and the test
◦ ◦ ◦ ◦
5.1 Take at least
...
